Organometallics 2001, 20, 1190-1194
Syn th esis a n d Str u ctu r es of Mon om er ic Diva len t
Ger m a n iu m a n d Tin Com p ou n d s Con ta in in g a Bu lk y
Dik etim in a to Liga n d †
Yuqiang Ding, Herbert W. Roesky,* Mathias Noltemeyer, and
Hans-Georg Schmidt
Institut fu¨r Anorganische Chemie der Universita¨t Go¨ttingen,
Tammannstrasse 4, D-37077 Go¨ttingen, Germany
Philip P. Power
Department of Chemistry, University of California, Davis, California 95616
Received October 11, 2000
Reaction of the â-diketiminato lithium salt Li(OEt2)[HC(CMeNAr)2] (Ar ) 2,6-i-Pr2C6H3)
with GeCl2‚(dioxane) and SnCl2 in diethyl ether provided the monomeric complexes [HC-
(CMeNAr)2]MCl (M ) Ge (2), Sn (3), respectively) with a three-coordinated metal center.
The reductive dehalogenation reactions of 3 with C8K and LiAlH4 afforded [HC(CMeNAr)2]2Sn
(7) and [HC(CMeNAr)2]AlH2, respectively. The metathesis reactions of 3 with t-BuLi, AgSO3-
CF3, and NaN3 resulted in the formation of [HC(CMeNAr)2]Sn(t-Bu) (4), [HC(CMeNAr)2]-
Sn(OSO2CF3) (5), and [HC(CMeNAr)2]SnN3 (6), respectively. Compounds 2, 3, 5, and 7 were
characterized by single-crystal X-ray structural analysis. The structures indicate that the
â-diketiminato backbone is essentially planar and the metal centers reside in distorted-
tetrahedral environments with one vertex occupied by a lone pair of electrons. The bond
angles at the metal center are in the range 85.2(8)-106.8(2)°, and the most acute angle is
associated with the bite of the chelating ligand.
In tr od u ction
steric flexibility is afforded by variation of the substit-
uents on the ligand backbone, can be used as a spectator
ligand. Such ligands already have been employed in
transition-metal chemistry.4 Recently the coordination
chemistry of such ligands with main-group elements has
drawn attention.5 We have prepared the first monomeric
aluminum(I) compound, [{HC(CMeNAr)2}Al] (Ar ) 2,6-
i-Pr2C6H3), by taking advantage of such a ligand.6
Herein we report on the preparation of compounds of
divalent heavier group 14 elements using such a ligand,
LGeCl (2) and LSnCl (3) (L ) HC(CMeNAr)2), and the
resulting derivatives LSn(t-Bu) (4), LSn(OSO2CF3) (5),
LSnN3 (6), and L2Sn (7). Compounds 2, 3, 5, and 7 have
been characterized by single-crystal X-ray structural
analysis.
There is widespread interest in the chemistry of
divalent derivatives of the heavier group 14 elements,
due to their carbene-like properties. Stable tin(II)
compounds of formula (SnR2)1,2 and (RSnX1)1,2 (R )
bulky ligand, X1 ) halide) are well-characterized.1 In
contrast, derivatives of tin(II) of the type Sn(X2)R, where
X2 is a small ligand other than halide, have received
much less attention. To the best of our knowledge, only
few such compounds are known, including Sn(C7H7)-
[C6H3-2,6-(CH2NMe2)2],1e [(n-Pr)2ATI]SnN3 (where
[(n-Pr)2ATI]- ) N-(n-propyl)-2-(n-propylamino)tropon-
iminate),1l Sn[B(C6F5)4]Cp,2 and [Sn(SO3CF3){N(Si-
Me3)2}]2.3 The anionic chelating â-diketiminato ligand
[HC(CRNR′)2]- (R ) Me, Ph; R′ ) SiMe3, aryl), where
† Dedicated to Professor Rolf Appel on the occasion of his 80th
birthday.
Exp er im en ta l Section
Gen er a l Con sid er a tion s. All manipulations were carried
out using standard Schlenk techniques or in a glovebox under
(1) Selected examples: (a) Bigwood, M. P.; Corvan, P. J .; Zuckerman,
J . J . J . Am. Chem. Soc. 1981, 103, 7643. (b) West, R. Science 1984,
225, 1108. (c) Raabe, G.; Michl, J . Chem. Rev. 1985, 85, 419. (d)
Engelhardt, L. M.; J olly, B. S.; Lappert, M. F.; Raston, C. L.; White,
A. H. J . Chem. Soc., Chem. Commun. 1988, 336. (e) J astrzebski, J . T.
B. H.; Schaaf, P. A.; Boersma, J .; Koten, G. Organometallics 1989, 8,
1373. (f) Eaborn, C.; Izod, K.; Hitchcock, P. B.; So¨zerli, S. E.; Smith, J .
D. J . Chem. Soc., Chem. Commun. 1995, 1829. (g) Okazaki, R,; West,
R. Adv. Organomet. Chem. 1996, 39, 232. (h) Baines, K. M.; Stibbs,
W. G. Adv. Organomet. Chem. 1996, 39, 275. (i) Drost, C.; Hitchcock,
P. B.; Lappert, M. F.; Pierssens, L. J . J . Chem. Soc., Chem. Commun.
1997, 1141. (j) Hitchcock, P. B.; Lappert, M. F.; Layh, M. Inorg. Chim.
Acta 1998, 269, 181. (k) Pu, L.; Olmstead, M. M.; Power, P. P.
Organometallics 1998, 17, 5602. (l) Ayers, A. E.; Marynick, D. S.; Dias,
H. V. R. Inorg. Chem. 2000, 39, 4147.
(4) (a) Hitchcock, P. B.; Lappert, M. F.; Liu, D. J . Chem. Soc., Chem.
Commun. 1994, 2637. (b) Hitchcock, P. B.; Lappert, M. F.; Tian, S. J .
Chem. Soc., Dalton Trans. 1997, 1945. (c) Rahim, M.; Taylor, N. J .;
Xin, S.; Collins, S. Organometallics 1998, 17, 1315. (d) Lee, L. W. M.;
Piers, W. E.; Elsegood, M. R. J .; Clegg, W.; Parvez, M. Organometallics
1999, 18, 2947.
(5) (a) Qian, B.; Ward, D. L.; Smith, M. R., III. Organometallics 1998,
17, 3070. (b) Qian, B.; Baek, S. W.; Smith, M. R., III. Polyhedron 1999,
18, 2405. (c) Bailey, P. J .; Dick, C. M. E.; Fabre, S.; Parsons, S. J . Chem.
Soc., Dalton Trans. 2000, 1655. (d) Gibson, V. C.; Segal, J . A.; White,
A. J . P.; Williams, D. J . J . Am. Chem. Soc. 2000, 122, 7120. (e)
Radzewich, C. E.; Guzei, I. A.; J ordan, R. F. J . Am. Chem. Soc. 1999,
121, 8673.
(2) Batchelor, R. J .; Ruddick, J . N. R.; Sams, J . R.; Aubke, F. Inorg.
Chem., 1977, 16, 1414.
(3) Hitchcock, P. B.; Lappert, M. F.; Lawless, G. A.; Lima, G. M.;
Pierssens, L. J . J . Organomet. Chem. 2000, 601, 142.
(6) Cui, C.; Roesky, H. W.; Schmidt, H.-G.; Noltemeyer, M.; Hao,
H.; Cimpoesu, F. Angew. Chem. 2000, 112, 4444; Angew. Chem., Int.
Ed. 2000, 39, 4274.
10.1021/om000871h CCC: $20.00 © 2001 American Chemical Society
Publication on Web 02/16/2001

Ga and Sb Diketiminato Compounds
Organometallics, Vol. 20, No. 6, 2001 1191
a nitrogen atmosphere. Diethyl ether was freshly distilled from
Na and n-pentane from LiAlH4 prior to use. Elemental
analyses were performed by the Analytisches Labor des
Instituts fu¨r Anorganische Chemie der Universita¨t Go¨ttingen.
A Bruker AM 200 instrument was used to record 1H NMR
(200.1 MHz), 119Sn NMR (186.5 MHz), and 19F NMR (188.3
MHz) spectra, with reference to TMS, SnMe4, and BF3(OEt2),
respectively. Mass spectra were obtained on a Finnigan Mat
8230 instrument. The compounds [HC(CMeNAr)2]H7 and
GeCl2‚(dioxane)8 were prepared by literature procedures. Other
chemicals were purchased from Aldrich and used as received.
3.72-3.82 (sept, 2 H, CHMe2), 4.82 (s, 1 H, γ-CH), 6.95-7.11
(m, 6 H, 2,6-i-Pr2C6H3). 119Sn NMR (C6D6): δ 259.

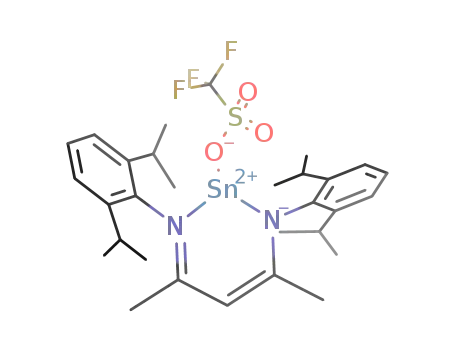

LSn (OSO2CF 3) (5). A solution of 3 (0.572 g, 1.0 mmol) in
