Conformationally locked pentadentate macrocycles containing
the 1,10-phenanthroline unit. Synthesis and crystal structure
of 5-oxa-2,8-dithia[9](2,9)-1,10-phenanthrolinophane (L) and
its coordination properties to NiII, PdII, PtII, RhIII and RuII †
Massimiliano Arca,a Alexander J. Blake,b Jaume Casabò,c Francesco Demartin,d
Francesco A. Devillanova,a Alessandra Garau,a Francesco Isaia,a Vito Lippolis,*a
Raikko Kivekas,e Vicent Muns,c Martin Schröderb and Gaetano Verania
a Dipartimento di Chimica Inorganica ed Analitica, Complesso Universitario di Monserrato,
Università di Cagliari, S.S. 554 bivio per Sestu, 09042 Monserrato (CA), Italy.
E-mail: lippolis@vaxca1.unica.it
b School of Chemistry, The University of Nottingham, University Park, Nottingham,
UK NG7 2RD
c Departemento de Quimica (Unit Inorganica), Universitat Autonoma de Barcelona,
08193 Bellaterra, Barcelona, Spain
d Dipartimento di Chimica Strutturale e Stereochimica Inorganica, Università di Milano,
Via G. Venezian 21, 20133 Milano, Italy
e Department of Chemistry, University of Helsinki, PO Box 55, FIN 00014 Helsinki, Finland
Received 15th January 2001, Accepted 26th February 2001
First published as an Advance Article on the web 26th March 2001
The complexation of the new mixed thia–aza–oxa macrocycle 5-oxa-2,8-dithia[9](2,9)-1,10-phenanthrolinophane (L)
containing the 1,10-phenanthroline unit with NiII, PdII, PtII, RhIII and RuII has been investigated. The results have
been compared with those obtained with the structurally related ligand 2,5,8-trithia[9](2,9)-1,10-phenanthrolino-
phane (LЈ). The most stable conformations of both ligands have been calculated in order to understand their change
upon metal complexation and for L good agreement has been found with the conformations observed in the crystal
1
–
structure of Lؒ¹H2O. The single-crystal structures of [Ni(L)Cl]BF4 and [Ru(L)(PPh3)][PF6]2ؒ4MeCN reveal a N2S2O
¯
²
coordination sphere about NiII and RuII, with the macrocyclic ligand in a folded conformation and with the sixth
coordination site taken up by ClϪ or PPh3, respectively. For [Pd(L)][BF4]2 an [N2S2 ϩ O] coordination is observed,
with the O-donor interacting weakly with the metal centre at the apical position of a square-based coordination
sphere. 13C and 1H NMR spectroscopic studies indicate that the complexes are not fluxional in solution, with the
ligand imposing the same coordination sphere as observed in the solid state. 13C NMR spectroscopy has also helped
in elucidating the stereochemistry of [Rh(L)Cl2]BF4 for which no suitable crystals could be grown: the two ClϪ
ligands are mutually trans with the N2S2 donor set of the macrocyclic ligand occupying the equatorial positions
of an octahedral coordination sphere and with the O-donor atom left un-coordinated. The redox properties of all
the complexes in MeCN have been studied.
replacement of some of the oxygen atoms of the cyclic ligands
Introduction
with sulfur donors.7 On the other hand, thioether macrocycles
The quest for new macrocyclic ligands capable of specific and
effective molecular recognition of metal ions in carrier-assisted
membranes or solid-state ion-selective electrodes is a topic of
have come to great prominence in the last decade due to their
ability to stabilise unusual oxidation states and coordination
geometries of soft metal ions such as transition metals and
current interest.1,2 Attention has mainly been focussed on
coinage metals.8,9 Some thioether crowns containing rigid
assisted transfer of Group I and II ions between two immiscible
electrolyte solutions, and different crown ether derivatives
aromatic and heteroaromatic units fused with thioether linkers
have also been tested as sensors in solid-state electrodes, result-
have been used as neutral carriers for the construction of ion
ing in particularly selective detection of AgI.10–12 Recently we
selective electrodes and for performing selective separations.1–4
have reported the synthesis and coordination properties
A smaller number of studies have reported on transition and
towards NiII, PdII, PtII and RhIII of new mixed aza-thioether
heavy metal ions, particularly precious metal ions probably
crowns containing the 1,10-phenanthroline (phen) unit as an
because of their greater inertness.5,6 However, the recovery and
removal of precious metals from aqueous solutions is of
considerable economic and environmental concern. It is well
known that the formation constant of complexes of Group I
integral part of the macrocyclic structure.13–15 In particular, the
pentadentate ligand 2,5,8-trithia[9](2,9)-1,10-phenanthrolino-
phane (LЈ) has been shown to have coordination properties
strictly dependent upon the conformational constraints
and II ions with crown ethers drastically decreases upon
imposed by the heteroaromatic moiety on the S-donor
thioether linker of the ring. Furthermore, the presence in the
cyclic framework of LЈ of the phen unit, which carries hard
N-donor atoms and is an excellent π acceptor, has been shown
to confer on this macrocycle the ability to stabilise low-valent
† Electronic supplementary information (ESI) available: elemental
analysis data and optimised dihedral angles of conformers of L and LЈ.
See http://www.rsc.org/suppdata/dt/b1/b100493j/
1180
J. Chem. Soc., Dalton Trans., 2001, 1180–1188
This journal is © The Royal Society of Chemistry 2001
DOI: 10.1039/b100493j

View Article Online
Fig. 1 View of the two independent macrocyclic molecules (A and B) and water molecule in the crystal structure of Lؒ¹H2O. The numbering
¯
²
scheme adopted for A uses the corresponding unprimed labels. Atoms C(15Љ) and C(16Љ) in molecule B comprise the minor disorder component.
Displacement ellipsoids are drawn at 50% probability and hydrogen atoms in the macrocyclic framework are omitted for clarity.
metal complexes.14,15 The assisted transfer of RhIII by interfacial
complexation with LЈ at the polarised water/1,2-dichloro-
methane junction is presently under investigation and prelim-
inary results indicate that LЈ can selectively assist the transfer of
RhIII across an organic membrane from an aqueous solution.16
In view of the possible analytical applications of this new class
of macrocycles containing the 1,10-phenanthroline unit, we
consider it to be of primary importance to study further their
coordination properties towards d8 transition metal ions in
order to understand better their selectivity properties. These
aspects will play important roles in the complex mechanism
of molecular recognition. We report herein the synthesis and

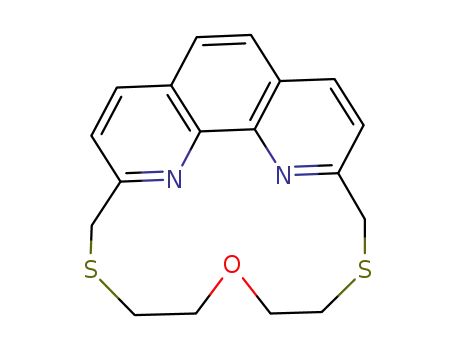

crystal structure of the new macrocycle 5-oxa-2,8-dithia[9]-
(2,9)-1,10-phenanthrolinophane (L) which differs from LЈ in
that the aliphatic portion of the ring contains a hard O-donor
instead of a softer S-donor. The coordination properties of L
with NiII, PdII, PtII, RhIII and RuII are described and compared
with the properties of LЈ. The most stable conformations of
both ligands have been calculated in order to understand both
the flexibility of these macrocycles and the conformational
changes that occur upon complexation.
are typical for this type of organic compound. However, certain
conformational characteristics are worthy of comment. The
phenanthroline moieties and carbon atoms C(1) and C(14) in
unit A [C(1Ј) and C(14Ј) in unit B] lie on a plane. The rest of the
aliphatic chain is folded over the phenanthroline unit with
angles of 65 and 66Њ between the phenanthroline ring and the
mean planes containing C(1), S(1), S(2), C(14) and C(1Ј), S(1Ј),
S(2Ј), C(14Ј) for the two independent units A and B, respect-
ively. A similar disposition of the aliphatic portion of the
macrocycle with respect to the plane of the heteroaromatic
moiety has been observed in 6-oxa-3,9-dithia-15-aza-bicyclo-
[9.3.1]pentadeca-1(15),11,13-triene17 which differs from L in
having a pyridine unit instead of the phenanthroline moiety.
The explanation given for the conformational behaviour of the
macrocycle containing the pyridine framework (in terms of
repulsion between the two sulfur atoms in the ring) cannot
apply to L in which the S-donors would be too far apart even in
a completely planar conformation of the ligand. Presumably,
the conformations adopted by L in the solid state are mainly
determined by two predominant factors: (a) the constraints
imposed by the phenanthroline moiety on the flexibility of
the aliphatic chain and (b) the tendency of the lone pairs on the
S-donors to occupy exodentate positions pointing out of the
ring cavity with the effect of maximising the number of
gauche placements about the C–S bonds as generally observed
for thioether macrocycles.8,18
In order to understand better the conformational behaviour
of these new phenanthroline-based macrocycles, we undertook
molecular mechanics (MM) calculations (see Experimental
section) on both L and LЈ, in the hope of obtaining low-energy
“lattice-free” conformers that would be comparable to those
observed in the solid state. Fig. 2 shows the four most stable
conformers calculated for L (1a–1d) and LЈ (2a–2d) which differ
in energy by less than 2 kcal molϪ1. Two features are common to
all calculated conformations in Fig. 2: (a) for both L and LЈ the
aliphatic chain of the ring is tilted over the plane containing the
phenanthroline unit which forms an angle ranging from 67.75
(1b) to 78.74Њ (1a) with the mean plane through the atoms C(1),
S(1), C(14) and S(2); (b) in these calculated conformations
which have the lowest conformational energies, the lone pairs
on both the S- and O-donors tend to adopt exodentate orient-
ations pointing out of the macrocyclic cavity. In particular,
from an inspection of the calculated torsion angles which define
the eight conformers in Fig. 2 (deposited as Electronic Sup-
plementary Information), one can see that all the torsion angles
S(2)–C(15)–C(16)–X and X–C(17)–C(18)–S(1) [X = O (L) or S
(LЈ), see Fig. 2] assume anti arrangements with absolute values
of the angle ranging from 159.64 (2d) to 179.74Њ (2b). A gauche
disposition is instead preferred at the C–S(1) and C–S(2) bonds,
with the possible exception of the torsion angles around the
Results and discussion
Ligand synthesis and conformations
The strategy adopted in the synthesis of L is similar to that
reported for LЈ13 and involves a cyclisation reaction performed
under high dilution conditions between 2,9-bis(chloromethyl)-
1,10-phenanthroline and (HSCH2CH2)2O in dmf in the
presence of Cs2CO3. The macrocycle obtained was crystallised
from MeCN to give crystals suitable for single crystal X-ray
diffraction studies. The crystal structure shows the presence of
two independent L molecules (identified as A and B in Fig. 1)
and one molecule of water in the asymmetric unit. One of the
two L molecules (B) exhibits disorder in the aliphatic portion of
the ring between O(1Ј) and S(2Ј) whereas the other (A) forms
hydrogen bonds with the water molecule through N(1) and
N(2); crystal packing also involves extensive hydrogen bonds
with the oxygen atom of the macrocyclic molecules. The intra-
molecular distances and angles of both independent units of L
