Free radical reactions for heterocycle synthesis. Part 5: Formation of novel bridged spirolactones by double cyclizations

Article abstract of DOI:10.1016/S0040-4039(01)01090-5

Novel bridged spirolactones have been synthesized via double radical cyclization of enol ester radicals.

Full text of DOI:10.1016/S0040-4039(01)01090-5

TETRAHEDRON
LETTERS
Pergamon
Tetrahedron Letters 42 (2001) 5617–5620
Free radical reactions for heterocycle synthesis. Part 5:
Formation of novel bridged spirolactones by double cyclizations
Wei Zhang* and Georgia Pugh
Lead Discovery, DuPont Crop Protection, Stine-Haskell Research Center, Newark, DE 19714, USA
Received 6 April 2001; accepted 11 June 2001
Abstract—Novel bridged spirolactones have been synthesized via double radical cyclization of enol ester radicals. © 2001 Elsevier
Science Ltd. All rights reserved.
Free radical cyclizations can be designed to undergo a
tandem (cascade) sequence.1 This strategy has been
widely used in the synthesis of fused polycyclic
compounds2 such as quinanes,3 steroids,4 and alka-
loids.5 Synthesis of bridged or spirocyclic systems by
this approach, however, received relatively less atten-
tion.1,6 We now report here a double cyclization
sequence that leads to formation of novel tetracyclic
systems containing both spiro and bridged rings.
access more complex heterocyclic systems. In order to
undertake a systematic study, we purposely selected
aryl and alkyl bromides that have allyl groups at two
different positions of the a,b-unsaturated cyclic
ketones. These compounds can be easily prepared by
coupling of the allylated 1,3-cyclohexanediones with
appropriate carboxylic acids followed by flash column
chromatography to separate the different O-acylation
products (Scheme 1).
In recent years, we have focused on the development of
a general methodology to construct heterocyclic sys-
tems based on radical annulations of o-bromoben-
zoates.7 One of its applications is the synthesis of
spirolactones by intramolecular radical Michael addi-
tions (Eq. (1)).7b,c Extending the scope of this reaction
by designing a double cyclization sequence allows us to
(1)
Scheme 1.
* Corresponding author. Current address: Fluorous Technologies, Inc., 970 William Pitt Way, Pittsburgh, PA 15238, USA. Fax: 1-412-826-3053;
e-mail: w.zhang@fluorous.com
0040-4039/01/$ - see front matter © 2001 Elsevier Science Ltd. All rights reserved.
PII: S0040-4039(01)01090-5

5618
W. Zhang, G. Pugh / Tetrahedron Letters 42 (2001) 5617–5620

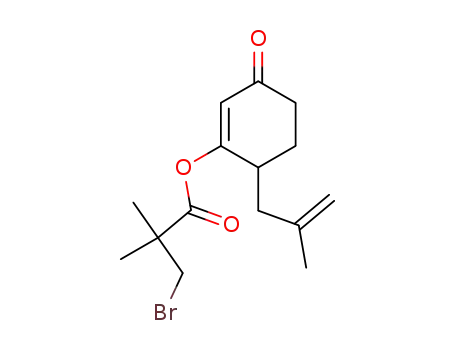

With these enol esters in hand, we carried out a series
of (Me3Si)3SiH mediated radical cyclizations. Using 2a
or 4a as substrates, the initial radicals undergo double
cyclizations, first by intramolecular Michael addition to
form stabilized intermediate radicals 6 or 8, followed by
5-exo cyclization onto the alkene to give bridged spiro-
lactones 7 or 9 (Scheme 2). Reaction of 2a generates 7
as a mixture of two diastereomers, whereas reaction of
4a affords dicyclization product 9 along with monocyc-
lization product 10. Formation of 7 suggests that the
spirocyclization (11 to 6) is stereoselective where the
newly-formed CꢀC bond is trans to the vinyl group
(Scheme 3). Subsequent 5-exo cyclization (6 to 12) is
less selective probably due to free rotation around the
allylic CꢀC single bond and gives a mixture of
diastereomers. The structures of 7-exo and 7-endo are
confirmed by X-ray structure analyses (Fig. 1).
Reactions using substrates 2b or 4b that both have a
2-methylallyl side chain also afford dicyclization prod-
ucts. In these two cases, the spirocyclization is followed
by a cyclization of 6-endo instead of 5-exo. The bridged
spirolactones 148 and 15 are both single diastereomers
(Scheme 4).
Scheme 2.
Scheme 3.
Figure 1. X-Ray structures of 7-exo and 7-endo.

W. Zhang, G. Pugh / Tetrahedron Letters 42 (2001) 5617–5620
5619
Scheme 4.
The reaction of enol esters 5a produces only monocy-
clization products 17 (Scheme 5, A). Steric hindrance
probably disfavors the second cyclization of 5-exo.
This result is consistent with the report by Simpkins in
the synthesis of spiroethers.9 Addition of a methyl
group to the allyl side chain (5b) induces the second
cyclization of 6-endo (Scheme 5, B). In this case, ade-
quate amount of dicyclization product 1910 is formed
as a single diastereomer.11 This result implies that
spirocyclization of radical 21, 6-endo cyclization of
radical 18, and subsequent H-atom transfer from
(Me3Si)3SiH to 22 go through a stereoselective path-
way (Scheme 6). The structure of 19 is confirmed by
X-ray structure analysis (Fig. 2).
In conclusion, we have demonstrated that several
novel bridged spirolactones can be prepared by
tandem radical cyclizations of a,b-unsaturated cyclo-
hexanone derivatives bearing an appropriate allyl side
chain.
Scheme 5.
Scheme 6.

5620
W. Zhang, G. Pugh / Tetrahedron Letters 42 (2001) 5617–5620
Figure 2. X-Ray structure of compound 19.
Acknowledgements
Pattenden, G.; Li, W.-S. J. Chem. Soc., Chem. Commun.
1998, 311; (e) Wu, S.; Journet, M.; Malacria, M. Tetra-
hedron Lett. 1994, 35, 8601.
The authors thank William Marshall for X-ray struc-
tural analysis of compounds 7 and 19.
5. (a) Parsons, A. F.; Williams, D. A. J. Tetrahedron 2000,
56, 7217; (b) Kizil, M.; Patro, B.; Callaghan, O.; Murphy,
J. A.; Hursthouse, M. B.; Hibbs, D. J. Org. Chem. 1999,
64, 7856; (c) De Smaele, D.; Bogaert, P.; De Kimpe, N.
Tetrahedron Lett. 1998, 39, 9797; (d) Parsons, P. J.;
Penkett, C. S.; Cramp, M. C.; West, R. I.; Warren, E. S.
Tetrahedron 1996, 52, 647; (e) Butora, G.; Hudlicky, T.;
Fearnley, S. P.; Stabile, M. R.; Gum, A. G.; Gonzalez,
D. Synthesis 1998, 665.
References
1. (a) Jasperse, C. P.; Curran, D. P.; Fevig, T. L. Chem.
Rev. 1991, 91, 1237; (b) Malacria, M. Chem. Rev. 1996,
96, 289; (c) Parsons, P. J.; Penkett, C. S.; Shell, A. J.
Chem. Rev. 1996, 96, 195.
2. For some of the most recent examples, see: (a) Haney, B.
P.; Curran, D. P. J. Org. Chem. 2000, 65, 2007; (b)
Rhode, O.; Hoffmann, H. M. R. Tetrahedron 2000, 56,
6479; (c) Kelly, D. R.; Picton, M. R. J. Chem. Soc.,
Perkin Trans. 1 2000, 1571; (d) Takayama, H.; Watan-
abe, F.; Kuroda, A.; Kitajima, M.; Aimi, N. Tetrahedron
2000, 56, 6457; (e) Handa, S.; Pattenden, G. J. Chem.
Soc., Perkin Trans. 1 1999, 843.
6. Curran, D. P. In Comprehensive Organic Synthesis; Trost,
B. M.; Fleming, I., Eds.; Pergamon: Oxford, 1991; Vol. 4,
p. 779.
7. (a) Zhang, W.; Pugh, G. Tetrahedron Lett. 1999, 40,
7591; (b) Zhang, W.; Pugh, G. Tetrahedron Lett. 1999,
40, 7595; (c) Zhang, W. Tetrahedron Lett. 2000, 41, 2535.
8. Analytical data for 14: 1H NMR (300 MHz, CDCl3) l
0.93 (d, CH3), 1.31 (s, 2CH3), 1.85 (d, 1H), 2.05 (d, 1H),
1.62–2.05 (8H), 2.40–2.50 (m, 2H), 2.68 (br s, 1H); 13C
NMR (75 MHz, CDCl3) l 20.8 (q), 21.8 (t), 23.6 (d), 25.9
(q), 26.2 (q), 29.4 (s), 32.0 (t), 35.7 (t), 35.7 (t), 36.9 (d),
38.7 (s), 44.8 (t), 56.3 (d), 80.6 (s), 179.4 (s), 211.1 (s). IR
(neat) 1769 (s, CꢁO), 1706 (s, CꢁO) cm−1; MS m/e (rel.
int.) 251 (M++1, 100), 192 (72), 149 (43).
3. (a) Curran, D. P. In Advanced in Free Radical Chemistry;
Tanner, D., Ed.; JAI Press: Greenwich, CT, 1990; Vol. 1,
pp. 121–158; (b) Harrington-Frost, N. M.; Pattenden, G.
.
Tetrahedron Lett. 2000, 41, 403; (c) Curran, D. P.; Sisko,
J.; Balog, A.; Sonoda, N.; Nagahara, K.; Ryu, I. J.
Chem. Soc., Perkin Trans. 1 1998, 1591; (d) Kim, S.;
Cheong, J. H.; Yoo, J. Synlett 1998, 981; (e) Devin, P.;
Fensterbank, L.; Malacria, M. J. Org. Chem. 1998, 63,
6764; (f) Boate, D.; Fontaine, C.; Guittet, E.; Stella, L.
Tetrahedron 1993, 49, 8397; (g) Schwartz, C. E.; Curran,
D. P. J. Am. Chem. Soc. 1990, 112, 9272; (h) Mehta, G.;
Rao, K. S.; Reddy, M. S. J. Chem. Soc., Perkin Trans. 1
1991, 693; (i) Curran, D. P.; Kuo, S. C. J. Am. Chem.
Soc. 1986, 108, 1106.
9. Middleton, D. S.; Simpkins, N. S. Tetrahedron 1996, 46,
545.
10. Analytical data for 19: 1H NMR (300 MHz, CDCl3) l
1.01 (d, CH3), 1.60–1.80 (m, 3H), 1.90–2.25 (m, 3H), 2.37
(m, 2H), 2.60 (m, 1H), 2.78 (m, 1H), 2.97 (td, 1H), 7.22
(d, 1H), 7.53 (t, 1H), 7.59 (t, 1H), 7.90 (d, 1H); 13C NMR
(75 MHz, CDCl3) l 19.4 (q), 25.0 (t), 25.4 (d), 34.6 (t),
37.6 (t), 41.4 (d), 52.5 (d), 88.2 (s), 120.7 (d), 123.7 (s),
124.6 (d), 128.0 (d), 132.6 (d), 150.2 (s), 167.3 (s), 214.6
(s); IR (neat) 1766 (s, CꢁO), 1722 (m, CꢁO) cm−1; MS
m/e (rel. int.) 271 (M++1, 100), 251 (60).
4. (a) Boehm, H. M.; Handa, S.; Pattenden, G.; Roberts, L.;
Blake, A. J.; Li, W.-S. J. Chem. Soc., Perkin Trans. 1
2000, 3522; (b) Zoretic, P. A.; Fang, H.; Ribeiro, A. A. J.
Org. Chem. 1998, 63, 7213; (c) Double, P.; Pattenden, G.
J. Chem. Soc., Perkin Trans. 1 1998, 2005; (d) Handa, S.;
11. Reactions of 3a and 3a provide similar results as those of
5a and 5b.
