Formation and reactivity of the zirconium ethylene
complexes [η5-C5H3-1,3-(SiMe2CH2PR2)2]Zr(η2-
CH2=CH2)(X) (R = Me, Pr i; X = Br, C5H5)
Michael D. Fryzuk, Paul B. Duval, and Steven J. Rettig
Abstract: The formation and reactivity of the zirconium ethylene complexes R[P2Cp]Zr(η2-CH2=CH2)(X) (2a: R = Pri,
X = Br; 2b: R = Me, X = Br; 4a: R = Pri, X = C5H5; R[P2Cp] = (η5-C5H3-1,3-(SiMe2CH2PR2)2)) are described. Ethyl-
ene complexes 2a and 2b are prepared from a reaction of R[P2Cp]ZrCl3 (1a: R = Pri; 1b: R = Me) with 2 equiv of
EtMgBr, presumably via β-H elimination from the diethyl intermediate R[P2Cp]ZrCl(CH2CH3)2. The structure of 2b was
determined by X-ray crystallography. Addition of carbon monoxide to 16-electron 2 displaces the ethylene ligand to
generate the carbonyl complex R[P2Cp]Zr(CO)2Br (5a: R = Pri; 5b: R = Me), which is stable only under an atmosphere
of CO. The corresponding CO reaction with 18-electron 4a to give the metallocene monocarbonyl analogue Pr[P2Cp]Zr(
η5-C5H5)(CO) (6a) is considerably slower. 2a exhibits fluxional exchange of one carbonyl ligand with bulk 13CO in so-
lution; the kinetic parameters for this exchange process are ∆H ‡ = 9.2(5) kcal mol–1 and ∆S ‡ = –17(2) cal mol–1 K–1.
The addition of diphenylacetylene to 2a yields the alkyne complex Pr[P2Cp]Zr(η2-PhCCPh)Br (7a), which exists in so-
lution as two isomers in equilibrium. A solid-state X-ray structure determination for the minor isomer syn-7a was per-
formed.
Key words: zirconium, cyclopentadienyl phosphine, alkyne, metallocyclopropane.
Résumé : On décrit la formation et la réactivité de complexes de l’éthylène zirconium R[P2Cp]Zr(η2-CH2=CH2)(X)
(2a : R = iPr, X = Br; 2b : R = Me, X = Br; 4a : R = iPr, X = C5H5; R[P2Cp] = (η5-C5H3-1,3-(SiMe2CH2PR2)2)). On
a préparé les complexes 2a et 2b par réaction du R[P2Cp]ZrCl3 (1a : R = iPr; 1b : R = Me) avec deux équivalents de
EtMgBr, probablement par le biais d’une élimination β d’hydrogène à partir de l’intermédiaire diéthylé
R[P2Cp]ZrCl(CH2CH3)2. On a déterminé la structure du complexe 2b par diffraction des rayons X. L’addition de mo-
noxyde de carbone au complexe 2 à seize électrons conduit à un déplacement du ligand éthylène et à la formation du
complexe carbonylé R[P2Cp]Zr(CO)2Br (5a: R = iPr; 5b: R = Me) qui n’est stable que sous une atmosphère de CO. La
réaction correspondante du CO avec le complexe 4a à dix-huit électrons, qui conduit à la formation du métallocène
monocarbonylé analogue, R[P2Cp]Zr(η5-C5H5)(CO) (6a) est beaucoup plus lente. Le complexe 2a donne lieu à un
échange fluxionnel d’un ligand carbonyle avec le 13CO qui se trouve dans l’ensemble de la solution; les paramètres ci-
nétiques pour ce processus d’échange sont ∆H ‡. = 9,2(5) kcal mol–1 et ∆S ‡ = –17,2 cal mol–1 K–1. L’addition de di-
phénylacétylène au complexe 2a conduit à la formation de R[P2Cp]Zr(η2-PhCCPh)Br (7a) qui, en solution, existe sous
la forme de deux isomères à l’équilibre. Faisant appel à la diffraction des rayons X, on a effectué une détermination de
la structure en phase solide de l’isomère mineur, le syn-7a.
Mots clés : zirconium, cyclopentadiényl phosphine, alcyne, métallocyclopropane.
[Traduit par la Rédaction] Fryzuk et al. 545
Introduction
lytic industrial processes, such as alkene polymerization us-
ing Ziegler–Natta catalysts, olefin metathesis (2, 3) (which
includes both ring-opening (4) and ring-closing (5) metathe-
sis type processes), alkene hydrogenation (6), and the
Wacker process (7). In addition, there is continued interest
in the bonding aspects of the metal-alkene interaction (8),
which has been the focus of theoretical studies (9).
The coordination of ethylene to transition metal centers is
one of the foundations of organometallic chemistry (1) and
dates back to the synthesis of Zeise’s salt (K[Pt(η2-
CH2=CH2)Cl3]) in 1827. Currently, the chemistry of metal-
alkene complexes encompasses numerous important cata-
Received September 5, 2000. Published on the NRC Research Press Web site at http://canjchem.nrc.ca on May 23, 2001.
Dedicated to Professor B. R. James, in recognition of his distinguished contributions to homogeneous catalysis, on the occasion of
his 65th birthday.
M.D. Fryzuk1, P.B. Duval, and S.J. Rettig.2 Department of Chemistry, University of British Columbia, 2036 Main Mall,
Vancouver, BC V6T 1Z1, Canada.
1Corresponding author (e-mail: fryzuk@chem.ubc.ca).
2Deceased.
Can. J. Chem. 79: 536–545 (2001)
© 2001 NRC Canada
DOI: 10.1139/cjc-79-5/6-536

Fryzuk et al.
537
We have been examining the reactivity of zirconium com-
plexes stabilized by the hybrid donor ancillary ligand η5-
C5H3-(SiMe2CH2PR2)2 (R[P2Cp], R = Pri, Me). Deployment
of bulky isopropyl substituents on the side-arm phosphines
has enabled the isolation of Zr(IV) alkylidene complexes,
Pr[P2Cp]Zr=CHR(Cl), (10, 11) from which reaction with eth-
ylene yields the ethylene adduct Pr[P2Cp]Zr(η2-CH2=CH2)Cl
(2c) (11). An interest in studying the reactivity of this prod-
uct as a probe into the nature of the metal-alkene bonding in
this formally Zr(II) species led to a more direct synthetic
route from the starting chloride Pr[P2Cp]ZrCl3 (1a). One ad-
vantage of this alternate preparation is the ability to obtain
the analogous but less bulky Me[P2Cp]Zr ethylene derivative
Scheme 1.
Me2
Si
Me2
Si
2 EtMgBr
Cl
Zr
Cl
P
P
R
- MgCl2
R
R
- MgBrCl
Cl
R
1a R = Pri
1b R = Me
Me2
Si
Me2
Si
Br
Zr
P
P
R
R
R
CH3CH2
R
CH2CH3
(
Me[P2Cp]Zr(η2-CH2=CH2)Br
(2b))
directly
from
Me2
Si
Me2
Si
Me[P2Cp]ZrCl3 (1b).
Br
Zr
P
P
Me2
Si
Me2
Si
Me2
Si
Me2
Si
- CH3CH3
R
R
R
R
H2C
CH2
2a R = Pri
2b R = Me
Cl
Zr
Cl
Zr
P
R
P
P
P
R
R
R
Cl
H2C
CH2
Cl
2c
1a R = Pri
spect to the unique carbon of the cyclopentadienyl (Cp) ring,
as shown below (eq. [1]). Each isomer of 2a displays a sepa-
rate singlet in the 31P NMR spectrum and corresponding res-
1b R = Me
1
onances in the H NMR spectrum.
Although zirconium–alkene complexes are proposed as
intermediates in several important synthetic transformations,
(12, 13) the number of characterizable species has been re-
stricted to a few metallocene-type systems, (14–17) the ma-
jority of which are isolated by the use of a trapping donor
(typically a phosphine) to stabilize these complexes. The
ethylene derivatives introduced in this report expand this
sample to include 16-electron mono(cyclopentadienyl) com-
plexes and a related 18-electron metallocene analogue; in
addition, some substitution studies are included.
Me2
Si
Me2
Si
Me2
Si
Me2
Si
Br
Br
Zr
Zr
P
P
P
P
H2C
CH2
H2C
CH2
syn-2a
anti-2a
The ethylene protons give rise to a complex multiplet cen-
tred near 1.0 ppm in the 1H NMR spectrum, originating
from an AA′BB′XX′ spin system due to additional JPH cou-
pling from the side-arm phosphines. The upfield location of
these resonances in the 1H NMR spectrum is indicative of an
ethylene fragment coordinated to Zr. As with 2c, definitive
assignment of stereochemistry was unfortunately not possi-
R
Preparation of [P2Cp]Zr(η2-CH2=CH2)Br (R = Pri, Me)
3
A toluene solution of the starting Zr(IV) trichloride 1 re-
acts with 2 equiv of EtMgBr at –78°C to give a bright yel-
low solution, which upon warming to room temperature
produces the ethylene complex R[P2Cp]Zr(η2-CH2=CH2)Br
(2a: R = Pri; 2b: R = Me) in excellent yield, either as dark
purple (2a) or dark red (2b) crystals (Scheme 1). The yellow
precursor is presumed to be the diethyl species
R[P2Cp]ZrBr(CH2CH3)2, although no direct proof of its exis-
tence was obtained. The putative reaction sequence is com-
pleted by a β-H abstraction reaction with the elimination of
ethane to generate the ethylene product. A quantitative ha-
lide exchange incorporates a bromide ligand in the final
product, based on elemental analyses and an X-ray structural
determination for 2b (see below).
1
ble (via H NMR NOEDIFF experiments, for example) and
so our designation of syn or anti is presumed.
In contrast to 2a, only a single species is seen in solution
for the Me[P2Cp] derivative 2b; we speculate that the reduced
steric hindrance from the smaller methyl substituents at
phosphorus reduces the tendency for phosphine dissociation
which in turn discourages a syn/anti exchange process in this
complex. The solid-state molecular structure of 2b is shown
in Fig. 1, along with the atom numbering scheme. A sum-
mary of the crystallographic data is given in Table 1; se-
lected bond distances and bond angles are listed in Table 2.
The structure reveals that the ethylene unit is coordinated
parallel to the Cp ring and oriented syn to the unique Cp car-
bon atom C(2), precisely as found for the solid state struc-
ture for 2c (18). Presumably, this orientation reduces steric
interactions between the bound ethylene molecule and the
Cp ring; moreover, it situates the ethylene π*-orbital to
overlap favorably with the filled metal dxy orbital (in this
The 1H and 31P NMR spectra of purple 2a are nearly iden-
tical to that of the crystallographically characterized chloro
derivative Pr[P2Cp]Zr(η2-CH2=CH2)Cl (2c), a red product
formed from the reaction of either alkylidene complex
Pr[P2Cp]Zr=CHR(Cl) (R = Ph, SiMe3) with ethylene (18). As
with 2c, the NMR spectra for 2a show the presence of two
species in a 9:1 ratio assigned as syn (major) and anti (mi-
nor) isomers, designated according to the orientation of the
ethylene ligand as being directed either syn or anti with re-
© 2001 NRC Canada

538
Can. J. Chem. Vol. 79, 2001
Table 1. Crystallographic data.

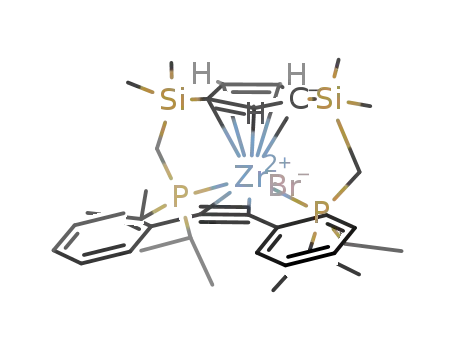

Fig. 1 Molecular structure of Me[P2Cp]Zr(η2-CH2=CH2)Br (2b);
