which is attributed mainly to the azo chromophore. The p-
p* transition of the conjugated polymer is hidden behind the
azo chromophore absorption, making it difficult to evaluate
the band gap of the polymer. One can see clearly in Fig. 7
the strong increase of absorption in the red part of the spec-
trum when the applied potential becomes more anodic: this
corresponds to the generation of charge carriers (polarons
and bipolarons) in the polymer chains.23 The analysis of the
spectra for poly(4) tends to show a maximum contribution
of radical cation species (polarons, lmax ꢄ 640 nm) at 0.6 V,
while at more anodic potentials, these species are converted
into dications (bipolarons), as evidenced by the gradual
absorption increase beyond 800 nm along with the stagnation
of the absorption around 640 nm. In the case of poly(5), the
amount of polarons increases regularly, while the contribution
of bipolarons appears significantly only at 1.2 V. The dif-
ference between both polymer spectra is consistent with the

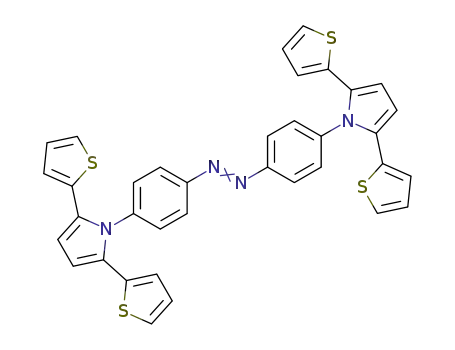

participation of both 2,5-dithienylpyrrole moieties in the for-
mation of polarons in poly(5), leading to a higher amount of
polarons for approximately the same doping level.
Fig. 6 Cyclic voltammograms of poly(4) in 0.1 M TEAP in aceto-
nitrile on a platinum disc electrode (Ag/10ꢁ2 M Ag+ reference) at scan
rates of 20, 40, 60 and 100 mV sꢁ1 for curves a–d, respectively.
monomers (deduced from high scan rate measurements) and
those of their corresponding polymers: this is indicative of a
low degree of polymerization or of short conjugation lengths
due to a high number of structural defects.
4. Conclusion
Poly(4) and poly(5) films were deposited potentiostatically
on ITO-coated glass plates, in their respective polymerization
media, with 0.01 M monomer and 0.1 M TEAP, in order to
perform spectroelectrochemical studies. The spectra were initi-
ally recorded in the fully reduced state of the polymers. For
this state, an absorption peak is observed at lmax ¼ 420 nm,
We have presented the synthesis and electrochemical study of
new conjugated polymers with azo groups directly connected
to the polymer chain. The synthesis procedure is quite straight-
forward and affords the target molecules with rather good
yields. The first results obtained from spectroscopic and elec-
trochemical measurements, as well as the theoretical calcula-
tions, have demonstrated an extended conjugation brought
about by the azo moiety in the pyrrole derivatives. In the case
of 2,5-dithienylpyrrole derivatives, no stabilizing effect through
the conjugation with the azo group has been observed, leading
to oxidation localized on the polymerizable units. Therefore, it
seems unfortunately unlikely that in conjugated polymers of
this kind, a high conjugation may be achieved between
the main chain and the functional group. However, this feature
remains to be confirmed by further studies.
References
1
2
C. S. Wang, Trends Polym. Sci. (Regul. Ed.), 1997, 5, 138.
B. Hauschel, P. Stihler and M. Hanack, Trends Polym. Sci.
(Regul. Ed.), 1996, 4, 348.
3
4
J. D. Debad and A. J. Bard, J. Am. Chem. Soc., 1998, 120, 2476.
J. P. Lang, H. Kawaguchi and K. Tatsumi, Inorg. Chem., 1997,
36, 6447.
5
6
T. Shimidzu, H. Segawa, F. Wu and N. Nakayama, J. Photochem.
Photobiol., A, 1995, 99, 1.
H. Segawa, F.-P. Wu, N. Nakayama, H. Maruyama, S. Sagisaka,
N. Higuchi, M. Fujitsuka and T. Shimidzu, Synth. Met., 1995,
71, 2151.
7
K. I. Chane-Ching, J. C. Lacroix, R. Baudry, M. Jouini, S.
Aeiyach, C. Lion and P. C. Lacaze, J. Electroanal. Chem., 1998,
453, 139.
8
9
P. E. Just, K. I. Chane-Ching, J. C. Lacroix and P. C. Lacaze,
J. Electroanal. Chem., 1999, 479, 3.
´
I. Levesque and M. Leclerc, Macromolecules, 1997, 30, 4347.
10 M. Zagorska, I. Kulszewics-Bajer, A. Pron, J. Sukiennik, P.
Raimond, F. Kajzar, A.-J. Attias and M. Lapkowski, Chem.
Mater., 1998, 31, 9146.
11 C. Della-Casa, A. Fraleoni, P. Costa-Bizzari and M. Lanzi, Synth.
Met., 2001, 124, 467.
Fig. 7 Spectroelectrochemistry of a film of (a) poly(4) in CH2Cl2 and
(b) poly(5) in acetonitrile–toluene (v/v, 50:50), on an ITO working
electrode at various electrode potentials (Ag wire reference). Each film
was obtained potentiostatically at E ¼ 1.0 V (a) or 1.2 V (b) applied
during 500 s (Q ꢄ 100 mCꢂcmꢁ2). Electrode potential: (a) ꢁ0.5, 0.3,
0.5, 0.6, 0.7, 0.8 and 0.9 V for curves a–g, respectively; (b) 0.1, 0.3,
0.4, 0.5, 0.6, 0.7, 0.8, 0.85, 0.9, 1.0 and 1.2 V for curves a–k, respec-
tively. N.B.: curves a–f in (b) are exactly the same and are represented
as the bottom curve.
12 Y. Chen, W. T. A. Harrison, C. T. Imrie and K. S. Ryder,
J. Mater. Chem., 2002, 12, 579.
13 D. Channe Gowda and B. Mahesh, Synthetic Commun., 2000,
30, 3639.
´
14 D. Garreau and J. M. Saveant, J. Electroanal. Chem., 1975, 50, 1.
15 M. J. Frisch, G. W. Trucks, H. B. Schlegel, G. E. Scuseria, M. A.
Robb, J. R. Cheeseman, V. G. Zakrzewski, J. A. Montgomery,
R. E. Stratmann, J. C. Burant, S. Dapprich, J. M. Millam,
A. D. Daniels, K. N. Kudin, M. C. Strain, O. Farkas, J. Tomasi,
New J. Chem., 2003, 27, 798–804
803
