Diuranium inverted sandwiches involving naphthalene and cyclooctatetraene

Article abstract of DOI:10.1021/ja026200n

Treatment of IU(DME)(NC[^tBu]Mes)₃ (2-I-DME) with 4 equiv of KC₈ and 0.5 equiv of naphthalene in DME allowed the isolation of a naphthalene-bridged compound, K₂(μ-η⁶,η⁶-C₁₀H₈

Full text of DOI:10.1021/ja026200n

Published on Web 06/07/2002
Diuranium Inverted Sandwiches Involving Naphthalene and Cyclooctatetraene
Paula L. Diaconescu and Christopher C. Cummins*
Department of Chemistry, Room 2-227, Massachusetts Institute of Technology,
Cambridge, Massachusetts 02139-4307
Received March 14, 2002
Scheme 1
Discussions of bonding in the organometallic chemistry of
uranium have appeared with increasing frequency since the seminal
description of uranocene.1,2 Delta bonds have been proposed to play
a key role in stabilizing inverted sandwiches comprised of two
uranium atoms bridged by a cyclic aromatic hydrocarbon ligand.3
Examples to date of such inverted sandwiches involve benzene,
toluene,3 or cycloheptatrienyl4 as a planar symmetrical bridging
group. An ancillary ligand capable of supporting a broad range of
arene-bridged compounds was targeted to facilitate structural and
spectroscopic comparisons as a function of the bridging ligand. This
communication reports the chemistry of a uranium trisketimide
fragment that has allowed for the isolation of unique naphthalene-
and cyclooctatetraene-bridged diuranium complexes.
The previously described system (µ-C7H8)U2(N[tBu]Ar)4 (Ar )
3,5-C6H3Me2, 12-µ-C7H8)3 evinces a two-legged piano stool
coordination environment at uranium, one N-tert-butyl anilide ligand
having been stripped from each uranium center during conversion
from the uranium trisamide precursor, IU(N[tBu]Ar)3.5 Since the
6
synthesis involved treatment with excess KC8 in the neat arene
solvent, it is presumed that the stripped ligand was lost as its
potassium salt. The new ketimide ligand (NC[tBu]Mes, Mes )
2,4,6-C6H2Me3) employed in the present study allows for retention
of three supporting ligands per uranium, giving rise to a three-
legged piano stool geometry, and it allows also for incorporation
of potassium ions as tight ion pairs. A further advance accorded
by the implementation of ketimide ligands7 is the ability to use
dimethoxyethane (DME) solvent and stoichiometric amounts of a
particular desired hydrocarbon ligand, naphthalene, in the present
study.
8
Reaction of readily available UI3(DME)2 with KNC[tBu]Mes
in DME led to the isolation of dark green-brown IU(DME)(NC[t-
Bu]Mes)3 (2-I-DME), in 30% yield.9 A single-crystal X-ray
diffraction study of 2-I-DME revealed that a molecule of DME
coordinates to the uranium center in the pocket formed by the
mesityl groups. The observed near-linear UNC angles (average
168.2(8)°)10 are suggestive of significant π bonding between
nitrogen and uranium, as are the UN distances, which are shorter
on average by ca. 0.1 Å than those observed for related uranium
amides.3,5
Treatment of 2-I-DME with 4 equiv of KC8 and 0.5 equiv of
naphthalene in DME allowed the isolation of a naphthalene-bridged
compound, K2(µ-η6,η6-C10H8)[U(NC[tBu]Mes)3]2 (K2-22-µ-C10H8,
Scheme 1) in 60% yield as a dark brown powder.
The most interesting structural feature of this compound is the
coordination mode, µ-η6,η6, of the bridging naphthalene to the
uranium centers11 (Figure 1), reminiscent of the coordination mode
of toluene in compound 12-µ-C7H8. The twelve U-C distances
are quite short, varying from 2.565(11) Å to 2.749(10) Å. The
longer bonds are registered to the two carbon atoms fusing the two
six-membered rings, a fact understandable inasmuch as the LUMO
of naphthalene lacks any orbital contributions from these atoms.12
The C-C distances in the bound ring are regular and not
alternating (average of 1.443(6) Å), consistent with the aromatic
character expected for that ring, while in the pendant ring a diene-
like character is suggested by bond alternation (1.470(16), 1.319-
(17), 1.467(18) 1.381(15), and 1.395(15) Å). Each potassium ion
is clasped by a complement of two mesityl rings, the pendant portion
of the naphthalene ligand, and two ketimide nitrogen atoms in a
side-on fashion. Complexation of the potassium ions in this way
provides them with a near-spherical shroud of electron density,
revealing [22-µ-C10H8]2- to be an excellent alkali-metal cation
receptor. Furthermore, internalizing the positive ions permits
* Corresponding author. E-mail: ccummins@mit.edu.
9
7660
J. AM. CHEM. SOC. 2002, 124, 7660-7661
10.1021/ja026200n CCC: $22.00 © 2002 American Chemical Society

C O M M U N I C A T I O N S
Figure 2. For both complexes [(µ-C10H8)U2(NCH2)6]2- and [(µ-C8H8)U2-
(NCH2)6], electrons 5-8 are involved in covalent δ interactions between
the metals and the ring, the electrons being numbered in sequence of
decreasing energy. Calculations were spin unrestricted such that the orbital
containing electron 5 is pictured at the left for [(µ-C10H8)U2(NCH2)6]2-
and at the right for [(µ-C8H8)U2(NCH2)6].
Figure 1. Structural drawings of K2-22-µ-C10H8 (left) and 22-µ-COT (right)
with thermal ellipsoids at the 35% probability level. Methyl groups have
been omitted for clarity.
the system to present to its exterior solely lipophilic residues,
accounting for the observed high solubility in hydrocarbon sol-
vents.13 It is worth mentioning that neither the uranium nor the
potassium centers retain DME as a coordinated solvent molecule.
The U-N distances are elongated by about 0.1 Å with respect to
those in precursor 2-I-DME, consistent with an increase in formal
negative charge (decrease in oxidation state) at uranium.
character) exist for samarium, europium, and ytterbium.14 Com-
pounds Na-2-COT and 22-µ-COT (see the Supporting Information
for pictures and details) have been crystallographically character-
ized. The U-Carene distance in compound 22-µ-COT is longer on
average than that in its naphthalene counterpart K2-22-µ-C10H8
(2.822 vs 2.634 Å), in accord with bonding considerations (Figure
2) that indicate poorer covalent overlap in the former.
The corresponding sodium derivative, Na2(µ-η6,η6-C10H8)[U(NC[t-
Bu]Mes)3]2 Na2-22-µ-C10H8, was obtained as dark green-brown
crystals in 40% yield by reducing 2-I-DME over a sodium mirror
in tetrahydrofuran (THF) in the presence of 0.6 equiv of naphtha-
lene. A preliminary X-ray crystal structure indicated that Na2-22-
µ-C10H8 crystallizes with two THF molecules coordinated to each
Acknowledgment. For support of this work, the authors are
grateful to the National Science Foundation (CHE-9988806), the
Packard Foundation (Fellowship to C.C.C., 1995-2000), and the
National Science Board (Alan T. Waterman award to C.C.C., 1998).
The authors want to thank Theodor Agapie for performing the DFT
calculations for [(µ-C8H8)U2(NCH2)6] and V´ıctor Dura` Vila` for help
with the calculations for [(µ-C10H8)U2(NCH2)6]2-. P.L.D. thanks
Arjun Mendiratta for helpful suggestions and Jeff Simpson for help
with some NMR experiments.
1
sodium center, while H NMR spectroscopic data are consistent
with desolvation after vacuum drying for several hours.
Investigation of the naphthalene-bridged systems by H NMR
1
spectroscopy revealed fluxional behavior, a single ketimide ligand
environment being observed. For both M2-22-µ-C10H8 (M ) Na,
K) the corresponding monodeuterated and fully deuterated naph-
thalene-bridged compounds were prepared with R-naphthalene-d1
and naphthalene-d8. The solution structure is consistent with that
observed in the solid state with respect to the naphthalene
Supporting Information Available: Details of the X-ray crystal-
lographic studies, DFT calculations, synthetic procedures and charac-
terization data for the reported compounds (PDF and CIF). This material
is available free of charge via the Internet at http://pubs.acs.org.
2
coordination, since four H NMR signals are observed for the d8
derivative. Combining the results of 2D NMR correlation experi-
ments with the line width of the signals in the 1H NMR spectrum,
and with the signals found in the 2H NMR spectrum of Na2-22-µ-
C10H7D(R), the peaks at 79.2 (â-H) and -128.9 (R-H) ppm were
assigned to the deuterons of the ring bridging the two uranium
centers, while the peaks at -28.9 (R-H) and -36.5 (â-H) ppm were
assigned to the deuterons of the dangling ring (see the Supporting
Information for details and assignments for the potassium salt).
Treatment of M2-22-µ-C10H8 (M ) Na, K) with 2 equiv of
1,3,5,7-cyclooctatetraene afforded a mixture of two products

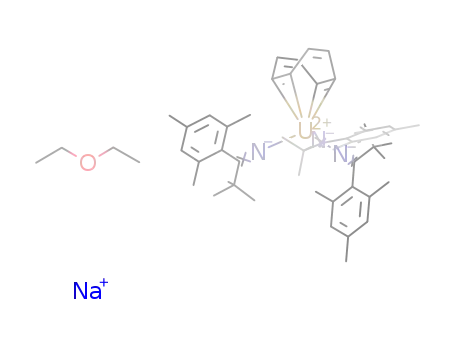

(Scheme 1). Compounds K[(COT)U(NC[tBu]Mes)3] (K-2-COT)
and [Na(S)][(COT)U(NC[tBu]Mes)3] (Na-2-COT, S ) Et2O) are
insoluble in pentane, facilitating their separation from the neutral
coproduct 22-µ-COT, (µ-η8,η8-COT)U2(NC[tBu]Mes)6 (Figure 1).
The ratio in which the two compounds are formed seems indepen-
dent of the solvent employed. If Na2-22-µ-C10H8 is used the two
compounds form in a 1:1 ratio and 22-µ-COT may be isolated in
35% yield. When K2-22-µ-C10H8 is used as a starting material for
the reaction with 1,3,5,7-cyclooctatetraene, almost only K-2-COT
is formed. Thus, the [2-COT]- anion is easiest to isolate as its
potassium salt (diethyl ether, 60% yield). Interestingly, compound
22-µ-COT can be assembled independently in 90% yield by salt
elimination upon reaction of M-2-COT with iodide 2-I-DME.
Reactions forming 22-µ-COT we refer to as “inverting ura-
nocene” because they result in a C8H8 ring being sandwiched
symmetrically between two uranium atoms instead of the reverse.
Structurally related systems (with presumably far greater ionic
References
(1) (a) Bursten, B. E.; Strittmatter, R. J. Angew. Chem., Int. Ed. Engl. 1991,
30, 1069. (b) Pepper, M.; Bursten, B. E. Chem. ReV. 1991, 91, 719. (c)
Li, J.; Bursten, B. E. J. Am. Chem. Soc. 1997, 119, 9021.
(2) Streitwieser, A.; Mu¨ller-Westerhoff, U. J. Am. Chem. Soc. 1968, 90, 7364.
(3) Diaconescu, P. L.; Arnold, P. L.; Baker, T. A.; Mindiola, D. J.; Cummins,
C. C. J. Am. Chem. Soc. 2000, 122, 6108.
(4) (a) Arliguie, T.; Lance, M.; Nierlich, M.; Vigner, J.; Ephritikhine, M. J.
Chem. Soc., Chem. Commun. 1994, 847. (b) Arliguie, T.; Lance, M.;
Nierlich, M.; Ephritikhine, M. J. Chem. Soc., Dalton Trans. 1997, 2501.
(5) Odom, A. L.; Arnold, P. L.; Cummins, C. C. J. Am. Chem. Soc. 1998,
120, 5836.
(6) Schwindt, M.; Lejon, T.; Hegedus, L. Organometallics 1990, 9, 2814.
(7) Zhang, S.; Piers, W. E.; Gao, X.; Parvez, M. J. Am. Chem. Soc. 2000,
122, 5499.
(8) Clark, D. L.; Sattelberger, A. P. Inorg. Synth. 1997, 31, 307.
(9) Yield was calculated with respect to the starting material, UI3(DME)2.
The low yield is attributed to disproportionation of the starting U(III)
compound and high lipophilicity of the desired material.
(10) See SI for details of the X-ray crystral structure of 2-I-DME.
(11) A search of the Cambridge Crystallographic Database (CSD) revealed
no other examples of this coordination mode for naphthalene. This is true
both for transition metals and actinide elements.
(12) Cotton, F. A. Chemical Applications of Group Theory; Wiley-Inter-
science: New York, 1990.
(13) (a) Moore, M.; Gambarotta, S.; Bensimon, C. Organometallics 1997, 16,
1086. (b) Caselli, A.; Solari, E.; Scopelliti, R.; Floriani, C.; Re, N.; Rizzoli,
C.; Chiesi-Vila, A. J. Am. Chem. Soc. 2000, 122, 3652.
(14) (a) Evans, W. J.; Clark, R. D.; Ansari, M. A.; Ziller, J. W. J. Am. Chem.
Soc. 1998, 120, 9555. (b) Evans, W. J.; Johnston, M. A.; Greci, M. A.;
Ziller, J. W. Organometallics 1999, 18, 1460.
JA026200N
9
J. AM. CHEM. SOC. VOL. 124, NO. 26, 2002 7661
