Phosphine-Scavenging Cationic Gold(I) Complexes: Alternative Applications of Gold Cocatalysis in Fundamental Palladium-Catalyzed Cross-Couplings

Article abstract of DOI:10.1021/acs.organomet.9b00294

We have demonstrated that air-stable cationic gold(I) cocatalysts have the capacity to enhance the efficiency of palladium-catalyzed cross-couplings. Specifically, we determined that a 1:1 [Pd{P(t-Bu)₃}₂]/[Au{P(t-Bu)₃}(NTf₂)] system provides superior reactivity relative to [Pd{P(t-Bu)₃}₂], across Suzuki-Miyaura, Stille, and Mizoroki-Heck reactions performed under mild conditions. Our results are consistent with cationic gold(I) species serving primarily as phosphine scavengers in this chemistry, as recently predicted by density functional theory (DFT).

Full text of DOI:10.1021/acs.organomet.9b00294

Article
pubs.acs.org/Organometallics
Cite This: Organometallics XXXX, XXX, XXX−XXX
Phosphine-Scavenging Cationic Gold(I) Complexes: Alternative
Applications of Gold Cocatalysis in Fundamental Palladium-
Catalyzed Cross-Couplings
Curtis C. Ho,† Alireza Ariafard,† Christopher J. T. Hyland,‡ and Alex C. Bissember*,†
†School of Natural Sciences − Chemistry, University of Tasmania, Hobart, Tasmania7001, Australia
‡School of Chemistry and Molecular Bioscience, University of Wollongong, Wollongong, New South Wales 2522, Australia
S
* Supporting Information
ABSTRACT: We have demonstrated that air-stable cationic
gold(I) cocatalysts have the capacity to enhance the efficiency
of palladium-catalyzed cross-couplings. Specifically, we
determined that a 1:1 [Pd{P(t-Bu)3}2]/[Au{P(t-Bu)3}-
(NTf2)] system provides superior reactivity relative to
[Pd{P(t-Bu)3}2], across Suzuki−Miyaura, Stille, and Mizor-
oki−Heck reactions performed under mild conditions. Our
results are consistent with cationic gold(I) species serving
primarily as phosphine scavengers in this chemistry, as
recently predicted by density functional theory (DFT).
cocatalysts in Pd-catalyzed Stille reactions to facilitate efficient
cross-couplings with sterically hindered nucleophiles, and tin/
gold transmetalation mechanisms are suggested to operate in
this system.8 Other modes of reactivity have also been invoked.
For example, Blum and co-workers reported a detailed study
demonstrating the viability of a Pd/Au cocatalyst system to
promote the carbostannylation of alkynes.9 The mechanism is
consistent with the coordination of a Lewis acidic Au(I)
species to the alkyne, which is key to activation in this
manifold.9,10
In 2017, Ariafard’s density functional theory (DFT)
computational study first predicted the phosphine-scavenging
ability of cationic Au(I) complexes (Figure 1).11 Specifically,
this work suggested that this property could be exploited to
lower the barrier leading to the catalytically active mono-
phosphine-ligated [Pd{P(t-Bu)3}] from its stable (catalytically
inactive) bis-ligated precursor. This prompted us to postulate
INTRODUCTION
■
Palladium-catalyzed cross-couplings represent a fundamentally
important class of synthetic transformations of both academic
and industrial significance.1 Arylphosphine ligands have been
employed to great effect as versatile supporting ligands in these
reactions, as have bulky, electron-rich trialkylphosphines.1 The
latter family of ligands, particularly venerable P(t-Bu)3, has
enabled efficient Pd-catalyzed reactions under mild con-
ditions.2 Indeed, in 2010, P(t-Bu)3 was described as “the
most widely used single ligand in modern cross coupling
chemistry”.2d
In contrast to many other Pd/PR3 catalyst systems, it is
generally accepted that the oxidative addition of aryl
electrophiles to P(t-Bu)3-ligated Pd(0) species predominantly
proceeds via monophosphine-ligated intermediate [Pd{P(t-
Bu)3}].3,4 It has also been reported that catalytically inactive
[Pd{P(t-Bu)3}2] comprises the catalyst resting state in various
Mizoroki−Heck and Suzuki−Miyaura couplings.3a,c Thus,
∼1:1 ratios of Pd/P(t-Bu)3 are often employed in catalysis
performed at lower temperatures, and the active species is
often generated in situ from standard palladium precata-
lysts.2c,3a,5
Beyond the development of new ligands that provide
enhanced reactivity, a number of strategies have been used
to augment various features of Pd-mediated couplings, and the
emergence of homo- and heterobimetallic systems in
homogeneous catalysis are examples of this.6 Gold complexes
have been employed in the latter capacity.6a,b Many of these
studies describe Au(I) species serving as transmetalating
intermediates derived from various alkyne/allene activation
processes characteristic of Au(I) complexes or from preformed
organogold complexes.7 Au(I) species have been employed as
Figure 1. Calculated Gibbs free energies (kcal/mol) for the formation
of [Pd{P(t-Bu)3}] from [Pd{P(t-Bu)3}2] in the presence or absence
of [Au−L]+.11
Received: May 3, 2019
© XXXX American Chemical Society
A
DOI: 10.1021/acs.organomet.9b00294
Organometallics XXXX, XXX, XXX−XXX

Organometallics
Article
that Pd/Au cocatalysis could be exploited to enhance the
reactivity of this catalyst system and perhaps other Pd/PR3
catalyst systems under mild conditions by sequestering free
phosphine. Herein, we illustrate the validity of this postulate in
practice.
Scheme 2. Investigating the Capacity of Au Complexes 1
and 5−7 and Cu Complex 8 to Promote the Oxidative
Addition of a Pd Species to p-Bromotoluene
Our results provide evidence for the capacity of cationic
Au(I) complexes to formally abstract P(t-Bu)3 from [Pd{P(t-
Bu)3}2]. Furthermore, we determined that [Pd{P(t-Bu)3}2]/
[Au{P(t-Bu)3}(NTf2)] systems can provide superior efficiency
relative to [Pd{P(t-Bu)3}2] in key couplings, including
Suzuki−Miyaura, Stille, and Mizoroki−Heck reactions. These
data are consistent with the gold cocatalyst playing a key role
primarily as a phosphine scavenger.
RESULTS AND DISCUSSION
■
First, we investigated the capacity of [Au{P(t-Bu)3}(NTf2)]
(1) to formally abstract P(t-Bu)3 from bis(phosphine)-ligated
Pd(0) complex [Pd{P(t-Bu)3}2] (2) (Scheme 1). After the
Scheme 1. Reaction of Au Complex 1 with Pd Complex 2 to
a
Afford [Au{P(t-Bu)3}2]NTf2 (3)
the efficiency of transmetalation in Suzuki−Miyaura and Stille
cross-coupling reactions mediated by Pd/PPh3 systems.16,17
The capacity of substoichiometric quantities of copper salts
to accelerate and enhance the efficiency of Pd-catalyzed Stille
and Suzuki−Miyaura couplings is well established.18,19 Much
of the pioneering work exploring the role of copper additives in
Stille chemistry was undertaken by Liebeskind, and excellent
reviews discussing this “copper effect” within the context of Pd
cross-coupling chemistry have been published more recen-
tly.6b,20 Although it can be difficult to unambiguously
determine the mechanistic basis of this phenomenon in
every instance, two primary effects have been proposed.6b
Specifically, the operation of possible tin/copper trans-
metalation mechanisms have been invoked in these Stille
processes (particularly in very polar solvents such as NMP,
DMF, and DMSO),6b,17b,21 in addition to the phosphine-
scavenging capacity of copper species.17b,c,18a,22 The latter
effect is thought to be most pronounced when free, strong
donor phosphine ligands are present in ethereal solutions
because their presence can impede transmetalation.6b,17b,c,23
Donnelly and Finet first suggested that phosphine-
scavenging processes may be operative in Suzuki−Miyaura
reactions performed in the presence of CuI.19a Furthermore,
Hobbs noted that a specific 1:2 Pd/Cu cocatalyst ratio
provided optimal results in Sonogashira reactions employing
[Pd(PPh3)4] and proposed that this type of behavior may also
be present.24 Ariafard’s DFT studies also support the
phosphine-scavenging ability of cationic Cu(I) complexes.11
Consequently, we also determined that [Cu(MeCN)4]PF6 (8)
could rapidly promote the oxidative addition of p-bromoto-
luene to an active species derived from [Pd{P(t-Bu)3}2]
(Scheme 2). We also isolated and crystallographically
characterized mononuclear complex [Cu{P(t-Bu)3}2]PF6
(9).25
a
In the structural representation of Au complex 3, thermal ellipsoids
are drawn at the 50% probability level and the [NTf2]− counteranion
and hydrogen atoms are omitted for clarity.
addition of Au complex 1 to Pd complex 2, a new signal (δ
97.0 ppm) appeared, consistent with the rapid formation of
[Au{P(t-Bu)3}2]+, as judged by 31P NMR spectroscopy.12,13
We also isolated and crystallographically characterized linear
mononuclear [Au{P(t-Bu)3}2]NTf2 (3).14
Next, we explored the capacity of Au complex 1 to promote
the oxidative addition of p-bromotoluene to a Pd species
derived from [Pd{P(t-Bu)3}2] (2). In the absence of Au
complex 1, reaction of the aryl bromide with Pd complex 2 was
not observed after 24 h, as judged by 31P NMR spectroscopy
(Scheme 2). This is in agreement with germane findings.3a In
stark contrast, the presence of equimolar quantities of Au
complex 1 rapidly promoted oxidative addition in minutes.
Specifically, 31P NMR spectroscopy indicated the presence of a
new signal (δ 61.5 ppm),15 which was consistent with the
presence of Pd(II) species 4. The conversion of Pd(0)
complex 2 to Pd(II) complex 4 was complete within 0.25 h,
and we also observed the concomitant formation of [Au{P(t-
Bu)3}2]+ by 31P NMR spectroscopy.12
We obtained analogous results employing other commer-
cially available, air-stable cationic Au(I) complexes 5−7 in
equivalent experiments. In each case, oxidative addition to
form Pd(II) complex 4 promptly occurred at ambient
temperature. This property of species 1 and 5−7 is notable
as Fu and co-workers have suggested that (catalytically
inactive) Pd complex 2 comprises the catalyst resting state in
various Mizoroki−Heck and Suzuki−Miyaura couplings.3a,c
The presence of free phosphine has also been shown to reduce
To explore the viability of our proposed phosphine-
scavenging strategy in synthesis, we investigated the effects
of Pd complex 2/Au complex 1 (and Pd complex 2/Cu
complex 8) cocatalyst systems in Pd-catalyzed cross-coupling
processes under simple and mild reaction conditions. In each
case, we compared the respective rates of product formation
employing these two cocatalyst systems and benchmarked
B
DOI: 10.1021/acs.organomet.9b00294
Organometallics XXXX, XXX, XXX−XXX

Organometallics
Article
a b
,
these data against equivalent experiments featuring Pd complex
2 exclusively.
Scheme 3. Suzuki−Miyaura Reactions
The enhanced efficiency provided by our Pd/Au cocatalyst
system was clearly evident in a Suzuki−Miyaura cross-coupling
involving p-bromotoluene and phenylboronic acid (Figure 2).
Figure 2. Effects of cocatalysts Au complex 1 (red line) or Cu
complex 8 (blue line) on the progress of Pd-mediated Suzuki−
Miyaura cross-couplings. The experiment employing only Pd catalyst
2 is represented with a black line.29
a
b
Yields after 0.25 h are provided in parentheses.29 (A) Reported
inefficient Pd-catalyzed Suzuki−Miyaura couplings of aryl iodides.16
(B) Reported poor turnover of trans-[Pd(PPh3)2(Ar)(I)] in the
presence of free PPh3.16 (C) Investigation of the effects of cocatalyst 5
or 8 on the efficiency of Pd-catalyzed Suzuki−Miyaura reactions with

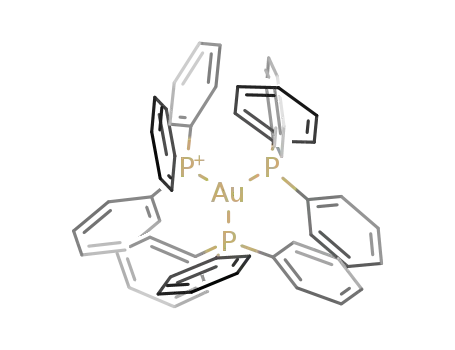

p-iodotoluene. (D) Reaction of Au complex 5 with [Pd(PPh3)4] to
afford [Au(PPh3)3]+ (10).
In the absence of additive 1, the reaction essentially featured an
induction period (∼0.5 h). In contrast, the process using 1%
[Au{P(t-Bu)3}(NTf2)] (1) provided an enhanced rate of
product formation.26,27 Employing 3% Au complex 1 afforded
negligible differences in reactivity relative to 1% loading
(Supporting Information), which is consistent with the
phosphine-scavenging capacity of Au complex 1 playing a
key role in improving the efficiency of this transformation.28
Similar results were also obtained when a 1% Pd(dba)2/1%
[HP(t-Bu)3]BF4 catalyst system was utilized in this trans-
formation (Supporting Information).
complex 5 playing a role in enhancing the efficiency of this
process.28,32 We also investigated the ability of [Au(PPh3)-
(NTf2)] (5) to formally abstract PPh3 from [Pd(PPh3)4]
(Scheme 3D). After the addition of Au complex 5 to a solution
containing this Pd(0) species, a new signal (δ 22.1 ppm) was
observed, consistent with the formation of [Au(PPh3)3]+ (10)
as judged by 31P NMR spectroscopy.33 This demonstrates the
capacity for Au complex 5 to scavenge PPh3.34
Next, we demonstrated the superior results provided by our
Pd/Au cocatalyst system in a Stille cross-coupling involving p-
iodotoluene and tributylphenylstannane (Figure 3). Specifi-
cally, the process featuring 1% Au complex 1 provided a more
efficient process relative to the reaction featuring only Pd
complex 2.26,27 Employing 3% Au complex 1 provided
negligible improvements in reactivity relative to 1% Au
complex 1 (Supporting Information). However, we cannot
exclude the possibility that tin/gold transmetalation mecha-
nisms may also be operative under these conditions. The
enhanced efficiency we observed in each of the Pd-catalyzed
Stille and Suzuki−Miyaura cross-couplings investigated in this
study is consistent with the Au cocatalyst scavenging
phosphine, thus accelerating the respective rates of trans-
metalation in these processes.
In a recent study,16,30 we identified that the poor turnover of
key on-cycle intermediate trans-[Pd(PPh3)2(Ar)(I)] in the
presence of free PPh3 was responsible for the surprisingly poor
reactivity of aryl iodides in [Pd(PPh3)4]-catalyzed Suzuki−
Miyaura cross-couplings performed at relatively low temper-
atures (Scheme 3A,B).31 Our report also illustrated the drastic
difference between this process and the equivalent reaction
utilizing aryl bromides (Scheme 3A). With this in mind, we
investigated whether gold cocatalysis could ameliorate the
aforementioned issues affecting catalyst turnover in this
transformation. Although a 1% loading of [Au(PPh3)(NTf2)]
(5) provided a negligible effect, 2% Au complex 5 facilitated a
much more efficient process (Scheme 3C).
Employing 3% [Au(PPh3)(NTf2)] afforded essentially the
same results relative to 2% 5. Significant reactivity differences
were observed when 1:1 and 1:2 ratios of [Pd(PPh3)4] and
[Au(PPh3)(NTf2)] were employed in these Suzuki−Miyaura
couplings. In contrast, similar results were obtained using 1:2
and 1:3 ratios of [Pd(PPh3)4]/[Au(PPh3)(NTf2)]. These data
are consistent with the phosphine-scavenging capacity of Au
C
DOI: 10.1021/acs.organomet.9b00294
Organometallics XXXX, XXX, XXX−XXX

Organometallics
Article
CONCLUSIONS
■
We have demonstrated that substoichiometric quantities of air-
stable cationic Au(I) complexes can accelerate and enhance
the efficiency of Pd-catalyzed cross-coupling reactions. Our
observations are consistent with Au(I) cocatalysts serving
primarily as phosphine scavengers in these processes, and these
findings reinforce the predictions of a recently published DFT
study.11 Our results also suggest that gold additives may be
more effective than copper salts in this regard, which should be
investigated further in the future.
Arguably, the viability and general utility of this Au(I)
cocatalysis approach in augmenting the development of Pd-
catalyzed reactions under mild conditions will be influenced by
factors including the donor capacity of the ligand employed,
the binding affinity of the gold complex, the choice of solvent,
and the additives present. Subsequent studies will seek to
investigate the broader implications and further applications of
this strategy in other metal-catalyzed transformations, includ-
ing olefin polymerization processes,35 and to utilize this
approach to facilitate new reaction development under mild
conditions.
Figure 3. Effects of cocatalysts Au complex 1 (red line) or Cu
complex 8 (blue line) on the progress of Pd-mediated Stille cross-
couplings. The experiment employing only Pd catalyst 2 is
represented with a black line.29
ASSOCIATED CONTENT
* Supporting Information
The Supporting Information is available free of charge on the
ACS Publications website at DOI: 10.1021/acs.organo-
met.9b00294.
■
S
The improved results provided by our Pd/Au cocatalyst
system were also demonstrated in a Mizoroki−Heck cross-
coupling involving p-iodotoluene and ethyl acrylate (Figure
4).26,27 Our results indicated that the process featuring 2%
Experimental procedures and compound characteriza-
tion data (PDF)
Accession Codes
CCDC 1875861−1875862 contain the supplementary crys-
tallographic data for this article. These data can be obtained
free of charge via www.ccdc.cam.ac.uk/data_request/cif, or by
emailing data_request@ccdc.cam.ac.uk, or by contacting The
Cambridge Crystallographic Data Centre, 12 Union Road,
Cambridge CB2 1EZ, U.K.; fax: +44 1223 336033.
AUTHOR INFORMATION
Corresponding Author
*E-mail for A.C.B.: alex.bissember@utas.edu.au.
■
ORCID
Curtis C. Ho: 0000-0002-7555-0635
Christopher J. T. Hyland: 0000-0002-9963-5924
Alex C. Bissember: 0000-0001-5515-2878
Notes
The authors declare no competing financial interest.
ACKNOWLEDGMENTS
■
We gratefully acknowledge the University of Tasmania
(UTAS) and the Australian Research Council (grant number
DP180100904) for financial support, the UTAS Central
Science Laboratory for providing access to NMR spectroscopy
services, and Dr. Mairi F. Haddow from Heriot-Watt
University for assistance with X-ray crystallography. Part of
this research was undertaken on the MX2 beamline at the
Australian Synchrotron, Victoria, Australia.
Figure 4. Effects of cocatalysts Au complex 1 (red line) or Cu
complex 8 (blue line) on the progress of Pd-mediated Mizoroki−
Heck cross-couplings. The experiment employing only Pd catalyst 2 is
represented with a black line.29
[Au{P(t-Bu)3}(NTf2)] (1) provided a more efficient process
relative to the reaction featuring only Pd complex 2.
Employing 4% Au complex 1 provided minor improvements
in reactivity relative to 2% Au complex 1 (Supporting
Information). Similar results were also obtained when a 2%
Pd(dba)2/2% [HP(t-Bu)3]BF4 catalyst system was employed
to effect this transformation (Supporting Information).
REFERENCES
■
(1) See, for example, Metal-Catalyzed Cross-Coupling Reactions and
More, 3rd ed.; de Meijere, A., Brase, S., Oestreich, M., Eds.; Wiley-
VCH: Weinheim, Germany, 2014.
̈
D
DOI: 10.1021/acs.organomet.9b00294
Organometallics XXXX, XXX, XXX−XXX

Organometallics
Article
(2) For selected reviews on applications of alkylphosphines in Pd-
catalyzed C−C cross-couplings, see (a) Rossi, R.; Bellina, F.; Lessi,
M.; Manzini, C.; Marianetti, G.; Perego, L. A. Recent Applications of
Phosphane-based Palladium Catalysts in Suzuki-Miyaura. Reactions
Involved in Total Syntheses of Natural Products. Curr. Org. Chem.
2015, 19, 1302−1409. (b) Li, H.; Johansson Seechurn, C. C. C.;
Colacot, T. J. Development of Preformed Pd Catalysts for Cross-
Coupling Reactions, Beyond the 2010 Nobel Prize. ACS Catal. 2012,
2, 1147−1164. (c) Fu, G. C. The Development of Versatile Methods
for Palladium-Catalyzed Coupling Reactions of Aryl Electrophiles
through the Use of P(t-Bu)3 and PCy3 as Ligands. Acc. Chem. Res.
2008, 41, 1555−1564. (d) Fleckenstein, C. A.; Pleino, H. Sterically
demanding trialkylphosphines for palladium-catalyzed cross coupling
reactionsalternatives to PtBu3. Chem. Soc. Rev. 2010, 39, 694−711.
(3) See (a) Littke, A. F.; Fu, G. C. A Versatile Catalyst for Heck
Reactions of Aryl Chlorides and Aryl Bromides under Mild
Conditions. J. Am. Chem. Soc. 2001, 123, 6989−7000. (b) Littke, A.
F.; Schwarz, L.; Fu, G. C. Pd/P(t-Bu)3: A Mild and General Catalyst
for Stille Reactions of Aryl Chlorides and Aryl Bromides. J. Am. Chem.
Soc. 2002, 124, 6343−6348. (c) Littke, A. F.; Dai, C.; Fu, G. C.
Versatile Catalysts for the Suzuki Cross-Coupling of Arylboronic
Acids with Aryl and Vinyl Halides and Triflates under Mild
Conditions. J. Am. Chem. Soc. 2000, 122, 4020−4028. (d) Beller,
M.; Riermeier, T. H. Phosphapalladacycle Catalyzed Heck Reactions
for Efficient Synthesis of Trisubstituted Olefins: Evidence for
Palladium(0) Intermediates. Eur. J. Inorg. Chem. 1998, 1998, 29−
35. (e) van Strijdonck, G. P. F.; Boele, M. D. K.; Kamer, P. C. J.; de
Vries, J. G.; van Leeuwen, P. W. N. M. Fast Palladium Catalyzed
Arylation of Alkenes Using Bulky Monodentate Phosphorus Ligands.
Eur. J. Inorg. Chem. 1999, 1999, 1073−1076. (f) Hartwig, J. F.; Paul,
F. Oxidative Addition of Aryl Bromide after Dissociation of
Phosphine from a Two-Coordinate Palladium(0) Complex, Bis(tri-
o-tolylphosphine)Palladium(0). J. Am. Chem. Soc. 1995, 117, 5373−
5374.
Bimetallic Catalysis: The Importance of Anionic Ligands in Catalyst
Speciation. J. Am. Chem. Soc. 2016, 138, 3266−3269.
́
(8) del Pozo, J.; Carrasco, D.; Perez-Temprano, M. H., III; García-
Melchor, M.; Alvarez, R.; Casares, J. A.; Espinet, P. Stille Coupling
́
Involving Bulky Groups Feasible with Gold Cocatalyst. Angew. Chem.,
Int. Ed. 2013, 52, 2189−2193.
(9) Shi, Y.; Peterson, S. M.; Haberaecker, W. W., III; Blum, S. A.
Alkynes as Stille Reaction Pseudohalides: Gold- and Palladium-
Cocatalyzed Synthesis of Tri- and Tetra-Substituted Olefins. J. Am.
Chem. Soc. 2008, 130, 2168−2196.
(10) Ariafard, A.; Rajabi, N. A.; Atashgah, M. J.; Canty, A. J.; Yates,
B. F. Computational Study of Carbostannylation Implicating
Bimetallic Catalysis Involving “AuI-Vinyl-PdII” Species. ACS Catal.
2014, 4, 860−869.
(11) Khaledifard, Y.; Nsiri, B.; Javidy, S. A.; Sereshk, A. V.; Yates, B.
F.; Ariafard, A. Phosphine-Scavenging Role of Gold(I) Complexes
from Pd(PtBu3)2 in the Bimetallic Catalysis of Carbostannylation of
Alkynes. Organometallics 2017, 36, 2014−2019.
(12) Diversi, P.; Cuzzola, A.; Ghiotto, F. Chemistry of Polynuclear
Cationic Gold(I) Thiolates of Formula [Au2(StBu)(L2)][BF4]. Eur. J.
Inorg. Chem. 2009, 4, 545−553.
(13) A black powder, presumed to be Pd black, precipitated after
∼0.5 h.
(14) CCDC 1875862 (3) contains the supplementary crystallo-
graphic data. These data are available free of charge from the
Cambridge Crystallographic Data Centre via www.ccdc.cam.ac.uk/
data_request/cif.
(15) Stambuli, J. P.; Incarvito, C. D.; Buhl, M.; Hartwig, J. F.
Synthesis, Structure, Theoretical Studies, and Ligand Exchange
Reactions of Monomeric, T-Shaped Arylpalladium(II) Halide
Complexes with an Additional, Weak Agostic Interaction. J. Am.
Chem. Soc. 2004, 126, 1184−1194.
(16) For studies demonstrating the effects of free PPh3 on reducing
the efficiency of transmetalation in Pd-catalyzed Suzuki−Miyaura
cross-couplings, see Ho, C. C.; Olding, A.; Smith, J. A.; Bissember, A.
C. Nuances in Fundamental Suzuki-Miyaura Cross-Couplings
Employing [Pd(PPh3)4]: Poor Reactivity of Aryl Iodides at Lower
Temperatures. Organometallics 2018, 37, 1745−1750 and references
cited therein .
(17) For studies demonstrating the effects of free PPh3 on reducing
the efficiency of transmetalation in Pd-catalyzed Stille cross-couplings,
see (a) Farina, V.; Krishnan, B. Large rate accelerations in the stille
reaction with tri-2-furylphosphine and triphenylarsine as palladium
ligands: mechanistic and synthetic implications. J. Am. Chem. Soc.
1991, 113, 9585−9595 and references cited therein . (b) Liebeskind,
L. S.; Fengi, R. W. 3-Stannylcyclobutenediones as nucleophilic
cyclobutenedione equivalents. Synthesis of substituted cyclobutene-
diones and cyclobutenedione monoacetals and the beneficial effect of
catalytic copper iodide on the Stille reaction. J. Org. Chem. 1990, 55,
5359−5364. (c) Casado, A. L.; Espinet, P. Quantitative Evaluation of
the Factors Contributing to the “Copper Effect” in the Stille Reaction.
Organometallics 2003, 22, 1305−1309.
(18) For selected studies concerning the enhanced efficiency of Pd-
catalyzed Stille couplings employing copper cocatalysts, see refs 17b
and 17c and (a) Farina, V.; Kapadia, S.; Krishnan, B.; Wang, C.;
Liebeskind, L. S. On the Nature of the “Copper Effect” in the Stille
Cross-Coupling. J. Org. Chem. 1994, 59, 5905−5911. (b) Han, X.;
Stolz, B. M.; Corey, E. J. Cuprous Chloride Accelerated Stille
Reactions. A General and Effective Coupling System for Sterically
Congested Substrates and for Enantioselective Synthesis. J. Am. Chem.
Soc. 1999, 121, 7600−7605. (c) Mee, S. P. H.; Lee, V.; Baldwin, J. E.
Stille Coupling Made EasierThe Synergic Effect of Copper(I) Salts
and the Fluoride Ion. Angew. Chem., Int. Ed. 2004, 43, 1132−1136.
(d) Mee, S. P. H.; Lee, V.; Baldwin, J. E. Significant Enhancement of
the Stille Reaction with a New Combination of ReagentsCopper(I)
Iodide with Cesium Fluoride. Chem. - Eur. J. 2005, 11, 3294−3308.
(19) For selected studies concerning Pd-catalyzed Suzuki−Miyaura
couplings employing copper cocatalysts, see (a) Boland, G. M.;
Donnelly, D. M. X.; Finet, P.-J.; Rea, M. D. Synthesis of neoflavones
(4) For a study of the reductive elimination of aryl halides from P(t-
Bu)3-ligated Pd complexes, see Roy, A. H.; Hartwig, J. F. Reductive
Elimination of Aryl Halides from Palladium(II). J. Am. Chem. Soc.
2001, 123, 1232−1233.
(5) Generating the active catalyst in situ from various Pd(0) or
Pd(II) precatalysts and [HP(t-Bu)3]BF4 allows for easier handling
because free P(t-Bu)3 is susceptible to oxidation by oxygen (ref 2c).
[Pd{P(t-Bu)3}2] is an air-stable solid and can be handled in air (refs
2c and 3c).
(6) For selected reviews on homogeneous heterobimetallic catalysis
featuring palladium, see (a) Hirner, J. J.; Shi, Y.; Blum, S. A.
Organogold Reactivity with Palladium, Nickel, and Rhodium:
Transmetalation, Cross-Coupling, and Dual Catalysis. Acc. Chem.
́
Res. 2011, 44, 603−613. (b) Perez-Temprano, M. H.; Casares, J. A.;
Espinet, P. Bimetallic Catalysis using Transition and Group 11
Metals: An Emerging Tool for C-C Coupling and Other Reactions.
Chem. - Eur. J. 2012, 18, 1864−1884. (c) Powers, D. C.; Ritter, T.
Bimetallic Redox Synergy in Oxidative Palladium Catalysis. Acc. Chem.
Res. 2012, 45, 840−850. (d) Bay, K. L.; Yang, Y.-F.; Houk, K. N.
Multiple roles of silver salts in palladium-catalyzed C-H activations. J.
Organomet. Chem. 2018, 864, 19−25.
(7) For studies describing Au(I) transmetalating species in cross-
couplings, see (a) Shi, Y.; Ramgren, S. D.; Blum, S. A. Palladium-
Catalyzed Carboauration of Alkynes and Palladium/Gold Cross-
Coupling. Organometallics 2009, 28, 1275−1277. (b) Shi, Y.; Roth, K.
E.; Ramgren, S. D.; Blum, S. A. Catalyzed Catalysis Using Carbophilic
Lewis Acidic Gold and Lewis Basic Palladium: Synthesis of
Substituted Butenolides and Isocoumarins. J. Am. Chem. Soc. 2009,
131, 18022−18023. (c) Al-Amin, M.; Johnson, J. S.; Blum, S. A.
Selectivity, Compatibility, Downstream Functionalization, and Silver
Effect in the Gold and Palladium Dual-Catalytic Synthesis of
Lactones. Organometallics 2014, 33, 5448−5456. (d) Al-Amin, M.;
Roth, K. E.; Blum, S. A. Mechanistic Studies of Gold and Palladium
Cooperative Dual-Catalytic Cross-Coupling Systems. ACS Catal.
2014, 4, 622−629. (e) García-Domínguez, P.; Nevado, C. Au-Pd
E
DOI: 10.1021/acs.organomet.9b00294
Organometallics XXXX, XXX, XXX−XXX

Organometallics
Article
by Suzuki arylation of 4-substituted coumarins. J. Chem. Soc., Perkin
Trans. 1 1996, 2591−2597. (b) Savarin, C.; Liebeskind, L. S.
Nonbasic, Room Temperature, Palladium-Catalyzed Coupling of Aryl
and Alkenyl Iodides with Boronic Acids Mediated by Copper(I)
Thiophene-2-carboxylate (CuTC). Org. Lett. 2001, 3, 2149−2152.
(c) Hodgson, P. B.; Salingue, F. H. The preparation of a stable 2-
pyridylboronate and its reactivity in the Suzuki-Miyaura cross-
coupling reaction. Tetrahedron Lett. 2004, 45, 685−687. (d) Yama-
moto, Y.; Takizawa, M.; Yu, X.; Miyaura, N. Cyclic Triolborates: Air
and Water Stable Ate Complexes of Organoboronic Acids. Angew.
Chem., Int. Ed. 2008, 47, 928−931. (e) Deng, J. Z.; Paone, D. V.;
Ginnetti, A. T.; Kurihara, H.; Dreher, S. D.; Weissman, S. A.; Stauffer,
S. R.; Burgey, C. S. Copper-Facilitated Suzuki Reactions: Application
to 2-Heterocyclic Boronates. Org. Lett. 2009, 11, 345−347. (f) Grob,
J. E.; Nunez, J.; Dechantsreiter, M. A.; Hamann, L. G. Regioselective
Synthesis and Slow-Release Suzuki-Miyaura Cross-Coupling of MIDA
Boronate-Functionalized Isoxazoles and Triazoles. J. Org. Chem. 2011,
76, 10241−10248. (g) Knapp, D. M.; Gillis, E. P.; Burke, M. D. A
General Solution for Unstable Boronic Acids: Slow-Release Cross-
Coupling from Air-Stable MIDA Boronates. J. Am. Chem. Soc. 2009,
131, 6961−6963.
(32) It is unclear whether [Au(PPh3)(NTf2)] (5) has the capacity to
scavenge PPh3 directly from [Pd(PPh3)2(p-tol)(I)]. For example, a
number of new signals were observed when Au complex 5 was added
to a THF-d8 solution of trans-[Pd(PPh3)2(p-tol)(I)], as judged by 31
P
NMR spectroscopy. Espinet and co-workers suggest that CuI binds
free PPh3 in the reaction mixture rather than scavenging PPh3 directly
from [Pd(PPh3)2(aryl)(I)] (ref 17c).
(33) Olbrich, F.; Lagow, R. J. A Novel Mononuclear Gold(I)
Complex: Synthesis and X-Ray Structure of [Au{P(C6H5)3}3][SiF5]·
1.5 CH2Cl2. Z. Anorg. Allg. Chem. 1995, 621, 1929−1932.
(34) The addition of [Au(PPh3)(NTf2)] (5) to a THF-d8 solution
containing [Pd(PPh3)4] and Bu4NI provided similar results, as judged
by 31P NMR spectroscopy.
(35) For early examples of phosphine scavenging in olefin
polymerization, see (a) Klabunde, U.; Itten, S. D. Nickel catalysis
for ethylene homo- and co-polymerization. J. Mol. Catal. 1987, 41,
123−134. (b) Wang, C.; Friedrich, S.; Younkin, T. R.; Li, R. T.;
Grubbs, R. H.; Bansleben, D. A.; Day, M. W. Neutral Nickel(II)-
Based Catalysts for Ethylene Polymerization. Organometallics 1998,
17, 3149−3151.
(20) Peng, Y.; Li, W.-D. Z. cine Substitution and the Cu Effect in
Stille Cross Coupling Reactions: Mechanistic Perspectives and
Synthetic Utility. Eur. J. Org. Chem. 2010, 2010, 6703−6718.
(21) (a) Liebeskind, L. S.; Wand, J. Synthesis of substituted
cyclobutenediones by the palladium catalyzed cross-coupling of
halocyclobutenediones with organostannanes. Tetrahedron Lett.
1990, 31, 4293−4296. (b) Liebeskind, L. S.; Yu, M. S.; Yu, R. H.;
Wang, J.; Hagen, K. S. 4,4′-Bi(cyclobutene-1,2-diones): bisquaryls. J.
Am. Chem. Soc. 1993, 115, 9048−9055. (c) Liebeskind, L. S.;
Riesinger, S. W. Substituted quinone synthesis by palladium-copper
cocatalyzed cross-coupling of stannylquinones with aryl and
heteroaryl iodides. J. Org. Chem. 1993, 58, 408−413. (d) Allred, G.
D.; Liebeskind, L. S. Copper-Mediated Cross-Coupling of Organo-
stannanes with Organic Iodides at or below Room Temperature. J.
Am. Chem. Soc. 1996, 118, 2748−2749.
(22) Farina, V. New perspectives in the cross-coupling reactions of
organostannanes. Pure Appl. Chem. 1996, 68, 73−78.
(23) Other additives have been reported to remove P(t-Bu)3 in Pd-
catalyzed reactions. See Tan, Y.; Hartwig, J. F. Assessment of the
Intermediacy of Arylpalladium Carboxylate Complexes in the Direct
Arylation of Benzene: Evidence for C-H Bond Cleavage by
“Ligandless” Species. J. Am. Chem. Soc. 2011, 133, 3308−3311.
(24) Hobbs, F. W., Jr Palladium-catalyzed synthesis of alkynylamino
nucleosides. A universal linker for nucleic acids. J. Org. Chem. 1989,
54, 3420−3422.
(25) CCDC 1875861 (9) contains the supplementary crystallo-
graphic data. These data are available free of charge from the
Cambridge Crystallographic Data Centre via www.ccdc.cam.ac.uk/
data_request/cif.
(26) Essentially no cross-coupled product was formed in reactions
featuring either Au complex 1 or Cu complex 8 in the absence of Pd
complex 2.
(27) The use of Cu complex 8 as an additive was not as effective as
Au complex 1. Experiments were also performed using CuI as an
additive, which was also not as effective as Au complex 1 (Supporting
Information).
(28) The possibility that boron/gold transmetalation mechanisms
may also be operative under these conditions cannot be excluded.
(29) Each data point represents the average of two experiments with
yields determined via GC with the aid of a calibrated internal
standard.
(30) Pullen, R.; Olding, A.; Smith, J. A.; Bissember, A. C. Capstone
Laboratory Experiment Investigating Key Features of Palladium-
Catalyzed Suzuki-Miyaura Cross-Coupling Reactions. J. Chem. Educ.
2018, 95, 2081−2085.
(31) The results of the study reported in ref 16 were consistent with
transmetalation representing the rate-limiting step of the reaction.
F
DOI: 10.1021/acs.organomet.9b00294
Organometallics XXXX, XXX, XXX−XXX
