Complexes of heteroscorpionate trispyrazolylborate ligands. Part 10. Structures and fluxional behavior of rhodium(I) complexes with heteroscorpionate trispyrazolylborate ligands, Tp″Rh(LL) (LL = (CO)2 or COD)

Article abstract of DOI:10.1021/om020873x

Heteroscorpionate Tp″ ligands constructed of two 3-phenyl-5-methylpyrazolyl and a variable third pyrazolyl residue (3-methyl-5-phenyl-, 3,5-dimethyl-, and 3,5-diethylpyrazolyl) coordinate to rhodium(I) in a k² fashion to form Tp″Rh(LL) complexes (where LL = COD or (CO)₂). One of the two 3-phenyl-5-methylpyrazolyl and the less sterically hindered pyrazolyl coordinate through N(2) atoms, while the axially appended 3-phenyl-5-methylpyrazolyl is in side-on conformation. The Tp″Rh(COD) complexes possess C₁ symmetry in the solid state. The energy of activation of the exchange between coordinated and uncoordinated pyrazolyls was estimated from variable-temperature ¹H NMR measurements. Two ΔG? values were found for heteroscorpionate complexes. The ΔG?₁ - ΔG?₂ depends on a difference in steric demands of competing pyrazoles. For the homoscorpionate Tp^ph,MeRh(COD) complex two rotational isomers were identified by low-temperature ¹H NMR spectroscopy, which originate from slow rotation of the dangling 3-phenyl-5-methylpyrazolyl residue. All studied Tp′Rh-(COD) complexes were found to be catalytically active in regioselective polymerization of phenylacetylene.

Full text of DOI:10.1021/om020873x

1072
Organometallics 2003, 22, 1072-1080
Com p lexes of Heter oscor p ion a te Tr isp yr a zolylbor a te
Liga n d s. P a r t 10. Str u ctu r es a n d F lu xion a l Beh a vior of
Rh od iu m (I) Com p lexes w ith Heter oscor p ion a te
Tr isp yr a zolylbor a te Liga n d s, Tp ′′Rh (LL)
(LL ) (CO)2 or COD)
Tomasz Ruman,† Zbigniew Ciunik,‡ Anna M. Trzeciak,‡
Stanisław Wołowiec,*,†,‡ and J o´zef J . Zio´łkowski*,‡
Faculty of Chemistry, Rzeszo´w University of Technology, 6 Powstan´co´w Warszawy Avenue,
35-959 Rzeszo´w, Poland, and Faculty of Chemistry, University of Wrocław,
14 J oliot-Curie Street, 50-383, Wrocław, Poland
Received October 22, 2002
Heteroscorpionate Tp′′ ligands constructed of two 3-phenyl-5-methylpyrazolyl and a
variable third pyrazolyl residue (3-methyl-5-phenyl-, 3,5-dimethyl-, and 3,5-diethylpyrazolyl)
coordinate to rhodium(I) in a κ2 fashion to form Tp′′Rh(LL) complexes (where LL ) COD or
(CO)2). One of the two 3-phenyl-5-methylpyrazolyl and the less sterically hindered pyrazolyl
coordinate through N(2) atoms, while the axially appended 3-phenyl-5-methylpyrazolyl is
in side-on conformation. The Tp′′Rh(COD) complexes possess C1 symmetry in the solid state.
The energy of activation of the exchange between coordinated and uncoordinated pyrazolyls
1
was estimated from variable-temperature H NMR measurements. Two ∆Gq values were
found for heteroscorpionate complexes. The ∆Gq - ∆Gq depends on a difference in steric
1
2
demands of competing pyrazoles. For the homoscorpionate TpPh,MeRh(COD) complex two
rotational isomers were identified by low-temperature 1H NMR spectroscopy, which originate
from slow rotation of the dangling 3-phenyl-5-methylpyrazolyl residue. All studied Tp′Rh-
(COD) complexes were found to be catalytically active in regioselective polymerization of
phenylacetylene.
In tr od u ction
to undergo such borotropic shifts into 3-R2-5-R1-pyrazol-
1-yl has been recently explored in detail and eventually
used to obtain the chiral Tp* ligand with boron-centered
chirality: hydro(3,5-dimethylpyrazolyl)(3-isopropyl-5-
phenylpyrazolyl)(3-phenyl-5-isopropylpyrazolyl)borate
from synthetic Tp′′, hydrobis(3-phenyl-5-isopropylpyra-
zolyl)(3,5-dimethylpyrazolyl)borate.5 The goal has been
achieved by thermal conversion of the corresponding
Tp′′Co(NCS) complex under mild conditions. The Tp′′’s
are also interesting ligands for transition metal ions
which engage two nitrogen donors of these anions. In
such a case one may expect the preferential coordination
of two pyrazolyl residues with smaller steric hindrance
imposed by 3- and/or 5-substituents of Tp′′. In this paper
we have described the structures and fluxional behavior
of a series of Tp′′Rh(LL) complexes, where LL ) (CO)2
or COD. The Tp′′ ligands were constructed of two
3-phenyl-5-methylpyrazolyl residues and a variable
third one: 3,5-dimethyl-, 3,5-diethyl-, and 3-methyl-5-
phenylpyrazolyl. For comparison the previously known
TpPh,MeRh(COD) complex was also studied.
The chemistry of transition metal ion complexes with
the trispyrazolylborate anion (Tp) was initiated by
Trofimenko in 1966.1 Structural modifications of pyra-
zolyl residues (pz) by introducing various substituents
at the 3-5 positions of pz resulted in obtaining the
homoscorpionate ligands named second-generation
trispyrazolylborates (Tp′), which possess C3v symmetry,
and heteroscorpionates, ligands of Cs symmetry, con-
structed of two different pyrazolyl residues.2 The latter
will be called third-generation trispyrazolylborates (Tp′′)
hereafter. Heteroscorpionates are obtainable from asym-
metric 3-R1,5-R2pzH upon condensation with borohy-
dride (spontaneously formed Tp′′) or on the same route
with the use of two different pyrazoles (“synthetic”
heteroscorpionates). Transition metal ion compounds
with spontaneous Tp′′ can be prepared by ligation of
pure Tp′′ (usually sodium or thallium(I) salts of Tp′′ are
used) or by thermally induced intramolecular conversion
of homoscorpionate into heteroscorpionate in the com-
plex.3,4 The property of 3-R1-5-R2-pyrazol-1-yl residues
Resu lts a n d Discu ssion
† Rzeszo´w University of Technology.
Substituted tris(pyrazol-1-yl)borates (second-genera-
‡ University of Wrocław.
(1) Trofimenko, S. J . Am. Chem. Soc. 1966, 88, 1842.
(2) Trofimenko, S. Scorpionates: the coordination chemistry of
polypyrazolylborate ligands; Imperial College Press: London, U.K.,
1999.
tion scorpionates, Tp′)2 form Tp′Rh(LL) complexes, in
(4) Ruman, T.; -Lukasiewicz, M.; Ciunik, Z.; Wołowiec, S. Polyhedron
2001, 20, 2551.
(3) Trofimenko, S.; Calabrese, J . C.; Domaille, P. J .; Thompson, G.
S. Inorg. Chem. 1989, 28, 1091.
(5) Ruman, T.; Ciunik, Z.; Wołowiec, S. Eur. J . Inorg. Chem.,
submitted.
10.1021/om020873x CCC: $25.00 © 2003 American Chemical Society
Publication on Web 01/31/2003

Heteroscorpionate Trispyrazolylborate Ligands
Organometallics, Vol. 22, No. 5, 2003 1073
Sch em e 1
F igu r e 1. View of 1. Selected bond lengths (Å) and angles
(deg): Rh(1)-C(27), 1.852(2); Rh(1)-C(26), 1.862(2); Rh-
(1)-N(4), 2.0855(16); Rh(1)-N(2), 2.0957(16); C(27)-Rh-
(1)-C(26), 88.35(9); C(27)-Rh(1)-N(4), 94.79(8); C(26)-
Rh(1)-N(4), 174.79(7); C(27)-Rh(1)-N(2), 178.79(7); C(26)-
Rh(1)-N(2), 90.69(7); N(4)-Rh(1)-N(2), 86.11(6).
which they coordinate in κ2 fashion, when L1L2 ) (CO)2
or COD. The 1H NMR and IR studies of those complexes
in solution demonstrate that homoscorpionate Tp′ in-
terconverts between forms A, B, and C (Scheme 1). The
conversion B T C is fast on the 1H NMR time scale,
resulting in averaging of all pyrazolyl resonances,
whereas the A T B interconversion is relatively slower
F igu r e 2. View of 2. Selected bond lengths (Å) and angles
(deg): Rh(1)-N(2), 2.0950(15); Rh(1)-N(4), 2.1003(14); Rh-
(1)-C(38), 2.1344(19); Rh(1)-C(31), 2.1355(18); Rh(1)-
C(35), 2.1395(19); Rh(1)-C(34), 2.1457(17); N(2)-Rh(1)-
N(4), 82.60(6); N(2)-Rh(1)-C(38), 154.03(7); N(4)-Rh(1)-
C(38), 96.33(7); N(2)-Rh(1)-C(31), 167.48(7); N(4)-Rh(1)-
C(31), 92.93(6); N(2)-Rh(1)-C(35), 91.48(7); N(4)-Rh(1)-
C(35), 161.04(7); N(2)-Rh(1)-C(34), 98.68(6); N(4)-Rh(1)-
C(34), 160.85(7).
1
and the H NMR spectra indicate the presence of two
sets of resonances of 2:1 intensity ratio for A. In the solid
state the isomers A were evidenced by X-ray crystal-
lography barely in two cases, i.e., for TpPhRh(COD) and
TpMenthRh(CO)2.6,7 However in solution both of these
compounds indicate the presence of both A and averaged
B T C species at concentrations depending on temper-
ature and solvent. Here we have applied the heteroscor-
pionate Tp′′ ligands to construct Tp′′Rh(LL) complexes
and studied their properties in structural and fluxional
aspects.
Str u ctu r es of 1-4. The complex [HB(3-Ph,5-Mepz)2-
(3,5-diMepz)]Rh(CO)2 (1) was obtained by the procedure
used previously for the synthesis of TpPh,MeRh(CO)2,8
i.e., with Rh(acac)(CO)2 as starting material, whereas
[RhCl(COD)]2 was used for the synthesis of TpPh,MeRh-
(COD) (2), [HB(3-Ph,5-Mepz)2(3-Me,5-Phpz)]Rh(COD)
(3), and [HB(3-Ph,5-Mepz)2(3,5-diEtpz)] Rh(COD) (4),
where ([HB(3-Ph,5-Mepz)2(3,5-diMepz)] ) hydrobis(3-
phenyl-5-methylpyrazol-1-yl)(3,5-dimethylpyrazol-1-yl)-
borate, [HB(3-Ph,5-Mepz)2(3-Me,5-Phpz)] ) hydrobis(3-
phenyl-5-methylpyrazol-1-yl)(3-methyl-5-phenylpyrazol-
1-yl)borate, and [HB(3-Ph,5-Mepz)2(3,5-diEtpz)]
)
hydrobis(3-phenyl-5-methylpyrazol-1-yl)(3,5-diethylpyra-
zol-1-yl)borate. Monocrystals suitable for crystallo-
graphic studies were obtained for all complexes. A view
of 1 is presented at Figure 1. The 3,5-diMepz and one
of two 3-Ph,5-Mepz moieties of Tp′′ are coordinated by
N(4) and N(2) donors, respectively. The Rh-N(4) bond
is shorter by 0.01 Å in comparison with the Rh-N(2)
one. The nitrogen atom of appended 3-Ph,5-Mepz weakly
interacts with Rh(I) (2.84 Å). Its 3-phenyl substituent
is almost coplanar with the pyrazolyl ring and bisects
the OC-Rh-CO angle.

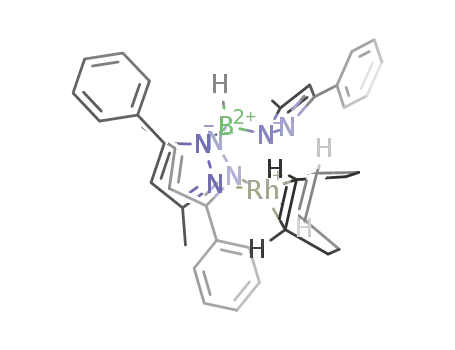

The molecular structure of 2 is presented in Figure
2. The Rh-N(3-Ph,5-Mepz) bond lengths in 2 are typical
for Tp′Rh(COD) complexes (about 2.10 Å, column 3 in
Table 1) and differ slightly from each other; Rh-N(4)
and Rh-N(2) distances are 2.100 and 2.095 Å, respec-
tively. The only reasonable explanation for this differ-
ence is the involvement of asymmetric arrangement of
the uncoordinated pyrazolyl moiety, the motif observed
in all homoscorpionate Tp′Rh(COD) complexes.
(6) Sanz, D.; Santa Maria, M. D.; Claramunt, R. M.; Cano, M.; Heras,
J . V.; Campo, J . A.; Ruiz, F. A.; Pinilla, E.; Monge A. J . Organomet.
Chem. 1996, 526, 341.
(7) Keyes, M. C.; Young, V. G.; Tolman, W. B. Organometallics 1995,
15, 4133.
(8) Moszner, M.; Wolowiec, S.; Tro¨sch., A.; Vahrenkamp, H. J .
Organomet. Chem. 2000, 595, 178.

1074 Organometallics, Vol. 22, No. 5, 2003
Ruman et al.
Ta ble 1. X-r a y Cr ysta llogr a p h ic Da ta a n d Metr ic P a r a m eter s for Tp ′Rh (L1L2) Com p lexes
complexref
Rh-N(pz) [Å]
2.099, 2.099, 3.694h 2.012, 2.012
2.107, 2.107 2.004, 2.004
Rh-X [Å]a
