A P r ototyp e Ca lix[4]a r en e-Ba sed Recep tor for Ca r boh yd r a te
Recogn ition Con ta in in g P ep tid e a n d P h osp h a te Bin d in g Gr ou p s
Margarita Segura,†,‡ Barbara Bricoli,† Alessandro Casnati,† Eva Maria Mun˜oz,§
Francesco Sansone,† Rocco Ungaro,*,† and Cristina Vicent§
Dipartimento di Chimica Organica e Industriale, Universita` degli Studi, Parco Area delle Scienze 17/ A,
I-43100 Parma, Italy, and Instituto de Qu´ımica Orga´nica General, CSIC, Dp.to Qu´ımica Orga´nica
Biolo´gica, C/ J uan de la Cierva 3, E-28006 Madrid, Spain
rocco.ungaro@unipr.it
Received April 14, 2003
A novel class of macrobicyclic receptors for carbohydrate recognition based on upper rim, peptide-
bridged calix[4]arenes has been designed and synthesized. Receptor 12, in which a charged
phosphate group cooperates with peptide hydrogen-bonding donor and acceptor groups in the binding
process, is the most efficient and selective in the complexation of simple carbohydrate derivatives.
The selectivity observed is toward â-glucoside 13a , which is better bound (∆G° ) 19.6 kJ mol-1
)
compared to the corresponding R anomer 13b (∆G° ) 17.0 kJ mol-1) and to the â-galactoside 13c
(∆G° ) 17.7 kJ mol-1) in CDCl3. A substantial drop in the stability constant is observed by
esterification of the phosphate group in the host 12 or by alkylation of the OH groups in the 2 and
3 positions in the â-glucoside and â-galactoside derivatives. On the basis of a careful analysis of
1
the H NMR data available, a binding mode of the â-octylglucoside 13a to receptor 12 is proposed.
In tr od u ction
organic media and only few in water solution,8 where
hydrophobic interactions could strengthen the sugar
binding. Calixarenes are a versatile class of cavity
containing macrocycles used in several areas of supramo-
lecular chemistry.9 In the past few years, we have been
interested to extend the use of calixarenes in bio-organic
chemistry10 by synthesizing several hydrogen bonding
macrocyclic receptors for anions,11 amino acids,12 and
small peptides.13 Few of these receptors are water
soluble,12b and others show interesting antibacterial
Carbohydrates are involved in numerous, very impor-
tant, biological molecular recognition processes ranging
from cell adhesion and migration to infection by bacteria
and viruses, toxins, or vaccine action, etc. The need of
understanding the biological role of carbohydrates in
molecular terms has stimulated the birth of chemical
glycobiology,1 a field mainly devoted to the study of
multivalent glycoclusters,2 and the flowering of the
biomimetic3 and supramolecular4 approaches to carbo-
hydrate recognition. Several synthetic receptors for car-
bohydrate recognition and sensing have been designed
and synthesized in recent years, some exploiting the
formation of covalent adducts with boronic acids,5 others
employing charged phosphate and phosphonate groups6
or a variety of hydrogen-bonding acceptor and donor
groups7 on several molecular scaffolds. Most of these
artificial receptors are able to complex carbohydrates in
(6) (a) Das, G.; Hamilton, A. D. J . Am. Chem. Soc. 1994, 116, 11139-
11140. (b) Das, G.; Hamilton, A. D. Tetrahedron Lett. 1997, 38, 3675-
3678. (c) Droz, A. S.; Neidlein, U.; Anderson, S.; Seiler, P.; Diederich,
F. Helv. Chim. Acta 2001, 84, 2243-2289. (d) Rusin, O.; Lang, K.; Kra´l,
V. Chem. Eur. J . 2002, 8, 655-663.
(7) (a) Davis, A. P.; Wareham, R. S. Angew. Chem., Int. Ed. Engl.
1998, 37, 2270-2273. (b) Smith, D. K.; Diederich, F. Chem. Commun.
1998, 2501-2502. (c) Inouye, M.; Chiba, J .; Nakazumi, H. J . Org.
Chem. 1999, 64, 8170-8176. (d) Lo¨wik, D. W. P. M.; Lowe, C. R. Eur.
J . Org. Chem. 2001, 2825-2839. (e) Mazik, M.; Sicking, W. Chem. Eur.
J . 2001, 7, 664-670. (f) Ryan, T. J .; Lecollinet, G.; Velasco, T.; Davis,
A. P. Proc. Natl. Acad. Sci. U.S.A. 2002, 99, 4863-4866. (g) Tamaru,
S.; Shinkai, S.; Khasanov, A. B.; Bell, T. W. Proc. Natl. Acad. Sci.
U.S.A. 2002, 99, 4972-4976.
(8) (a) Cote´ron, J . M.; Vicent, C.; Bosso, C.; Penade´s, S. J . Am. Chem.
Soc. 1993, 115, 10066-10076. (b) J ime´nez-Barbero, J .; J unquera, E.;
Mart´ın-Pastor, M.; Sharma, S.; Vicent, C.; Penade´s, S. J . Am. Chem.
Soc. 1995, 117, 11198-11204. (c) Morales, J . C.; Penade´s, S. Angew.
Chem., Int. Ed. Engl. 1998, 37, 654-657. (d) Sugimoto, N.; Miyoshi,
D.; Zou, J . Chem. Commun. 2000, 2295-2296.
(9) (a) Calixarenes in Action; Mandolini, L., Ungaro, R., Eds.;
Imperial College Press: London, 2000. (b) Calixarenes 2001; Asfari,
Z., Bo¨hmer, V., Harrowfield, J ., Vicens, J ., Eds.; Kluwer Academic
Publishers: Dordrecht, 2001.
* To whom correspondence should be addressed. Tel:
+39.0521.905555. Fax: +39.0521.905472.
† Universita` degli Studi.
‡ Current address: Dp.to de Qu´ımica Orga´nica, Facultad de Cien-
cias, Universidad Auto´noma de Madrid, Cantoblanco, E-28049, Madrid,
Spain.
§ Instituto de Qu´ımica Orga´nica General.
(1) Bertozzi, C. R.; Kiessling, L. K. Science 2001, 291, 2357-2364.
(2) (a) Mammen, M.; Choi, S.-K.; Whitesides, G. M. Angew. Chem.,
Int. Ed. Engl. 1998, 37, 2755-2794. (b) Lundquist, J . J .; Toone, E. J .
Chem. Rev. 2002, 102, 555-578.
(3) Rojo, J .; Morales, J . C.; Penade´s, S. Top. Curr. Chem. 2002, 218,
45-92.
(4) Davis, A. P.; Wareham, R. S. Angew. Chem., Int. Ed. Engl. 1999,
38, 2978-2996.
(5) (a) Morin, G. T.; Hughes, M. P.; Paugam, M.-F.; Smith, B. D. J .
Am. Chem. Soc. 1994, 116, 8895-8901. (b) Linnane, P.; J ames, T. D.;
Shinkai, S. J . Chem. Soc., Chem. Commun. 1995, 1997-1998. (c)
J ames, T. D.; Shinkai, S. Top. Curr. Chem. 2002, 218, 159-200.
(10) Sansone, F.; Segura, M.; Ungaro, R. In ref 9b, pp 496-512.
(11) Sansone, F.; Baldini, L.; Casnati, A.; Lazzarotto, M.; Ugozzoli,
F.; Ungaro, R. Proc. Natl. Acad. Sci. U.S.A. 2002, 99, 4842-4847.
(12) (a) Sansone, F.; Barboso, S.; Casnati, A.; Fabbi, M.; Pochini,
A.; Ugozzoli, F.; Ungaro, R. Eur. J . Org. Chem. 1998, 897, 7-905. (b)
Sansone, F.; Barboso, S.; Casnati, A.; Sciotto, D.; Ungaro, R. Tetrahe-
dron Lett. 1999, 40, 4741-4744.
10.1021/jo034471q CCC: $25.00 © 2003 American Chemical Society
Published on Web 07/10/2003
6296
J . Org. Chem. 2003, 68, 6296-6303

Calix[4]arene-Based Receptor for Carbohydrate Recognition

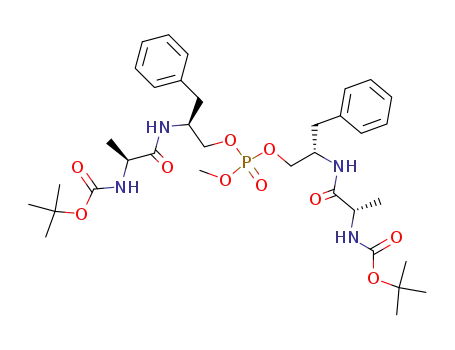

SCHEME 1. Syn th esis of P seu d op ep tid es 4a ,b
