A Calix[4]arene Carceplex with Four Rh2 Fasteners
F. Albert Cotton,*,† Peng Lei,† Chun Lin,† Carlos A. Murillo,*,† Xiaoping Wang,†
Shu-Yan Yu,†,‡ and Zhong-Xing Zhang‡
Contribution from the Laboratory for Molecular Structure and Bonding, Department of
Chemistry, P.O. Box 30012, Texas A&M UniVersity, College Station, Texas 77842-3012, and
State Key Laboratory of Polymer Physics and Chemistry and Joint Laboratory of Polymer
Science and Materials, Institute of Chemistry, Chinese Academy of Sciences,
Beijing 10080, P. R. China
Received November 19, 2003; E-mail: cotton@tamu.edu; murillo@tamu.edu; syu@iccas.ac.cn
Abstract: It is shown that a spheroidal carceplex can be assembled by linking two bowl-shaped calix[4]-
arenes via four dimetal units, (DAniF)2Rh2 (DAniF ) N,N′-di-p-anisylformamidinate), with a molecule (diethyl
ether) or a cation (tetraethylammonium ion) trapped inside. The tetraethylammonium carceplex, 1b, has
been characterized by X-ray crystallography, 1H NMR, IR, and mass spectrometry. The tetraethylammonium
ion fits snugly in the interior of the spheroidal carceplex. A two-fold axis of the tetrahedral cation coincides
with the idealized four-fold axis of the cage, and the cation is disordered over two rotational orientations.
Only one axial position on each dirhodium unit is occupied by a ligand, CH3CN or H2O. The carceplex is
very stable, and the axial ligands can be exchanged in single crystals without disrupting the crystallinity of
the samples. In this way, a red crystal of the complex with all axial positions occupied by acetonitrile can
be transformed to a green crystal of the complex with two axial positions having acetonitrile and the other
two having water by simply putting the crystal in contact with distilled water. The calix[4]arene used to
make the carciplex structure is 25,26,27,28-tetra-n-propoxycalix[4]arene-5,11,17,23-tetracarboxylic acid.
By employing 25,26,27,28-tetrapropoxy-5,17-dibromo-calix[4]arene-11,23-dicarboxylic acid, two 1:1 dimetal:
calixarene compounds have also been made and characterized: 2, cis-Rh2(DAniF)2(calix)(CH3OH), and
3, cis-Mo2(DAniF)2(calix). The Rh-Rh distances in 1b are in the range of 2.410(2)-2.428(2) Å, that in 2
is 2.4383(4) Å, and the Mo-Mo distance in 3 is 2.0931(4) Å.
Introduction
carboxylates) to give various kinds of supramolecular assemblies
such as loops, squares, triangles, and more complex polyhedra.4
The use of Rh2 units is especially appealing because many
dirhodium compounds have important and varied catalytic
activity.5
There is currently great interest in the design and preparation
of supramolecular materials. Many may be constructed with
single metal atom vertices (e.g., square planar PdII and PtII or
tetrahedral ZnII),1 or as in our laboratory by using metal-metal
bonded (M2) dimetal atom vertices (especially those with M2
) Mo24+,2 Rh24+,2 and Ru25+ 3). Useful precursors for preparing
4+
Another possible application that we have envisioned for our
polygonal assemblies is their use as hosts for guest molecules
of appropriate size. Arrangements capable of encapsulating
molecules have been the target of many studies.6 Of special
interest are the so-called carceplexes, that is, complexes with
permanently imprisoned guests.7 In this context, an attractive
n+
the latter have cis-M2(formamidinate)2 moieties with two
cisoid formamidinate anions which remain fixed along with
some labile ligands such as acetonitrile molecules or acetate.
These react with appropriate polyfunctional linkers (e.g., di-
† Texas A&M University.
(4) Cotton, F. A.; Lin, C.; Murillo, C. A. Acc. Chem. Res. 2001, 34, 759.
(5) See, for example: (a) Doyle, M. P.; Ren, T. Prog. Inorg. Chem. 2001, 49,
113. (b) Estevan, F.; Herbst, K.; Lahuerta, P.; Barberis, M.; Pe´rez-Prieto,
J. Organometallics 2001, 20, 950. (c) Doyle, M. P.; Phillips, I. M.; Hu,
W. J. Am. Chem. Soc. 2001, 123, 5366. (d) Doyle, M. P.; McKervey, M.
A.; Ye, T. Modern Catalytic Methods for Organic Synthesis with Diazo
Compounds - From Cyclopropanes to Ylides; John Wiley & Sons: New
York, 1998.
(6) (a) Seidel, S. R.; Stang, P. J. Acc. Chem. Res. 2002, 35, 972. (b) Fujita, M.
Chem. Soc. ReV. 1998, 27, 417. (c) Yu, S.-Y.; Kusukawa, T.; Biradha, K.;
Fujita, M. J. Am. Chem. Soc. 2000, 122, 2665. (d) Kusukawa, T.; Fujita,
M. J. Am. Chem. Soc. 1999, 121, 1397. (e) Terpin, A. J.; Ziekler, M.;
Johnson, D. W.; Raymond, K. N. Angew. Chem., Int. Ed. 2001, 40, 157.
(f) Fujita, M.; Nagao, S.; Ogura, K. J. Am. Chem. Soc. 1995, 117, 1649.
(g) O’Leary, B. M.; Szabo, T.; Svenstrup, N.; Schalley, C. A.; Lu¨tzen, A.;
Scha¨fer, M.; Rebek, J., Jr. J. Am. Chem. Soc. 2001, 123, 11519. (h)
Shivanyuk, A.; Rebek, J., Jr. J. Am. Chem. Soc. 2002, 124, 12074. (i) Reek,
J. N. H.; Schenning, A. P. H. J.; Bosman, A. W.; Meijer, E. W.; Crossley,
M. J. Chem. Commun. 1998, 11.
‡ Chinese Academy of Sciences.
(1) (a) Leininger, S.; Olenyuk, B.; Stang, P. J. Chem. ReV. 2000, 100, 853 and
references therein. (b) Swiegers, G. F.; Malefetse, T. J. Chem. ReV. 2000,
100, 3483. (c) Espinet, P.; Soulantica, K.; Charmant, J. P. H.; Orpen, A.
G. Chem. Commun. 2000, 915. (d) Navarro, J. A. R.; Lippert, B. Coord.
Chem. ReV. 1999, 185/186, 653. (e) Whang, D.; Kim, K. J. Am. Chem.
Soc. 1997, 119, 451. (f) Mann, S.; Huttner, G.; Zsolnai, L.; Heinze, K.
Angew. Chem., Int. Ed. Engl. 1996, 35, 2808. (g) Scherer, M.; Caulder, D.
L.; Johnson, D. W.; Raymond, K. N. Angew. Chem., Int. Ed. 1999, 38,
1588. (h) Lai, S.-W.; Chan, M. C.-W.; Peng, S.-M.; Che, C.-M. Angew.
Chem., Int. Ed. 1999, 38, 669. (i) Jones, C. J. Chem. Soc. ReV. 1998, 27,
289. (j) Klausmeyer, K. K.; Wilson, S. R.; Rauchfuss, T. B. J. Am. Chem.
Soc. 1999, 121, 2705. (k) Li, H.; Eddaoudi, M.; O’Keeffe, M.; Yaghi, O.-
M. Nature 1999, 402, 276.
(2) Cotton, F. A.; Lin, C.; Murillo, C. A. Proc. Nat. Acad. Sci. U.S.A. 2002,
99, 4810.
(3) Angaridis, P.; Berry, J. F.; Cotton, F. A.; Murillo, C. A.; Wang, X. J. Am.
Chem. Soc. 2003, 125, 10327.
9
1518
J. AM. CHEM. SOC. 2004, 126, 1518-1525
10.1021/ja0396899 CCC: $27.50 © 2004 American Chemical Society

A Calix[4]arene Carceplex with Four Rh24+ Fasteners
A R T I C L E S
family of compounds are the calix[n]arenes because these well-
known toroidal or chalice-like molecules are capable of accom-
modating various organic molecules within the bowl.8 The thrust
of the work we report here is to design systems in which two
such bowls are united to form spheroidal cages. A few such
molecules have already been made with the aid of hydrogen
bonding interactions,9 or with organic covalent linkers,10 but
we report here for the first time the use of dimetal moieties to
link two calixarene bowls to form a spheroidal carceplex.11
Several years ago, a study of the reaction of a corner piece
precursor [cis-Rh2(DAniF)2(CH3CNeq)4(CH3CNax)2]2+, DAniF
) N,N′-di-p-anisylformamidinate, and the anions of a calix[4]-
arenetetracarboxylic acid, I, produced a cage compound with
two calix[4]arene ligands united by covalent bonds to four [Rh2]
Experimental Section
Materials, Methods, and General Procedures. Unless otherwise
stated, all manipulations were carried out under nitrogen using standard
Schlenk techniques. Solvents were dried by conventional methods and
were freshly distilled under nitrogen before use. The starting materials,
cis-[Rh2(DAniF)2(CH3CNeq)4(CH3CNax)2](BF4)2,12 cis-[Mo2(DAniF)2(CH3-
CN)4](BF4)2,13 calix[4]arene(CO2H)4 ) 25,26,27,28-tetra-n-propoxycalix-
[4]arene-5,11,17,23-tetracarboxylic acid14 and 25,26,27,28-tetrapropoxy-
5,17-dibromo-calix[4]arene-11,23-dicarboxylic acid14a were prepared
following published methods. Et4NOH (35% aqueous solution) and
2+
units (where [Rh2] represents the cis-Rh2(DAniF)2 unit)
through the eight carboxylate groups of the ligands. This
1
compound was characterized by H NMR spectroscopy and a
crystal structure, and it was found that an ether molecule was
inside a cage, 1a. Further work showed that this synthesis was
difficult to reproduce, but a highly reproducible preparation of
a more stable product has now been found. This compound
Bun NOH (1 M methanol solution) were purchased from Aldrich. All
+
-
4
encapsulates a NEt4 cation and has a BF4 counteranion
external to the cage, so that the formula can be compactly
represented as {NEt4⊂[cis-Rh2(DAniF)2L]4[calix[4]arene-
(CO2)4]2}BF4, 1b, where L ) acetonitrile or H2O. The core is
very stable and remains intact even under the conditions
necessary for mass spectrometric measurements. This compound
has been characterized structurally and in other ways including
1H NMR and mass spectrometry. For comparison, simple
dinuclear compounds with one cis-M2(DAniF)2 unit, M ) Rh
and Mo, and a calix[4]arene]dicarboxylate ligand, II, have also

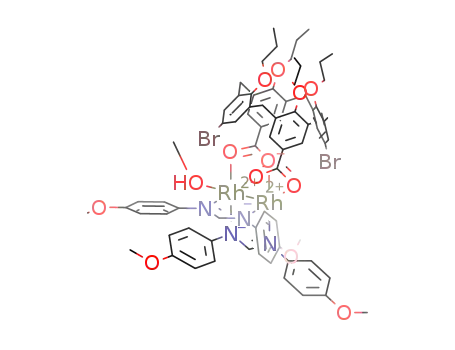

been made. These are cis-Rh2(DAniF)2(Br2calix[4]arene-
