Synthesis, anticancer activity and mechanism of iron chelator derived from 2,6-diacetylpyridine bis(acylhydrazones)

Article abstract of DOI:10.1016/j.jinorgbio.2019.01.003

We synthesized five iron chelator derived from 2,6-diacetylpyridine bis(acylhydrazones) and proved their iron complexes structure by X–ray single crystal diffraction. These ligands have a significant anticancer proliferative activity and low cytotoxicity

Full text of DOI:10.1016/j.jinorgbio.2019.01.003

Accepted Manuscript
Synthesis, anticancer activity and mechanism of iron chelator
derived from 2,6-diacetylpyridine bis(acylhydrazones)
Qian Yao, Jinxu Qi, Yunyun Zheng, Kun Qian, Lai Wei, Mukedasi
Maimaitiyiming, Zhen Cheng, Yihong Wang
PII:
S0162-0134(18)30653-6
DOI:
Reference:
https://doi.org/10.1016/j.jinorgbio.2019.01.003
JIB 10627
To appear in:
Journal of Inorganic Biochemistry
Received date:
Revised date:
Accepted date:
6 November 2018
1 January 2019
7 January 2019
Please cite this article as: Qian Yao, Jinxu Qi, Yunyun Zheng, Kun Qian, Lai Wei,
Mukedasi Maimaitiyiming, Zhen Cheng, Yihong Wang , Synthesis, anticancer activity and
mechanism of iron chelator derived from 2,6-diacetylpyridine bis(acylhydrazones). Jib
(2018), https://doi.org/10.1016/j.jinorgbio.2019.01.003
This is a PDF file of an unedited manuscript that has been accepted for publication. As
a service to our customers we are providing this early version of the manuscript. The
manuscript will undergo copyediting, typesetting, and review of the resulting proof before
it is published in its final form. Please note that during the production process errors may
be discovered which could affect the content, and all legal disclaimers that apply to the
journal pertain.

ACCEPTED MANUSCRIPT
Synthesis, anticancer activity and mechanism of iron chelator derived from 2,6-diacetylpyridine
bis(acylhydrazones)
Qian Yaoa, 1, Jinxu Qia, b, 1, Yunyun Zhengb, Kun Qiana, c, Lai Weia, Mukedasi Maimaitiyiminga, Zhen
Chengc, and Yihong Wanga, *
a School of Chemistry and Chemical Engineering, Southeast University, Nanjing 211189, China.
b Medical School of Pingdingshan University, Pingdingshan 467000, China
c Stanford Cancer Institute, Member of Academic Council, Stanford University, USA
*Corresponding author: Yihong Wang
Address: 2 Southeast Road, Nanjing, China. Zip code: 211189
Email: yihongwang@seu.edu.cn
1 Qian Yao and Jinxu Qi equally contributed to this study
Keywords: Chelator; anticancer activity; reactive oxygen species; cell cycle; apoptosis.
Abstract
We synthesized five iron chelator derived from 2,6-diacetylpyridine bis(acylhydrazones) and proved
their iron complexes structure by X−ray single crystal diffraction. These ligands have a significant
anticancer proliferative activity and low cytotoxicity against normal cells. The Fe(III) complexes show
reduced cytotoxic activity compared to the metal−free ligands. Anticancer mechanism studies indicate
that ligands with a potential anticancer proliferation activity by inhibiting the activity of ribonucleotide
reductase. Ligand rather than iron complexes regulate the expression of cell cycle associated proteins
and inhibit cell cycle arrest in S phase. Apoptosis mechanism results showed that both ligand and iron
complexes did not significantly promote apoptosis.
1 Introduction
1

ACCEPTED MANUSCRIPT
Iron is not only an important player in the DNA synthesis, oxidative phosphorylation process and
replication activities of cells, but also regulates tumorigenesis related genes through hypoxia−inducible
factors [1-3]. Especially, neoplastic cells are more sensitive than normal cells to iron, which may be
because cancer cells express higher iron containing enzymes, ribonucleotide reductase (RR) [4, 5].
Compared with normal cells, tumor cells proliferate faster and have a higher ability to express RR,
which makes this enzyme a suitable target for cancer chemotherapy [6-8].
Ribonucleotide reductase is the only enzyme that catalyzes the reduction of ribonucleotides to
produce the corresponding deoxyribonucleotides, which is a key enzyme and rate limiting enzyme for
DNA synthesis and repair, and plays a regulatory role in cell proliferation and differentiation [7]. This
enzyme is an important target for studying DNA synthesis and repair, cell proliferation and
differentiation, as well as cancer treatment and anticancer drug development [8-11]. RR catalyzes the
production of a stable lysyl radical by combining the oxygen with the Fe−O−Fe structure in the R2
subunit [12, 13]. The metal chelator binds to iron in the R2 subunit to inhibit the activity of RR and cell
proliferation [9]. After half a century of research, a series of metal chelators have been used in phase I
and phase II clinical trials [3, 14-16]. Thiosemicarbazone and acylhydrazones chelating agents have
higher inhibitory activity against RR than others [17-20].
With the deepening of research, scientists have found that semicarbazide and acylhydrazones have
wider applications, such as antibacterial, antitumor, anti−leukemia, etc. [21-26]. Isoniazid was invented
in 1952, which made a fundamental change in the treatment of tuberculosis [27-29]. In this nearly
60−year history of use, although some patients infected with tuberculosis have developed resistance,
most doctors still consider it an indispensable drug for the treatment of tuberculosis [30-32].
2−Pyrrolylcarboxyisopropyl hydrazine (HPCIH), a Fe chelator, effectively prevents cells uptaking iron
from the iron transporter transferrin (Tf) [3, 33]. The NNO or ONO structure characteristic of the
acylhydrazone chelator makes it form a stable complex with iron, which deactivates the
ferritin−containing enzyme [34]. Recent studies have shown that the lipophilicity and membrane
permeability of acylhydrazones analogues play a key role in the chelation of Fe [35-38].
In order to develop a new type of chelating agent with high iron mobilization effect to resist tumor
2

ACCEPTED MANUSCRIPT
proliferation, we synthesized the 2,6-diacetylpyridine bis(acylhydrazones) series in this study. In order
to obtain better iron activation and anticancer proliferative activity, we designed these ligands
containing bis-semicarbazide. We selected three tumor cell lines and one normal cell line to study the
structural activity of ligands and iron complexes. The mechanism of ligand inhibiting cell cycle and its
ability to promote apoptosis were analyzed.
2. Results and Discussion
2.1 Synthesis and Crystal structure description of C3.
We have synthesized and characterized five iron chelator derived from 2,6-diacetylpyridine
bis(acylhydrazones) to test the anticancer proliferative activity of these ligand. The preparation of the
ligand (L1−L5) follows the previously reported scheme for synthesizing a 2,6-diacetylpyridine
bis(acylhydrazones) with a high−yield Schiff base condensation reaction (Scheme 1). These
compounds are slightly soluble in water but have greater solubility in polar solvents such as acetonitrile,
DMF and DMSO. The Fe(III) complexes were produced by the coordination of the ligand with Fe(III)
chloride in an ethanol solution (Scheme 1). Identification of crystal structure of Fe(III) complex
crystals filtered from methanol solution by X−ray single crystal diffractometer.

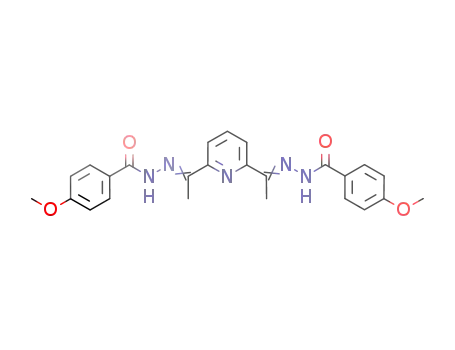

Scheme 1. Synthesis routes for ligands (L1−L5) and Fe complexes.
Table 1 Structure refinement and crystal data of C3.
Identification code
Empirical formula
C3
C23H23Cl3FeN5O5
3

ACCEPTED MANUSCRIPT
Formula weight
Temperature/K
Crystal system
Space group
a, b, c /Å
611.66
296.15
monoclinic
P21/c
7.4241(11), 14.997(2), 23.220(4)
α, β, γ /°
90, 92.439(3), 90
Volume/Å3
Z
2582.8(7)
4
Index ranges
Reflections collected
−8 ≤ h ≤ 4, −17 ≤ k ≤ 17, −26 ≤ l ≤ 27
12936
Independent reflections
Data/restraints/parameters
Goodness−of−fit on F2
Final R indexes [I>=2σ (I)]
Final R indexes [all data]
CCDC NO.
4531 [Rint = 0.0558, Rsigma = 0.0690]
4531/0/341
0.972
R1 = 0.0482, wR2 = 0.1029
R1 = 0.0901, wR2 = 0.1144
1876580
4

ACCEPTED MANUSCRIPT
Fig. 1. Molecular structure of Fe(III) complex showing the environment about the Fe(III) atom.
The structure refinement and crystal data of C3 were revealed in Table 1, and the angles (deg) and
bond lengths (Å) of C3 were showed in Table S1−2. The system and space group of C3 were
monoclinic and P21/c, respectively. The coordination mode of L3 is the predicted quinquidentate N3O2
(Fig.1A). The Fe(III) metal center of C3 is coordinated by three N atoms (N1, N2 and N4), two O
atoms (O1 and O2) and two Cl atoms (Cl1 and Cl2), which forms a deformation of decapicosecond
configuration (Fig.1). The Fe−N distances (2.168 Å − 2.209 Å) was shorter than the Fe−Cl distances
(2.3457 Å and 2.3696 Å) and longer than Fe−O distances (2.070 Å and 2.104 Å). The bond length and
bond angle of C3 are similar to the reported Fe complexes [39, 40].
2.3 Anticancer properties of ligands and Fe complexes.
We studied the anti−cancer properties of 2,6-diacetylpyridine bis(acylhydrazones) analogues and their
corresponding Fe(III) complexes on several typical cell lines: MCF−7 (human breast adenocarcinoma
cell line), NCI−H460 Cells (human large cell carcinoma), A549 (adenocarcinomic human alveolar basal
epithelial cell line) and LO−2 (human normal liver cell line). The results in Table 2 show that both
ligands and Fe(III) complexes have low cytotoxicity to normal cells (LO−2). This study revealed that L2,
L4 and L5 have a potential anticancer proliferation activity (IC50: 9.2−3.1 μM; Table 2). After incubation
with A549 cells for 72 hours, the antitumor activity of L4 (IC50: 3.3 ± 0.1 μM) was similar to L5 (IC50: 3.1
± 0.1 μM), higher than L1 (IC50: 42.3 ± 0.5 μM) and L3 (IC50: 42.1 ± 0.4 μM), which indicates that the
modification of the methyl or methoxide group on the acylhydrazone ligand helps to increase antitumor
activity. All five Fe(III) complexes (C1−C5) and FeCl3 do not have significant antitumor activity and
cytotoxicity against normal cells (IC50 > 50 μM; Table 2). The Fe(III) complexes (C1−C5) has a
significant (p < 0.001) decreased anticancer proliferation activity compared to the corresponding ligand
(L1−L5), which indicates that the anticancer mechanism of the acylhydrazone ligands may be caused by
the disruption of iron metabolism in the cell, which causes the cell to stop proliferating. Therefore, we
carried on an in−depth and systematic study of the anticancer mechanisms with acylhydrazone ligands
and Fe(III) complexes.
5

ACCEPTED MANUSCRIPT
Table 2 IC50 values of ligands and Fe complexes toward cell lines for 72 h.
IC50 ± SD (μM)
MCF−7
A549
NCI−H460
54.7 ± 0.3
7.4 ± 0.1
44.2 ± 0.2
5.7 ± 0.1
7.1 ± 0.2
> 100
LO−2
L1
43.5 ± 0.5
8.4 ± 0.1
43.5 ± 0.3
3.6 ± 0.1
4.4 ± 0.1
> 100
42.3 ± 0.5
9.2 ± 0.1
42.1 ± 0.4
3.3 ± 0.1
3.1 ± 0.1
> 100
> 100
L2
62.4 ± 0.9
> 100
L3
L4
67.8 ± 0.4
L5
78.4 ± 0.9
> 100
C1
C2
53.3 ± 0.3
61.6 ± 0.4
40.8 ± 0.3
50.6 ± 0.6
58.3 ± 0.5
72.1 ± 0.8
33.1 ± 0.5
52.9 ± 0.7
63.2 ± 0.6
73.1 ± 0.7
48.4 ± 0.5
54.3 ± 0.5
> 100
> 100
> 100
> 100
C3
C4
C5
cisplatin
FeCl3
3.25
0.32
4.73
0.21
3.21
0.19
8.92
0.43
±
±
±
±
> 100
> 100
> 100
> 100
2.3 Iron chelators significantly inhibit ribonucleotide reductase activity
In order to determine whether coordination with iron (III) has a difference in cytotoxicity and inhibition
3
of RR, H−Cytidine DNA incorporation operated to determine in A549 cells after 4 h of acylhydrazone
ligands and Fe(III) complexes incubation. As revealed in Table 3, the RR inhibitory potential agrees with
the same trends as observed in the cytotoxicity tests. The inhibited RR activity of L2, L4 and L5
enhanced 2.9, 3.4 and 4.1 times, respectively, relative to L1. The RR inhibition data show significantly
decrease after the formation of complexes. These results demonstrate that the anticancer mechanisms of
the 2,6-diacetylpyridine bis(acylhydrazones) analogues is likely to dependent on RR inhibition. We
6

ACCEPTED MANUSCRIPT
selected a ligand (L5) with the best anti−tumor proliferative activity and inhibition of RR activity and
the corresponding iron complex (C5) for further study.
Table 3 Comparison of the RR inhibitory potency of ligands and Fe complexes in A549 cells.
IC50 of ligands
IC50 of Fe complexes
p value
ligand
L1
64.6 ± 5.6
22.6 ± 3.5
87.4 ± 8.3
18.9 ± 2.5
15.6 ± 2.1
6.9 ± 0.5
> 100
−
L2
97.4 ± 11.4
> 100
p < 0.001
−
L3
L4
88.9 ± 8.1
76.3 ± 6.9
53.8 ± 5.4
p < 0.001
p < 0.001
p < 0.001
L5
Triapine
2.4 Iron chelators significantly inhibit cell division.
The CFDA SE (Carboxyfluorescein diacetate, succinimidyl ester) entering the cell is catalytically
decomposed into CFSE by esterase, which spontaneously and irreversibly binds to the Lysine residue
or other amino group of the intracellular protein and labels these proteins [41, 42]. Since the
fluorescence of CFDA SE−labeled cells is very uniform and stable, the fluorescence of each progeny
cell is reduced by half, so that cells without division and dividing cells can be detected by flow
cytometry [43]. Fig. 2A shows that the control cells underwent three divisions within 24 hours, and the
proportions of generation 0−3 are 15.3%, 49.9%, 28.0% and 6.73%, respectively. The ratio of
L5−treated generation 0 increased to 76.0%, while the ratio of generation 1−3 has significantly
decreased (Fig. 2A and D). The cell division activity of C5 treated is the same as that of the control
cells.
7

ACCEPTED MANUSCRIPT
Fig.2. The proliferation of A549 cells was inhibited by the treatment of control (A); 20 μM of L5 (B)
and 20 μM of C5 (C) for 24 h. (D) Comparison of the proliferation of A549 cells treated with L5 and
C5. *** P<0.05.
2.5 Iron chelators significantly inhibit cell cycle.
The inhibition of RR activity leads to the inability of DNA to synthesize normally, further affecting the
cell cycle [44-46]. The regulation of cell cycle will be useful for in-depth understanding of biological
growth, development and controlling tumor growth, et al. [47, 48]. PI was used to stain the A549 cell
line to assess the effect of the 2,6-diacetylpyridine bis(acylhydrazones) analog and Fe complexes cell
cycle (Fig. 3). The percentage of cells in the S phase treated with control, L5 and C5 was 42.81%,
78.69%, 45.72% after 24 h incubation, respectively (Fig. 3). These results indicate that L5 can induce
cell cycle arrest in S phase through a decrease in cell cycle progression in G1 and G2 phases.
Furthermore, the Fe(III) complex (C5) had no significant effect on the cell cycle, which is consistent
with the cytotoxicity data.
8

ACCEPTED MANUSCRIPT
Fig.3. Effect of the cell cycle of A549 treated with control (A); 20 μM of L5 (B) and 20 μM of C5 (C)
for 24 h. (D) Comparison of cell cycle distributions of A549 cells treated with L5 and C5. *** P<0.05.
2.6 The expression of cell cycle related protein affected by iron chelator.
Fig.4. (A) Western blot analysis of CDK 2, CDK 4, Cyclin A and Cyclin E levels after 20 μM of L5
and C5 treatment. β–actin was used as internal control. (B) Quantitative analysis of the expression of
CDK 2, CDK 4, Cyclin A and Cyclin E. The percentage values are those relative to the control. ***p <
0.001.
Cell cycle arrest may be regulated by cell cycle−associated proteins, such as CDK 2, CDK 4, Cyclin A
9

ACCEPTED MANUSCRIPT
and Cyclin E [49, 50]. To examine the effect of 2,6-diacetylpyridine bis(acylhydrazones) analogs and
Fe complexes on proteins in A549 cells, western blot experiments were performed and the results are
shown in Figs 4. After exposure of A549 cells to 20 μM of L5 for 24h, the expression of CDK 2, CDK
4, Cyclin A and Cyclin E were markedly (p < 0.001) decreased by 0.59, 0.69, 0.72 and 0.35−fold
relative to the control, respectively (Fig. 4). Fe(III) complex (C5) have no significant effect on the
expression of CDK 2, CDK 4, Cyclin A and Cyclin E, which was consistent with cell cycle results.
2.7 The expression of ferritin and transferrin receptor−1 affected by iron chelator.
Fig.5. (A) Western blot analysis of TfR1 (transferrin receptor−1) and ferritin levels after 20 μM of L5
and C5 treatment. β–actin was used as internal control. (B) Quantitative analysis of the expression of
TfR1 and ferritin. The percentage values are those relative to the control. ***p < 0.001.
Previous studies have demonstrated that iron chelators can affect the iron metabolism of cells and
promote the dissipation of iron in cells [51]. Western blotting was used to detect the ability of L5 to
affect transferrin receptor−1 (TfR1) and ferritin expression compared with the control. DFO as a
positive control significantly increased (2.4 times the control) expression level of TfR1 and decreased
the expression level of ferritin (0.59 times of control). After exposure of A549 cells to 20 μM of L5 for
24h, the expression of TfR1 were markedly (p < 0.001) increased by 2.4−fold relative to the control,
10

ACCEPTED MANUSCRIPT
while the expression of ferritin was significantly (p < 0.001) decreased by 0.61−fold relative to the
control (Fig. 4). However, the expression levels of the two proteins C5 (TfR1 and ferritin) had no
significant effect.
2.8 Intracellular ROS measurements.
Fig.6. Intracellular production of ROS of A549 cells by the treatment of control (A); 20 μM of L5 (B)
and 20 μM of C5 (C) for 24 h.
Previous studies have revealed that iron complexes can catalyze the production of reactive oxygen
species (ROS) by hydrogen peroxide when entering cells which will cause apoptosis [50, 52]. To detect
the effects of 2,6-diacetylpyridine bis(acylhydrazones) analogues and Fe complexes on intracellular
ROS in A549 cells, fluorescent 2,7−dichlorofluorescein (DCF) probe and flow cytometry were
employed (Fig. 6). The DCF fluorescence intensity of cells seeded with L5 and C5 showed no peak
shift to the right compared to control cells, indicating no change in ROS levels in these cells (Figure 6).
This results indicate that the anticancer mechanism of 2,6-diacetylpyridine bis(acylhydrazones)
analogues may be not combined with intracellular iron ions to catalyze the hydrogen peroxide to
product ROS.
2.9 Cell apoptosis assay.
The main pathway by which various antitumor drugs induce cell death is apoptosis. Studying the
occurrence and regulation of apoptosis is of great significance for improving the efficacy of drugs and
developing new anti−tumor drugs [53]. Whether 2,6-diacetylpyridine bis(acylhydrazones) analogues
and Fe complexes promote apoptosis are further verified by Annexin V−FITC / PI staining.
11

ACCEPTED MANUSCRIPT
Quantification of the result showed A549 cell apoptosis (early apoptosis and late apoptosis) of 7.15%
for control, 17.09% for L5 and 13.05% for C5, respectively, which shows that L5 and C5 did not
significantly (p > 0.05) promote A549 cells apoptosis. This results indicate that the anticancer
mechanism of 2,6-diacetylpyridine bis(acylhydrazones) analogues may be not promote apoptosis.
Fig. 7. Representative dot plots of Annexin V and PI double staining on the A549 cells by the treatment
of control (A); 20 μM of L5 (B) and 20 μM of C5 (C) for 24 h. (D) Comparison of apoptosis
distributions of A549 cells treated with L5 and C5.
3. Conclusion
Herein, we prepared five 2,6-diacetylpyridine bis(acylhydrazones) analogues Schiff base ligands and
five Fe complexes. The structure of C3 was verified by X−ray diffraction. The results indicated that the
ligands have higher anti−tumor proliferative activity relative to the corresponding Fe(III) complex.
Further studies have shown that ligands and complexes have different anti−tumor mechanisms.
2,6-diacetylpyridine bis(acylhydrazones) (L5) has a significant effect on RR activity, cell proliferation,
and cell cycle, while Fe(III) complexes has not. When A549 cells exposed to the ligand, the expression
of transferrin receptor−1 is significantly increased, while the expression of ferritin is significantly
reduced. Interestingly, this phenomenon disappears with the Fe(III) complex treatment. Neither ligand
12

ACCEPTED MANUSCRIPT
nor iron complex can increase intracellular reactive oxygen species (ROS) level and promote apoptosis.
4 Materials and Methods
4.1 Material
2,6-diacetylpyridine, benzoyl hydrazine, isoniazid, p−toluic hydrazide, 4−hydroxybenzhydrazide,
p−anisohydrazide and other chemicals were analytical grade supplied by Innochem Company (Shanghai,
China). Distilled water and the solvent used in the study did not need to be future purification. The cell
lines operated in the experiment were purchased from Chinese academy of sciences.
4.2 Synthesis and characterization of ligands and Fe(III) complexes.
4.2.1 Synthesis and characterization of ligands.
Ligands (L1−L5) were prepared with the previous method [54, 55]. 2,6-diacetylpyridine was dissolved
in ethanol solution (10 mL), with stirring, followed by 5 drops of acetic acid glacial and acylhydrazones
(One mole equivalent) refluxed for 4h. The precipitate was separated with filter paper and washed by
ice−cold ethanol. A vacuum desiccators was performed for drying the product.
2,6-diacetylpyridine bis(benzoylhydrazone) (L1): yield 74%. Anal. Calcd for C23H21N5O2: C, 69.16;
1
H, 5.30; O, 8.01. Found: C, 69.38; H, 5.37; O, 8.22. ESI−MS m/z (%) 400.17 [M + H]+. H NMR (600
MHz, DMSO−d6) δ 11.47 (s, 2H), 8.96 (d, J = 5.8 Hz, 6H), 8.19 (d, J = 7.7 Hz, 1H), 8.14 (dd, J = 11.6,
5.3 Hz, 4H), 8.08 (d, J = 5.5 Hz, 2H), 8.01 (dd, J = 4.5, 1.8 Hz, 2H), 2.59 (s, 6H).
2,6-diacetylpyridine bis(benzoylhydrazone) (L2): yield 71%. Anal. Calcd for C21H19N7O2: C, 62.83;
1
H, 4.77; O, 7.97. Found: C, 62.76; H, 4.83; O, 7.91. ESI−MS m/z (%) 402.16 [M + H]+. H NMR (600
MHz, DMSO−d6) δ 11.08 (s, 2H), 8.05 (s, 1H), 7.98 (s, 6H), 7.60 (t, J = 7.5 Hz, 2H), 7.53 (t, J = 7.5
Hz, 4H), 2.55 (s, 6H).
2,6-diacetylpyridine bis(benzoylhydrazone) (L3): yield 76%. Anal. Calcd for C23H21N5O4: C, 64.03;
H, 4.91; O, 14.83. Found: C, 64.01; H, 4.97; O, 14.80. ESI−MS m/z (%) 432.16 [M + H]+. 1H NMR (600
MHz, DMSO−d6) δ 10.67 (s, 2H), 10.18 (s, 2H), 8.08 (s, 2H), 7.93 (d, J = 8.4 Hz, 1H), 7.81 (d, J = 8.3
Hz, 4H), 6.91 – 6.86 (m, 4H), 2.53 (s, 6H).
2,6-diacetylpyridine bis(benzoylhydrazone) (L4): yield 74%. Anal. Calcd for C25H25N5O2: C, 70.24;
1
H, 5.89; O, 7.49. Found: C, 70.29; H, 5.82; O, 7.41; O, 8.22. ESI−MS m/z (%) 428.20 [M + H]+. H
13

ACCEPTED MANUSCRIPT
NMR (600 MHz, DMSO−d6) δ 10.83 (s, 2H), 8.14 (s, 2H), 7.94 (s, 1H), 7.83 (t, J = 9.5 Hz, 4H), 7.32
(dd, J = 24.5, 7.9 Hz, 4H), 2.54 (s, 6H), 2.40 (s, 6H).
2,6-diacetylpyridine bis(benzoylhydrazone) (L5): yield 74%. Anal. Calcd for C25H25N5O4: C, 65.35;
1
H, 5.48; O, 13.93. Found: C, 65.31; H, 5.43; O, 13.98. ESI−MS m/z (%) 460.19 [M + H]+. H NMR
(600 MHz, DMSO−d6) δ 10.77 (s, 2H), 8.23 – 8.03 (m, 3H), 7.91 (d, J = 8.9 Hz, 4H), 7.07 (d, J = 8.5
Hz, 4H), 3.85 (d, J = 0.9 Hz, 6H), 2.54 (s, 6H).
4.2.2 Synthesis and characterization of Fe(III) complexes.
Fe(III) complexes (C1−C5) were prepared with the previous methods [39]. Ligands were dissolved in
the methanol solution (10 mL), with stirring, followed by one mole equivalent of FeCl3. Single crystals
of Fe(III) complexes were prepared by the solvent evaporation method. The crystals were separated and
rinsed by cold ethanol. A vacuum desiccators was used for drying the Fe(III) complexes.
[Fe(L1)Cl2]Cl (C1): yield 78%. Anal. Calcd for C23H21Cl3FeN5O2: C, 49.18; H, 3.77; O, 5.70. Found: C,
49.12; H, 3.71; O, 5.74. ESI−MS m/z (%) 525.04 [M−Cl]+.
[Fe(L2)Cl2]Cl (C2): yield 77%. Anal. Calcd for C21H19Cl3FeN7O2: C, 44.75; H, 3.40; O, 5.68. Found: C,
44.71; H, 3.42; O, 5.63. ESI−MS m/z (%) 527.03 [M−Cl]+.
[Fe(L3)Cl2]Cl (C3): yield 81%. Anal. Calcd for C22H20Cl3FeN5O4: C, 45.51; H, 3.47; O, 11.02. Found:
C, 45.45; H, 3.42; O, 11.07. ESI−MS m/z (%) 557.03 [M−Cl]+.
[Fe(L4)Cl2]Cl (C4): yield 74%. Anal. Calcd for C25H25Cl3FeN5O2: C, 50.92; H, 4.27; O, 5.43. Found: C,
50.88; H, 4.22; O, 5.47. ESI−MS m/z (%) 553.07 [M−Cl]+.
[Fe(L5)Cl2]Cl (C5): yield 73%. Anal. Calcd for C25H25Cl3FeN5O4: C, 48.30; H, 4.05; O, 10.29. Found:
C, 48.35; H, 4.03; O, 10.22. ESI−MS m/z (%) 585.06 [M−Cl]+.
4.3 Determination of structure of C3.
A Bruker SMART Apex II CCD diffractometer was conducting at 296.15 K for achieving X−ray
crystallographic data, with Mo−Kα (λ = 0.71073 Å) radiation source. Empirical absorption corrections
(multiscan) and data reduction were predicted by Oxford Diffraction CrysAlisPro software. The
14

ACCEPTED MANUSCRIPT
structure of C3 was solved by direct methods with Olex2 and refined against F2 by full-matrix
least−squares methods with Olex2 software [56]. H atoms were controlled at geometrically positions by
a riding model, while Non-hydrogen atoms were anisotropic. Structure diagrams of Fe(III) complexes
were described by Olex2 software. The Crystal Data of Fe(III) complexes were displayed in Table 1. The
bond lengths and angles of complexes were showed in Table S1.
4.4 Cytotoxicity assay (MTT)
In an incubator (ThermoFisher), the cell lines were cultivated at 5% CO2/95% air, 37 ℃. The cell
cytotoxicity was examined by MTT (3-(4,5-dimethyl-2-thiazolyl)-2,5-diphenyl-2-H-tetrazolium
bromide) assay. Fe(III) complexes and ligands were dissolved in stock solutions (10mM) of DMSO
(Dimethyl Sulphoxide). Different concentration of compounds was diluted by cell culture medium to
ensure DMSO concentration < 0.1% which will not influence cell proliferation. A 96 well plate was
cultured with 100 μl medium(5 × 104 cells)，and incubated for 12 h at 37 ℃, 5% CO2/95%，followed by
different concentrations (100, 50, 25, 10, 1, 0 μM) Fe(III) complexes and ligands for 72 h, then 20μL of
MTT (5 mg/mL) was added to it at 37 ℃, 5% CO2 for 4 hours. The living cells’optical density (OD) was
characterized at 570 nm wavelength, after adding 100ul of DMSO. IC50 (half maximal inhibitory
concentration) values were provided by the nonlinear multipurpose curve−fitting program GraphPad
Prism.
4.5 Ribonucleotide Reductase Inhibition.
The test substances were seeded to exponentially growing A549 cells (5 × 106) for 4h. At 37℃.
3H−cytidine (0.3125 μCi, 5 nM) was used for A549 cells for 1 h. The cells were collected and rinsed
with PBS, and dissolved in a lysis buffer containing 50 mM Tris (pH 8.0), 10 mM EDTA, and 0.5%
sodium lauryl sarcosinate, frozen at -20 °C. Cell lysates were incubated in 20 units of RNase for 1 hour
using standard procedures, and then DNA was extracted after treatment it with 150 μg of Proteinase K
for 24 hours. The precipitate was precipitated with ethanol, dissolved in water, and the DNA content
and radioactivity were measured.
4.6 Cell division analysis.
15

ACCEPTED MANUSCRIPT
Proliferative capacity was determined with 5,6−carboxyfluorescein diacetate succinimidyl ester (CFSE)
(Beyotime, China) dilution assay [57]. The cells labeled with CFSE and incubated on 6-well plate for
12h were collected and rinsed with PBS (phosphate buffer, pH=7.4) for 3 times after treated with 20 μM
of L5 or C5 for 24 h. The fluorescence intensity was detected with an FCMScan flow cytometer (BD
Accuri C6) and solved with FlowJo software.
4.7 Cell cycle analysis.
At 37 ℃, 5% CO2/95%, 5 mL of A549 cells (1 × 105 cells/ mL) were seeded and incubated for 12h in 70
mm petri dish. The cells were collected and rinsed with PBS (phosphate buffer, pH=7.4) for 3 times after
treated with 20 μM of L5 or C5 for 24 h. Then cells were fixed with 75% ethanol at -20℃ for 12h and
washed with cold PBS. The samples were incubated with RNase (Ribonuclease) A (2.5 mg/mL) and
stained by propidium iodide (50 mg/mL) for 0.5h. 10,000 events were recorded for each sample and
operated by flow cytometry (FACScan, Becton Dickinson, USA). MFLT32 software was used for
analyzing the data.
4.8 Western blot analysis.
The 5 mL A549 cells (1 × 105 cells/ mL) were incubated at 37 ℃, 5% CO2/95% for 24 h in 100mm petri
dish. Samples were collected after being fed with 20 μM of L5 or C5 for 24h and rinsed with cold PBS
(phosphate buffer, pH=7.4) for 3 times. The cells were disrupted in lysis buffer. The supernatant was
separated by centrifugation at 10,000 g for 0.25 h at 4 °C. The SDS–polyacrylamide gel electrophoresis
was used for analyzing the samples, while the BCAassay kit (Beyotime, China) was used for recognizing
the protein’s concentration. After adding a polyvinylidene fluoride membrane to the ice bath for 3 hours,
the protein was stored in TBST buffer containing 5% skim milk at 25 ° C for 1 hour. At 4℃，the
membranes were seeded with primary antibodies overnight and rinsed with TBST (0.05% Tween 20, 20
mM Trise−HCl, 150 mM NaCl, pH 8.0) for 3 times. Secondary antibodies were used for incubating the
membrane for 1 h at 25 ℃ and washed it again. The immunoreactivity was characterized by Amersham
ECL Plus (Amersham) and the amount of proteins of each lane was revealed by β−actin.
4.9 Intracellular ROS measurements.
16

ACCEPTED MANUSCRIPT
Intracellular ROS generation was characterized by Flow Cytometer with the specification of the Reactive
oxygen species assay kit (KeyGEN BioTECH, Nanjing). In serum free cell culture medium, 20 μM of L5
or C5 was added to A549 cells for 0.5h. The samples were incubated for 0.5h at 37 ℃ with 2 μM
H2DCF−DA and rinsed with serum free medium for twice times. With excitation 488 nm and emission
wavelength at 525 nm, the Flow Cytometer was applied to assay the samples, which were analyzed by
FlowJo software.
4.10 Cell apoptosis assay.
The A549 cell apoptotic events induced by L5 or C5 were measured by PI staining and Annexin V with
the manufacturer’s suggestion for the Annexin V: FITC Apoptosis Detection Kit (Bection Dickinson).
After 2ml the cells (1 × 105 cells/ mL) were seeded with 20 μM of L5 or C5 for 24 h at 37 ℃, 5%
CO2/95%, the samples were suspended in 100 µL Annexin V−binding buffer and followed by the
adding of 5μL each of Annexin V and PI. Next, the samples incubated at room temperature for 15
minutes was measured by flow cytometry analysis (BD Accuri C6). Apoptosis results were analyzed by
FlowJo software. All tests were conducted at least three times.
4.10 Statistical analysis
All three experiments were conducted at least. The significance of differences was evaluated by Student's
t test. Data was revealed as mean ± SD with P < 0.05was needed.
Acknowledgements
This work was supported by National Natural Science Foundation of China (81571812), Priority
Academic Program Development of Jiangsu Higher Education Institutions (1107047002), the
Fundamental Research Funds for the Central Universities and Postgraduate Research& Practice
Innovation Program of Jiangsu Province (KYCX17_0135). The research was also supported by the
Scientific Research Foundation of Graduated School of Southeast University (YBJJ1787).
Conflict of interest
The authors declare that they have no conflict of interests.
17

ACCEPTED MANUSCRIPT
Supplementary Information
All relative data of the experiment have been deposited into Supplementary Information.
References:
[1] N.T.V. Le, D.R. Richardson, Blood 104 (2004) 2967-2975.
[2] J.M. Myers, Q. Cheng, W.E. Antholine, B. Kalyanaraman, A. Filipovska, E.S.J. Arnér, C.R. Myers,
Free Radical Biology and Medicine 60 (2013) 183-194.
[3] C.R. Chitambar, W.E. Antholine, Antioxidants & redox signaling 18 (2013) 956-972.
[4] A. Popović-Bijelić, C.R. Kowol, M.E.S. Lind, J. Luo, F. Himo, É.A. Enyedy, V.B. Arion, A.
Gräslund, Journal of Inorganic Biochemistry 105 (2011) 1422-1431.
[5] R.J. Martinie, E.J. Blaesi, C. Krebs, J.M. Jr Bollinger, A. Silakov, C.J. Pollock, Journal of the
American Chemical Society 139 (2017) 1950-1957.
[6] E.J. Blaesi, G.M. Palowitch, K. Hu, A.J. Kim, H.R. Rose, R. Alapati, M.G. Lougee, H.J. Kim, A.T.
Taguchi, K.O. Tan, T.N. Laremore, R.G. Griffin, C. Krebs, M.L. Matthews, A. Silakov, J.J. Bollinger,
B.D. Allen, A.K. Boal, Proceedings of the National Academy of Sciences of the United States of
America 115 (2018) 10022-10027.
[7] G.I. Rozman, D. Lundin, M. Sahlin, M. Crona, G. Berggren, A. Hofer, B.M. Sjoberg, The Journal of
biological chemistry 293 (2018) 15889-15900.
[8] M. Sagawa, H. Ohguchi, T. Harada, M.K. Samur, Y.T. Tai, N.C. Munshi, M. Kizaki, T. Hideshima,
K.C. Anderson, Clinical cancer research 23 (2017) 5225-5237.
[9] M.F. Zaltariov, M. Hammerstad, H.J. Arabshahi, K. Jovanovic, K.W. Richter, M. Cazacu, S. Shova,
M. Balan, N.H. Andersen, S. Radulovic, J. Reynisson, K.K. Andersson, V.B. Arion, Inorganic chemistry
56 (2017) 3532-3549.
[10] A. Tebbi, O. Guittet, K. Tuphile, A. Cabrie, M. Lepoivre, The Journal of biological chemistry 209
(2015) 14077-14090.
[11] M.C. Chen, B. Zhou, K. Zhang, Y.C. Yuan, F. Un, S. Hu, C.M. Chou, C.H. Chen, J. Wu, Y. Wang,
X. Liu, D.L. Smith, H. Li, Z. Liu, C.D. Warden, L. Su, L.H. Malkas, Y.M. Chung, M.C. Hu, Y. Yen,
18

ACCEPTED MANUSCRIPT
Molecular pharmacology 87 (2015) 996-1005.
[12] K. Iwamoto, K. Nakashiro, H. Tanaka, N. Tokuzen, H. Hamakawa, International journal of
oncology 46 (2015) 1971-1977.
[13] P. Han, Z.R. Lin, L.H. Xu, Q. Zhong, X.F. Zhu, F.Y. Liang, Q. Cai, X.M. Huang, M.S. Zeng,
Molecular medicine reports 12 (2015) 401-409.
[14] T. Tachibana, J. Kanda, S. Machida, T. Saito, M. Tanaka, Y. Najima, S. Koyama, T. Miyazaki, E.
Yamamoto, M. Takeuchi, S. Morita, Y. Kanda, H. Kanamori, S. Okamoto, International journal of
hematology 107 (2018) 578-585.
[15] K. Lam, C. Chan, S.J. Done, M.N. Levine, R.M. Reilly, Nuclear medicine and biology 42 (2015)
78-84.
[16] M. de Lima, J. McMannis, A. Gee, K. Komanduri, D. Couriel, B.S. Andersson, C. Hosing, I. Khouri,
R. Jones, R. Champlin, S. Karandish, T. Sadeghi, T. Peled, F. Grynspan, Y. Daniely, A. Nagler, E.J.
Shpall, Bone marrow transplantation 41 (2008) 771-778.
[17] L. Dai, Z. Lin, J. Qiao, Y. Chen, E.K. Flemington, Z. Qin, Oncogene 36 (2017) 5068-5074.
[18] G. Graser-Loescher, A. Schoenhuber, C. Ciglenec, S. Eberl, G. Krupitza, R.M. Mader, S.S. Jadav, V.
Jayaprakash, M. Fritzer-Szekeres, T. Szekeres, P. Saiko, vol. 108, Food and chemical toxicology 108
(2017)53-62.
[19] J. Matsumoto, B.F. Kiesel, R.A. Parise, J. Guo, S. Taylor, M. Huang, J.L. Eiseman, S.P. Ivy, C.
Kunos, E. Chu, J.H. Beumer, Journal of pharmaceutical and biomedical analysis 146 (2017) 154-160.
[20] N.S. Moorthy, N.M. Cerqueira, M.J. Ramos, P.A. Fernandes, Mini reviews in medicinal chemistry
13 (2013) 1862-1872.
[21] S. Becchi, A. Buson, J. Foot, W. Jarolimek, B.W. Balleine, British journal of pharmacology 174
(2017) 2302-2317.
[22] Y. Wang, T.Y. Wong, W. Chan, Chemical research in toxicology 29 (2016) 1560-1564.
[23] C. Lazzarini, K. Haranahalli, R. Rieger, H.K. Ananthula, P.B. Desai, A. Ashbaugh, M.J. Linke, M.T.
Cushion, B. Ruzsicska, J. Haley, I. Ojima, P.M. Del, Antimicrobial agents and chemotherapy 62 (2018)
e00156-18
[24] B. Cobeljic, M. Milenkovic, A. Pevec, I. Turel, M. Vujcic, B. Janovic, N. Gligorijevic, D. Sladic, S.
19

ACCEPTED MANUSCRIPT
Radulovic, K. Jovanovic, K. Andelkovic, Journal of biological inorganic chemistry 21 (2016) 145-162.
[25] S.A. Carvalho, L.O. Feitosa, M. Soares, T.E. Costa, M.G. Henriques, K. Salomao, S.L. de Castro, M.
Kaiser, R. Brun, J.L. Wardell, S.M. Wardell, G.H. Trossini, A.D. Andricopulo, S.E. Da, C.A. Fraga,
European journal of medicinal chemistry 54 (2012) 512-521.
[26] A.E. Kummerle, M. Schmitt, S.V. Cardozo, C. Lugnier, P. Villa, A.B. Lopes, N.C. Romeiro, H.
Justiniano, M.A. Martins, C.A. Fraga, J.J. Bourguignon, E.J. Barreiro, Journal of medicinal chemistry 55
(2012) 7525-7545.
[27] C. Zhu, Y. Liu, L. Hu, M. Yang, Z.G. He,The Journal of biological chemistry 293 (2018)
16741-16750.
[28] M.C. Schechter, D. Bizune, M. Kagei, M. Machaidze, D.P. Holland, A. Oladele, Y.F. Wang, P.A.
Rebolledo, S.M. Ray, R.R. Kempker, Clinical Infectious Diseases 65 (2017) 1862-1871.
[29] J.F. Gallo, J. Pinhata, V. Simonsen, V. Galesi, L. Ferrazoli, R.S. Oliveira, Clinical microbiology and
infection 24 (2018) 889-895.
[30] T.J. Nagu, S. Aboud, M.I. Matee, M.J. Maeurer, W.W. Fawzi, F. Mugusi, The Journal of
antimicrobial chemotherapy 72 (2017) 876-881.
[31] D. Anthwal, R.K. Gupta, M. Bhalla, S. Bhatnagar, J.S. Tyagi, S. Haldar, Journal of clinical
microbiology 55 (2017) 1755-1766.
[32] G. Satta, A.A. Witney, R.J. Shorten, M. Karlikowska, M. Lipman, T.D. McHugh, BMC medicine 14
(2016) 117.
[33] C. Stefani, G. Punnia-Moorthy, D.B. Lovejoy, P.J. Jansson, D.S. Kalinowski, P.C. Sharpe, P.V.
Bernhardt, D.R. Richardson, J. Med. Chem. 54 (2011) 6936-6948.
[34] Z. Li, L. Wu, T. Zhang, Z. Huang, G. Qiu, Z. Zhou, L. Jin, Dalton transactions. 43 (2014)
7554-7560.
[35] R. Freitas, N.M. Cordeiro, P.R. Carvalho, M.A. Alves, I.A. Guedes, T.S. Valerio, L.E. Dardenne,
L.M. Lima, E.J. Barreiro, P.D. Fernandes, C. Fraga, Chemical biology & drug design 91 (2018) 391-397.
[36] Y. Zheng, J. Ren, Y. Wu, X. Meng, Y. Zhao, C. Wu, Bioconjugate chemistry 28 (2017) 2620-2626.
[37] A.P. Jacomini, M. Silva, R. Silva, D.S. Goncalves, H. Volpato, E.A. Basso, F.R. Paula, C.V.
Nakamura, M.H. Sarragiotto, F.A. Rosa, European journal of medicinal chemistry 124 (2016) 340-349.
20

ACCEPTED MANUSCRIPT
[38] D.A. Rodrigues, G.A. Ferreira-Silva, A.C. Ferreira, R.A. Fernandes, J.K. Kwee, C.M. Sant'Anna, M.
Ionta, C.A. Fraga, Journal of medicinal chemistry 59 (2016) 655-670.
[39] J. Qi, Y. Gou, Y. Zhang, K. Yang, S. Chen, L. Liu, X. Wu, T. Wang, W. Zhang, F. Yang, J. Med.
Chem. 59 (2016) 7497-7511.
[40] P.J. Hill, L.R. Doyle, A.D. Crawford, W.K. Myers, A.E. Ashley, Journal of the American Chemical
Society 138 (2016) 13521-13524.
[41] N. Jbeily, R.A. Claus, K. Dahlke, U. Neugebauer, M. Bauer, F.A. Gonnert, Journal of biophotonics
7 (2014) 369-375.
[42] S. Urbani, R. Caporale, L. Lombardini, A. Bosi, R. Saccardi, Cytotherapy 8 (2006) 243-253.
[43] T. Luzyanina, J. Cupovic, B. Ludewig, G. Bocharov, Journal of mathematical biology 60 (2014)
1547-1583.
[44] A. Chabes, B. Stillman, Proceedings of the National Academy of Sciences of the United States of
America 104 (2007) 1183-1188.
[45] Y. Kaplan, M. Kupiec, Current genetics 51 (2007) 123-140.
[46] A. Jarry, L. Charrier, C. Bou-Hanna, M.C. Devilder, V. Crussaire, M.G. Denis, G. Vallette, C.L.
Laboisse, Cancer research 64 (2004) 4227-4234.
[47] A.S. Krall, H.R. Christofk, Nature 546 (2017) 357-358.
[48] Z. Merhi, A.J. Polotsky, A.P. Bradford, E. Buyuk, J. Chosich, T. Phang, S. Jindal, N. Santoro,
Reproductive sciences 22 (2015) 1220-1228.
[49] J. Qi, Y. Zheng, K. Qian, L. Tian, G. Zhang, Z. Cheng, Y. Wang, Journal of Inorganic Biochemistry
177 (2017) 110-117.
[50] J. Qi, Q. Yao, L. Tian, Y. Wang, European Journal of Medicinal Chemistry 158 (2018) 853-862.
[51] J. Qi, Q. Yao, K. Qian, L. Tian, Z. Cheng, Y. Wang, Journal of Inorganic Biochemistry 186 (2018)
42-50.
[52] M. Zhu, J. Wang, J. Xie, L. Chen, X. Wei, X. Jiang, M. Bao, Y. Qiu, Q. Chen, W. Li, C. Jiang, X.
Zhou, L. Jiang, P. Qiu, J. Wu, European journal of medicinal chemistry 157 (2018) 1395-1405.
[53] G. Jaouen, A. Vessieres, S. Top, Chemical Society reviews 44 (2015) 8802-8817.
21

ACCEPTED MANUSCRIPT
[54] J. Qi, Q. Yao, K. Qian, L. Tian, Z. Cheng, D. Yang, Y. Wang, European Journal of Medicinal
Chemistry 154 (2018) 91-100.
[55] J. Qi, K. Qian, L. Tian, Z. Cheng, Y. Wang, New J. Chem. 42 (2018) 10226-10233.
[56] O.V. Dolomanov, L.J. Bourhis, R.J. Gildea, J.A.K. Howard, H. Puschmann, Journal of Applied
Crystallography 42 (2009) 339-341.
[57] E.D. Hawkins, M. Hommel, M.L. Turner, F.L. Battye, J.F. Markham, P.D. Hodgkin, Nature
Protocols 2 (2007) 2057-2067.
22

ACCEPTED MANUSCRIPT
Graphical abstract
Anticancer mechanism studies indicate that ligands with a potential anticancer
proliferation activity by inhibiting the activity of ribonucleotide reductase.
23

ACCEPTED MANUSCRIPT
Highkights
(1) These chelators have a potential anticancer proliferative activity;
(2) These chelators have a high inhibiting activity of ribonucleotide reductase;
(3) These chelators regulate the expression of cell cycle associated proteins;
(4) These chelators inhibit cell cycle arrest in S phase.
24
