Syn th esis of Novel Rh in a ca n th in s a n d Rela ted An tica n cer Na p h th oqu in on e
Ester s
Ngampong Kongkathip,*,† Suwaporn Luangkamin,† Boonsong Kongkathip,† Chak Sangma,† Ronald Grigg,‡
Palangpon Kongsaeree,§ Samran Prabpai,§ Narathip Pradidphol,† Suratsawadee Piyaviriyagul,# and
Pongpun Siripong#
Natural Products and Organic Synthesis Research Unit (NPOS), Department of Chemistry, Faculty of Science,
Kasetsart University, Bangkok, 10900, Thailand, Molecular Innovation, Diversity and Automated Synthesis (MIDAS) Centre,
School of Chemistry, Leeds University, Leeds, LS2 9J T, U.K., Department of Chemistry, Faculty of Science,
Mahidol University, Bangkok, 10400, Thailand, and Natural Products Research Section, Research Division,
National Cancer Institute, Bangkok, 10400, Thailand
Received J uly 2, 2003
Rhinacanthin-M, -N and -Q, natural products isolated from the medicinal plant Rhinacanthus
nasutus, and 39 novel naphthoquinone esters have been synthesized in excellent yield by
esterification of naphthoquinone-3-(propan-3′-ols) with benzoic or naphthoic acids. Almost all
the naphthoquinone esters that contain a C-3 hydroxy group showed significant cytotoxicities
against KB, HeLa, and HepG2 cell lines. In contrast, ester derivatives lacking the C-3 hydroxy
group were inactive to the cancer cell lines. Two methyl substituents on the C-2′ of propyl
chain conferred more potent cytotoxicity than when there is only one or no methyl group.
Naphthoate esters exhibited greater cytotoxicity than benzoate esters. Computer modeling has
been done to obtain a first look at the mode of action in connection with these observations.
In tr od u ction
Rhinacanthins1-3 are naphthoquinone ester deriva-
tives isolated from the methanolic extract of the roots
of the medicinal plant Rhinacanthus nasutus (Acan-
thaceae). Some of these compounds have been reported2
to exhibit cytotoxicity against P388, A-549, HT-29, and
HL-60 cell lines. In Thailand, the roots and leaves of R.
nasutus are used for the treatment of cancer.4 There
has been no reported synthesis of rhinacanthins. We
now report the synthesis of rhinacanthin-M, -N, -Q and
39 related naphthoquinone esters (Figure 1) together
with their cytotoxicities against human carcinoma cell
lines, KB (oral human epidermoid carcinoma), HeLa
(human cervical carcinoma), and HepG2 (human hepa-
tocellular carcinoma). We also conducted preliminary
studies on the mode of action of some of these naph-
thoquinone esters by computer modeling.
Ch em istr y
Rhinacanthins and related naphthoquinone esters
were obtained by esterification of naphthoquinone al-
cohols with benzoic or 2-naphthoic acids based on the
disconnection shown in Figure 2. Naphthoquinone al-
cohols (51, 52) with a gem-dimethyl group on the propyl
chain were prepared from 1-hydroxy-2-naphthoic acid,3,5,6
whereas naphthoquinone alcohols (45, 46, 49, and 50)
were prepared from 2-allyl or 2-methylallyl-1-naphthol7-9
via hydroboration followed by two successive oxidations
using Fremy’s salt followed by DDQ. Finally, hydrolysis

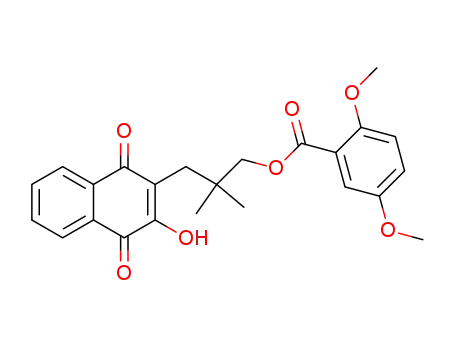

F igu r e 1. Structures of rhinacanthin-M, -N, -Q and 39 related
novel naphthoquinone esters.
* To whom correspondence should be addressed. Phone: +66-2-942-
8900, extension 211. Fax: +66-2-5793955. E-mail: fscinpk@ku.ac.th
of 47 and 48 under basic condition provided 49 and 50
in 86% and 94% yield, respectively (Scheme 1).
Preparation of rhinacanthin-Q (3) and its analogues
(14, 15, 18, 19, 21, 23, 24, and 26) was achieved in 58-
and fscinpk@yahoo.com.
† Kasetsart University.
‡ Leeds University.
§ Mahidol University.
#
National Cancer Institute.
10.1021/jm030323g CCC: $27.50 © 2004 American Chemical Society
Published on Web 08/04/2004

4428 J ournal of Medicinal Chemistry, 2004, Vol. 47, No. 18
Kongkathip et al.
Sch em e 1. Synthesis of
Naphthoquinone-3-(propan-3′-ols) (45, 46, 49, and 50)a
F igu r e 2. Retrosynthetic analysis of rhinacanthins and their
derivatives.
87% yield by esterification of naphthoquinone alcohols
(49-51) with various 2-naphthoic acids in the presence
of 1,1′-carbodiimidazole (CDI)10 (Table 1). The corre-
sponding diester was also produced in trace amounts.
Rhinacanthin-M (1) and its analogues (4, 6, 9, 10, and
12) were prepared in 69-98% yield by esterification of
naphthoquinone alcohols (50 and 51) with a range of
benzoic acids in the presence of dicyclohexylcarbodiim-
ide (DCC) and 4-(dimethylamino)pyridine (DMAP)11
(Table 2). Low yields of esters were encountered when
1,1′-carbodiimidazole was used for coupling.
Naphthoquinone esters (28, 29, 31, 32, 34, 35, and
37) lacking a C-3 hydroxy group were prepared accord-
ing to the procedure used to synthesize rhinacanthin-M
and its analogues (Table 2).
Selective demethylation of rhinacanthin-Q (3) and
naphthoquinone esters (4, 6, 10, 12, 15, 19, 21, 24, 26,
29, 32, 35, and 37) by treatment with boron tribromide12
in dichloromethane at -78 °C for 15 min afforded
a
Conditions: (a) BH3‚THF and then H2O2/OH-; (b) Fremy’s
salt, MeOH-DMF, 1 M NaOAc, room temp, 12 h; (c) DDQ,
p-TsOH, benzene, reflux, 20 min; (d) 1% aqueous NaOH, reflux, 2
h.
rhinacanthin-N (2) in 95% yield and naphthoquinone
esters (5, 7, 11, 13, 16, 20, 22, 25, 27, 30, 33, 36, and
38) in good yield (Table 3). In the case of naphtho-
quinone esters (8 and 17), yields of 72% and 73%,
respectively, were obtained by demethylation at both
methoxy groups of naphthoquinone ester (6) and rhi-
nacanthin-Q (3) with boron tribromide in dichlo-
romethane at room temperature for 2 h (Table 3).
Naphthoquinone esters (39-42) containing a C-3
methoxy group were synthesized in good yield by
Ta ble 1. Carbodiimidazole (CDI) Mediated Esterification of Naphthoquinone Alcohol

Rhinacanthins and Naphthoquinone Esters
J ournal of Medicinal Chemistry, 2004, Vol. 47, No. 18 4429
Ta ble 2. DCC/DMAP Mediated Esterification of Naphthoquinone Alcohol
methylation of naphthoquinone esters (1, 6, 14, and 15)
with methyl iodide (Table 4).
the cancer cell lines KB, HeLa, and HepG2 as well as
against the normal Vero cell line. The results14 showed
that the naphthoate (2) (Table 6) inhibits the cancer cell
lines more effectively than the benzoate (7) (Table 5)
with IC50 in the range <0.22 to 0.38 ( 0.06 and 1.18 (
0.26 to 3.33 ( 0.37 µM while they were much less toxic
to the Vero cell line (12.65 and 11.49 µM). Other
naphthoates (3, 14, 15, 16, and 17) exhibit more potent
cytotoxicity (Table 6) against the cancer cell lines than
the benzoates having the same substitution (1, 4, 5, 6,
and 8). The substituents on the naphthoquinone ring
(R5), propyl chain (R1 and R2), and benzene or naph-
thalene ring (R3 and R4) affect the activity. The presence
of a C-3 hydroxy group (R5 ) OH) on the naphtho-
quinone ring resulted in significantly greater cytotox-
icity of 3; KB, HeLa, and HepG2 inhibited with IC50
values of 0.35 ( 0.16, 1.09 ( 0.11, and 0.97 ( 0.10 µM,
respectively, compared to 37 (R5 ) H), which is inactive.
Biologica l Activity
Compounds 1-42 (Figure 1) were subjected to cyto-
toxic evaluation against KB (human epidermoid carci-
noma), HeLa (human cervical carcinoma), and HepG2
(human hepatocellular carcinoma) cell lines as well as
against the normal Vero cell line employing the MTT
colorimetric method.13 Adriamycin, which exhibits cy-
totoxicity against KB, HeLa, and HepG2 cell lines, was
used as reference. The results are summarized in Tables
5 and 6. Parent naphthoquinone alcohols and acids were
tested for cytotoxicity against the KB cell line as shown
in Table 7.
Resu lts a n d Discu ssion
Rhinacanthin-M, -N, -Q and naphthoquinone esters
(4-42) (Figure 1) were tested for cytotoxicity against

4430 J ournal of Medicinal Chemistry, 2004, Vol. 47, No. 18
Ta ble 3. Boron Tribromide Demethylation of Aryl Ethers
Kongkathip et al.
With regard to the propyl chain of the naphtho-
quinone ring, methyl substituents at the C-2′ position
affected cytotoxicity. Two methyl groups at the C-2′
position of the propyl chain conferred more potent
cytotoxicity against cancer cell lines than when there
is only one methyl or no methyl group (see compounds
15, 19, and 24 in Table 6). For example, compound 15
showed better cytotoxicity against the KB cell line than
19 and 24 with IC50 values of <0.22, 0.66 ( 0.19, and
33.66 ( 6.58 µM, respectively. In addition, the R3 and
R4 substituents on the naphthalene ring affect cytotox-
icity. Thus, 14 (NKPSL4, R3, R4 ) H), 2 (rhinacanthin-
N, R3 ) OH, R4 ) OMe), and 3 (rhinacanthin-Q, R3, R4
) OMe) inhibit KB, HeLa, and HepG2 cell lines differ-
ently. Rhinacanthin-N showed better cytotoxicity against
the KB cell line (Table 6) than rhinacanthin-Q and
NKPSL4 with IC50 values of <0.22, 0.35 ( 0.16, and
1.59 ( 0.37 µM, respectively. Moreover, NKPSL3 (22)
showed greater cytotoxicity against the cancer cell lines
(IC50 values in the range 2.16 ( 0.94 to 3.14 ( 0.45 µM)
than NKPSL2 (21) (IC50 values in the range 3.52 ( 0.18
to 3.80 ( 0.38 µM). The presence of a hydroxy group at
C-1 and a methoxy group at C-4 of the naphthalene ring
resulted in stronger cytotoxicity than the presence of
methoxy groups at both of these positions. For example,
in Table 6, rhinacanthin-N (2) showed greater cytotox-
icity against the KB, HeLa, and HepG2 cell lines (IC50
values of <0.22, 0.30 ( 0.05, and 0.38 ( 0.06 µM,
respectively) than rhinacanthin-Q (3) (IC50 values of
0.35 ( 0.16, 1.09 ( 0.11, and 0.97 ( 0.10 µM, respec-
tively). This might be due to either the better electron-
donating capacity of the hydroxy group or the better
hydrogen-bonding ability of the hydroxy group and
carbonyl group which facilitates better binding.
The X-ray crystallographic analyses of rhinacan-
thin-N (2) and rhinacanthin-Q (3) crystals revealed that
rhinacanthin-N and rhinacanthin-Q crystals have folded
structures in the crystalline state whereas NKPSL4 (14)

Rhinacanthins and Naphthoquinone Esters
J ournal of Medicinal Chemistry, 2004, Vol. 47, No. 18 4431
Ta ble 4. Methylation of 3-Hydroxynaphthoquinone Esters
