Chemistry Letters Vol.37, No.1 (2008)
79
bonds to an adjacent [Cu(mhsa)2] unit (OꢂꢂꢂO = 2.76(5) and
trile and other alcohol vapor such as MeOH and PrOH,
while other solvents such as Et2O, hexane, CHCl3, CH2Cl2,
THF, and water do not cause this transformation. It is notewor-
thy that the transformation does not proceed under the vapor of
CHCl3, CH2Cl2, and THF, despite 1 is easily soluble in these
solvents, implying that hydrophilic property and enough solubil-
ity of solvents are required for the transformation. This transfor-
mation is new and unique in the field of hydrogen-bonded
assembled metal complexes.

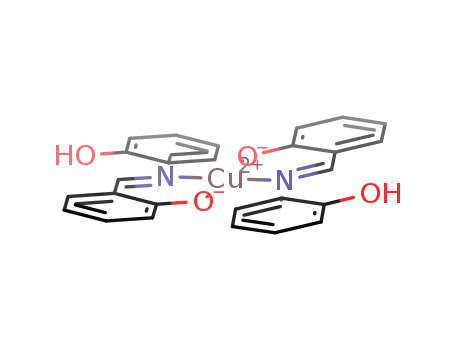

In summary, we have prepared new copper(II) complexes, 1
and 2, with two mhsa ligands. An amorphous sample obtained
from 1 shows a unique transformation to 2 in the solid state
under alcohol vapor, even though the resulting sample is a non-
inclusion sample. Further studies of this unique transformation
are currently in progress.
˚
2.77(7) A). These hydrogen-bonding interactions create a
one-dimensional chain along the b axis.
Figure 2 shows the monomeric units and crystal structure of
2.8 Similarly to 1, the copper(II) center is based on the geometry
between cis-square planar and tetrahedral, in which the ꢀ angle
is also about 126ꢁ. In contrast to 1, two hydroxy groups of the
mhsa of 2 form direct hydrogen bonds with the coordinating
oxygen atoms of mhsa in the different adjacent [Cu(mhsa)2]
units, creating a two-dimensional layer in the ac plane.
In contrast to [Cu(sal-R)2], [Cu(5-Cl-sal-Ph)2] crystallizes
not only in the trans-square planar structure (ꢀ ¼ 0ꢁ) but also
in the cis-arranged structure (ꢀ ¼ 141ꢁ).9 The structures of the
monomeric units of 1 and 2 are close to the cis-formed struc-
ture.9,10 For the mhsa ligand, two structural isomers are defined
by orientations of the hydroxy groups as illustrated in Scheme 1,
and the two forms are designated ꢁ- and ꢂ-forms. For the
mhsa ligands in this Cu–mhsa system, 1 contains only ꢁ-forms
(Figure 1), while 2 involves both ꢁ- and ꢂ-forms (Figure 2).
As mentioned, one of the interesting aspects of hydrogen-
bonded complexes containing solvent molecule is the structural
rearrangements as they respond to the removal and reinclusion
of the solvent molecules in the solid state. Complex 1 contains
EtOH molecules. We have studied the structural changes of 1
by removal of the EtOH molecules, followed by exposure of it
to EtOH vapor by monitoring the X-ray powder diffraction
(XRPD) patterns (Figure 3).
Thermogravimetric (TG) measurements indicate that the
EtOH molecules are removed on heating at about 120 ꢁC (see
Supporting Information).11 Based on the TG data, the included
EtOH molecules of 1 were removed on heating at 120 ꢁC under
reduced pressure. No intense XRPD peaks were observed for the
dried sample (Figure 3c), indicating that the sample obtained is
amorphous. Exposure of the amorphous sample to EtOH vapor
overnight gave a new XRPD pattern (Figure 3d). Curiously,
the pattern obtained is not consistent with that of the initial crys-
tal structure of 1 but is consistent with the simulation pattern of
2 (Figure 3e), even though this complex contains no inclusion
molecules. This means that the amorphous sample obtained from
1 transforms to 2 in the solid state under EtOH vapor. Interest-
ingly, this transformation also proceeds by exposure to acetoni-
This work was supported by a Grant-in-Aid for Scientific
Research (C) from the Ministry of Education, Culture, Sports,
Science and Technology, Japan. The authors thank Mr. R. Ikeya
of the Center for Instrumental Analysis for support in obtaining
the X-ray diffraction data.
References and Notes
1
H. Tanaka, K. Tohyama, K. Adachi, S. Kaizaki, H. Kumagai, K. Inoue, R.
1617. b) M. Kondo, T. Iwase, Y. Fuwa, T. Horiba, M. Miyazawa, T. Naito, K.
Y. Shimizu, M. Miyazawa, H. Kawaguchi, A. Nakamura, T. Naito, K. Maeda,
2
3
4
5
M. Kondo, K. Nabari, T. Horiba, Y. Irie, Md. Khayrul Kabir, R. P. Sarker, E.
Crystallographic data for the complex: C30H32N2CuO6, Mr ¼ 580:14, monoclin-
˚
ic, space group P2/n (No. 13), a ¼ 14:50ð4Þ, b ¼ 11:36ð2Þ, c ¼ 18:43ð4Þ A, ꢂ ¼
3
107:93ð3Þꢁ, V ¼ 2889ð12Þ A , Z ¼ 4, Dcalcd 1.334 g cmꢃ3
, ꢃ(Mo Kꢁ) =
˚
0.800 mmꢃ1, T ¼ 293 K, ꢄ ¼ 0:7107 A, ! scan, 21272 reflections measured,
5870 unique, R ¼ 0:0869 (all data). The data collection was performed on a
Rigaku CCDC Mercury system. The structure was solved by a direct method
using SIR-92 and refined on F2. Geometrical hydrogen atoms were located on
the calculated positions. All non-hydrogen atoms were treated anisotropically.
Hydrogen atoms were included but not refined. Crystallographic data reported
in this paper has been deposited with Cambridge Crystallographic Data Centre
as supplementary publication no. CCDC-xxxx.
˚
6
7
8
Crystallographic data for the complex: C26H20N2CuO4, Mr ¼ 488:00, monoclin-
˚
ic, space group P2/n (No. 13), a ¼ 9:826ð6Þ, b ¼ 15:11ð3Þ, c ¼ 15:174ð9Þ A,
3
ꢂ ¼ 93:01ð2Þꢁ, V ¼ 2249ð5Þ A , Z ¼ 4, Dcalcd 1.441 g cmꢃ3, ꢃ(Mo Kꢁ) =
˚
1.007 mmꢃ1, T ¼ 293 K, ꢄ ¼ 0:7107 A, ! scan, 13826 reflection measured,
˚
5854 unique, R ¼ 0:0850 (all data). The data collection was performed on a
Rigaku CCDC Mercury system. The structure was solved by a direct method
using SIR-92 and refined on F2. Geometrical hydrogen atoms were located on
the calculated positions. All non-hydrogen atoms were treated anisotropically.
Hydrogen atoms were included but not refined. Crystallographic data reported
in this paper have been deposited with Cambridge Crystallographic Data Centre
as supplementary publication no. CCDC-xxxx.
9
10 a) G. Dong, Q. Chun-qi, D. Chun-ying, P. Ke-lian, M. Qing-jin, Inorg. Chem.
1970, 2494. c) M. Kondo, Y. Shibuya, K. Nabari, M. Miyazawa, S. Yasue, K.
11 Supporting Information is available electronically on the CSJ-Journal web site;
Figure 3. XRPD patterns of freshly prepared sample of 1 (a), the simula-
tion pattern of 1 (b), dried sample (c), sample obtained by exposure of
EtOH vapor (d), and the simulation pattern of 2 (e).
