The synthesis of bicyclo[2.2.2]octan-2,6-dione revisited

Article abstract of DOI:10.1055/s-2006-942532

The cyclisation conditions for the formation of bicyclo[2.2.2]octan-2,6- dione (1) from 3-substituted cyclohexanones 2 and 3 have been re-investigated. Use of a medium consisting of isobutyric anhydride and trifluoroacetic acid resulted in a simplified an

Full text of DOI:10.1055/s-2006-942532

PRACTICAL SYNTHETIC PROCEDURES
3527
The Synthesis of Bicyclo[2.2.2]octan-2,6-dione Revisited
Revised Synthesis of
B
a
icyclo[2.2.
g
2]octan-2,6-d
n
ione us Widegren,a Melanie Dietz,a Annika Friberg,a Torbjörn Frejd,*a Bärbel Hahn-Hägerdal,b
Marie F. Gorwa-Grauslund,b Mikael Katzb
a
Division of Organic Chemistry, Center for Chemistry and Chemical Engineering,
Lund University, P.O. Box 124, 22100 Lund, Sweden
Fax +46(46)2224119; E-mail: Torbjorn.Frejd@organic.lu.se
Department of Applied Microbiology, Center for Chemistry and Chemical Engineering,
b
PSP
Lund University, P.O. Box 124, 22100 Lund, Sweden
Received 26 April 2006; revised 26 June 2006
No71
Abstract: The cyclisation conditions for the formation of bicyclo[2.2.2]octan-2,6-dione (1) from 3-substituted cyclohexanones 2 and 3
have been re-investigated. Use of a medium consisting of isobutyric anhydride and trifluoroacetic acid resulted in a simplified and repro-
ducible method for large-scale synthesis of this compound.
Key words: bicyclic compounds, cyclisations, diketones, carboxylic acids, anhydrides
O
O
PPA/HOAc
A)
100 °C
1 h
O
O
O
2
1
O
O
68% yield
O
O
IBA/TFA
B)
1
r.t. (2–4 h) →
125 °C (1–4 h)
OH
71–77% yield
3
O
OH
Scheme 1
Bicyclo[2.2.2]octane derivatives are frequently used in tion in PPA/AcOH using 2 was hampered by low yields at
total synthesis and as ligands for asymmetric catalysis, larger scales, synthesis of 1 had to be performed repeated-
and they are also found in many natural products.1 One of ly. The neutralisation of rather large amounts of PPA/
the simpler derivatives for synthesis among the bicy- AcOH was also inconvenient. We present here a more
clo[2.2.2]octanes is bicyclo[2.2.2]octane-2,6-dione (1). convenient large-scale method for the synthesis of 1.
Synthetic procedures for this dione have been presented in
The reasons for the scale-up problems with 2 are not clear.
We noticed that higher proportions of acetic acid in the
the literature,2,3 none of which are entirely satisfactory.
Our need for larger amounts of 1 could not be met by these
medium to make it less viscous adversely influenced the
procedures. This problem was partially solved by the cy-
yields of 1 despite consumption of 2.4 An important factor
clisation of 2 (Scheme 1, A).4
to consider was the ‘anhydridic’ medium. It is likely that
Keeping the output scale below 5 g, the yields were repro- acetic anhydride or mixed acetic-PPA anhydrides are
ducible around 60%, sometimes even higher. However, a formed to some extent when acetic acid and PPA are
very serious limitation was that the yields dropped drasti- mixed.5 This indicated that it would be reasonable to per-
cally when the scale was increased, e.g. at 10 g scale the form the reaction of 2 in acetic anhydride in the presence
yields seldom exceeded 40% and at larger scales the of an acidic catalyst. The best results were achieved using
yields were even lower.
trifluoroacetic acid (TFA) (35% yield) or PPA (36%
yield). Alternative acids were tested and the results are
given in Table 1 (see also experimental). Further experi-
mentation with 2 as starting material was abandoned at
this point since the yields were not satisfactory.
A further impracticality was the use of polyphosphoric
acid (PPA). Its viscosity is perhaps tolerable a few times
but not repetitively and since the scale-up of the cyclisa-
Earlier experiments with the malonic acid 3 in PPA/
AcOH were not rewarding, but since 3 is very easy to syn-
thesise in large amounts it is indeed an attractive starting
SYNTHESIS 2006, No. 20, pp 3527–3530
Advanced online publication: 02.08.2006
DOI: 10.1055/s-2006-942532; Art ID: T07206SS
x
x.
x
x
.
2
0
0
6
© Georg Thieme Verlag Stuttgart · New York

3528
M. Widegren et al.
PRACTICAL SYNTHETIC PROCEDURES
Table 1 Cyclisation Experiments of 2 in Acetic Anhydridea
by removing the excess of the reaction medium directly
from the reaction vessel by low-pressure distillation,
which left a residue that could be purified by crystallisa-
tion from heptane–EtOAc to give a high quality of 1, di-
rectly useful for further transformations, e.g.
stereoselective baker’s yeast reduction.4,6 Thus, the proce-
dure does not require column chromatography.
Entry 2 (g)
Ac2O Acid
(mL)
Yield (%)
1
2
1
5
5
15
50
7.5
11
14
45
35
5
TFA, 5 mL
35
21
9
TFA, 15 mL
3
10
1
TFA, 50 mL
Table 2 Cyclisation of 3 in the IBA/TFA Medium
b
4
TFA, 7.5 mL
-
Entry
3 (g)
1
IBA (mL)
TFA (mL) Yield (%)
5
1
PPA, 11 g
36
33
17
1
2
3
4
1
1
0.1
0.5
10a,b
68a,b
72b,c
77c,d
6
3
PPA, 14 g
1
7
10
5
PPA, 50 g
50
500
50
25
250
c
8
MgCl2, 2 g
-
500
9
1
TFA, 5 mL/MgCl2, 0.4 g
BF3·AcOH, 0.05 mL
PPA, 43 g/AcOH, 40 mLd
17
18
23
a Isolated by aqueous work-up followed by column chromatography.
b Reaction time: 2 h at r.t., then 1 h at 125 °C.
c Isolated by removal of excess reagent by distillation followed by re-
crystallisation.
10
11
5
35
-
5
d Reaction time: 4 h at r.t., then 4 h at 125 °C.
a Conditions: Compound 2 was added in one portion to the reaction
medium at r.t. and then the temperature was increased to 100 °C, re-
action time, 1 h.
Since small amounts of 1 are lost due to sublimation at re-
duced pressure, the yields are noticeably affected when
the reaction is run at smaller scales. Therefore, the low-
pressure distillation is best suited for large-scale opera-
tions (≥50 g). For small-scale reactions an aqueous work-
up followed by column chromatography is recommended.
b The addition of 2 was made over 1 h, but 1 could not be detected by
TLC.
c No product could be isolated.
d PPA and AcOH were stirred at 100 °C for 24 h before addition of 2.
material. The synthesis of 3 was carried out by the Micha-
el reaction of cyclohex-2-ene-1-one with dimethyl mal-
onate followed by hydrolysis of the ester groups in the
addition product 4 (Scheme 2).
Other reaction media can also be used. The reaction was
run using trifluoroacetic anhydride (TFAA) with a cata-
lytic amount (5 mol%) of TFA (Table 3). A slight excess
(1.1 equiv) of TFAA was required to obtain yields compa-
rable to those obtained in the IBA-mediated cyclisations.
However, using two equivalents of TFAA was detrimen-
tal for the reaction, resulting in a significantly lower yield
and large amounts of labile by-products, which decom-
posed during column chromatography.
The best results in the cyclisation of 3 were achieved with
isobutyric anhydride (IBA) in combination with TFA
(Scheme 1, B and Table 2). Using this reaction medium
the yields were reproducible and in the range of 70–80%,
and the scaling-up of the reaction was possible without a
drop in yield. The highest yields were obtained using a
1:1.1 molar ratio of IBA/TFA, in slight excess with re-
spect to 3. At scales £50 g, stirring at room temperature
Table 3 Cyclisation Experiments of 3 in TFAA in the Presence of
TFA (5 mol%)
for two hours before increasing the temperature to 125 °C Entry
3 (g)
TFAA (equiv) Yield (%)a
was necessary to obtain good yields. During this period,
formation of 1 was not detected. However, a slightly exo-
1
1
1
5
1
49
19
69
thermic process was observed. As decarboxylation gently
began at a temperature just above 100 °C, formation of 1
was observed. The reaction was performed in up to 500 g
scale with standard laboratory equipment. However, at
this scale a longer reaction time was required (see experi-
mental part). Isolation of the product was accomplished
2
2
3
1.1
a Isolated yield.
In the IBA-mediated cyclisation, a by-product was formed
in up to 20% yield, which we failed to isolate in the pure
state due to partial decomposition in solution and on silica
gel. The by-product did not originate from further reaction
of 1 with the medium, since a pure sample of 1 on heating
for three hours in the IBA/TFA mixture was indifferent as
checked by TLC analysis. IR and NMR spectroscopic ev-
idence of an impure sample of the by-product gave indi-
cations that pointed to structure 5 (Figure 1). A similar
O
O
dimethyl malonate
O
2 M NaOH
96%
3
Et3N, LiCl
toluene
95%
OMe
OMe
4
O
Scheme 2
Synthesis 2006, No. 20, 3527–3530 © Thieme Stuttgart · New York

PRACTICAL SYNTHETIC PROCEDURES
Revised Synthesis of Bicyclo[2.2.2]octan-2,6-dione
3529
Dimethyl (3-Oxocyclohexyl)malonate (4)
ester-acetal-lactone formed under similar conditions was
reported by Mori.7
Et3N (8 mL) and LiCl (24.6 g, 0.582 mol) were added to a solution
of dimethyl malonate (100 mL, 0.872 mol) in toluene (100 mL).
The mixture was stirred at r.t. under argon for 10 min and a solution
of cyclohex-2-ene-1-one (58.8 mL, 0.582 mol) in toluene (100 mL)
was then added. The resulting mixture was stirred at r.t. overnight,
then H2O (50 mL) was added followed by conc. HCl (~20 mL) until
neutral pH. The phases were separated and the H2O phase was ex-
tracted with EtOAc (3 × 100 mL). The combined organic extracts
were dried (Na2SO4), filtered and the solvent was removed at re-
duced pressure. The resulting yellow oil was purified by distillation
to give 4 (126 g, 95%) as a colourless liquid; bp 140 °C/1 Torr (Lit.9
O
O
O
5
O
1
Figure 1 Structure of the by-product 5
bp 124–130 °C/0.4 Torr). The H NMR data of 4 were in accord
with literature values.9
Since the large-scale operations also required larger
amounts of 4 (Scheme 2), it was desirable to avoid chlori-
nated solvents (dichloromethane), which had been used
earlier in the conjugate addition of dimethyl malonate to
cyclohexenone. From an environmental point of view tol-
uene is more tolerable, and it is also superior to dichlo-
romethane. A close to quantitative yield of 4 was obtained
in toluene as compared to less than 80% in dichlo-
romethane or THF (see experimental part). Alternatively,
4 can be prepared by an electrochemically promoted
Michael addition reaction of cyclohex-2-ene-1-one and
dimethyl malonate under solvent-free conditions in high
yield.8

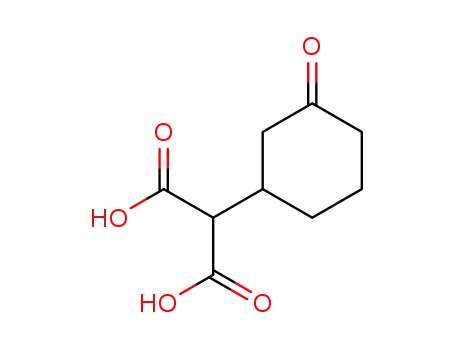

(3-Oxocyclohexyl)malonic Acid (3)
Dimethyl (3-oxocyclohexyl)malonate (4; 227 g, 1.00 mol) was dis-
solved in aq 2 M NaOH (1.8 L) and stirred at r.t. for 2 h. The mixture
was then acidified with conc. HCl (~360 mL), saturated with NaCl
and extracted with EtOAc (4 × 600 mL). The combined organic lay-
ers were dried (Na2SO4), filtered and the solvent removed at re-
duced pressure to give 3 (191 g, 96%) as a white solid powder,
which was used in the next step without further purification; mp
146–147 °C (melt and dec.) (Lit.2 mp 166–168 °C).
IR (KBr): 2955, 1724, 1684, 1302, 1219 cm–1.
1H NMR (400 MHz, DMSO-d6): d = 12.82 (v br s, 2 H), 3.19 (m, 1
H), 2.35–2.06 (m, 5 H), 2.01–1.88 (m, 1 H), 1.81 (br d, J = 12.6 Hz,
1 H), 1.64–1.34 (m, 2 H).
13C NMR (100 MHz, DMSO-d6): d = 209.6, 169.6, 169.5, 56.9,
44.8, 40.5, 37.5, 28.1, 24.2.
In conclusion, a convenient method has been worked out
for the synthesis of 1 by the use of IBA/TFA as reaction
medium for the ring closure of 3. It is now possible to pro-
duce large amounts (>100 g) of 1 in less than two days
without the use of chromatography, starting from cyclo-
Note that complicated NMR patterns were obtained with MeOH as
solvent. Depending on concentration, partial acetal formation was
observed.
hex-2-ene-1-one. It is also possible to recover the solvents Bicyclo[2.2.2]octane-2,6-dione (1)
Method 1: Isobutyric anhydride (500 mL, 3.02 mol) and TFA (250
and reagents for recycling.
mL, 3.37 mol) were added under stirring to finely powdered 3 (500
g, 2.51 mol). The mixture was stirred at r.t. for 4 h and then the tem-
perature was slowly increased to 125 °C. After 4 h at 125 °C, evo-
lution of CO2 ceased and the mixture was cooled to r.t. A colourless
liquid (mostly excess IBA and TFA) was distilled off (bp 70 °C/1
Torr) and the remaining crude brown residue was crystallised from
EtOAc–heptane (1:1). On cooling with on solid CO2, diketone 1
(211 g, 61%) precipitated as colourless needles. From the mother li-
quor a second crop of 1 was obtained (56 g, 16%); mp 194–197 °C
(Lit.2 mp 190–191 °C). The total yield was 267 g (77%).
1H NMR (400 MHz, CDCl3): d = 3.19 (t, J = 2.9 Hz, 1 H), 2.66
(heptet, J = 3.0 Hz, 1 H), 2.52 (doublet of multiplets, J = 20.4 Hz, 1
H), 2.51–2.47 (m, 1 H), 2.38 (doublet of multiplets, J = 19.3 Hz, 1
H), 9.37–9.34 (m, 1 H), 2.16–2.09 (m, 2 H), 1.91–1.84 (m, 2 H).
All chemicals were purified by standard methods, unless otherwise
stated. Dimethyl malonate (97%, Merck), LiCl (99%, Riedel-de-
Haen), cyclohex-2-ene-1-one (98.5%, Fluka), isobutyric anhydride
(97%, Acros), TFA (99%, Acros) and trifluoroacetic anhydride
(≥99%, Aldrich) were used as delivered. Column chromatography
was performed on Matrex (25–70 mm) silica gel. TLC was per-
formed on silica gel covered glass plates (60 F254, Merck) and the
plates were impregnated with a solution of p-methoxybenzaldehyde
(10 mL), conc. H2SO4 (50 mL) and EtOH (95%, 950 mL). The com-
pounds were visualized by heating. NMR data were recorded on a
Bruker DRX 400 MHz or Bruker ARX 300 MHz spectrometer, and
the chemical shifts were measured using the solvent peaks as inter-
nal references. Melting points were taken on a Sanyo Gallenkamp
melting point apparatus (MPD.350.BM3.5) and are uncorrected. IR
spectra were recorded on a Shimadzu FTIR-8300 spectrometer.
13C NMR (100 MHz, CDCl3): d = 206.7, 63.8, 44.0, 28.0, 23.7,
22.1.
HRMS-FAB+: m/z [M + H]+ calcd for C8H11O2: 139.0759; found:
139.0755.
Cyclisation of 2 in Acetic Anhydride; General Procedure
The Meldrum’s acid derivative 2 was added to a mixture of Ac2O
and co-reagent (Table 1) under argon at r.t. The temperature was in-
creased to 100 °C and held there for 1 h. The mixture was cooled to
r.t., then sat. NaHCO3 (50 mL) was added followed by further addi-
tion of sat. NaHCO3 until neutral pH. It was then saturated with
NaCl and extracted with toluene (5 × 50 mL). The combined organ-
ic phases were dried (Na2SO4), filtered and the solvent was removed
at reduced pressure. The residue was purified by column chroma-
tography [SiO2, heptane–EtOAc (1:1); Rf 0.3] to give 1 as a white
solid, which was analysed by IR and 1H NMR spectroscopy.
By-Product 5
A by-product was formed in up to 20% yield. Attempted purifica-
tion of an analytical sample, obtained from the mother liquor after
recrystallization of 1, by column chromatography (SiO2, heptane–
EtOAc, 1:1) gave the following spectroscopic data:
IR (film): 2937, 1751, 1215, 1142, 1099, 1074, 1042, 1003, 972
cm–1.
Synthesis 2006, No. 20, 3527–3530 © Thieme Stuttgart · New York

3530
M. Widegren et al.
PRACTICAL SYNTHETIC PROCEDURES
1H NMR (300 MHz, CDCl3): d = 2.77 (dd, J = 18.8, 6.9 Hz, 1 H),
2.64–2.36 (m, 4 H), 2.17–2.09 (m, 2 H), 2.00–1.88 (m, 1 H), 1.85–
1.74 (m, 1 H), 1.69–1.55 (m, 3 H), 1.16 (d, J = 6.9 Hz, 6 H).
13C NMR (75 MHz, CDCl3): d = 174.7, 170.1, 105.8, 35.6, 35.1,
34.9, 33.7, 30.2, 27.5, 18.9, 18.5.
Gluchowski, C.; Guinn, D. E.; Hartmann, M.; Tanaka, T.;
Wagner, R.; White, J. B. Tetrahedron 1995, 51, 3455.
(f) Paquette, L. A.; Poupart, M. A. J. Org. Chem. 1993, 58,
4245. (g) Njardarson, J. T.; Wood, J. L. Org. Lett. 2001, 3,
2431. (h) Coons, S.; Javanmard, S.; Collard, D. M.; Kuhar,
M. J.; Schweri, M. M.; Deutsch, H. M. Med. Chem. Res.
2002, 11, 24. (i) Thoison, O.; Cuong, D. D.; Gramain, A.;
Chiaroni, A.; Hung, N. V.; Sevenet, T. Tetrahedron 2005,
61, 8529. (j) Hong, R.; Chen, Y.; Deng, L. Angew. Chem.
Int. Ed. 2005, 44, 3478. (k) Liu, W.; Gu, Q.; Zhu, W.; Cui,
C.; Fan, G.; Zhu, T.; Liu, H.; Fang, Y. Tetrahedron Lett.
2005, 46, 4993. (l) Bringmann, G.; Lang, G.; Gulder, T. A.
M.; Tsuruta, H.; Muhlbacher, J.; Maksimenka, K.; Steffens,
S.; Schaumann, K.; Stohr, R.; Wiese, J.; Imhoff, J. F.;
Perovic-Ottstadt, S.; Boreiko, O.; Muller, W. E. G.
Tetrahedron 2005, 61, 7252. (m) Majetich, G.; Wang, Y.;
Li, Y.; Vohs, J. K.; Robinson, G. H. Org. Lett. 2003, 5,
3847. (n) Pitsinos, E. N.; Vidali, V. P.; Couladouros, E. A.
Arkivoc 2002, (xiii), 105; www.arkat-usa.org. (o) Tanaka,
T.; Mine, C.; Kouno, I. Tetrahedron 2002, 58, 8851.
(p) Abad, A.; Agullo, C.; Cunat, A. C.; Navarro, I.
Tetrahedron Lett. 2001, 42, 8965. (q) Srikrishna, A.; Ravi
Kumar, P.; Gharpure, S. J. Tetrahedron Lett. 2001, 42,
3929. (r) Mori, K.; Matsushima, Y. Synthesis 1993, 406.
(2) Bartlett, P. D.; Woods, G. F. J. Am. Chem. Soc. 1940, 62,
2933.
For small-scale synthesis, it is recommended that an aqueous work-
up is applied as for the general procedure for the cyclisation of 2 in
Ac2O (see above).
Method 2: TFAA (3.84 mL, 27.6 mmol) and TFA (93 mL, 1.3 mmol)
were added under stirring to finely powdered 3 (5.00 g, 25.1 mmol).
The mixture was stirred at r.t. for 2 h and then the temperature was
increased to 125 °C and held there for 1 h. After cooling the mixture
to r.t., aq sat. NaHCO3 (150 mL) was added and the resulting H2O
phase was extracted with EtOAc (3 × 70 mL). The combined organ-
ic extracts were dried (Na2SO4), filtered and the solvent was re-
moved at reduced pressure. The residue was purified by column
chromatography (SiO2, heptane–EtOAc, 3:1 to 1:1) to give 1 (2.41
g, 69%) as a white solid; mp 192–195 °C (Lit.2 mp 190–191 °C);
Rf 0.3 (heptane–EtOAc, 1:1). The 1H NMR data were in accord with
those reported for 1 above.
