Mo1ssbauer Spectroscopy of Bucky Ferrocenes: Lattice Dynamics and
Motional Anisotropy of the Metal Atom
Rolfe H. Herber,*,† Israel Nowik,† Yutaka Matsuo,‡ Motoki Toganoh,§ Yoichiro Kuninobu,§ and
Eiichi Nakamura*,‡,§
Racah Institute Of Physics, The Hebrew UniVersity of Jerusalem, 91904 Jerusalem, Israel, and
Nakamura Functional Carbon Cluster Project, ERATO, Japan Science and Technology Agency,
and Department of Chemistry, The UniVersity of Tokyo, Hongo, Bunkyo-Ku,
Tokyo 113-0033, Japan
Received February 18, 2005
Temperature-dependent 57Fe Mo¨ssbauer effect spectroscopy has been used to elucidate the metal atom dynamics
in three neutral and two cationic bucky ferrocenes. For the three diamagnetic complexes Fe(C60H5)Cp (1),
Fe(C60Me5)Cp (2), and Fe(C60Ph5)Cp (3), the metal atom motion is anisotropic and the temperature dependence
of the mean-square amplitude of vibration of the metal atom at a number of temperatures is reported. The Mo¨ssbauer
lattice temperatures have been determined and compared to the parent ferrocene (6). The synthesis and X-ray
crystal structure of 3 have been determined at 153(2) K, and the 1H and 13C NMR spectra have been recorded.
The cationic complexes derived from 2 and 3 show spin−lattice relaxation. The relaxation rate appears insensitive
to the nearest-neighbor environment of the metal atom in this pair.
Introduction
C5H5), has been the subject of an extremely large array of
physicochemical techniques designed to lead to a full
understanding of the structure, bonding, thermodynamic, and
kinetic properties of this unique molecule, first described5
by Kealy and Pauson in 1951. Among these techniques was
the phenomenon of resonant γ-ray scattering (Mo¨ssbauer
effect, ME); in fact, ferrocene was the first iron-organo-
metallic compound studied by this spectroscopy,6 and a large
literature has developed in this field.
The quest for the design and construction of molecular
devices which can function as active components in elec-
tronic circuits has received a great deal of attention in recent
years. In particular, the incorporation of C60 (buckyball) in
such structures has been the focus of intense research in this
field due to the possibilities of modifying the buckyball
structure with chemical ligands which themselves provide
possible electron pathways and connections to the larger
environment.1-4 Among such ligands are organometallic
moieties which can provide the intermolecular connectivity
needed for such devices.
Of particular interest in this context is the possibility of
using temperature-dependent ME spectroscopy to elucidate
the detailed motion of the iron atoms in such compounds
and relating this to the numerous detailed single-crystal X-ray
diffraction studies which have also been reported7 at a variety
of temperatures. The recent discovery of the synthesis of
In view of its centrality in the development of modern
organometallic chemistry, ferrocene, Fe(η5-Cp)2 (Cp )
* Authors to whom correspondence should be addressed. E-mail:
herber@vms.huji.ac.il (R.H.H.); nakamura@chem.s.u-tokyo.ac.jp (E.N.).
† The Hebrew University of Jerusalem.
(5) (a) Kealy, T. J.; Pauson, P. L. Nature (London) 1951, 168, 1039-
1040. See also the special volume devoted to ferrocene: J. Organomet.
Chem. 2001, 637-639, 3-26 and references therein.
(6) Herber, R. H.; Werthewim, G. K. In Proceedings of the Second
International Conference on the Mo¨ssbauer Effect, Saclay, France,
1961; Compton, D. M. J., Schoen, A. H., Eds.; J. Wiley and Sons:
New York, 1962. See also: Zahn, U., Kienle, P.; Eicher, H. In
Proceedings of the Second International Conference on the Mo¨ssbauer
Effect, Saclay, France, 1961; Compton, D. M. J., Schoen, A. H., Eds.;
J. Wiley and Sons: New York, 1962.
‡ Nakamura Functional Carbon Cluster Project, ERATO, JST.
§ The University of Tokyo.
(1) Porath, D.; Levy, Y.; Tarabiah, M.; Millo, O. Phys. ReV. B 1997, 56B,
9829-9833.
(2) Zeng, C.; Wang, H.; Wang, B.; Yang, J.; Hou, J. G. Appl. Phys. Lett.
2000, 77, 395-397.
(3) Gutierrez, R.; Fagas, G.; Cuniberti, G.; Grossmann, F.; Schmidt, R.;
Richter, K. Phys. ReV. B 2002, 65, 34101-34104.
(4) Cunniberti, G.; Gutierrez, R.; Fagas, G.; Grossmann, F.; Richter, K.;
Schmidt, R. Physica 2002, E12, 749-752.
(7) Brock, C. P.; Fu, Y. Acta Crystallogr. B 1997, 53, 928-938 and
references therein.
10.1021/ic050251e CCC: $30.25
Published on Web 07/07/2005
© 2005 American Chemical Society
Inorganic Chemistry, Vol. 44, No. 16, 2005 5629

Herber et al.
Synthesis of Fe(η5-C60Ph5)(η5-Cp) (3). A mixture of C60Ph5H
(200 mg, 0.181 mmol) and [FeCp(CO)2]2 (320 mg, 0.900 mmol)
in benzonitrile (40.0 mL) was stirred at 180 °C for 20 h. After
evaporation of the solvent, the crude mixture was diluted with
toluene, and the solution was passed through a pad of silica gel.
Solvent was removed in vacuo, and the mixture was recrystallized
from CS2/hexane to obtain the title compound as air-stable dark
red microcrystals (171 mg, 77% yield): 1H NMR (400 MHz,
CDCl3) δ 3.21 (s, 5H, Cp), 7.33-7.37 (m, 10H, Ph), 7.39-7.40
(m. 5H, Ph), 7.93-7.95 (m, 10H, Ph); 13C NMR (100 MHz, CDCl3/
CS2 ) 1/1) δ 58.23 (5C), 73.20 (5C), 92.47 (s, 5C), 127.41 (5C),
127.47 (10C), 128.97 (10C), 142.82 (5C), 142.92 (10C), 143.66
(10C), 147.03 (5C), 147.81 (10C), 148.06 (5C), 152.14 (10C); IR
(CS2) νC-H (Cp)/cm-1 3101; UV-vis (1.0 × 10-5 mol‚L-1 in
CH2Cl2) λmax (ꢀ) 260 (84 700), 295 (57 300, shoulder), 351 (23 600),
394 (12 200), 475 (4330, shoulder) nm; HRMS (APCI+) calcd for
C95H30Fe (M+) 1226.1697, found 1226.1695.
Chart 1
bucky ferrocenes,8,9 in which the local bonding environment
around the iron atom is similar to that in ferrocene itself,
but in which the more distant environment can take on a
variety of architectures, has made it desirable to study the
details of the lattice dynamics and motional anisotropy of
the iron atom in these ferrocenoids. For instance, it is
expected that motion of the iron atom of a bulky bucky
ferrocene (i.e. pentaaryl bucky ferrocene 3) is much smaller
than that of a less bulky one (i.e. pentahydro bucky ferrocene
1) (Chart 1). This study was conceived to elucidate these
properties of the metal atom in both neutral and one-electron
oxidation products of a number of bucky ferrocenes and to
relate this to the molecular level architecture of these
compounds. Among the compounds for which ME param-
eters are discussed in detail in the present discussion are

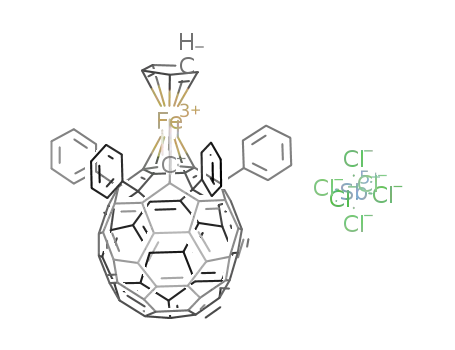

Fe(C60H5)Cp (1), Fe(C60Me5)Cp (2), Fe(C60Ph5)Cp (3),
[Fe(C60Me5)Cp]+[SbCl6]- (4), and [Fe(C60Ph5)Cp]+[SbCl6]-
(5) as well as comparison data for ferrocene (6).
Preparation of Fe(III) Complexes. To a solution of 2 (151 mg,
0.164 mmol) in THF (300 mL) was added [(4-BrC6H4)3N][SbCl6]
(147 mg, 0.181 mmol). After the solution was stirred at 25 °C for
5 h, the solvent was removed in vacuo. The solid was washed
several times with H2O, EtOH, and CHCl3. After the solid was
dried in vacuo, [Fe(η5-C60Me5)(η5-Cp)][SbCl6] (4) (170 mg, 83%)
was obtained as a reddish brown solid. Characterization of 4 was
obtained by means of an ESR measurement, showing g-values of
3.94 (g|) and 1.57 (g ) at 4.4 K. Similarly, oxidation of 3 (99.2
mg, 0.0808 mmol) with [(4-BrC6H4)3N][SbCl6] (72.6 mg, 0.0889
mmol) in THF (70.0 mL) gave [Fe(η5-C60Ph5)(η5-Cp)][SbCl6] (5)
(62.2 mg, 49%) as a reddish brown solid. Samples of these cationic
complexes 4 and 5 contain starting materials 2 and 3, respectively,
as minor components as judged by Mo¨ssbauer spectroscopic
analyses.
Experimental Section
General Procedure for the Synthesis of Bucky Ferrocenes.
Syntheses and manipulation of materials were carried out under
nitrogen or argon atmosphere using standard Schlenk techniques.
THF was distilled from Na/K alloy and thoroughly degassed by
trap-to-trap distillation. Benzonitrile was distilled from CaH2.
C60Ph5H,10 C60Me5H,11 Fe(η5-C60H5)(η5-Cp) (1),8 and Fe(η5-
C60Me5)(η5-Cp) (2)9 were prepared according to the literature.
[FeCp(CO)2]2 and [(4-BrC6H4)3N][SbCl6] were purchased from
Mo1ssbauer Spectroscopy. The details of temperature-dependent
ME spectroscopy, making use of the 14.4 keV radiation of 57Fe,
have been discussed earlier.12 Spectrometer calibration was effected
using a ∼50 mCi 57Co source (Rh matrix) in conjunction with an
R-Fe absorber at room temperature, and all isomer shifts reported
herein are with reference to the centroid of such spectra. Temper-
ature control was effected using a high-gain feedback controller
together with a Cu-Constantan thermocouple, and the temperatures
reported are judged to be stable to (0.2 deg over the time intervals
(5-24 h) required to accumulate the ME data at a given temper-
ature. Powdered samples of the air-stable compounds were trans-
ferred to plastic sample holders and subjected to spectroscopic
examination without further treatment.
