Proteasome inhibition by a totally synthetic β-lactam related to salinosporamide A and omuralide

Article abstract of DOI:10.1021/ja056284a

A new and effective proteasome inhibitor, β-lactam 3, has been accessed enantioselectively by multistep synthesis from the readily prepared intermediates 7 and 8 which were joined by a [2 + 2]-cycloaddition reaction to form the spiro β-lactam 9 stereosele

Full text of DOI:10.1021/ja056284a

Published on Web 10/14/2005
Proteasome Inhibition by a Totally Synthetic â-Lactam Related to
Salinosporamide A and Omuralide
Philip C. Hogan and E. J. Corey*
Department of Chemistry and Chemical Biology, HarVard UniVersity, Cambridge, Massachusetts 02138
Received September 12, 2005; E-mail: corey@chemistry.harvard.edu
Salinosporamide A (1) and omuralide (2) are potent naturally
derived substances which inhibit proteasome function with very
high selectivity.1-3 Proteasome inhibition offers considerable
promise in the therapy of a number of types of cancer and is already
used for multiple myeloma.4 Several routes have been developed
for the syntheses of 1 and 2.1,5 One potential problem with the use
of 1 or 2 as therapeutic agents is their short half-life in solution at
pH 7 or in serum (estimated as 5-10 min). Because of this potential
shortcoming, we have developed a synthesis of the â-lactam 3,
which is expected to be much more stable than the corresponding
â-lactone (or 1 and 2).
The pathway of the synthesis is outlined in Scheme 1. The known
alcohol 46a was converted to oxazolidinone 56b (93% yield) by
successive acylation with phenyl chloroformate and pyridine in
dichloromethane and reduction of the azide function with concomi-
tant cyclization. N-Protection of 5 with tert-butylpyrocarbonate-
4-(dimethylamino)pyridine (DMAP)-Et3N afforded 6. Reductive
cleavage of the benzyl ester subunit in 6 provided the carboxylic
acid 7.
the â-lactam 9 in 43% yield. Noteworthy in this transformation is
the use of an imine derived from (S)-(-)-1-(4-methoxyphenyl)-
ethylamine. The corresponding imine derived from 4-methoxyben-
zylamine led to â-lactam but in lower yields (∼12%). Cleavage of
the oxazolidinone ring in 9 was accomplished by exposure to Cs2-
CO3-MeOH to afford the alcohol 10 in high yield (94%).9
Oxidation of the 2-trimethylsilylfuran subunit in 10 by peroxyacetic
acid gave the butenolide 11.10 Catalytic reduction of 11 provided
the butyrolactone 12 in 91% yield, the remainder of the material
being the corresponding diastereomer. Cleavage of the t-butoxy-
carboxyl group of 12 was accomplished with trimethylsilyl tri-
fluoromethanesulfonate and 2,6-lutidine in dichloromethane at 23
°C. Any remaining trimethylsilyl trifluoromethanesulfonate was
quenched by addition of methanol and triethylamine to the reaction
mixture. Fluoride treatment during workup provided the desired
butyrolactam 13 in 86% yield. The chlorine atom was introduced
by selective reaction of the primary hydroxyl of 13 with dichlo-
rotriphenylphosphorane and pyridine in acetonitrile at 23 °C to give
14 in 80% yield. Oxidative cleavage of the (S)-1-(-)-(4-methoxy-
phenyl)ethylamide protecting group in 14 with ceric ammonium
nitrate (CAN) cleanly afforded the â-lactam 3 in 89% yield. We
were pleased that 3 is completely stable at pH 7 and 23 °C for 24
h.

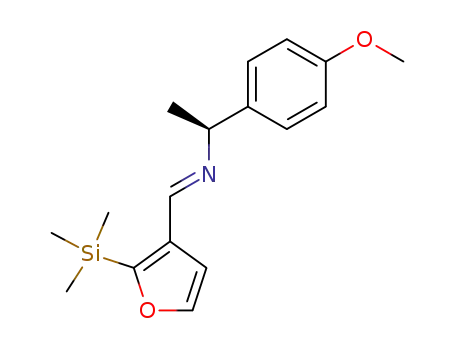

Addition of a solution of 7 to a solution of 1-chloro-N,N-2-
trimethylpropenylamine7 led to smooth formation of the corre-
sponding acid chloride. Rapid addition of the acid chloride to a
mixture of the imine 88 and triethylamine gave stereoselectively
Scheme 1
9
15386
J. AM. CHEM. SOC. 2005, 127, 15386-15387
10.1021/ja056284a CCC: $30.25 © 2005 American Chemical Society

C O M M U N I C A T I O N S
that for 1 or 2, the slow rate is more than compensated for by the
greatly increased aqueous stability of 3 under physiological
conditions.
It seems reasonable that the pathway of proteasome inhibition
by the â-lactam 3 follows that of omuralide and salinosporamide
A, that is, acylation of a catalytically active threonine of a
proteolytic â-subunit. It is likely also that this acylation is rendered
irreversible by ring closure involving the chloroethyl group as an
electrophile, as appears to be the case for salinosporamide A,5b since
treatment of 3 with methanolic base afforded the bicyclic pyrrolidine
15. This fact, the observation of proteasome inhibition in vitro, and
the indefinite stability in neutral aqueous solution suggest that 3 is
a worthy candidate for further biological evaluation.
Figure 1.
Acknowledgment. We thank Drs. Lawrence Dick and Chris-
topher Tsu (Millennium Pharmaceuticals, Inc.) for advice on
determining 20S proteasome inhibition.
Supporting Information Available: Experimental synthetic pro-
cedures as well as physical and spectral data for compounds 3 and
5-15, experimental procedures for incubation of 20S proteasome with
3, and determination of inactivation rates. This material is available
free of charge via the Internet at http://pubs.acs.org.
Figure 2. Plot of ln(fluorescence/time) versus time during proteasome
inactivation experiments. The slope of these lines are equivalent to kobs for
the inactivation of 20S proteasome by the â-lactam 3. The half-lives of
inactivation of 20S proteasome by 3 are approximately 58 and 165 min at
concentrations of 3 at 30 and 10 µM, respectively.
References
(1) Feling, R. H.; Buchanan, G. O.; Mincer, T. J.; Kauffman, C. A.; Jensen,
P. R.; Fenical, W. Angew. Chem., Int. Ed. 2003, 42, 355-357.
(2) (a) Reviewed in: Corey, E. J.; Li, W.-D. Z. Chem. Pharm. Bull. 1999,
47, 1-10. (b) Corey, E. J.; Reichard, G. A.; Kania, R. Tetrahedron Lett.
1993, 34, 6977-6980. (c) Corey, E. J.; Reichard, G. A. J. Am. Chem.
Soc. 1992, 114, 10677-10678. (d) Fenteany, G.; Standaert, R. F.;
Reichard, G. A.; Corey, E. J.; Schreiber, S. L. Proc. Natl. Acad. Sci. U.S.A.
1994, 91, 3358-3362.
(3) (a) Omura, S.; Fujimoto, T.; Otoguro, K.; Matsuzaki, K.; Moriguchi, R.;
Tanaka, H.; Sasaki, Y. J. Antibiot. 1991, 44, 113-116. (b) Omura, S.;
Matsuzaki, K.; Fujimoto, T.; Kosuge, K.; Furuya, T.; Fujita, S.; Nakagawa,
A. J. Antibiot. 1991, 44, 117-118.
(4) Bortezomib (Velcade), a peptidyl boronic acid which is a reversible (0.6
nM Ki) proteasome inhibitor is currently in use and approved for the
treatment of multiple myeloma. In addition, there are numerous ongoing
clinical trials on the use of this agent for treatment of other malignant
diseases. See: (a) Richardson, P. G.; Hideshima, T.; Anderson, K. C.
Cancer Control 2003, 10, 361-369. (b) Steinberg, D. The Scientist 2003,
17(S2), S18-S22. (c) Adams, J., Proteasome Inhibitors in Cancer
Therapy; Human Press: New York, 2004.
Determination of the inhibitory activity of 3 against the 20S
proteasome12 was carried out by a modification of the method
reported by McCormack and Dick et al.11 Incubation of 20S
proteasome (0.5 µg/mL) with 3 at 10 and 30 µM in pH 7.9 buffer
(20 mM Hepes, 0.5 mM EDTA, 0.025% w/v SDS) at 37 °C resulted
in a time-dependent loss in the proteasome’s ability to hydrolyze
Suc-Leu-Leu-Val-Tyr-AMC (50 µM).12 The progress of proteasome
inactivation was determined by addition of Suc-LLVY-AMC to a
2 mL aliquot of the incubation experiment and monitoring the rate
of production of free AMC by fluorescence spectrophotometry. A
plot of ln(fluorescence/time) versus time provided a linear decay
the slope of which gave kobs for proteasome inactivation (Figure
2). The rate of proteasome inactivation was proportional to the
concentration of 3 present in the incubation experiments. The 10
and 30 µM time course experiments gave values for kobs/[3] as 7
and 6.7 M-1 s-1, respectively. To monitor background inactivation
of 20S proteasome,13 each of these of experiments was run side by
side with a control experiment identical in all respects except for
the exclusion of 3. In the control experiment correlating to 30 µM
of 3, after 3 h, ∼30% of initial proteasome activity was lost. In the
control experiment correlating to 10 µM of 3, after 9.5 h, ∼50%
of the initial proteasome activity remained. In each the correspond-
ing experiments containing 3, less than 10% of the initial protea-
some activity remained at these respective time points. Although
the rate of proteasome inhibition by 3 is considerably slower than
(5) (a) Reddy, L. R.; Saravanan, P.; Corey, E. J. J. Am. Chem. Soc. 2004,
126, 6230-6231. (b) Reddy, L. R.; Fournier, J.-F.; Reddy, B. V. S,; Corey,
E. J. J. Am. Chem. Soc. 2005, 127, 8974-8976. (c) Endo, A.; Danishefsky,
S. J. J. Am. Chem. Soc. 2005, 127, 8298-8299.
(6) (a) Xiang, C.; Wang, W.; Hruby, V. J. J. Org. Chem. 2002, 67, 3514-
3517. (b) Schmidt, U.; Respondek, M.; Lieberknect, A.; Werner, J.;
Fischer, P. Synthesis 1989, 256-261.
(7) Ghosez, L.; George-Koch, I.; Pating, L.; Houtekie, M.; Bovy, P.;
Nshimyumuzika, P. Phan, T. Tetrahedron 1998, 54, 9207-9222.
(8) See Supporting Information.
(9) Ishizuka, T.; Kunieda, T. Tetrahedron Lett. 1987, 28, 4185-4188.
(10) Isao, K.; Urabe, H. Tetrahedron Lett. 1981, 22, 5191-5194.
(11) McCormack, T.; Baumeister, W.; Grenier, L.; Moomaw, C.; Plamondon,
L.; Pramanik, B.; Slaughter, C.; Soucy, F.; Stein, R.; Zuhl, F.; Dick, L. J.
Biol. Chem. 1996, 272, 26103-26109.
(12) Obtained from Boston Biochem; Suc ) succinyl; AMC ) aminometh-
ylcoumarin.
(13) In vitro proteasome preparations are much less stable than the native in
vivo proteins.
JA056284A
9
J. AM. CHEM. SOC. VOL. 127, NO. 44, 2005 15387
