Double-Stranded Metal−Organic Networks for One-Dimensional Mixed

Valence Coordination Polymers

Daniel Robertson,^†John F. Cannon,^‡and Nikolay Gerasimchuk*^,†

Department of Chemistry, Southwest Missouri State UniVersity, Temple Hall 456, Springfield,

Missouri 65804, and Department of Chemistry and Biochemistry, Brigham Young UniVersity,

Benson Science Building 100, ProVo, Utah 84602

Received March 29, 2005

The design of new types of metal−organic networks and the search for unusual crystal architecture represents an

important task for modern inorganic and materials chemistry research. A group of new monosubstituted

phenylcyanoximes, containing F, Cl, and Br atoms at the 2, 3, or 4 positions, were synthesized using the high yield

nitrosation reaction with CH₃

spectrometry) and structurally characterized. Results of X-ray analysis revealed nonplanar trans

2-chlorophenyl(oximino)acetonitrile, H(2Cl PhCO); a nonplanar anti configuration for 4-chlorophenyl(oximino)-

acetonitrile, H(4Cl PhCO); and planar cis syn geometry for 3-fluorophenyl(oximino)acetonitrile, H(3F PhCO). All

−

ONO and were spectroscopically (¹H NMR, ¹³C NMR, UV

−visible, IR, mass

−anti geometry for

−

arylcyanoximes undergo deprotonation in solutions with the formation of colored anions exhibiting pronounced

negative solvatochromism in a series of polar protic and aprotic solvents. Nine thallium(I) cyanoximates were obtained

using the reaction between hot (

arylcyanoximes HL. Crystal structures of two Tl(I) cyanoximates [Tl(2Cl

∼

95

°

C) aqueous solutions of Tl₂CO₃and solid powdery monohalogenated

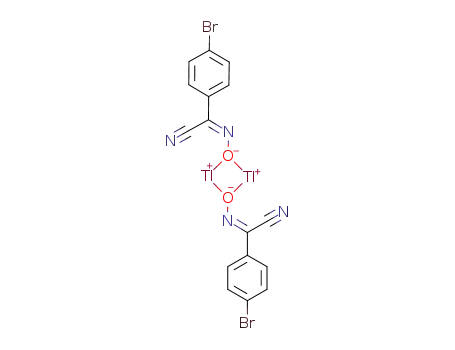

PhCO) and Tl(4Br PhCO)] contained

−

centrosymmetric dimeric units (TlL)₂that are connected to a coordination polymer by means of an oxygen atom of

the oxime group of the neighboring molecule. Cyanoxime anions act as bridging ligands in both structures where

the polymeric motif consists of double-stranded Tl

planar rhombes. Thallium atoms form infinite linear arrays with close intermetallic separations. The nearest Tl(I)

‚‚Tl(I) distances are 3.838 and 4.058 Å in the Tl(2Cl PhCO) and Tl(4Br PhCO) structures, respectively, close to

that in metallic thallium (3.456 Å). Monosubstituted phenyl groups are well aligned in -stacking columns that are

−O chains interconnected with the formation of zigzagging Tl₂O₂

‚

−

π

perpendicular to the array of Tl(I) atoms and stabilize formed structures. Coordination polyhedrons of thallium(I) in

these complexes represent distorted trigonal pyramids with stereoactive lone pair.

Introduction

conductive nonmetallic substances and reliable supercon-

ducting material promises great reduction in future energy

and materials consumption for transportation and the use of

electricity. So far, ceramics, containing various transition-

metal oxides, were found to be high-temperature supercon-

ductors above the boiling point of nitrogen.³These com-

pounds, however, encounter serious problems such as the

instability of crystal lattices associated with the loss of

superconductivity over time and after a reiterated strong

Delocalized mixed-valence compounds^1,2have great po-

tential as electric conductors. The discovery of highly

* Author to whom correspondence should be addressed. Phone: (417)

836-5165. Fax: (417) 833-5829. E-mail: nig434f@smsu.edu.

^†Southwest Missouri State University.

^‡Brigham Young University.

(1) (a) Day, P. In Mixed-Valence Compounds, Proc. NATO ASI, ser. C;

Brown, D. B., Ed.; Reidel: Dordrecht, The Netherlands, 1980, 58,

3-27. (b) Young, C. G. Coord. Chem. ReV. 1989, 96, 89-251.

(2) (a) Robin, M. B.; Day, P. AdV. Inorg. Chem. Radiochem. 1967, 10,

247-259. (b) Allen, G. C.; Hush, N. S. Intervalence transfer

absorption. Part 1. Qualitative evidence for intervalence transfer

absorption in inorganic systems in solutions and in the solid state.

Prog. Inorg. Chem. 1967, 8, 357-390. (c) Hush, N. S. Prog. Inorg.

Chem. 1989, 30, 1-73. (c) Fackler, J. P. Mixed valence compounds.

In Encyclopedia of Inorganic Chemistry; John Wiley & Sons: England,

1994; Vol. 5, pp 2270-2281.

(3) (a) Bednorz, J. G.; Mu¨ller, K. A. Z. Phys. B: Condens. Matter 1986,

64, 189. (b) Wu, M. K.; Ashburn, J. R.; Torng, C. J.; Hor, P. H.;

Meng, R. L.; Gao, L.; Huang, Z. J. Phys. ReV. Lett. 1987, 58, 908-

915. (c) Chemistry of high-temperature superconductors; Vanderah,

T. A., Ed.; Noyes: Park Ridge, NJ, 1991. (d) Burdett, J. K.

Superconductivity. In Encyclopedia of Inorganic Chemistry; John

Wiley & Sons: England, 1994; Vol. 7, pp 4039-4055.

8326 Inorganic Chemistry, Vol. 44, No. 23, 2005

10.1021/ic050465w CCC: $30.25

Published on Web 10/13/2005

Double-Stranded Metal-Organic Networks

Scheme 1

magnetic field has been applied. Conductive coordination

polymers based on an organic ligand network promise certain

advantages over ceramics. An electron transfer (hopping)

between different oxidation states is a key phenomenon in

the electric conductivity of mixed-valence compounds.⁴

There are ongoing investigations in classical one-electron-

transfer compounds based on copper(I/II),⁵ruthenium(II/III),⁶

iron(II/III),⁷manganese(II/III or III/IV),⁸and other (Cr,⁹Co¹⁰)

redox pairs. There also is a growing interest in the two-

electron-transfer mixed-valence compounds based on gold-

(I/III),¹¹nickel(II/IV),¹²and thallium(I/III)¹³and the con-

tinuous awareness of platinum(II/IV) pairs in MX and KCP

systems.¹⁴Both systems represent classical one-dimensional

solids that possess significant electrical conductivity (Scheme

1).

Thallium and platinum received substantial attention in

numerous spectroscopic,¹⁵structural,¹⁶and theoretical stud-

ies.¹⁷Thallium is especially attractive since it has a two-

electron transition (Tl⁺S Tl³⁺) from the top 6p valence shell;

these electrons are thought to be coherent and form a pair

similar to that offered by Cooper et al.¹⁸Established by

Zusman et al.,^15a,17cthe values for the rate of the Tl⁺/Tl³⁺

transition are ∼2 × 10³s^-1and ∆G ∼ 0.76 eV (∼6130
