848
J. D’Onofrio et al.
LETTER
(12) (a) Kocienski, P. J. In Protecting Groups, 3rd ed.; Thieme:
Stuttgart, 2003. (b) Greene, T. W.; Wuts, P. G. M. In
Protective Groups in Organic Synthesis, 3rd ed.; Wiley:
New York, 1999.

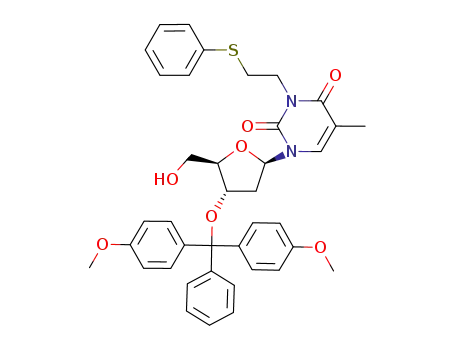

(17) Selected Data for Compound 3.
1H NMR (400 MHz, CDCl3): d = 7.47–6.85 (18 H, complex
signals, arom. protons), 6.48 (1 H, dd, H-1¢, J = 5.6, 9.6 Hz),
4.27 (1 H, d, H-3¢, J3¢,2¢b = 12.0 Hz), 4.22 (2 H, m, CH2N),
4.01 (1 H, br s, H-4¢), 3.82 (6 H, s, OCH3), 3.68 (1 H, dd, H-
5¢a, J = 4.0, 12.0 Hz), 3.29 (1 H, dd, H-5¢b, J = 4.0, 12.0 Hz),
3.19 (2 H, t, CH2S, J = 8.0, 8.0 Hz), 1.87 (3 H, s, CH3 T),
1.76 (1 H, dd, H-2¢a, J = 4.0, 12.0 Hz), 1.57 (1 H, complex
signal, H-2¢b), 0.83 {9 H, s, [(CH3)3C]Si}, –0.02 and –0.08
[3 H each, s, Si(CH3)2]. 13C NMR (100 MHz, CDCl3): d =
162.83 (C-4), 150.37 (C-2), 135.86 (C-6), 158.29, 150.37,
144.70, 135.95, 135.28, 133.27, 129.87, 129.75, 128.51,
127.99, 127.86, 127.51, 126.63, 125.35, 112.83 (arom.
carbons), 109.62 (C-5), 86.81 (C of DMT group), 86.16 (C-
1¢), 85.12 (C-4¢), 74.55 (C-3¢), 63.12 (C-5¢), 54.80 (OCH3),
40.59 (CH2N), 39.55 (C-2¢), 29.22 (CH2S), 25.34
{[(CH3)3C]Si}, 17.77 [(CH3)3C], 12.68 (CH3 T), –5.86 and
–6.18 [Si(CH3)2]. MS: m/z calcd for C45H54N2O7SSi: 794.34.
ESI-MS (positive ions) found: m/z 833.75 [M + K+].
(18) Typical Procedure for the Insertion of 2-(Phenylthio)-
ethyl Group: Synthesis of 3
(13) Selected Data for Compound 2.
1H NMR (400 MHz, CDCl3): d = 7.61–6.82 (13 H, complex
signals, arom. protons), 6.38 (1 H, dd, H-1¢, J = 6.2, 6.8 Hz),
4.49 (1 H, m, H-3¢), 4.01–3.96 (3 H, overlapped signals,
CH2N and H-4¢), 3.79 (6 H, s, OCH3), 3.45 (1 H, dd, H-5¢a,
J = 4.0, 12.0 Hz), 3.25 (1 H, dd, H-5¢b, J = 4.0, 12.0 Hz),
2.33–2.17 (2 H, complex signal, H2-2¢), 1.54 (3 H, s, CH3 T),
0.97 (2 H, m, CH2Si), 0.83 {9 H, s, [(CH3)3C]Si of TBDMS
group}, 0.07 [9 H, s, (CH3)3Si], –0.02 and –0.04 [3 H each,
s, Si(CH3)2 of TBDMS group]. 13C NMR (100 MHz,
CDCl3): d = 163.22 (C-4), 150.57 (C-2), 135.40 (C-6),
158.61, 144.28, 133.19, 129.95, 126.98, 113.15 (arom.
carbons), 110.18 (C-5), 86.81 (quat. C of DMT group),
86.56 (C-1¢), 85.35 (C-4¢), 71.97 (C-3¢), 62.82 (C-5¢), 55.14
(OCH3), 41.53 (C-2¢), 37.96 [(CH3)3SiCH2CH2N], 25.59
{[(CH3)3C]Si of TBDMS group}, 17.81 [(CH3)3C of
TBDMS group], 15.87 [(CH3)3SiCH2CH2N], 12.54 (CH3 T),
–1.89 [(CH3)3SiCH2CH2N], –4.98 [Si(CH3)2 of TBDMS
group]. MS: m/z calcd for C42H58N2O7Si2: 758.38. ESI-MS
found: m/z = 759.61 [M + H+]; m/z = 781.53 [M + Na+];
m/z = 797.50 [M + K+].
The amount of 900 mg (1.37 mmol) of 5¢-O-tert-butyl-
dimethylsilyl-3¢-O-(4,4¢-dimethoxytriphenylmethyl)thy-
midine was dissolved in 10 mL of benzene at 0 °C and
treated with 38 mL (1.02 mmol) of 2-(phenylthio)ethanol and
422 mL (1.71 mmol) of tributylphosphine. After 10 min the
reaction mixture was taken to r.t., treated with 431 mg (1.71
mmol) of ADDP and left at r.t. for 18 h. The crude was then
taken to dryness, redissolved in 100 mL of EtOAc and
washed twice with H2O. The organic layer was concentrated
under reduced pressure and purified by silica gel
chromatography [eluent system: 2% acetone in CHCl3–
pyridine (1:0.05)], affording 980 mg (1.23 mmol, 90%) of
pure 3.
(14) Typical Procedure for the Insertion of 2-(Trimethyl-
silyl)ethyl Group: Synthesis of 2
The amount of 1.0 g (1.52 mmol) of 5¢-O-(4,4¢-dimethoxy-
triphenylmethyl)-3¢-O-(tert-butyldimethylsilyl)thymidine
was dissolved in 10 mL of benzene at 0 °C and treated with
160 mL (1.14 mmol) of 2-(trimethylsilyl)ethanol and 470 mL
(1.90 mmol) of tributylphosphine. After 10 min the reaction
mixture was taken to r.t. and treated with 480 mg (1.90
mmol) of 1,1¢-(azodicarbonyl)dipiperidine (ADDP).
After 18 h, the crude was taken to dryness, redissolved in
100 mL of EtOAc and washed twice with H2O. The organic
layer was concentrated under reduced pressure and purified
by silica gel chromatography [eluent system: 2% MeOH in
CHCl3–pyridine (1:0.05)], affording 745 mg (0.98 mmol,
65%) of pure 2.
(19) Selected Data for Compound 5.
31P NMR (161.98 MHz, CDCl3): 149.3. MS: calcd for
C48H57N4O10PS: 912.35. ESI-MS (positive ions) found:
m/z = 935.89 [M + Na+]; m/z = 952.90 [M + K+].
(20) Removal of the 2-(phenylsulfonyl)ethyl group by aq NH3 at
55 °C after an overnight treatment was only partial,
requiring longer reaction times to go to completion (ca.
72 h). On the other hand, a 0.1 M NaOH solution ensured
complete thymine deprotection after an overnight treatment
at 50 °C, i.e. conditions usually adopted also for oligo-
nucleotide deprotection and detachment from the solid
support.
(15) (a) de Champdoré, M.; De Napoli, L.; Di Fabio, G.; Messere,
A.; Montesarchio, D.; Piccialli, G. Chem. Commun. 2001,
2598. (b) De Napoli, L.; Di Fabio, G.; D’Onofrio, J.;
Montesarchio, D. Synlett 2004, 1975.
(16) Smrt, J. Collect. Czech. Chem. Commun. 1974, 39, 972.
(21) Data for 5¢DBBTGGGAG3¢OH
MS: m/z calcd for C81H92N27O36P5: 2173.49; MALDI-TOF
(negative ions) found: 2171.76 [M – H]–.
Synlett 2006, No. 6, 845–848 © Thieme Stuttgart · New York
