Rational design of pyridyl derivatives of vanillin for the treatment of sickle cell disease

Article abstract of DOI:10.1016/j.bmc.2018.04.015

Hypoxia-induced polymerization of sickle hemoglobin (Hb S) is the principal phenomenon that underlays the pathophysiology and morbidity associated with sickle cell disease (SCD). Opportunely, as an allosteric protein, hemoglobin (Hb) serves as a convenient and potentially critical druggable target. Consequently, molecules that prevent Hb S polymerization (Hb modifiers), and the associated erythrocyte sickling have been investigated–and retain significant interest–as a viable therapeutic strategy for SCD. This group of molecules, including aromatic aldehydes, form high oxygen affinity Schiff-base adducts with Hb S, which are resistant to polymerization. Here, we report the design and synthesis of novel potent antisickling agents (SAJ-009, SAJ-310 and SAJ-270) based on the pharmacophore of vanillin and INN-312, a previously reported pyridyl derivative of vanillin. These novel derivatives exhibited superior in vitro binding and pharmacokinetic properties compared to vanillin, which translated into significantly enhanced allosteric and antisickling properties. Crystal structure studies of liganded Hb in the R2 quaternary state in complex with SAJ-310 provided important insights into the allosteric and antisickling properties of this group of compounds. While these derivatives generally show similar in vitro biological potency, significant structure-dependent differences in their biochemical profiles would help predict the most promising candidates for successful in vivo pre-clinical translational studies and inform further structural modifications to improve on their pharmacologic properties.

Full text of DOI:10.1016/j.bmc.2018.04.015

Accepted Manuscript
Rational Design of Pyridyl Derivatives of Vanillin for the Treatment of Sickle
Cell Disease.
Piyusha P. Pagare, Mohini S. Ghatge, Faik N. Musayev, Tanvi M. Deshpande,
Qiukan Chen, CourtneyBraxton, Solyi Kim, Jürgen Venitz, Yan Zhang, Osheiza
Abdulmalik, Martin K. Safo.
PII:
S0968-0896(18)30369-9
https://doi.org/10.1016/j.bmc.2018.04.015
BMC 14298
DOI:
Reference:
Bioorganic & Medicinal Chemistry
To appear in:
Received Date:
Revised Date:
Accepted Date:
19 February 2018
28 March 2018
5 April 2018
Please cite this article as: Pagare, P.P., Ghatge, M.S., Musayev, F.N., Deshpande, T.M., Chen, Q., Braxton, C., Kim,
S., Venitz, J., Zhang, Y., Abdulmalik, O., Safo., M.K., Rational Design of Pyridyl Derivatives of Vanillin for the
Treatment of Sickle Cell Disease., Bioorganic & Medicinal Chemistry (2018), doi: https://doi.org/10.1016/j.bmc.
2018.04.015
This is a PDF file of an unedited manuscript that has been accepted for publication. As a service to our customers
we are providing this early version of the manuscript. The manuscript will undergo copyediting, typesetting, and
review of the resulting proof before it is published in its final form. Please note that during the production process
errors may be discovered which could affect the content, and all legal disclaimers that apply to the journal pertain.

Rational Design of Pyridyl Derivatives of Vanillin for the Treatment of Sickle Cell
Disease.
Piyusha P. Pagare,a Mohini S. Ghatge,a,b Faik N. Musayev,a,b Tanvi M. Deshpande,a,b
Qiukan Chen,c Courtney Braxton,b Solyi Kim,b Jürgen Venitz,d Yan Zhang,a Osheiza
Abdulmalik,c Martin K. Safo.a,b,*
d
b
aDepartment of Medicinal Chemistry, and Department of Pharmaceutics, and The Institute
for Structural Biology, Drug Discovery and Development, School of Pharmacy, Virginia
Commonwealth University, 800 East Leigh Street, Richmond, VA 23298, USA, cDepartment
of Hematology, The Children’s Hospital of Philadelphia, Philadelphia, PA 19104, USA
*Corresponding author: Martin K. Safo (msafo@vcu.edu)
1

Abstract
Hypoxia-induced polymerization of sickle hemoglobin (Hb S) is the principal phenomenon
that underlays the pathophysiology and morbidity associated with sickle cell disease (SCD).
Opportunely, as an allosteric protein, hemoglobin (Hb) serves as a convenient and potentially
critical druggable target. Consequently, molecules that prevent Hb S polymerization (Hb
modifiers), and the associated erythrocyte sickling have been investigated--and retain
significant interest--as a viable therapeutic strategy for SCD. This group of molecules,
including aromatic aldehydes, form high oxygen affinity Schiff-base adducts with Hb S,
which are resistant to polymerization. Here, we report the design and synthesis of novel
potent antisickling agents (SAJ-009, SAJ-310 and SAJ-270) based on the pharmacophore of
vanillin and INN-312, a previously reported pyridyl derivative of vanillin. These novel
derivatives exhibited superior in vitro binding and pharmacokinetic properties compared to
vanillin, which translated into significantly enhanced allosteric and antisickling properties.
Crystal structure studies of liganded Hb in the R2 quaternary state in complex with SAJ-310
provided important insights into the allosteric and antisickling properties of this group of
compounds. While these derivatives generally show similar in vitro biological potency,
significant structure-dependent differences in their biochemical profiles would help predict
the most promising candidates for successful in vivo pre-clinical translational studies and
inform further structural modifications to improve on their pharmacologic properties.
Keywords:
Sickle cell disease, hemoglobin, relaxed state, aromatic aldehyde, antisickling, oxygen
equilibrium, crystal structure, polymerization
2

1. Introduction
Hemoglobin (Hb) functions in equilibrium between the R-state (relaxed) possessing high
oxygen (O2) affinity, and T-state (tense) possessing low-O2 affinity.1,2,3 The R-state is an
ensemble of high-affinity relaxed conformational states, including the R2, R3, RR2, RR3,
and the classical R.4–7 The equilibrium between the T and R states can be regulated by
synthetic allosteric effectors that stabilize one state relative to the others.6,7 Stabilization of
the R-state, usually via the R2 or R3 or classical R conformation by allosteric effectors shifts
the Hb oxygen equilibrium curve (OEC) to the left, producing a high-O2 affinity Hb.6–9
These types of allosteric effectors are potentially useful for treating sickle cell disease (SCD)
since high-O2-affinity sickle Hb (Hb S) does not undergo polymerization and subsequent
RBC sickling.6–19
The surface located αF-helix in Hb has been shown to enhance inter-
strand polymer contact stabilization through a hydrogen-bond interaction between αAsn78 of
the helix and a Hb molecule from an adjacent polymer strand. Consequently, the variant
αAsn78Gly (Hb Stanleyville) is known to increase solubility of sickle Hb by abrogating the
αAsn78 mediated hydrogen-bond interaction.20,21 Hence, compounds that bind to Hb and
stereospecifically destabilize polymer contacts are potential antisickling agents.8,22
Aromatic aldehydes, such as vanillin, Tucaresol, 5-HMF (and furan derivatives), and
the most recent GBT-440 (Figure 1), are some of the most well-studied molecules that
increase Hb oxygen affinity to prevent the hypoxia-induced sickle Hb polymerization and/or
directly destabilize polymer contacts.6–19 5-HMF was investigated in phase I and II clinical
trials for the treatment of SCD but was hampered by extensive oxidative metabolism.10,23
GBT-440 is currently undergoing phase III clinical studies for the treatment of SCD
(clinicaltrials.gov, NCT03036813). Early studies by Zaugg et al. reported the antisickling
activities of vanillin and several of its analogs.24 A subsequent study by Abraham and co-
workers further studied vanillin for the treatment of SCD.25 Vanillin undergoes extensive
3

metabolism resulting in low bioavailability, low potency, and overall reduces its
pharmacologic effect. To understand the molecular basis of aromatic aldehyde antisickling
activity, our group studied the co-crystal structures of aromatic aldehydes with Hb and
showed that the compounds preferentially bind to the α-cleft of liganded R2-state Hb by
forming Schiff-base interactions with the N-terminal αVal1 nitrogen atoms.9 This mode of
binding provides additional inter-subunit interactions across the subunit interfaces of
liganded Hb that lead to stabilization of the R-state and increase the O2 affinity of Hb. Based
on these crystallographic findings that indicated a potential for appropriate modifications to
vanillin (or its analogs), we designed and synthesized several pyridyl derivatives of vanillin,
termed INN compounds, which demonstrated superior pharmacologic properties compared to
vanillin.8,26 The modification resulted in additional hydrophobic contacts with the binding
site residues, explaining the much improved pharmacologic effect.8 Some of the compounds,
such as INN-312 appeared to exhibit dual antisickling effects by increasing the oxygen
affinity of Hb, and by stereospecifically destabilizing polymer contacts via interactions with a
surface located F-helix.8 INN-312, the most potent from the early group of compounds,
evolved as a unique and promising pharmacophore, suggesting not only the importance of a
pyridinylmethoxy substitution but also the ortho placement of this moiety (relative to the
aldehyde group); some properties also shared by GBT440.17 In the present study we
investigated INN-312 analogs (SAJ-310, SAJ-009 and SAJ-270) to further improve on the
pharmacophore as a novel lead for development, and perhaps, provide newer knowledge on
structure-activity relationships with mechanistic implications. We investigated these novel
compounds for the general nature of their binding interactions with Hb, their effect on Hb O2
affinity properties, inhibition of RBC sickling, as well as their in vitro
pharmacokinetic/pharmacodynamic properties. We also conducted detailed crystallographic
4

studies on SAJ-310 complexed with Hb to gain insights into the compound’s functional and
biological activities.
2. Results and Discussion
2.1. Design and synthesis of SAJ compounds

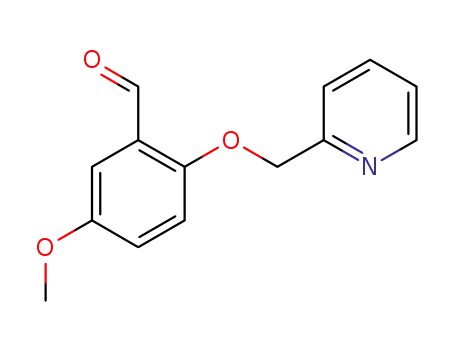

Fig. 1. Structures of 5-HMF, Vanillin, Tucaresol, GBT440, INN-312, SAJ-270, SAJ-310 and
SAJ-009
We have previously studied several pyridyl derivatives of benzaldehyde-designated as INN
compounds by incorporating a pyridinylmethoxy moiety on the vanillin pharmacophore
(Figure 1).8,26 The derivatives potently increased Hb affinity for oxygen and resulted in
several-fold increase in antisickling effect when compared to the parent compound vanillin.
Structural analysis demonstrated that like vanillin, two molecules of INN compounds form
Schiff-base adducts with the N-terminal Val1 nitrogen atom of the α-subunits of the R2
conformer of Hb and stabilize the R-state.8 As anticipated from our design, this class of
5

compounds made additional interactions with the protein, in part contributing to their
enhanced functional and biological activities. Interestingly, the derivatives with the
pyridinylmethoxy moiety at the ortho-position of the aldehyde group were generally more
potent than the analogous para- or meta-positioned pyridinylmethoxy derivatives, with INN-
312 being the most potent.8 INN-312 binds and directs its ortho-positioned pyridinylmethoxy
(pyridin-2-ylmethoxy) substituent (relative to the aldehyde moiety) towards the surface of Hb
to make weak hydrophobic interaction with the surface located polymer stabilizing F-helix.8
The enhanced antisickling potency of INN-312 is therefore likely due, in part, to the
8
interactions with the F-helix. Based on this promising lead, we further studied three ortho-
substituted pyridinylmethoxy INN-312 analogs: SAJ-009, SAJ-270 and SAJ-310, for their
functional and pharmacological properties (Figure 1). Our intent was to explore the position
of the nitrogen atom on the pyridine ring, which influences the electronic property of the ring
system and possibly interaction of the compound with the protein, and study its role in the
pharmacological function of these types of compounds (SAJ-270 and SAJ-310). We also
surmised--based on the INN-312 crystal structure--that the ortho-located pyridine nitrogen
atom of SAJ-310 could potentially allow hydrogen-bond interaction between the pair of
bound molecules through the pyridine nitrogen atom and pyridinylmethoxy oxygen atom to
improve its binding interaction. Such an interaction would not be possible in INN-312
because of the meta-positioned pyridine nitrogen atom. Also, to confirm that the change in
the activity is due to the change of the position of the nitrogen atom on the pyridine ring
alone, SAJ-009, carrying a para position methoxy group on the aromatic aldehyde was
synthesized. Finally, it was anticipated that like INN-312, the pyridin-2-ylmethoxy of SAJ-
270, SAJ-310 and SAJ-009 would direct towards the surface of the protein, resulting in not
only improved binding interaction with the protein to increase Hb affinity for oxygen but also
6

make interactions with the F-helix to directly destabilize the polymerization process. The
scheme for synthesizing the compounds is shown in Scheme 1.
Scheme 1
2.2. SAJ-310 binds to the α-subunit of liganded Hb in the R2 state conformation
We have previously shown that aromatic aldehydes that bind to Hb and increase the
protein’s affinity for oxygen with concomitant antisickling effect act by forming Schiff-base
interactions with αVal1 of liganded R2 Hb.8,9,11 In the present study, co-crystallization
experiments were conducted with human carbonmonoxy Hb (COHb) complexed with SAJ-
310, SAJ-009 and SAJ-270 using low salt precipitant to give needle crystals.12 Unlike SAJ-
310, which gave relatively larger needle crystals, crystals from SAJ-009 and SAJ-270 were
very thin and poorly formed, making crystal manipulation difficult for X-ray diffraction data
collection. The crystal structure of SAJ-310 was solved using molecular replacement with the
native R2-state Hb structure (PDB code 1BBB) and refined to 1.95 Å. Structural statistics are
summarized in Table 1 and the structure is deposited in the Protein Databank (PDB) with the
ID code 6BNR.
The overall tetrameric structure is indistinguishable (RMSD ≈ 0.3 Å) from 1BBB or
the COHb complex structure with INN-312 (PDB code 3R5I).8 As observed for the INN-312
complex structure (3R5I),8 two molecules of SAJ-310 bind in a symmetry related fashion at
the α-cleft of the Hb tetramer (Figure 2). The aldehyde groups of both molecules make
Schiff-base interactions with the two N-terminal amines of the αVal1 residues, respectively
(Figure 2).
7

Table 1: Data collection and refinement statistics of carbonmonoxy Hb
in complex with SAJ-310. Numbers in parentheses are for the highest
resolution shell.
Data Collection Statistics
Space group
P212121
Unit-cell a, b, c (Å)
Resolution (Å)
Unique reflections
Redundancy
62.82, 83.55, 104.91
29.40–1.95 (2.02 – 1.95)
40595
3.97 (3.76)
Completeness (%)
Average I/σ(I)
Rmerge (%)a
99.1 (99.3)
11.8 (2.3)
5.8 (46.7)
Refinement Statistics
Resolution (Å)
No. of reflections
Rwork (%)
29.40-1.95 (2.07-1.95)
40456 (6308)
20.6 (32.3)
26.4 (35.2)
0.007
Rfree (%)b
R.m.s.d. bonds (Å)
R.m.s.d. angles (°)
Dihedral angles
Most favored (%)
Allowed (%)
1.6
95.76
4.24
Average B (Å2)/atoms
All atoms
38.85
37.50
33.61
43.61
48.55
Protein
Hemes
SAJ-310
Water
PDB ID code
6BNR
b
aRmerge = ΣhklΣi|Ii(hkl) – <I(hkl)>|/ΣhklΣiIi(hkl). Rfree was calculated from
5% randomly selected reflection for cross-validation. All other
measured reflections were used during refinement.
A.
B.
8

C.
Figure 2: Crystal structure of Hb in the R2 conformation in complex with two molecules of
SAJ-310 bound at the α-cleft. Hb subunits are shown as ribbons (α1 subunit in cyan, α2
subunit in magenta, ß1 subunit in green and ß2 subunit in grey) and hemes are shown as
sticks. For clarity, not all binding site residues are shown but described in the text. (A)
Overall structure of the complex showing bound SAJ-310 (yellow stick) in the central water
cavity of the tetrameric protein. (B) Close-up view of SAJ-310 (yellow stick) binding with
the final 2Fo-Fc refined electron density map contoured at 1.0σ. (C) Two-dimensional
contacts between one SAJ-310 molecule, the protein, and the second SAJ-310 molecule. The
straight dashed lines indicate hydrogen-bond interactions and circular dashed lines indicate
hydrophobic contacts.
Since both molecules bind in a symmetrical fashion, detailed SAJ-310 interactions
with the protein will be focused on the α2Val1 binding compound. The Schiff-base
interaction between SAJ-310 and Hb directed the pyridin-2-ylmethoxy group to make weak
intrasubunit hydrophobic interactions (3.5-4.5 Å) with the surface-located F-helix residue of
α2Pro77 (Figure 3). The F-helix has been noted to be involved in polymer stabilization
through Asn78 mediated hydrogen-bonding interactions with other polymer strands.22 We
expect these hydrophobic interactions to perturb the polymer especially if the compound, as
anticipated, binds to deoxygenated Hb, albeit weakly as previously noted for INN-312.8 The
benzaldehyde ring is sandwiched between, making intra- and inter-hydrophobic interactions
with α2Ser131 and α1Thr134, respectively, while the pyridin-2-ylmethoxy oxygen atom
appears to make intrasubunit hydrogen bonding interaction with the hydroxyl group of
α2Ser131. Additionally, the pyridine rings from the two symmetry related bound compounds
9

make extensive 3.7-4.0 Å face-to-face π-π stacking interactions with each other (Figures 2
and 3). As previously noted,8 the above SAJ-310-Hb interactions, which are also conserved
in the INN-312 structure (Figure 3), not only should lead to stabilization of the R-state Hb
and increase the protein affinity for oxygen, but may also directly destabilize polymer
formation by perturbing the F helix.
There is one major significant difference between SAJ-310 and INN-312 protein
interactions. In the SAJ-310 structure, the ortho-located pyridine nitrogen atom of each
bound molecule makes direct intra-subunit hydrogen-bonding interaction with the hydroxyl
group of α2Ser131(Figure 2C). This interaction is missing from the INN-312 structure
because of its meta-located pyridine nitrogen atom, and could only interact with the protein
via two water-mediated hydrogen bonding. We speculate that the direct interaction afforded
by the meta-located pyridine nitrogen atom in SAJ-310 not only could lead to increase
affinity with Hb but also result in slow dissociation of the compound from the binding site
and could explain why SAJ-310 showed longer sustained functional effect when compared to
INN-312 (vide infra).
A.
B.
Figure 3: Structural comparison of molecules bound at the α-cleft of Hb. α1 subunit is shown
in cyan and α2 subunit in magenta. A. Superposition of SAJ-310 (yellow) and INN-312
10

(brown) molecules showing interactions with residues from both A and F helices. B. Ninety-
degree rotation view of A. The protein residues are from the SAJ-310 structure.
2.3. SAJ compounds bind and modify Hb
The pharmacologic properties of aromatic aldehydes, including allosteric, antisickling and
pharmacokinetic are dependent on the compounds’ ability to modify Hb as a result of the
Schiff-base interaction between the aldehyde moiety and the N-terminal αVal1 nitrogen atom
of Hb.8,10,11 We conducted Hb modification studies of the compounds with cell free normal
Hb (devoid of membrane and other red blood cell proteins), and normal whole blood by
cation-exchange HPLC. When incubated with cell free Hb, INN-312, SAJ-310 and SAJ-270
showed similar reactivity of almost 100% adduct formation in 1 h, which was sustained for
the full 90 minutes experiment (Figure 4). This compares to the <5% Hb modification
observed for vanillin, clearly indicating vanillin’s weak functional activity. Interestingly,
SAJ-009 showed almost a linear relationship between time and % Hb modification, and at 90
minutes has modified only about 50% Hb, suggesting that SAJ-009 may achieve maximum
effect ultimately beyond the 90-minute experimental time. In the absence of metabolizing
enzymes, membranes and other blood proteins in the cell free Hb matrix, it is clear that INN-
312, SAJ-270 and SAJ-310 exhibit quick onset or rapid rate of association with Hb, although
the rate of adduct formation by SAJ-270 was slightly slower than that of INN-312 or SAJ-
310. The three compounds, INN-312, SAJ-270 and SAJ-310 differ only in the positions of
the nitrogen atom on the pyridine ring, suggesting that in the absence of other cell
components, the slightly slower rate of SAJ-270 Hb association could be due to the para
position of the pyridine nitrogen atom as compared to the meta and ortho positions in INN-
312 and SAJ-310, respectively. As noted above, the rate of SAJ-009 association with Hb is
much slower when compared to the other three compounds. SAJ-009 and SAJ-310 only
differ in the position of their methoxy groups on the benzaldehyde ring (para and meta to the
11

aldehyde, respectively), therefore the unusually slow rate of SAJ-009 Hb association is likely
due to the para methoxy group vs the meta position in the other three compounds.
100
90
80
70
SAJ-009
60
SAJ-270
SAJ-310
INN-312
Vanillin
50
40
30
20
10
0
0
20
40
60
80
100
Time (min)
Figure 4: Time dependent modification of HbA in cell free hemoglobin incubated with test
compounds
We next conducted similar cation-exchange HPLC experiments using freshly drawn
normal whole blood from volunteers with informed consent. When incubated with the
hematocrit-adjusted whole blood suspensions (30% HCT), all compounds at 2 mM
concentrations modified intracellular Hb in a time-dependent manner, and importantly,
demonstrated significant enhanced levels of Hb modification, in comparison to vanillin
(Figure 5). SAJ-270 and INN-312 reached maximum Hb modifications (~45% and 50%) in
~2 hrs, followed by decrease to ~15% and 25%, respectively in 24 h. Thus, membrane and/or
other blood proteins appear to slow down the transport of SAJ-270 and INN-312 to bind with
Hb, as their maximum effect occurred faster at 1 hr in cell free Hb (Figures 4 and 5). As
observed in the cell free Hb study, the rate of Hb modification by SAJ-009 was very slow but
continuous even up to 24 h where it showed Hb modification of ~60% (Figure 5). These
observations suggest SAJ-009 to be the most potent and have the most prolonged effect of the
tested compounds. On the other hand, it is the slowest to reach maximum effect. Also, the
fact that SAJ-009 showed similar slow rate of Hb modification both in cell free Hb and whole
blood suggests an intrinsic slow rate of association with Hb. What is most interesting and
12

quite unexpected is that in contrast to the cell free Hb study, SAJ-310 in whole blood
behaved similarly as SAJ-009 (Figures 4 and 5), i.e. showing a much slower rate of Hb
modification in whole blood. Thus, cell membrane and/or other proteins appear to slow SAJ-
310 transport to bind with Hb, even more so than INN-312 and SAJ-270. The ortho-pyridine
nitrogen atom in SAJ-310, the only structural difference between INN-312 and SAJ-270 may
explain this observation. In addition, the para-methoxy group in SAJ-009 may also be having
effect in the compound transport through the cellular content and/or rate of association with
Hb.
A.
70
60
50
Vanillin
40
SAJ-009
30
SAJ-270
20
SAJ-310
10
INN312
0
0
5
10
15
20
25
30
Time (h)
B.
60
50
40
30
20
10
0
Vanillin
SAJ-009
SAJ-270
SAJ-310
INN-312
0
20
40
60
80
100 120 140
Time (min)
Figure 5: Time dependent modification of HbA in normal blood incubated with test
compounds. A. The full 24 hr experimental result. B. Result truncated to 2 hr time point.
13

Unlike SAJ-009 that did not show any decline in Hb modification even after 24 hours,
SAJ-310, INN-312 and SAJ-270 after attaining maximum level of ~50% Hb modification at
12 h (SAJ-310) or ~2 hr (INN-312 and SAJ-270), begun to decline to 45%, 25% and 15%,
respectively (Figure 5). Antisickling aromatic aldehydes are known to undergo metabolism to
the corresponding pharmacologically inactive acid analogs in liver, plasma, and RBC.12,28
The metabolism in the RBC may occur prior to compound binding to and/or after
dissociation from Hb. The fact that INN-312 and SAJ-270 (with similar potency as SAJ-310)
associate faster with and also decline faster from Hb than SAJ-310 or SAJ-009 suggest that
INN-312 and SAJ-270 are more susceptible to enzymatic metabolism likely due to faster
unbinding or dissociation rate from Hb. It is worth pointing out that SAJ-310 and SAJ-009,
especially the latter, associate very slowly with Hb in whole blood but still exhibit potent
effect, suggesting the compounds to be more resistant to metabolism outside or inside the
RBC. As observed in the crystal structure of SAJ-310, not only are the two molecules
involved in strong π-π interactions with each other, but also make direct hydrogen-bond
interactions between their ortho-positioned pyridine nitrogen atoms and the hydroxyl group
of Ser131. The hydrogen-bond interaction is absent in INN-312, and expected to be absent in
SAJ-270 also, because the pyridine nitrogen atoms of these two compounds are located in the
meta- and para-positions, respectively. This unique hydrogen-bond interaction in SAJ-310
may increase its affinity to Hb, and importantly slow its dissociation from Hb when
compared to INN-312 and SAJ-270, in part explaining the compound’s resistant to blood
metabolism. We expect SAJ-009, also with an ortho-positioned nitrogen atom to exhibit
similar hydrogen-bond interaction, and in addition to the para-positioned methoxy group on
the benzaldehyde ring may also explain this compound’s apparent resistant to blood
metabolism.
14

2.4. SAJ compounds prevent SS RBC sickling by modifying intracellular Hb S and
altering oxygen affinity
The antisickling properties of aromatic aldehydes are primarily due to their interaction
with sickle Hb and consequent increase in its affinity for oxygen. We thus investigated the
compounds abilities to modify sickle Hb, increase sickle Hb oxygen affinity, and prevent
RBC sickling. The studies were conducted by incubating sickle erythrocytes (hematocrit:
20%) in the absence or presence of 0.5 mM, 1 mM, and 2 mM concentration of test
compound in air at 37°C for 1 h, followed by further incubation under hypoxic condition (4%
oxygen/96% nitrogen) for 2 hr. Aliquot samples were then used for the three different
studies as described in the experimental section.
Table 2: Hemoglobin adduct formation, oxygen equilibrium, and antisickling studies using homozygous
sickle red blood cells with test compoundsa
ΔP50 (%)c
Modified Hb (%)b
Sickling Inhibition (%)d
0.5mM
1mM
2mM
0.5mM
1mM
2mM
0.5mM
1mM
2mM
3.3±3.3 5.6±3.2
12.0±4.6 1.2±1.2
10.6±2.8 21.0±10.3 4.2±2.1
20.9±8.1 34.2±10.3 7.6±3.8
7.3±2.8
7.3±2.6
Vanillin
SAJ-
009
12.0±6.6 24.8±6.8 51.6±6.4 8.1±2.5
13.5±3.0 51.3±11.9
32.8±9.8 58.7±13.2 82.5±4.7 7.9±3.5
31.5±12.8 55.6±12.6 21.7±9.3 60.4±10.2 85.9±5.2
SAJ-
270
26.3±9.5 55.3±14.3 79.5±5.9 22.0±12.1 38.1±10.6 61.4±12.1 24.3±10.4 64.8±7.4 90.3±3.4
SAJ-
310
34±5.2
79±5.3
100±7.9 24.8±2.2 49.2±2.7 75.8±4.9 14.9±7.8 59.5±2.4 90.5±4.3
INN-
15

312
aAll studies were conducted with SS cells suspensions (20% hematocrit) incubated with 0.5 mM, 1 mM and 2 mM of
each test compound. The results are the mean values ± SD for three separate experiments (biological replicates). The
b
final concentration of DMSO was <2% in all samples, including in control samples. Hb S adduct values obtained
from HPLC elution patterns of individual hemolysates after incubation of compounds with SS cells. cP50 is the oxygen
pressure at which the hemolysates are 50 % saturated with oxygen. ΔP50 (%) was determined as:
ΔP50 (%) = P50 of lysates from untreated cells – P50 of lysates from treated cells x 100
P50 of lysates from untreated cells
dAntisickling studies with SS cells were conducted under hypoxia (4% Oxygen/96% Nitrogen).
When subjected to the in vitro sickling assay under hypoxic conditions, the compounds
reduced the sickling of SS cells in a concentration-dependent manner that is significantly
superior to vanillin (Table 2; Figure 6). While the effects were comparable at higher
concentrations for SAJ-270, SAJ-310, and SAJ-312, we observed a slightly higher potency at
0.5 mM concentrations for SAJ-310 and SAJ-270 (~ 22 and 24% inhibitions, respectively),
compared to INN-312 (~ 15% inhibition). This may suggest a secondary, additional
mechanism of antisickling action, considering that the levels of modified hemoglobin are
comparable between the three candidate molecules at the given concentration (Table 2 and
vide infra). Furthermore, the degree of shift in oxygen equilibria is comparable between
SAJ-310 and INN-312, but is remarkably lower in SAJ-270, supporting the hypothesis of a
secondary mechanism of action (Table 2 and vide infra).
16

0.5mM
1.0mM
2.0mM
100
90
80
70
60
50
40
30
20
10
0
Vanillin
SAJ-009
SAJ-270
SAJ-310
INN-312
Figure 6: Concentration-dependent inhibition of SS cell sickling under hypoxia for 2 h. All
SAJ compounds and INN-312 demonstrated strong concentration-dependent inhibition of
sickling, with SAJ-009 showing the weakest effects under these experimental conditions.
Aliquots from the antisickling study were hemolyzed and utilized for Hb modification study
by cation-exchange HPLC analyses. All compounds modified Hb S in a concentration
dependent manner, concordant with the antisickling results (Table 2; Figure 7). Also,
expectedly vanillin showed the lowest Hb modification levels (3.3, 5.6 and 12% at 0.5, 1 and
2 mM, respectively), with increasing effects by SAJ-009 (12, 25, 52%), SAJ-270 (26, 55,
80%), SAJ-310 (33, 59, 83%), and INN-312 (34, 80, 100%). These findings confirm previous
observations that the slow association rate of SAJ-009 with Hb, and perhaps, impediment by
other cellular components are likely contributing to its relatively low Hb modification levels
during the 3-hr sickling assay period. Nonetheless, we expect both SAJ-009 and SAJ-310 to
exhibit higher and sustained potency beyond 3 hours, as observed in the study with normal
whole blood (Figure 5).
17

0.5mM
1mM
2mM
120
100
80
60
40
20
0
Vanillin
SAJ-009
SAJ-270
SAJ-310
INN-312
Figure 7: Concentration dependent modification of Hb S incubated with test compounds.
Hemolysates from the antisickling assay were subjected to cation-exchange HPLC analyses,
and levels of modified Hb were assessed in triplicates. Near complete modification of Hb S is
observed at 2 mM concentrations of SAJ-270, SAJ-310 and INN-312.
100
0.5mM
1mM
2mM
80
60
40
20
0
Vanillin
SAJ-009
SAJ-270
SAJ-310
INN-312
Figure 8: Tests compounds shifted in oxygen equilibrium significantly (∆P50) in a
concentration-dependent manner.
When aliquots of Hb S-complex lysates from the antisickling studies were investigated in the
OEC assay, we observed a similar concentration dependent effect on increasing Hb S affinity
for oxygen. As expected, vanillin showed the lowest allosteric potency (1, 11, 21%; Figure
8). Among the novel test compounds, SAJ-009 exhibited the least potency (8, 21, 34%),
while higher levels were observed for SAJ-270 (8, 32, 56%), SAJ-310 (22, 38, 61%) and
INN-312 (24, 49, 76%) (Table 2; Figure 8). These findings are consistent with our
18

expectations based on the hemoglobin-binding assays. The greater allosteric potency of SAJ-
310 over SAJ-270 even though the latter modifies Hb at a higher rate is probably due to the
additional interaction(s) afforded by the direct hydrogen bond interaction between the ortho-
positioned nitrogen atom in the pyridine ring of SAJ-310 and the hydroxyl group of αSer131,
which leads to better stabilization of the R-state Hb complex.
3. Summary and Conclusion
Aromatic aldehydes have been studied extensively as potential antisickling agents, with
vanillin being one of the earliest such compounds to undergo clinical trials for the treatment of
SCD. Vanillin required high doses to elicit pharmacologic effect due to low potency, and
importantly, poor bioavailability due to high susceptibility to oxidative metabolism. We have
rationally and systematically modified vanillin along with several of its analogs to yield
derivatives that overcome these pharmacologic disadvantages. Part of our earlier
modifications led to the synthesis of INN-312, which showed significant improvement over
vanillin,8 thus establishing--for the first time--the ability of pyridyl derivatives of
benzaldehyde scaffold to be exploited as potential SCD therapeutics, and laying the
foundation for follow-up extensive SAR studies. In the current study, we synthesized and
studied novel analogs of INN-312, including SAJ-009, SAJ-270 and SAJ-310, by
investigating the effects of 1) the nitrogen atom position in the pyridine ring, and 2) the
methoxy position on the benzaldehyde ring, separately, or in combination (Figure 1). As
anticipated, the SAJ compounds are significantly more potent than vanillin: modified Hb S
and increased its affinity for oxygen, and importantly inhibit hypoxia-induced SS cell sickling.
SAJ-009 appears to be least susceptible to oxidative metabolism and also modify Hb the most
but at a delayed time of about 10 hours. At shorter experimental times, this compound exhibits
very weak allosteric and antisickling effect due to its slow onset. We speculate, based on our
19

findings that perhaps the position of the nitrogen atom plays an important role in dissociation
from Hb, a phenomenon we also noticed in SAJ-310. However, the methoxy moiety at the
para- position relative to the aldehyde in INN-009 appears to be responsible for the slow
association rate. Conversely, INN-312 and SAJ-270 both demonstrated a more rapid onset of
action and exhibited potent activities in increasing Hb affinity for oxygen and preventing RBC
sickling. However, their activity began to decline in whole blood after 4 hrs, likely due to high
rate of dissociation from Hb and/or increase susceptibility to oxidative metabolism. This could
be due to the position(s) of the nitrogen atoms (para in SAJ-270 and meta in INN-312). Even
though SAJ-310 showed slower association with intracellular, it demonstrated comparably
high potency, while the activity is sustained in blood significantly longer than INN-312 and
SAJ-270, suggesting a better metabolic stability. Importantly, SAJ-310 showed the most
potent antisickling activity at lower compound concentration. These findings suggest that
SAJ-310 is potentially a more promising lead candidate than other members of its class, and
warrants further investigations, including in vivo PK/PD studies, as well as additional
structural optimization.
4. Materials and Methods
Normal whole blood was collected from adult donors at the Virginia Commonwealth
University after informed consent, in accordance with regulations of the IRB for Protection
of Human Subjects. Hb was purified from discarded normal blood samples using standard
procedures.29 Leftover blood samples from patients with homozygous SS were obtained and
utilized, based on an approved IRB protocol at the Children’s Hospital of Philadelphia, with
informed consent.
All reagents used in the synthesis and functional assays were purchased from Sigma-
Aldrich (St. Louis, MO) and Thermo Fisher Scientific (Waltham, MA) and utilized without
additional purification. Melting points were determined on a Fisher-Scientific melting point
20

1
13
apparatus (Serial# 410N0117), and were uncorrected. H-NMR and C-NMR spectra were
obtained on a Bruker 400MHz spectrometer and tetramethylsilane (TMS) was used as an
internal standard. Peak positions are given in parts per million (δ). Column chromatography
was performed on silica gel (grade 60 mesh; Bodman Industries, Aston, PA). Routine thin-
layer chromatography (TLC) was performed on silica gel GHIF plates (250 μm, 2.5 x 10 cm;
Analtech Inc., Newark, DE). MS spectra were obtained from a Perkin Elmer Flexar UHPLC
with AxION 2 Time of Flight (TOF) Mass Spectrometer, and the molecular weight of the
compounds was within 0.005% of calculated values. Infrared spectra were obtained on
Thermo Nicolet iS10 FT-IR. Purity of the compounds was determined by HPLC using Varian
Microsorb 100-5 C18 column (250 x 4.6 mm), using Prostar 325 UV-Vis (254 nm) as the
detector.
4.1. Synthesis:
The SAJ compounds were synthesized according to standard procedures for similar
compounds 8,26 and the detailed procedures are given below.
Synthesis of INN-312 was carried out as previously reported.8 1H-NMR (400 MHz, DMSO-
d6): δ 10.36 (s, 1H), 8.71 (d, J = 1.6 Hz, 1H), 8.56 (dd, J =1.64 Hz, J = 4.8 Hz, 1H), 7.92 (m,
1H), 7.44 (m, 1H), 7.32 (d, J = 9.08 Hz, 1H), 7.27 (dd, J = 3.16 Hz, J = 9.04 Hz, 1H), 7.19
(d, J = 3.08 Hz, 1H), 5.28 (s, 2H), 3.76 (s, 3H).
Synthesis of 4-methoxy-2-(pyridine-2-ylmethoxy)benzaldehyde, SAJ-009:
2-hydroxy-4-methoxybenzaldehyde (152 mg, 1.0 mmol), 2-bromomethylpyridine
hydrobromide (253 mg, 1.0 mmol) were dissolved in dimethylformamide (DMF), and the
mixture was cooled at 0 C. Potassium carbonate (340 mg, 2.5 mmol) was then added portion
wise. The reaction mixture was stirred at 0 C to room temperature for 16 hours. Following
21

that, the mixture was diluted with ethyl acetate (100 mL), washed with water (3 x 30 mL),
brine (30 mL), dried over Na2SO4, and filtered. The ethyl acetate was evaporated under
reduced pressure and the crude product was purified by column chromatography
(hexanes/EtOAc; 2:1) to give a white solid, 140 mg, 58%. Mp: 70-71C; IR (Diamond, cm-1):
1
2852, 1677; H-NMR (400 MHz, DMSO-d6): δ 10.30 (s, 1H), 8.60 (m, 1H), 7.87 (m, 1H),
7.71 (d, J = 8.7 Hz, 1H), 7.64 (d, J = 7.8 Hz, 1H), 7.37 (m, 1H), 6.81 (d, J = 2.2 Hz, 1H),
6.68 (dd, J = 8.7, 1.8 Hz, 1H), 5.36 (s, 2H), 3.85 (s, 3H); 13C-NMR (100 MHz, DMSO-d6): δ
187.3, 165.9, 156.0, 149.1, 137.1, 130.8, 123.1, 121.7, 118.5, 107.2, 99.6, 70.9, 55.8. MS
(ESI) m/z found 274.15 (M + H)+, 296.14 (M + Na)+. The purity of the compound was
checked by HPLC and was found to be 99.8% pure.
Synthesis of 5-methoxy-2-(pyridine-4-ylmethoxy)benzaldehyde, SAJ-270:
Target compound was prepared as previously described with only slight modification26 as a
1
white solid. Mp: 56-57 C; IR (Diamond, cm-1): 2861, 1672; H-NMR (400 MHz, DMSO-
d6): δ 10.45 (s, 1H), 8.58 (dd, J = 4.6, 1.4 Hz, 1H), 7.50 (d, J = 5.8 Hz, 2H), 7.24 (m, 3H),
13
5.31 (s, 2H), 3.76 (s, 3H); C-NMR (100 MHz, DMSO-d6): δ 188.9, 154.6, 153.5, 149.8,
145.7, 125.0,122.8, 121.7, 115.8, 110.8, 68.7, 55.6. MS (ESI) m/z found 266.0789 (M + Na)+,
298.1054 (M + MeOH + Na)+. The purity of the compound was checked by HPLC and was
found to be 99.2% pure.
Synthesis of 5-methoxy-2-(pyridin-2-ylmethoxy)benzaldehyde, SAJ-310:
Target compound was prepared as previously described with only slight modification26 as an
1
off-white crystal. Mp: 111-112 C; IR (Diamond, cm-1): 2869, 1671; H-NMR (400 MHz,
DMSO-d6): δ 10.44 (s, 1H), 8.58 (d, J = 4.6 Hz, 1H), 7.87 (m, 1H), 7.60 (d, J = 7.8 Hz), 7.35
13
(m, 1H), 7.25 (m, 3H), 5.31 (s, 2H), 3.76 (s, 3H); C-NMR (100 MHz, DMSO-d6): δ 188.9,
22

156.3, 154.9, 149.1, 137.0, 125.0, 123.0, 122.9, 121.6, 116.0, 110.5, 71.5, 55.5. MS (ESI) m/z
found 266.0790 (M + Na)+, 298.1054 (M + MeOH + Na)+. The purity of the compound was
checked by HPLC and was found to be 99.5% pure.
4.2. Crystallization, Data collection and Structure determination of liganded Hb in
complex with SAJ-310:
Freshly made solution of SAJ-009, SAJ-270 or SAJ-310 in DMSO was added to
deoxygenated (deoxy) Hb (30mg/ml protein) at Hb tetramer-compound ratio of 1:10.
Following, the respective mixture was saturated with carbon monoxide and allowed to
incubate for 2h to form the COHb-compound complex. Sodium cyanoborohydride
(NaBH3CN) was then added to this mixture to reduce the Schiff-base interaction formed
between the aromatic aldehyde of the compound and the protein to the corresponding
irreversible alkylamine covalent bond. The resulting solution was crystalized using 10-20%
PEG6000, 100mM HEPES buffer (pH 7.4) using the batch method. Cherry red needle
crystals were obtained for all complexes; however, those of SAJ-009 and SAJ-270 were very
thin and unusable for X-ray data collection, while crystals of SAJ-310 were relatively bigger
that resulted in useful X-ray diffraction data. Full X-ray diffraction data for the SAJ-310
crystal was collected at 100 K using a Molecular Structure Corporation (MSC) X-Stream
Cryogenic Cooler System (The Woodlands, TX) and an R-Axis IV image plate detector. The
crystals were first cryoprotected with 80 L mother liquor mixed with 62 L 50% PEG6000.
The dataset was processed with the d*trek software (Rigaku) and the CCP4 suite of
programs.30 The crystals are in the space group P212121 with the typical cell constant of
a=62.82, b=83.55, c=104.91. The crystal structure of the SAJ-310 complex was determined
by a molecular replacement method with the Phenix program,31,32 using the native R2-state
crystal structure (PDB ID code 1BBB) as a search model.4 The initial refinement using
23

Phenix identified two molecules of SAJ-310 bound at the α-cleft of the central water cavity,
oxygen molecules bound at all four distal heme sites, and several water molecules. These
molecules were added to the model, followed by several cycles of refinements with the CNS
program33 to a final Rfactor/Rfree of 20.76%/26.86% at 1.95 Å. Model building and
correction were carried out using COOT.34 The atomic coordinates and structure factors of
SAJ-310 have been deposited in the RCSB Protein Data Bank with the accession code 6BNR.
Detailed crystallographic parameters are reported in Table 1.
4.3. Time dependent and Concentration Dependent Adduct Formation using Normal
Whole Blood and Hemoglobin:
The compounds SAJ-009, SAJ-270, SAJ-310, and the controls INN-312 and vanillin were
used to conduct concentration-dependent and time-dependent studies on Hb adduct formation
using normal whole blood. The study was performed in a 96-well deep well plate (Thermo
Scientific), where each compound at 0.5 mM, 1.0 mM and 2.0 mM concentrations was added
to 600 L of whole blood (30% hematocrit) or Hb (1.56 mM) and incubated at 37C for 24 h
with shaking (at 140 rpm). At 0.5, 1, 2, 4, 8, 12 and 24 h time intervals, a 50 L aliquot of
blood/Hb was removed from each well using a multichannel pipet and added to respective
tubes containing 50 L of Na-cyanoborohydride and borohydride mixture (1:1 v/v 50mM
stock) to terminate the Schiff-base reaction, fix the Schiff-base adducts, and reduce the free
reactive aldehyde.35 We have previously optimized these conditions. After mixing, the tubes
were stored immediately at -80C until ready for analysis using cation-exchange HPLC
(Hitachi D-7000 Series, Hitachi Instruments, Inc., San Jose, CA) as previously described.9,11
The observed Hb adduct in %Hb modification were plotted as a function of time (h); peak
adduct concentration was obtained by visual inspection, and area under the curve, AUC (0-
24), was obtained by linear trapezoidal rule across the entire 24 h measurement period.
24

4.4. Hemoglobin Modification, Oxygen Equilibrium and Antisickling Studies Using
Human Sickle Blood
Blood suspensions from subjects with homozygous SCD (hematocrit 20%) were incubated
under air in the absence or presence of 0.5 mM, 1.0 mM and 2.0 mM concentration of SAJ-
009, SAJ-270, SAJ-310and the controls INN-312 and vanillin at 37C for 1 h to ensure that
binding has attained equilibrium. Following, the suspensions were incubated under hypoxic
condition (4% oxygen/96% nitrogen) at 37C for 2 h. Aliquot samples were fixed with 2%
glutaraldehyde solution without exposure to air, and then subjected to microscopic
morphological analysis of bright field images (at 40x magnification) of single layer cells on
an Olympus BX40 microscope fitted with an Infinity Lite B camera (Olympus), and the
coupled Image Capture software. The residual samples were washed in phosphate-buffered
saline, and hemolyzed in hypotonic lysis buffer for subsequent analyses.
For the OEC study, approximately 100 L aliquot samples from clarified lysate
obtained from the antisickling study were added to 4 ml of 0.1 M potassium phosphate
buffer, pH 7.0, in cuvettes and subjected to hemoximetry analysis using HemoxTM Analyzer
(TCS Scientific Corp.) to assess P50 shifts. Degree of P50 shift (∆P50) was expressed as
percentage fractions of control DMSO-treated samples. Finally, for the Hb adduct formation
study, clarified lysates, also from the above antisickling study, were subjected to cation-
exchange HPLC (Hitachi D-7000 Series, Hitachi Instruments, Inc., San Jose, CA), using a
weak cation-exchange column (Poly CAT A: 30 mm x 4.6 mm, Poly LC, Inc., Columbia,
MD). A commercial standard consisting of approximately equal amounts of composite Hb F,
A, S and C (Helena Laboratories, Beaumont, TX), was utilized as reference isotypes. The
areas of new peaks, representing Hb S adducts were obtained, calculated as percentage
25

fractions of total Hb area, and reported as levels of modified Hb. All assays were conducted
in three biological replicates on different days.
Statistical Analyses
All functional and biological assays evaluating antisickling properties, Hb modification and
oxygen affinity changes were conducted in three biological replicates. Results are reported as
mean values with standard deviations, from triplicate analyses.
Accession Codes
The atomic coordinate and structure factor files have been submitted to the Protein
Data Bank under an accession code 6BNR.
Acknowledgements
This work was supported by NIH/NIMHD grant MD009124 (MKS). Structural
biology resources were provided by NIH Shared Instrumentation Grant S10-OD021756 and
Virginia General Assembly Higher Education Equipment Trust Fund (HEETF) to Virginia
Commonwealth University (MKS).
26

References
1. Perutz MF. Nature of haem-haem interaction. Nature. 1972;237(5357):495-499.
2. Perutz MF. Hemoglobin structure and respiratory transport. Sci Am. 1978;239(6):92-
125.
3. Perutz MF, Wilkinson AJ, Paoli M, Dodson GG. The stereochemical mechanism of the
cooperative effects in hemoglobin revisited. Annu Rev Biophys Biomol Struct.
1998;27:1-34.
4. Silva MM, Rogers PH, Arnone A. A third quaternary structure of human hemoglobin A
at 1.7-A resolution. J Biol Chem. 1992;267(24):17248-17256.
5. Jenkins JD, Musayev FN, Danso-Danquah R, Abraham DJ, Safo MK. Structure of
relaxed-state human hemoglobin: insight into ligand uptake, transport and release. Acta
Crystallogr D Biol Crystallogr. 2009;65(Pt 1):41-48.
6. Safo MK, Bruno S. Allosteric Effectors of Hemoglobin: Past, Present and Future. In:
Mozzarelli A, Bettati S, eds. Chemistry and Biochemistry of Oxygen Therapeutics. John
Wiley & Sons, Ltd; 2011:285-300.
7. Safo MK, Ahmed MH, Ghatge MS, Boyiri T. Hemoglobin-ligand binding:
understanding Hb function and allostery on atomic level. Biochim Biophys Acta.
2011;1814(6):797-809.
8. Abdulmalik O, Ghatge MS, Musayev FN, et al. Crystallographic analysis of human
hemoglobin elucidates the structural basis of the potent and dual antisickling activity of
pyridyl derivatives of vanillin. Acta Crystallogr D Biol Crystallogr. 2011;67(Pt
11):920-928.
9. Safo MK, Abdulmalik O, Danso-Danquah R, et al. Structural basis for the potent
antisickling effect of a novel class of five-membered heterocyclic aldehydic compounds.
J Med Chem. 2004;47(19):4665-4676.
10. Safo MK, Kato GJ. Therapeutic strategies to alter the oxygen affinity of sickle
hemoglobin. Hematol Oncol Clin North Am. 2014;28(2):217-231.
11. Abdulmalik O, Safo MK, Chen Q, et al. 5-hydroxymethyl-2-furfural modifies
intracellular sickle haemoglobin and inhibits sickling of red blood cells. Br J Haematol.
2005;128(4):552-561.
12. Xu GG, Pagare PP, Ghatge MS, et al. Design, Synthesis, and Biological Evaluation of
Ester and Ether Derivatives of Antisickling Agent 5-HMF for the Treatment of Sickle
Cell Disease. Mol Pharm. 2017;14(10):3499-3511.
27

13. Oksenberg D, Dufu K, Patel MP, et al. GBT440 increases haemoglobin oxygen affinity,
reduces sickling and prolongs RBC half-life in a murine model of sickle cell disease. Br
J Haematol. 2016;175(1):141-153.
14. Arya R, Rolan PE, Wootton R, Posner J, Bellingham AJ. Tucaresol increases oxygen
affinity and reduces haemolysis in subjects with sickle cell anaemia. Br J Haematol.
1996;93(4):817-821.
15. Keidan AJ, Franklin IM, White RD, Joy M, Huehns ER, Stuart J. Effect of BW12C on
oxygen affinity of haemoglobin in sickle-cell disease. Lancet Lond Engl.
1986;1(8485):831-834.
16. Beddell C r., Goodford P j., Kneen G, White R d., Wilkinson S, Wootton R. Substituted
benzaldehydes designed to increase the oxygen affinity of human haemoglobin and
inhibit the sickling of sickle erythrocytes. Br J Pharmacol. 1984;82(2):397-407.
17. Metcalf B, Chuang C, Dufu K, et al. Discovery of GBT440, an Orally Bioavailable R-
State Stabilizer of Sickle Cell Hemoglobin. ACS Med Chem Lett. 2017;8(3):321-326.
18. Oder E, Safo MK, Abdulmalik O, Kato GJ. New developments in anti-sickling agents:
can drugs directly prevent the polymerization of sickle haemoglobin in vivo? Br J
Haematol. 2016;175(1):24-30.
19. Rolan PE, Mercer AJ, Wootton R, Posner J. Pharmacokinetics and pharmacodynamics
of tucaresol, an antisickling agent, in healthy volunteers. Br J Clin Pharmacol.
1995;39(4):375-380.
20. Benesch RE, Kwong S, Edalji R, Benesch R. alpha Chain mutations with opposite
effects on the gelation of hemoglobin S. J Biol Chem. 1979;254(17):8169-8172.
21. Rhoda MD, Martin J, Blouquit Y, Garel MC, Edelstein SJ, Rosa J. Sickle cell
hemoglobin fiber formation strongly inhibited by the Stanleyville II mutation (alpha 78
Asn leads to Lys). Biochem Biophys Res Commun. 1983;111(1):8-13.
22. Nienhuis AW. Hemoglobin: Molecular, genetic and clinical aspects: By H. F. Bunn and
B. G. Forget. Philadelphia: W. B. Saunders Company. (1986). 690 pp. $99.00. Cell.
1987;48(5):731.
23. Stern W, Mathews D, McKew J, Shen X, Kato GJ. A Phase 1, First-in-Man, Dose-
Response Study of Aes-103 (5-HMF), an Anti-Sickling, Allosteric Modifier of
Hemoglobin Oxygen Affinity in Healthy Norman Volunteers. Blood.
2012;120(21):3210-3210.
24. Zaugg RH, Walder JA, Klotz IM. Schiff base adducts of hemoglobin. Modifications that
inhibit erythrocyte sickling. J Biol Chem. 1977;252(23):8542-8548.
25. Abraham DJ, Mehanna AS, Wireko FC, Whitney J, Thomas RP, Orringer EP. Vanillin,
a potential agent for the treatment of sickle cell anemia. Blood. 1991;77(6):1334-1341.
26. Nnamani IN, Joshi GS, Danso-Danquah R, et al. Pyridyl Derivatives of Benzaldehyde
as Potential Antisickling Agents. Chem Biodivers. 2008;5(9):1762-1769.
28

27. Safo MK, Abdulmalik O, Lin H-R, Asakura T, Abraham DJ. Structures of R- and T-
state hemoglobin Bassett: elucidating the structural basis for the low oxygen affinity of
a mutant hemoglobin. Acta Crystallogr D Biol Crystallogr. 2005;61(2):156-162.
28. Godfrey VB, Chen LJ, Griffin RJ, Lebetkin EH, Burka LT. Distribution and metabolism
of (5-hydroxymethyl)furfural in male F344 rats and B6C3F1 mice after oral
administration. J Toxicol Environ Health A. 1999;57(3):199-210.
29. Safo MK, Abraham DJ. X-ray Crystallography of Hemoglobins. In: Hemoglobin
Disorders. Methods in Molecular BiologyTM. Humana Press; 2003:1-19.
30. Winn MD, Ballard CC, Cowtan KD, et al. Overview of the CCP4 suite and current
developments. Acta Crystallogr D Biol Crystallogr. 2011;67(Pt 4):235-242.
31. Adams PD, Afonine PV, Bunkóczi G, et al. The Phenix software for automated
determination of macromolecular structures. Methods San Diego Calif. 2011;55(1):94-
106.
32. Echols N, Grosse-Kunstleve RW, Afonine PV, et al. Graphical tools for
macromolecular crystallography in PHENIX. J Appl Crystallogr. 2012;45(Pt 3):581-
586.
33. Brünger AT, Adams PD, Clore GM, et al. Crystallography & NMR system: A new
software suite for macromolecular structure determination. Acta Crystallogr D Biol
Crystallogr. 1998;54(Pt 5):905-921.
34. Emsley P, Lohkamp B, Scott WG, Cowtan K. Features and development of Coot. Acta
Crystallogr D Biol Crystallogr. 2010;66(Pt 4):486-501.
35. Davies R, Hedebrant U, Athanassiadis I, Rydberg P, Törnqvist M. Improved method to
measure aldehyde adducts to N-terminal valine in hemoglobin using 5-
hydroxymethylfurfural and 2,5-furandialdehyde as model compounds. Food Chem
Toxicol Int J Publ Br Ind Biol Res Assoc. 2009;47(8):1950-1957.
29
