Rhenium and technetium complexes with N,N-dialkyl-N′-benzoylthioureas

Article abstract of DOI:10.1021/ic070323x

N,N-Dialkyl-N′-benzoylthioureas, HR¹R²btu, react under single deprotonation and form air-stable chelate complexes with common rhenium or technetium complexes such as (NBu₄)[MOCl ₄] (M = Re, Tc) or [ReOCl₃(PPh₃)₂]. Compositions and molecular structures of the products are strongly dependent on the precursors used and the reaction conditions applied. Reactions with [ReOCl₃(PPh₃)₂] in CH₂Cl₂ give complexes of the general formula [ReOCl₂(R¹R ²btu)(PPh₃)] (3), with the benzoyl oxygen atom of the chelating benzoylthiourea being trans to the oxo ligand, and/or Re(III) complexes of the composition [ReCl₂(R¹R ²btu)(PPh₃)₂] (4) with the PPh₃ ligands in trans positions to each other. In polar solvents such as MeOH, EtOH or acetone, corresponding reactions without addition of a supporting base only result in intractable brown solutions, from which no crystalline complexes could be isolated. The addition of NEt₃, however, allows the isolation of the bis-chelates [ReOCl(R¹R²btu)₂] (1) in good yields. In this type of complex, one of the chelating R¹R ²btu^- ligands coordinates equatorially, while the second occupies the position trans to the oxo ligand with its oxygen atom. The latter compounds can also be prepared from (NBu₄)[ReOCl₄] in MeOH when no base is added, while the addition of NEt₃ results in the formation of [ReO(OMe)(R¹R²btu)₂] (5) complexes with the methoxo ligand trans to O^2-. Compounds of the type 5 can alternatively be prepared by heating 1 in MeOH with addition of NEt₃. A reversible conversion of 5 into oxo-bridged dimers of the composition [{ReO(R¹R¹btu)₂}₂O] (6) is observed in water-containing solvents. Starting from (NBu₄)[TcOCl ₄], a series of technetium complexes of the type [TcOCl(R ¹R²btu)₂] (2) could be prepared. The structures of such compounds are similar to those of the rhenium analogues 1: Reduction of 2 with PPh₃ in CH₂Cl₂ gives Tc(III) complexes of the composition [TcCl(R¹R²btu)₂(PPh ₃)] (7) having the chloro and PPh₃ ligands in cis positions. When this reaction is performed in the presence of excess chelating ligand, the Tc(III) tris-chelates [Tc(R¹R²btu) ₃] (8) are formed.

Full text of DOI:10.1021/ic070323x

Inorg. Chem. 2007, 46, 5310−5319
Rhenium and Technetium Complexes with
N,N-Dialkyl-N -benzoylthioureas
′
Nguyen Hung Huy and Ulrich Abram*
Institute of Chemistry and Biochemistry, Freie UniVersita¨t Berlin, Fabeckstrasse 34-36,
D-14195 Berlin, Germany
Received February 19, 2007
N,N-Dialkyl-N
′
-benzoylthioureas, HR1R2btu, react under single deprotonation and form air-stable chelate complexes
Re, Tc) or [ReOCl3(PPh3)2].
with common rhenium or technetium complexes such as (NBu4)[MOCl4] (M
)
Compositions and molecular structures of the products are strongly dependent on the precursors used and the
reaction conditions applied. Reactions with [ReOCl3(PPh3)2] in CH2Cl2 give complexes of the general formula
[ReOCl2(R1R2btu)(PPh3)] (3), with the benzoyl oxygen atom of the chelating benzoylthiourea being trans to the oxo
ligand, and/or Re(III) complexes of the composition [ReCl2(R1R2btu)(PPh3)2] (4) with the PPh3 ligands in trans
positions to each other. In polar solvents such as MeOH, EtOH or acetone, corresponding reactions without addition
of a supporting base only result in intractable brown solutions, from which no crystalline complexes could be
isolated. The addition of NEt3, however, allows the isolation of the bis-chelates [ReOCl(R1R2btu)2] (1) in good
yields. In this type of complex, one of the chelating R1R2btu- ligands coordinates equatorially, while the second
occupies the position trans to the oxo ligand with its oxygen atom. The latter compounds can also be prepared
from (NBu4)[ReOCl4] in MeOH when no base is added, while the addition of NEt3 results in the formation of
[ReO(OMe)(R1R2btu)2] (5) complexes with the methoxo ligand trans to O2-. Compounds of the type 5 can alternatively
be prepared by heating 1 in MeOH with addition of NEt3. A reversible conversion of 5 into oxo-bridged dimers of

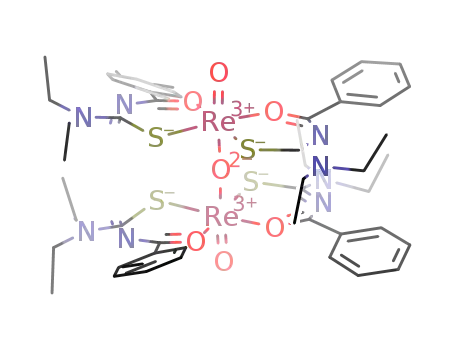

the composition [{ }2O] (6) is observed in water-containing solvents. Starting from (NBu4)[TcOCl4],
ReO(R1R1btu)2
a series of technetium complexes of the type [TcOCl(R1R2btu)2] (2) could be prepared. The structures of such
compounds are similar to those of the rhenium analogues 1. Reduction of 2 with PPh3 in CH2Cl2 gives Tc(III)
complexes of the composition [TcCl(R1R2btu)2(PPh3)] (7) having the chloro and PPh3 ligands in cis positions. When
this reaction is performed in the presence of excess chelating ligand, the Tc(III) tris-chelates [Tc(R1R2btu)3] (8) are
formed.
Introduction
in some Ag(I) and Au(I) compounds and in a Pt(II) complex,3
while examples of transition metal complexes with ben-
zoylthioureas as bridging ligands are very rare.4,5 The
structural chemistry of square-planar bis-chelates of ben-
zoylthioureas with d8 or d9 ions such as Ni(II), Pd(II), Pt(II),
or Cu(II) is dominated by cis isomers,2c,6 and only a few
N,N-Dialkyl-N′-benzoylthioureas, HR1R2btu, are known to
form stable complexes with a large number of transition
metals.1 They are versatile ligands with various coordination
modes. In the majority of their structurally characterized
complexes, they act as bidentate O,S-monoanionic ligands.2
Coordination as neutral, monodentate S-ligands are found
(2) (a) Westra, A. N.; Bourne, S. A.; Esterhuysen, C.; Koch, K. R. Dalton
Trans. 2005, 2162. (b) Zhou, W.; Wen, Y.; Qiu, L.; Zhang, Y.; Yu,
Z. J. Mol. Struct. 2005, 749, 89. (c) Kampf, M.; Richter, R.; Gerber,
S.; Kirmse, R. Z. Anorg. Allg. Chem. 2004, 630, 1437. (d) Egan, T.
J.; Koch, K. R.; Swan, P. L.; Clarkson, C.; Van Schalkwyk, D. A.;
Smith, P. J. J. Med. Chem. 2004, 47, 2926. (e) Rodger, A.; Patel, K.
K.; Sanders, K. J.; Datt, M.; Sacht, C.; Hannon, M. J. J. Chem. Soc.,
Dalton Trans. 2002, 3656.
(3) (a) Braun, U.; Richter, R.; Sieler, J.; Yanovsky, A. I.; Struchkov, Y.
T. Z. Anorg. Allg. Chem. 1985, 529, 201. (b) Bensch, W.; Schuster,
M. Z. Anorg. Allg. Chem. 1992, 611, 99. (c) Koch, K. R. Bourne, S.
J. Mol. Struct. 1998, 441, 11.
* To whom correspondence should be addressed. E-mail: abram@
chemie.fu-berlin.de. Phone: (#49) 30 83854002. Fax: (#49) 30 83852676.
(1) (a) Beyer. L.; Hoyer, E.; Liebscher, J.; Hartmann, H. Z. Chem. 1981,
21, 228. (b) Koch, K. R. Coord. Chem. ReV. 2001, 216-217, 473. (c)
Beyer, L.; Hoyer, E.; Hennig, H.; Kirmse, R.; Hartmann, H.; Liebscher,
J. J. Prakt. Chem. 1975, 317, 829. (d) Schmidt, S.; Dietze, F.; Hoyer,
E. Z. Anorg. Allg. Chem. 1991, 603, 33. (e) Mohamadou, A.;
Dechamps-Olivier, I.; Barbier, J. P. Polyhedron 1994, 13, 1363. (f)
Del Campo, R.; Criado, J. J.; Gheorghe, R.; Gonzalez, F. J.; Hermosa,
M. R.; Sanz, F.; Manzano, J. L.; Monte, E.; Rodriguez-Fernandez,
E., J. Inorg. Biochem. 2004, 98, 1307.
5310 Inorganic Chemistry, Vol. 46, No. 13, 2007
10.1021/ic070323x CCC: $37.00
© 2007 American Chemical Society
Published on Web 05/08/2007

Rhenium and Technetium Complexes
