The discovery of Arylex active and Rinskor active: Two novel auxin
herbicides
⇑
Jeffrey B. Epp , Anita L. Alexander, Terry W. Balko, Ann M. Buysse, William K. Brewster, Kristy Bryan,
John F. Daeuble, Stephen C. Fields, Roger E. Gast, Renard A. Green, Nicholas M. Irvine, William C. Lo,
Christian T. Lowe, James M. Renga, John S. Richburg, James M. Ruiz, Norbert M. Satchivi,
Paul R. Schmitzer, Thomas L. Siddall, Jeffery D. Webster, Monte R. Weimer, Gregory T. Whiteker,
Carla N. Yerkes
Dow AgroSciences, 9330 Zionsville Rd, Indianapolis, IN 46268, United States
a r t i c l e i n f o
a b s t r a c t
Article history:
Received 9 July 2015
Revised 6 August 2015
Accepted 12 August 2015
Available online 19 August 2015
Multiple classes of commercially important auxin herbicides have been discovered since the 1940s
including the aryloxyacetates (2,4-D, MCPA, dichlorprop, mecoprop, triclopyr, and fluroxypyr), the ben-
zoates (dicamba), the quinoline-2-carboxylates (quinclorac and quinmerac), the pyrimidine-4-carboxy-
lates (aminocyclopyrachlor), and the pyridine-2-carboxylates (picloram, clopyralid, and aminopyralid).
In the last 10 years, two novel pyridine-2-carboxylate (or picolinate) herbicides were discovered at
Dow AgroSciences. This paper will describe the structure activity relationship study that led to the dis-
covery of the 6-aryl-picolinate herbicides ArylexTM active (2005) and RinskorTM active (2010). While
Arylex was developed primarily for use in cereal crops and Rinskor is still in development primarily
for use in rice crops, both herbicides will also be utilized in additional crops.
Keywords:
Arylex
Rinskor
Halauxifen
Halauxifen-methyl
Picolinate
Ó 2015 Elsevier Ltd. All rights reserved.
6-Aryl-picolinate
1. Introduction
be quite severe and can cause plant death. Since the discovery of
2,4-D and MCPA over 70 years ago, many other herbicides that
About 250 plant species currently cause enough problems in
food production to be classified as weeds. Collectively, these weeds
reduce crop yield and quality, harbor various pests and diseases,
and interfere with the management of crops.1 Accordingly, control
of these weeds is essential for maximizing crop production and for
simplifying crop management. With the discovery of the auxin
herbicides 2,4-D and MCPA in the 1940s, the agricultural practice
of weed management was totally transformed.2 These auxin herbi-
cides reduced the cost and increased the efficiency of controlling a
variety of problematic weeds in many important crops.
act via an auxinic mode of action have been discovered and
commercialized. The most successful commercial auxin herbicides
produced to date are represented by the following classes
(examples): the aryloxyacetates (2,4-D, MCPA, dichlorprop, meco-
prop, triclopyr, and fluroxypyr), the benzoates (dicamba), the
quinoline-2-carboxylates (quinclorac and quinmerac), the pyrim-
idine-4-carboxylates (aminocyclopyrachlor), and the pyridine-2-
carboxylates (picloram, clopyralid, and aminopyralid).
Research efforts at Dow Chemical and Dow AgroSciences have
produced all of the commercial auxin herbicides classified as
A herbicide is classified as an auxin if it induces physiological
and phenotypic effects similar to those induced by indole-3-acetic
acid, a natural plant hormone of the auxin class.3 Since synthetic
auxin herbicides are typically much more stable than indole-3-
acetic acid in planta, the phenotypic effects caused by auxin herbi-
cides (i.e., tissue swelling, root growth inhibition, and epinasty) can
NH2
N
NH2
N
Cl
Cl
Cl
O
Cl
O
Cl
O
OH
OH
OH
OH
N
Cl
N
Cl
O
Picolinic acid
Picloram
Clopyralid
Aminopyralid
⇑
Corresponding author. Tel.: +1 317 337 5515, +1 317 506 5325.
E-mail address: jbepp@dow.com (J.B. Epp).
Figure 1. Picolinic acid and some closely related picolinate auxin herbicides.
http://dx.doi.org/10.1016/j.bmc.2015.08.011
0968-0896/Ó 2015 Elsevier Ltd. All rights reserved.

J. B. Epp et al. / Bioorg. Med. Chem. 24 (2016) 362–371
363
NH2
N
NH2
acid. N-acyl-aminopyralid-methyl 7 was synthesized by heating
aminopyralid-methyl 6 in acetic anhydride. Methyl 4-acetamido-
3-chloro-6-aryl-picolinates 8–11 were synthesized by the reaction
of N-acyl-aminopyralid-methyl 7 with the appropriate boronic acid
or boronic ester. Methyl 4-amino-3-chloro-6-aryl-picolinates
12–15 were synthesized by dissolving methyl 4-acetamido-3-
chloro-6-aryl-picolinates 8–11 in methanol and treating these
solutions with acetyl chloride. Bromination of methyl 4-amino-3-
chloro-6-aryl-picolinate 15 with NBS afforded methyl 4-amino-5-
bromo-3-chloro-6-aryl-picolinate 16. Hydrolysis of methyl
4-acetamido-3-chloro-6-aryl-picolinates 10 and 11 with sodium
hydroxide in methanol provided 4-amino-3-chloro-6-aryl-picol-
inic acids 17 and 18. Finally, 5-chloro-4-amino-6-aryl-pyridine
19 was synthesized by heating 4-amino-3-chloro-6-aryl-picolinic
acid 18 in dioxane.
4
Cl
O
F
Cl
O
5
6
3
2
OMe
O
OH
N
N
1
O
Cl
F
Cl
F
OMe
OMe
6-Aryl-picolinates

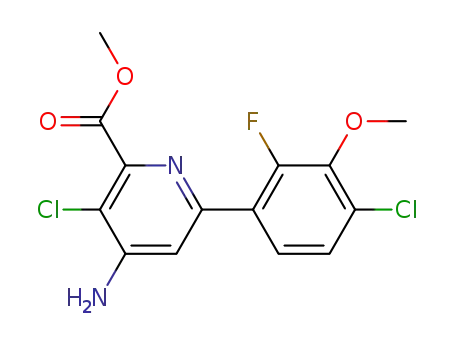

ArylexTM active
RinskorTM active
Figure 2. The 6-aryl-picolinate auxin herbicide class.
pyridine-2-carboxylates to date. The pyridine-2-carboxylate auxin
herbicides are derivatives of picolinic acid (Fig. 1) and are thus also
known as the picolinate auxin herbicides. Picloram (Fig. 1), the first
picolinate auxin herbicide, was serendipitously discovered in the
late 1950s during a Dow Chemical research study that was focused
on the discovery of novel nitrification inhibitors.4,5
As shown in Scheme 3, methyl 4-amino-3-chloro-5-fluoro-6-
aryl-picolinates 21 and 22 were synthesized by the reaction of
5-fluoro-aminopyralid-methyl 209 with the appropriate boronic
acid or boronic ester. Hydrolysis of methyl 4-amino-3-chloro-5-
fluoro-6-aryl-picolinates 21 and 22 with sodium hydroxide in
methanol provided 4-amino-3-chloro-5-fluoro-6-aryl-picolinic
acids 23 and 24. Finally, benzyl 4-amino-3-chloro-5-fluoro-6-
aryl-picolinate 25 was synthesized by the reaction of 4-amino-3-
chloro-5-fluoro-6-aryl-picolinic acid 24 with benzyl bromide.
As shown in Scheme 4, methyl 4-amino-6-aryl-picolinate 27
was synthesized by the reaction of methyl 6-aryl-tetrahydropy-
ridine-2-carboxylate 2610 with DBU in dichloromethane. Methyl
3-bromo-6-aryl-tetrahydropyridine-2-carboxylate 28 was synthe-
sized by treating methyl 6-aryl-tetrahydropyridine-2-carboxylate
26 with NBS in dichloromethane.10 Methyl 3-bromo-6-aryl-
tetrahydropyridine-2-carboxylate 28 was converted to methyl
4-amino-3-bromo-6-aryl-picolinate 29 by heating it in the
presence of acetic acid.10 Methyl 3-chloro-6-aryl-tetrahydropy-
ridine-2-carboxylate 30 was synthesized by treating methyl
6-aryl-tetrahydropyridine-2-carboxylate 26 with sulfuryl chloride
in dichloromethane.10 Finally, methyl 4-amino-3-fluoro-6-aryl-
picolinate 31 was synthesized by the reaction of methyl
3-chloro-6-aryl-tetrahydropyridine-2-carboxylate 30 with cesium
fluoride in dimethyl sulfoxide.
The second picolinate auxin herbicide, clopyralid (Fig. 1), was
discovered in the early 1960s via a Dow Chemical structure activity
relationship (SAR) study prompted by the discovery of picloram.4,6
Almost 40 years after the discovery of picloram, the picolinate
auxin herbicide aminopyralid (Fig. 1) was discovered at Dow
Chemical when a new electrolysis procedure, originally developed
as a method to produce clopyralid from 3,4,5,6-tetrachloropicolinic
acid, was applied to picloram to determine what compounds the
electrolysis reaction would produce. The major product of that
reaction was aminopyralid.4,7,8
This second serendipitous discovery of a picolinate auxin herbi-
cide with commercial utility catalyzed a more thorough SAR study
of the herbicidal activity associated with the picolinic acid core-
structure. This SAR study eventually resulted in the discovery of
two more picolinate auxin herbicides with commercial utility. In
the years following the discovery of aminopyralid, multiple classes
of picolinate analogs were synthesized and found to exhibit potent
herbicidal activity toward a large number of key weed species. One
of the most potent classes produced to date is the 6-aryl-picolinate
class shown in Figure 2. This report provides a brief description of
the innovative steps that led to the discovery of the 6-aryl-picoli-
nates and ultimately to the discovery of two novel auxin herbi-
cides: ArylexTM active and RinskorTM active (Fig. 2).
Finally, as shown in Scheme 5, methyl 3-chloro-6-aryl-picoli-
nate 33 was synthesized by the Suzuki reaction of clopyralid-
methyl 3211 with the appropriate boronic acid or boronic ester.
2. Results and discussion
2.1. Synthesis
2.2. SAR study that led to first 6-aryl-picolinate auxin herbicides
All of the picolinate analogs included in this report were syn-
thesized by the sequences shown in Schemes 1–5. As shown in
Scheme 1, picloram-methyl 2 was synthesized by treating picloram
15 with thionyl chloride in methanol. Methyl 4-amino-3,5-
dichloro-6-aryl-picolinates 3 and 4 were synthesized by the Suzuki
reaction of picloram-methyl 2 with the appropriate boronic acid or
boronic ester.
The carboxylic acid functional group of picolinate auxin herbi-
cides is necessary for both the phloem trapping that imparts their
systemic herbicidal activity and for the binding interaction that
causes their herbicidal effects. Herbicides that act systemically
must have some type of acidic functional group (i.e., the carboxylic
acid of aminopyralid shown in Fig. 3) that can pass through the
lipophilic walls of the phloem tubes and ionize in the basic (pH
ꢀ8) aqueous medium of the phloem. If the pKa of the acidic
As shown in Scheme 2, aminopyralid-methyl 6 was synthesized
by heating aminopyralid 57 in a mixture of methanol and sulfuric
NH2
NH2
NH2
Cl
Cl
Cl
O
Cl
Cl
Cl
O
Cl
Cl
O
OH
OMe
OMe
a
b
N
1
N
2
N
X
Z
Y
3: X, Y, Z = H, H, H
4: X, Y, Z = Cl, OCH3, F
Scheme 1. Synthesis of picolinate analogs 2–4. Reagents and conditions: (a) MeOH, SOCl2, 0–50 °C, 4 h; (b) boronic acid or boronic ester, Pd(PPh3)2Cl2, CsF, DME/water,
150 °C, 5 min.
