An improved high yield total synthesis and cytotoxicity study of the marine alkaloid neoamphimedine: An ATP-competitive inhibitor of topoisomerase IIα and potent anticancer agent

Article abstract of DOI:10.3390/md12094833

Recently, we characterized neoamphimedine (neo) as an ATP-competitive inhibitor of the ATPase domain of human Topoisomerase IIα. Thus far, neo is the only pyridoacridine with this mechanism of action. One limiting factor in the development of neo as a the

Full text of DOI:10.3390/md12094833

Mar. Drugs 2014, 12, 4833-4850; doi:10.3390/md12094833
OPEN ACCESS
marine drugs
ISSN 1660-3397
www.mdpi.com/journal/marinedrugs
Article
An Improved High Yield Total Synthesis and Cytotoxicity Study
of the Marine Alkaloid Neoamphimedine: An ATP-Competitive
Inhibitor of Topoisomerase IIα and Potent Anticancer Agent
Linfeng Li 1, Adedoyin D. Abraham 1, Qiong Zhou 1, Hadi Ali 1, Jeremy V. O’Brien 1,
Brayden D. Hamill 1, John J. Arcaroli 2, Wells A. Messersmith 2 and Daniel V. LaBarbera 1,*
1
Department of Pharmaceutical Sciences, Skaggs School of Pharmacy and Pharmaceutical Sciences,
The University of Colorado Anschutz Medical Campus, Aurora, CO 80045, USA;
E-Mails: Linfeng.2.Li@ucdenver.edu (L.L.); Adedoyin.Abraham@ucdenver.edu (A.D.A.);
Qiong.Zhou@ucdenver.edu (Q.Z.); Hadi.Ali@ucdenver.edu (H.A.);
Jeremy.OBrien@ucdenver.edu (J.V.O.); Brayden.Hamill@ucdenver.edu (B.D.H.)
2
Division of Medical Oncology, School of Medicine, The University of Colorado Anschutz Medical
Campus, Aurora, CO 80045, USA; E-Mails: John.Arcaroli@ucdenver.edu (J.J.A.);
Wells.Messersmith@ucdenver.edu (W.A.M.)
* Author to whom correspondence should be addressed; E-Mail: Daniel.LaBarbera@ucdenver.edu;
Tel.: +1-303-724-4116; Fax: +1-303-724-7266.
Received: 5 August 2014; in revised form: 25 August 2014 / Accepted: 5 September 2014 /
Published: 19 September 2014
Abstract: Recently, we characterized neoamphimedine (neo) as an ATP-competitive
inhibitor of the ATPase domain of human Topoisomerase IIα. Thus far, neo is the only
pyridoacridine with this mechanism of action. One limiting factor in the development of
neo as a therapeutic agent has been access to sufficient amounts of material for biological
testing. Although there are two reported syntheses of neo, both require 12 steps with low
overall yields (≤6%). In this article, we report an improved total synthesis of neo achieved
in 10 steps with a 25% overall yield. In addition, we report an expanded cytotoxicity study
using a panel of human cancer cell lines, including: breast, colorectal, lung, and leukemia.
Neo displays potent cytotoxicity (nM IC50 values) in all, with significant potency against
colorectal cancer (lowest IC50 = 6 nM). We show that neo is cytotoxic not cytostatic, and
that neo exerts cytotoxicity by inducing G2-M cell cycle arrest and apoptosis.

Mar. Drugs 2014, 12
4834
Keywords: marine natural product; pyridoacridine; neoamphimedine; total synthesis;
topoisomerase II; cytotoxicity; colorectal cancer; cancer therapeutics
1. Introduction
Topoisomerase II is a ubiquitous enzyme that is evolutionarily conserved in eukaryotes and
essential for modulating the topology of DNA chromatin [1–4]. In vertebrates, topoisomerase II exists
as alpha (TopoIIα) and beta isoforms that display differences in expression and sub-cellular localization
with TopoIIα playing a critical role in cell proliferation [4–7]. In particular, TopoIIα is essential for the
relaxation and catenation/decatenation (linking/unlinking) of chromatin DNA [8]. Moreover, TopoIIα
dependent decatenation must occur before M phase chromosome segregation in order to prevent
mitotic catastrophe [9–11]. Consequently, TopoIIα is an important molecular target linked to tumor
proliferation and progression in several types of human cancer [12,13].
Human TopoIIα is a homodimer comprised of 1531 amino acids containing three domains:
The N-terminus ATPase domain and the C-terminus scaffold domain, which are connected via DNA
binding and cleavage domains also located in the C-terminus [3,4] (Figure 1). Conventional TopoIIα
drugs (e.g., etoposide) bind to the C-terminus and intercalate the DNA cleavage domain [14]. This
binding mode stabilizes a transient cleaved complex with DNA, referred to as TopoIIα poisoning.
Accumulation of this complex results in DNA damage leading to non-specific cytotoxicity and
antitumor activity. While TopoIIα poisons have proven to be effective anticancer drugs they are
plagued by drug resistance and severe adverse effects, including chromosomal translocations and
secondary malignancies [8,15]. Thus, catalytic TopoIIα inhibitors that do not stabilize the cleaved
complex have been seriously pursued [13,16,17]. Arguably, the most successful catalytic inhibitors for
the treatment of cancer are the bisdioxopiperazines (e.g., ICRF-193 shown in Figure 1) [18].
These drugs display modest anti-tumor activity and are primarily used for reducing cardiotoxicity
induced by doxorubicin generated reactive oxygen species (ROS) [19]. Interestingly, their cardioprotective
effects are not due to inhibiting TopoIIα, rather it is due to their ability to chelate iron [20,21]. When
TopoIIα and DNA are in a closed clamp complex bound to ATP the bisdioxopiperazines bind
allosterically stabilizing the clamp [22]. These drugs act as TopoIIα poisons and like the cleaved
complex, accumulation of the closed clamp has been reported to cause DNA damage and therefore
may also potentiate adverse side effects [8,23]. Therefore, there is still an unmet need to identify
effective catalytic inhibitors that do not cause significant non-specific DNA damage. Marine organisms
prove to be a rich source of natural products that display catalytic inhibition of TopoIIα [24].
Nevertheless, the development of these agents has been limited, in part, due to a poor understanding
and characterization of the exact mode by which these agents bind and catalytically inhibit TopoIIα.
In our pursuit of novel TopoIIα catalytic inhibitors we have been developing the marine alkaloid
neoamphimedine (neo) (Figure 1). Recently, we characterized neo as an ATP-competitive inhibitor of
the N-terminus of TopoIIα [25]. Thus, far, neo is the only member of the pyridoacridine family with
this specific mechanism of action.

Mar. Drugs 2014, 12
Figure 1. The structures of neoamphimedine (neo) and human TopoIIα homodimer. The
4835
N-terminal ATPase domain (yellow), neo/ATP binding sites (red spheres), allosteric
binding site (black sphere), C-terminal DNA cleavage domain (blue) with TopoIIα poison
binding sites (dark blue spheres), cleaved DNA (green), and scaffolding domain (grey).
The structures of TopoIIα inhibitors are shown with dashed coordinated colored circles
indicating their respective binding sites. The TopoIIα structure is a composite of crystal
structures using Discovery Studio (Accelrys, San Diego, CA, USA), including: The
N-terminus (PDB: 1ZXM), and the C terminus dimer generated by PISA software using the
monomer (PDB: 4FM9).

Mar. Drugs 2014, 12
4836
We and others have shown neo to be a potent cytotoxic agent using various human tumor cell
lines [25–30]. Furthermore, neo displays effective in vivo antitumor activity by inhibiting the growth
of HCT-116 and KB xenograft tumors in mice [29]. Importantly, neo does not stabilize TopoIIα-DNA
complexes [29], does not cause DNA strand breaks or readily intercalate DNA below 100 μM
concentrations, and does not induce reactive oxygen species (ROS) [31]. Interestingly, neo is a potent
cytotoxic agent in cells overexpressing the multi-drug resistant pump P-glycoprotein (Pgp) [29],
indicating that it is not a substrate for efflux drug resistance. We have shown that neo overcomes drug
resistance, observed with TopoIIα poisons, due to protein-protein interactions that occur via
C-terminus interactions [25]. Thus, we hypothesize that ATP-competitive inhibition of TopoIIα may
be a more effective way to target TopoIIα with limited DNA damage and multidrug resistance.
Currently, we are intensely investigating the in vitro anticancer pharmacology and in vivo antitumor
efficacy of neo. However, our progress has been hindered due to a lack of supply of neo. Although we
have reported the first total synthesis of neo [32], which was followed by a slightly different version
from Kubo and co-workers [33], the respective overall yields are only 2% and 6%. Herein we report an
improved synthesis of neo with an overall yield of 25% and novel biological studies not previously
reported. We show that neo produced by this method displays potent cytotoxicity in a panel of human
cancers, including: breast, colorectal, lung, and Leukemia. We have characterized neo’s mechanism of
cytotoxicity as G2-M cell cycle arrest and apoptosis.
2. Results and Discussion
2.1. An Improved Total Synthesis of Neoamphimedine
Neo belongs to the family of compounds known as the pyridoacridines (Figure 2), which consists
of more than one hundred natural and synthetic derivatives that display a range of biological
activities [26,28,32,34,35]. As a result, the total syntheses of active pyridoacridines have been well
studied over the past thirty years [26,34,36,37]. Many of these have been reported in the literature as
catalytic inhibitors of TopoIIα [24]. Molinski first reported neo’s structure and activity in a 1993
review and then later by Ireland’s group in 1999 [27,34]. Subsequent to these initial reports, Barrows
and Marshall reported neo’s broad antitumor activity in vitro and in vivo [29]. Arguably, neo is one of
the most potent antitumor agents of the pyridoacridine family [28]. Yet, neo was not synthesized until
2007 [32], which is attributed to a much more challenging synthesis evidenced by relatively more steps
and lower overall yields compared to other pyridoacridines. For example, Echavarren and Stille first
synthesized amphimedine (Figure 2), the parent derivative of neo that differs by one functional group,
in 1988 with an overall yield of 23% in eight steps [38]. Subsequent reports by Kubo [39,40],
Guillier et al. [41], Prager et al. [42] and Bracher and Papke [43] followed. In all of these cases, the
synthesis of amphimedine was accomplished using palladium catalyzed crossed coupling and/or hetero
Diels-Alder reactions to form the E-ring (Figure 2). While palladium catalyzed cross coupling can be
used to generate the A and B rings of neo, the formation of the E-ring is not possible via the
Diels-Alder reaction. Instead, LaBarbera and Ireland prepared neo’s E-ring by first introducing a
carboxcylic acid in the seven position (numbering based on the quinoline ring) via a Sandmeyer
reaction with CuCN and subsequent hydrolysis, followed by amide formation with methylamino

Mar. Drugs 2014, 12
4837
dimethyl acetal and acid catalyzed ring closure [32]. Recently, Kubo and co-workers attempted to
improve the neo synthesis by generating the E-ring using Bischler-Napieralski cyclization from a
phenethyl amine functionality [33]. Both of these syntheses required 12 steps and resulted in low
overall yields as described above.
Figure 2. The acridine/acridone skeleton and structures of amphimedine and neoamphimedine.
We present here a redesigned neo synthesis that is more efficient and higher yielding. Overall, the
design of this improved synthesis was inspired by the work described above, particularly from the
original neo synthesis by LaBarbera et al. [32] and subsequent synthesis by Nakahara et al. [33]. Our
initial design and plan examined the formation of the E-ring early on in the synthesis using both the
acid catalyzed ring closure reported by LaBarbera and the Curtius thermal rearrangement a cyclization,
which is a well-known method to generate isoquinolone ring systems [44,45].
All of these methods failed to provide the desired E-ring, which we thoroughly describe in the
Supplementary Information. Nevertheless, these tribulations led us to the design and successful
completion of the high yielding and efficient synthesis of neo (25% overall yield in 10 steps). The
synthesis begins from commercially available methyl 2,5-dimethoxy-3-nitrobenzoate (1).
Alternatively, due to the relatively high cost of 1, it can be synthesized in 2 steps, in 77% yield from
methyl 5-methoxysalicylate using a modified reported method [46] (Scheme 1).
Scheme 1. The synthesis of nitro starting material 1.
In our previous synthesis of neo, the A and D rings (Figure 2), were prepared in four steps via
Knorr cyclization. However, this method was cumbersome requiring viscous polyphosphoric acid and
in general gave poor yields. Therefore, to prepare the A and D rings we utilized the Meldrum’s
derivatization and subsequent palladium catalyzed cross coupling reaction, which was reported by
Stille [38] and Kubo [33] to be efficient and high yielding. Catalytic hydrogenation of the
nitrobenzoate 1 gave aniline 2, which was transformed into compound 3 by treatment with Meldrum’s
acid and trimethyl orthoformate. Subsequent thermal ring closure afforded the key quinolone
intermediate 4 with an overall yield of 78% in three steps without flash chromatography (Scheme 2).

Mar. Drugs 2014, 12
4838
Scheme 2. The synthesis of the quinolone intermediate 4.
Next, quinolone 4 was then converted to the triflate ester by stirring in dry dichloromethane in the
presence of trifluoromethanesulfonic anhydride using catalytic amounts of dimethyl amino pyridine
(DMAP) [38], producing 5 in 92% yield. Palladium catalyzed Stille coupling of 5 with the readily
available trimethyl (2-nitrophenyl) stannane [47] afforded 6 in 83% yield. Similarly, this key nitro
intermediate can also be prepared by the Suzuki coupling of bromide 7 and 2-nitrophenyl boronic
acid [33,48] (Scheme 3). First, we attempted Suzuki coupling with the triflate 5, which failed giving
only the parent quinolone 4 due to hydrolysis. Next, we tried direct conversion of 4 to 7 using POBr3
or PBr3 but this method was abandoned due to very low yields. However, reaction of triflate 5 with
LiBr in DMF provided bromide 7 smoothly. While the direct Stille coupling of 5 gave 6 in 83% yield
in one step, we elected to scale up using the 2-step bromination-Suzuki sequence from 5, in 72% yield,
due to the relatively higher cost and known toxicity of organotin compounds [49].
Scheme 3. The synthesis neoamphimedine from quinolone 4.

Mar. Drugs 2014, 12
4839

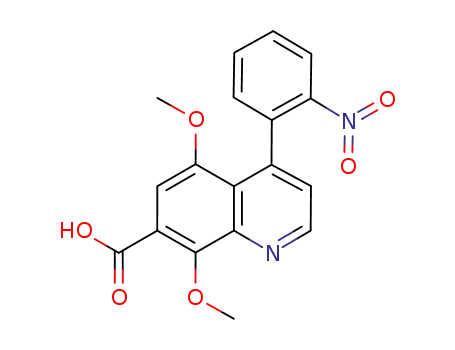

The ester 6 was hydrolyzed using lithium hydroxide and the corresponding acid was then
coupled to methylamino acetaldehyde dimethylacetal with “green” reagent propylphosphonic
anhydride (T3P) to give amide 8 in 92% yield over two steps. The E-ring of neo was formed using our
previously reported acid catalyzed ring closure method [32], which provides a mixture of dimethoxy
and quinone, intermediates. This mixture was catalytically reduced followed by oxidative demethylation
with ceric ammonium (IV) nitrate (CAN) to give neo as an orange solid in 46% yield. All spectral data
were in accordance with previously reported values for neo [27,32]. In summary, the improved
synthesis of neo was achieved in 10 steps with an overall yield of 25%, which is 4.2 fold better than
Nakahara et al. [33] and 12.5 fold better than LaBarbera et al. [32].
Table 1. Cytotoxicity IC50 values obtained of neo compared to etoposide. The etoposide
values are taken as reported in reference ** [50] or obtained from * the CancerDR: Drug
resistance data base [51].
Human Cancer Cells
Neo IC50 (μM)
Breast
0.433
Etoposide IC50 (μM)
MCF7
MDA-MB-231
PMC42LA
T47D
0.83 *
9.03 *
—
0.76
0.723
0.740
11.58 *
Colorectal
0.229
HCT116
SW48
1.01 *
0.87 *
6.4 **
0.39 *
0.006
SW480
SW620
0.383
0.060
Leukemia
0.135
HEL
3.88 *
1.32 *
0.38 *
—
Kasumi I
Molm13
0.244
0.018
OCI AML3
0.036
Lung
A549
H2009
0.489
3.9 **
—
1.095
HCC827
SW1573
2.957
—
0.157
2.25 *
2.2. Cytotoxicity Studies with Neo Using a Panel of Human Colorectal Cancer Cell Lines
As described above, neo proves to be cytotoxic against various human cancer cells [25–30]. To
further characterize neo’s anticancer activity we conducted sulforhodamine B (SRB) assays for
adherent cells [52] and the acid phosphatase assay for non-adherent cells [53] using a panel of human
cancer cell lines (Table 1). As expected, neo displayed potent cytotoxicity in all cell lines tested.
In particular, neo was highly cytotoxic against colorectal cancer cells with IC50 values ranging between
6 nM to 383 nM. The most potent activity was observed against SW48 (6 nM) as well as the metastatic
SW620 cells (60 nM) [54]. Furthermore, neo was significantly more cytotoxic than the conventional

Mar. Drugs 2014, 12
4840
TopoIIα poison, etoposide. Interestingly, TopoIIα poisons are not prescribed for the treatment of
colorectal cancers, presumably due to poor response and drug resistance observed in the clinic [55].
While neo appears to be cytotoxic, we utilized the SRB recovery assay to determine whether the
inhibitory effect of neo is indeed cytotoxic or potentially cytostatic in nature [56,57]. Thus, the SRB
recovery assay was performed simultaneously using HCT116, SW620, and SW480 human colorectal
cancer cell lines. If neo has a cytostatic effect, the cells will begin to divide during the 72 h recovery
time following the removal of neo, and the overall growth in the treatment wells will be similar to cell
growth in control wells. If neo is cytotoxic, there will be little difference in cell growth between the
SRB plate and the SRB recovery plate, and the IC50 values should be comparable. Our results
exhibited no change in cell growth during the 72 h recovery period and displayed virtually identical
IC50 values compared to the parallel SRB assay, illustrating that neo is cytotoxic in nature.
Figure 3. (a) FACS cell cycle analysis of SW48 cells treated with neo for 48 h. The bar
graph indicates the different phases of the cell cycle showing statistically significant
increase in the G2-M phase, indicative of a cell cycle arrest mechanism; (b) FACS analysis
quantifying annexin V-positive staining of SW48 cells treated with neo over 48 h
indicating apoptosis. t-test analysis indicates significance where * p ≤ 0.05 or *** p ≤ 0.001.
2.3. Neo Exerts Cytotoxicity by Inducing G2-M Cell Cycle Arrest and Apoptosis
Although neo has been shown to be cytotoxic the exact mechanism of cell death has not been
characterized. Therefore, using fluorescence-activated cell sorter (FACS) analysis [58,59], we
measured neo’s effect on the cell cycle and apoptosis using SW48 cells treated with 0.60 μM neo for
48 h (Figure 3). Propidium iodide staining followed by FACS indicated that the percentage of cells in
the G1 phase of the cell cycle were the same for both neo treated and control cells. However, we
observed a decrease in the S phase population and a statistically significant increase in the G2-M phase
population (Figure 3A). Taken together, these data indicate that neo induces cell cycle arrest in the
G2-M phase of the cell cycle. Interestingly, TopoIIα dependent chromatin decatenation has been
shown to be required for G2-M phase cell cycle progression and inhibiting TopoIIα dependent
decatenation arrests cells in the G2-M phase [11]. However, TopoIIα poison (e.g., etoposide) induced
DNA damage does not recapitulate this cell cycle arrest mechanism [60]. Thus, the data shown in
Figure 3 support our previous finding that neo acts via ATP-competitive inhibition of the N-terminal

Mar. Drugs 2014, 12
4841
ATPase domain of TopoIIα but not as a TopoIIα poison that results in significant DNA damage. Our
data are also in agreement with findings by Barrows and co-workers who have shown that neo does not
induce significant DNA damage or intercalate DNA below 100 μM [29,31]. Next, using propidium
iodide co-stained with annexin V, we measured neo’s ability to induce apoptosis. Annexin V staining
detects exposed phosphatidyl serine, which is an early event and biomarker of apoptosis [61]. FACS
analysis showed that neo induced a statistically significant two-fold induction of annexin V staining
compared to the vehicle control cells, indicating that neo induces cell death by apoptosis.
3. Experimental Section
3.1. General Experimental Procedures
All reagents were purchased from commercial sources and used as received, unless otherwise
indicated. All solvents were dried and distilled using standard protocols. All reactions were carried out
under a nitrogen atmosphere unless otherwise noted. All organic extracts were dried over sodium
sulfate. Thin layer chromatography (TLC) was performed using aluminum-backed plates coated with
60Å Silica gel F254 (Sorbent Technologies, Norcross, GA, USA). Plates were visualized using a UV
lamp (λmax = 254 nm) and/or by staining with phosphomolybdic acid solution (20 wt% in ethanol).
Column chromatography was carried out using 230–400 mesh 60Å silica Gel. Proton (δH) and carbon
(δC) nuclear magnetic resonances were recorded on a Varian INOVA 500 MHz spectrometer
(500 MHz proton, 125.7 MHz carbon, Agilent Technologies, Santa Clara, CA, USA). High-resolution
mass spectra (HRMS) were recorded on a Bruker Q-TOF-2 Micromass spectrometer (Bruker, Fremont,
CA, USA) equipped with lock spray, using ESI with methanol as the carrier solvent. Accurate mass
measurements were performed using leucine enkephalin as a lock mass and the data were processed
using MassLynx 4.1 (Bruker, Fremont, CA, USA). Exact m/z values are reported in Daltons. Melting
points (m.p.) were determined using a Stuart SMP40 melting point apparatus (Bibby Scientific,
Staffordshire, UK) and are uncorrected. Infrared (IR) spectra were recorded on a Bruker ALPHA
FT-IR fitted (Bruker, Bellerica, MA, USA) with a Platium ATR diamond sampler (oils and solids were
examined neat). Absorption maxima (νmax) are recorded in wavenumbers (cm−1). The 1H NMR and 13C
NMR spectra for all synthetic compounds are provided in the Supplementary Information.
3.2. Cell Culture
Human breast, colorectal, lung, and leukemia cancer cell lines were cultured using Hyclone media
containing 5% FBS (Hyclone, Life Technologies, Grand Island, NY, USA) and maintained under
standard humidified incubation at 37 °C in 5% CO2, including: MEM (T47D), DMEM (MCF7), or
RPMI (MDA-MB-231, PMC42LA, HCT116, SW48, SW480, SW620, A549, H2009, HCC827,
SW1573, HEL, Kasumi 1, Molm13, OCI AML3).
3.3. Sulforhodamine B (SRB) Cytotoxicity Assay
Breast, colon, and lung cancer cells (4000/well for PMC42LA; 3000/well for MCF7 and
MDA-MB-231; 2500/well for SW48 and SW480; 2000 for SW620; 1500 for H2009, HCC827,
SW1573, and T47D; and 1000/well for A549 and HCT116) were plated in triplicate in 96-well plates

Mar. Drugs 2014, 12
4842
(100 μL/well). One well containing media only was included as the background control. After 24 h,
cells were treated with increasing doses of neo (100 μL/well). Cell growth was analyzed using the SRB
assay [52]. Briefly, after 72 h of drug exposure, cells were fixed with 10% trichloroacetic acid
(Sigma T6399, St. Louis, MO, USA) at 4 °C for 30 min, washed with double distilled water (ddH2O),
and stained with 0.057% SRB (Sigma S1402, St. Louis, MO, USA). Unbound stain was removed by
washing with 1% acetic acid. Protein-bound SRB was solubilized with 10 mmol/L unbuffered Tris
base, and the optical density was measured at an absorbance wavelength of 570 nm.
3.4. SRB Recovery Assay
The SRB cytotoxicity assay was followed through 72 h of drug exposure as described in
Section 3.3. At the end of the 72 h neo treatment, the growth medium was removed and the remaining
cells were washed once with 200 μL of sterile PBS. The PBS was replaced with 200 μL of complete
growth medium and the cells were allowed to recover for 72 h. After recovery, cells were fixed with
10% trichloroacetic acid (Sigma T6399, St. Louis, MO, USA) at 4 °C for 30 min, washed with double
ddH2O, and stained with 0.057% SRB (Sigma S1402, St. Louis, MO, USA). Unbound stain was
removed by washing with 1% acetic acid. Protein-bound SRB was solubilized with 10 mmol/L
unbuffered Tris base, and the optical density was measured at an absorbance wavelength of 570 nm.
3.5. Acid Phosphatase (APH) Assay
Leukemia cells (5000 in 100 μL per well) were plated in triplicate in 96-well plates using phenol
red free RPMI (Invitrogen, Life Technologies, Grand Island, NY, USA) containing 5% FBS
(Hyclone). One well containing media only was included as the background control. Twenty-four
hours later, cells were treated with increasing doses of neo (25 μL/well). Cell growth was analyzed
using the APH assay [53]. Briefly, 125 μL of APH assay buffer (0.1 M sodium acetate (pH 5.0), 0.1%
Triton X-100, and 10 mM p-nitrophenyl phosphate) was added to each well and the plates were
incubated at 37 °C for 90 min. The optical density was measured at an absorbance wavelength
of 405 nm after adding 10 μL of 1 N NaOH to each well.
3.6. FACS Analysis of Cell Cycle Distribution and Apoptosis
Cell cycle and apoptosis experiments were conducted as previously reported with slight
modification [59]. Briefly, SW48 cells (2 × 105 per well) were seeded into six-well plates and
incubated for 24 h. Cells were treated with neo (0.6 μM) for 48 h, washed with PBS, and trypsinized
with 0.5 mL of 0.25% trypsin. Cells were collected by centrifugation (1000 rpm, 5 min), washed twice
with 2 mL of ice-cold 1 × PBS (pH 7.4) and resuspended in staining buffer (1 × Dulbecco’s PBS, 3%
FCS, 0.09% NaN3, pH 7.4) containing 5 μg of propidium iodide (Sigma P-4170, St. Louis, MO, USA).
The cells were stained for 24 h at 4 °C in the dark followed by FACS cell cycle analysis. Likewise,
SW48 cells treated with neo were also assessed for apoptosis using an annexin V Apoptosis Detection
kit (eBioscience-cat# BMS500FI, San Diego, MO, USA) according to manufacture instructions. Cells
were resuspended in 200 μL binding buffer and treated with 5 μL of annexin V-FITC, incubated for 10 min
at room temperature in the dark and then washed with 200 μL binding buffer. Next, 10 μL of propidium

Mar. Drugs 2014, 12
4843
iodide (20 μg/mL) was added followed by FACS analysis. FACS analyses were carried out at the
University of Colorado Cancer Center Flow Cytometry core facility using a Beckman Coulter Gallios
561 flow cytometer (Beckman Coulter, Brea, CA, USA) equipped with Kaluza G acquisition software
(Beckman Coulter, Brea, CA, USA).
3.7. Synthetic Procedures
3.7.1. Methyl 2-hydroxy-5-methoxy-3-nitrobenzoate
A solution of methyl 2-hydroxy-5-methoxybenzoate (5.70 g, 31.3 mmol) in acetic acid (33 mL) was
stirred between 15 and 20 °C. A solution of HNO3 (2.40 mL, 37.5 mmol) in acetic acid (9 mL) was
slowly added while maintaining the reaction temperature below 20 °C. The reaction mixture was
stirred at room temperature for 1 h, 100 mL of ice water was then added. The solid was filtered off and
dried to give the nitrated compound (5.90 g, 26.0 mmol, 83%) as an orange solid. TLC (35% ethyl
acetate in hexane) Rf = 0.40. Spectral analysis were in accordance with previously reported values [62].
3.7.2. Methyl 2,5-Dimethoxy-3-nitrobenzoate (1)
To a stirred suspension of methyl 2-hydroxy-5-methoxy-3-nitrobenzoate (6.94 g, 30.5 mmol) and
anhydrous K2CO3 (6.33 g, 45.8 mmol) in acetone (40 mL) was added dimethyl sulfate (3.48 mL,
36.6 mmol) drop wise. The reaction mixture was heated to reflux for 5 h and then filtered. The filtrate
was concentrated and recrystallized with methanol to afford 1 (6.88 g, 28.5 mmol, 93%) as a white
crystlline solid. TLC (35% ethyl acetate in hexane) Rf = 0.48. All spectral analysis results were in
accordance with previously reported values [46].
3.7.3. Methyl 3-((2,2-Dimethyl-4,6-dioxo-1,3-dioxan-5-ylidene)methyl-amino)-2,5-dimethoxy-benzoate (3)
Ester 1 (2.86 g, 11.86 mmol) and palladium on carbon (10 wt% loading, 126.2 mg, 0.119 mmol) in
MeOH (20 mL) were shaken in a Parr hydrogenator for 3 h under 50 psi of H2. After filtration
of the catalyst, evaporation of the filtrate under reduced pressure gave the amine 2 as an orange oil,
which was used without further purification. A solution of 2,2-dimethyl-1,3-dioxane-4,6-dione (2.57 g,
17.8 mmol) in trimethyl orthoformate (25 mL) was heated at 90 °C for 2 h and the crude amine 2 was
added, the reaction mixture was stirred at 90 °C for another 2 h. After the reaction mixture was cooled
to room temperature it was filtered through silica gel and recrystallized from methanol to afforded 3
(3.91 g, 10.7 mmol, 90%) as a yellow solid. M.p. 132–134 °C; IR (neat) νmax 3234, 2982, 1713, 1678,
1
1627, 1598, 1455, 1260 cm−1; TLC (35% ethyl acetate in hexane) Rf = 0.30; H NMR (500 MHz,
CDCl3) δ 11.73 (d, J = 14.0 Hz, 1H), 8.66 (d, J = 14.5 Hz, 1H), 7.19 (d, J = 3.0 Hz, 1H), 7.10 (d,
J = 3.0 Hz, 1H), 3.96 (s, 3H), 3.92 (s, 3H), 3.86 (s, 3H), 1.76 (s, 6H); 13C NMR (125.7 MHz, CDCl3) δ
165.1, 165.0, 163.3, 155.9, 150.8, 143.7, 133.1, 125.8, 112.8, 105.3, 105.0, 88.2, 62.7, 55.9, 52.5, 27.0;
ESI-HRMS calcd. for C17H19NO8Na [M + Na]+ 388.1003, found 388.1011.

Mar. Drugs 2014, 12
4844
3.7.4. Methyl 1,4-Dihydro-5,8-dimethoxy-4-oxo-quinoline-7-carboxylate (4)
The meldrum derivative 3 (1.38 g, 3.78 mmol) in diphenyl ether (8 mL) was refluxed under
nitrogen for 30 min. After the mixture was cooled to room temperature, hexane (100 mL) was added.
Filtration of the reaction mixture afforded the quinolone 4 (868.3 mg, 3.30 mmol, 87%) as a yellow
solid. M.p. 233 °C; IR (neat) νmax 3071, 2996, 2943, 1709, 1609, 1580, 1508, 1224 cm−1; TLC (10%
MeOH in ethyl acetate) Rf = 0.10; 1H NMR (500 MHz, DMSO-d6) δ 11.21 (s, 1H), 7.68 (d, J = 6.5 Hz,
1H), 6.89 (s, 1H), 5.98 (d, J = 7.5 Hz, 1H), 3.90 (s, 3H), 3.82 (s, 3H), 3.79 (s, 3H); 13C NMR (125.7 MHz,
DMSO-d6) δ 176.5, 165.2, 154.8, 142.2, 137.9, 136.9, 124.5, 119.0, 112.5, 103.0, 62.7, 55.9, 52.6;
ESI-HRMS calcd. for C13H13NO5Na [M + Na]+ 286.0686, found 286.0675.
3.7.5. Methyl 5,8-Dimethoxy-4-trifluoromethanesulfonyloxy-quinoline-7-carboxylate (5)
To a stirred solution of quinolinone 4 (1.65 g, 5.85 mmol), 2,6-dimethylpyridine (1.02 mL,
8.77 mmol) and DMAP (142.9 mg, 1.17 mmol) in CH2Cl2 (12 mL) at 0 °C was added
trifluoromethanesulfonic anhydride (1.04 mL, 6.14 mmol) drop wise. The reaction mixture was
allowed to warm up to room temperature, stirred for 4 h and then concentrated. Chromatographic
purification on silica gel (35% ethyl acetate in hexane) afforded triflate 5 (2.13 g, 5.39 mmol, 92%).
Yellow solid; M.p. >86 °C (dec); IR (neat) νmax 2949, 1698, 1606, 1424, 1381, 1202 cm−1; TLC (50%
1
ethyl acetate in hexane) Rf = 0.49; H NMR (500 MHz, CDCl3) δ 9.03 (d, J = 5.0 Hz, 1H), 7.32 (d,
13
J = 5.0 Hz, 1H), 7.28 (s, 1H), 4.15 (s, 3H), 4.03 (s, 3H), 4.02 (s, 3H); C NMR (125.7 MHz, CDCl3)
1
δ 166.3, 153.1, 151.0, 150.6, 149.9, 147.1, 125.0, 118.9 (q, JC–F = 320.9 Hz), 117.5, 115.4, 107.0,
63.7, 55.9, 52.9; ESI-HRMS calcd. for C14H13F3NO7S [M + H]+ 396.0359, found 396.0367.
3.7.6. Methyl 4-Bromo-5,8-dimethoxy-quinoline-7-carboxylate (7)
A suspension of triflate 5 (502.1 mg, 1.27 mmol) and LiBr (551.6 mg, 6.35 mmol) in DMF (4 mL)
was heated to 80 °C for 1 h. After cooling to room temperature, the mixture was diluted with ethyl
acetate and washed with sat. NaHCO3. The organic extracts were dried over Na2SO4, filtered and
concentrated in vacuo to give the desired bromide 7 (364.7 mg, 1.12 mmol, 88%). Light yellow solid;
M.p. 121–122 °C; IR (neat) νmax 2935, 1731, 1614, 1566, 1459, 1095 cm−1; TLC (50% ethyl acetate in
1
hexane) Rf = 0.47; H NMR (500 MHz, CDCl3) δ 8.67 (d, J = 4.5 Hz, 1H), 7.77 (d, J = 4.5 Hz, 1H),
13
7.24 (s, 1H), 4.12 (s, 3H), 4.00 (s, 3H), 3.98 (s, 3H); C NMR (125.7 MHz, CDCl3) δ 166.5, 151.1,
150.8, 149.5, 145.9, 129.2, 129.0, 123.9, 122.8, 106.6, 63.5, 55.9, 52.7; ESI-HRMS calcd. for
C13H13BrNO4 [M + H]+ 326.0023, found 326.0031.
3.7.7. Methyl 5,8-Dimethoxy-4-(2-nitrophenyl)-quinoline-7-carboxylate (6)
From triflate 5: To a stirred solution of triflate 5 (1.29 g, 3.26 mmol), CuI (310.4 mg, 1.63 mmol)
and 2-nitrophenyltrimethyl stanne (1.40 g, 4.89 mmol) in DMF (6 mL) were added Pd(OAc)2
(14.6 mg, 65.2 μmol) and dppe (26.0 mg, 65.2 μmol). The reaction mixture was heated to 75 °C for 6 h.
After cooling to room temperature, the dark reaction mixture was filtered through celite and concentrated,
chromatographic purification on silica gel (35% ethyl acetate in hexane) provided 6 (990.7 mg,
2.69 mmol, 83%) as a light yellow solid; M.p. 159–160 °C; IR (neat) νmax 2938, 2846, 1726, 1515,

Mar. Drugs 2014, 12
4845
1
1460, 1373, 1230 cm−1; TLC (50% ethyl acetate in hexane) Rf = 0.30; H NMR (500 MHz, CDCl3)
δ 9.03 (d, J = 4.5 Hz, 1H), 8.20–8.18 (dd, J = 1.5, 8.0 Hz, 1H), 7.69–7.65 (dt, J = 1.5, 7.5 Hz, 1H),
7.59–7.56 (dt, J = 1.5, 7.5 Hz, 1H), 7.31–7.29 (dt, J = 1.5, 7.5 Hz, 1H), 7.25 (d, J = 4.5 Hz, 1H), 7.06
13
(s, 1H), 4.20 (s, 3H), 3.99 (s, 3H), 3.47 (s, 3H); C NMR (125.7 MHz, CDCl3) δ 166.7, 151.5, 151.2,
150.0, 147.9, 144.8, 144.4, 137.6, 132.8, 131.0, 128.5, 123.7, 123.3, 123.1, 121.5, 105.5, 63.7, 55.7,
52.6; ESI-HRMS calcd. for C19H17N2O6 [M + H]+ 369.1081, found 369.1075. From bromide 7: To a
stirred solution of bromide 7 (178.0 mg, 0.546 mmol), Cs2CO3 (889.4 mg, 2.73 mmol) and 2-nitrophenyl
boronic acid (182.3 mg, 1.09 mmol) in dioxane/H2O (3 mL, v/v, 10:1) were added Pd(PPh3)4 (63.1 mg,
54.6 μmol). The reaction mixture was heated to 80 °C for 24 h. After cooling to room temperature, the
reaction mixture was filtered through celite and concentrated, chromatographic purification on silica
gel (35% ethyl acetate in hexane) provided 6 (167.2 mg, 0.454 mmol, 83%) as a light yellow solid.
3.7.8. 7-[N-(2,2-Dimethoxyethyl)-N-methyl]-carboxamide-5,8-dimethoxy-4-(2-nitrophenyl) quinoline (8)
To a stirred solution of 6 (784.2 mg, 2.12 mmol) in THF/MeOH/H2O (7.5 mL, v/v/v, 2:2:1) were
added LiOH·H2O (268.0 mg, 6.39 mmol) in one portion. The reaction mixture was stirred at room
temperature for 10 h and concentrated to yield the crude carboxylic acid. To a stirred solution of
carboxylic acid residue and methylamino acetaldehyde dimethylacetal (327 μL, 2.54 mmol) in CH2Cl2
(6 mL) at 0 °C, was added propylphosphonic anhydride (T3P, 1.87 mL, 50 wt% in ethyl acetate,
3.18 mmol) drop wise. The reaction mixture was allowed to warm up to room temperature and stirred
for 3 h. The reaction mixture was diluted with H2O (40 mL) and washed with CH2Cl2 (3 × 30 mL).
The combined organic extracts were dried over Na2SO4, filtered and concentrated to give amide 8
(888.9 mg, 1.95 mmol, 92%) as an orange oil, which was used directly for next step without further
purification. All spectral analysis results were in accordance with previously reported values [32].
3.7.9. Neoamphimedine (neo)
Neo was prepared from dimethyl acetal 8 (200.8 mg, 0.441 mmol) as previously reported [32] with
minor modifications to the workup. Briefly, after acid catalyzed ring closure (20 min, 150 °C) the
reaction was poured into 100 mL of ice water and made basic to pH = 9 with K2CO3. The aqueous
layer was extracted first with ethyl acetate (3 × 100 mL) and then with CHCl3 (3 × 100 mL). The
ethylacetate extract contains a mixture of dimethoxy (previously reported by LaBarbera et al. [32];
TLC, 30% MeOH in ethyl acetate, Rf = 0.41) and we presume hydroquinone (TLC, 30% MeOH in
ethyl acetate, Rf = 0.25). In addition, the crude chloroform extract (68.9 mg) contains a mixture of the
presumed hydroquinone (TLC, 30% MeOH in ethyl acetate, Rf = 0.25) and quinone (TLC, 50% CHCl3
in MeOH, Rf = 0.43). Upon concentration of the organic extracts the presumed hydroquinone rapidly
air oxidizes to the quinone, which is stable, thus NMR and MS analysis was possible for the quinone,
1
8-methyl-4-(2-nitrophenyl)-pyrido-[4,3-g]-quinoline-5,9,10-trione: H NMR (500 MHz, DMSO-d6)
δ 9.10 (d, J = 4.0 Hz, 1H), 8.30 (t, J = 6.5 Hz, 2H), 7.87 (t, J = 6.5 Hz, 1H), 7.70 (t, J = 6.0 Hz, 1H),
13
7.67 (d, J = 4.0 Hz, 1H), 7.43 (d, J = 6.0 Hz, 1H), 6.58 (d, J = 6.0 Hz, 1H), 3.56 (s, 3H); C NMR
(125.7 MHz, DMSO-d6) δ 183.6, 178.0, 157.8, 154.4, 149.2, 147.6, 147.4, 146.6, 144.3, 134.3, 130.6,
129.6, 128.0, 125.5, 124.3, 118.6, 99.5, 38.2; ESI-HRMS calcd. for C19H11N3O5Na [M + Na]+
384.0596, found 384.0579. The crude ethyl acetate extract was purified by column chromatography

Mar. Drugs 2014, 12
4846
using alumina (Brockman acitivity I neutral, 50% acetone in ethyl acetate to 50% CHCl3 in MeOH) to
afford a yellow oil (58.7 mg) containing quinone (resulting from hydroquinone air oxidation) and
dimethoxy intermediates (see Scheme 3). The mixtures were combined and used without purification.
Next, to a stirred solution of the combined crude residues in cyclohexene/EtOH (18 mL, v/v, 1:2)
was added palladium (10 wt% on carbon, 234.7 mg, 0.221 mmol) and heated at reflux for 90 min and
then filtered using a fine fritted glass filter. Note: the reduced mixture is very sticky and no celite or
filter paper should be used for filtration. In addition, after filtering the catalyst off it was washed
with 1 L of a 1:1 solution of methanol and CHCl3, which greatly improves the overall yield. Next, the
filtrate was concentrated to give a pale yellow residue, which was dissolved into 5 mL of CH3CN and
cooled to 0 °C on an ice bath. A solution of CAN (241.8 mg, 0.441 mmol) in 5 mL of H2O was added
drop wise to the ice-cold CH3CN solution and stirred at 0 °C for 15 min. The reaction mixture was
allowed to warm to room temperature and stirred for an additional 45 min. The pH of the solution was
adjusted with saturated NaHCO3 (pH = 8) and extracted with CHCl3 (3 × 100 mL). The combined
organic extracts were dried over Na2SO4, filtered and concentrated to afford neo as an orange solid
1
(63.4 mg, 0.202 mmol, 46%). HRMS and H NMR spectral analysis were in accordance with
1
previously reported values [27,32]. The H NMR and the HRMS spectra are provided in the
Supplementary Information.
4. Conclusions
The pyridoacridine compound family has captivated the scientific community because of its
interesting and challenging chemistry but also due to its potent biological activities. The development of
neo, one of the most successful antitumor pyridoacridines, has been relatively slow due to supply
issues despite the report of two total syntheses. In this article, we report an efficient ten-step synthesis
of neo with an overall yield of 25%, which is a great improvement over previous syntheses. In this
report, we further characterize neo’s potent cytotoxicity in a panel of human tumor cell lines. For solid
tumors, the most potent activity was observed against SW48 and SW620 colorectal cancer cells, with
the IC50 values of 6 and 60 nM, respectively. Neo is significantly more cytotoxic than the conventional
TopoIIα poison, etoposide. We show that neo is cytotoxic not cytostatic, and that neo exerts
cytotoxicity by inducing G2-M cell cycle arrest and apoptosis. These studies support the continued
development of neo as a potential therapeutic for the treatment of cancer.
Acknowledgments
This research was supported by the Department of Defense (DoD) [Peer Reviewed Cancer Research
Program] under award number (W81XWH-13-1-0344), career development award to D.V. LaBarbera.
The views and opinions by the authors do not reflect those of the US Army or the DoD.
Author Contributions
Conceived and designed the experiments: DVL LL QZ WM. Performed the experiments: LL AA
QZ HA JO BH JA. Analyzed the data: DVL LL QZ. Wrote the paper: DVL LL QZ HA.

Mar. Drugs 2014, 12
4847
Conflicts of Interest
The authors declare no conflict of interest.
References
1. Osheroff, N.; Zechiedrich, E.L.; Gale, K.C. Catalytic function of DNA topoisomerase II.
BioEssays: News Rev. Mol. Cell. Dev. Biol. 1991, 13, 269–275.
2. Berger, J.M.; Gamblin, S.J.; Harrison, S.C.; Wang, J.C. Structure and mechanism of DNA
topoisomerase II. Nature 1996, 379, 225–232.
3. Champoux, J.J. DNA topoisomerases: Structure, function, and mechanism. Annu. Rev. Biochem.
2001, 70, 369–413.
4. Vos, S.M.; Tretter, E.M.; Schmidt, B.H.; Berger, J.M. All tangled up: How cells direct, manage
and exploit topoisomerase function. Nat. Rev. Mol. Cell Biol. 2011, 12, 827–841.
5. Bates, A.D.; Berger, J.M.; Maxwell, A. The ancestral role of ATP hydrolysis in type II
topoisomerases: Prevention of DNA double-strand breaks. Nucleic Acids Res. 2011, 39,
6327–6339.
6. Linka, R.M.; Porter, A.C.G.; Volkov, A.; Mielke, C.; Boege, F.; Christensen, M.O. C-Terminal
regions of topoisomerase IIα and IIβ determine isoform-specific functioning of the enzymes
in vivo. Nucleic Acids Res. 2007, 35, 3810–3822.
7. Hande, K.R. Topoisomerase II inhibitors. Update Cancer Ther. 2006, 1, 3–15.
8. Nitiss, J.L. DNA topoisomerase II and its growing repertoire of biological functions. Nat. Rev.
Cancer 2009, 9, 327–337.
9. Downes, C.S.; Clarke, D.J.; Mullinger, A.M.; Gimenez-Abian, J.F.; Creighton, A.M.; Johnson, R.T.
A topoisomerase II-dependent G2 cycle checkpoint in mammalian cells. Nature 1994, 372,
467–470.
10. Gimenez-Abian, J.F.; Clarke, D.J.; Mullinger, A.M.; Downes, C.S.; Johnson, R.T. A postprophase
topoisomerase II-dependent chromatid core separation step in the formation of metaphase
chromosomes. J. Cell Biol. 1995, 131, 7–17.
11. Bower, J.J.; Karaca, G.F.; Zhou, Y.; Simpson, D.A.; Cordeiro-Stone, M.; Kaufmann, W.K.
Topoisomerase IIα maintains genomic stability through decatenation G2 checkpoint signaling.
Oncogene 2010, 29, 4787–4799.
12. Azarova, A.M.; Lyu, Y.L.; Lin, C.P.; Tsai, Y.C.; Lau, J.Y.N.; Wang, J.C.; Liu, L.F. From the
Cover: Roles of DNA topoisomerase II isozymes in chemotherapy and secondary malignancies.
Proc. Natl. Acad. Sci. USA 2007, 104, 11014–11019.
13. Nitiss, J.L. Targeting DNA topoisomerase II in cancer chemotherapy. Nat. Rev. Cancer 2009, 9,
338–350.
14. Wu, C.-C.; Li, T.-K.; Farh, L.; Lin, L.-Y.; Lin, T.-S.; Yu, Y.-J.; Yen, T.-J.; Chiang, C.-W.;
Chan, N.-L. Structural basis of type II topoisomerase inhibition by the anticancer drug etoposide.
Science 2011, 333, 459–462.
15. Corbett, K.D.; Berger, J.M. Structure, molecular mechanisms, and evolutionary relationships in
DNA topoisomerases. Annu. Rev. Biophys. Biomol. Struct. 2004, 33, 95–118.

Mar. Drugs 2014, 12
4848
16. Andoh, T.; Ishida, R. Catalytic inhibitors of DNA topoisomerase II. Biochim. Biophys. Acta 1998,
1400, 155–171.
17. Larsen, A.K.; Escargueil, A.E.; Skladanowski, A. Catalytic topoisomerase II inhibitors in cancer
therapy. Pharmacol. Ther. 2003, 99, 167–181.
18. Tanabe, K.; Ikegami, Y.; Ishida, R.; Andoh, T. Inhibition of topoisomerase II by antitumor agents
bis(2,6-dioxopiperazine) derivatives. Cancer Res. 1991, 51, 4903–4908.
19. Saltiel, E.; McGuire, W. Doxorubicin (adriamycin) cardiomyopathy. West. J. Med. 1983, 139,
332–341.
20. Weiss, G.; Loyevsky, M.; Gordeuk, V.R. Dexrazoxane (ICRF-187). Gen. Pharmacol. 1999, 32,
155–158.
21. Jones, R.L. Utility of dexrazoxane for the reduction of anthracycline-induced cardiotoxicity.
Expert Rev. Cardiovasc. Ther. 2008, 6, 1311–1317.
22. Classen, S.; Olland, S.; Berger, J.M. Structure of the topoisomerase II ATPase region and its
mechanism of inhibition by the chemotherapeutic agent ICRF-187. Proc. Natl. Acad. Sci. USA
2003, 100, 10629–10634.
23. Jensen, L.H.; Nitiss, K.C.; Rose, A.; Dong, J.; Zhou, J.; Hu, T.; Osheroff, N.; Jensen, P.B.;
Sehested, M.; Nitiss, J.L. A novel mechanism of cell killing by anti-topoisomerase II
bisdioxopiperazines. J. Biol. Chem. 2000, 275, 2137–2146.
24. Dias, N.; Vezin, H.; Lansiaux, A.; Bailly, C. Toposiomerase inhibitors of marine origin and their
potential as anticancer agents. Top. Curr. Chem. 2005, 253, 89–108.
25. Ponder, J.; Yoo, B.H.; Abraham, A.D.; Li, Q.; Ashley, A.K.; Amerin, C.L.; Zhou, Q.; Reid, B.G.;
Reigan, P.; Hromas, R.; et al. Neoamphimedine circumvents metnase-enhanced DNA
topoisomerase IIα activity through ATP-competitive inhibition. Mar. Drugs 2011, 9, 2397–2408.
26. Delfourne, E.; Bastide, J. Marine pyridoacridine alkaloids and synthetic analogues as antitumor
agents. Med. Res. Rev. 2003, 23, 234–252.
27. De Guzman, F.S.; Carte, B.; Troupe, N.; Faulkner, D.J.; Harper, M.K.; Concepcion, G.P.;
Mangalindan, G.C.; Matsumoto, S.S.; Barrows, L.R.; Ireland, C.M. Neoamphimideine: A new
pyridoacridine topoismerase II inhibitor which cantenates DNA. J. Org. Chem. 1999, 64,
1400–1402.
28. Marshall, K.M.; Barrows, L.R. Biological activities of pyridoacridines. Nat. Prod. Rep. 2004,
21, 731.
29. Marshall, K.M.; Matumoto, S.S.; Holden, J.A.; Concepcion, G.P.; Tasdemir, D.; Ireland, C.M.;
Barrows, L.R. The anti-neoplastic and novel topoisomerase II-mediated cytotoxicity of
neoamphimedine, a marine pyridoacridine. Biochem. Pharmacol. 2003, 66, 447–458.
30. Thale, Z.; Johnson, T.; Tenney, K.; Wenzel, P.J.; Lobkovsky, E.; Clardy, J.; Media, J.;
Pietraszkiewicz, H.; Valeriote, F.A.; Crews, P. Structures and cytotoxic properties of
sponge-derived bisannulated acridines. J. Org. Chem. 2002, 67, 9384–9391.
31. Marshall, K.M.; Andjelic, C.D.; Tasdemir, D.; Concepcion, G.P.; Ireland, C.M.; Barrows, L.R.
Deoxyamphimedine, a pyridoacridine alkaloid, damages DNA via the production of reactive
oxygen species. Mar. Drugs 2009, 7, 196–209.
32. LaBarbera, D.V.; Bugni, T.S.; Ireland, C.M. The total synthesis of neoamphimedine. J. Org.
Chem. 2007, 72, 8501–8505.

Mar. Drugs 2014, 12
4849
33. Nakahara, S.; Mukai, Y.; Kubo, A. Synthesis of neoamphimedine. Heterocycles 2012, 85,
993–940.
34. Molinski, T.F. Marine pyridoacridine alkaloids: Structure, synthesis, and biological chemistry.
Chem. Rev. 1993, 93, 1825–1838.
35. Tasdemir, D.; Marshall, K.M.; Mangalindan, G.C.; Concepcion, G.P.; Barrows, L.R.;
Harper, M.K.; Ireland, C.M. Deoxyamphimedine, a new pyridoacridine alkaloid from two tropical
Xestospongia sponges. J. Org. Chem. 2001, 66, 3246–3248.
36. Skyler, D.; Heathcock, C.H. The pyridoacridine family tree: A useful scheme for designing
synthesis and predicting undiscovered natural products. J. Nat. Prod. 2002, 65, 1573–1581.
37. Melzer, B.; Plodek, A.; Bracher, F. Total synthesis of the marine pyridoacridine alkaloid
demethyldeoxyamphimedine. J. Org. Chem. 2014, 79, 7239–7242.
38. Echavarren, A.M.; Stille, J.K. Total synthesis of amphimedine. J. Am. Chem. Soc. 1988, 110,
4051–4053.
39. Kubo, A.; Nakahara, S. Synthesis of amphimedine, a new fused aromatic alkaloid from a pacific
sponge, Amphimedon sp. Heterocycles 1988, 27, 2095–2098.
40. Nakahara, S.; Tanaka, Y.; Kubo, A. Total synthesis of amphimedine. Heterocycles 1996, 43,
2113–2123.
41. Godard, A.; Rocca, P.; Guillier, F.; Duvey, G.; Nivoliers, F.; Marsais, F.; Quéguiner, G.
Ortho-directed metallation of π-deficient heterocycles in connection with palladium-catalyzed
biaryl cross-coupling Synthesis of marine alkaloids of the pyridoacridine series. Can. J. Chem.
2001, 79, 1754–1761.
42. Prager, R.H.; Tsopelas, C.; Heisler, T. A simple synthesis of amphimedine. Aust. J. Chem. 1991,
44, 277–285.
43. Bracher, F.; Papke, T. Polycyclic aromatic alkaloids, XI a convenient formal total synthesis of the
cytotoxic marine alkaloid amphimedine. Liebigs Ann. 1996, 1996, 115–116.
44. Kang, B.-R.; Shan, A.-L.; Li, Y.-P.; Xu, J.; Lu, S.-M.; Zhang, S.-Q. Discovery of 2-aryl-8-hydroxy
(or methoxy)-isoquinolin-1(2H)-ones as novel EGFR inhibitor by scaffold hopping. Biorg. Med.
Chem. 2013, 21, 6956–6964.
45. Chuang, T.-H.; Wu, P.-L. Synthesis and mechanistic study of isoquinolinones from cinnamoyl
azides. J. Chin. Chem. Soc. 2006, 53, 413–420.
46. Yan, Y.; Qin, B.; Ren, C.; Chen, X.; Yip, Y.K.; Ye, R.; Zhang, D.; Su, H.; Zeng, H. Synthesis,
structural investigations, hydrogen–deuterium exchange studies, and molecular modeling of
conformationally stablilized aromatic oligoamides. J. Am. Chem. Soc. 2010, 132, 5869–5879.
47. Zhang, W.; Wilke, B.I.; Zhan, J.; Watanabe, K.; Boddy, C.N.; Tang, Y. A new mechanism for
benzopyrone formation in aromatic polyketide biosynthesis. J. Am. Chem. Soc. 2007, 129,
9304–9305.
48. Thompson, W.J.; Gaudino, J. A general synthesis of 5-arylnicotinates. J. Org. Chem. 1984, 49,
5237–5243.
49. Pagliarani, A.; Nesci, S.; Ventrella, V. Toxicity of organotin compounds: Shared and unshared
biochemical targets and mechanisms in animal cells. Toxicol. Vitro 2013, 27, 978–990.
50. Hui, J.; Zhao, Y.; Zhu, L. Synthesis and in vitro anticancer activities of novel aryl-naphthalene
lignans. Med. Chem. Res. 2011, 21, 3994–4001.

Mar. Drugs 2014, 12
4850
51. Kumar, R.; Chaudhary, K.; Gupta, S.; Singh, H.; Kumar, S.; Gautam, A.; Kapoor, P.;
Raghava, G.P. CancerDR: Cancer drug resistance database. Sci. Rep. 2013, 3, 1445.
52. Vichai, V.; Kirtikara, K. Sulforhodamine B colorimetric assay for cytotoxicity screening.
Nat. Protoc. 2006, 1, 1112–1116.
53. Yang, T.T.; Sinai, P.; Kain, S.R. An acid phosphatase assay for quantifying the growth of
adherent and nonadherent cells. Anal. Biochem. 1996, 241, 103–108.
54. Hewitt, R.E.; McMarlin, A.; Kleiner, D.; Wersto, R.; Martin, P.; Tsokos, M.; Stamp, G.W.;
Stetler-Stevenson, W.G. Validation of a model of colon cancer progression. J. Pathol. 2000, 192,
446–454.
55. Global-Data. Colorectal Cancer-Global Drug Forecasts and Treatment Analysis to 2020-Q4
2010; MarketPublishers, Ltd.: Limassol, Cyprus, 2010.
56. Lee, C.C.; Houghton, P. Cytotoxicity of plants from Malaysia and Thailand used traditionally to
treat cancer. J. Ethnopharmacol. 2005, 100, 237–243.
57. Houghton, P.; Fang, R.; Techatanawat, I.; Steventon, G.; Hylands, P.J.; Lee, C.C. The
sulphorhodamine (SRB) assay and other approaches to testing plant extracts and derived
compounds for activities related to reputed anticancer activity. Methods 2007, 42, 377–387.
58. Darzynkiewicz, Z.; Bruno, S.; Del Bino, G.; Gorczyca, W.; Hotz, M.A.; Lassota, P.; Traganos, F.
Features of apoptotic cells measured by flow cytometry. Cytometry 1992, 13, 795–808.
59. LaBarbera, D.V.; Modzelewska, K.; Glazar, A.I.; Gray, P.D.; Kaur, M.; Liu, T.; Grossman, D.;
Harper, M.K.; Kuwada, S.K.; Moghal, N.; et al. The marine alkaloid naamidine A promotes
caspase-dependent apoptosis in tumor cells. Anticancer Drugs 2009, 20, 425–436.
60. Skoufias, D.A.; Lacroix, F.B.; Andreassen, P.R.; Wilson, L.; Margolis, R.L. Inhibition of DNA
decatenation, but not DNA damage, arrests cells at metaphase. Mol. Cell 2004, 15, 977–990.
61. Vermes, I.; Haanen, C.; Steffens-Nakken, H.; Reutelingsperger, C. A novel assay for apoptosis.
Flow cytometric detection of phosphatidylserine expression on early apoptotic cells using
fluorescein labelled annexin V. J. Immunol. Methods 1995, 184, 39–51.
62. Stover, J.S.; Shi, J.; Jin, W.; Vogt, P.K.; Boger, D.L. Discovery of inhibitors of aberrant gene
transcription from libraries of DNA binding molecules: Inhibition of LEF-1-mediated gene
transcription and oncogenic transformation. J. Am. Chem. Soc. 2009, 131, 3342–3348.
© 2014 by the authors; licensee MDPI, Basel, Switzerland. This article is an open access article
distributed under the terms and conditions of the Creative Commons Attribution license
(http://creativecommons.org/licenses/by/4.0/).
