reusability of the catalyst and also to understand the reaction
path in the CO2–water system.
Acknowledgements
H. Kawanami is funded by the Japan–U.S. cooperation
project for research and standardization of Clean Energy
Technologies, The Ministry of Economy, Trade and Industry
(METI), Japan and CREST, Japan Science and Technology
(JST).
Experimental
Materials
5-Hydroxymethylfurfural (HMF) (Aldrich) was used as received.
Carbon dioxide (>99.99%) was supplied by Nippon Sanso Co.
Ltd. Pd/C, Pd/Al2O3, Pt/C, Pt/Al2O3, Rh/C, Ru/C and Ru/Al2O3
were from Aldrich, except Rh/Al2O3, which was from Wako
Pure Chemicals. In each case, the metal content was 5%.
Metal catalysts supported on MCM-41 were synthesized in our
laboratory using a modified method.25
References
1 (a) C. J. Campbell and J. H. Laherrere, Sci. Am., 1998, 278,
60–65; (b) D. H. Klass, Biomass for renewable energy, fuels
and chemicals, Acad. Press, San Diego, California, 1998,
pp. 10–19; (c) C. Okkerse and H. van Bekkum, Green Chem.,
1999, 1, 107–114; (d) L. A. Lucia, D. S. Argyropoulos,
L. Adamopoulos and A. R. Gaspar, Can. J. Chem., 2006, 84,
960–970.
2 (a) B. Kamm, Angew. Chem., Int. Ed., 2007, 46, 5056–5058;
(b) J. J. Bozell, Science, 2010, 329, 522–523; (c) J. Q. Bond,
D. A. Alonso, D. Wang, R. M. West and J. A. Dumesic,
Science, 2010, 327, 1110–1114.
3 Pacific Northwest National Laboratory (PNNL) and National
Renewable Energy Laboratory (NREL), Top Value Added
Chemicals From Biomass, ed. T. Werpy and G. Petersen, U.S.
docs/fy04osti/35523.pdf
4 (a) M. Kunz, Hydroxymethylfurfural a possible basic chemi-
cal for industry intermediates, in Inulin and Inulin Contain-
ing Crops, ed. A. Fuchs, Elsevier Science Publisher B, 1993;
(b) V. J. Lewkowski, ARKIVOC, 2001, 17–54.
Catalytic activity
The HMF hydrogenation studies were carried out in a 50 ml
batch reactor placed in a hot air circulating oven, full details
are given elsewhere.26 In a typical experiment, a specified
amount of catalyst and substrate dissolved in water was intro-
duced into the reactor. The reactor was heated for a specified
amount of time. After the required temperature of 80 °C was
attained; hydrogen, followed by CO2, was charged into the
reactor using a high-pressure liquid pump and then com-
pressed to the desired pressure. The content of the reactor was
stirred with a magnetic stirrer bar during the reaction. After
the reaction was complete, the reactor was quenched using an
ice bath followed by the separation of solid catalyst from the
liquid product by filtration. The products were identified by
GC-MS against a standard, which was also used for qualitative

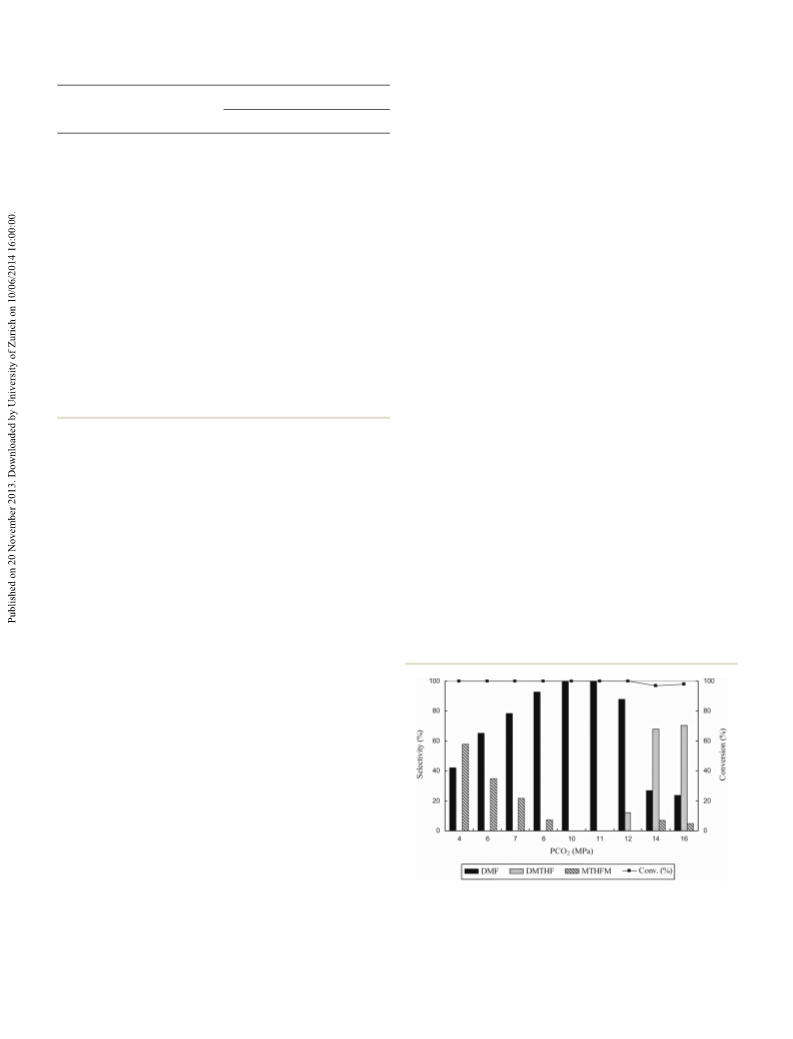

analysis. For all results reported, the selectivity is follows:
5 A. A. Rosatella, S. P. Simeonov, R. F. M. Frade and
C. A. M. Afonso, Green Chem., 2011, 13, 754–793.
concentration of the product
total concentration of products
% selectivity ¼
ꢀ 100
6 (a) J. N. Chheda, G. W. Huber and J. A. Dumesic, Angew.
Chem., Int. Ed., 2007, 46, 7164–7183; (b) G. W. Huber,
S. Iborra and A. Corma, Chem. Rev., 2006, 106, 4044–4098;
(c) J. N. Chheda and J. A. Dumesic, Catal. Today, 2007, 123,
59–70; (d) M. Mascal and E. B. Nikitin, Angew. Chem., Int.
Ed., 2008, 47, 7924–7926; (e) G. W. Huber, J. N. Chheda,
C. J. Barret and J. A. Dumesic, Science, 2005, 308, 1446–
1450; (f) E. L. Kunkes, D. A. Simonetti, R. M. West,
J. C. Serrano-Ruiz, C. A. Gartner and J. A. Dumesic, Science,
2008, 322, 417–421.
7 (a) G. W. Huber and A. Corma, Angew. Chem., Int. Ed., 2007,
46, 7184–7201; (b) J. O. Metzger, Angew. Chem., Int. Ed.,
2006, 45, 696–698; (c) C. Moreau, R. Durand, S. Razigade,
J. Duhamet, P. Faugeras, P. Rivalier, P. Ros and G. Avignon,
Appl. Catal., A, 1996, 145, 211–224.
Phase observation
To determine the phase behavior of the hydrogenation/hydro-
genolysis of HMF during the reaction, an aqueous solution of
HMF and DMF was studied separately in a 10 ml high pressure
view cell fitted with a sapphire window. The cell was placed
over a magnetic stirrer for stirring of the contents and was con-
nected to a pressure controller in order to regulate the pressure
inside the view cell. In addition, a temperature controller was
also used to maintain the desired temperature of 80 °C.
Required materials were introduced into the view cell at a con-
stant hydrogen pressure of 1 MPa, while the CO2 pressure was
varied and the phase was observed. For phase observation
during the reaction, the catalyst dispersed in an aqueous solu-
tion of HMF was introduced into the view cell and the content
was stirred continuously. The image was recorded after stop-
ping the stirrer. The phase behavior of HMF and DMF was also
checked separately. Independent to the CO2 pressure, an
aqueous solution of HMF and CO2 always existed as a biphasic
8 M. Chatterjee, K. Matsushima, Y. Ikushima, T. Yokoyama,
M. Sato, H. Kawanami and T. Suzuki, Green Chem., 2010,
12, 779–782.
9 M. T. Barlow, D. J. Smith and D. G. Steward, Fuel compo-
sition, European patent, EP0082689, 1983.
system and shown in Fig. 2s,† whereas the solubility of DMF 10 H. B. Nisbet, J. Inst. Petrol., 1946, 32, 162–166.
was increased with increasing CO2 pressure. A homogeneous 11 Y. Roman-Leshkov, C. J. Barrett, Z. Y. Liu and
phase was observed at 12 MPa of CO2 (Fig. 1s-d†).
J. A. Dumesic, Nature, 2007, 447, 982–986.
