Photothermal effectiveness of magnetite nanoparticles: Dependence upon particle size probed by experiment and simulation

Article abstract of DOI:10.3390/molecules23051234

The photothermal effect of nanoparticles has proven efficient for driving diverse physical and chemical processes; however, we know of no study addressing the dependence of efficacy on nanoparticle size. Herein, we report on the photothermal effect of three different sizes (5.5 nm, 10 nm and 15 nm in diameter) of magnetite nanoparticles (MNP) driving the decomposition of poly(propylene carbonate) (PPC). We find that the chemical effectiveness of the photothermal effect is positively correlated with particle volume. Numerical simulations of the photothermal heating of PPC supports this observation, showing that larger particles are able to heat larger volumes of PPC for longer periods of time. The increased heating duration is likely due to increased heat capacity, which is why the volume of the particle functions as a ready guide for the photothermal efficacy.

Full text of DOI:10.3390/molecules23051234

Article
Photothermal Effectiveness of Magnetite Nanoparticles:
Dependence upon Particle Size Probed by Experiment
and Simulation
Robert J. G. Johnson, Jonathan D. Schultz and Benjamin J. Lear *
Department of Chemistry, The Pennsylvania State University, University Park, PA 16802, USA;
johnrobe94@gmail.com (R.J.G.J.); jonathanschultz2022@u.northwestern.edu (J.D.S.)
* Correspondence: bul14@psu.edu; Tel.: +1-814-867-4625
Academic Editors: Joan Estelrich and Maria Antònia Busquets
ꢀꢁꢂꢀꢃꢄꢅꢆꢇ
ꢀꢁꢂꢃꢄꢅꢆ
Received: 23 April 2018; Accepted: 16 May 2018; Published: 22 May 2018
Abstract: The photothermal effect of nanoparticles has proven efficient for driving diverse physical
and chemical processes; however, we know of no study addressing the dependence of efficacy on
nanoparticle size. Herein, we report on the photothermal effect of three different sizes (5.5 nm,
10 nm and 15 nm in diameter) of magnetite nanoparticles (MNP) driving the decomposition of
poly(propylene carbonate) (PPC). We find that the chemical effectiveness of the photothermal effect
is positively correlated with particle volume. Numerical simulations of the photothermal heating of
PPC supports this observation, showing that larger particles are able to heat larger volumes of PPC
for longer periods of time. The increased heating duration is likely due to increased heat capacity,
which is why the volume of the particle functions as a ready guide for the photothermal efficacy.
Keywords: photothermal; nanoparticles; heat transfer
1. Introduction
The photothermal effect of nanoparticles, whereby light is absorbed and converted to thermal
energy, has emerged as an attractive option for driving thermally-activated physical and chemical
transformations at greatly enhanced rates [
systems, it is possible to use widely-available light sources to bring the nanoparticles to extreme
temperatures [ ]. Because of the nanoscale nature of the photothermal agents, these extreme temperatures
are localized in both time and space and are well matched to the scale of the elementary steps of molecular
transformations [ ]. Additionally, the localized nature of the heating means that while the immediate
surroundings of the nanoparticles experience extreme temperatures, the bulk of the system experiences
minor temperature fluctuations, limiting the extent of unwanted processes [ ]. Nevertheless, the localized
heat remains effective at driving chemical transformations, and to date, the photothermal effect of
nanoparticles has proven to be extremely effective in various applications [ ], including the ablation of
cancerous cells without damage to the surrounding tissue [ 10], in vivo drug delivery [11], selective
defect healing in polymers [12 13], decomposition of molecules, [ 14 15], regeneration of CO2 [16], killing
of bacteria [17] and cross-linking of polymer networks [1].
1–3]. For strongly-absorbing and weakly-emissive nanoparticle
4
5
6
7
8–
,
3, ,
Although the above applications are exciting, it is not well understood how thermal diffusion
behaves at the nanoscale [18], nor how the properties of the nanoparticles, such as size, geometry,
specific heat and ligand identity, can be used to control the generation and dissipation of thermal energy.
This lack of knowledge inhibits efficient design and optimization of photothermal agents, preventing full
realization of the promise this approach has for controlling chemical transformations with molecular-scale
precision in time and space.
Molecules 2018, 23, 1234; doi:10.3390/molecules23051234
www.mdpi.com/journal/molecules

Molecules 2018, 23, 1234
2 of 12
To a large extent, the knowledge gap concerning the influence of nanoparticles’ physical and chemical
properties over photothermally-driven reactions is because of the prevalence of gold nanoparticles (AuNPs)
in the literature. AuNPs’ popularity arises due to the fact that AuNPs of a certain range in diameter
possess a strongly-absorbing plasmon resonance, while being non-emissive. Indeed, these desirable optical
properties have led to a large literature involving the photothermal effect of these particles, and the
mechanism of photothermal heating for plasmonic particles is now well established [19–21]. However,
because of the low melting point of gold, which is further exaggerated for nanoscale particles (600 K for
2 nm AuNPs) [22], the propensity for Coulombic explosion in larger particles [23] and relatively weak
binding of surfactants (thiols, amines, citrate, etc.) [24
AuNPs are unstable under the photothermal conditions required to drive thermal reactions at extreme
rates [ 26 28]. This lack of stability of AuNPs prevents systematic studies of the influence of various
,25], the optical, physical and chemical properties of
4, –
nanoparticle properties on photothermal efficacy.
Fortunately, the number of nanoparticles demonstrated to be effective photothermal agents is
increasing and includes more thermally-stable examples such as magnetite (Fe3O4) [29], Cu2−xS [30],
Cu2−xSe [31], PbS and carbon black [32]. Our lab has previously shown that magnetite nanoparticles
(MNP) are able to drive high barrier reactions, such as the clean decomposition of polypropylene
carbonate(PPC), while maintaining their overall size, shape, composition, structure and ligand
environment [33]. In addition, one can synthesize MNP in multiple sizes [34–36], and combined with
their stability, this makes MNP an ideal system for investigating how the properties of nanoparticles
control nanoscale heating. In this work, we focus on the effect MNP size has upon the decomposition
of PPC (Figure 1) and find that, of the properties considered, the extent of the reaction is best correlated
with the volume of the particle. Modeling thermal diffusion around the particle’s surface reveals that
larger particles heat a larger volume of PPC to reactive temperatures and the medium remains at a high
temperature for a longer duration after irradiation. Both of these behaviors are a direct result of the
increased volume (and associated heat capacity) of the particles.

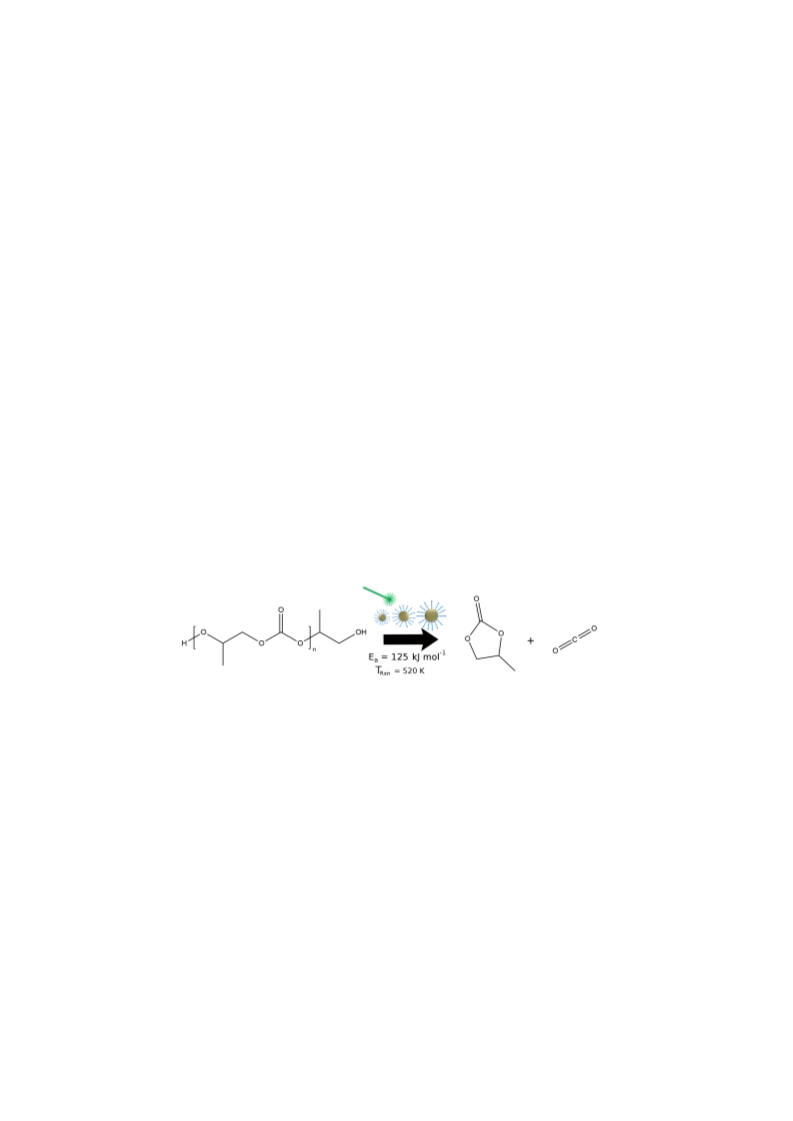

Figure 1. Decomposition reaction for poly(propylene carbonate).
2. Results and Discussion
2.1. Nanoparticle Stability under Photothermal Conditions
We synthesized particles of 5.5 nm, 10 nm and 15 nm using the approach outlined in the Materials
and Methods Section. To ensure all particles were stable under intense laser irradiation, samples of each
particle were characterized by XRD, TEM and IR before and after irradiation by 7000 pulses (8-ns pulse
width, 10 Hz) of 532-nm light with an irradiance of 25 MW cm−2. This irradiation was performed on
colloidal suspensions in hexanes. As shown in Figure 2, TEM analysis shows that the particles do not
experience significant changes in size under these conditions, while the XRD patterns demonstrate that
the MNP experience no apparent changes to their crystalline phase. These results are consistent with
previous results involving MNP [33] and that indicate that the vast majority of heat generated by the
particles is effectively dissipated to the surroundings without driving significant undesirable changes
o the particles such as fragmentation, agglomeration or crystalline phase transitions. This stability in
terms of size, shape and structure allows us to systematically probe how differences in MNP size affect
their ability to photothermally drive the decomposition of PPC, which would not be possible with
AuNPs under these photothermal conditions.

Molecules 2018, 23, 1234
3 of 12

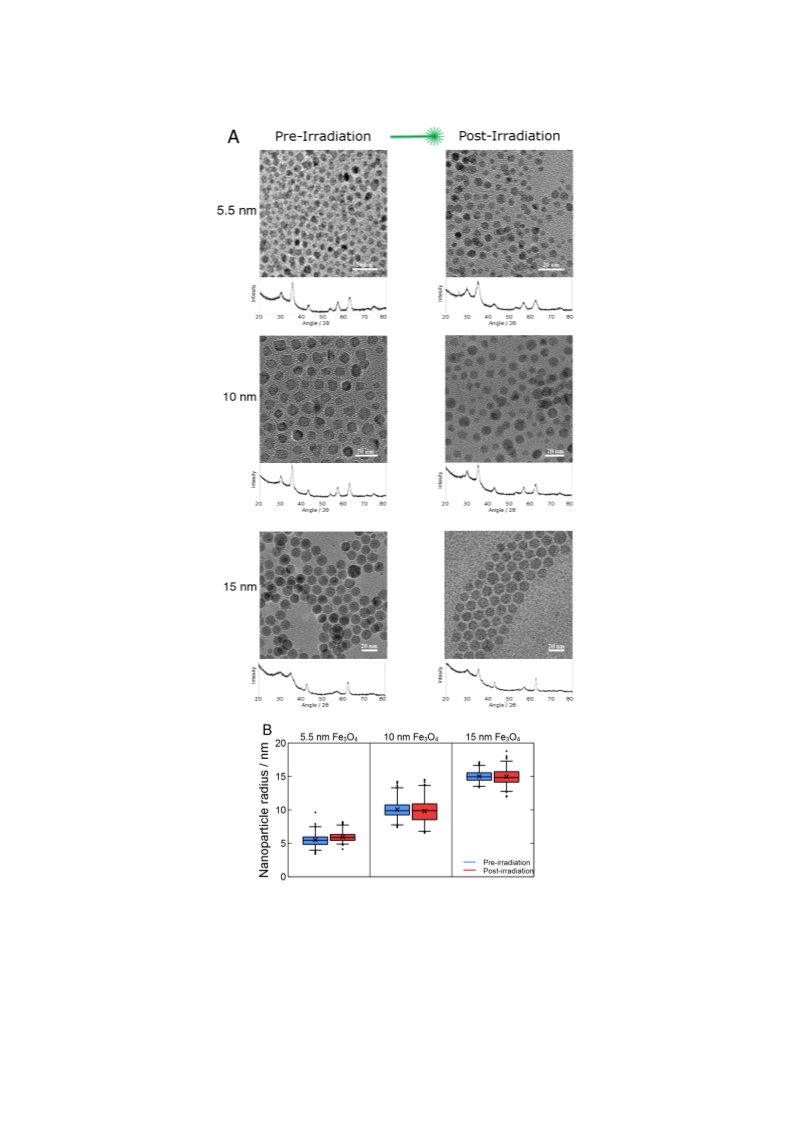

Figure 2.
geometric and crystalline stability; (
images. In these plots, ‘ ’ indicates the mean size of the particle, while the horizontal line near ‘ ’
(
A
) TEM images and XRD patterns for magnetite nanoparticles (MNP) synthesized showing
B
) Whisker plots showing various values obtained from TEM
×
×
indicates the position of the median size. The top and bottoms of the box show the 25th and 75th
percentiles of the sizes, while the whiskers indicate the second and 98th percentiles of the sizes.
The individual points are the particle sizes that lie outside these bounds.

Molecules 2018, 23, 1234
4 of 12
2.2. Photothermal Decomposition of PPC
In order to determine the relative efficacy of these particles for photothermal decomposition of
PPC, we cast PPC films of 0.99% weight MNP. We then exposed these films to the same irradiance used
to test the MNP stability and followed the course of the PPC degradation over time, using the mass loss
of the composite film as a metric for the course of the reaction [33,37]. Figure 3A plots the course of the
reaction for four samples exposed to laser irradiation: pure PPC, PPC:5.5 nm MNP, PPC:10 nm MNP
and PPC:15 nm MNP. The mass loss throughout time is linear, so we performed a least squares linear
fit to the data. The slope of this fit is proportional to the instantaneous rate of the decomposition and
can be used to establish the relative efficacy of the MNP as photothermal agents (Table 1). For the ease
of visual comparison of the slopes, the data have been shifted along the y-axis by adding a constant to
all points in a series such that the fits pass through the origin. Because we are only concerned with
the comparison of slopes and because we are adding a constant to the data, this does not alter our
interpretation nor conclusions. The as-collected data are tabulated in the Supplementary Information
(Table S1).
Table 1. Collection of various experimental and theoretical values discussed herein. In this table, e532 is
the extinction coefficient at 532 nm, Cp is the heat capacity of a single particle, Tmax is the maximum
temperature the particle reached during simulated photothermal heating and tT is the time the
520
particle was above the reactive temperature for the decomposition of PPC, poly(propylene carbonate).
Relative Slope
(per unit mass) *
Relative Slope
(per particle)
e532
·cm
Cp
Tmax tT
Reactive Space-Time ‡
520
Condition
−1
−1
M
J/particle·K
K
ns
nm3· ns
Pure PPC
0.08 ± 0.063
1.0 ± 0.04
1.8 ± 0.07
2.6 ± 0.11
–
–
–
–
970
4950 10.9
4600 14.4
–
8.1
–
−19
5.5 nm MNP
10 nm MNP
15 nm MNP
1.0 ± 0.10
7.3 ± 1.9
65 ± 6.5
8.43 × 105
1.20 × 107
1.84 × 107
2.69 × 10
4.89 × 103
1.64 × 106
3.06 × 106
−18
1.61 × 10
−18
5.61 × 10
* These are the slopes directly obtained from Figure 3A. ‡ This quantity is used to describe the total volume
heated multiplied by the time heated.
From Figure 3A and Table 1, it is obvious that all irradiated samples containing nanoparticles
experience enhanced rates of decomposition. In addition, the enhancement of the rate provided by the
MNP is clearly size dependent.

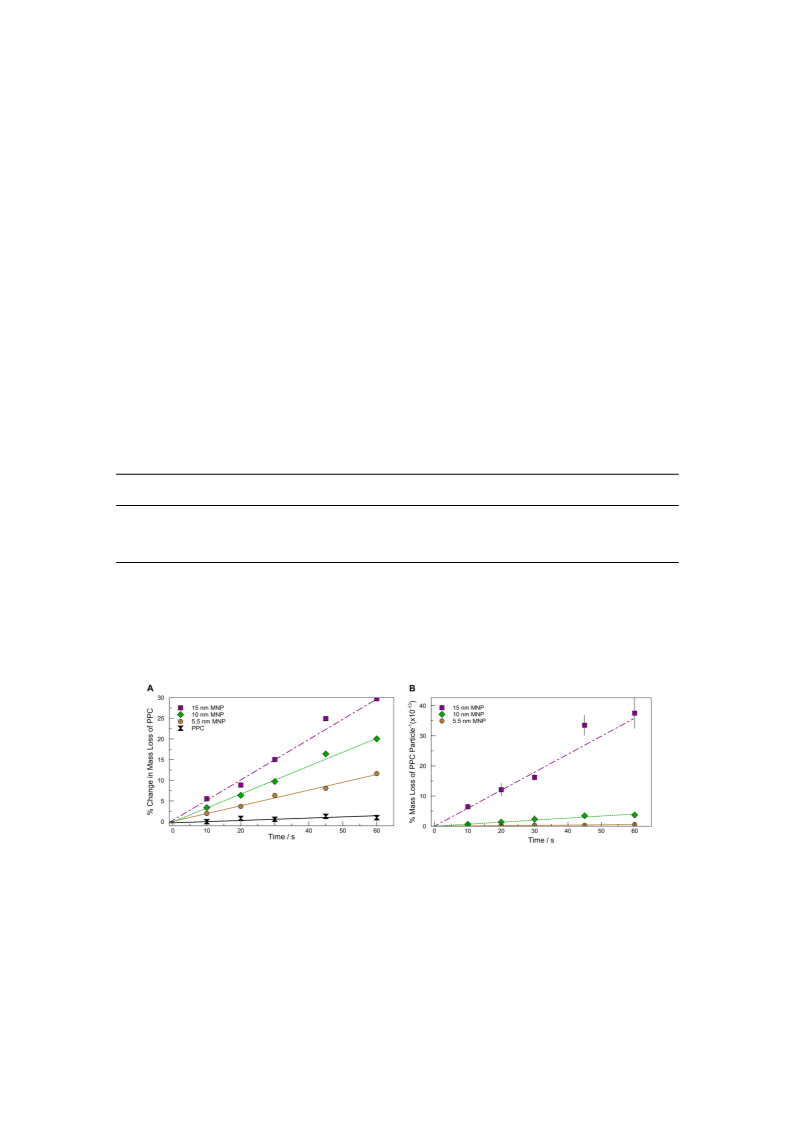

Figure 3. (A) Percent mass loss over time for MNP and neat PPC; (B) Percent of PPC decomposed for
a single particle over time.
Because all irradiated films contained the same mass fraction of nanoparticles, Figure 3A is a direct
comparison of the relative rate of decomposition as a function of nanoparticle mass. However, because
the particles vary in size, each sample will not necessarily contain the same number of particles. Using
the size and density of the MNP to estimate the number of particles present in each film, we adjusted
the plot to compare the rate of decomposition on a per particle basis (Figure 3B, summarized in Table 1).

Molecules 2018, 23, 1234
5 of 12
Similar to the results on a per mass basis, as the size of the MNP increases, so too does the efficiency for
driving the decomposition of PPC. However, on a per particle basis, the dependence of size is much
more apparent than when considering the system on a per mass basis (Table 1).
2.3. Nanoparticle Properties Controlling PPC Decomposition
A number of particle properties are expected to change as a function of size, and several of
them could influence the photothermal effect. Perhaps the most obvious parameter to consider is the
absorptivity of the particles. As seen in Figure 4 and Table 1, the extinction coefficient at 532 nm of the
MNP increases with size. This trend is a result of the fact that we are exciting on the low energy edge
of the bandgap transition, and as the particle size increase, the bandgap narrows and the transition
red-shifts, increasing the absorptivity [38]. It would follow that if a majority of the light is converted to
thermal energy, we would expect the decomposition rate to correlate with the absorption coefficient.
At the same time, the effectiveness of the nanoparticle might be expected to depend on the surface
area and volume of the particle. As the surface area increases, so too will the rate at which thermal
energy is transferred to the surroundings and the efficiency with which the surroundings’ temperature
is raised. Finally, as the volume increases, so too will the heat capacity of the particle, which means
that the particle will have greater overall capacity for transferring thermal energy to the surroundings.

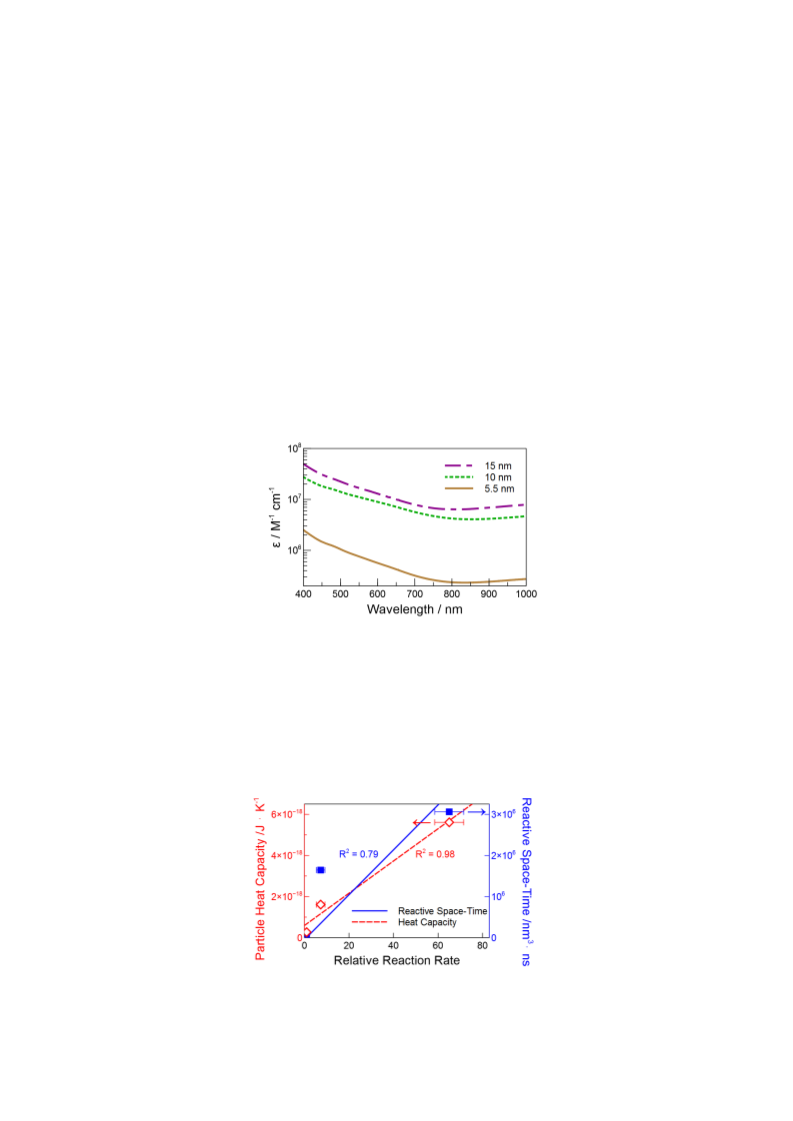

Figure 4. Extinction spectra of the three sizes of MNP.
When looking at the correlations between these properties of the nanoparticles (e532, r, , )
r2 r3
and the relative per particle slope (Table 1), we find that the strongest correlation is with the volume
of the particle. This correlation is shown in Figure 5. The examined correlations are found in the
Supplementary Information (Figure S2). Although a correlation between photothermal efficacy and
volume is rational due to the increase in per particle heat capacity, we performed numerical simulations
to help validate the observed correlation.
Figure 5. Reaction rate as compared to the heat capacity of a single particle and the reactive space-time,
as well as linear least square fits to these parameters.

Molecules 2018, 23, 1234
6 of 12
2.4. Simulation of Photothermal Heating
Simulations of heating by the irradiated particles followed the procedure outlined in the Materials
and Methods Section. In short, the nanoparticles are treated as a heat source, where the absorption
cross-section of the nanoparticles and the irradiance of light are used to calculate the heat flux at the
nanoparticles surface, assuming that all light absorbed is converted to thermal energy. This assumption
is made to allow the comparison between calculations, though it should be noted that the quantum
yield of the non-radiative pathway is not known for these particles. This thermal energy is then allowed
to flow through successive shells of the medium (Figure 6A), which in this case is PPC. From this
simulation, we obtain the temperature of each discrete shell at all time points through which the
simulation runs.

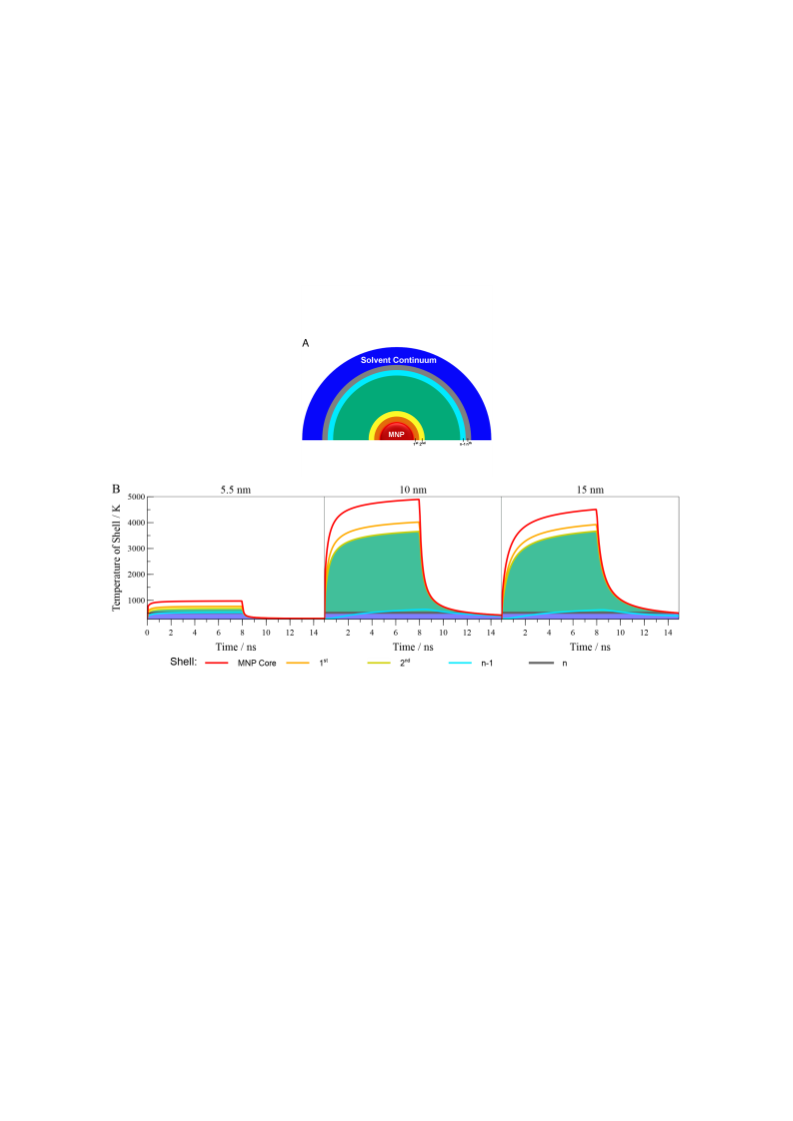

Figure 6.
through which the heat moves; (
for 5.5 nm, 10 nm and 15 nm MNP.
(
A
) Representation of the model used for the simulations where n is the number of shells
B) Results of the simulation showing the temperature of selected shells
Before discussing the results of these simulations in detail, it is necessary to address the shortcomings
of this approach. First and foremost, the equations that the simulations are based on are only valid for
macroscopic systems. On the nanoscale, heat transfer is much more complicated and is not understood
well enough to allow for accurate simulation [18]. Thus, we use these simulations as a first approximation.
Second, we do not include the surfactant layer on the nanoparticles, which would provide a shell with
a different thermal diffusion. However, even for the smallest particles, thermal diffusion extends far
beyond this surfactant layer, and so, we expect the exclusion to lead only to small errors. Finally, we do
not explicitly address thermochemical considerations within the PPC medium itself. The decomposition
of PPC is endothermic and, were the reaction explicitly included, should contribute to the apparent
dissipation of thermal energy. However, despite these caveats, all simulations we investigated shared
these same limitations, and so, we believe they can provide rough quantitative guidance for comparing
samples and understanding the influence of MNP properties on photothermal efficacy. This reasoning
is supported by the fact that the peak temperatures predicted by these simulations (Figure 6B) are
of a similar order of magnitude to those estimated from earlier considerations of the rate of PPC
decomposition under photothermal conditions [33].

Molecules 2018, 23, 1234
7 of 12
We begin with the discussion of the simulation results by noting that no matter the size of the
particle, the heating and cooling portions of the simulation have a similar shape (Figure 7A). Indeed,
while the laser is on, the particles approach a steady-state temperature at which the energy flux out
from the particle matches that from absorption of the laser. For the 5.5 nm particles, this steady-state
temperature is reached, while for the 10 nm and 15 nm particles, the steady-state temperature is
not reached. Interestingly, we find that the simulated maximum temperature is largest for the 10-nm
particles, despite the fact that the extinction coefficient for the 15-nm particles is the largest. This is
likely due to multiple factors, such as increased surface area for the 15-nm particles, which would lead
to quicker dissipation of energy. Because we assume a uniform internal temperature of the particle,
only the surface area is important for heat transfer, and not the surface area to volume ratio. In addition,
though the extinction coefficient increases with size, so does the heat capacity. These combined effects
dictate that the final temperature attained by the particles should be related to the product of e532
Asur f ace
and C−p 1. As can be seen in the Supplementary Information (Figure S3), we do see a strong
correlation (R2 > 0.99) between this quantity and Tmax
,
,
.
As might be expected from this discussion, the rates of heating and cooling of the particles
also differ with size, with both the rate of heating and the rate of cooling being the slowest for the
largest particles. However, we note that at early times all, particles of all three sizes quickly heat to
a temperature above the temperature needed for bulk decomposition of PPC (520 K, horizontal black
line, Figure 7A), but the larger particles remain above this temperature for much longer after the laser
pulse ends. This means that the larger particles provide increased reaction time, likely due to increased
heat capacity of the larger nanoparticles; as heat capacity increases, the amount of heat dissipated
will rise.

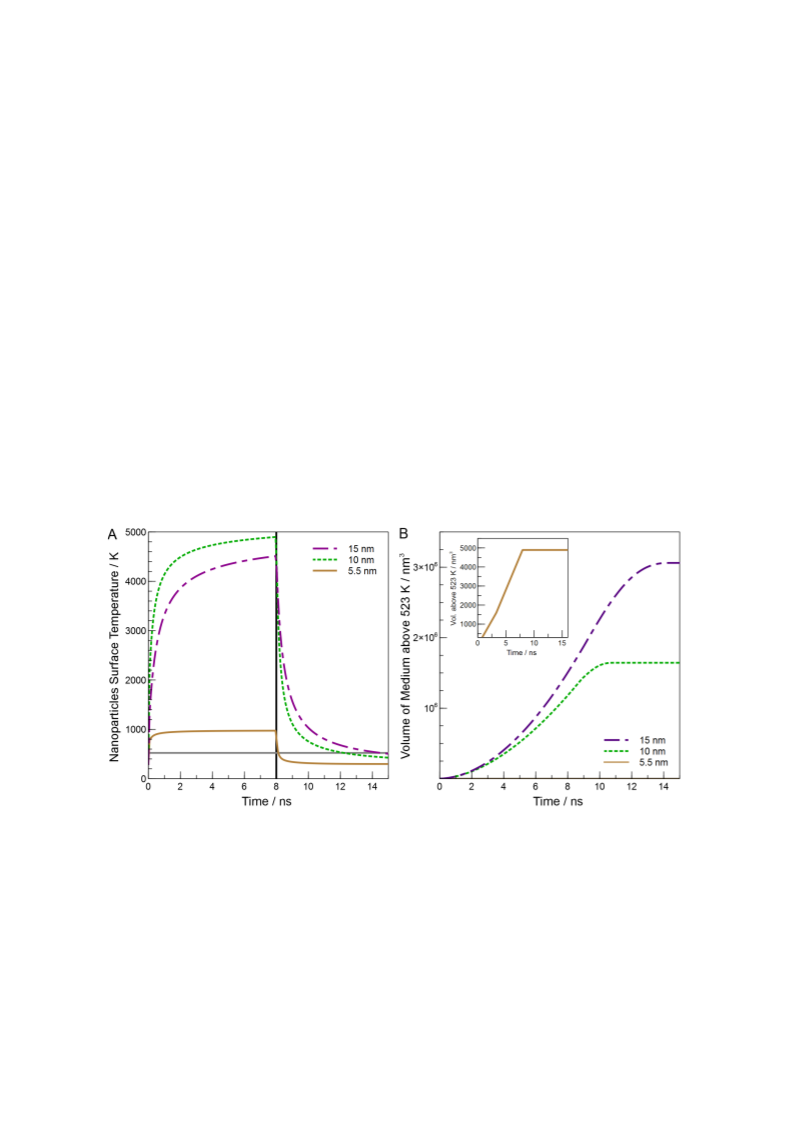

Figure 7. (A) Heating and cooling of the nanoparticles’ surface as simulated; (B) Reactive volume of
PPC as the simulation proceeds. The inset is the volume of the medium for the 5.5 nm MNP.
Interestingly, though both the peak temperature and the time spent above 520 K (Table 1) should
affect the extent of the reaction, we find that neither provide a reasonable correlation with the relative
per-particle rates of mass loss (see the Supplementary Information, Figure S2). Instead, it is the volume
of the medium that is heated above the reaction temperature and the time for which this volume
is heated that underlie the observed reaction rate. Figure 7B plots the volume above 520 K versus
time for our three particles. Here, we see that the total volume that lies above 520 K is greater for
the larger particles. Integrating the area under these curves gives the volume of PPC heated above
520 K multiplied by the time that they are heated (we term this the ‘reactive space-time’). The reactive

Molecules 2018, 23, 1234
8 of 12
space-time provides acceptable correlation (R2 = 0.79) with the relative reactivity (Figure 5), especially
given the drastic simplifications of our model. Thus, when changing the size of nanoparticles without
changing the material, the relevant parameter to be considered is the volume of the particle, which
controls the reaction time per laser pulse, rather than other parameters such as optical absorptivity
or peak temperature. Interestingly, logic seems to suggest that the trend of increased photothermal
efficacy with increasing size cannot continue ad infinitum (i.e., bulk heating will not give the same
results). It remains for future work to identify the limit of the positive trend with particle size.
3. Materials and Methods
3.1. Sample Preparation
Iron (III) acetylacetonate (Fe(acac)3) (
poly(propylene carbonate) (Mn 50,000) and dichloromethane (
Sigma-Aldrich. Octadecene ( 90%) and oleylamine (technical grade) were purchased from TCI
≥
99.9%), oleic acid (
≥
99%), 1,2 tetradecanediol (
>99%),
∼
≥
99%) were purchased from
>
America. Dibenzyl ether (>99%) was purchased from Alfa Aesar.
MNP were synthesized through the thermal decomposition of an iron (III) salt in the presence
of the stabilizing ligand, oleic acid, under an inert atmosphere. All synthetic steps were performed
in a three-neck round bottom flask equipped with a condenser, thermocouple and magnetic stir bar.
The 5.5 nm MNP were prepared by the method outlined by Sun and co-workers [35]. Briefly, Fe(acac)3
(2 mmol), 1,2-tetradecanediol (10 mmol), oleic acid (6 mmol) and dibenzyl ether (50 mL) were added
◦
to the flask and purged with argon for 30 min. The mixture was brought to 200 C and maintained for
2 h and then brought to reflux (
300 ◦C) and maintained for 1 h. The 10-nm and 15-nm nanoparticles
∼
were prepared by a modified LaMergrowth method. [34] For this, an iron(III) oleate precursor was
prepared in a 100-mL three-necked flask with 3.3 g (9.3 mmol) iron(III) acetylacetonate and 15 mL
(47.3 mmol) oleic acid. The reaction was heated to 320 ◦C, maintained for 30 min and then quenched.
The resulting iron(III) oleate was then diluted with octadecene to be 0.22 M. In a separate flask, 2.5 mL
oleic acid and 2.5 g docosane were purged and heated to 350 ◦C. Once the temperature stabilized, the
iron (III) oleate mixture was added at a constant rate of 3 mL/h using a KD Scientific syringe pump.
MNP size was controlled by varying the amount of iron precursor added. The reaction was quenched
30 and 100 min after the first drop of iron (III) oleate precursor for 10-nm and 15-nm MNP, respectively.
All particles were precipitated and washed with acetone and methanol and collected via a centrifuge.
All particles were dispersible in organic solvents.
TEM images were obtained with an FEI Tecnai G2 20 XTWIN electron microscope operating at
an accelerating voltage of 200 kV. Size distributions were obtained using ImageJ and contained at least
300 particles per sample. A log-normal function was then fit to the distribution (see the Supplementary
Information, Figure S1) to obtain the central size and statistical data shown below.
3.2. Casting of PPC Films and Measuring Mass Loss
To measure the extent of decomposition, thin films of PPC were cast on clean, pre-weighed
slides (massed using a analytical balance with accuracy of +/
−
0.1 mg). Both the polymer and the
MNP were separately dissolved in dichloromethane and thoroughly mixed to obtain a solution with
an MNP:PPC mass fraction of 1:100, or 0.99% wt MNP. The MNP:PPC solution was then drop-cast onto
the slide and allowed to dry over night at 25 ◦C to minimize the mass loss due to the evaporation of
residual solvent driven by photothermal heating and ensuring all the thermal energy was being used
to drive the decomposition of the PPC. A typical mass of material deposited was on the order of 10 mg.
The slide, now with the composite film, was massed once more and exposed to the second harmonic
of an Nd:YAG laser (532 nm) for the specified times. After irradiation, the slides were massed again
to obtain the mass loss of the film due to the photothermal effect. For each nanoparticle and mass
loading, these experiments were performed in triplicate.

Molecules 2018, 23, 1234
9 of 12
3.3. Theoretical Model
To gain insight into the factors controlling the photothermal efficiency, we carried out discrete
numerical simulations based on Fourier’s law of thermal conduction. In addition, given the extreme
temperature that the particles experience, we also accounted for radiative transfer at the particle’s
surface [39]. In the simulation, we treat the nanoparticle as a solid mass, surrounded by a series of
0.5 nm shells of the medium, in turn buried in a continuum of the medium, which is held at 298 K
(Figure 6A). At the start of these simulations, the entire system is at room temperature, and the laser
heating is simulated by adding a heat flux at the MNP surface. The magnitude of this heat flux is
determined by the optical and physical properties of the MNP. Using the acquired UV-visible spectra,
we calculate the extinction coefficient on a per-particle basis. We then assume that the only significant
means of extinction is absorption and that all of the absorbed energy is converted to thermal energy
instantaneously. The thermal energy raises the temperature of the particle, with the ∆T calculated
using the heat capacity of the particle.
As the particle’s temperature rises, thermal energy is transferred to the surrounding shells.
The thermal conductivity of the medium and the size of the shells dictate that our time step be
150 ps [39]. As the simulation is iterated through each discrete time-point, we determine the amount
of thermal flux from the i-th to the i-th + 1 shell (qi→i+1) according to the following equation:
τ
qi→i+1 = (Ti+1 − Ti)kmedium4πr2
(1)
l
In this equation, Ti and Ti+1 are the temperatures of the
thermal conductivity of the medium (in this case PPC, with kPPC = 0.17117 W
the time step size and shell thickness, respectively. For the layer that is the nanoparticle core, we also
i
-th to the
i
-th + 1 shells. kmedium is the
−1
·
m
·
K τ and l are
−1).
add in the radiative flux (qrad):
qrad = (Tnp − Tsurrounding)(5.6703 × 10−8)enp4πr2npτ
(2)
where enp is the emissivity of the nanoparticle and is taken to be 0.74. Using Equations (1) and (2),
we calculate the heat flux for the core and every shell, which provides both the heat transferred in,
as well as the heat transferred out. The final temperature of each shell at the end of the time-point is
then arrived at by accounting for the heat capacity of the shell and the net heat flux.
This simulation is iterated for the desired time of the experiment. During the simulation, the heat
flux at the nanoparticle can be turned on or off, in order to represent the start and end of the laser
pulse. Results for simulations of 5.5 nm, 10 nm and 15 nm MNP in PPC, exposed to a single 8 ns
pulse of 532 light (25 MW/cm2) are shown in Figure 6B. In these plots, the laser pulse begins at t = 0
.
The simulations then proceed through the 8 ns of the laser pulse and for another 7 ns to allow complete
cooling of the system for the larger particles to the original temperature.
4. Conclusions
We have shown that the rate of photothermal decomposition of poly(propylene carbonate) is
dependent on the size of the magnetite nanoparticle photothermal agents. In doing so, we highlight
that when choosing a photothermal agent, it is important to take into consideration physical properties
of the particle in addition to its optical properties. It was shown that reaction rate is most directly
related to the volume (heat capacity) of the nanoparticles, rather than the absorptivity, surface area
or even temperature attained by the individual nanoparticles. The dependence on the volume is
attributed to the fact that particles with larger heat capacities heat larger volumes of their surrounding
media for longer periods of time, as supported by the simulations of photothermal heating.
Supplementary Materials: The following are available online: Table S1: As collected mass losses of PPC. Figure S1:
Histograms of particle sizes, Figure S2: Correlations between relative photothermal efficacy and peak particle

Molecules 2018, 23, 1234
10 of 12
temperature, absorption coefficient and time spent above 520 K, Figure S3: Correlation between max particle
temperature and e · A · C−p 1, Table S1: Mass losses observed.
Author Contributions: R.J.G.J., J.D.S. and B.J.L. conceived of and designed the experiments. They also were
involved in the analysis of the data and preparation of this manuscript. R.J.G.J. and J.D.S. carried out the synthesis
of the particles. R.J.G.J. and B.J.L. wrote the program for the simulation of the photothermal effect.
Funding: : This research was funded by Army Research Office grant number W911NF-16-1-0123 and the National
Science Foundation Research Experience for Undergraduates program (grant number CHE-16-59679).
Acknowledgments: R.J.G.J. and B.J.L. thank the Army Research Office (W911NF-16-1-0123) for financial support.
J.D.S. thanks the National Science Foundation Research Experience for Undergraduates program (CHE-16-59679)
for financial support.
Conflicts of Interest: The authors declare no conflict of interest. The founding sponsors had no role in the design
of the study; in the collection, analyses or interpretation of data; in the writing of the manuscript; nor in the
decision to publish the results’.
Abbreviations
The following abbreviations are used in this manuscript:
MNP magnetite nanoparticles
PPC
poly(propylene carbonate)
References
1.
2.
Haas, K.M.; Lear, B.J. Billion-fold rate enhancement of urethane polymerization via the photothermal effect
of plasmonic gold nanoparticles. Chem. Sci. 2015, 6, 6462–6467. [CrossRef]
Simoncelli, S.; de Alwis Weerasekera, H.; Fasciani, C.; Boddy, C.N.; Aramendia, P.F.; Alarcon, E.I.;
Scaiano, J.C. Thermoplasmonic ssDNA Dynamic Release from Gold Nanoparticles Examined with Advanced
Fluorescence Microscopy. J. Phys. Chem. Lett. 2015, 6, 1499–1503. [CrossRef] [PubMed]
3.
4.
Fasciani, C.; Alejo, C.J.B.; Grenier, M.; Netto-Ferreira, J.C.; Scaiano, J.C. High-Temperature Organic Reactions
at Room Temperature Using Plasmon Excitation: Decomposition of Dicumyl Peroxide. Org. Lett. 2010
13, 204–207. [CrossRef] [PubMed]
,
Petrova, H.; Perez Juste, J.; Pastoriza-Santos, I.; Hartland, G.V.; Liz-Marzán, L.M.; Mulvaney, P. On the
temperature stability of gold nanorods: Comparison between thermal and ultrafast laser-induced heating.
Phys. Chem. Chem. Phys. 2006, 8, 814–821. [CrossRef] [PubMed]
5.
6.
7.
8.
9.
Hu, M.; Hartland, G.V. Heat Dissipation for Au Particles in Aqueous Solution: Relaxation Time versus Size.
J. Phys. Chem. B 2002, 106, 7029–7033. [CrossRef]
Hogan, N.J.; Urban, A.S.; Ayala-Orozco, C.; Pimpinelli, A.; Nordlander, P.; Halas, N.J. Nanoparticles Heat
through Light Localization. Nano Lett. 2014, 14, 4640–4645. [CrossRef] [PubMed]
Qiu, J.; Wei, W.D. Surface Plasmon-Mediated Photothermal Chemistry. J. Phys. Chem. C 2014, 118, 20735–20749.
[CrossRef]
Chu, M.; Pan, X.; Zhang, D.; Wu, Q.; Peng, J.; Hai, W. The therapeutic efficacy of CdTe and CdSe quantum
dots for photothermal cancer therapy. Biomaterials 2012, 33, 7071–7083. [CrossRef] [PubMed]
Lal, S.; Clare, S.E.; Halas, N.J. Nanoshell-Enabled Photothermal Cancer Therapy: Impending Clinical Impact.
Acc. Chem. Res. 2008, 41, 1842–1851. [CrossRef] [PubMed]
10. Shanmugam, V.; Selvakumar, S.; Yeh, C.S. Near-infrared light-responsive nanomaterials in cancer
therapeutics. Chem. Soc. Rev. 2014, 43, 6254–6287. [CrossRef] [PubMed]
11. Chu, M.; Shao, Y.; Peng, J.; Dai, X.; Li, H.; Wu, Q.; Shi, D. Near-infrared laser light mediated cancer therapy by
photothermal effect of Fe3O4 magnetic nanoparticles. Biomaterials 2013, 34, 4078–4088. [CrossRef] [PubMed]
12. Zillohu, A.U.; Abdelaziz, R.; Hedayati, M.K.; Emmler, T.; Homaeigohar, S.; Elbahri, M. Plasmon-Mediated
Embedding of Nanoparticles in a Polymer Matrix: Nanocomposites Patterning, Writing, and Defect Healing.
J. Phys. Chem. C 2012, 116, 17204–17209. [CrossRef]
13. Mukherjee, S.; Libisch, F.; Large, N.; Neumann, O.; Brown, L.V.; Cheng, J.; Lassiter, J.B.; Carter, E.A.;
Nordlander, P.; Halas, N.J. Hot Electrons Do the Impossible: Plasmon-Induced Dissociation of H2 on Au.
Nano Lett. 2013, 13, 240–247. [CrossRef] [PubMed]

Molecules 2018, 23, 1234
11 of 12
14. Scaiano, J.C.; Stamplecoskie, K. Can Surface Plasmon Fields Provide a New Way to Photosensitize Organic
Photoreactions? From Designer Nanoparticles to Custom Applications. J. Phys. Chem. Lett. 2013, 4, 1177–1187.
[CrossRef] [PubMed]
15. Boyd, D.A.; Greengard, L.; Brongersma, M.; El-Naggar, M.Y.; Goodwin, D.G. Plasmon-Assisted Chemical
Vapor Deposition. Nano Lett. 2006, 6, 2592–2597. [CrossRef] [PubMed]
16. Nguyen, D.; Stolaroff, J.; Esser-Kahn, A. Solvent Effects on the Photothermal Regeneration of CO2 in
Monoethanolamine Nanofluids. ACS Appl. Mat. Interface. 2015, 7, 25851–25856. [CrossRef] [PubMed]
17. Wu, M.C.; Deokar, A.R.; Liao, J.H.; Shih, P.Y.; Ling, Y.C. Graphene-Based Photothermal Agent for Rapid and
Effective Killing of Bacteria. ACS Nano 2013, 7, 1281–1290. [CrossRef] [PubMed]
18. Hoogeboom-Pot, K.M.; Hernandez-Charpak, J.N.; Gu, X.; Frazer, T.D.; Anderson, E.H.; Chao, W.; Falcone, R.W.;
Yang, R.; Murnane, M.M.; Kapteyn, H.C.; et al. A new regime of nanoscale thermal transport: Collective
diffusion increases dissipation efficiency. Proc. Natl. Acad. Sci. USA 2015, 112, 4846–4851. [CrossRef] [PubMed]
19. Govorov, A.O.; Richardson, H.H. Generating heat with metal nanoparticles. Nano Today 2007, 2, 30–38.
[CrossRef]
20. Hartland, G.V. Optical Studies of Dynamics in Noble Metal Nanostructures. Chem. Rev. 2011, 111, 3858–3887.
[CrossRef] [PubMed]
21. Qin, Z.; Bischof, J.C. Thermophysical and biological responses of gold nanoparticle laser heating. Chem. Soc. Rev.
2012, 41, 1191–1217. [CrossRef] [PubMed]
22. Buffat, P.; Borel, J.P. Size effect on the melting temperature of gold particles. Phys. Rev. A 1976, 13, 2287–2298.
[CrossRef]
23. Strasser, M.; Setoura, K.; Langbein, U.; Hashimoto, S. Computational Modeling of Pulsed Laser-Induced
Heating and Evaporation of Gold Nanoparticles. J. Phys. Chem. C 2014, 118, 25748–25755. [CrossRef]
24. Collard, D.M.; Fox, M.A. Use of electroactive thiols to study the formation and exchange of alkanethiol
monolayers on gold. Langmuir 1991, 7, 1192–1197. [CrossRef]
25. Häkkinen, H. The gold—Sulfur interface at the nanoscale. Nat. Chem. 2012, 4, 443–455. [CrossRef] [PubMed]
26. Chen, Y.S.; Frey, W.; Kim, S.; Homan, K.; Kruizinga, P.; Sokolov, K.; Emelianov, S. Enhanced thermal stability
of silica-coated gold nanorods for photoacoustic imaging and image-guided therapy. Opt. Exp. 2010
18, 8867. [CrossRef] [PubMed]
,
27. Li, J.; Han, J.; Xu, T.; Guo, C.; Bu, X.; Zhang, H.; Wang, L.; Sun, H.; Yang, B. Coating Urchinlike Gold
Nanoparticles with Polypyrrole Thin Shells To Produce Photothermal Agents with High Stability and
Photothermal Transduction Efficiency. Langmuir 2013, 29, 7102–7110. [CrossRef] [PubMed]
28. DeSantis, C.J.; Huang, D.; Zhang, H.; Hogan, N.J.; Zhao, H.; Zhang, Y.; Manjavacas, A.; Zhang, Y.;
Chang, W.S.; Nordlander, P.; et al. Laser-Induced Spectral Hole-Burning through a Broadband Distribution
of Au Nanorods. J. Phys. Chem. C 2015, 120, 20518–20524. [CrossRef]
29. Espinosa, A.; Di Corato, R.; Kolosnjaj-Tabi, J.; Flaud, P.; Pellegrino, T.; Wilhelm, C. Duality of Iron Oxide
Nanoparticles in Cancer Therapy: Amplification of Heating Efficiency by Magnetic Hyperthermia and
Photothermal Bimodal Treatment. ACS Nano 2016, 10, 2436–2446. [CrossRef] [PubMed]
30. Wang, S.; Riedinger, A.; Li, H.; Fu, C.; Liu, H.; Li, L.; Liu, T.; Tan, L.; Barthel, M.J.; Pugliese, G.; et al. Plasmonic
Copper Sulfide Nanocrystals Exhibiting Near-Infrared Photothermal and Photodynamic Therapeutic Effects.
ACS Nano 2015, 9, 1788–1800. [CrossRef] [PubMed]
31. Hessel, C.M.; Pattani, V.P.; Rasch, M.; Panthani, M.G.; Koo, B.; Tunnell, J.W.; Korgel, B.A. Copper Selenide
Nanocrystals for Photothermal Therapy. Nano Lett. 2011, 11, 2560–2566. [CrossRef] [PubMed]
32. Jiang, R.; Cheng, S.; Shao, L.; Ruan, Q.; Wang, J. Mass-Based Photothermal Comparison Among Gold
Nanocrystals, PbS Nanocrystals, Organic Dyes, and Carbon Black. J. Phys. Chem. C 2013, 117, 8909–8915.
[CrossRef]
33. Johnson, R.J.G.; Haas, K.M.; Lear, B.J. Fe3O4 nanoparticles as robust photothermal agents for driving high
barrier reactions under ambient conditions. Chem. Comm. 2015, 51, 417–420. [CrossRef] [PubMed]
34. Vreeland, E.C.; Watt, J.; Schober, G.B.; Hance, B.G.; Austin, M.J.; Price, A.D.; Fellows, B.D.; Monson, T.C.;
Hudak, N.S.; Maldonado-Camargo, L.; et al. Enhanced Nanoparticle Size Control by Extending LaMer’s
Mechanism. Chem. Mat. 2015, 27, 6059–6066. [CrossRef]
35. Sun, S.; Zeng, H. Size-Controlled Synthesis of Magnetite Nanoparticles. J. Am. Chem. Soc. 2002, 124, 8204–8205.
[CrossRef] [PubMed]

Molecules 2018, 23, 1234
12 of 12
36. Lynch, J.; Zhuang, J.; Wang, T.; LaMontagne, D.; Wu, H.; Cao, Y.C. Gas-Bubble Effects on the Formation of
Colloidal Iron Oxide Nanocrystals. J. Am. Chem. Soc. 2011, 133, 12664–12674. [CrossRef] [PubMed]
37. Haas, K.M.; Lear, B.J. Degradation of polypropylene carbonate through plasmonic heating. Nanoscale 2013
5, 5247–5251. [CrossRef] [PubMed]
,
38. Brus, L.E. Electron-electron and electron-hole interactions in small semiconductor crystallites: The size
dependence of the lowest excited electronic state. J. Chem. Phys. 1984, 80, 4403. [CrossRef]
39. Holman, J. Heat Transfer, 8th ed.; McGraw-Hill, Inc.: New Yrok, NY, USA, 1997.
Sample Availability: Samples of the compounds are not available from the authors.
c
ꢀ 2018 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access
article distributed under the terms and conditions of the Creative Commons Attribution
(CC BY) license (http://creativecommons.org/licenses/by/4.0/).
