Preparation of tetrafluoroethylene from the pyrolysis of pentafluoropropionate salts

Article abstract of DOI:10.1016/j.jfluchem.2016.10.004

The use of tetrafluoroethylene (TFE) in academic institutions beyond a few millimoles has often been inhibited by the compound's inherent danger and general lack of commercial availability. On the other hand, TFE is prepared industrially on a rather large scale by a number of major fluorochemical companies via the pyrolysis of chlorodifluoromethane at high temperatures, yielding TFE and HCl. For a few years at The University of Alabama and Clemson University, we have been preparing TFE on a 100⁺-gram scale by the pyrolysis under dynamic vacuum of pentafluoropropionate salts, which can be obtained from the neutralization of pentafluoropropionic acid with a M(OH)_n (where M?=?Li, Na, K, and Cs for n?=?1 and Mg, Ca, and Ba for n?=?2). Additionally, potassium pentafluoropropionate can be prepared from the reaction of potassium trimethylsilanolate and ethyl pentafluoropropionate. The pentafluoropropionate salts and their decomposition products have been characterized by thermogravimetric analysis (TGA), differential scanning calorimetry (DSC), accelerating rate calorimetry (ARC), nuclear magnetic resonance (NMR) spectroscopy, mass spectrometry, Fourier transform-infrared (FTIR) spectrophotometry, scanning electron microscopy (SEM)/energy dispersive spectroscopy (EDAX), X-ray diffraction (XRD), and single-crystal X-ray crystallography, where applicable. Typical yields of TFE obtained from pyrolysis of potassium pentafluoropropionate obtained from the acid-base neutralization method are >98%, while yields of TFE from the same salt prepared by the silanolate method from ethyl pentafluoropropionate are ca. 80%.

Full text of DOI:10.1016/j.jfluchem.2016.10.004

Accepted Manuscript
Title: Preparation of Tetrafluoroethylene from the Pyrolysis of
Pentafluoropropionate Salts
Author: Daniel A. Hercules Cameron A. Parrish Todd S.
Sayler Kevin T. Tice Shane M. Williams Lauren E. Lowery
Michael E. Brady Robert B. Coward Justin A. Murphy Trevyn
A. Hey Anthony R. Scavuzzo Lucy M. Rummler Emory G.
Burns Andrej V. Mastnev Richard E. Fernandez Colin D.
McMillen Joseph S. Thrasher
PII:
S0022-1139(16)30359-1
DOI:
Reference:
http://dx.doi.org/doi:10.1016/j.jfluchem.2016.10.004
FLUOR 8869
To appear in:
FLUOR
Received date:
Revised date:
Accepted date:
6-8-2016
28-9-2016
1-10-2016
Please cite this article as: Daniel A.Hercules, Cameron A.Parrish, Todd
S.Sayler, Kevin T.Tice, Shane M.Williams, Lauren E.Lowery, Michael E.Brady,
Robert B.Coward, Justin A.Murphy, Trevyn A.Hey, Anthony R.Scavuzzo,
Lucy M.Rummler, Emory G.Burns, Andrej V.Mastnev, Richard E.Fernandez,
Colin D.McMillen, Joseph S.Thrasher, Preparation of Tetrafluoroethylene from
the Pyrolysis of Pentafluoropropionate Salts, Journal of Fluorine Chemistry
http://dx.doi.org/10.1016/j.jfluchem.2016.10.004
This is a PDF file of an unedited manuscript that has been accepted for publication.
As a service to our customers we are providing this early version of the manuscript.
The manuscript will undergo copyediting, typesetting, and review of the resulting proof
before it is published in its final form. Please note that during the production process
errors may be discovered which could affect the content, and all legal disclaimers that
apply to the journal pertain.

Preparation of Tetrafluoroethylene from the Pyrolysis of Pentafluoropropionate Salts
a
a
b
b
a
Daniel A. Hercules , Cameron A. Parrish , Todd S. Sayler , Kevin T. Tice , Shane M. Williams ,
a
a
c
c
c
Lauren E. Lowery , Michael E. Brady , Robert B. Coward , Justin A. Murphy , Trevyn A. Hey ,
Anthony R. Scavuzzo , Lucy M. Rummler , Emory G. Burns , Andrej V. Mastnev , Richard E.
Fernandez , Colin D. McMillen, and Joseph S. Thrasher *
a
d
a
a,b
a,b
a
a,b
a
Department of Chemistry, Clemson University, Advanced Materials Research Laboratory, 91
Technology Drive, Anderson, SC 29625, USA., thrash5@clemson.edu, 001-864-656-5773.
b
Department of Chemistry, University of Alabama, Box 870336, Tuscaloosa, AL 35487, USA.
c
Department of Materials Science and Engineering, Clemson University, Clemson, SC 29634,
USA.
d
Department of Genetics and Biochemistry, Clemson University, Clemson, SC 29634, USA.
In honor of Professor Steven H. Strauss being the 2016 recipient of the American Chemical
Society Award for Creative Work in Fluorine Chemistry

Graphical Abstract - Synopsis
Typical yields of TFE obtained from pyrolysis of potassium pentafluoropropionate obtained from
the acid-base neutralization method are > 98%.
Graphical Abstract

Highlights





Equimolar mixtures of tetrafluoroethylene and carbon dioxide were prepared.
Higher yields of TFE than previous literature reports by this route are reported.
The method based on the pyrolysis of potassium pentafluoropropionate is preferred.
A higher purity of the tetrafluoroethylene/carbon dioxide mixture was obtained.
This method of preparation of tetrafluoroethylene is suitable for academic institutions.

Abstract
The use of tetrafluoroethylene (TFE) in academic institutions beyond a few millimoles has
often been inhibited by the compound's inherent danger and general lack of commercial
availability. On the other hand, TFE is prepared industrially on a rather large scale by a number of
major fluorochemical companies via the pyrolysis of chlorodifluoromethane at high temperatures,
yielding TFE and HCl. For a few years at The University of Alabama and Clemson University, we
+
have been preparing TFE on a 100 -gram scale by the pyrolysis under dynamic vacuum of
pentafluoropropionate salts, which can be obtained from the neutralization of pentafluoropropionic
acid with a M(OH) (where M = Li, Na, K, and Cs for n = 1 and Mg, Ca, and Ba for n = 2).
n
Additionally, potassium pentafluoropropionate can be prepared from the reaction of potassium
trimethylsilanolate and ethyl pentafluoropropionate. The pentafluoropropionate salts and their
decomposition products have been characterized by thermogravimetric analysis (TGA),
differential scanning calorimetry (DSC), accelerating rate calorimetry (ARC), nuclear magnetic
resonance (NMR) spectroscopy, mass spectrometry, Fourier transform-infrared (FTIR)
spectrophotometry, scanning electron microscopy (SEM) / energy dispersive spectroscopy
(EDAX), X-ray diffraction (XRD), and single-crystal X-ray crystallography, where applicable.
Typical yields of TFE obtained from pyrolysis of potassium pentafluoropropionate obtained from
the acid-base neutralization method are > 98%, while yields of TFE from the same salt prepared by
the silanolate method from ethyl pentafluoropropionate are ca. 80%.
Keywords: tetrafluoroethylene (TFE); tetrafluoroethylene-carbon dioxide mixture; synthesis and
pyrolysis of potassium pentafluoropropionate; use of TFE in academic institutions.

1
.
Introduction
Since the curious discovery of polytetrafluoroethylene (PTFE) in 1938 by Plunkett [1], the
interest and use of tetrafluoroethylene (TFE) as a building block for fluoropolymers has increased
due to the unique properties of materials that are made from this monomer. Its homopolymer has
the advantages of being both chemically and thermally resistant, which are of great benefit for its
use in aeronautics, parts manufacturing, and specialty materials [1]. Other compositions of matter
of great importance can be derived from TFE such as its copolymers with various perfluoroalkyl
vinyl ethers to give perfluoroalkoxy resins (PFA), with hexafluoropropylene to give fluorinated
ethylene-propylene (FEP) resins, and with ethylene forming poly(ethylene-co-tetrafluoroethylene)
(ETFE) [2]. Another major use of TFE is in the manufacture of perfluorinated ionomers such as
®
®
Nafion , Aquivion , and others for applications in the chlor-alkali industry as well as energy
conversion and storage devices [3].
The fluorochemical industry prepares TFE via pyrolysis of chlorodifluoromethane
(
CHClF ), more commonly known as R22, as shown in equation 1. The advantage of this process
2
is the ability to obtain TFE from 99.99% to 99.999% purity, but we have been led to believe that
this synthetic method is impractical to be built on a smaller scale for an academic institution due to
prohibitive cost and the inherent complications of running a continuous process without
interruption [4].
2
CHClF (g)  C F + 2 HCl(g)
(1)
2
2 4

In addition to being able to prepare adequate quantities of TFE, a facility for the safe
handling of TFE represents the other primary hurdle that an academic institution must overcome
[
5] when trying to prepare research quantities of TFE-based homo-, co-, and terpolymers. Thus,
both at the University of Alabama [6] and more recently at Clemson University, we have
constructed special facilities for the safe handling and polymerization of TFE. Until now, large
quantities of TFE have been deemed too unsafe to be handled in an academic institution [7].
However, with the use of the aforementioned facilities, especially the most recent and advanced
one at Clemson, the ability to handle TFE has been increased to the kilogram scale, while the
storage of multi-kilogram quantities of TFE has also been enabled. These facilities, including a
former TFE barricade at Clemson that was constructed by DesMarteau, were the subject of a
recent review chapter [5].
For a number of years, TFE has not been commercially available with the exception of
small quantities from an occasional catalog chemical company (e.g., ABCR GmbH), and even then
the price is prohibitively high for the scale being described. Thus, we had to come up with a way
to prepare TFE in our own laboratories. A common alternative to the industrial route to TFE is to
actually pyrolyze waste PTFE; however, until recently, this method had been fraught with
significant
quantities
of
side
products
including
hexafluoropropylene
(HFP),
octafluorocyclobutane (OFCB), and the extremely toxic perfluoroisobutylene (PFIB) [8].
Moreover, unless one has ready access to waste or scrap PTFE, this method may not be cost
effective.
While at the University of Alabama, an additional safety requirement existed due to the
fact that the barricade facility there had been both incorrectly designed and built (i.e., too weak
walls and floor to contain a deflagration of less than 125 g of TFE without structural damage). In
order to use that facility, we turned to technology developed by the DuPont Company (now

Chemours) where Van Bramer, Shiflett, and Yokozeki found that TFE could be rendered safe from
deflagration when mixed with 30-mol %, or more, carbon dioxide, CO [9]. Since this patent
2
claimed only the liquid composition of TFE/CO , we made sure to use/store only gaseous mixtures
2
of TFE/CO until the patent expired.
2
However, even with the additional safety feature in hand at least theoretically, a source of
TFE/CO was still required, as DuPont (now Chemours) only sells its TFE Safe – Supply™ to its
2
commercial partners [10]. Interestingly enough, in the early 1950s both 3M and Haszeldine
independently discovered that the pyrolysis of either alkali metal or alkaline earth metal
pentafluoroalkanoate salts gave terminal perfluoroolefins and carbon dioxide in approximately
equimolar mixtures as shown in equation 2 [11,12]. In their publications, 3M gave the most
examples and obtained the best yields (96-99%) for the generation of HFP when n = 1 in equation
2
. Researchers at 3M and Haszeldine both seemed to favor sodium as the alkali metal of choice
for this reaction, and for the preparation of TFE (where n = 0 in equation 2), they both obtained ca.
8
0-90% yield. Likewise, during the process of coming up to speed in terms of preparing TFE-
CnF2n+1CF CF C(O)OM  C F CF=CF + CO +MF
(2)
2
2
n
2n+1
2
2

based fluoropolymers, we learned that Kornath and Kaufmann at the Ludwig-Maximilians-
Universität Munich had rediscovered this route to TFE and CO , where they too seem to have a
2
preference for the pyrolysis of the sodium salt. Admittedly, we learned and benefitted from their
shared procedure [13].
More recently, our laboratory developed a process that demonstrates the importance of
equimolar TFE/CO mixtures not only for the preparation of fluoropolymers but also for small
2
molecule chemistry, in particular for the synthesis of SF -containing compounds. Thus, it was
5

found that the 50:50 molar mixture of TFE/CO2 could be safely converted into
pentafluorosulfanyldifluoroacetic acid [SF CF C(O)OH] over four steps in about 60% overall
5
2
yield. All earlier known approaches to SF CF C(O)OH were either significantly lower yielding
5
2
processes or required the use of dangerous reagents, such as alkyl trifluorovinyl ethers or
uninhibited TFE. The use of TFE/CO mixtures allowed us to both prepare SF CF C(O)OH on a
2
5
2
multi-gram scale as well as explore the chemistry of the SF CF - group in the synthesis of
5
2
compounds that might be of interest to medicinal and agro chemistry [14].
In the present report, support will be provided for the preference of potassium
pentafluoropropionate as the starting material of choice for preparing mixtures of TFE and CO2.
The reasons include, among others, (1) an increased overall yields of TFE and CO , (2) a more
2
even control of heat and mass transfer during the pyrolysis, and (3) less foaming during the
pyrolysis. The simple neutralization of pentafluoropropionic acid, CF CF C(O)OH, with
3
2
potassium hydroxide, KOH, to give potassium pentafluoropropionate will also be preferred over
the reaction of the corresponding ethyl ester CF CF C(O)OCH CH with potassium
3
2
2
3
trimethylsilanolate, (CH ) SiOK [15].
Evidence for the formation of carbon, C, and
3
3
tetrafluoromethane, CF , as minor byproducts during the formation of TFE and CO in the
4
2
pyrolysis of potassium pentafluoropropionate will also be presented.

2
.
Results and discussion
We have incorporated former patent technology from both 3M [11c] and DuPont (now
Chemours) [9] in the preparation and use of TFE/CO mixtures. Two approaches can be used to
2
prepare either alkali or alkaline earth metal pentafluoropropionates: (Method A) the slow
neutralization of an aqueous metal hydroxide solution/slurry by pentafluoropropionic acid yielding
water and the corresponding alkali or alkali earth metal pentafluoropropionate, as shown in
equation 3, or (Method B) the corresponding reaction of a pentafluoropropionate ester with a metal
silanolate in an organic solvent such as diethyl ether, as shown in equation 4. With Method A,
pentafluoropropionic acid is added drop wise to a chilled, aqueous solution (or slurry) of base in
order to prevent loss of acid due to evaporation from the heat of the reaction. The reaction mixture
is titrated until slightly acidic, as any excess acid can easily be removed during the drying stages,
0
°C
CF CF C(O)OH + KOH  CF CF C(O)OK + H O
(3)
3
2
3
2
2
Et O
2
CF CF C(O)OCH CH + (CH ) SiOK  CF CF C(O)OK + (CH ) SiOCH CH (4)
3
2
2
3
3 3
3
2
3 3
2
3
r.t., 24 h
where that would not be possible for excess base. While it was easy to obtain 98-99% yield of the
corresponding metal pentafluoropropionate from the simple acid-base chemistry, we had trouble
achieving the 92-93% literature yield [15a,b] of potassium pentafluoropropionate via the silanolate
chemistry and only obtained the desired salt in 75-80% yield. Two possible explanations for the
difference in percent yields are the choice of reaction solvent (previous results are reported using
either THF, dioxane, diethyl ether, or CH Cl [15]) and the molar ratio of the reactants used. For
2
2

example, in a more recent and thorough study, Lovrić and co-workers used 1.2 molar equivalents
of silanolate for every mole of ester [15c], where we carried out our reactions on an equimolar
scale as described by the previous investigators [15a,b]. Furthermore, the silanolate route does not
seem to be nearly as cost effective, and as will be described below, the pyrolysis of potassium
pentafluoropropionate prepared by this route also gave far lower yields of TFE and CO2.
Another important step in the process of obtaining TFE/CO in high yield and purity is the
2
drying of the pentafluoropropionate salt. First, bulk water is removed using a rotary evaporator,
and the resulting material is then ground to a fine powder with a mortar and pestle prior to
exhaustive drying at 80 °C and 20 mTorr vacuum until the salts reach a constant weight. (The
early literature indicates drying "by heating in air at 100 °C for 8 hours" [11a].) If necessary, the
salts can be ground again, but usually just shaking the material within the flask will break up any
clumps that may have formed during further drying. The drying stages beyond the removal of
bulk water are usually carried out both on the amount of salts that will be used in an upcoming
pyrolysis as well as in what will become the pyrolysis flask so as to not have to transfer the
material further.
As will be shown further when the thermal properties of the
pentafluoropropionate salts are discussed, it is extremely important to not overheat the salts while
drying so as to avoid rapid gas evolution due to an unexpected onset of thermal decomposition. It
is crucial to pay attention to this part of the drying process in an academic institution, especially if
undergraduate students are involved. On the other hand, should residual water remain in the salts,
the primary impurity previously found in the pyrolysis products, other than TFE and CO , was
2
pentafluoroethane (CF CF H, HFC-125) [6b,11].
3
2
The pentafluoropropionate salts, especially the potassium salt, were spectroscopically
characterized by multinuclear NMR, infrared, and mass spectrometry. All spectra were as
expected, with only the results of the negative ion, electrospray ionization (ESI) mass spectrometry

bearing further comment. In the Experimental and Supporting Information sections, one will
notice that many of the anion clusters observed in the ESI-mass spectra of potassium
pentafluoropropionate have one or more sodium (Na) atoms present. Alkali metal salts are well
known for not being metal pure, so perhaps the technical grade KOH used had some sodium
contamination, and/or some sodium contamination came during the sample preparation, etc.
Furthermore, other researchers have reported that the ESI-mass spectra of lariat ethers with
carboxylate arms display a strong selectivity for sodium over potassium [16]. Both the thermal
and crystal properties of the pentafluoropropionate salts will discussed below.
One of the primary reasons for our preference of using potassium pentafluoropropionate
over sodium pentafluoropropionate turns out to be the fact that one can routinely prepare a mixture
of TFE and CO in 98% yield with the potassium salt, where we and others (3M and Haszeldine
2
[
11,12]) only achieved about 80-90% yield from the sodium salt. For comparison, it is important
to note that researchers at 3M were able to obtain 98-99% yields of hexafluoropropylene (HFP)
and CO when pyrolyzing sodium heptafluorobutyrate (see equation 2 for n = 1) [11]. Haszeldine
2
also appeared to carry out his pyrolysis at 150 Torr, which could have also led to more side
products (e.g., perfluorocyclobutane, C F ). Perhaps this outcome is parallel to the observation
4
8
that fewer impurities are obtained in the production of TFE when the pyrolysis of PTFE is carried
out under more strongly reduced pressure [6]. In our hands, the pyrolysis of potassium
pentafluoropropionate under a low heating rate of 1°C per minute from 80 to 300 °C and dynamic
-3
-4
vacuum (10 to 10 Torr, with the gaseous products being collected at liquid nitrogen
temperature) gave a mixture of TFE and CO with no discernible impurities by NMR and infrared
2
spectroscopy. On the other hand, although the potassium pentafluoropropionate prepared by the
silanolate method appeared spectroscopically to be the same as the potassium salt prepared by the
simple neutralization reaction, its thermal decomposition gave TFE and CO in only about 75-80%
2

yield. Overall, it is important to remember that regardless of the choices of metal cation and
pyrolysis conditions, one obtains TFE with roughly equimolar amounts of CO , which results in a
2
safe gas mixture for handling [9] in further research.
We next turned our attention to the identification of the yield-loss products as well as any
rationale for why the potassium salt gives higher yields of TFE and CO . First, remaining after the
2
pyrolysis of any pentafluoropropionate salt should be the corresponding white, metal fluoride, as
shown by way of example for the potassium salt in equation 5. However, the salts remaining after
8
0 to 300 °C
CF CF C(O)OK  C F (g) + CO (g) + KF(s)
(5)
3
2
2
4
2

the pyrolysis of potassium pentafluoropropionate prepared by the neutralization reaction appeared
to have dark-colored specks throughout them, while the salts remaining after the pyrolysis of either
potassium pentafluoropropionate prepared by the silanolate method or sodium
pentafluoropropionate appeared tan to light brown in color. Previously, Haszeldine had mentioned
in the Experimental section of one of his papers that the pyrolysis of potassium
pentafluoropropionate in addition to TFE, CO , and KF "gave a small amount of carbon" [12b],
2
although no characterization/analytical method was given. As shown in Figure 1, we had the salts
remaining from a number of pyrolysis experiments examined by scanning electron microscopy
(SEM) / energy dispersive spectroscopy (EDAX), and clearly elemental carbon is present.
Furthermore, when applying our normal heating rate of 1 °C/min, the amount of carbon found in
the remaining salts was around 0.5 to 1.0 wt%, but when applying a more rapid heating rate of
4
°C/min, 1.5 wt% carbon or higher was found. The latter was typically the case for analyses of

the salts remaining from the pyrolysis of either potassium pentafluoropropionate prepared by the
silanolate method or sodium pentafluoropropionate. When comparing the observations from the
Figure 1. Left: X-ray elemental analysis of left over solids after pyrolysis showing the presence of
elemental carbon. Right: Electron microscopy image of left over solids after pyrolysis.
EDAX experiments, the most likely source of elemental carbon would be the well-known, and
undesired, disproportionation of TFE as shown in equation 6 [7]. If this is the case, then one
should also be able to find evidence for the formation of carbon tetrafluoride.
C F (g)  CF (g) + C(s) ∆H = -276 kJ/mol
(6)
2
4
4
R
In fact, one experimental observation that has not yet been mentioned is that a slight rise in
pressure of about 20-30 mTorr is observed during the actual period of thermal decomposition of
each pentafluoropropionate salt on a thermocouple gauge tube that is placed between the main
vacuum trap (held at -196 °C) and the vacuum pump. This can only be indicative of either a small
leak in the vacuum system or the generation of a small, but constant amount of a non-condensable

gas. In fact, when the pyrolysis of the salts is complete, the reading of the thermocouple vacuum
gauge comes back down to whatever the previous ultimate obtainable vacuum level of the system
was prior to the pyrolysis. Having ruled out any leaks in the system during numerous experiments,
only the generation of a small, but continuous amount of a non-condensable gas can be operative.
Furthermore, CF is known to have a very small residue vapor pressure even at liquid nitrogen
4
temperature [17]. We expended great effort trying to first obtain infrared spectroscopic evidence
for the presence of CF by sampling the gases either coming directly off of the pyrolysis of the
4
salts prior to the liquid nitrogen-cooled collection trap or coming through the liquid nitrogen trap,
including warming this trap slightly in order to catch a representative sample of the most volatile
products. In no case could we observe convincing evidence for the presence of CF ; an example of
4
several overlaid FT-IR spectra of gases coming off a pyrolysis versus authentic spectra of samples
of TFE and CF is shown in Figure S11 (cf. [18]). Thereafter, we moved to a more sensitive
4
analytical technique, namely GC-mass spectrometry, including the use of selective ion monitoring
(SIM). Use of the latter was chosen not only due to the enhanced sensitivity of the SIM mode, but
also because a comparison of both literature [19] and experimental mass spectra of CF and TFE
4
+
reveals a striking difference in the intensity of the 69 m/z peak for CF . More specifically, the 69
3
m/z peak is by far and away the base peak in the mass spectrum of CF , while this peak is only
4
+
about 4-5% relativity intensity versus the base peak at 81 m/z for C F in TFE (when collecting
2
3
data above 40 m/z). As shown in a series of mass spectra in the Supporting Information (see
Figures S13-S15), the 69 m/z peak in the aforementioned gas samples taken during the pyrolysis is
approximately twice as intense as it is an authentic sample of TFE that has been degassed of any
residual CF . These observation collectively give the best evidence that we have to date for CF
4
4
being a minor side product, along with carbon, in the thermal decomposition of
pentafluoropropionate salts to generate a mixture of TFE and CO2.

Moving to the thermal properties of the pentafluoropropionate salts, we have already
reported results on the accelerating rate calorimetry of the sodium, potassium, and calcium salts
(see Figures S16-S18) [6]; however, and an overview of the results bears repeating here. First, the
sample of sodium pentafluoropropionate appears to start slowly decomposing around 230 °C and
does not finish decomposing until about 100 minutes later at about 260 °C. Meanwhile, the
sample of potassium pentafluoropropionate does not start decomposing as evidenced by rapid gas
evolution until about 280 °C, and the decomposition is complete within a few minutes before the
sample reaches 300 °C. However, a word of caution can be offered here, as a small exotherm,
without significant gas evolution, is observed at a temperature as low as 175 °C. This is the reason
for the earlier warning of not drying potassium pentafluoropropionate salts at too high of a
temperature. The sample of calcium pentafluoropropionate exhibited a small endotherm and
pressure increase at about 160 °C, which could have been due to the elimination of water from a
small amount of remaining hydrate. However, stronger decomposition and gas evolution did not
occur until about 280 °C and continued for ca. 500 minutes to beyond 350 °C. Collectively, the
ARC results seem to indicate a preference for potassium pentafluoropropionate over the
corresponding sodium and calcium salts [6]. No ARC experiment gave rise to a strong exotherm,
which is consistent on one hand with the fact the thermal decomposition of these salts requires
constant heat input until their decompositions are complete, i.e., their thermal decompositions are
not exothermic enough whereby the heats of reaction generate sufficient energy to keep the
decompositions proceeding once started. On the second hand, it is also important to note that the
ARC results are in agreement with the DuPont (now Chemours) technology for 'safe TFE' as no
deflagrations were observed under condition up to 400 °C and 350 psig.
In hopes of learning more about the thermal properties of these materials,
pentafluoropropionate salts of lithium, sodium, potassium, cesium, magnesium, calcium, and

barium were prepared, dried, and studied by thermogravimetric analysis (TGA) even though
researchers at 3M had carried out parallel studies back in the 1950s [11b]. The results are
overviewed in Tables 1 and 2 and shown graphically in Figures S19-S34. As indicated by fewer
ARC experiments, the data further confirm that higher decomposition temperatures are required
for each of the divalent metal salts than those for all of the monovalent salts. On the other hand,
no noticeable trends were observed based on cation size within either the alkali metal or the
alkaline earth metal series of salts in terms of the concept of stabilization of a complex anion by a
bulky cation, i.e., minimization of the lattice energy differences between the metal
pentafluoropropionate and its corresponding metal fluoride by using a bulky cation [20].
Nevertheless, the TGA of potassium pentafluoropropionate displays step-like behavior (with
weight loss versus increasing temperature and time) as indicated by an initial maximum rate of
decomposition at 196 °C followed later by a second maximum rate of decomposition at 229 °C.
Interestingly, during this second decomposition step, the potassium salt shows the fastest rate of
decomposition (i.e., gas evolution) at 3.82%/°C of any of the pentafluoropropionate salts studied.
While the cesium salt also displays this step-like decomposition, none of the alkaline earth metal
salts did so as might have been expected from the ARC data on the calcium salt.
-
+
+
+
+
Table 1. Thermogravimetric data analysis (TGA) for CF CF C(O)O M (where M = Li , Na , K ,
Cs , Mg , Ca , or Ba ).
3
2
+
2+
2+
2+
Mass %
remaining
at end of
TGA
Mass percent loss at
maximum rate
decomposition
(%/°C)
Temperature
at 10% mass
loss (°C)
Temperature at
maximum rate
decomposition (°C)
Sample
-
+
CF CF C(O)O Li
258
227
14.44
281
243
2.81
3
2
-
+
CF CF C(O)O Na
23.14
28.96
52.95
17.52
21.83
2.81
1.25 and 3.82
1.17 and 3.31
2.79
3
2
-
+
CF CF C(O)O K
197*
208**
298
196 and 229
205 and 236
331
3
2
-
+
CF CF C(O)O Cs
3
2
-
2+
[
CF CF C(O)O ] Mg
3
2
2
-
2+
[
CF CF C(O)O ] Ca
324
345
2.77
3
2
2

-
2+
[
CF CF C(O)O ] Ba
290
33.55
321
2.37
3
2
2
Additionally, potassium pentafluoropropionate shows 3% mass loss at 130 °C and cesium pentafluoropropionate
shows a 3% mass loss at 120 °C. *At this temperature, the compound is already decomposing rapidly (see SI for the
detailed TGA analysis). **At this temperature, the compound is already decomposing rapidly (see SI for the TGA
analysis).
Table 2. Mass percent of metal fluoride remaining at the end of each TGA – theoretical versus
experimental.
Sample
Metal fluoride remaining (theoretical)
M.W.
Mass %
remaining at the
end of each TGA
M.W.
g/mol)
Formula
Formula
Mass %
(
(g/mol)
25.94
41.99
58.10
151.91
62.30
78.07
175.33
(
experimental)
-
+
CF CF C(O)O Li
169.96
186.01
202.12
295.93
350.35
366.12
463.37
LiF
NaF
KF
15.26
22.57
28.74
51.33
17.78
21.32
37.84
14.44*
3
2
-
+
CF CF C(O)O Na
23.14
28.96
52.95
17.52*
21.83
33.55*
3
2
-
+
CF CF C(O)O K
3
2
-
+
CF CF C(O)O Cs
CsF
3
2
-
2+
2+
2+
[
CF CF C(O)O ] Mg
MgF2
CaF2
BaF2
3
2
2
-
[
CF CF C(O)O ] Ca
3 2 2
-
[
CF CF C(O)O ] Ba
3 2 2
*Cases where the mass % of metal fluoride remaining at the end of an experiment is significantly less than theoretical
may be due to blow off of some of the sample during gas evolution from the decomposition.
At this point, we were still not satisfied with the existing rationale for why the thermal
decomposition of potassium pentafluoropropionate gave better results, so we decided to film the
thermal decompositions of bulk quantities of sodium and potassium pentafluoropropionate, which
are normally carried out in our barricade facility [5] and had only been watched momentarily while
filling liquid nitrogen baths around product (TFE and CO ) collection cylinders. Two, time-lapsed
2
videos are provided as part of the supporting information, and they provide clear visual insight as
for why potassium pentafluoropropionate should be preferred. First, the sodium salt clearly melts
prior to any significant decomposition, and due to the better heat and mass transfer in a liquid
(versus a solid), the reaction is rather rapid and violent. Lots of foaming is observed with the

evolution of gases, which was the original reason for using long-necked flasks for the
decomposition reactions [13]. The foaming is undoubtedly due to the well-known surfactant
properties of sodium pentafluoropropionate [21], and the corresponding potassium salt would be
expected to be an even better surfactant based on the larger cation. The remaining mass in the
reaction flask from the thermal decomposition of sodium pentafluoropropionate only solidifies
near the end of the thermal decomposition when the bulk material is nominally sodium fluoride;
the brownish color, first of the melt and then the solid, is also clearly visible.
In the second video, one can clearly sees that the potassium pentafluoropropionate salts
never truly melt. Instead, one sees what appears like a 'wetted' or slightly darker band of color
move progressively across from the outer walls of the reaction flask toward the center of the flask.
Clearly the salts that are in more direct contact with the outer walls of the reaction flask increase in
temperature more rapidly than do the salts toward the center of the flask, as they are in closest
proximity to the heat source. Even though the TGA and ARC experiments showed a more rapid
gas evolution (thermal decomposition) of the potassium salt, these experiments were only done on
the scales of milligrams to about a gram. When carried out on the scale of several hundred grams
of material, the much poorer heat and mass transfer in a solid bed versus a melt helps mitigate or
control the rate of thermal decomposition of potassium pentafluoropropionate. We feel that this
situation results in an overall lower reaction pressure when the product gases are being trapped at
liquid nitrogen temperature under dynamic vacuum and thus less unwanted side products are
generated and a greater overall yield of TFE and CO is obtained.
2
Differential scanning calorimetry (in combination with TGA) was also run on both the
sodium and potassium pentafluoropropionate salts (see Figures S35 and S36). Consistent with the
videos, a strong endotherm for melting is seen for the sodium salt around 225 °C prior to thermal
decomposition with a maximum heat flow around 275 °C, while the potassium salt shows a couple

of weaker endotherms below 200 °C, which may be due to some type of phase transitions in the
solid state, prior to thermal decomposition with a maximum heat flow around 245 °C.
In a final attempt to better understand why no dependence on cation size was found in the
thermal studies of the pentafluoropropionate salts, we recently undertook a study of the powder
and single crystal X-ray diffraction of these materials. Unfortunately, humid air could not be
excluded during the collection of the powder data, so some of the materials undoubtedly absorbed
water during the data collection, especially the lithium and magnesium salts [22]. In terms of
growing single crystals, water has so far been the solvent of choice, but we have been fortunate to
obtain acceptable data on non-hydrated crystals of both sodium and potassium
pentafluoropropionate.
Structures of hydrated crystals of magnesium and calcium
pentafluoropropionate were also obtained, but these will be reported separately. The molecular
structure of sodium pentafluoropropionate is shown below in Figure 2. No unusual bond distances
or angles were found, and all of the tables of data corresponding to the structure solutions are
shown in the Supporting Information. More important is to compare the coordination spheres
around both sodium and potassium in the two structures as shown with the wire frame
representations in Figure 3. As expected due to its smaller size, the sodium atom is six-coordinate,
while the larger potassium atom is generally nine-coordinate (although other eight-, nine-, and ten-
coordinate potassium atoms exist in the complex unit cell of this structure; further details will
appear separately). It is interesting to note that some of the pentafluoropropionate ligands filling
the coordination spheres of the sodium and potassium atoms are not just monodentate but
polydentate as well, and the coordination (or close contacts) is not just via the carboxylate oxygen
atoms, but also sometimes through a fluorine atom. In fact, in sodium pentafluoropropionate, the
short contacts involving fluorine atoms are always to an -fluorine atom, while in potassium

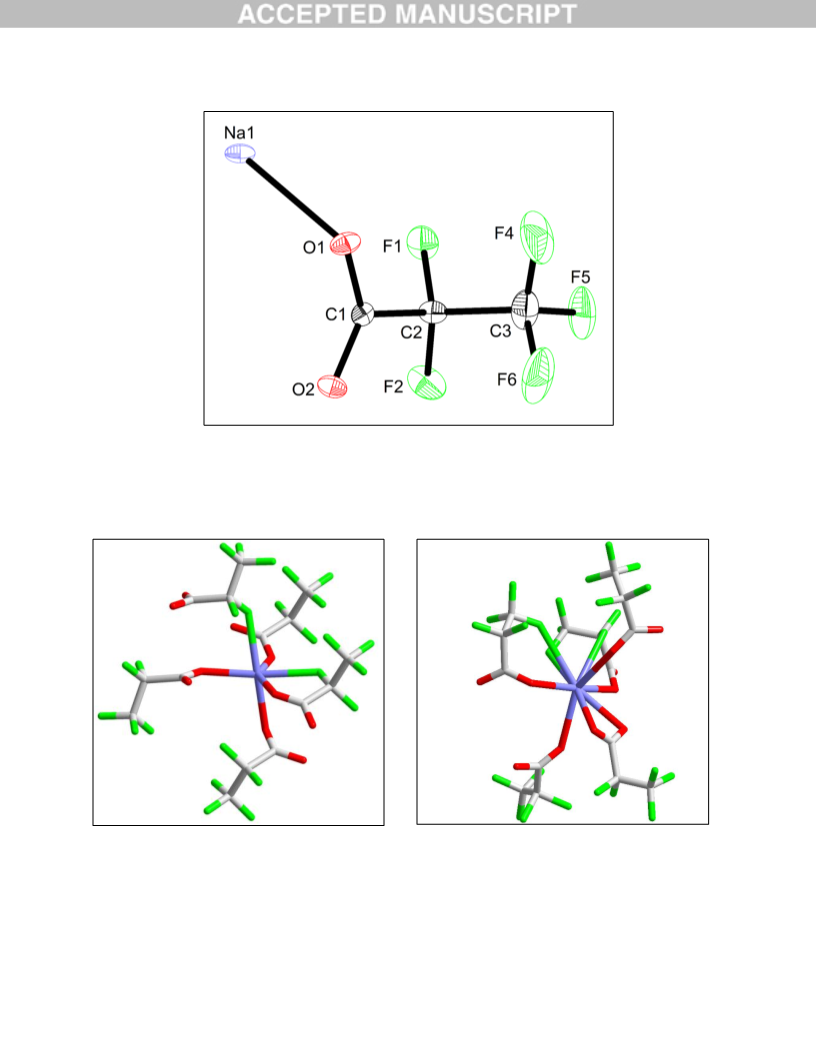

Figure 2. OPRTEP representation of sodium pentafluoropropionate (50% probability ellipsoids).
Figure 3. Wire frame representations of sodium pentafluoropropionate around the sodium atom
left side) and potassium pentafluoropropionate around the potassium atom (right side),
(
respectively. Gray = carbon atom, green = fluorine atom, red = oxygen atom, and blue = alkali
metal cation.

pentafluoropropionate, these types of short contacts are most often to -fluorine atoms. Since the
mechanism for the generation of TFE and CO2 from the decomposition of a metal
pentafluoropropionate salt would generally be thought of as occurring by a concerted -
elimination [23], one may wonder if these structural differences also play a role in the potassium
salt yielding better results.
3
.
Conclusions
Herein, we report evidence for why potassium pentafluoropropionate prepared from the
simple neutralization of pentafluoropropionic acid and potassium hydroxide is the preferred
pentafluoropropionate salt for pyrolysis to prepared TFE/CO mixtures in high yield and purity.
2
+
These rationales include (1) an increased overall yields of TFE and CO , often 98 % yield, (2) a
2
more even control of heat and mass transfer during the pyrolysis, (3) capture of the pyrolysis gases
at low temperature under high vacuum, and (4) little to no foaming of the reaction medium with
the evolution of gases during the pyrolysis. The thermal and probably the coordination properties
of potassium pentafluoropropionate help contribute to its advantages as a starting material for this
synthetic method. Evidence for the minor-yield byproducts carbon, C, and carbon tetrafluoride,
CF , is also offered, and these byproducts almost certainly arise from the unwanted
4
disproportionate reaction of TFE under the harsh reaction conditions used.
4
.
Experimental
Disclaimer: The authors make no warranties, expressed or implied, and assume no
liability in connection with any use of the information presented in this paper. No one but persons

having technical skill in this area of fluorine chemistry should attempt or repeat anything
presented herein, and then at their own discretion and risk.
4
.1. Materials
The following reagents were purchased from the vendors indicated and used as received:
CF CF C(O)OH (SynQuest Labs or Matrix Scientific), CF CF C(O)OCH CH (SynQuest Labs),
3
2
3
2
2
3
(
Me) SiOK (SynQuest Labs). Technical grade potassium hydroxide (90+%), as well as other
3
alkali metal and alkaline earth metal hydroxides, were taken from laboratory stock. Diethyl ether
was distilled off of sodium metal prior to use.
4
.2. Methods
1
19
13
The H-, F-, and C-NMR spectra were recorded on a JEOL 300-MHz spectrometer
1
using a Young’s tube for gaseous samples and normal techniques for solid and liquid samples. H-
NMR spectra were recorded for substances that do not even have protons in order to double check
their purities. IR spectra were recorded on a Thermo Scientific Nicolet iS5 spectrophotometer
with either the iD1 Transmission or iD5 ATR option, depending on the physical state of the
sample. Gaseous mixtures of TFE/CO , TFE, and CF were loaded at 40 Torr (sometimes less)
2
4
into a 10-cm gas cell with silicon windows, while samples of potassium pentafluoropropionate
were placed as dry, fine powders on the diamond crystal of the ATR accessory. GC-mass spectra
were obtained on all gaseous samples on a Shimadzu GCMS-QP5000 with a 30 m, 0.25 m film
Rxi-5HT column, while LC-mass spectrometry data on solids (in methanol) were collected on a
Bruker HCT Ultra PTM Discovery System using ESI and the negative ion mode.
Thermogravimetric analyses (TGAs) were run on a TA Instruments Model Q500 under a
stream of dry nitrogen; as much as possible, samples were further dried on the instrument in a

stream of nitrogen at 100 °C prior to acquiring the data. Differential scanning calorimetry
experiments were carried out in a similar fashion on a TA Instruments Model Q600 SDT. The
®
®
TM
accelerating rate calorimetry (ARC ) experiments were carried in an ARC 2000 from Arthur
D. Little, Inc. using 1-in. o.d. Hastelloy bombs from Tricor Metals Inc. and ca. 0.5-1.5 g of
pentafluoropropionate salt samples. Prior to use, the bombs were washed with acetone and
deionized water followed by overnight drying in an oven at 120 °C. The "heat-wait-search" mode
of operation was used in which a heating rate of 10 °C/min with 10 °C steps making sure that the
self-heating range was lower than 0.02 °C/min. The system was kept adiabatic for both periods of
"wait" and "search" [24]. The energy dispersive X-ray analysis (EDAX) were performed on a
Hitachi S3400 SEM / Oxford X-Max EDX using a beam energy of 10 kV. Each solid sample was
placed in the sample holder with the aid of copper double-sided adhesive tape.
Bulk reaction products were evaluated by powder X-ray diffraction (XRD) using a Rigaku
Ultima IV diffractometer. Well-ground samples were analyzed in Bragg-Brentano geometry using
Cu Kα (λ = 1.5406 Å) radiation. Data were collected in 0.02-degree increments from 5-50 degrees
in 2-theta at a rate of one degree per minute. Single crystal X-ray diffraction experiments of
colorless plate-like crystals were performed at 100 K using a Bruker D8 Venture diffractometer.
The data were collected using phi and omega scans (0.50° oscillations) with a Mo Kα (λ =
0
.71073 Å) microfocus source and Photon 100 detector. Data were processed using the SAINT
software program, and corrected for absorption using the SADABS multi-scan technique, both
within the Apex3 suite [25]. The structures were solved by intrinsic phasing and subsequently
2
refined by full matrix least squares on F using the SHELXTL software package [26]. Complete
results of the structure refinements, including tables of interatomic distances and angles are
included in the Supporting Information.

-
+
4
.3. Preparation of CF CF C(O)O K
3 2
(
Method A): An amount of 164.0 g (1.00 mol) of CF CF C(O)OH was added drop wise to
3 2
a solution of 56.1 g (1.00 mol) of KOH (90+% technical grade [27]) dissolved in 300.0 mL H O
2
cooled in an ice bath. The acid must be added slowly to avoid the mixture warming up rapidly and
therefore evaporating away any of the acid. The pH of the resulting solution was tested, and
CF CF C(O)OH was added until the solution became slightly acidic. After removal of bulk water
3
2
with a rotavap, the salt was ground to a fine powder with a mortar and pestle, and then dried until
constant weight at 80-100 °C under dynamic vacuum at 20-30 mTorr. A percent yield of 98% was
achieved.
-
+
(
Method B): A solution of 50 mmol of (Me) SiO K in 25 mL of dry diethyl ether was
3
added drop wise to a solution of 50 mmol of CF CF C(O)OCH CH dissolved in 300 mL of dry
3
2
2
3
diethyl ether contained in a 1-L, round-bottomed flask under N atmosphere. Once the
2
-
+
(
CH ) SiO K was added, the solution was left stirring overnight. The agitation was removed, and
3 3
the solution was allowed to stand for a period of 48 hours. The solution was then filtered, and the
filter cake was washed thoroughly with dry diethyl ether and dried under vacuum at 20-30 mTorr.
A percent yield of 77% was achieved.
1
9
Potassium pentafluoropropionate: F NMR (282 MHz, D O, CFCl ) δ -83.2 (s, 3F), δ
2
3
13
-
120.9 (s, 2F). C NMR (75.46 MHz, D O, TMS) δ 107.15 (tq, J = 262.1 Hz, J = 37.7 Hz, CF ),
2 1 2 2
δ 118.66 (qt, J = 284.7 Hz, J = 35.1 Hz, CF3), δ 163.45 (t, J = 24.5 Hz, C=O). FT-IR: (C=O)
1
2
2
-
1
-
1
674 (m), 1408 (w), 1322 (w), (C-F) 1204 (m), 1150 (s), 1026 (m) cm . Mass spectrum (ESI ,
-
-
-
m/z, ion): 119.0 [CF CF ] , 162.9 [CF CF COO] , 327.0 [(CF CF COO) + H] , 348.9
3
2
3
2
3
2
2
-
-
-
[
(CF CF COO) + Na] , 364.9 [(CF CF COO) + K] , 534.9 [(CF CF COO) + 2Na] , 550.9
3 2 2 3 2 2 3 2 3
-
-
-
[
(CF CF COO) + Na + K] , 720.9 [(CF CF COO) + 3Na] , 736.8 [(CF CF COO) + 2Na + K] ,
3 2 3 3 2 4 3 2 4
-
7
52.8 [(CF CF COO) + Na + 2K] .
3 2 4

-
+
4
.4. General method of preparation of CF CF C(O)O M
3 2
-
+
In a similar way as preparing CF CF C(O)O K (Method A), other pentafluoropropionate
3
2
n+
salts can be prepared by neutralizing a solution of the M (OH) . For the cases of Ca(OH) and
n
2
Ba(OH) that are slightly soluble, the desired amount of base to be neutralized was placed in a
2
beaker, and acid was added until all the base dissolves and the pH was slightly acidic. After
removal of bulk water with a rotavap, the salt was dried at 80-100 °C for 24 h using a dynamic
vacuum at 20-30 mTorr until constant weight. A percent yield of 99% was achieved.
4
.5. Preparation of tetrafluoroethylene-carbon dioxide (TFE-CO ) mixture
2
Further disclaimer: These reactions should only be done in a facility specifically designed to
handle TFE safely.
(Method A- from potassium pentafluoropropionate): An amount 202 g (1.00 mol) of dry
-
+
and finely grounded CF CF COO K salt was placed in a 1-L long-necked, round-bottomed flask.
3
2
The flask was connected to a 1-Gal Hoke stainless steel cylinder that had been converted into a
trap. The outlet port of the cylinder was connected to dynamic vacuum (20-30 mTorr). The flask
was heated slowly until reaching 300 °C, during which time a small increase in the vacuum
pressure gauge was observed indicating the presence of a non-condensable gas. The heating
process was stopped after the pressure in the vacuum gauge once again returned to 20-30 mTorr.
The flask was allowed to cool to room temperature again under dynamic vacuum. Often, two or
three reaction flasks were connected to a common manifold prior to the collection cylinder/trap.

An amount of 141 g of a mixture of TFE/CO was obtained from the pyrolysis of one batch of
2
potassium pentafluoropropionate representing a percent yield of 98%.
Pyrolysis of smaller quantities of potassium pentafluoropropionate prepared by the
silanolate method generally produced TFE/CO in only about 75-80% yield. For example, 34.0 g
2
of potassium pentafluoropropionate gave 17.9 g of a mixture of TFE and CO2.
(Method B – from sodium pentafluoropropionate): An amount 74.4 g (0.400 mol) of dry
-
+
and finely ground CF CF C(O)O Na salt was placed in a 1-L long-necked, round-bottomed flask.
3
2
The flask was connected to a 500-mL Hoke stainless steel cylinder, which had been converted into
a trap. The outlet port of the cylinder was connected to 20-30 mTorr of dynamic vacuum. The
previously dried salts were left overnight at 80 ºC under dynamic vacuum for further drying and
leak checking of the system. After the salts had been dried scrupulously, the Hoke cylinder was
cooled to liquid nitrogen temperature, and the round-bottomed flask was heated slowly at a rate of
1
ºC/min until reaching 300 ºC. An increase of pressure (from a baseline of 30 mTorr to 50
mTorr), by the presence of a non-condensable gas, was observed. The heating process was
stopped after the pressure in the vacuum gauge once again returned to 30 mTorr. The flasks were
left to reach room temperature under dynamic vacuum. A total of 52.6 g (0.365 mol each) of
TFE/CO were gained in the Hoke trap cylinder, and a total of 21.6 g of primarily NaF were left in
2
the round-bottomed flask. The yield calculated from the TFE/CO produced is 91.3%.
2
In a separate pyrolysis experiment where the sodium pentafluoropropionate salts were
heated considerably quicker to 300 ºC, a significant decrease in yield was observed. For example,
when 99.0 g (0.532 mol) of sodium pentafluoropropionate were used, a mass of 44.7 g remained in
the pyrolysis flask, while 53.9 g (0.374 mol each) of primarily TFE/CO remained in the collection
2
trap. The percent yield of TFE/CO was 70.3%.
2

19
13
Tetrafluoroethylene-carbon dioxide: F-NMR (282 MHz, CD CN) δ -131.77 (s, 4F). C-
3
NMR (75.46 MHz, gas) δ 126.69 (s, CO ), 143.67 (m, C F ) [28]. FT-IR (gas): (O=C=O) 2351
2
2 4
-1
(
m), (C-F) 1333 (vs), (C-F) 1194 (vs) cm [29].
4
.6. Scrubbing of carbon dioxide from tetrafluoroethylene-carbon dioxide (TFE/CO ) mixture
2
and reinhibition with D-limonene
Further disclaimer: These reactions should only be done in a facility specifically designed to
handle TFE safely.
The experimental setup used for this separation is illustrated in Figure 4. The D-limonene
bubbler was a single-ended, 250-mL Hoke cylinder containing approximately 100 g of D-
limonene. The calcium sulfate scrubber was a double-ended, 500-mL Hoke cylinder completely
filled with calcium sulfate. The whole system was checked for leaks, evacuated, and purged with
nitrogen three times before the following procedure was carried out.
Two 1-Gal Hoke cylinders that had been made into trap cylinders were connected to a
manifold containing a TFE regulator that was adjusted to 50 psig. Three in-line orifices (0.010”
internal diameter) were placed immediately after the cylinder valve of each cylinder and the other
one after the regulator in order to control the flow. The contents of one of TFE/CO cylinder at a
2
time was bubbled at a constant rate of 0.3500 SLM through a stainless steel bubbling stone
submersed in an aqueous solution of KOH (5 L, 40-wt %) that has previously been placed and
degassed inside the 2-Gal stainless steel autoclave shown in Figure 4. Agitation of the caustic
solution was kept at a constant rate of 800 rpm, while the temperature of the reactor was
maintained at 10 ºC by the action of the internal cooling coil that was connected to a cooling

machine set at 5 ºC. As the TFE bubbled to the surface of the solution, it was carried under
reduced pressure through a calcium sulfate desiccator and then through a D-limonene bubbler
before being collected in a third 1-Gal stainless steel Hoke cylinder being held at -70 ºC (dry ice /
isopropanol bath). Once the pressure of the source cylinder decreased to about 20 psig, the main
cylinder valve was closed, and the second source cylinder was opened (as observed by an increase
of the pressure in the manifold as shown in Figure S40). For the data featured in the graph shown
in Figure S40, a total of 757 g of the gas mixture was taken out of the first cylinder and a total of
7
38 g of mixture was taken from the second cylinder to give a total of 1495 g of TFE/CO that
2
passed through the scrubber. A total of 1007 g of TFE were collected for a total yield of 97.0%.
Further analysis of the TFE by infrared spectroscopy confirmed that all the CO had been
2
removed.

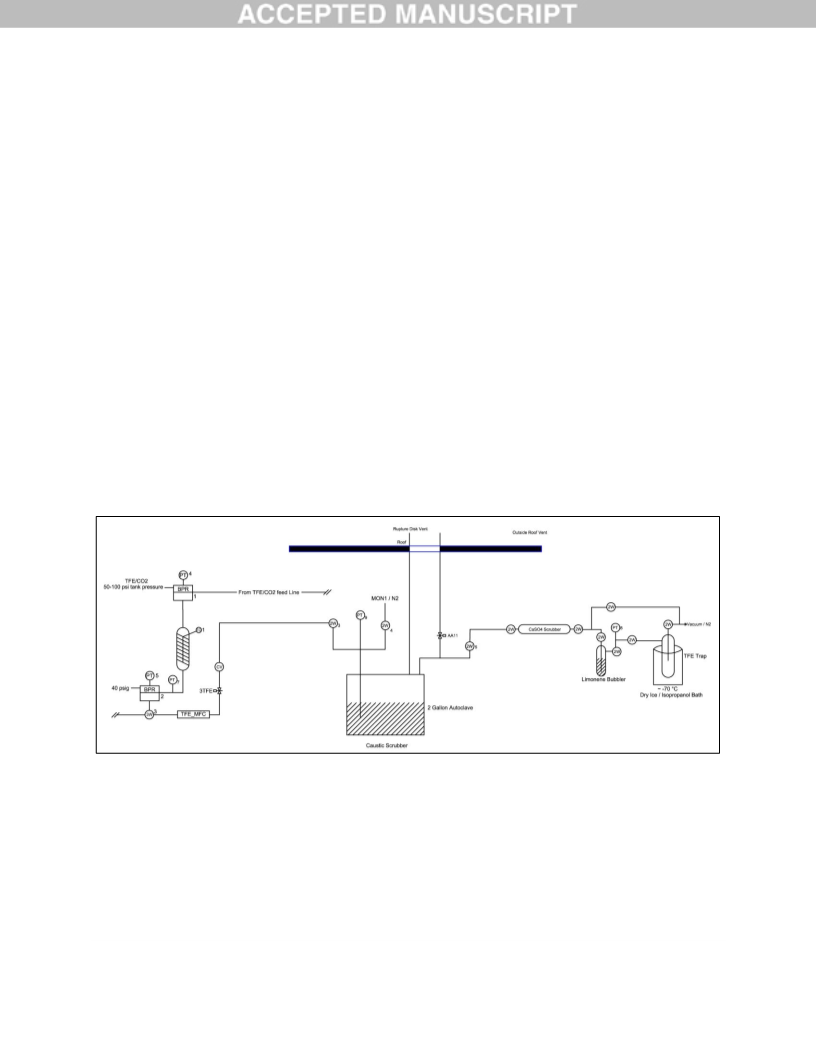

Figure 4. Schematic of 2-Gal autoclave converted into a caustic scrubber [5].
4
.7. Powder and single crystal X-ray diffraction of pentafluoropropionate salts
Prior to analysis by powder X-ray diffraction, each sample of the pentafluoroproprionate
n+
+
+
+
+
2+
2+
salts, where M = Li , Na , K , Cs , Mg , Ca , was finely ground and dried under vacuum at 20-

3
0 mTorr for 48 hours. Samples were then placed in a conventional aluminum sample holder and
carefully flattened against the surface of the holder in order to provide a flat and level surface. The
data collections were performed without the possibility to isolate the samples from humidity, so
the most hygroscopic samples (lithium and magnesium salts) will have absorbed some water
during the data collection period of ca. 45 minutes.
Crystals of both nonhydrated sodium and potassium pentafluoropropionate suitable for
single crystal X-ray analysis were grown from slow evaporation of aqueous solutions, while only
hydrated crystals of magnesium and calcium pentafluoropropionate have been obtained by the
same method. The structures of the latter will be reported separately, as they have no bearing on
adding to the understanding of preparing TFE from the pyrolysis of anhydrous
pentafluoropropionate salts.
-
+
Sodium Pentafluoropropionate: The structure of CF CF C(O)O Na was determined in
3
2
space group C2/c, with a = 21.9135(13) Å, b = 6.1114(4) Å, c = 9.1313(5) Å, β = 94.738(2)°, with
Z = 8 for the formula unit C F O Na. Final refinement values of R1 = 0.0347 and wR2 = 0.0804
3
5
2
were obtained for 1186 unique reflections with I>2σ(I).
Potassium pentafluoropropionate: The structure of CF CF C(O)O K was determined in
-
+
3
2
space group P2 /n, with a = 23.4667(16) Å, b = 9.9952(6) Å, c = 25.5061(18) Å, β = 107.046(2)°,
1
with Z = 36 for the formula unit C F O K. Final refinement values of R1 = 0.0702 and wR2 =
3
5
2
0
.1650 were obtained for 8747 unique reflections with I>2σ(I). These crystals were of somewhat
lower quality and more weakly diffracting than the Na species, and the structural model indicates
some degree of disorder of some of the CF and CF groups. Where possible, this disorder was
2
3
included in the model. In other instances, convergence could not be achieved by a disordered
model, and the anisotropic displacement parameters of the affected atoms were appropriately
