A novel fluorescent sensor based on triphenylamine with AIE properties for
the highly sensitive detection of CNꢀ
Bin Zuo, Lian Liu, Xicheng Feng, Denghui Li, Wanfang Li, Mingxian Huang, Qinyue Deng*
College of Science, University of Shanghai for Science and Technology, Shanghai, 200093, China
A R T I C L E I N F O
A B S T R A C T
Keywords:
In this study, a novel fluorescent sensor 1 built on triphenylamine was designed for the extremely sensitive
detection of trace cyanide anions. The UV absorbance and fluorescence emission intensity of sensor 1 with
aggregation-induced emission (AIE) properties vary with water fraction (fw). In the 1% DMSO aqueous solution,
sensor 1 exhibits the optimal aggregation state and fluorescence intensity, and has high selectivity and sensitivity
for cyanide ions (CNꢀ ). From formula 3δ/S, it is clear that sensor 1 has an extremely low limit of detection (LOD)
for CNꢀ (LOD = 2.95 × 10ꢀ 8 mol/L). Excellent anti-interference performance and broad pH response scope
(1.0–9.0) are also advantages of sensor 1. Fluorescence spectroscopy, 1H NMR, 13C NMR spectroscopy, HRMS,
Job’s plot analysis and density functional theory calculations have been employed to elucidate the sensing
mechanism between TPEB and CNꢀ . Through colorimetry and fluorescence approach, the sensor 1 test strip can
easily detect CNꢀ . Therefore, the novel sensor 1 provides a broad application prospect for detecting toxic
environmental pollutants.
Fluorescent probes
Cyanide anions
Aggregation induced emission
DFT
Test strip
1. Introduction
synthesized a novel fluorescent probe built on tetraphenylethylene for
detecting CNꢀ [27]. Wen et al. developed a triphenylamine-based sensor
With the development of science and technology, water pollution
and food safety issues caused by poisonous anions have attracted
widespread attention [1–5]. Cyanide and cyanide-containing com-
pounds are currently extensively found in various areas of industrial
manufacturing, including paint, electroplating, rubber, herbicides, and
so on, causing CNꢀ to reach the organism through the drinkable water
system [6–9]. In turn, cyanide is toxic and can cause damage to human
health and the ecological environment [10–12]. However, the World
Health Organization (WHO) specifies 1.9 × 10ꢀ 6 mol/L as the permis-
sible acceptable concentration of drinking water [13]. As a result,
developing a quick, reliable, ultra-sensitive and selective detection
method for CNꢀ is crucial for environmental science.
for the detection of CNꢀ and Hg2+ [28]. Therefore, the sensitivity and
selective detection of fluorescent probes is an ongoing hot topic.
Currently, the majority of the fluorescent sensing probes are organic
solvent-soluble rather than water-soluble [29–32]. However, CNꢀ often
present in the aqueous phase of the industrial wastewater. Therefore, it
is of great importance to design a fluorescence sensor capable of
detecting CNꢀ in the aqueous phase. Since Tang and coworkers’ dis-
covery of the AIE phenomenon of organic molecules in 2001 [33],
growing number of fluorescent probes with AIE effect has been pub-
lished [34–37]. The construction of AIE fluorescent sensors for the
identification of CNꢀ in the aqueous phase would become a current
research trend relying on the special properties of AIE molecules [38,
39].
There are several methods for detecting CNꢀ , including electro-
chemical tests, colorimetric analyzers, and fluorescent probes [14–19].
Among these reported methods, fluorescent probes are regarded as the
most promising detection methods due to their high sensitivity, high
selectivity, low detection limits, simple operation, and online moni-
toring [20–22]. The significant advancements in the chemical charac-
teristics and composition of fluorescent sensors make them more
sensitive and selective than other tests [23–26]. For example, Li et al.
In this paper, sensor 1 was synthesized with triphenylamine (TPA) as
an electron donor and two barbituric acids (BA) units as electron ac-
ceptors, while sensor 2 was formed with TPA as an electron donor and
three BA units as electron acceptors (Scheme 1). The experimental re-
sults show that sensor 1 has good AIE and ICT effects in the DMSO-H2O
solution system, however, sensor 2 has weak ICT effects in the DMSO-
H2O solution system and therefore cannot detect CNꢀ . Compared with
* Corresponding author.
E-mail address: dqy1991@usst.edu.cn (Q. Deng).
https://doi.org/10.1016/j.dyepig.2021.109534
Received 28 April 2021; Received in revised form 27 May 2021; Accepted 3 June 2021
Available online 9 June 2021
0143-7208/© 2021 Elsevier Ltd. All rights reserved.

B. Zuo et al.
Dyes and Pigments 193 (2021) 109534

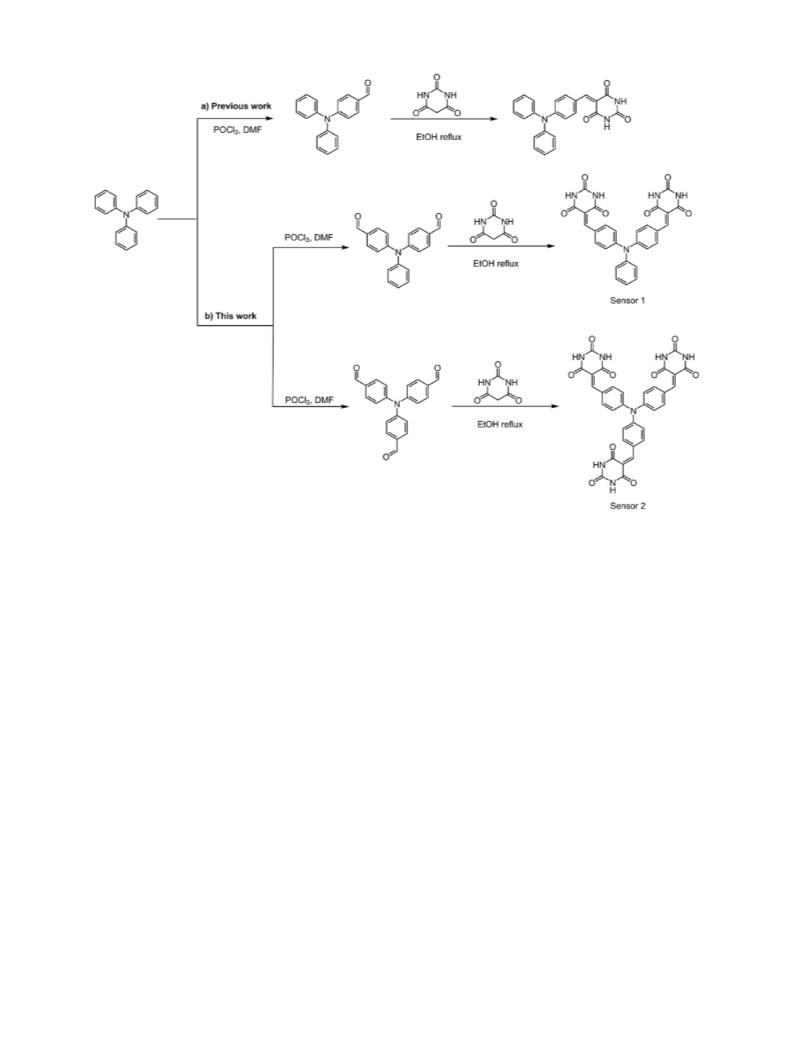

Scheme 1. The synthetic routes of sensor 1 and sensor 2.
the previously reported TPA fluorescent probe [28], sensor 1 has higher
sensitivity to CNꢀ (LOD = 2.95 × 10ꢀ 8 mol/L). Sensor 1 has an excellent
selectivity and anti-interference capacity, and it has a well linear rela-
tionship with the CNꢀ concentration at 581 nm. NMR spectroscopy,
HRMS, Job’s plot analysis and DFT computation were utilized to study
the sensing mechanism of sensor 1. Besides, we also prepared the
detection test paper for CNꢀ based on sensor 1.
was synthesized followed by Mallegol’s procedure [40]. POCl3 (9.5 mL,
101.9 mmol) was added dropwise at 0 ◦C under N2 to DMF (7.3 mL, 93.8
mmol) and the reaction mixture was stirred for 1 h. Triphenylamine (1.0
g, 4.1 mmol) was added, and the resulting mixture was stirred at 95 ◦C
for 4 h. After cooling to r. t., the mixture was poured into ice-water (200
mL), and basified with 1 M NaOH. After extraction with CH2Cl2 (200
mL), the organic layer was washed with water (3 × 50 mL), dried
(Na2SO4) and filtered over a short pad of silica gel. 4,4′-diformyl-
triphenylamine (brown solid, 85%): 1H NMR (400 MHz, CDCl3, 298 K):
δ = 9.90 (s, 2H), 7.78 (d, J = 8.7 Hz, 4H), 7.40 (t, J = 7.8 Hz, 2H),
7.29–7.24 (m, 2H), 7.22–7.16 (m, 6H). 13C NMR (101 MHz, CDCl3, 298
K): δ = 190.51, 151.99, 145.48, 131.29, 130.14, 128.49, 127.05,
126.25, 122.74.
2. Material and methods
2.1. Chemicals and instruments
All reagents obtained from Sinopharm Chemical Reagent Co. Ltd.
and Aladdin Reagent Shanghai Co. Ltd. are analytical grade without
further purification in procedures except for special instructions. Anions
(Fꢀ , Clꢀ , Brꢀ , Iꢀ , CO32ꢀ , NO3ꢀ , HCOꢀ3 , HSOꢀ3 , SO42ꢀ , H2POꢀ4 , HPO24ꢀ , AcOꢀ ,
OHꢀ , CNꢀ ) from their tetrabutylammonium salts were prepared, which
was diluted to1.0 mM by deionized water to obtain the stock solution.
The sizes and morphologies of the aggregation states of sensor 1 and
sensor 1+CNꢀ were observed in the scanning electron microscope (SEM,
TESCAN). 1H NMR and 13C NMR were recorded on Jeol ECA-400 and
Bruker 400 DRX spectrometers, respectively. UV–Vis spectra and fluo-
rescence spectra are recorded on a UV–Vis spectrophotometer (UV-
3900, Hitachi, Japan) and fluorescence spectrometer (FL-7000, Hitachi,
Japan), respectively. The pH data are obtained by a pH meter (pH400,
Alalis Co. China). High-resolution mass spectra (HRMS) were obtained
from Bruker solanX 70 FT-MS system.
Under nitrogen, a mixture of 4,4′-diformyltriphenylamine (0.3 g, 1.0
mmol) and BA (0.4 g, 3.1 mmol) in ethanol (10 mL) was refluxed for 4 h.
The residue was purified using column chromatography on silica to
afford the product as a red powder after vacuum drying at 50 ◦C over-
night [41]. The sensor 1 (red solid, 91%): 1H NMR (400 MHz, DMSO‑d6,
298 K): δ = 11.31 (s, 2H), 11.17 (s, 2H), 8.28 (d, J = 8.8 Hz, 4H), 8.19 (s,
2H), 7.48 (t, J = 7.7 Hz, 2H), 7.33 (t, J = 7.3 Hz, 1H), 7.25 (d, J = 7.9 Hz,
2H), 7.07 (d, J = 8.7 Hz, 4H). 13C NMR (101 MHz, DMSO‑d6, 298 K): δ =
164.27, 162.48, 154.38, 150.62, 150.35, 145.00, 137.12, 130.83,
127.82, 127.42, 121.81, 116.44.
Synthetic procedures of the sensor 2. Tris (4-formylphenyl)amine
was synthesized followed by Mallegol’s procedure [40]. The 4,
4′-diformyltriphenylamine (0.3 g, 1.0 mmol) was added on an ice-cooled
mixture of POCl3 (3.0 mL, 32.2 mmol) and DMF (2.3 mL, 29.5 mmol).
The resulting mixture was stirred at 95 ◦C for 1.5 h, and after cooling to
r. t., poured into ice-water (100 mL), and basified with 1 M NaOH. After
extraction with CH2Cl2 (100 mL), the organic layer was washed with
water (3 × 50 mL) and dried (Na2SO4). After evaporation of the solvent,
2.2. Synthetic procedures
Synthetic procedures of the sensor 1. 4,4′-diformyltriphenylamine
2

B. Zuo et al.
Dyes and Pigments 193 (2021) 109534
Fig. 1. (a) Absorbance of the sensor 1 (1 × 10ꢀ 5 mol/L) in DMSO/H2O (v/v); (b) The fluorescence spectra of the sensor 1 (1 × 10ꢀ 5 mol/L) in DMSO/H2O (v/v)
mixed solvent with varying fw at λex = 365 nm; (c) Sensor 1’s fluorescent wavelength (red) and emission intensity (blue) against the fw are plotted. (d) Absorbance of
the sensor 2 (1 × 10ꢀ 5 mol/L) in DMSO/H2O (v/v); (e) The fluorescence spectra of the sensor 2 (1 × 10ꢀ 5 mol/L) in DMSO/H2O (v/v) mixed solvent with varying fw
at λex = 365 nm; (f) Sensor 2’s fluorescent wavelength (red) and emission intensity (blue) against the fw are plotted.
the crude product was purified by column chromatography (CH2Cl2) to a
yellow solid. Tris (4-formylphenyl)amine (yellow solid, 80%): 1H NMR
(400 MHz, CDCl3, 298 K): δ = 9.95 (s, 3H), 7.85 (d, J = 8.6 Hz, 6H), 7.25
(d, J = 8.7 Hz, 6H). 13C NMR (101 MHz, CDCl3, 298 K): δ = 190.45,
151.17, 132.57, 131.48, 124.51.
2.4. Computational details
DFT and TD-DFT calculations of sensor 1 and sensor 1+CNꢀ are
carried out in Gaussian 16 software package. The geometries of sensor 1
and sensor 1+CNꢀ are optimized by using density functional theory
(DFT) calculations at the M06–2X/6–31 g(d) level of theory. Transition
energy is calculated by using time-dependent density functional theory
(TD-DFT). The binding pattern of sensor 1 with CNꢀ is further proposed
from the calculation results using DFT/TDDFT.
Under nitrogen, a mixture of tris(4-formylphenyl)amine (0.2 g, 0.6
mmol) and BA (0.3 g, 2.3 mmol) in ethanol (10 mL) was refluxed for 4 h.
The residue was purified using column chromatography on silica to
afford the product as a red powder after vacuum drying at 50 ◦C over-
night [41]. The sensor 2 (red solid, 82%): 1H NMR (400 MHz, DMSO‑d6,
298 K): δ = 11.35 (s, 2H), 11.30 (d, J = 6.9 Hz, 1H), 11.23 (d, J = 9.6 Hz,
2H), 11.17 (s, 1H), 8.28 (t, J = 7.2 Hz, 6H), 8.24–8.13 (m, 3H), 7.18 (t, J
= 8.9 Hz, 5H), 7.04 (d, J = 8.8 Hz, 1H). 13C NMR (101 MHz, DMSO‑d6,
298 K): δ = 164.11, 162.37, 154.04, 150.62, 149.38, 136.84, 128.96,
123.86, 117.55.
2.5. Effect of pH on sensor 1
To investigate the effect of pH on the fluorescence properties of
sensor 1 and sensor 1+CNꢀ , the fluorescence spectra are measured at
the same conditions shown in various acidity. The pH is adjusted by
0.01 mol/L sodium hydroxide and hydrochloric acid solution. Relevant
data are recorded by the fluorescence spectrometer. In addition, the
fluorescence spectra were measured more than 3 times, and the average
values were used to determine the fluorescence intensity.
2.3. Spectroscopic detections
A sensor 1 stock solution of 1 × 10ꢀ 2 mol/L is prepared by DMSO and
sensor 1. A series of 1 × 10ꢀ 3 mol/L anionic stock solutions are obtained
via different anions dissolved into deionized water. Except for special
instructions, the typic fluorescence detection system with sensor 1 at 1
× 10ꢀ 5 mol/L is made from 0.01 mL TPEB stock solution, 0.09 mL
DMSO, several anion stock solutions, dropped into the volumetric flask
and added some deionized water to 10 mL. Meanwhile, the solution pH
is adjusted to 7 by 0.01 mol/L hydrochloric acid solution and sodium
hydroxide solution. The fluorescence emission spectra of all detection
systems are recorded in the wavelength range from 400 to 800 nm under
365 nm excitation. In addition, the fluorescence spectra were measured
more than 3 times, and the average values were used to determine the
fluorescence intensity. The sensor 1+CNꢀ : 1H NMR (400 MHz,
DMSO‑d6, 298 K): δ = 9.08 (s, 4H), 7.25 (dd, J = 18.1, 8.0 Hz, 6H),
6.98–6.91 (m, 3H), 6.89 (d, J = 8.5 Hz, 4H), 5.19 (s, 2H), 2.52–2.49 (m,
6H). 13C NMR (101 MHz, DMSO‑d6, 298 K): δ = 163.62, 152.38, 146.07,
133.99, 129.81, 128.70, 126.63, 123.86, 123.59, 122.75, 121.97, 81.50,
58.00.
2.6. The determination of LOD
The detection limit (LOD) was determined according to formula (1)
by emission data of sensor 1 upon gradual addition of CNꢀ .
LOD = 3δ/S
(1)
where δ was the standard deviation of blank ample, S represented the
absolute value of the slope between fluorescence intensity and CNꢀ
concentration.
3. Results and discussion
3.1. The AIE effect of sensor 1 and sensor 2
Sensor 1 and sensor 2 are very soluble in the organic phase rather
than the aqueous phase. We used DMSO/water as solvent systems in our
quest for the best specific solvent for industrial application, and we
3

B. Zuo et al.
Dyes and Pigments 193 (2021) 109534
electronic transition type of sensor 2 is HOMO to LUMO+1 (Figure S2 in
the ESI†). Both sensor 1 and sensor 2 have charge separation, but the
degree of charge separation of sensor 2 (f = 1.1645) is weaker than that
of sensor 1 (f = 1.5774). It is speculated that the addition of the third BA
may cause the local symmetry of sensor 2 molecule, which weakens the
ICT effect, which leads to weaker fluorescence intensity. Therefore, we
selected sensor 1 with good AIE and ICT effects as the fluorescence
sensor for the detection of CNꢀ .
3.2. The sensing performance of sensor 1
3.2.1. Selectivity and anti-interference of sensor 1

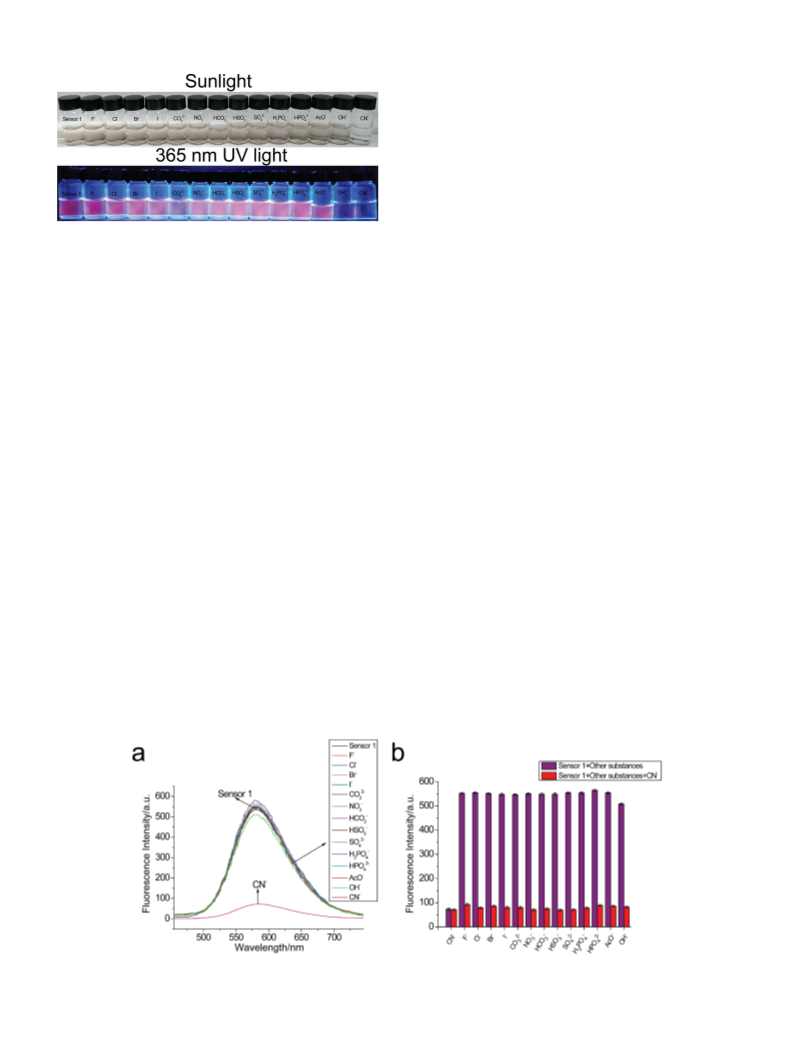

Fig. 2. Under sunlight and 365 nm UV light, color variations were caused by
the addition of 2.0 equiv. of different anions to sensor 1 solution in 99%
aqueous DMSO solution.
The fluorescence spectra of sensor 1 solution (1 × 10ꢀ 5 mol/L) (fw
=
99%) were documented with different anions (Fꢀ , Clꢀ , Brꢀ , Iꢀ , CO23ꢀ
,
NOꢀ3 , HCOꢀ3 , HSOꢀ3 , SO42ꢀ , H2PO4ꢀ , HPO42ꢀ , AcOꢀ , OHꢀ , CNꢀ ) (Fig. 2).
Except for CNꢀ , the tested anion solution is colorless under sunlight and
pink fluorescence under ultraviolet light (365 nm). Only the sensor with
CNꢀ added appears transparent under sunlight and non-fluorescence
under 365 nm UV light. The results of the fluorescence intensity test
in Fig. 3a also correspond to corresponding observations. According to
these observations, sensor 1 has high selectivity for CNꢀ . The results
showed that the competing anions had little effect on the color of the
solution.
investigated the AIE behavior of sensor 1 and sensor 2 using UV–visible
and fluorescence spectroscopy. As shown in Fig. 1a and d, sensor 1 and
sensor 2 both have two absorption peaks in the UV–visible spectrum.
The activated
π→π* electron transition of TPA and BA is primarily
responsible for the absorption peak in the 350–400 nm region, while the
intramolecular charge transfer (ICT) impact of TPA to BA is responsible
for the absorption peak at 474 nm.
The addition of water to DMSO will facilitate aggregation of sensor 1
and sensor 2 as water is an undesirable solvent. The fluorescence vari-
ations of sensor 1 and sensor 2 are observed by modifying the DMSO to
H2O proportion in the solvent situation (Fig. 1b and e). The results show
that sensor 1 (1 × 10ꢀ 5 mol/L) has very weak fluorescence (fw = 0%) in
pure DMSO under the irradiation of the 365 nm ultraviolet lamp. The
enhancement of polarity when fw < 90% leads to the ICT effect, so the
We performed an anti-interference test on sensor 1 by adding 2.0
equivalents of different anions to DMSO/H2O (fw = 99%) to further
investigate its usefulness as an ion-selective fluorescence sensor for CNꢀ
(Fig. 3b). But for the decline in the fluorescence intensity of OHꢀ , the
inclusion of other anions has little effect on the fluorescence intensity in
the single intervening ion system. The fluorescence intensity in the
coexistence system of disturbance ions system with CNꢀ is significantly
lower than in the single intervening ion system. The results of the pre-
ceding study indicate that sensor 1 has strong selectivity and stable anti-
interference capability for CNꢀ .
fluorescence of sensor 1 will become very weak. However, when fw
≥
90%, sensor 1 aggregates, so it presents a fluorescence enhancement
state. Besides, sensor 1 emits bright red fluorescence when fw = 90%
(Figure S1 in the ESI†). All these observations show that sensor 1 has AIE
activity. According to related literature [42,43], as the proportion of
water increases, the emission intensity of sensor 1 shifts to the
long-wave direction, which may be caused by the electronic transition
3.2.2. Sensing ability of sensor 1 for CNꢀ
The scanning electron microscope (SEM) was utilized to study the
aggregation state of sensor 1 after adding CNꢀ to the solution. As
depicted in Fig. 4, sensor 1 had a granular morphology with a rough
surface before the addition of CNꢀ and an aggregated form with a
smooth surface after the addition of CNꢀ .
(π-π*) inside the sensor 1 (Fig. 1c). However, the fluorescence intensity
of sensor 2 was weak in the DMSO-H2O solution system and cannot be
recognized by the machine. The possible reason was that sensor 2 has a
locally symmetric molecular structure (three-arm BA units) and the ICT
effects within the molecular structure cancel each other out, resulting in
a significant decrease in the fluorescence intensity of sensor 2 compared
to sensor 1 (two-arm BA units). In order to confirm the above point of
view, we further studied the luminescence mechanism of sensor 2 in the
DMSO-H2O solution system and implemented it on the M06–2X/6-31G*
level of the Gaussian 16 package. We found through calculations that the
We further investigated the sensing performance of sensor 1 for
different CNꢀ concentrations in 99% DMSO aqueous solution by fluo-
rescence emission spectroscopy. As seen in Fig. 5a, the fluorescence
intensity at 581 nm steadily decreased with increasing CNꢀ concentra-
tion (0.1–2.0 equiv.) due to the interruption of ICT of sensor 1. Fig. 5b
shows the fluorescence intensity of sensor 1 at 581 nm as a function of
Fig. 3. (a) The fluorescence spectra of sensor 1 (1 × 10ꢀ 5 mol/L) with multiple anions (2.0 equiv.) in 99% aqueous DMSO solution. (b) Competitive experiments in
the sensor 1+CNꢀ system with interfering anions at λex = 365 nm.
4

B. Zuo et al.
Dyes and Pigments 193 (2021) 109534

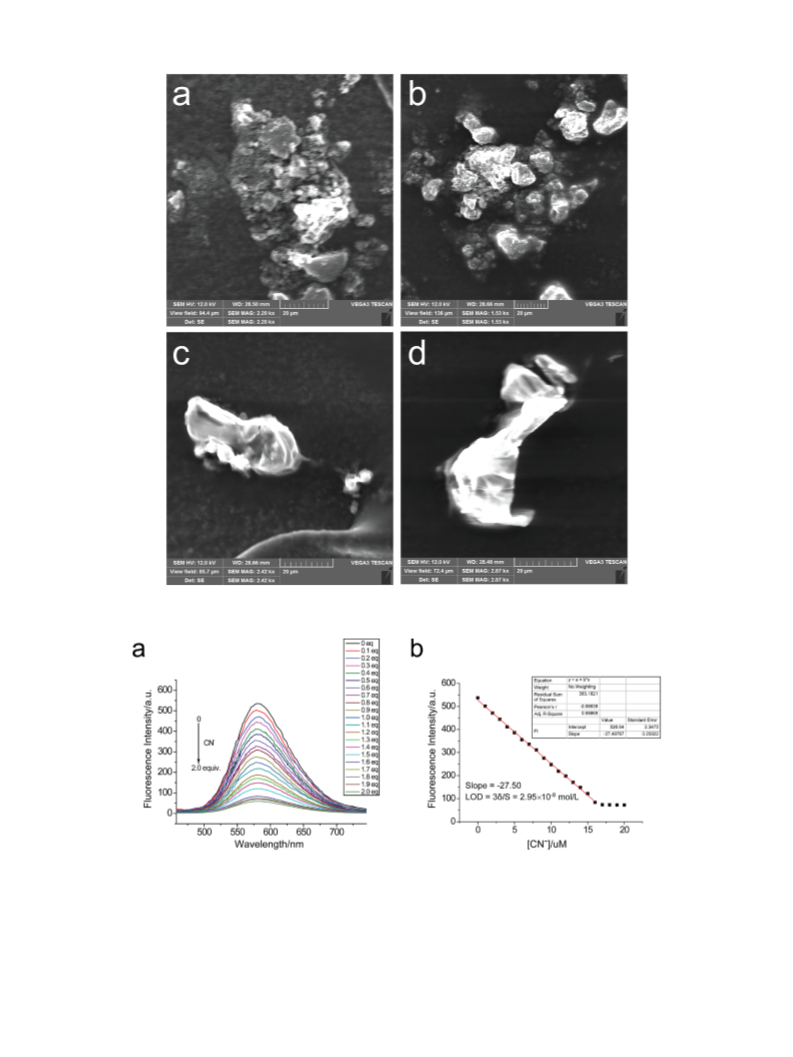

Fig. 4. The SEM images of sensor 1 (a, b) and sensor 1+CNꢀ (c, d).
Fig. 5. (a) The fluorescence spectra of sensor 1 (1 × 10ꢀ 5 mol/L) with steadily rising concentrations of CNꢀ (0–2.0 equiv.) in fw = 99%; (b) The detection limit of
sensor 1 for CNꢀ (0–2.0 equiv.).
CNꢀ concentration. The fluorescence intensity gradually decreases as
the CN- concentration rises from 0 to 1.6 × 10ꢀ 5 mol/L, with a strong
linear relationship (y = 526.94–27.50x, R2 = 0.998). As the concen-
tration of CNꢀ > 1.6 × 10ꢀ 5 mol/L, the fluorescence intensity remains
almost constant, meaning that CNꢀ is surplus in the solution. According
to equation 3δ/S, the LOD of sensor 1 for CNꢀ was determined to be
2.95 × 10ꢀ 8 mol/L (0–1.6 × 10ꢀ 5 mol/L), which is significantly lower
than the permitted amount of CNꢀ in drinking water (1.9 × 10ꢀ 6 mol/L).
The conclusions demonstrate that the designed sensor 1 has enough
sensitivity to detect CNꢀ conveniently.
5

B. Zuo et al.
Dyes and Pigments 193 (2021) 109534

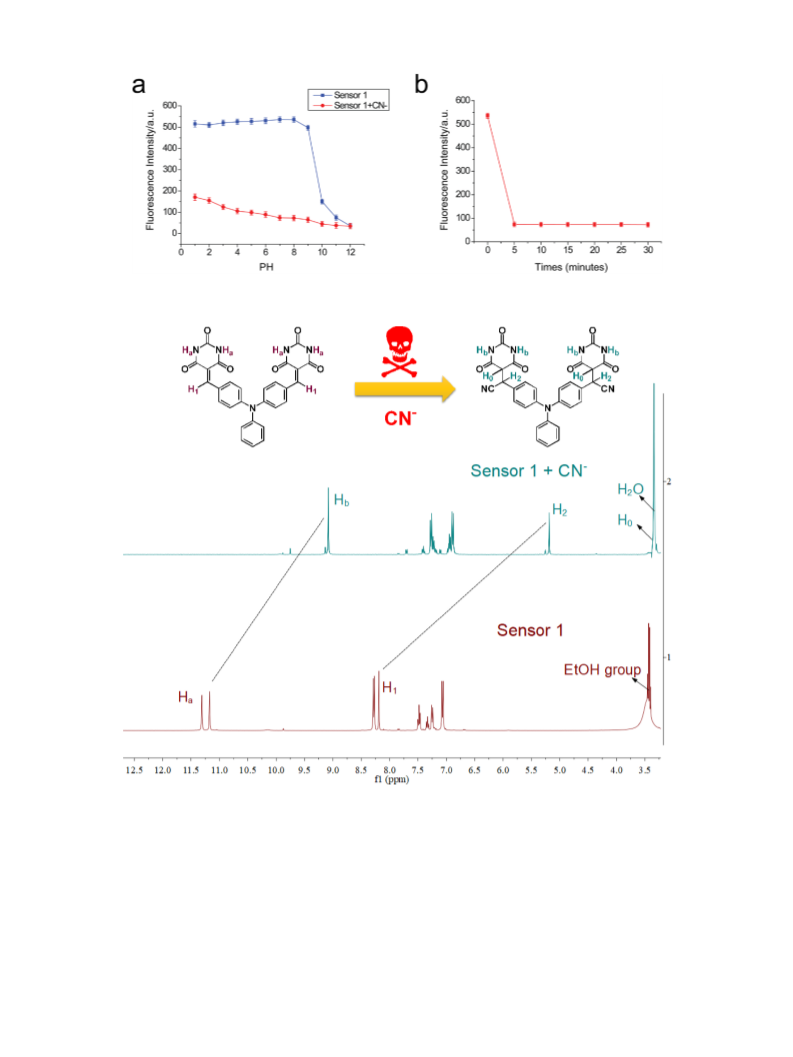

Fig. 6. (a) The influence of pH on the fluorescent intensity of the sensor 1 and sensor 1+CNꢀ ; (b) The time-dependent fluorescent intensity of sensor 1 toward CNꢀ .
Fig. 7. 1H NMR spectra of the sensor 1 and sensor 1+CNꢀ .
3.2.3. Analysis of pH and reaction time toward sensor system
We studied the fluorescence spectrum of sensor 1+CNꢀ over time
(Fig. 6b). The fluorescence intensity of sensor 1+CNꢀ decreased rapidly
after the addition of CNꢀ for the first 5 min, then stayed nearly constant
for the next 30 min. The results show that at room temperature, the
reaction time of sensor 1+CNꢀ can be completed within 5 min. There-
fore, the swift response of sensor 1 to CNꢀ provides a promising
application.
We used fluorescence spectroscopy to study the stability of sensor 1
and sensor 1+CNꢀ under different pH conditions (Fig. 6a). When the pH
changes from 1.0 to 9.0, sensor 1 has a stable emission intensity, and as
the pH rises above 9, the fluorescence intensity diminishes sharply. After
adding CNꢀ to sensor 1, the fluorescent intensity is relatively stable in
the pH range of 4.0–9.0. The fluorescence intensity changed consider-
ably in the pH range of 5.0–8.0 before and after the addition of CNꢀ ,
meaning that sensor 1 can detect CNꢀ in the pH range and has a sig-
nificant fluorescence response. In the following experimental testing, we
preferred pH = 7 as the experimental condition.
3.3. The detection mechanism of sensor 1
1H NMR and Job’s titration were used to investigate the process of
6

B. Zuo et al.
Dyes and Pigments 193 (2021) 109534
the intrusion detection between sensor 1 and CNꢀ [44,45].
Fig. 9 depicts the optimum structures of sensor 1 and sensor 1+CNꢀ .
By sp2 hybridization of vinyl, the sensor 1 molecule exhibits a rigid
planar configuration. Sensor 1+CNꢀ , on the other hand, shows the non-
planar confirmation through the sp3 hybridization of the carbon-carbon
bond. The results show that the apparent structural difference between
sensor 1 and sensor 1+CNꢀ leads to significant changes in the conjugate
system, which leads to changes in its fluorescence properties.
Besides, Fig. 9 also lists the TD-DFT calculations. As an electron
acceptor, the BA fragment has a strong electron-withdrawing ability in
sensor 1. The electron distribution of HOMO in sensor 1 molecule was
primarily distributed in triphenylamine and part of barbiturate, while
that of LUMO was concentrated in the whole barbiturate and part of
triphenylamine. However, for sensor 1+CNꢀ molecules, the electron
distribution of LUMO and HOMO is limited to the unit, which means that
the ICT phase is interrupted, resulting in a significant decrease in fluo-
rescence. The results indicate that the addition of CNꢀ has an appre-
ciable impact on the phase change performance. The disruption of the
ICT mechanism is caused by the transition in the conjugate scheme,
which is compatible with our previous discussion. Furthermore, the

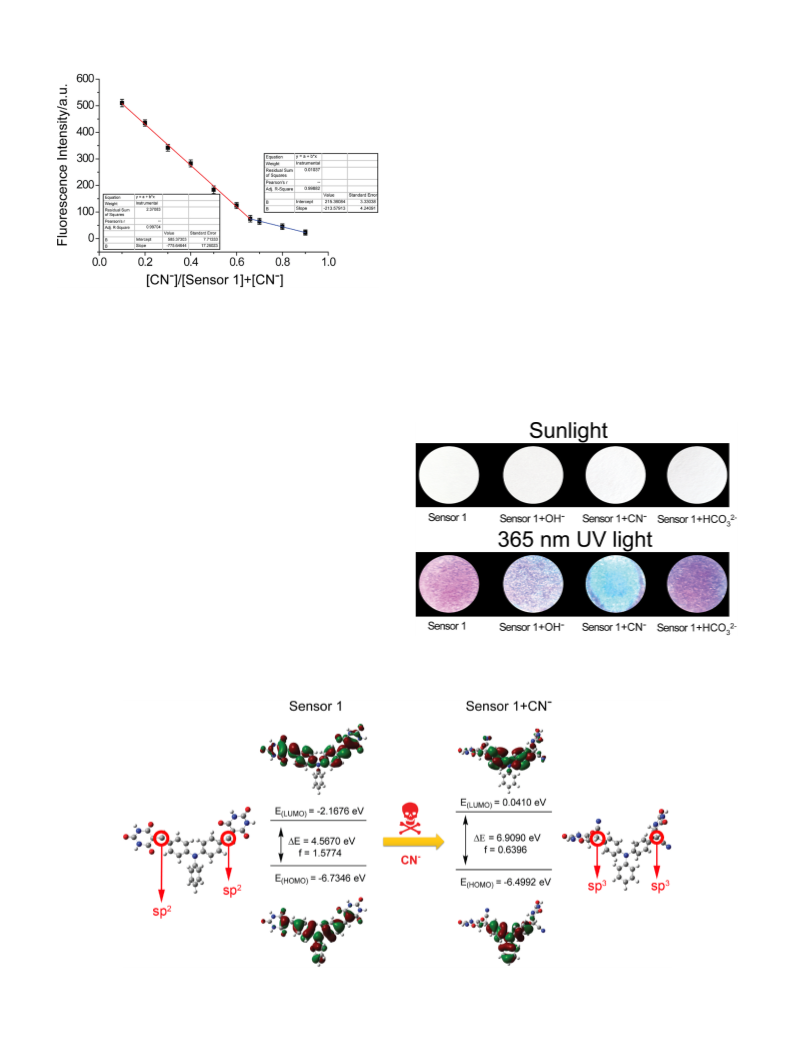

Fig. 8. Job’s plot for sensor 1 in fw = 99% (The total concentration was 1 ×
10ꢀ 5 mol/L).
sensor 1 detecting CNꢀ . In the 1H NMR spectrum (Fig. 7), sensor 1 shows
two proton peaks at 11.17 ppm and 8.19 ppm, respectively, corre-
sponding to the Ha of BA and H1 of the vinylidene. As CNꢀ were applied
to sensor 1, the peak at H1 (8.19 ppm) vanished entirely, whereas a new
peak at 5.19 ppm appeared, attributed to H2. Simultaneously, the Ha
(11.17 ppm) moved to the low-frequency magnetic field Hb (9.08 ppm).
From Fig. 7, we can observe that the H0 peak attributed to the BA group
of sensor 1+CNꢀ is submerged by the water peak (3.34 ppm). Besides,
the initial molecular structure is broken by the addition of CNꢀ , and
some of the proton peaks attached to the aromatic group move to a high
field. The ICT between the electron donor (TPA) and the electron
acceptor (BA) is blocked by CNꢀ , which has nucleophilicity and attacks
the C = C bond of sensor 1. To further determine the detection mech-
anism, Job’s titration experiment was conducted on sensor 1. As shown
in Fig. 8, the stoichiometric ratio of sensor 1 to CNꢀ is 1–2. As a result,
sensor 1 detects CNꢀ since it is a strong nucleophilicity that attacks
vinylidene.
rupture of the π-conjugated structure results in a higher HOMO-LUMO
energy difference for sensor 1+CNꢀ (6.91 eV) than sensor 1 (4.57 eV).
As a result, theoretical calculations indicated that CNꢀ attacked the C =
3.4. Theoretical calculations
The density functional theory (DFT) and time-dependent density
functional theory (TDDFT) were used to compute the composition,
electron density, and electronic structure of sensor 1 and sensor 1+ CNꢀ
by the M06–2X/6-31G* level of the Gaussian 16 package to investigate
Fig. 10. The photographs of sensor 1-based test strips with OHꢀ , CNꢀ , and
HCO23ꢀ under 365 nm UV light and sunlight.
Fig. 9. Calculation of HOMO and LUMO electron distributions for sensor 1 and sensor 1+CNꢀ .
7

B. Zuo et al.
Dyes and Pigments 193 (2021) 109534
Table 1
Sensor 1 compared to other previously recorded probes.
Fluorescence sensors
Solvent system (v/v)
THF/H2O (9:1)
LOD/mol Lꢀ 1
2.1 × 10ꢀ 6
References
[46]
H2O/THF (9:1)
3.83 × 10ꢀ 6
[47]
THF/H2O (1985:15)
DMSO/H2O (7:3)
3.9 × 10ꢀ 8
[48]
[49]
1.4 × 10ꢀ 7
H2O/THF (8:2)
1.3 × 10ꢀ 7
4.0 × 10ꢀ 8
[50]
[28]
DMSO/H2O (1:99)
Sensor 1
DMSO/H2O (1:99)
2.95 × 10ꢀ 8
This work
C bond and interrupted the conjugation structure in the molecule,
drinking water, the LOD of the first and second probes did not fulfill the
actual detection demand, as shown in Table 1 [46,47]. The third and
fourth probes have excellent selectivity and anti-interference perfor-
mance for CNꢀ , but there are disadvantages such as poor linear fit and
long-time process [48,49]. Despite the good linear fit of the last two
probes, their LOD was poor compared with this work [28,50]. In
contrast, sensor 1 synthesized in this work has the advantages of
excellent selectivity, easy operation, and outstanding LOD.
resulting in no ICT in sensor 1+CNꢀ .
3.5. Test strips based on sensor 1
We prepared sensor 1 test strips to make the detection of CNꢀ easier.
Sensor 1 (100 μM) was applied on filter paper and dried in an oven to
obtain test strips, and then OHꢀ , CNꢀ and HCO32ꢀ (fw = 100%) were
added dropwise to the test strips to detect the anions. Fig. 10 reveals that
4. Conclusions
when CNꢀ (50
μM) is added dropwise to the filter paper, the fluores-
cence of the test strip based on sensor 1 varies from red to light blue
To summarize, we have successfully produced a novel sensor 1 for
the detection of CNꢀ that uses TPA as an electron donor and two BA as
electron acceptors. The fluorescent sensor 1 has excellent AIE activity in
DMSO/H2O mixing system. Besides, the detection limit of sensor 1 for
CNꢀ is extremely low (LOD = 2.95 × 10ꢀ 8 mol/L), and it has the ad-
vantages of strong anti-interference ability, excellent selectivity, and
easy operation. Theoretical calculations show that the sensing mecha-
nism of sensor 1 is due to the addition of CNꢀ , which interrupts the
conjugated structure in the molecule and leads to the blocking of ICT.
Sensor 1-based test strips can be used to detect CNꢀ in a qualitative
manner by colorimetric method. Thus, sensor 1 offers a promising
under 365 nm UV light, which is readily visible with the naked eye. The
fluorescence intensity of the test paper with drops of OHꢀ (50
μM) and
HCO23ꢀ (50
μM) was marginally weakened and improved, respectively,
in contrast to the sensor 1-based test strips, which was compatible with
the above fluorescence sensors performance. These observations showed
that the sensor 1-based test strips can be used to detect CNꢀ in a qual-
itative manner by colorimetric method.
3.6. Sensor 1 compared to other previously recorded probes
According to standards of WHO on the cyanide concentration in
8

B. Zuo et al.
Dyes and Pigments 193 (2021) 109534
alternative for the detection of CNꢀ in water.
[14] Chen Z, Wagner J, Turq V, Hillairet J, Taberna P-L, Laloo R, Duluard S, Bernard J-
M, Song Y, Yang Q, Lu K, Cheng Y. Surfactant-assisted electrodeposition of Au-Co/
WS2 self-lubricating coating from WS2 suspended cyanide electrolyte. J Alloys
Compd 2020;829:154585. https://doi.org/10.1016/j.jallcom.2020.154585.
[15] Gupta S, Mittal SK, Chhibber M. Triphenyl ether amide as a probe for
electrochemical and optical sensing of copper, cyanide and arginine. J Electrochem
Soc 2020;167(16):167506. https://doi.org/10.1149/1945-7111/abcbb0.
[16] Tang L, Zhou L, Liu A, Yan X, Zhong K, Liu X, Gao X, Li J. A new cascade reaction-
based colorimetric and fluorescence "turn on" dual-function probe for cyanide and
hydrazine detection. Dyes Pigments 2021;186:109034. https://doi.org/10.1016/j.
dyepig.2020.109034.
CRediT authorship contribution statement
Bin Zuo: Methodology, Writing – original draft. Lian Liu: Data
curation, Software. Xicheng Feng: Investigation. Denghui Li: Valida-
tion. Wanfang Li: Investigation. Mingxian Huang: Investigation.
Qinyue Deng: Supervision, Writing – review & editing.
[17] Wu Q, Wang S, Hao E, Jiao L. Highly selective, colorimetric probes for cyanide ion
based on beta-formylBODIPY dyes by an unprecedented nucleophilic addition
reaction. Spectrochim Acta A 2021;247:119102. https://doi.org/10.1016/j.
saa.2020.119102.
Declaration of competing interest
The authors declare that they have no known competing financial
interests or personal relationships that could have appeared to influence
the work reported in this paper.
[18] Poongodi K, Kumar PS, Shanmugapriya R, Nandhini C, Elango KP. 2-Aminophenols
based Schiff bases as fluorescent probes for selective detection of cyanide and
aluminium ions-Effect of substituents. Spectrochim Acta A 2021;249:119288.
https://doi.org/10.1016/j.saa.2020.119288.
[19] Yue Y, Huo F, Yin C, Chao J, Zhang Y. A new "donor-two-acceptor" red emission
fluorescent probe for highly selective and sensitive detection of cyanide in living
cells, Sensor. Actuat. B-Chem. 2015;212:451–6. https://doi.org/10.1016/j.
snb.2015.02.074.
Acknowledgment
Financial support from the Shanghai Young Teachers Training and
Support Program (No. slg20035), Shanghai Engineering Research Cen-
ter for Food Rapid Detection and the College of Science, University of
Shanghai for Science and Technology is gratefully acknowledged.
[20] Pak YL, Swamy KMK, Yoon J. Recent progress in fluorescent imaging probes.
Sensors 2015;15(9):24374–96. https://doi.org/10.3390/s150924374.
[21] Kaur M, Choi DH. Diketopyrrolopyrrole: brilliant red pigment dye-based
fluorescent probes and their applications. Chem Soc Rev 2015;44(1):58–77.
https://doi.org/10.1039/c4cs00248b.
[22] Lin Q, Liu X, Chen P, Wei T, Zhang Y. Colorimetric and fluorescent cyanide anion
sensors. Prog Chem 2013;25(12):2131–46.
Appendix A. Supplementary data
[23] Udhayakumari D. Chromogenic and fluorogenic chemosensors for lethal cyanide
ion. A comprehensive review of the year 2016. Sensor Actuator B Chem 2018;259:
1022–57. https://doi.org/10.1016/j.snb.2017.12.006.
Supplementary data to this article can be found online at https://doi.
org/10.1016/j.dyepig.2021.109534.
[24] Wang F, Wang L, Chen X, Yoon J. Recent progress in the development of
fluorometric and colorimetric chemosensors for detection of cyanide ions. Chem
Soc Rev 2014;43(13):4312–24. https://doi.org/10.1039/c4cs00008k.
[25] Ashton TD, Jolliffe KA, Pfeffer FM. Luminescent probes for the bioimaging of small
anionic species in vitro and in vivo. Chem Soc Rev 2015;44(14):4547–95. https://
doi.org/10.1039/c4cs00372a.
References
[1] Cheng D, Huu Hao N, Guo W, Chang SW, Dinh Duc N, Liu Y, Wei Q, Wei D.
A critical review on antibiotics and hormones in swine wastewater: water pollution
problems and control approaches. J Hazard Mater 2020;387:121682. https://doi.
org/10.1016/j.jhazmat.2019.121682.
[26] Jun ME, Roy B, Ahn KH. Turn-on" fluorescent sensing with "reactive" probes. Chem
Commun 2011;47(27):7583–601. https://doi.org/10.1039/c1cc00014d.
[27] Li D, Ma J, Wang H, Liu L, Yang H. A novel barbituric-based fluorescent probe with
aggregation induced emission for the highly sensitive ratiometric detection of
cyanide anions. J Mater Sci 2021;56(2):1373–85. https://doi.org/10.1007/
s10853-020-05377-w.
[2] Mahmoud ME, Amira MF, Seleim SM, Mohamed AK. Amino-decorated magnetic
metal-organic framework as a potential novel platform for selective removal of
chromium (VI), cadmium (II) and lead (II). J Hazard Mater 2020;381:120979.
https://doi.org/10.1016/j.jhazmat.2019.120979.
[28] Wen X, Yan L, Fan Z. A novel AIE active NIR fluorophore based triphenylamine for
sensing of Hg2+ and CN- and its multiple application. Spectrochim Acta A 2020;
241:118664. https://doi.org/10.1016/j.saa.2020.118664.
[3] Zwolak I. The role of selenium in arsenic and cadmium toxicity: an updated review
of scientific literature. Biol Trace Elem Res 2020;193(1):44–63. https://doi.org/
10.1007/s12011-019-01691-w.
[29] Erdemir S, Malkondu S. On-site and low-cost detection of cyanide by simple
colorimetric and fluorogenic sensors: smartphone and test strip applications.
Talanta 2020;207:120278. https://doi.org/10.1016/j.talanta.2019.120278.
[30] Li J, Yuan S, Qin J-S, Pang J, Zhang P, Zhang Y, Huang Y, Drake HF, Liu WR,
Zhou H-C. Stepwise assembly of turn-on fluorescence sensors in multicomponent
metal-organic frameworks for in vitro cyanide detection. Angew Chem Int Ed 2020;
59(24):9319–23. https://doi.org/10.1002/anie.202000702.
[4] Zuo B, Deng Q, Shao H, Cao B, Fan Y, Li W, Huang M. Fe3O4@Mesoporous-SiO2@
Chitosan@Polyaniline core-shell nanoparticles as recyclable adsorbents and
reductants for hexavalent chromium. ACS Appl. Nano Mater. 2021;4(2):1831–40.
https://doi.org/10.1021/acsanm.0c03235.
[5] Zuo B, Li W, Wu X, Wang S, Deng Q, Huang M. Recent advances in the synthesis,
surface modifications and applications of core-shell magnetic mesoporous silica
nanospheres. Chem Asian J 2020;15(8):1248–65. https://doi.org/10.1002/
asia.202000045.
[31] Ma X-Q, Wang Y, Wei T-B, Qi L-H, Jiang X-M, Ding J-D, Zhu W-B, Yao H, Zhang Y-
M, Lin Q. A novel AIE chemosensor based on quinoline functionalized Pillar 5
arene for highly selective and sensitive sequential detection of toxic Hg2+ and CN-.
Dyes Pigments 2019;164:279–86. https://doi.org/10.1016/j.dyepig.2019.01.049.
[32] Moghadam FN, Amirnasr M, Meghdadi S, Eskandari K, Buchholz A, Plass W. A new
fluorene derived Schiff-base as a dual selective fluorescent probe for Cu2+ and CN-.
Spectrochim Acta A 2019;207:6–15. https://doi.org/10.1016/j.saa.2018.08.058.
[33] Hong Y, Lam JWY, Tang BZ. Aggregation-induced emission. Chem Soc Rev 2011;
40(11):5361–88. https://doi.org/10.1039/c1cs15113d.
[6] Sharma M, Akhter Y, Chatterjee S. A review on remediation of cyanide containing
industrial wastes using biological systems with special reference to enzymatic
degradation. World J Microbiol Biotechnol 2019;35(5):70. https://doi.org/
10.1007/s11274-019-2643-8.
[7] Yang W, Liu G, Chen Y, Miao D, Wei Q, Li H, Ma L, Zhou K, Liu L, Yu Z. Persulfate
enhanced electrochemical oxidation of highly toxic cyanide-containing organic
wastewater using boron-doped diamond anode. Chemosphere 2020;252:126499.
https://doi.org/10.1016/j.chemosphere.2020.126499.
[34] Chua MH, Shah KW, Zhou H, Xu J. Recent advances in aggregation-induced
emission chemosensors for anion sensing. Molecules 2019;24(15):2711. https://
doi.org/10.3390/molecules24152711.
[8] Kongsawadworakul P, Viboonjun U, Romruensukharom P, Chantuma P,
Ruderman S, Chrestin H. The leaf, inner bark and latex cyanide potential of Hevea
brasiliensis: evidence for involvement of cyanogenic glucosides in rubber yield.
Phytochemistry 2009;70(6):730–9. https://doi.org/10.1016/j.
[35] Ghosh T, Mitra S, Maity SK, Maiti DK. Halogen-bonded bithiophene-based
nanofibers for luminescent sensing. ACS Appl. Nano Mater. 2020;3(4):3951–9.
https://doi.org/10.1021/acsanm.0c00886.
phytochem.2009.03.020.
[36] Santhiya K, Sen SK, Natarajan R, Murugesapandian B. Multifunctional behavior of
bis-acylhydrazone: real-time detection of moisture in organic solvents,
halochromism and aggregation induced emission. Dyes Pigments 2021;185:
108891. https://doi.org/10.1016/j.dyepig.2020.108891.
[9] Grossmann K. Auxin herbicides: current status of mechanism and mode of action.
Pest Manag Sci 2010;66(2):113–20. https://doi.org/10.1002/ps.1860.
[10] Wan H, Xu Q, Gu P, Li H, Chen D, Li N, He J, Lu J. ATE-based fluorescent sensors
for low concentration toxic ion detection in water. J Hazard Mater 2021;403:
123656. https://doi.org/10.1016/j.jhazmat.2020.123656.
[37] Wang Y, Liu H, Chen Z, Pu S. Aggregation-induced emission enhancement (AIEE)-
active tetraphenylethene (TPE)-based chemosensor for CN-. Spectrochim Acta A
2021;245:118928. https://doi.org/10.1016/j.saa.2020.118928.
[11] Isigonis P, Critto A, Zabeo A, Ciffroy P. AMORE" decision support system for
probabilistic ecological risk assessment-Part II: effect assessment of the case study
on cyanide. Sci Total Environ 2019;648:1665–72. https://doi.org/10.1016/j.
scitotenv.2018.08.227.
[38] Liu Y, Qin A, Tang BZ. Polymerizations based on triple-bond building blocks. Prog
Polym Sci 2018;78:92–138. https://doi.org/10.1016/j.progpolymsci.2017.09.004.
[39] Bozkurt S, Halay E. Synthesis, application and AIE properties of novel fluorescent
tetraoxocalix 2 arene 2 triazine: the detection of a hazardous anion, cyanate.
Tetrahedron 2020;76(46):131647. https://doi.org/10.1016/j.tet.2020.131647.
[40] Mallegol T, Gmouh S, Meziane MAA, Blanchard-Desce M, Mongin O. Practical and
efficient synthesis of tris(4-formylphenyl)amine, a key building block in materials
chemistry. Synthesis-Stuttgart 2005;11:1771–4.
[12] Madeira D, Andrade J, Leal MC, Ferreira V, Rocha RJM, Rosa R, Calado R.
Synergistic effects of ocean warming and cyanide poisoning in an ornamental
tropical reef fish. Front. Mar. Sci. 2020;7:246. https://doi.org/10.3389/
fmars.2020.00246.
[13] Sobsey MD, Bartram S. Water quality and health in the new millennium: the role of
the World health organization guidelines for drinking-water quality. Forum Nutr
2003;56:396–405.
9

B. Zuo et al.
Dyes and Pigments 193 (2021) 109534
[41] Shi W, Zhao S, Su Y, Hui Y, Xie Z. Barbituric acid-triphenylamine adduct as an
AIEE-type molecule and optical probe for mercury(II). New J Chem 2016;40(9):
7814–20. https://doi.org/10.1039/c6nj00894a.
[47] Li Y, Gu Z, He T, Yuan X, Zhang Y, Xu Z, Qiu H, Zhang Q, Yin S. Terpyridyl-based
triphenylamine derivatives with aggregation-induced emission characteristics for
selective detection of Zn2+, Cd2+ and CN- ions and application in cell imaging. Dyes
Pigments 2020;173:107969. https://doi.org/10.1016/j.dyepig.2019.107969.
[48] Xie Z, Kong X, Feng L, Ma J, Li Y, Wang X, Bao W, Shi W, Hui Y. A novel highly
selective probe with both aggregation-induced emission enhancement and
intramolecular charge transfer characteristics for CN- detection. Sensor Actuator B
Chem 2018;257:154–65. https://doi.org/10.1016/j.snb.2017.10.167.
[42] Sun T, Niu Q, Li Y, Li T, Hu T, Wang E, Liu H. A novel oligothiophene-based
colorimetric and fluorescent "turn on" sensor for highly selective and sensitive
detection of cyanide in aqueous media and its practical applications in water and
food samples. Sensor Actuator B Chem 2018;258:64–71. https://doi.org/10.1016/
j.snb.2017.11.095.
[43] Zou Q, Tao F, Wu H, Yu WW, Li T, Cui Y. A new carbazole-based colorimetric and
fluorescent sensor with aggregation induced emission for detection of cyanide
anion. Dyes Pigments 2019;164:165–73. https://doi.org/10.1016/j.
dyepig.2019.01.023.
[49] Malkondu S, Erdemir S, Karakurt S. Red and blue emitting fluorescent probe for
cyanide and hypochlorite ions: biological sensing and environmental analysis. Dyes
Pigments 2020;174:108019. https://doi.org/10.1016/j.dyepig.2019.108019.
[50] Zhai B, Hu Z, Peng C, Liu B, Li W, Gao C. Rational design of a colorimetric and
fluorescence turn-on chemosensor with benzothiazolium moiety for cyanide
detection in aqueous solution. Spectrochim Acta A 2020;224:117409. https://doi.
org/10.1016/j.saa.2019.117409.
[44] Dennington RK, Todd A, Millam JM. KS GaussView, vol. 6. Shawnee Mission:
Semichem Inc.; 2016.
[45] Frisch MJ, Trucks GW, Schlegel HB, et al, Gaussian 16 rev. A.03, Wallingford.
[46] Chen K-Y, Lin W-C. A simple 7-azaindole-based ratiometric fluorescent sensor for
detection of cyanide in aqueous media. Dyes Pigments 2015;123:1–7. https://doi.
org/10.1016/j.dyepig.2015.07.012.
10
