Synergistic catalytic ozonation of toluene with manganese and cerium varies at low
temperature
Qi Gana, Mingli Fua, b, c, d, , Yuchen Zhanga, Peng Liua, Juxia Xionga, Jinping Zhonga, Lei Liua, Junliang
Wua, b, c, d, Xiaojun Niua, Yun Hua, Daiqi Yea, b, c, d
a School of Environment and Energy, South China University of Technology, Guangzhou 510006, China
b National Engineering Laboratory for VOCs Pollution Control Technology and Equipment (SCUT), Guangzhou 510006, China
c Guangdong Provincial Key Laboratory of Atmospheric Environment and Pollution Control (SCUT), Guangzhou 510006, China
d Guangdong Provincial Engineering and Technology Research Centre for Environmental Risk Prevention and Emergency Disposal (SCUT), Guangzhou 510006,
China
ARTICLE INFO
ABSTRACT
Article history:
Received
Received in revised form
Accepted
The temperature of waste gas in refuse transfer station, airport smoking area, and RTO terminal
is low, which needs deep oxidation. Catalytic ozonation is one of the most effective treatment
techniques in these scenarios. In this study, we reported that catalysts were modified under the
condition of magnetic field to simulate the low temperature dynamic conditions of low
concentration toluene for catalytic ozonation. This paper aims to explore the relationship
between oxygen vacancy and active oxygen species, and the specific pathways of toluene
oxidation. The study found that citric acid can enhance the synergistic effect between Mn and
Ce, and promote the generation of oxygen vacancies. The surface molecule adsorption oxygen is
more conducive to catalytic oxidation than subsurface atom adsorption oxygen. Finally, we
proposed the main pathways of toluene in this reaction system, which runs through the whole
process of the reaction.
Available online
Keywords:
Ozone
Oxygen vacancy
Active oxygen species
Synergism
Pathway
 Corresponding author.
E-mail address: mlfu@scut.edu.cn (M. Fu).

2
Graphical Abstract
The catalytic ozonation of toluene was carried out in the range of low temperature and dynamic conditions. The main
intermediates of toluene were varied under the synergistic effects of Mn and Ce, ozone and catalyst.
Volatile organic compounds (VOCs) are important precursors of many atmospheric environmental problems. Among many air
pollution treatment methods, regenerative thermal oxidizer (RTO) and regenerative catalytic oxidation (RCO) are widely used. Both of
them have high purification efficiency. Among them, RCO has high cost, selectivity to pollutant types and small concentration range of
waste gas treatment [1]. RTO has low cost and wide application range of waste gas concentration, and can treat a variety of organic
waste gases [2]. After many considerations, the industry of pharmacy, printing, coating, paint coating [3] line and so on usually adopts
RTO method to deal with the exhaust gas. With the change of external environment and the strictness of relevant standards, some of the
tail gas after RTO treatment can not meet the emission standard. At this time, the exhaust gas temperature is in the range of 0~90 ℃[4],
which has the characteristics of low concentration, low temperature and constant fluctuation of temperature range. Therefore, in order to
solve this problem, this study simulated the catalytic oxidation of low concentration toluene under low temperature dynamic conditions
of 30~130 ℃.
There are many methods to remove VOCs at low temperature. Among them, photocatalysis, low temperature plasma and catalytic
ozonation are widely used. Photocatalysis is more sensitive to light and requires higher light conditions. Low temperature plasma
method requires high discharge and high energy consumption. Considering the complexity and economy of practical industrial
application, catalytic ozonation method magnifies its advantages. Due to the strong oxidation of ozone, VOCs can be removed
efficiently under mild conditions. In addition, when the catalyst and ozone cooperate to remove VOCs, ozone can also be decomposed,
so as to achieve the purpose of simultaneously complete purification of VOCs and O3 [5-7]. However, in previous studies, the
mineralization rate of VOCs is generally low, the service life is short, especially the CO2 selectivity is low. If we want to improve the
mineralization rate of VOCs, we need to increase the reaction temperature, which is difficult to fully reflect the strong oxidation
advantage of O3. Even under such conditions, CO2 selectivity is still very low. Therefore, this study aims to solve the mentioned-above
problems in the field of catalytic ozonation of VOCs.
In the field of catalytic oxidation, Al2O3 is widely used as the carrier of catalyst because of its low price, large specific surface area
and mechanical strength [8,9]. For active components, studies have shown that manganese based catalysts have advantages in catalytic
ozonation of VOCs [10-12], especially in the decomposition ability of ozone [13-15]. In the catalytic ozonation of VOCs, it is necessary
for the catalyst to have strong ozone decomposition performance [16]. The active oxygen species [17-20] decomposed by Mn can
promote the decomposition of VOCs, so as to achieve the purpose of VOCs abatement [21-23].
Catalytic ozonation of VOCs requires not only higher oxidation rate of VOCs, but also higher mineralization rate. The addition of Mn
can effectively improve the decomposition rate of toluene, but its contribution to the mineralization rate of toluene is not ideal. The rare
earth element Ce has strong electron transfer ability because of its more d and f empty orbitals, which is conducive to the generation of
oxygen vacancies [24,25]. Studies have shown that rich oxygen vacancies are conducive to the decomposition and mineralization of
VOCs [26]. Therefore, the addition of rare earth element Ce can effectively improve the mineralization rate of toluene.
The results show that active oxygen species and oxygen vacancy are beneficial to improve the decomposition rate and mineralization
rate of VOCs. However, the species of reactive oxygen species and their relationship with oxygen vacancies have not been studied
thoroughly. Therefore, we prepare the modified and unmodified MnCe/Al2O3 under the condition of magnetic field by using the effect
of electrostatic adsorption. The three properties (activity, selectivity and stability) of the catalyst were evaluated under simulated
conditions. The catalysts were characterized by XRD, SEM, TEM, EDS, BET, XPS, Raman, H2-TPR, O2-TPD, FTIR and TA-MS to
explore the synergistic effect between Mn and Ce. In addition, the relationship among oxygen vacancy, active oxygen species and
catalyst properties was studied. The decomposition pathway of toluene in this reaction system was further specified.
XRD characterization can qualitatively study the structure of the catalyst. Fig.1A shows the XRD patterns of MnCe/Al2O3,
MnCe/Al2O3-CA and MnCe/Al2O3-PEG. The XRD peaks at 2θ of 19.1°, 28.9°, 36.2°, 50.9° and 60.1° are attributed to the (101), (112),
(211), (105) and (215) planes [27,28] of Mn3O4 respectively, which are consistent with the standard card (JCPDS. NO. 24-0734). The
XRD peaks at 2θ of 32.5° and 38.2° belong to (222) and (400) planes of Mn2O3, respectively [29]. The XRD peak at 2θ of 44.4°
belongs to the (003) plane of Ce2O3 (JCPDS. NO. 89-8434). Three catalysts mainly show the characteristic structure of Mn2O3 and
Mn3O4, and their peak intensity are generally relatively decrease. Their characteristic peaks of Al2O3 and CeOx are no obvious. It shows
that MnOx and CeOx are distributed uniformly on Al2O3 surface [30]. This is consistent with the EDS results (Fig. S1). The peak of
MnCe/Al2O3 is narrow, indicating that the crystal particles of MnCe/Al2O3 are relatively large, and the specific surface area is the

smallest, which is consistent with the BET results (Fig. S2). The peaks of MnCe/Al2O3-CA are broad and not obvious, while those of
MnCe/Al2O3 are sharp and obvious, indicating that that the modifier destroys the crystal structure of the catalyst. The results should be
assigned to the destruction of citric acid makes the crystallinity of MnCe/Al2O3-CA is lower and the lattice fringes are not shown in
TEM (Fig. S3), which indicates that the lattice pattern is more amorphous. Amorphous can help to expose more defect sites, which
indicates that the modified catalyst can produce more defect sites and expand the active area of the catalyst surface [31].
In order to detect the structure of the catalysts, UV Raman was characterized shown in Fig. 1B. The diffraction peaks at 325 cm-1,
465 cm-1, 815 cm-1, 1065 cm-1 and 1430 cm-1 belong to the peaks of the Mn2O3, F2g type fluorite structure of CeO2, O2-, second order
longitudinal photon vibration 2LO of CeO2 and Al2O3, respectively [32-35]. The Mn2O3 and O2- of MnCe/Al2O3-CA and MnCe/Al2O3-
PEG are red shifted. The results show that citric acid and polyethylene glycol affect the crystal structure of the support [36], leading to
the formation of highly defect structure [37], and promoting the generation of oxygen vacancies. This is consistent with the SEM image
of the catalyst (Fig. S1). The diffraction peak at 650 cm-1 belongs to the vibration peak of oxygen defect site species [38], which is
caused by the synergistic effect of Mn and Ce [39]. The relative oxygen vacancy concentration of the catalyst can be expressed by the
peak area ratio AD/AF2g at 650 cm-1 and 465 cm-1 [40]. The results showed that the oxygen vacancy concentration of the three catalysts
followed the order of MnCe/Al2O3-CA (0.67) > MnCe/Al2O3-PEG (0.63) > MnCe/Al2O3 (0.61). Comparing the oxygen vacancy
concentration measured by XPS and UV-Raman (denoted by (Ob + Oc)/(Oa + Ob + Oc) and AD/AF2g respectively), it was found that the
oxygen vacancy concentrations of the three catalysts were consistent. The oxygen vacancy caused by Ce is determined by XPS, while
the total oxygen vacancy concentration of the catalyst was determined by UV-Raman. The results show that the total oxygen vacancy of
the catalyst is caused by the interaction of Mn and Ce. Mn plays an important role in it.
▲ Mn2O3 ● Mn3O4 ☆Ce2O3
●
(A)
(B)
Mn2O3
F2g
D
(c)
Al2O3
▲
▲
▲
●
●
O2-
(c)
●
▲
●
●
2LO
●
(b)
(b)
(a)
●
●
●
●
(a)
●
▲
●
☆
10 20 30 40 50 60 70 80 90 200 400 600 800 1000 1200 1400
Raman shift (cm-1)
2θ (°)
Mn2O3
F2g
Al2O3 (c)
(b)
(C)
D
Oα
Oβ
Oγ
(c)
(b)
(a)
2LO
O2-
(a)
200 400 600 800 1000 1200 1400
Raman shift (cm-1)
100
200
300
400
500
600
700
800
Temperature (℃)
Fig. 1. (A) XRD images; (B) UV-Raman-fresh; (C) UV-Raman-used; (D) H2-TPR. (a) MnCe/Al2O3; (b) MnCe/Al2O3-CA; (c) MnCe/Al2O3-PEG.
The catalyst used for several times and recycled was characterized by UV-Raman, as shown in Fig. 1C. It can be seen from the figure
that there is no obvious change in the peaks of Mn2O3. The F2g peak of MnCe/Al2O3-CA and MnCe/Al2O3-PEG did not change
obviously, but the F2g peak of MnCe/Al2O3 changed obviously. The results show that MnCe/Al2O3-CA and MnCe/Al2O3-PEG exist
stably before and after the reaction, while the structure of the catalyst MnCe/Al2O3 changes greatly after several cycles. Compared with
the fresh catalyst, the peak area of oxygen defect site D of the three catalysts increased significantly. It shows that a large amount of
oxygen in the catalyst escapes to form oxygen vacancies and participates in the reaction.
In order to investigate the reducibility of the catalyst and the mobility of oxygen on its surface, the H2-TPR is shown in Fig. 1D. The
peak below 250 ℃is formed by the synergistic effect between MnOx and CeOx, which promotes the reduction of oxygen adsorption on
the surface of oxygen vacancy [41]. The peak appeared at about 300 ℃is formed by the transformation of MnO2 to Mn2O3 [42,43]. The
reduction peak of 420~460 ℃ is attributed to the transformation from Mn2O3 to Mn3O4 [44]. The reduction peak at about 500 ℃ is
attributed to the transformation of Mn3O4 to MnO [45,46]. Among them, the area I is lower than 300 ℃, which is attributed to the
reduction of surface oxygen (SO) of the catalyst; the area II is from 300 ℃ to 500 ℃, which is attributed to the reduction of subsurface
oxygen (SSO) of the catalyst; the region III higher than 500 ℃ is attributed to the reduction bulk oxygen (BO) of the catalyst [47]. The
relative content of different oxygen species is calculated as shown in Table S2 (Supporting information). The SO of MnCe/Al2O3-CA
was significantly higher than the other two. The total relative content of SO and SSO of the three catalysts was higher. The results show
that the addition of modifier changes the structure of catalyst carrier, promotes the synergistic effect of manganese oxide and cerium
oxide, and improves the mobility of oxygen on the catalyst surface. Among them, citric acid has the greatest contribution to oxygen
mobility. The addition of citric acid improves the CO2 selectivity and mineralization rate of the catalyst, and improves the stability of
CO2 production.
The removal rate of toluene is shown in Fig. S7 (Supporting information). In order to prove the role of O3 in the reaction, the activity
of MnCe/Al2O3, MnCe/Al2O3-CA and MnCe/Al2O3-PEG catalysts were evaluated in the presence and absence of O3, as shown in Fig.
S7A. In the absence of O3, the removal rates of toluene by the three catalysts were all close to 0, indicating that O3 played a very
important role in this study. In Figs. S7B, C and D are the multiple catalytic ozonation cycle reactions of the three catalysts. It can be
seen from the figure that the five cycle reaction curves of MnCe/Al2O3 deviate from each other slightly, followed by MnCe/Al2O3-CA.

4
The results show that MnCe/Al2O3 has better stability in toluene removal, and MnCe/Al2O3-CA takes the second place. Fig. S8
(Supporting information) shows the COx productivity of the three catalysts, in which Figs. S8A, C and E correspond to the CO2
selectivity of the three catalysts respectively, and Figs. S8B, D and F correspond to the mineralization rate of the three catalysts
respectively. It can be seen from Figs. S8A, C and E that in the five cycle reactions, MnCe/Al2O3-CA has relatively high CO2 selectivity,
while MnCe/Al2O3 has relatively high CO2 stability. It can be seen from Figs. S8B, D and F that the mineralization rates of the three
catalysts are similar in the five cycles. However, in the later stage of the reaction, the mineralization rate of MnCe/Al2O3-CA
MnCe/Al2O3-CA is relatively high, and the stability of COx production is relatively strong.
F2g
D
F2g
D
(B)
(C)
F2g
D
(A)
30 ℃ ↓
130 ℃
30 ℃ ↓
30 ℃ ↓
130 ℃
130 ℃
30 ℃ ↑
30 ℃ ↑
30 ℃ ↑
400
500
600
700
800
400
(E)
500
600
700
800
400
500
600
700
800
Raman shift (cm-1)
Raman shift (cm-1)
Raman shift (cm-1)
F2g
F2g
D
F2g
D
D
(D)
30 ℃ ↓ (F)
130 ℃
30 ℃ ↓
30 ℃ ↓
130 ℃
130 ℃
30 ℃ ↑
30 ℃ ↑
30 ℃ ↑
400
500
600
700
800
400
500
600
700
800
400
500
600
700
800
Raman shift (cm-1)
Raman shift (cm-1)
Raman shift (cm-1)
Fig. 2. O2: (A) MnCe/Al2O3; (B) MnCe/Al2O3-CA; (C) MnCe/Al2O3-PEG. O3: (D) MnCe/Al2O3; (E) MnCe/Al2O3-CA; (F) MnCe/Al2O3-PEG.
With the repeated cycles of the reaction, the three properties of the catalyst all decreased to a certain extent. Combined with the
analysis of UV Raman characterization before and after the reaction, it may be due to the excessive oxygen vacancies in the catalyst,
resulting in the serious change of charge distribution [48], resulting in the deformation and collapse of the catalyst framework structure.
At the same time, the addition of modifier can promote the generation of oxygen vacancies and maintain the concentration of oxygen
vacancies. The addition of citric acid enhanced the surface acidity and specific surface area of the catalyst to a certain extent. The
increase of appropriate surface acidity did not destroy the catalyst structure due to the expansion of specific surface area. Therefore,
citric acid has better contribution to the maintenance of catalyst structure and generation of oxygen vacancy. Through the
comprehensive analysis of toluene removal rate and COx productivity, it is found that MnCe/Al2O3-CA has the best performance.
In order to further study the specific changes of catalysts in the reaction process, the three catalysts were characterized by in-situ
Raman spectroscopy, as shown in Fig. 2. In O2 atmosphere: from the initial stage of the reaction (i.e. heating from 30 ℃) to the middle
stage of the reaction (130 ℃), the D peak gradually becomes not obvious. The results showed that the relative oxygen vacancy
concentration of the three catalysts decreased gradually. From the middle stage of reaction (130 ℃) to the end stage of reaction (i.e.
cooling to 30 ℃), the D peak gradually became obvious. The results showed that the relative oxygen vacancy concentration of the three
catalysts increased gradually. It also shows that the oxygen vacancy is recovered and basically returned to the initial state of reaction. It
is proved that the relative oxygen vacancy concentration of the catalyst is restored to the surface before the reaction, and the catalyst in
this study has good stability and can be recycled for many times. The changes of the three catalysts in O3 atmosphere are basically
consistent with those in O2 atmosphere. However, in O3 atmosphere, the D peak of MnCe/Al2O3 and MnCe/Al2O3-PEG gradually
becomes not obvious from the initial stage to the end of the reaction, which is slower than that of MnCe/Al2O3-CA. And the relative
oxygen vacancy concentration of MnCe/Al2O3-CA recovered from the initial stage to the end of the reaction. The results show that
MnCe/Al2O3-CA can produce living oxygen species more quickly and the ability of oxygen vacancy recovery is relatively strong. The
strong oxygen vacancy recovery ability makes the catalyst reusable and has more practical value.

[Ce]/[O] [Ce]/[Mn]
(A)
130
(B)
2.5
[D]/[Mn]
[D]/[Ce]
[D]/[O]
(a)
(b)
(c)
2.0
1.5
1.0
0.5
0.0
120
110
100
90
80
(a)
(b)
(c)
1
5
2
3
4
Catalyst
Cycle
(C)
(D)
10
8
0.020
0.015
0.010
0.005
0.000
Ⅰ
Ⅲ
Ⅱ
Ⅳ
Ⅰ
Ⅲ
Ⅱ
Ⅳ
6
4
2
0
(a)
(b)
(c)
(a)
(b)
(c)
Catalyst
Catalyst

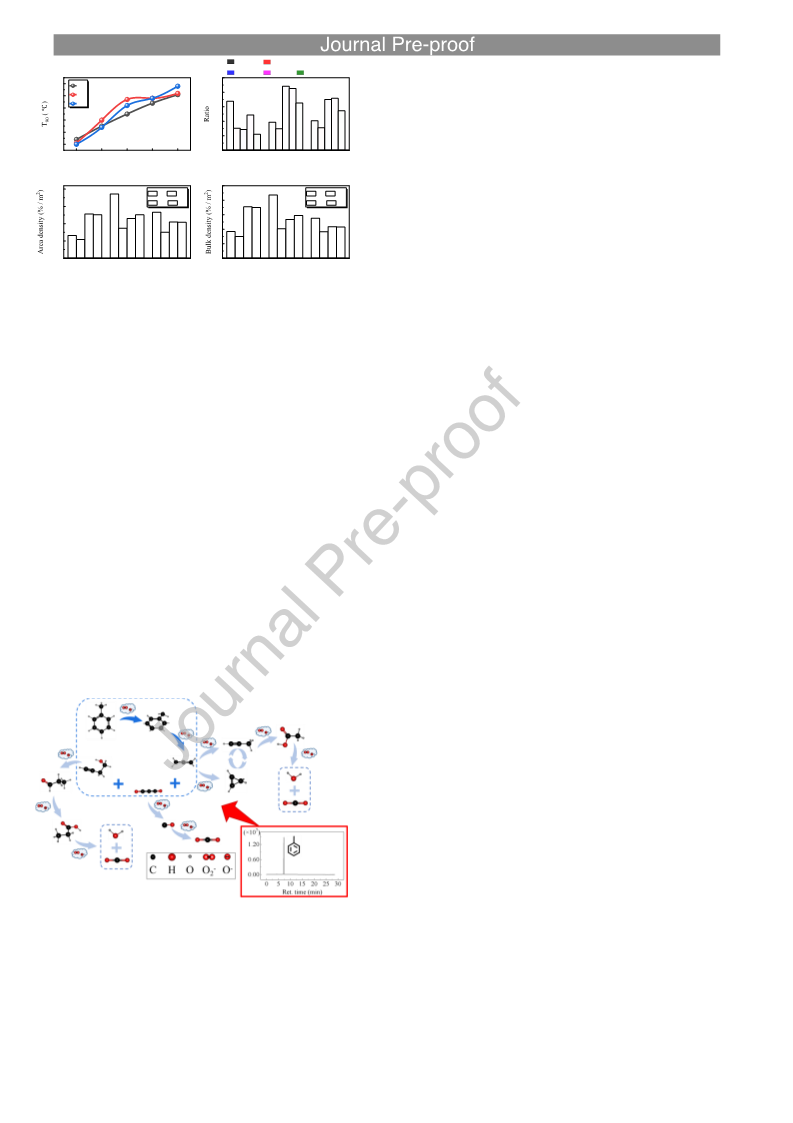

Fig. 3. (A) T90 for evaluation of catalyst activity. (B) Comprehensive analysis of catalyst characterization. (C) Oxygen vacancy surface density and active oxygen
species surface density of catalysts. (D) Oxygen vacancy volume density and active oxygen species volume density of catalysts. (a) MnCe/Al2O3; (b) MnCe/Al2O3-
CA; (c) MnCe/Al2O3-PEG. [Ce] means Ce3+/(Ce3+ + Ce4+); [O] means OAds/(OAds + OLatt); [Mn] means (Mn2+ + Mn3+)/(Mn2+ + Mn3+ + Mn4+) ; [D] means D/F2g. (I)
means [D/F2g]/PV; (II) means [O-XPS]/PV; (I) in Fig. (C) represents the area density of [D], (II) in Fig. (C) represents the area density of [O], (III) in Fig. (C)
represents the area density of surface oxygen measured by H2-TPR, and (IV) in Fig. (C) represents the area density of surface oxygen measured by O2-TPD; (I) in
Fig. (D) represents the volume density of [D], (II) in Fig. (D) represents the volume density of [O], (III) in Fig. (D) represents the volume density of surface oxygen
measured by H2-TPR, and (IV) in Fig. (D) represents the volume density of surface oxygen measured by O2-TPD.
In order to explore the synergistic relationship between various influencing factors, T90 and its characteristic results were
comprehensively analyzed, as shown in Figs. 3A-D. The T90 of the three catalysts in Fig. 3A is almost the same. With the increase of
cycle reaction times, the T90 of citric acid tends to be stable, indicating that it can help to improve the stability of the catalyst. [D] and
[Ce] represent the relative oxygen vacancy concentration formed by the synergistic action of Mn and Ce and the action of Ce in Fig. 3B.
The [D]/[Ce] of MnCe/Al2O3 is less than 1, while the other two are more than 1. It show that the modifier is beneficial to the synergistic
production of more oxygen vacancies by Mn and Ce. [Ce]/[Mn] of three catalysts are basically the same, while [Ce]/[O] and [D]/[O]
have the opposite trend. It shows that the effect of modifier on the behavior of Mn is stronger than that of Ce. The ratio of [D] to [Mn],
[O] and [Ce] all followe the order of MnCe/Al2O3-CA > MnCe/Al2O3-PEG > MnCe/Al2O3. The results show that modifier can enhance
the synergistic effect between Mn and Ce. In Figs. 3C and D, the change trend of oxygen vacancy and active oxygen species density is
basically the same. The higher the density of oxygen vacancy and surface active oxygen species, the better the performance of the
catalyst.
In Tables S2 and S3 (Supporting information), the corresponding values of SO:SSO:BO and Oα:Oβ:Oγ of three catalysts are basically
the same, which indicates that the surface atom adsorbed oxygen and sub surface molecule adsorbed oxygen of the three catalysts are
basically the same. In this study, the proportions of surface oxygen (SO) and molecular oxygen (Oα), sub surface oxygen (SSO) and
atomic oxygen (Oβ) are almost equal. The results show that one of the main reasons for the performance difference of the three catalysts
is the difference in the relative concentration of surface molecule adsorbed oxygen and sub surface atom adsorbed oxygen. Comparing
the same oxygen species of the three catalysts, it is found that the relative contents of surface oxygen and molecular adsorbed oxygen of
MnCe/Al2O3-CA are higher than those of other catalysts. It shows that surface molecules adsorb oxygen (SO-Oα) play a major role.
Scheme. 1. The pathway of catalyst.
In most studies on catalytic oxidation of toluene, the general conclusion is that toluene is firstly oxidized to benzyl alcohol, then to
benzaldehyde and benzoic acid, and finally to water, carbon dioxide and other reaction by-products [49-51]. However, the specific
pathway is not clear. In order to further explore the pathway of catalytic ozonation of toluene, quasi in-situ GC-MS (Fig. S9 in
Supporrting information) was carried out, combined with Raman and FFTIR (Figs. 1B and C) comprehensive analysis. We can find that
the main substance detected in the reaction process is toluene, and the content of other substances is very little. According to the CAS

6
numbers and substances corresponding to various peaks, and combined with the relevant theories of chemical reaction, the specific
catalytic ozonation pathway of toluene is deduced, as shown in Scheme. 1.
The active oxygen species produced by ozone oxidation firstly oxidizes toluene to benzyl alcohol, and then benzyl alcohol is oxidized
to allene, carbon suboxide and 3-butyne-1-ol. Among them, (1) Allene is oxidized to cyclopropene and propyne, and cyclopropene can
be self converted to propyne. Propyne is oxidized to acetic acid and carbon dioxide, and acetic acid is oxidized to carbon dioxide and
water. (2) Carbon suboxide is oxidized to carbon monoxide and carbon dioxide successively. (3) 3-butyne-1-ol was oxidized
successively to propionaldehyde, propionic acid, and finally to carbon dioxide and water. In this study, the reaction pathway runs
through the whole reaction system.
Oxygen vacancies and reactive oxygen species are important participants in catalytic oxidation. Reasonable control of the relative
content of oxygen vacancies and active oxygen species can effectively improve the performance of the catalyst. In order to explore the
relationship between oxygen vacancy and active oxygen species, and the pathway of toluene decomposition in the process of catalytic
ozonation of toluene, this study used citric acid and polyethylene glycol as modifiers to prepare the catalyst under the condition of
magnetic field.
Combined with the characterization and three properties evaluation of the catalyst, it was found that citric acid could enhance the
synergistic effect between Mn and Ce in the catalytic ozonation of low concentration toluene at low temperature. The closer the
concentration ratio of oxygen vacancy formed by Ce to the surface active oxygen species is to 1, and the closer the concentration ratio
of oxygen vacancy formed by the synergistic action of Mn and Ce to the surface active oxygen species is to 2, the better the three
properties of catalyst are. In addition, higher surface molecule adsorbed oxygen is beneficial to the improvement of the three properties
of the catalyst. Finally, the main decomposition pathway of toluene was proposed, which runs through the whole reaction system.
This study provides an important theoretical basis for the catalytic ozonation of VOCs at low temperature, and has a certain reference
significance for the application and development in this field. It will be deepened on this basis in the future, such as exploring the
influence of water vapor on catalytic ozonation, so as to make the research more practical.
mmc1.docx
Declaration of Competing Interest
论文原创性声明
本人郑重声明：所呈交的论文是本人在指导教师下独立进行研究所取得的研究
成果，除了文字特别标注加以引用的内容外，本论文不包含任何其他个人或集
团已经发表或撰写的成果。对本文的写作成果做出重要贡献的个人和集体，均
在本文中以明确方式标明。本人完全意识到本声明的严重性，本人自愿承担由
此引起的一切后果。
Acknowledgments
This work was financially supported by the National Natural Science Foundation of China (Nos. 51878293, 21777047), the Scientific
Research Project of Guangzhou City (No. 201804020026), the National Key Research and Development Program of China (No.
2018YFB0605200), and the Natural Science Foundation of Guangdong Province (No. 2017B090901049).
References
[1] S. Liu, Front. Archit. Civ. Eng. China. 3 (2020) 83-86.
[2] Y. Wang, T. Wang, W. Jiang, CEPI. 12 (2020) 33-35.
[3] L. Chen, Eng. Min. J. 35(2019) 255-257.
[4] J. Hao, J. Lan, X. Meng, Y. Fu, Y. Wu, Guangzhou Chem Ind. 48 (2004) 131-134.
[5] H. Einaga, S. Futamura, J. Catal. 227 (2004) 304-312.
[6] Y. Zhao, H. An, G. Dong, J. Feng, Y. Ren, et al., Appl. Surf. Sci. 505 (2020) 144476.
[7] E. Rezaei, J. Soltan, N. Chen, React. Kinet. Catal. L. 136-137 (2013) 239-247.
[8] L. Chen, C. Yang, Special. Petrochem. 38 (2021) 33-35.
[9] H. Tian, S. Ni, Q. Yu, H Li, Y. Liu, Ref. Chem. Ind. 32 (2021) 1-5.
[10] H. Einaga, J. Soltan, J. Catal. 227 (2004) 304-312.
[11] H. Einaga, S. Futamura, React. Kinet. Catal. L. 81 (2004) 121-128.
[12] B. Dhandapani, S.T. Oyama, Appl. Catal. B: Environ. 11 (1997) 129-166.
[13] K. Snigdha, S. M. Kumar, S. Pragya, Environ. Technol. 2019 (2019) 1-8.
[14] X. Li, J. Ma, H. He, J. Environ. Sci. 94 (2020) 14-31.
[15] W. Tang, H. Liu, X. Wu, Y. Chen, Ozone-Sci. Eng. 36 (2014) 502-512.
[16] J. Xu, Y. Li, M. Qian, J. Pan, J. Ding, et al., Appl. Catal. B: Environ. 256 (2019) 117797.
[17] H. Huang, J. Lan, J. Wen, Y. Xu, X. Ye, et al., Catal. Today. 258 (2015) 627-633.
[18] R. Radhakrishnan, S. Ted Oyama, J. Catal. 199 (2001) 282-290.
[19] E. Rezaei, J. Soltan, N. Chen, J. Lin, Chem. Eng. J. 214 (2013) 219-228.
[20] F. Lin, Z. Wang, Z. Zhang, Y. He, Y. Zhu, et al., Chem. Eng. J. 382 (2020) 120030.
[21] Q. Sun, H. Li, H. Yan, X. Honn, K. S. Hui, et al., Chem. Eng. J. 242 (2014) 348-356.
[22] R. Fang, H. Huang, W. Huang, J. Ji, Q. Feng, Appl. Surf. Sci. 420 (2017) 905-910s.
[23] J. Wang, M. Mao, X. Shi, H. Li, H. Huang, et al., J. Environ. Sci-China. 40 (2020) 1629-1639.

[24] F. Wang, H. Dai, J. Deng, G. Bai, K. Ji, et al., Environ. Sci. Technol. 46 (2012) 4034-4041.
[25] W. Wang, Q. Meng, Y. Xue, X. Weng, P. Sun, et al., J. Catal. 366 (2018) 213-222.
[26] L. Li, F. Chen, J. Lu, M. Luo, J. Phys. Chem. A. 115 (2011) 7972-7977.
[27] X. Lin, S. Li, H. He, Z. Wu, J. Wu, et al., Appl. Catal. B: Environ. 223 (2018) 91-102.
[28] Y. Yuan, Z. Qin, Z. Xu, J. Pan, J. Ding, et al., Catal. Lett. 150 (2020) 365-374.
[29] B. Shen, Y. Yao, H. Ma, T. Liu, Chinese J. Catal. 32 (2011) 1803-1811.
[30] X. Zhang, Y. Liu, J. Deng, X. Yu, Z. Han, et al., Appl. Catal. B: Environ. 257 (2019) 117879.
[31] Z. Lian, J. Ma, H. He, Catal. Commun. 59 (2015) 156-160.
[32] L. Li, G. Hu, J. Lu, M. Luo, Acta. Phys-Chmi Sin. 28 (2012) 1012-1020.
[33] J. Jia, P. Zhang, L. Chen, Appl. Catal. B: Environ. 189 (2016) 210-218.
[34] J. Sun, C. Ge, L. An, Q. Tong, F. Gao, et al., J. Chem. Ind. Eng. 71 (2020) 3430-3415.
[35] J. E. Post, D. A. McKeown, P. J. Heaney, Am. Mineral. 105 (2020) 1175-1190.
[36] Y. Zheng, W. Wang, D. Jiang, Chem. Eng. J. 284 (2015) 21-27.
[37] S. Zhao, F. Hu, J. Li, ACS Catal. 6 (2016) 3433-3441.
[38] J. Deng, Y. Zhou, Y. Cui, L. Lan, J. Wang, et al., J. Mater. Sci. 52 (2017) 5242-5255.
[39] N. Huang, Z. Qu, C. Dong, D. Qin, X. Duan, Appl. Catal. A: Gen. 560 (2018) 195-205.
[40] Y. Lee, J. He, A. J. Akey, R. Si, M. Flytzani-Stephanopoulos, et al., J. Am.n Chem. Soc. 133 (2011) 12952-12955.
[41] F. Lin, X. Wu, S. Liu, D. Weng, Y. Huang, Chem. Eng. J. 226 (2013) 105-112.
[42] F. Hu, J. Chen, S. Zhao, K. Li, W. Si, Appl. Catal. A: Gen. 540 (2017) 57-67.
[43] Y. Wang, K. Ren, B. Shen, X. Zhang, J. Yang, Chem. Eng. 39 (2020) 3102-3109.
[44] Z. Wang, J. Shen, J. Li, H. Liu, Q. Wang, et al., Appl. Catal. B: Environ. 138-139 (2013) 253-259.
[45] J. Shao, F. Lin, Z. Wang, P. Liu, H. Tang, et al., Appl. Catal. B: Environ. 266 (2020) 118662.
[46] M. Cui, Y. Li, X. Wang, J. Wang, M. Shen, J. Rare. Earth. 31 (2013) 572-576.
[47] J. Jia, P. Zhang, L. Chen, Appl. Catal. B: Environ. 189 (2016) 210-218.
[48] G. Zhu, J. Zhu, W. Jiang, Z. Zhang, J. Wang, et al., Appl. Catal. B: Environ. 209 (2017) 729-737.
[49] Z. Bo, H. Hao, J. Zhu, J. Yan, K. Cen, Appl. Surf. Sci. 436 (2018) 570-578.
[50] Y. Yang, W. Zhang, J. Wu, M. Fu, L. Chen, et al., J. Environ. Sci-China. 33 (2013) 3138-3145.
[51] L. Long, J. Zhao, L. Yang, M. Fu, J. Wu, et al., Chinese J. Catal. 32 (2011) 904-916.
