Palladium Supported on Porous Chitosan–Graphene
Oxide Aerogels as Highly Efficient Catalysts for
Hydrogen Generation from Formate
Aicha Anouar 1,2 , Nadia Katir 2, Abdelkrim El Kadib 2, Ana Primo 1,* and
Hermenegildo García 1,
*
1
Instituto de Tecnolog
í
a Química, Consejo Superior de Investigaciones Científicas, Universitat Politècnica de
València, Av. De los Naranjos s/n, 46022 Valencia, Spain
Euromed Research Center, Engineering Division, Euro-Med University of Fès (UEMF), Route de Meknes,
Rond-point de Bensouda, 30070 Fès, Morocco
2
*
Correspondence: aprimoar@itq.upv.es (A.P.); hgarcia@qim.upv.es (H.G.)
ꢀꢁꢂꢀꢃꢄꢅꢆꢇ
Academic Editors: Sergio Navalon and Amarajothi Dhakshinamoorthy
Received: 8 August 2019; Accepted: 3 September 2019; Published: 10 September 2019
ꢀꢁꢂꢃꢄꢅꢆ
2+
Abstract: Adsorption of Pd(NH3)4 in preformed chitosan–graphene oxide (CS-GO) beads and
their subsequent reduction with NaBH4 afford well-dispersed, high dispersion (~21%) of uniformly
sized Pd nanoparticles (~1.7 nm). The resulting Pd/CS-GO exhibits interesting catalytic activity
for hydrogen generation by ammonium formate decomposition. The optimal GO proportion of
7 wt% allows reaching, at 60 ◦C, a turnover frequency above 2200 h−1—being outstanding among
the highest values reported for this process to date. Interestingly, no formation of CO or CH4 was
detected. The catalyst did not leach, although it underwent gradual deactivation, probably caused by
the increase in the Pd average size that became over 3 nm after three uses. Our results are relevant
in the context of efficient on-board hydrogen generation from liquid organic hydrogen carriers
in transportation.
Keywords: liquid hydrogen carriers; formate as hydrogen carrier; catalyst for hydrogen generation;
palladium as catalyst for hydrogen generation; chitosan–graphene oxide as catalyst support
1. Introduction
In the context of the on-going shift from fossil fuels to renewable energy sources, one of the viable
possibilities in transportation is the use of hydrogen as fuel. Hydrogen will act as an energy vector
and it will be obtained from water by electrolysis using renewable electricity or by any other primary
energy source [1].
One of the main problems associated with the use of hydrogen as a transportation fuel is the
storage under ambient conditions of sufficient amounts to reach the required automotive autonomy [2].
Among the various alternatives being considered, one is the use of liquid organic hydrogen carriers
(LOHCs) that, on demand, generate on board hydrogen that can be used in a fuel cell. In this context,
catalysis for hydrogen generation from LOHCs is one of the key components of the process [3,4].
Among the requirements that have to meet catalysts for hydrogen generation from LOHC, the most
important ones are the high rates (turnover frequency) that have to be attained under moderate
conditions. For this reason, development of catalysts for hydrogen evolution from different LOHCs
has become a research front in the area of using hydrogen as fuel.
One of the most widely studied LOHC’s is formic acid and its salts. The main reasons for
this preference is the non-gaseous physical state of formic acid and its derivatives, and their wide
availability via the catalytic hydrogenation of CO2. A large number of studies describe various catalysts
Molecules 2019, 24, 3290; doi:10.3390/molecules24183290
www.mdpi.com/journal/molecules

Molecules 2019, 24, 3290
2 of 13
for formic acid and formate decomposition into hydrogen and CO2 [
5]. Most of the catalysts for
formate decomposition are transition metals having well established hydrogenating/dehydrogenating
activity [ ]. Among them, supported palladium exhibits a general activity, frequently higher than
those of other metals [ ]. These precedents have established that the catalytic activity of palladium
6
7–9
nanoparticles (Pd NPs) is largely determined by the nature of the support on which they have been
deposited. Typical supporters of Pd NPs for hydrogen evolution from formate decomposition are large
surface area metal oxides such as TiO2, Al2O3, and active carbons.
In the present manuscript, we investigate the catalytic activity of Pd NPs embedded on porous
chitosan (CS) and chitosan–graphene oxide (CS-GO) beads. Chitosan is a natural, widely-available
polysaccharide obtained by chitin deacetylation, the most important waste from the fishery industry [10].
Highly porous beads of chitosan with large surface area can be obtained by appropriate coagulation,
gel handling, and supercritical drying. Among the possible applications of porous chitosan, its use as
support of metal NPs, has been the subject of several studies [11,12]. In this context, we have previously
demonstrated the efficiency of chitosan microspheres as a medium for the growth of Au, Pd, and Cu
complexes to promote several organic transformations including Sonogashira coupling, C–S coupling,
click cycloaddition, alcohol oxidation, etc. [13–17]. Alternatively, Pd NPs embedded in alginate beads
have also been used as catalyst for Suzuki cross-coupling [18]. The presence of well-dispersed amino
groups in the biopolymer backbone provides a way for stabilizing the growing metal clusters while
the open-macroporous network allows for fast molecular traffic during catalysis.
In spite of its advantages in terms of sustainability, large surface area, and the presence of amino
functional groups for interaction with the metal NPs, one of the major drawbacks of porous chitosan
as support in catalysis is the lacking mechanical stability of the beads under reaction conditions [19].
There have been several ways to increase the mechanical stability of these porous chitosan
microspheres by crosslinking with glutaraldehyde, glyoxal, and other dialdehydes [20,21]. Another
alternative that we used in the present study, was to use highly reactive graphene oxide (GO) sheets to
crosslink chitosan fibrils [22]. GO has epoxide, hydroxyl, and carboxylic acid groups that can react with
the chitosan primary amino groups forming covalent bonds that crosslink chitosan fibrils. In this way,
the network constituted by the composite of chitosan and graphene oxide is more robust and can stand
a wider range of temperatures and reaction conditions [22]. As it will be shown later, the entrapment
of an appropriate proportion of GO in chitosan embedding Pd NPs as active sites provides a highly
active catalyst for hydrogen generation at moderate temperatures from formate, reaching turnover
frequencies that are among the highest reported so far for this reaction.
Pd NPs of very small size (~1.7 nm) were prepared embedded with CS-GO composite as
submillimetric spherical beads. The materials were very active to promote ammonium formate
decomposition to H2, with no formation of CO or methane as side products. Ammonium formate
was selected in the present study due to its solubility, but alkali formates can also be used. Under
optimal reaction conditions: methanol as solvent, 60 ◦C, and 7 wt% of GO in the support, Turn Over
Frequency (TOF) values over 2200 h−1 were measured. This value compared favorably to precedents
reported in the literature. The catalyst can be reused with gradual decay in its activity, probably
due to agglomeration of Pd NPs that grow up to an average diameter of 3.67 nm in the fourth run.
Considering the natural origin of chitosan, the present system represents a step forward towards
sustainability of a process that could be the basis of novel auto motion fuels.
2. Results
First, catalyst preparation and characterization is described before presenting their catalytic
activity. Four samples having a similar Pd content (based on ICP/OES analysis) and differing in the
GO content were prepared as illustrated in Scheme 1. The list of catalysts and their main analytical
and physicochemical properties are summarized in Table 1. Briefly, acid chitosan solutions were
coagulated by concentrated NaOH to form CS beads of about millimetric size. For those samples
containing GO, a suspension of the appropriate amount of GO was first prepared by sonication and,

Molecules 2019, 24, 3290
3 of 13
then, the corresponding amount of chitosan in acid solution was added before gellification under basic
conditions. The CS and CS-GO microspheres were washed with water and the resulting hydrogels were
impregnated with Pd(NH3)4Cl2 solution. Subsequently, the Pd(NH3)42+/CS and Pd(NH3)42+/CS-GO
hydrogels were converted into alcogels by dispersing them into a water/ethanol mixtures of increasing
ethanol proportion. Pd NPs adsorbed on CS or CS-GO were formed by Pd(NH3)42+ reduction with
NaBH4 in ethanol. An instantaneous change in the color of the beads upon contacting NaBH4 was
visually observed. Finally, the catalyst samples were subjected to supercritical CO2 drying to obtain
macroporous aerogels of Pd/CS or Pd/CS-GO ready to be used as catalysts.
Scheme 1. Illustration of the preparation procedure of Pd/CS and Pd/CS-GO (Pd NPs embedded in
chitosan-graphene oxide beads) samples. (i) CS or CS-GO precipitation in NaOH solution to form
beads; (ii) Impregnation of CS or CS-GO beads in Pd(NH3)4Cl2 solution followed by NaBH4 reduction;
and (iii) supercritical CO2 drying of the spheres.
Table 1. Relevant analytical and textural data of the Chitosan (CS) supported Pd catalysts prepared in
the present study.
Sample
Pd/CS
Pd/CS-GO1
Pd/CS-GO2
Pd/CS-GO3
CS-GO
Pd (%)
N (%)
GO (%)
Surface Area (m2/g)
Pore Volume (cm3/g)
Pd NP Size (nm)
2.50
3.78
3.44
1.53
-
6.24
6.79
6.50
6.54
6.75
-
3
7
12
3
220
459
435
333
294
1.06
1.45
1.51
1.31
1.25
1.7 ± 0.5
1.6 ± 0.9
1.8 ± 0.8
1.7 ± 0.5
-
Specific surface area and porosity were measured by isothermal N2 absorption at 77 K. In accordance
with the literature [18], the preparation procedure, particularly supercritical CO2 drying, renders a
Pd/CS sample with a large surface area value of ~220 m2/g. The presence of GO further increased the
specific surface area of the material up to 430 m2/g, a factor that should be beneficial from the catalytic
point of view. Furthermore, pore volume increased upon incorporation of GO in the composite from
1.06 to 1.51 cm3/g. The values of surface area and porosity are collected in Table 1.
After preparation, the Pd content of the different Pd/CS and Pd/CS-GO samples was analyzed
and the results are also included in Table 1. The samples and the supports were characterized by
FESEM. These images show CS beads of a large porosity in accordance with previous studies that
have shown that the conversion of CS hydrogels to alcogels before supercritical CO2 drying afford
samples with a large macroporosity and surface area [23]. FESEM images reveal a change in the
morphology of the pores due to the presence of GO. These changes appear more clearly as the GO
content increases. To illustrate the influence of GO on the porosity of the microspheres, Figure 1
compares two representative FESEM images where the presence of GO sheets filling some of the
pores present in CS can be seen. In none of the cases was the presence of Pd NPs detected by FESEM.
However, elemental analysis in FESEM showed the presence of Pd uniformly distributed throughout
the particle (Figure 1c). Supporting information provides a set of images with elemental mapping for
C, O, N, and Pd for the samples under study showing uniform Pd distribution.

Molecules 2019, 24, 3290
4 of 13
Figure 1. FESEM images of (a) Pd/CS, (b) Pd/CS-GO3, and (c) low resolution FESEM image and
corresponding Energy-Dispersive X-Ray Spectroscopy (EDX) elemental analysis of elements for a bead
of Pd/CS-GO2.
Dark-field STEM (DF-STEM) images clearly reveal the presence of small Pd NPs of nanometric
and subnanometric particle size uniformly distributed throughout the catalyst beads, and allowed us
to determine particle size distribution (Figure 2). The identity of the NPs as corresponding to Pd was
confirmed by EDX analysis of selected areas (Figure 1). Table 1 includes the average particle size and
standard deviation determined by counting a statistically relevant number of particles in these DF-STEM
images. As it can be seen there, the samples under study exhibit a similar average size about 1.7 nm.
Figure 2. Dark-Field Scanning Transmission Electron Microscopy (DF-STEM) images of (
) Pd/CS-GO1, ( ) Pd/CS-GO2, and ( ) Pd/CS-GO3. The insets show the histograms of corresponding
particle size distribution.
a) Pd/CS,
(
b
c
d
X-Ray Photoelectron Spectroscopy (XPS) analysis of the Pd/CS-GO2 sample showed the
corresponding Pd peak appearing at a binding energy about 337 eV and 342 eV for 3d5/2 and
3d3/2, respectively. Deconvolution of the experimental XPS peak indicated that the main component

Molecules 2019, 24, 3290
5 of 13
corresponds to Pd(0) at 336.05 eV binding energy with an atomic proportion of 0.208%, accompanied by
another component at 338.21 eV due to PdO in a proportion of 0.154% (Figure 3). Thus, the Pd(0)/Pd2+
ratio of the exposed, catalytically relevant layers of the Pd NPs in the fresh catalyst was 1.35.
Figure 3. High resolution X-Ray Photoelectron Spectroscopy (XPS) peaks and their best deconvolution
to individual components indicated for each of the elements present in Pd/CS-GO2.
Catalytic Activity
As mentioned in the introduction, the purpose of the present work was to develop a heterogeneous
catalyst for hydrogen generation by decomposition of ammonium formate at moderate temperatures.
All the catalysts tested were able to generate hydrogen from ammonium formate solutions. Initial
studies were performed using Pd/CS in aqueous solution. It was found that hydrogen generation
rate and final production increase with temperature ranging from 25 to 60 ◦C. Figure 4 presents the
temporal profiles of hydrogen evolution at three different temperatures. The apparent activation
energy (Ea) estimated from the Arrhenius plot was 50.35 kJ·mol−1
.
1000
25°C
40°C
800
60°C
600
400
200
0
0
20 40 60 80 100 120 140 160 180 200 220 240 260
Time (min)
Figure 4. Temporal profile of H2 generation from the NH4HCO2 aqueous solution catalyzed by Pd-CS
at 25 ◦C, 40 ◦C and 60 ◦C. Reaction conditions: 10 mmoles of ammonium formate, 10 mL of milliQ
water, and 11.75 µmol of Pd.
According to the stoichiometry indicated in Equation (1), NH4HCO2 decomposition to H2 should
give rise simultaneously to stoichiometric amounts of CO2. CO2 formation was also quantified by
gas chromatography, observing a growth in the concentration of CO2 in the gas phase during the
reaction. However, CO2 quantification always showed lesser amounts than expected based on the

Molecules 2019, 24, 3290
6 of 13
stoichiometric formation with H2. It is proposed that the reason for the lower-than-expected CO2
evolution is the solubility of CO2 in the liquid phase at neutral or basic pH values. In fact, the pH of
the aqueous solution during Pd catalysed ammonium formate decomposition grows from an initial
value of 7 to a final pH value of 9. This increase in the pH value is in agreement with the expected
hydrolysis of NH4+ evolving some NH3.
NH4+ HCOO− → H2 + CO2 + NH3
(1)
A comparison of the catalytic activity of Pd/CS with a commercially available catalyst of Pd
supported on activated carbon (10% Pd/AC) using the same total Pd content and identical reaction
conditions showed the higher activity of Pd/CS compared to 10% Pd/AC (see Figure 5).
1400
1200
1000
800
600
400
200
0
Pd/CS
Pd/CS-GO2
Pd/CS-GO3
10 % Pd/AC
0
50
100
150
200
250
Time (min)
Figure 5. Temporal H2 evolution by NH4HCO2 decomposition catalyzed by Pd/CS, Pd/CS-GO2,
Pd/CS-GO3, and 10% Pd/AC. Reaction conditions: 10 mmol of ammonium formate, 10 mL of H2O,
60 ◦C, and 11.75 µmol of Pd.
Stability of the Pd/CS catalyst was studied by performing consecutive reuses of the same sample.
It was observed that both, initial reaction rate and final hydrogen production at 24 h, decreased upon
reuse (see Figure 6). The electron microscopy study revealed that the average Pd NP size increased
from a value of 1.7 nm for the fresh sample to 3.67–6.17 nm after the reaction. Supporting information
(Figure 7) provides a set DF-STEM images of the used catalyst and the corresponding histogram
of Pd particle size from which the average was determined. This particle size growth observed in
Transmission Electron Microscopy (TEM) images was apparently the main reason responsible for
the observed gradual deactivation of the catalyst. It has been proposed based on Density Functional
Theory (DFT) calculations that the optimal particle size to achieve the highest activity in Pd NPs for H2
generation should be about 2 nm, and that the catalytic activity should decrease for larger particles.
1400
Fresh catalyst
1st reuse
2nd reuse
1200
1000
800
600
400
200
0
0
200
400
600
800
1000
1200
1400
1600
Time (min)
Figure 6. Temporal H2 evolution upon reuse of Pd/CS catalyst either fresh or reused (once or two)
catalyst. Reaction conditions: 10 mmol of ammonium formate, 10 mL of methanol, 60 ◦C, and
11.75 µmol of Pd.

Molecules 2019, 24, 3290
7 of 13

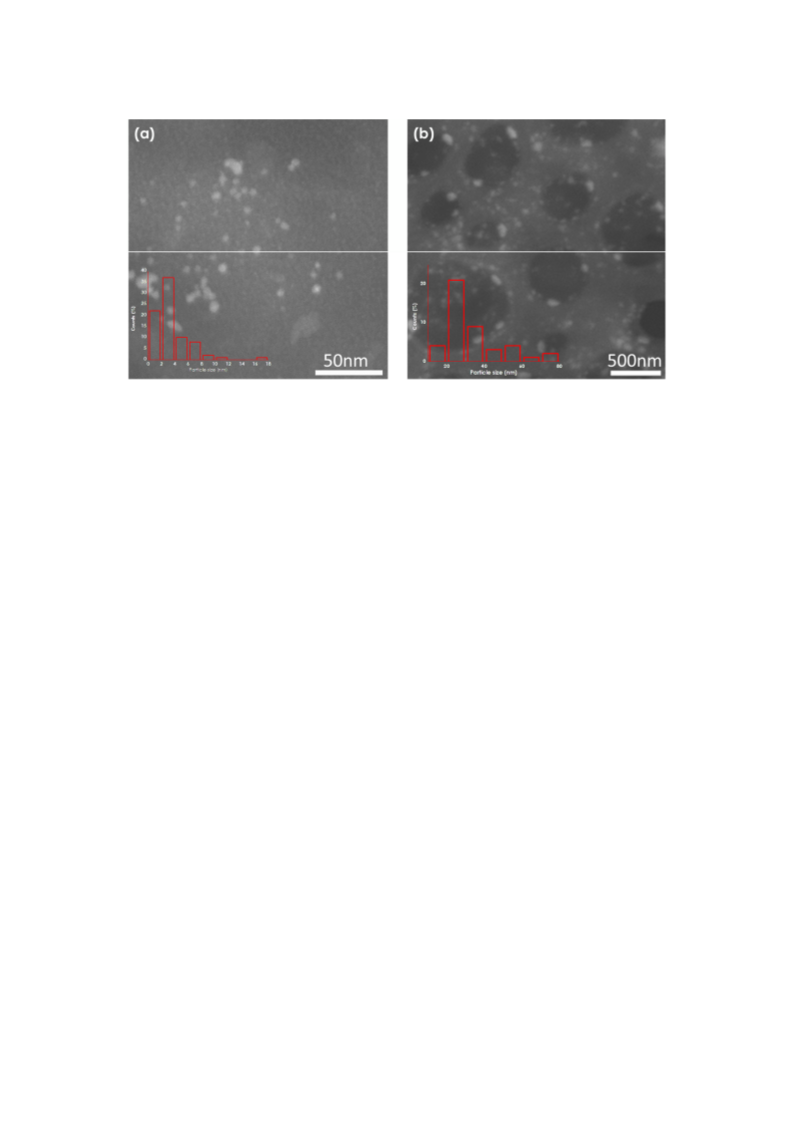

Figure 7. DF-STEM images of Pd/CS catalyst (a b
) after 24 h use at 40 ◦C and ( ) after second use at 40 ◦C
for NH4CO2 decomposition under the reaction conditions indicated in Figure 6. The inserts show Pd
particle size distribution, observing a growth upon reuse.
In order to increase the stability of CS-supported Pd NPs and considering that aggregation of
small size Pd NPs appears to be the main reason for deactivation, it was speculated that an increase in
the mechanical robustness of CS should be beneficial by favouring the interaction of Pd NPs with the
NH2 functional groups of CS that should result in a better immobilization of Pd NPs. In this regard,
and as previously commented in the Introduction, it has been shown that GO in low percentages can
act as crosslinker of chitosan fibrils enhancing the mechanical stability of the material that maintains
the morphology of the catalyst beads under harsher conditions [24,25]. To test this hypothesis, three
additional Pd-containing samples supported on CS were prepared using GO as a crosslinker.
Moreover, it has been previously found that some Pd catalysts may exhibit higher activity in
methanol than in water [26]. For this reason, we also tested the activity of the Pd/CS-GO catalysts for
H2 generation in methanol versus water as solvent. Remarkably, the catalytic activity for H2 generation
at 25 ◦C from NH4HCO2 in methanol solution increased with the GO content of the support ranging
from 3 to 12%. Figure 8 provides time–H2 evolution plots for the samples having different GO in the
CS-GO beads. According to the literature [27], the beneficial influence of GO should be related to the
mechanical stability of the CS-GO supports, maintaining surface area and porosity, thereby having a
better metal-support interaction with the Pd NPs. In addition, the catalytic activity of the most active
Pd/CS-GO2 sample was higher in methanol than in water, either at 25 or 60 ◦C. Figure 9 provides a
comparison of the time–hydrogen generation plots in water and methanol.
Chemical analysis of methanol after removal of the most active Pd/CS-GO2 solid catalyst at 60 ◦C
or below showed that the Pd leached from the solid catalyst to the solution was a negligible percentage
(<0.006%) of the initial total Pd content present in the catalyst. In addition, a hot filtration test carried
out at 60 ◦C after 1 h reaction showed that H2 does not evolve after removal of the solid catalyst, thus
ruling out that the very minor Pd percentage leached from the solid could contribute in a measurable
percentage to the H2 generation observed in the presence of the solid catalyst.
The results presented in Figure 6 for Pd/CS-GO2 as catalyst are also in agreement with the expected
influence of the reaction temperature on H2 generation. The reaction rate and final H2 production were
significantly higher at 60 ◦C (see Figure 9b). To calculate the TOF value, the amount of active sites was
estimated using a dispersion value for Pd determined by CO chemisorption of 21.14%. Under the best
working conditions for methanol at 60 ◦C using the most active Pd/GO-CS2, a turnover frequency at
60 ◦C of 2279 h−1 was achieved. This TOF value compares to other catalysts reported in the literature

Molecules 2019, 24, 3290
8 of 13
that have reached TOF values of 2184 h−1 at room temperature based also on Pd dispersion, although
the actual dispersion percentage was not given [28].
Figure 8. Temporal profiles of H2 (a) and CO2 (b) evolution in the gas phase for the decomposition
of NH4HCO2 catalyzed by Pd/CS, Pd/CS-GO1, Pd/CS-GO2, and Pd/CS-GO3. Reaction conditions:
10 mmoles of ammonium formate, 10 mL of methanol, 60 ◦C, and 11.75 µmoles of Pd.
Figure 9. Temporal profiles of H2 generation from NH4HCO2 catalyzed by Pd/CS-GO2 in (
a) methanol
or water and (b) in methanol at 25 or 60 ◦C.
It is important to note that gas phase analysis did not reveal detectable amounts of CO, methane or
other products under the highest hydrogen production rates. Formation of CO from formate has been
previously observed in other catalysts and it is derived from dehydration of formic acid. The presence
of CO, even in minute proportions, is highly detrimental for H2 quality since CO is a strong poison of
the noble metal catalysts used in fuel cells that must be coupled with on board H2 generation. In this
context, the purity of hydrogen generated should be high enough to avoid damage of the fuel cell
catalysts. The data with our Pd/CS-GO catalysts show that the hydrogen formed would be suitable
for this application. In addition, it has also been observed that CH4 can be present in the reaction
mixtures due to the occurrence of CO2 methanation promoted by the same catalyst activating formate
decomposition. Thus, as the reaction progresses, H2 and CO2 accumulate in the gas phase, and the
possibility of an unwanted reaction between these two gases increases. However, under none of the
reaction conditions of the present study, formation of methane or light hydrocarbons was observed.
To justify the reasons why hydrogen generation is more efficient in methanol compared to water,
some catalytic tests of NH4HCO2 decomposition in methanol adding at initial reaction time NaOH at
a concentration below 10−5 M were performed. Coincident initial reaction rates of H2 generation as
that of the run in the absence of any NaOH addition were measured, indicating that the presence of
OH- anion at the concentration corresponding to the experiments in aqueous solution (pH = 7) does
not play any significant role in the lower activity of Pd/CS-GO2 deactivating the catalyst. Therefore,

Molecules 2019, 24, 3290
9 of 13
further studies are still necessary in order to understand the main factors responsible for the influence
of the solvent on the catalytic activity of Pd/CS-GO2 for the decomposition of NH4HCO2.
As it can be seen in Figure 5, the temporal profile of H2 evolution shows that the reaction stops at
about 125 min when the NH4HCO2 conversion was about 40%, decreasing significantly the reaction rate
at longer reaction times and higher conversions. A possible explanation of these time-conversion plots
would be that ammonia formed in the process according to Equation (1) deactivates Pd catalyst at high
concentrations. In fact, the presence of ammonia was easily detected in the gas phase. This negative
influence of ammonia at high concentrations was confirmed by performing a control experiment in
which the reaction was started in the presence of a concentration of 10−1 M aqueous ammonia solution.
It was observed that the initial reaction rate decreases significantly when ammonia is present in the
medium. It is likely that due to the ability of NH3 to act as a Pd2+ ligand, this basic molecule competes
with formate blocking gradually the active sites.
As commented for the reaction in water as solvent, also in the case of methanol, the evolution
of CO2 was below stoichiometric amounts, a fact that is again explained by the solubility of CO2
in methanol.
Catalyst stability was tested for Pd/CS-GO2, the material exhibiting the highest TOF value. It
should be noted that Pd/CS-GO2 beads are apparently mechanically resistant and do not undergo
breakage during the reaction. This mechanical robustness allows a better recovery of the catalyst just
by quick sedimentation, making reusability tests easy to perform. Figure 10 shows the temporal profile
of H2 evolution upon the reuse of Pd/CS-GO2 in methanol at 60 ◦C. A gradual deactivation of the
catalyst occurs upon reuse. Chemical analysis of the methanol solution after filtration of the solid
particles revealed that the percentage of Pd leached from the solid into the solution was negligible,
ruling out Pd leaching as a deactivation pathway.
1st use
2nd use
4000
2000
0
3rd use
4th use
0
50
100
150
200
250
Time (min)
Figure 10. Temporal H2 evolution upon reuse of Pd/CS-GO2:
H
ꢀ
1st use; ꢀ 2 nd use; N 3rd use; and
4th use. Reaction conditions: 10 mmol of ammonium formate, 10mL of methanol, 60 ◦C, and
11.75 µmol of Pd.
To determine if the cause of deactivation was agglomeration of Pd particle size as it was in the
case of Pd/CS, TEM images of the reused catalyst were analyzed. It was observed that the average
particle size of Pd NPs increased upon reuse from 1.7 nm for the fresh sample to 3.67 nm for the
used Pd/CS-GO2, suggesting that this agglomeration of Pd NPs is the main cause of deactivation of
the catalytic activity. It is proposed that changes in the CS-GO2 support during the reaction with a
probable decrease of surface area and porosity is behind the observed Pd NPs agglomeration. This
was the same reason as that proposed for the observed deactivation in Pd/CS that is attenuated by the
presence of GO as cross-linker.
Thus, although the performance of Pd/CS-GO2 measured in TOF values is high, issues such as
conditions for complete NH4HCO2 decomposition and increased catalyst stabiliity are yet to be solved
in future studies. One of the main advantages of Pd/CS-GO2 is the easy scale-up of the catalyst, due to
the availability of starting materials and the preparation procedure.

Molecules 2019, 24, 3290
10 of 13
3. Materials and Methods
3.1. Synthesis of Pd/CS Aerogels and Pd/CSGO Aerogels
Chitosan MMW (1000 mg; ACROS) was dissolved in 50 mL of 1.25 vol% acetic acid solution. A
complete dissolution was obtained after 21 h of stirring at room temperature. CS beads were formed
by dropping the solution through a 0.8 mm syringe into 4 M NaOH solution. CS beads were kept in
the alkaline solution for 3 h followed by extensive washings until washing water attained neutral
pH. The hydrogels obtained were then immersed into a 19 mM Pd(NH3)4Cl2
×
H2O solution for 24 h.
The Pd containing alcogels were obtained by exchanging water with ethanol at increasing ethanol/water
ratios (10/90; 30/70; 50/50; 70/30; 90/10; and 100% ethanol). Pd was reduced by immersing for 10 min
the alcogels in a solution of 20 mg of NaBH4 dissolved in 100 mL of ethanol. Upon immersion in
NaBH4 solution, the beads turned black immediately confirming the reduction of Pd.
A similar procedure was used to synthesize Pd/CS-GO beads, but prior to forming the chitosan
beads, a certain amount of GO (corresponding to 3, 7, and 12 wt%) was sonicated in 50 mL of 1.25 vol%
acetic acid solution for 90 min. The GO containing solution was added to 1000 mg of chitosan. Complete
dissolution of chitosan was obtained after 21 h. The alcogels were obtained by the same procedure
described above. Dry Pd/CS and Pd/CS-GO catalysts were obtained using an automated critical point
dryer (Leica EM CPD300). Figures 11–13 show EDX images of Pd/CS, Pd/CS-GO-2, and Pd/CS-GO-3.
Figure 11. EDX of Pd/Cs.
Figure 12. EDX of Pd/CS-GO1.

Molecules 2019, 24, 3290
11 of 13
Figure 13. EDX of Pd/CS-GO3.
3.2. Catalytic Activity Test
The experiments were conducted in a 130 mL reaction vessel under steady stirring (250 rpm) at
the appropriate temperature ranging from 25 to 60 ◦C. The vessel was sealed and the internal air was
degassed three times using argon. Typically, 50 mg of the catalyst (2.5 wt% of Pd) was added to a 10 mL
of 1 M ammonium formate solution (10 mmol of ammonium formate). For comparison, the catalytic
activity of a commercial 10% Pd/AC sample was also tested. The amount of Pd present in the reaction
in the case of Pd/CS-GO2 used was 11.75 µmol in all experiments. H2 and CO2 generation was followed
by analyzing the gases on the headspace using an Agilent 490 MicroGC having two channels both
with TC detectors and Ar as the carrier gas. One channel has a MolSieve 5A column and analyses
H2. The second channel has a Pore Plot Q column and analyzes CO, CH4 and light hydrocarbons. No
evidence of the formation of CO (detectable in the equipment) was obtained. Quantification of the
percentage of each gas was based on prior calibration of the system injecting mixtures with a known
percentage of gases. Hydrogen generation rates were based on the amount of metal contained on the
solid catalyst taking into account the metal dispersion value of 0.21 measured by CO adsorption.
4. Conclusions
The present study has shown that Pd NPs of very small size adequate to promote formate
decomposition can be obtained using large surface area CS as support. The presence of GO in an
optimal proportion increases the catalyst’s activity and stability by enhancing the mechanical stability
of the catalyst beads without increasing fragility. The formation of detectable amounts of CO or CH4
was not observed during formate decomposition. Methanol was found a suitable solvent for the
reaction and a TOF value of 2279 h−1 was measured at 60 ◦C. This TOF value is among the highest ever
reported for formate decomposition at moderate temperatures. It was observed that the Pd/CS-GO2
catalyst is deactivated upon reuse, the main reason being Pd agglomeration and particle growth due to
the decrease in CS porosity and surface area. Further work is in progress to increase catalyst stability
by increasing rigidity. Therefore, the present study constitutes a clear example showing the potential
of natural chitosan as support for transition metal NPs to develop highly efficient catalysts.
Author Contributions: Conceptualization, H.G.; investigation, A.A. and N.K.; supervision, A.E.K. and A.P.
Funding: This research was funded by the Spanish Ministry of Science, Innovation and Universities (Grant
RTI2018-098237-B-C21 and Severo Ochoa). A.P. also thanks the Spanish Ministry of Science and Education a
research associate Ramón y Cajal contract. A.A. thanks UEMF for scholarship.
Conflicts of Interest: The authors declare no conflict of interest.

Molecules 2019, 24, 3290
12 of 13
References
1.
2.
3.
4.
5.
Staffell, I.; Scamman, D.; Abad, A.V.; Balcombe, P.; Dodds, P.E.; Ekins, P.; Shah, N.; Ward, K.R. The role of
hydrogen and fuel cells in the global energy system. Energy Environ. Sci. 2019, 12, 463–491. [CrossRef]
Modisha, P.M.; Ouma, C.N.M.; Garidzirai, R.; Wasserscheid, P.; Bessarabov, D. The Prospect of Hydrogen
Storage Using Liquid Organic Hydrogen Carriers. Energy Fuels 2019, 33, 2778–2796. [CrossRef]
Sotoodeh, F.; Smith, K.J. An overview of the kinetics and catalysis of hydrogen storage on organic liquids.
Can. J. Chem. Eng. 2013, 91, 1477–1490. [CrossRef]
Zhong, H.; Iguchi, M.; Chatterjee, M.; Himeda, Y.; Xu, Q.; Kawanami, H. Formic Acid-Based Liquid Organic
Hydrogen Carrier System with Heterogeneous Catalysts. Adv. Sustain. Syst. 2018, 2, 1700161. [CrossRef]
Li, S.J.; Zhou, Y.T.; Kang, X.; Liu, D.X.; Gu, L.; Zhang, Q.H.; Yan, J.M.; Jiang, Q. A Simple and Effective
Principle for a Rational Design of Heterogeneous Catalysts for Dehydrogenation of Formic Acid. Adv. Mater.
2019, 31, 1806781. [CrossRef]
6.
Boddien, A.; Mellmann, D.; Gärtner, F.; Jackstell, R.; Junge, H.; Dyson, P.J.; Laurenczy, G.; Ludwig, R.;
Beller, M. Efficient Dehydrogenation of Formic Acid Using an Iron Catalyst, Science (Washington, DC, USA).
Science 2011, 333, 1733–1736. [CrossRef] [PubMed]
7.
8.
Akbayrak, S.; Tonbul, Y.; Özkar, S. Nanoceria supported palladium(0) nanoparticles: Superb catalyst in
dehydrogenation of formic acid at room temperature. Appl. Catal. B Environ. 2017, 206, 384–392. [CrossRef]
Bi, Q.-Y.; Lin, J.-D.; Liu, Y.-M.; He, H.-Y.; Huang, F.-Q.; Cao, Y. Dehydrogenation of Formic Acid at Room
Temperature: Boosting Palladium Nanoparticle Efficiency by Coupling with Pyridinic-Nitrogen-Doped
Carbon. Angew. Chem. 2016, 128, 12028–12032. [CrossRef]
9.
Li, Z.; Yang, X.; Tsumori, N.; Liu, Z.; Himeda, Y.; Autrey, T.; Xu, Q. Tandem Nitrogen Functionalization
of Porous Carbon: Toward Immobilizing Highly Active Palladium Nanoclusters for Dehydrogenation of
Formic Acid. ACS Catal. 2017, 7, 2720–2724. [CrossRef]
10. Kandile, N.G.; Zaky, H.T.; Mohamed, M.I.; Nasr, A.S.; Ali, Y.G. Extraction and Characterization of Chitosan
from Shrimp Shells. Open J. Org. Polym. Mater. 2018, 8, 33. [CrossRef]
11. Moln
ár, Á. The use of chitosan-based metal catalysts in organic transformations. Coord. Chem. Rev. 2019,
388, 126–171. [CrossRef]
12. Guibal, E. Heterogeneous catalysis on chitosan-based materials: A review. Prog. Polym. Sci. 2005, 30, 71–109.
[CrossRef]
13. El Kadib, A.; Primo, A.; Molvinger, K.; Bousmina, M.; Brunel, D. Nanosized Vanadium, Tungsten and
Molybdenum Oxide Clusters Grown in Porous Chitosan Microspheres as Promising Hybrid Materials for
Selective Alcohol Oxidation. Chem.-A Eur. J. 2011, 17, 7940–7946. [CrossRef] [PubMed]
14. Barskiy, D.A.; Kovtunov, K.V.; Primo, A.; Corma, A.; Kaptein, R.; Koptyug, I.V. Selective Hydrogenation
of 1,3-Butadiene and 1-Butyne over a Rh/Chitosan Catalyst Investigated by using Parahydrogen-Induced
Polarization. ChemCatChem 2012, 4, 2031–2035. [CrossRef]
15. Frindy, S.; Lahcini, M.; Primo, A.; Bousmina, M.; Garcia, H.; El Kadib, A. Pd embedded in chitosan
microspheres as tunable soft-materials for Sonogashira cross-coupling in water–ethanol mixture. Green Chem.
2015, 17, 1893–1898. [CrossRef]
16. Primo, A.; Quignard, F. Chitosan as efficient porous support for dispersion of highly active gold nanoparticles:
Design of hybrid catalyst for carbon–carbon bond formation. Chem. Commun. 2010, 46, 5593. [CrossRef]
[PubMed]
17. Chtchigrovsky, M.; Primo, A.; Gonzalez, P.; Molvinger, K.; Robitzer, M.; Quignard, F.; Taran, F. Functionalized
Chitosan as a Green, Recyclable, Biopolymer-Supported Catalyst for the [3 + 2] Huisgen Cycloaddition.
Angew. Chem. Int. Ed. 2009, 48, 5916–5920. [CrossRef] [PubMed]
18. Primo, A.; Liebel, M.; Quignard, F. Palladium Coordination Biopolymer: A Versatile Access to Highly Porous
Dispersed Catalyst for Suzuki Reaction. Chem. Mater. 2009, 21, 621–627. [CrossRef]
19. El Kadib, A. Chitosan as a sustainable organocatalyst: A concise overview. ChemSusChem 2015, 8, 217–244.
[CrossRef]
20. Bratskaya, S.; Privar, Y.; Nesterov, D.; Modin, E.; Kodess, M.I.; Slobodyuk, A.; Marinin, D.V.; Pestov, A.V.
Chitosan Gels and Cryogels Cross-Linked with Diglycidyl Ethers of Ethylene Glycol and Polyethylene Glycol
in Acidic Media. Biomacromolecules 2019, 20, 1635–1643. [CrossRef]

Molecules 2019, 24, 3290
13 of 13
21. El Kadib, A.; Bousmina, M.; Brunel, D. Recent progress in chitosan bio-based soft nanomaterials.
J. Nanosci. Nanotechnol. 2014, 14, 308–331. [CrossRef] [PubMed]
22. Frindy, S.; Primo, A.; Ennajih, H.; Qaiss, A.E.K.; Bouhfid, R.; Lahcini, M.; Essassi, E.M.; Garcia, H.; El Kadib, A.
Chitosan–graphene oxide films and CO2-dried porous aerogel microspheres: Interfacial interplay and stability.
Carbohydr. Polym. 2017, 167, 297–305. [CrossRef] [PubMed]
23. Valentin, R.; Molvinger, K.; Brunel, D. Supercritical CO2 dried chitosan: An efficient intrinsic heterogeneous
catalyst in fine chemistry. New J. Chem. 2003, 27, 1690–1692. [CrossRef]
24. Huang, T.; Shao, Y.-W.; Zhang, Q.; Deng, Y.-F.; Liang, Z.-X.; Guo, F.-Z.; Li, P.-C.; Wang, Y.
Chitosan-Cross-Linked Graphene Oxide/Carboxymethyl Cellulose Aerogel Globules with High Structure
Stability in Liquid and Extremely High Adsorption Ability. ACS Sustain. Chem. Eng. 2019, 7, 8775–8788.
[CrossRef]
25. Kolanthai, E.; Sindu, P.A.; Khajuria, D.K.; Veerla, S.C.; Kuppuswamy, D.; Catalani, L.H.; Mahapatra, D.R.
Graphene Oxide—A Tool for the Preparation of Chemically Crosslinking Free Alginate–Chitosan–Collagen
Scaffolds for Bone Tissue Engineering. ACS Appl. Mater. Interfaces 2018, 10, 12441–12452. [CrossRef]
[PubMed]
26. Dobrovolna, Z.; Cerveny, L. Ammonium formate decomposition using palladium catalyst. Res. Chem. Intermed.
2000, 26, 489–497. [CrossRef]
27. Han, D.; Yan, L. Supramolecular Hydrogel of Chitosan in the Presence of Graphene Oxide Nanosheets as 2D
Cross-Linkers. ACS Sustain. Chem. Eng. 2013, 2, 296–300. [CrossRef]
28. Wang, J.; Tan, H.; Jiang, D.; Zhou, K. Enhancing H2 evolution by optimizing H adatom combination and
desorption over Pd nanocatalyst. Nano Energy 2017, 33, 410–417. [CrossRef]
Sample Availability: Samples of the compounds Pd/CS, Pd/CS-GO1, Pd/CS-GO2 and Pd/CS-GO3 are available
from the authors.
©
2019 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access
article distributed under the terms and conditions of the Creative Commons Attribution
(CC BY) license (http://creativecommons.org/licenses/by/4.0/).
