Ultrastable conductive microporous covalent triazine frameworks based on pyrene moieties provide high-performance CO2 uptake and supercapacitance

Article abstract of DOI:10.1039/d0nj01292k

Covalent organic triazine frameworks (CTFs) are a subclass of covalent organic frameworks and conjugated microporous polymers that exhibit heteroatom effects and possess high surface areas and excellent chemical and thermal stabilities; they have applications in energy storage and gas adsorption. In this study, we prepared two microporous polymers the pyrene-functionalized CTFs Pyrene-CTF-10 and Pyrene-CTF-20 - through ionothermal treatment of 1,3,6,8-cyanopyrene (TCNPy) in the presence of molten zinc chloride (ZnCl₂) at 500 °C (at ZnCl₂-to-TCNPy molar ratios of 10?:?1 and 20?:?1, respectively). Pyrene-CTF-10 and Pyrene-CTF-20 had specific BET surface areas of 819 and 1019 m² g^-1, respectively, with pore size distributions of 1.10 and 1.35 nm, respectively, and high char yields (up to 70%). Furthermore, these Pyrene-CTF polymeric frameworks exhibited excellent specific capacitances at a current density of 0.5 A g^-1: 380 F g^-1 for Pyrene-CTF-10 and 500 F g^-1 for Pyrene-CTF-20. In addition, both Pyrene-CTFs had excellent cycling stability, retaining 97% of their capacitances after cycling 2000 times at a current density of 10 A g^-1. Moreover, Pyrene-CTF-10 displayed good CO₂ uptake capacity (2.82 and 5.10 mmol g^-1 at 298 and 273 K, respectively).

Full text of DOI:10.1039/d0nj01292k

View Article Online
View Journal
NJC
New Journal of Chemistry
Accepted Manuscript
A journal for new directions in chemistry
This article can be cited before page numbers have been issued, to do this please use: M. G. Mohamed,
A. F. M. EL-Mahdy, Y. Takashi and S. Kuo, New J. Chem., 2020, DOI: 10.1039/D0NJ01292K.
Volume 42
This is an Accepted Manuscript, which has been through the
Number
6
21 March 2018
Pages 3963-4776
Royal Society of Chemistry peer review process and has been
accepted for publication.
NJC
New Journal of Chemistry
rsc.li/njc
A journal for new directions in chemistry
Accepted Manuscripts are published online shortly after acceptance,
before technical editing, formatting and proof reading. Using this free
service, authors can make their results available to the community, in
citable form, before we publish the edited article. We will replace this
Accepted Manuscript with the edited and formatted Advance Article as
soon as it is available.
You can find more information about Accepted Manuscripts in the
Information for Authors.
Please note that technical editing may introduce minor changes to the
text and/or graphics, which may alter content. The journal’s standard
Terms & Conditions and the Ethical guidelines still apply. In no event
shall the Royal Society of Chemistry be held responsible for any errors
or omissions in this Accepted Manuscript or any consequences arising
from the use of any information it contains.
ISSN 1144-2546
PAPER
Chechia Hu, Tzu-Jen Lin et al.
Yellowish and blue luminescent graphene oxide quantum dots
prepared via a microwave-assisted hydrothermal route using
H2O2 and KMnO4 as oxidizing agents
rsc.li/njc

Page 1 of 12
New Journal of Chemistry
1
2
3
4
5
6
7
Ultrastable Conductive Microporous Covalent Triazine Frameworks
View Article Online
Based on Pyrene Moieties Provide High-Performance CO2 Uptake
DOI: 10.1039/D0NJ01292K
and Supercapacitance
Received 00th January 20xx,
Accepted 00th January 20xx
Mohamed Gamal Mohamed, a,bAhmed F. M. EL-Mahdy,a,b Yasuno Takashi,a
and Shiao-Wei Kuoa,c*
DOI: 10.1039/x0xx00000x
8
9
Covalent organic triazine frameworks (CTFs) are a subclass of covalent organic frameworks and conjugated
microporous polymers that exhibit heteroatom effects and possess high surface areas and excellent chemical
and thermal stabilities; they have applications in energy storage and gas adsorption. In this study, we
prepared two microporous polymers the pyrene-functionalized CTFs Pyrene-CTF-10 and Pyrene-CTF-20—
through ionothermal treatment of 1,3,6,8-cyanopyrene (TCNPy) in the presence of molten zinc chloride
(ZnCl2) at 500 °C (at ZnCl2-to-TCNPy molar ratios of 10:1 and 20:1, respectively). Pyrene-CTF-10 and Pyrene-
CTF-20 had specific BET surface areas of 819 and 1019 m2 g–1, respectively, with pore size distributions of
1.10 and 1.35 nm, respectively, and high char yields (up to 70%). Furthermore, these pyrene-CTF polymeric
frameworks exhibited excellent specific capacitances at a current density of 0.5 A g–1: 380 F g–1 for Pyrene-
CTF-10 and 500 F g–1 for Pyrene-CTF-20. In addition, both Pyrene-CTFs had excellent cycling stability,
retaining 97% of their capacitances after cycling 2000 times at a current density of 10 A g–1. Moreover,
Pyrene-CTF-10 displayed good CO2 uptake capacity (2.82 and 5.10 mmol g–1 at 298 and 273 K, respectively).
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
solvent loss, and high cost.10–15 As a result, we need new and
effective methods for decreasing the emission and increasing the
Introduction
Supercapacitors, also known as electrochemical capacitors or
electric double-layer capacitors (EDLCs), are being used more
widely as replacements for fuel cells and batteries in energy storage
applications, military devices, electric vehicles, and electrochemical
devices because of their long lifetimes, rapid rates of charging and
discharging, and high power densities.1,2 The electrochemical
mechanisms behind the operation of supercapacitors can be
divided into two categories: nonfaradaic processes (e.g., in EDLCs)
depending on the accumulation of electrostatic charge at the
electrode–electrolyte interface and faradaic processes (e.g., in
pseudocapacitors) occurring at the surfaces of conjugated polymers,
heteroatom-doped carbon materials, and metal oxide/hydroxide
systems that feature fast redox reactions.2,3 Thus, the construction
of materials for use as electrodes in energy storage applications
requires that they have large specific surface areas, high nitrogen
contents, large surface areas available to the electrolyte, and
hierarchical porous structures.3–5 Anthropogenic carbon dioxide
(CO2) emissions will likely have many serious negative effects on
human life and the environment because of increasing global
temperatures and changes to weather events.6–9 Therefore,
lowering emissions and the levels of CO2 through sequestration and
capture has become a challenge for both academia and industry.
The wet cleaning method has been the most commonly used
chemical process for capturing and separating CO2 with aqueous
alkanolamine solutions (amine scrubbing), but this method has the
disadvantages of high energy consumption, low efficiency,
difficulties of renewal, amine-mediated corrosion of equipment,
capture of CO2 during industrial processes. Covalent organic
polymers (COPs) are attractive porous materials for many
applications, including sensors; the removal of pollutants; CO2
capture, storage, and separation; drug delivery; catalysis; SO2
adsorption; gene therapy; Li-S batteries; energy conversion; and
light-harvesting. They have many interesting properties:
outstanding thermal stability, high BET surface areas, accessible
porosity, large pore volumes, chemical resistance, biocompatibility,
and excellent electrical conductivity when compared with metal–
organic frameworks.16–26 The many types of COP materials include
covalent organic frameworks (COFs), covalent triazine frameworks
(CTFs), porous aromatic frameworks, benzimidazole-linked
polymers, carbazole-based microporous polymers, and porous
imine-linked networks.27–34 Amine scrubbing adsorbs CO2 through
chemisorption, as opposed to the physisorption mechanism of
COPs.10,12,34 Post-synthesis or bottom-up approaches can be used to
incorporate CO2-philic functional groups [e.g., carboxyl (COOH),
hydroxyl (OH), imine (-N=CH), benzimidazole, carbazole, and
triazine units] into covalent organic porous materials to improve
their CO2 capture.34–38 CTFs are both COFs and conjugated
microporous polymers that display large heteroatom effects,
possess permanent nanopores with high Brunauer–Emmett–Teller
(BET) surface areas, have excellent chemical and thermal stabilities,
and feature tunable electronic structures.39–43 Most CTF framework
materials have been prepared through ionothermal trimerization of
nitrile groups, superacid catalysis, and phosphorous pentoxide
(P2O5) catalysis.28,43–45 Many recent reviews have highlighted the
great potential of CTF materials in gas separation and storage,
heterogeneous catalysis, energy storage, and photocatalysis.46–
48Porous polymeric materials containing pyrene units have been
tested recently in many different fields—including chemical sensing,
photoelectric devices, gas storage and separation, and photo-
catalysis—because of their high propensity for forming excimers,
distinct solvatochromic phenomena, ready functionalization,
delayed fluorescence, and tunable photophysical properties.49–51
a. Department of Materials and Optoelectronic Science, Center of Crystal Research,
National Sun Yat-Sen University, Kaohsiung, Taiwan.
b. Chemistry Department, Faculty of Science, Assiut University, Assiut, 71516, Egypt
c. Department of Medicinal and Applied Chemistry, Kaohsiung Medical University,
Kaohsiung, 807, Taiwan
Email: kuosw@faculty.nsysu.edu.tw
Electronic Supplementary Information (ESI) available: [details of any
supplementary information available should be included here]. See
DOI: 10.1039/x0xx00000x
Please do not adjust margins

New Journal of Chemistry
Page 2 of 12
1
2
(a)
(b)
View Article Online
DOI: 10.1039/D0NJ01292K
3
4
5
6
7
8
9
Br
Br
Br
Br2, 110 oC
NaCN, DMF
nitrobenzene
Ethylenediamine, 150
oC
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Br
N
(c)
(d)
N
N
N
NC
CN
CN
N
N
N
N
ZnCl2
500 oC
NC
N
N
N
N
Pyrene-CTF

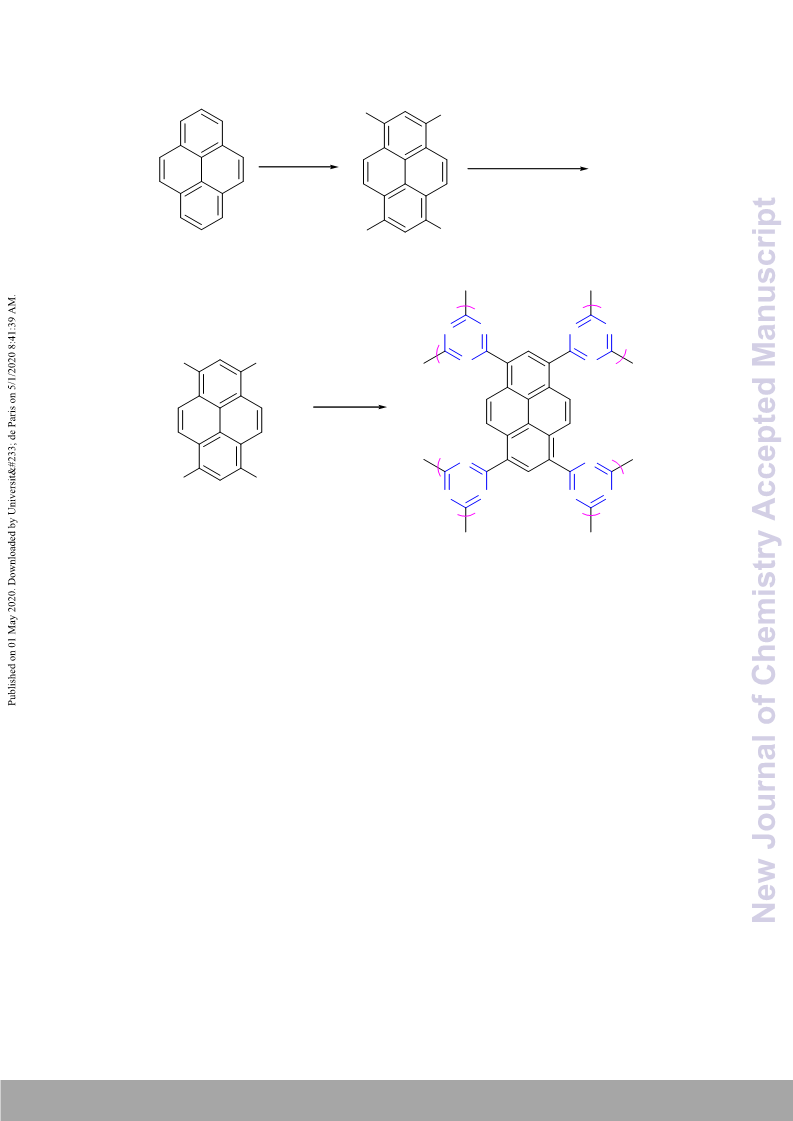

Scheme 1. Synthesis of (d) Pyrene-CTF from (a) Pyrene, (b) TBrPy, and (c) TCNPy.
In a previous study, we prepared a series of conductive bicarbazole- (crystallinity BET surface areas, porosities, chemical surface
based CTFs (Car-CTFs) through the trimerization of [9,9´- compositions, thermal stability, and chemical structures). We
bicarbazole]-3,3´,6,6´-tetracarbonitrile (Car-4CN) with molten zinc performed electrochemical measurements and CO2 uptake analyses
chloride (ZnCl2); these materials exhibited outstanding thermal to examine their potential applications as high-performance
stability, excellent energy storage, and CO2 uptake.28 Janiak et al. electrode materials and for gas adsorption.
prepared the CTFs PCTF-1 and PCTF-2 through reactions of tetra(4-
cyanophenyl)ethylene with ZnCl2 at 400 °C; these two materials
Experimental Section
Materials
captured CO2 at levels of 3.30 and 1.87 mmol g–1, respectively, at
273 K.52 Voort et al. prepared CTF materials from 4,4´,4´´,4´´´-(1,4-
phenylenebis(pyridine-4,2,6-triyl))tetrabenzonitrile in anhydrous
ZnCl2 under ionothermal conditions at 400 and 500 °C, with the
former material (CTF-20-400) providing a CO2 uptake of 3.48 mmol
g–1 at 273 K.8 Han et al. prepared the CTF TPC-1 through
defluorination carbonization and trimerization of the nitrile groups
of tetrafluoroterephthalonitrile in molten ZnCl2; this polymeric
framework had a high specific surface area (1940 m2 g–1) and
displayed excellent CO2 adsorption (4.9 mmol g–1 at 273 K). In this
study, we prepared pyrene-based CTFs (Pyrene-CTFs) through
trimerization of the nitrile groups of 1,3,6,8-cyanopyrene (TCNPy) in
the presence of molten ZnCl2 at 500 °C (Scheme 1). We used wide-
angle X-ray diffraction (WAXD), Fourier transform infrared (FTIR)
spectroscopy, X-ray photoelectron spectroscopy (XPS), Raman
Pyrene, nitrobenzene, HCl solution (37%), ethanol (EtOH), and
methanol (MeOH) were purchased from Acros. Ethylenediamine
(99%), tetrahydrofuran (THF), N,N-dimethylformamide (DMF),
dichloromethane (DCM), acetone, and copper(I) cyanide (CuCN)
was purchased from Sigma–Aldrich.
1,3,6,8-Tetrabromopyrene (TBrPy)54,55
A solution of bromine (1.15 mL, 22 mmol) in nitrobenzene (5 mL)
was added dropwise to a solution of pyrene (1 g) in nitrobenzene
(15 mL) and then the mixture was heated at 120 °C for 4 h. Cooling
to room temperature provided a pale-green solid, which was
filtered off, washed three times with EtOH, and dried under vacuum
at 100 °C to provide a pale-green solid (2.21 g, 91%). M.p.: >300 °C.
spectroscopy,
transmission
electron
microscopy
(TEM),
thermogravimetric analysis (TGA), and the Brunauer–Emmett–
Teller (BET) method to examine the properties of these Pyrene-CTFs
1,3,6,8-Cyanopyrene (TCNPy)
A mixture of TBrPy (3.00 g, 4.65 mmol) and CuCN (9.69, 108 mmol)
in dry DMF (100 mL) was heated under reflux under a N2
Please do not adjust margins

Page 3 of 12
New Journal of Chemistry
1
2
3
4
View Article Online
DOI: 10.1039/D0NJ01292K
5
6
7
8
(a) TBrPy
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
CN
(b) TCNPy
-1
-1
1382 cm
1540 cm
(c) Pyrene-CTF-10
2500
2000
1500
1000
-1
Wavenumber (cm )
Figure 1. FTIR spectra of (a) TBrPy, (b) TCNPy, and (c) Pyrene-CTF-10.
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
CN
atmosphere at 140 °C for 3 days. The mixture was opened to the air
and cooled to room temperature, at which point it was then
filtrated to remove unreacted CuCN. The solution was poured into a
mixture of cold water (75 mL) and ethylenediamine (4 mL); this
mixture was heated at 50 °C for 2 h. The yellow powder was filtered
off and washed with water and MeOH to afford a yellow powder
(1.24 g). M.p.: >400 °C; FTIR (KBr, cm–1): 3070 (C–H stretching), 2220
(CN stretching).
(a) 25 oC
(b) 150 oC
(c) 210 oC
(d) 300 oC
Pyrene-CTFs
In an ampoule, TCNPy (200 mg, 0.46 mmol) was mixed with
anhydrous ZnCl2 [63 mg (4.63 mmol) or 126 mg (9.26 mmol)]
(Scheme 1). The temperature was raised to 500 °C at a heating rate
of 5 °C/min and then the samples were maintained at that
temperature for 48 h under the N2 atmosphere. After cooling, each
obtained black solid was washed with 1 M HCl and water (each for
24 h). The resultant black solids (Py-CTF-10, Py-CTF-20) were
washed several times with THF, DCM, and MeOH. Finally, the black
powders were dried for 24 h at 100 °C.
N
N
N
(e) 500 oC
2200 2000 1800 1600 1400 1200 1000 800
600
-1
Wavenumber (cm )
Figure 2. FTIR spectral profile of Pyrene-CTF-10, recorded at
temperatures from room temperature to 500 °C.
Results and Discussion
Synthesis of TBrPy, TCNPy, and Pyrene-CTFs
to give Pyrene-CTF-20 and Pyrene-CTF-20, respectively (Scheme 1,
Table 1). Figure 1 displays the FTIR spectra of TBrPy, TCNPy, and the
Pyrene-CTFs. The spectrum of TBrPy [Figure 1(a)] featured
characteristic absorption bands centered at 3050 and 804 cm–1,
assigned to the stretching of aromatic C–H56-59 and C–Br bonds,
respectively. The FTIR spectrum of TCNPy [Figure 1(b)] contained an
absorption band at 2220 cm–1 representing the stretching of CN
triple bonds, confirming its synthesis. As displayed in Figures 1(c),
the spectra of the Pyrene-CTFs featured absorption bands
The monomer 1,3,6,8-cyanopyrene (TCNPy) was synthesized in two
steps (Scheme 1). First, pyrene was reacted with bromine (Br2) in
nitrobenzene at 120 °C for 5 h to afford TBrPy as a pale-green solid,
which was reacted with CuCN in DMF at 140 °C for 48 h to give
TCNPy as a yellow powder. We then used an ionothermal method
for trimerization of the nitrile groups of TCNPy in the presence of
molten anhydrous ZnCl2 (at weight ratios of 1:10 and 1:20) at 500 °C
Please do not adjust margins

New Journal of Chemistry
Page 4 of 12
1
2
3
4
5
6
7
Table 1. Thermal stabilities, porosity parameters, Raman spectral data, and electrochemical data of the Pyrene-CTFs.
Sample
TCNPy/
ZnCl2
Td10%
Char
yield
(%)
72
SBET
Pore
size
(nm)
1.10
1.35
Pore
volume
(cm3 g–1)
0.88
ID/IG
CV
View Article Online
(oC)
(m2 g–1)
(RamDaOI: 10.1039/D0NJ01292K
n)
1.07
1.47
(F g–1)
Pyrene CTF-10
Pyrene-CTF-20
1:10
1:20
500
474
819
380
500
72
1019
1.12
8
9
at 1565 and 1365 cm–1 representing the triazine rings, but no
signals for CN groups, confirming the successful
(a) Pyrene-CTF-10
(b) Pyrene-CTF-20
trimerization/cyclization reactions of the cyano groups.8,28,60 In
addition, the intensities of the characteristics absorption bands of
the triazine ring in Pyrene-CTF-20 gradually decreased at 500 °C,
due to the occurrence partial carbonization [Figure S1].61,62 We
performed FTIR spectral analyses to monitor the trimerization of
the nitrile groups in the preparation of Pyrene-CTF-10 from room
temperature to 500 °C (Figure 2). For temperatures between 25 and
300 °C, the FTIR spectrum of Pyrene-CTF-10 featured the
characteristic absorption band at 2220 cm–1 for stretching of the CN
triple bonds. When the temperature reached 500 °C, however, this
characteristic band disappeared completely and two new
absorption signals appeared at 1565 and 1360 cm–1, confirming the
complete trimerization of the nitrile groups and the formation of
triazine rings.28
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
(a)
(b)
10
20
30
40
50
2 Theta
Figure 4. XRD patterns of Pyrene-CTF-10 and Pyrene-CTF-20.
We used solid state 13C CP/MAS NMR spectroscopy (Figure S2)
to confirm the chemical structures of TBrPy and TCNPy and the
formation of triazine rings in the Pyrene-CTFs materials. The solid
state 13C NMR spectrum of TBrPy [Figure S2(a)] displays signals at
127, 116 and 110 ppm at for the aromatic carbon atoms. Figure
S2(b) reveals that the spectrum of TCNPy features signals at 132
and 108 ppm for the aromatic carbon nuclei and signal at 116 ppm
for CN group. The solid state 13C NMR spectra [Figures S2(c) and (d)]
of Pyrene-CTF-10 and Pyrene-CTF-20 exhibited signals at 168, 136,
123 and 116 ppm which we assign to the carbon nuclei of the
triazine [–C(Ar)=N–] and the pyrene units.8,28,63 We determined the
thermal stabilities of TCNPy, Pyrene-CTF-10, and Pyrene-CTF-20
through TGA under a N2 atmosphere (Figure 3). Although Pyrene-
CTF-10 and Pyrene-CTF-20 were synthesized in molten ZnCl2 at 500
°C, the decomposition temperature (Td10) of Pyrene-CTF-10 (500 °C)
was higher than that of Pyrene-CTF-20 (474 °C); they had the same
char yield of 71 wt.%. These values for the TCNPy monomer were
346 °C and 4 wt.%, respectively. Thus, these Pyrene-CTFs displayed
outstanding thermal stability.8,28
Figure 4 provides the XRD patterns of Pyrene-CTF-10 and Pyrene-
CTF-20, revealing that they had partially crystalline structures with
two broad peaks at 13 and 25° that we assign to the vertical spacing
between stacked sheets (001) and the in-plane reflection (100),
respectively.15,64 Figure 5 presents the Raman spectra of Pyrene-
CTF-10 and Pyrene-CTF-20 in the range from 1000 to 1900 cm–1.
The spectra of both Pyrene-CTFs materials featured two strong
signals characteristic of D and G bands, suggesting the existence of
graphitic carbonized structures. In general, the D and G bands
represent the graphitic carbon atoms: second-order Raman
scattering with sp3 hybridization and first-order Raman scattering
with sp2 hybridization, respectively.15,28,64,65 From the Raman
spectra of Pyrene-CTF-10 and Pyrene-CTF-20, the D bands were
centered at 1342 and 1335 cm–1, respectively, while the G bands
appeared at 1584 and 1586 cm–1, respectively. The ID/IG ratios for
Pyrene-CTF-10 and Pyrene-CTF-20 were 1.07 and 1.47, respectively.
Thus, Pyrene-CTF-10 possessed a lower degree of graphitization and
featured less defects in its structure when compared with Pyrene-
CTF-20.
100
(a) Pyrene-CTF-10
(b) Pyrene-CTF-20
80
60
ID/IG = 1.07
(a)
40
20
Pyrene-4CN
ID/IG = 1.47
Pyrene-CTF-10
(b)
Pyrene-CTF-20
0
100
200
300
400
500
600
700
1000
1200
1400
Raman Shift (cm )
1600
1800
Temperature (oC)
-1
Figure 5. Raman spectra of Pyrene-CTF-10, and Pyrene-CTF-20.
Figure 3. TGA analyses of TCNPy, Pyrene-CTF-10, and Pyrene-CTF-20,
recorded under N2.
Please do not adjust margins

Page 5 of 12
New Journal of Chemistry
1
2
(a)
(b)
View Article Online
DOI: 10.1039/D0NJ01292K
3
4
5
C1s
C1s
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
O1s
N1s
O1s
N1s
200
400
600 200
400
600
Binding Energy (eV)
Figure 6. XPS survey spectra of (a) Pyrene-CTF-10and (b) Pyrene-CTF-20.
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
(a)
N
1S
(b)
N
1S
396
398
400
402
404 396
398
400
402
404
(c)
O
1S
(d)
O
1S
526
528
530
532
534
536
538 526
528
530
532
534
536
538
Binding Energy (ev)
Figure 7. XPS fitting curves of N 1s and O 1s orbitals: (a, c) Pyrene-CTF-10; (b, d) Pyrene-CTF-20.
Please do not adjust margins

New Journal of Chemistry
Page 6 of 12
1
2
Table 2. Curve-fitting data and area fractions of the signals in the N1s and O1s plots in Figure 7.
View Article Online
DOI: 10.1039/D0NJ01292K
3
4
5
6
Sample
N species
N-5
21.44
23.97
O species
C–OH
15.61
15.58
N-6
68.24
59.92
N-Q
10.32
16.12
C–O
45.29
69.16
H2O
39.10
30.84
Pyrene-CTF-10
Pyrene-CTF-20
7
8
9
(a)
(b)
800
700
600
500
400
300
200
100
0
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Pyrene-CTF-10
Pyrene-CTF-20
Pyrene-CTF-10
Pyrene-CTF-20
0.6
0.5
0.4
0.3
0.2
0.1
0.0
0.0 0.2 0.4 0.6 0.8 1.0
0 2 4 6 8 10 12 14 16 18 20
Relative Pressure (P/P0)
Pore Width (nm)
Figure 8. (a) N2 adsorption/desorption measurements and (b) pore size distributions of Pyrene-CTF-10and Pyrene-CTF-20, recorded at 77 K.
Figure 6 displays the XPS spectra of the Pyrene-CTFs. Three peaks We measured N2 adsorption/desorption isotherms (Figure 8,
appeared in each spectrum: at 284 eV (for carbon atoms in the Table 1) at 77 K to examine the porosities of our Pyrene-CTFs.
polymeric CTF framework), 400 eV (C–N bonds for the N 1s orbitals Figure 8(a) reveals that Pyrene-CTF-10 had microporous
in the triazine units), and 530 eV (O 1s orbitals for absorbed water characteristics, with a specific surface area of 819 m2 g–1 and a pore
and oxygen), respectively.28,53,66,67
volume of 0.88 cm3 g–1. The BET curve of Pyrene-CTF-20 featured a
We fitted the XPS curves for the N 1S and O 1S orbitals to type IV isotherm, with a high specific surface area of 1019 m2 g–1
investigate the chemical compositions on the surfaces of these and a pore volume of 1.12 cm3 g–1. Thus, the specific BET surface
Pyrene-CTFs (Figure 7, Table 2). The fitting results for the N 1s area of Pyrene-CTF-20 was higher than that of Pyrene-CTF-10,
orbitals [Figures 7(a) and 7(b)] revealed the presence of three N suggesting the presence of closely packed nanoparticles and a
species, including quaternary-N species (401 eV), pyrrolic species larger number of defects in the Pyrene-CTF-20 structure.8,28
(400 eV), and hexagonal pyridinic N atoms from the triazine ring Furthermore, we used NL-DFT theory to calculate the pore
(398.7 eV). According to quantitative analysis, the pyrrolic N and diameters in Pyrene-CTF-10 and Pyrene-CTF-20 [Figure 8(b), Table 1]
pyridinic species were the most abundant in the Pyrene-CTF to be 1.10 and 1.35 nm, respectively. TEM images (Figure 9)
frameworks. Furthermore, the surfaces of the Pyrene-CTF materials revealed that Pyrene-CTF-10 and Pyrene-CTF-20 both possessed
contained three O species [Figures 7(c) and 7(d)], with signals at irregular microporous structures.
531, 532, and 533 eV corresponding to polarized C–O bonds, water,
and absorbed oxygen.28,53,66,67
Please do not adjust margins

Page 7 of 12
New Journal of Chemistry
1
2
3
4
View Article Online
DOI: 10.1039/D0NJ01292K
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Figure 9. TEM images of (a) Pyrene-CTF-10 and (b) Pyrene-CTF-20.
80
60
-1
(a)
(b)
(c)
0.5 Ag
0.0
-0.2
-0.4
-0.6
-0.8
-1.0
20
10
-1
1 Ag
-1
2 Ag
40
-1
3 Ag
-1
5 Ag
20
-1
7 Ag
-1
0
10 Ag
0
-1
15 Ag
-1
-20
-40
-60
-80
-100
20 Ag
-10
-20
-30
-1
-1
5 mVs
5 mVs
-1
-1
10 mVs
10 mVs
-1
-1
30 mVs
30 mVs
-1
-1
50 mVs
50 mVs
-1
-1
70 mVs
70 mVs
-1
-1
100 mVs
200 mVs
100 mVs
200 mVs
-1
-1
-1.0 -0.8 -0.6 -0.4 -0.2 0.0
-1.0 -0.8 -0.6 -0.4 -0.2 0.0
0
200 400 600 800 1000
Time (s)
Potential (V vs. Hg/HgO)
-1
(d)
(e)
(f)
0.5 Ag
0.0
-0.2
-0.4
-0.6
-0.8
-1.0
100
80
60
40
20
0
-1
500
1 Ag
-1
2 Ag
Pyrene-CTF-10
Pyrene-CTF-20
Pyrene-CTF-10
Pyrene-CTF-20
-1
3 Ag
-1
400
5 Ag
-1
7 Ag
-1
10 Ag
-1
300
15 Ag
-1
20 Ag
200
100
0
500
1000
1500
0
5
10
15
20
0
500 1000 1500 2000
-1
Ag
Time (s)
Current density
(
)
Cycle number
Figure 10. (a, b) CV curves of Pyrene-CTF-10 and Pyrene-CTF-20. (c, d) GCD profiles of Pyrene-CTF-10 and Pyrene-CTF-20, recorded at
various currents. (e) Specific capacitances of Pyrene-CTF-10 and Pyrene-CTF-20 recorded at current densities from 0.5 to 20 A g–1. (f)
Cycling stabilities of Pyrene-CTF-10 and Pyrene-CTF-20 electrodes, recorded at a current density of 10 A g–1 over 2000 cycles.
Please do not adjust margins

New Journal of Chemistry
Page 8 of 12
1
2
3
4
5
6
7
8
(a)
(b)
6
5
4
3
2
1
0
6
Pyrene-CTF-10
Pyrene-CTF-20
Pyrene-CTF-10
Pyrene-CTF-20
View Article Online
DOI: 10.1039/D0NJ01292K
5.10
3.43
at 298 K
at 273 K
5
4
3
2
1
0
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
2.82
2.54
0.0
0.2
0.4
0.6
0.8
1.0 0.0
0.2
0.4
0.6
0.8
1.0
Relative Pressure (P/P0)
Figure 11. CO2 uptake of (a) Pyrene-CTF-10 and (b) Pyrene-CTF-20, measured at 298 and 273 K.
[Figure 10(f)]. Pyrene-CTF-10 and Pyrene-CTF-20 both retained 97%
of their initial capacitance after 2000 cycles, indicating their
excellent cycling stability in 1 M KOH as the electrolyte. Deng et al.
prepared conductive CTFs through ionothermal reactions of
tetracyanoquinodimethane (TCNQ) in the presence of molten ZnCl2
at various temperatures. They found that the specific capacitances
of TCNQ-CTF-600, TCNQ-CTF-700, TCNQ-CTF-800, and TCNQ-CTF-
900 at a current density of 0.2 A g–1 were 284, 350, 380, and 356 F
g–1, respectively. The highest specific capacitance (380 F g–1) was
that of TCNQ-CTF-800, presumably because of its high N-atom
content (8.13%) and large surface area (3663 m2 g–1).2 In addition,
Zhi et al. derived amorphous CTFs from terephthalonitrile that
displayed a specific capacitance of 298 F g–1 at 0.2 A g–1.70 In
addition, we have previously reported a series of Car-CTFs formed
through trimerization of Car-4CN with molten ZnCl2; among them,
Car-CFT-5-500 provided a specific capacitance of 545 F g–1 at 5 mV
s–1.28 In comparison with these other CTF materials, Pyrene-CTF-20
displays excellent supercapacitor performance (Table S1),
presumably because of its graphitic structure, microporosity, and N
and O atom contents. Figure S3 shows that the calculated
coulombic efficiency (CE) with the current density. It shows that the
CE is very high at current density of 0.5 and 1 A g-1, this is due to the
very small applied charging and discharging currents. While at
current density >1 A g-1, the CE is almost ~100%.]. We recorded CO2
adsorption isotherms for both Pyrene-CTFs at 25 and 0 °C [Figures
11(a) and 11(b)]. The CO2 uptake of Pyrene-CTF-10 was 2.82 and
5.10 mmol g–1 at 25 and 0 °C, respectively; for Pyrene-CTF-20, these
values were lower at 2.54 and 3.43 mmol g–1, respectively. Thus,
Pyrene-CTF-10 captured more CO2 at 25 °C (2.82 mmol g–1) than
other previously reported CTF materials at the same temperature,
including Car-CTF-10-500 (2.25 mmol g–1),28 CTF-1 (2.77 mmol g–1),71
PCTF-1–3 (2.02–3.00 mmol g–1),72 CTF-20-400 (3.48 mmol g–1),3 CTF-
0 (1.54–2.34 mmol g–1),73 and CTF-DCN-500 (2.70 mmol g–1),62 due
to Pyrene-CTF-10 having a specific surface area of 819 m2 g-1 and a
high N-atom content (9.85 wt%) arose from the presences of
triazine units, which leads to increase the binding affinity
interaction between CO2 molecules and Pyrene-CTF-10. Table S2
Energy Storage and CO2 Uptake of Pyrene-CTFs
From the BET and XPS data, we knew that our Pyrene-CTF materials
had high specific surface areas, N-heteroatom frameworks
(primarily pyridinic and pyrrolic N species), and mesoporous and
microporous properties. Therefore, we expected these materials to
have great potential applications in energy storage and gas
uptake.21 We measured the electrochemical properties of the
Pyrene-CTFs through cyclic voltammetry (CV) at various scan rates
(5–200 mV s–1) in 1 M aqueous KOH [Figures 10(a) and 10(b)]. The
CV profiles for the Pyrene-CTFs had rectangular (“rice-like”)
shapes.2,4,28 The appearance of rectangular CV curves for these CTF
materials based on pyrene units suggested a combination of electric
double-layer capacitance and pseudocapacitance, arising from the
presence of various types of nitrogen and oxygen species
(heteroatom effects, based on XPS data) in both of these polymeric
CTF materials.2,4,28 In addition, the galvanostatic charge/discharge
(GCD) profiles of Pyrene-CTF-10 and Pyrene-CTF-20 recorded at
various current densities [Figures 10(c) and 10(d)] had triangular
shapes, again suggesting the presence of both EDLC and
pseudocapacitance arising from the graphitic carbon structures
presenting various types of functionalized units (e.g., pyrrolic
species; hexagonal pyridinic N atoms in triazine rings; C=O and
phenolic OH groups).2,21 As displayed in Figure 10(e), at a current
density of 0.5 A g–1, Pyrene-CTF-10 and Pyrene-CTF-20 displayed
excellent specific capacitances of 380 and 500 F g–1, respectively.
The higher specific capacitance of Pyrene- CTF-20 compared with
that of Pyrene-CTF-10 presumably arose from its graphitic structure,
microporosity, and high N (7.19 wt%) and O atom (9.62 wt%)
contents. In addition, the specific capacitances of the Pyrene-CTFs
decreased upon increasing the scan rate, due to the adsorption of
electrolyte ions on the electrode surfaces.8,68,69 In addition, we
investigated the cyclic stabilities of Pyrene-CTF-10 and Pyrene-CTF-
20 through GCD measurements over 2000 cycles at a current
density of 10 A g–1
Please do not adjust margins

Page 9 of 12
New Journal of Chemistry
Please do not adjust margins
Journal Name
ARTICLE
1
2
3
4
5
6
7
8
9
provides
a
performance comparison Pyrene-CTFs and other range with different current densities from 0.5 to 20 Ag-1. The
reported CTFS for CO2 uptake. Thus, our CV and CO2 uptake capacitances (Cs) were calculated using th
D
e
OI
r
:
e
1
p
0
o
.10rt
3
e
9
d
Vie/wDeArticle Online
ions
0
q
N
u
J0
a
1
t
2
92K
measurements suggest that Pyrene-CTFs have great potential for for CV and GCD respectively.74,75
use in energy storage and gas storage.
Conflicts of interest
Conclusions
There are no conflicts to declare.
We have synthesized two pyrene-containing conductive CTFs,
Pyrene-CTF-10 and Pyrene-CTF-20, through reactions of TCNPy
with molten ZnCl2 (as catalyst) at 500 °C. These Pyrene-CTFs
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Acknowledgements
This study was supported financially by the Ministry of Science
and Technology, Taiwan, under contracts under contracts
MOST 106-2221-E-110- 067-MY3, 108-2638-E-002-003-MY2,
and 108-2221-E-110-014-MY3. We also thank Mr. Hsien-Tsan
Lin of the Regional Instruments Center at National Sun Yat-Sen
University for help with the TEM measurement.
exhibited outstanding thermal stabilities (high char yields),
partial crystallinity, and high specific surface areas, based on
BET, XRD, and TGA analyses. In addition, Pyrene-CTF-10
displayed gas uptake capacities for CO2 of 2.82 mmol g–1 at 25
°C and 5.10 mmol g–1 at 0 °C. More interestingly, the
electrochemical performances of our two Pyrene-CTFs were
highly stable and efficient, with highest capacitances at 0.5 mV
s–1 of 380 F g–1 for Pyrene-CTF-10 and 500 F g–1 for Pyrene-CTF-
20.
Notes and references
1
2
P. Bhanja, S. K. Das, K. Bhunia, D. Pradhan, T. Hayashi, Y.
Hijikata, S. Irle and A. Bhaumik, A New Porous Polymer for
Highly Efficient Capacitive Energy Storage. ACS Sustainable
Characterization
Chem. Eng., 2018, 6, 202−209.
FTIR spectra were recorded using a Bruker Tensor 27 FTIR
spectrophotometer and the conventional KBr disk method; 32
scans were collected at a spectral resolution of 4 cm-1. The
films used in this study were sufficiently thin to obey the Beer-
Lambert law. Wide-Angle X-ray diffraction (WAXD) pattern was
obscured from the wiggler beamline BL17A1 of the National
Synchrotron Radiation Research Center (NSRRC), Taiwan. A
triangular bent Si (111) single crystal was used to obtain a
monochromated beam having a wavelength (λ) of 1.33 Å.
Cross-polarization with MAS (CPMAS) was used to acquire 13C
NMR spectral data at 75.5 MHz. The CP contact time was 2 ms;
1H decoupling was applied during data acquisition. The
decoupling frequency corresponded to 32 kHz. The MAS
sample spinning rate was 10 kHz. Transmission electron
microscope (TEM) images were obtained with a JEOL JEM-
2010 instrument operated at 200 kV. BET surface area and
porosimetry measurements of the prepared samples (ca. 40-
100 mg) were performed using a Micromeritics ASAP 2020
Surface Area and Porosity analyzer. Nitrogen isotherms were
generated through incremental exposure to ultrahigh-purity N2
(up to ca. 1 atm) in a liquid nitrogen (77 K) bath. Surface
parameters were determined using BET adsorption models in
the instrument’s software. TGA was performed using a TA Q-
50 analyzer under a flow of N2 atmosphere. The samples were
sealed in a Pt cell and heated from 40 to 800 °C at a heating
rate of 20 °C min-1 under a flow of N2 atmosphere at a flow
rate of 60 mL min-1. The Raman spectra were investigated
using Horiba Jobin-Yvon HR800 Raman Spectrometer with 633
nm laser, 10 sec accumulated scans repeated for 20 times and
50x magnification lens. The electrochemical performances
were performed using Zahner Zennium E electrochemical
workstation with three electrodes configurations using
Hg/HgO as a reference electrode and 1.0 M KOH solution as an
aqueous medium. The working electrode was the glassy
carbon electrode (GCE) coated by the slurry of the tested
material (The slurries were prepared by dispersing the Pyrene-
CTFs (45 wt. %), carbon black (45 wt. %), and Nafion (10 wt. %)
in EtOH (1 mL)). The cyclic voltammetry (CV) was tested over
the range between 0.0 and -1.0 V and the scan rates were
investigated from 5 mV/s up to 200 mV/s. Similarly, the charge
and discharge (GCD) cycles were tested at the same potential
Y. Li. S. Zheng, X. Liu, P. Li, L. Sun, R. Yang, S. Wang. Z. Wu, X.
Bao and W. Q. Deng, Conductive Microporous Covalent
Triazine-Based
Framework
for
High-Performance
Electrochemical Capacitive Energy Storage. Angew. Chem.,
Int. Ed., 2018, 57, 7992-7996.
3
4
P. Simon and Y. Gogotsi, Materials for electrochemical
capacitors. Nat. Matter., 2008, 7, 845-854.
Y. Liu, X. Hao, L. Wang, Y. Xu, J. Liu, X. Tian and B. Yao, Facile
synthesis of porous carbon materials with extra high
nitrogen content for supercapacitor electrodes. New. J.
Chem., 2019, 43, 3713-3718.
5
6
7
8
Z. S. Wu, K. Parvez, X. Feng and K. Muellen, Graphene-based
in-plane micro-supercapacitors with high power and energy
densities. Nat. Commun., 2013, 4, 2487.
D. M. D’Alessandro, B. Smit and J. R. Long, Carbon Dioxide
Capture: Prospects for New Materials. Angew. Chem., Int. Ed.,
2010, 49, 6082.
Q. Wang, J. Luo, Z. Zhong and A. Borgna, CO2 capture by solid
adsorbents and their applications: current status and new
trends. Energy Environ. Sci., 2011,
G. Wang, K. Leus, S. Zhao and P. V. D . Voort, Newly Designed
Covalent Triazine Framework Based on Novel
4, 42−55.
N‑Heteroaromatic Building Blocks for Efficient CO2 and H2
Capture and Storage. ACS Appl. Mater. Interfaces, 2018, 10
,
1244−1249.
9
S. P. Lee, N. Mellon, A. M. Sharif, and J. M. Leveque,
Geometry variation in porous covalent triazine polymer (CTP)
for CO2 adsorption. New J. Chem., 2018, 42, 15488-15496.
10 G. T. Rochelle, Amine Scrubbing for CO2 Capture. Science,
2009, 325, 1652−1654.
11 A. B. Rao and E. S. Rubin, A Technical, Economic, and
Environmental Assessment of Amine-Based CO2 Capture
Technology for Power Plant Greenhouse Gas Control,
Environ. Sci. Technol., 2002, 36, 4467- 4475.
12 F. M. O. JR, CO2 capture and storage: are we ready? Energy
Environ. Sci., 2009, 2, 449-458.
13 R. S. Haszeldine. Carbon capture and storage: how green can
black be? Science, 2009, 325, 1647-1652.
14 D. M. D’Alessandro, B. Smit and J. R. Long, Carbon dioxide
capture: prospects for new materials. Angew. Chem., Int. Ed.,
2010, 49, 6058-6082.
15 S. Mukherjee, M. Das, A. Manna, R. Krishna and S. Das, Dual
Strategic Approach to Prepare Defluorinated Triazole-
Embedded Covalent Triazine Frameworks with High Gas
Uptake Performance. Chem. Mater., 2019, 31, 3929-3940.
This journal is © The Royal Society of Chemistry 20xx
J. Name., 2013, 00, 1-3 | 9
Please do not adjust margins

Please do not adjust margins
New Journal of Chemistry
Page 10 of 12
ARTICLE
Journal Name
1
2
3
4
5
6
7
8
9
16 Y. Xu, S. Jin, H. Xu, A. Nagai and D. Jiang, Conjugated 31 N. Popp, T. Homburg, N. Stock and J. Senker, Porous imine-
View Article Online
microporous polymers: design, synthesis and application.
Chem. Soc. Rev., 2013, 42, 8012.
based networks with protonated imine linkages for carbon
dioxide separation from mixtures withDnOitIr:o10g.e1n03a9n/Dd0mNJe0t1h2a9n2eK.
17 S. Wang, Y. Liu, Y. Ye, X. Meng, J. Du, X. Song and Z. Liang,
J. Mater. Chem. A. 2015, 3, 18492–18504.
Ultrahigh volatile iodine capture by conjugated microporous 32 (a) A. F. M. EL-Mahdy, C. Young, J. Kim, J. You, Y. Yamauchi
polymer
based
on
N,N,N’,N’-tetraphenyl-1,4-
and S. W. Kuo, Hollow Microspherical and Microtubular [3+ 3]
Carbazole-Based Covalent Organic Frameworks and Their
Gas and Energy Storage Applications. ACS App. Mater.
Interfaces, 2019, 11, 9343-9354. (b) Z. Liang, R. Zhao, T. Qiu,
R. Zou AND Q. Xu, Metal- organic framework- derived
materials for electrochemical energy applications.
phenylenediamine. Polym. Chem., 2019, 10, 2608–2615.
18 Q. Sun, Z. F. Dai, X. J. Meng and F. S. Xiao, Porous polymer
catalysts with hierarchical structures. Chem. Soc. Rev., 2015,
44, 6018–6034.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
19 Y. Xu, N. Mao, C. Zhang, X. Wang, J. Zeng, Y. Chen, F. Wang
and J. X. Jiang, Rational design of donor-π-acceptor
EnergyChem 2019, 1, 100001-100032.
conjugated microporous polymers for photocatalytic 33 (a) A. F. M. EL-Mahdy, C. H. Kuo, A. Alshehri, C. Young, Y.
hydrogen production. Appl. Catal., B., 2018, 228, 1–9.
20 W. K. Meng, L. Liu, X. Wang, R. S. Zhao, M. L. Wang and J. M.
Lin, Polyphenylene core-conjugated microporous polymer
coating for highly sensitive solid-phase microextraction of
polar phenol compounds in water samples. Anal. Chim. Acta,
2018, 1015, 27–34.
Yamauchi, J. Kim and S. W. Kuo, Strategic design of
triphenylamine-and triphenyltriazine-based two-dimensional
covalent organic frameworks for CO2 uptake and energy
storage. J. Mater. Chem. A, 2018, 6, 19532-19541. (b) X. C. Li,
Y. Zhang, C. Y. Wang, Y. Wan, W. Y. Lai, H. Pang and W.
Huang, Redox-active triazatruxene-based conjugated
microporous polymers for high-performance supercapacitors.
21 S. Dutta, A. Bhaumik and K. C. W. Wu, hierarchically porous
carbon derived from polymers and biomass: effect of
Chem. Sci., 2017, 8, 2959-2965.
interconnected pores on energy applications. Energy Environ. 34 C. Li, P. Li, L. Chen, M. E. Briggs, M. Liu , K. Chen, X. Shi, D.
Sci., 2014,
7
, 3574- 3592.
Han and S. Ren, Pyrene-Cored Covalent Organic Polymers by
Thiophene-Based Isomers, Their Gas Adsorption, and
Photophysical Properties. J. Polym. Sci., Part A: Polym. Chem.,
2017, 55, 2383–2389.
22 S. Xu, J. He, S. Jin and B. Tan, Heteroatom-rich porous
organic polymers constructed by benzoxazine linkage with
high carbon dioxide adsorption affinity. J. Colloid Interface
Sci., 2018, 509, 457-462.
35 Z. Xiang and D. Cao, Porous covalent–organic materials:
synthesis, clean energy application and design. J. Mater.
23 A. F. M. EL-Mahdy, T. E. Liu and S. W. Kuo, Direct Synthesis of
Nitrogen-Doped Mesoporous Carbons from Triazine-
Chem. A., 2013, 1, 2691–2718.
Functionalized Resol for CO2 Uptake and Highly Efficient 36 A. K. Sekizkardes, T. İslamoğlu, Z. Kahveci and H. M. El-
Removal of Dyes. J. Hazard. Mater., 2020, 391, 122163.
24 A. F. M. EL-Mahdy, Y. H. Hung, T. H. Mansoure, H. H. Yu, Y. S.
Hsu, K. C. W. Wu, S. W. Kuo, Synthesis of [3+ 3] β-
ketoenamine-tethered covalent organic frameworks (COFs)
Kaderi, Application of pyrene-derived benzimidazole-linked
polymers to CO2 separation under pressure and vacuum
swing adsorption settings. J. Mater. Chem. A., 2014,
2,
12492–12500.
for high-performance supercapacitance and CO2 storage. J. 37 A. Bhunia, V. Vasylyeva and C. Janiak, From a supramolecular
Taiwan Inst. Chem. Eng., 2019, 103, 199-208.
25 Y. Zhao, N. Bu, H. Shao, Q. Zhang, B. Feng, Y. Xu, G. Zheng, Y.
Yuan, Z. Yan and L. Xi, A carbonized porous aromatic
tetranitrile to a porous covalent triazine-based framework
with high gas uptake capacities. Chem. Commun., 2013, 49,
3961–3963.
framework to achieve customized nitrogen atoms for 38 H. R. Abuzeid, A. F. M. EL-Mahdy, M. M. M. Ahmed and S. W.
enhanced supercapacitor performance. New J. Chem., 2019,
43, 18158-18164.
Kuo,
Triazine-functionalized
covalent
benzoxazine
framework for direct synthesis of N-doped microporous
26 H. Wang, Z. Cheng, Y. Liao, J. Li, J. Weber, A. Thomas and C. F.
carbon. Polym. Chem., 2019, 10, 6010-6020
J. Faul, Conjugated Microporous Polycarbazole Networks as 39 P. Kuhn, A. Forget, J. Hartmann, A. Thomas and M. Antonietti,
Precursors for Nitrogen-Enriched Microporous Carbons for
CO2 Storage and Electrochemical Capacitors. Chem. Mate.,
2017, 29, 4885−4893.
Template-Free Tuning of Nanopores in Carbonaceous
Polymers through Ionothermal Synthesis. Adv. Mater., 2009,
21, 897.
27 (a) A. F. M. EL-Mahdy, M. G. Mohamed, T. H. Mansoure, H. H. 40 P. Kuhn, M. Antonietti and A. Thomas, Porous, Covalent
Yu, T. Chen and S. W. Kuo, Ultrastable tetraphenyl-p-
phenylenediamine-based covalent organic frameworks as
Triazine-Based Frameworks Prepared by Ionothermal
Synthesis. Angew. Chem., Int. Ed., 2008, 47, 3450.
platforms
for
high-performance
electrochemical 41 T. Xu, Y. Li, Z. Zhao, G. Xing and L. Chen, N,N’‑Bicarbazole-
supercapacitors. Chem. Commun., 2019, 55, 14890-14893. (b)
Based Covalent Triazine Frameworks as High-Performance
X. Li, X. Yang, H. Xue, H. Xue, H. Pang and Q. Xu, Metal–
Heterogeneous Photocatalysts. Macromolecules, 2019, 52,
organic frameworks as
applications. EnergyChem, 2020,
28 M. G. Mohamed, A. F. M. EL Mahdy, M. M. M. Ahmed and S.
W. Kuo, Direct Synthesis of Microporous Bicarbazole Based
Covalent Triazine Frameworks for High
a
platform for clean energy
9786−9791.
2
, 100027-100055.
42 J. Guo, L. Wang and J. Huang, Porphyrin-Based Triazine
Polymers and Their Derived Porous Carbons for Efficient CO2
Capture. Ind. Eng. Chem. Res.,2020, 59, 7, 3205-3212.
‐
‐
‐
Performance Energy 43 A. F. M. El‐Mahdy, Y. H. Hung, T. H. Mansoure, H. H. Yu, T.
Storage and Carbon Dioxide Uptake. ChemPlusChem, 2019,
84, 1767-1774.
29 M. G. Rabbani, A. K. Sekizkardes, O. M. El-Kadri, B. R.
Kaafarani and H. M. El-Kaderi, Pyrene-directed growth of
nanoporous benzimidazole-linked nanofibers and their
application to selective CO2 capture and separation. J. Mater. 44 W. Yu, S. Gu, Y. Fu, S. Xiong, C. Pan, Y. Liu and G. Yu,
Chem., 2012, 22, 25409–25417.
30 Q. Chen, M. Luo, P. Hammershøj, D. Zhou, Y. Han, B. W.
Laursen, C. G. Yan and B. H. Han, Microporous Polycarbazole
Chen and S. W. Kuo, A Hollow Microtubular Triazine- and
Benzobisoxazole-Based Covalent Organic Framework
Presenting Sponge-Like Shells That Functions as a High-
Performance Supercapacitor. Chem. Asian J., 2019, 14, 1429-
1435.
Carbazole-decorated covalent triazine frameworks: Novel
nonmetal catalysts for carbon dioxide fixation and oxygen
reduction reaction. J. Catal., 2018, 362, 1-9.
with High Specific Surface Area for Gas Storage and 45 L. Guo, Y. Niu, H. Xu, Q. Li, S. Razzaque, Q. Huang, S. Jin and B.
Separation. J. Am. Chem. Soc., 2012, 134, 6084–6087.
Tan, Engineering heteroatoms with atomic precision in
10 | J. Name., 2012, 00, 1-3
This journal is © The Royal Society of Chemistry 20xx
Please do not adjust margins

Page 11 of 12
New Journal of Chemistry
Please do not adjust margins
Journal Name
ARTICLE
1
2
3
4
5
6
7
8
9
donor–acceptor covalent triazine frameworks to boost 62 K. Wang, H. Huang, D. Liu, C. Wang, J. Li aVnidew CAr.ticZlehOonnlinge,
photocatalytic hydrogen production. J. Mater. Chem. A.,
2018, , 19775-19781.
46 (a) F. Xu, S. Yang, G. Jiang, Q. Ye, B. Wei and H. Wang,
Covalent Triazine-Based Frameworks DwOiIt:h10.U10lt3r9a/mD0icNrJo0p12o9r2eKs
and High Nitrogen Contents for Highly Selective CO2 Capture.
Environ. Sci. Technol., 2016, 50, 4869-4876.
6
Fluorinated, Sulfur-Rich, Covalent Triazine Frameworks for 63 A. Bhunia, D. Esquivel, S. Dey, R. F. Terán, Y. Goto, S. Inagaki,
Enhanced Confinement of Polysulfides in Lithium–Sulfur
Batteries. ACS App. Mater. Interf., 2017, , 37731-37738. (b)
P. V. D. Voort and C. Janiak, photoluminescent covalent
triazine framework: CO2 adsorption, light-driven hydrogen
evolution and sensing of nitroaromatics. J. Mater. Chem. A.,
9
G. Liu, Y. Sheng, J. W. Ager, M. Kraft and R. Xu, Research
advances towards large-scale solar hydrogen production
2016, 4, 13450-13457.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
from water. EnergyChem 2019,
1, 100014-100064.
64 L. Hao, J. Ning, B. Luo, B. Wang, Y. Zhang, Z. Tang, J. Yang, A.
Thomas and L. Zhi, Structural Evolution of 2D Microporous
Covalent Triazine-Based Framework toward the Study of
High-Performance Supercapacitors. J. Am. Chem. Soc., 2015,
137, 219-225.
47 J. Liu, P. Lyu, Y. Zhang, P. Nachtigall and Y. Xu, New Layered
Triazine Framework/Exfoliated 2D Polymer with Superior
Sodium-Storage Properties. Adv. Mater., 2018, 30, 1705401.
48 M. Liu, L. Guo, S. Jin and B. Tan, Covalent triazine
frameworks: synthesis and applications. J. Mater. Chem. A., 65 Y. Wang, L. Dong, G. Lai, M. Wei, X. Jiang and L. Bai,
2019,
7, 5153-5172.
Nitrogen-Doped Hierarchically Porous Carbons Derived from
Polybenzoxazine for Enhanced Supercapacitor Performance.
Nanomaterials, 2019, 9, 131-140.
49 S. Dalapati, S. Jin, J. Gao, Y. Xu, A. Nagai and D. Jiang, An
Azine-Linked Covalent Organic Framework. J. Am. Chem. Soc.,
2013, 135, 17310–17313.
66 P. Zhang, J. Zhang and S. Dai, Mesoporous Carbon Materials
with Functional Compositions. Chem. Eur. J., 2017, 23, 1986-
1998.
67 B. Marchon, J. Carrazza, H. Heinemann and G. A. Somorjai.
TPD and XPS studies of O2, CO2, and H2O adsorption on clean
polycrystalline graphite. Carbon, 1988, 26, 507-514.
68 S. Biswas and L. T. Drzal, Multilayered Nanoarchitecture of
Graphene Nanosheets and Polypyrrole Nanowires for High
Performance Supercapacitor Electrode. Chem. Mater., 2010,
22, 5667-5671.
50 G. Lin, H. Ding, D. Yuan, B. Wang and C. Wang, A Pyrene-
Based, Fluorescent Three-Dimensional Covalent Organic
Framework. J. Am. Chem. Soc., 2016, 138, 3302–3305.
51 R. S. Sprick, J. X. Jiang, B. Bonillo, S. Ren, T. Ratvijitvech, P.
Guiglion, M.A. Zwijnenburg, D. J. Adams, A. I. Cooper, J. Am.
Chem. Soc., 2015, 137, 3265–3270.
52 A. Bhunia, V. Vasylyeva and
C. Janiak, From a
supramolecular tetranitrile to a porous covalent triazine-
based framework with high gas uptake capacities. Chem.
Commun., 2013, 49, 3961-3963.
69 Z. Li, Z. Zhou, G. Yun, K. Shi, X. Lv and B. Yang, High-
performance solid-state supercapacitors based on graphene-
53 X. M. Hu, Q. Chen, Y. C. Zhao, B. W. Laursen and B. H. Han,
Straightforward synthesis of a triazine-based porous carbon
ZnO hybrid nanocomposites. Nanoscale. Res. Lett., 2013, 8,
473.
with high gas-uptake capacities. J. Mater. Chem. A., 2014,
14201-14208.
2,
70 L. Hao, B. Luo, X. Li, M. Jin, Y. Fang, Z. Tang, Y. Jia, M. Liang, A.
Thomas, J. Yang and L. Zhi, Terephthalonitrile-derived
nitrogen-rich networks for high performance supercapacitors.
54 P. J. Waller, Y. S. AlFaraj, C. S. Diercks, N. N. Jarenwattananon
and O. M. Yaghi, Conversion of Imine to Oxazole and
Thiazole Linkages in Covalent Organic Frameworks. J. Am.
Chem. Soc., 2018, 140, 9099-9103.
55 X. Yin, Y. Peng, J. Luo, X. Zhou, C. Gao, L. Wang and C. Yang,
Tailoring the framework of organic small molecule
semiconductors towards high-performance thermoelectric
Energy Environ. Sci., 2012, 5, 9747-9751.
71 Y. Zhao, K. X. Yao, B. Teng, T. Zhang and Y. Han, A
perfluorinated covalent triazine-based framework for highly
selective and water–tolerant CO2 capture. Energy Environ.
Sci., 2013, 6, 3684-3692.
composites via conglutinated carbon nanotube webs. J. 72 C. Gu, D. Liu, W. Huang, J. Liu and R. Yang, Synthesis of
Mater. Chem. A., 2018, , 8323-8330. covalent triazine-based frameworks with high CO2
56 A. F. M. EL-Mahdy and S. W. Kuo, A pyrene-functionalized adsorption and selectivity. Polym. Chem., 2015, , 7410-7417.
6
6
polytyrosine exhibiting aggregation-induced emission and 73 P. Katekomol, J. Roeser, M. Bojdys, J. Weber and A. Thomas,
capable of dispersing carbon nanotubes and hydrogen
bonding with P4VP. Polymer, 2018, 156, 10-21.
Covalent Triazine Frameworks Prepared from 1,3,5-
Tricyanobenzene. Chem. Mater., 2013, 25, 1542-1548.
57 A. F. M. EL-Mahdy and S. W. Kuo, Diphenylpyrenylamine- 74 C. R. DeBlase, K. E. Silberstein, T.T. Truong, H. D. Abruña and
functionalized
aggregation-induced emission, and carbon nanotube
dispersibility. RSC Adv., 2018, , 15266-15281.
polypeptides:
secondary
structures,
W. R. Dichtel, Two-dimensional Covalent Organic Framework
Thin Films Grown in Flow. J. Am. Chem. Soc., 2013, 135
,
8
16821.
58 C. W. Huang, M. G. Mohamed, C. Y. Zhu and S. W. Kuo, 75 A. Alabadi, X. Yang, Z. Dong, Z. Li and B. Tan, Nitrogen-doped
Functional Supramolecular Polypeptides Involving π–π
Stacking and Strong Hydrogen-Bonding Interactions:
Conformation Study toward Carbon Nanotubes (CNTs)
Dispersion. Macromolecules, 2016, 49, 5374-5385.
activated carbons derived from a co-polymer for high
supercapacitor performance. J. Mater. Chem. A, 2014, 2,
A
11697-11705.
59 M. G. Mohamed, K. C. Hsu and S. W. Kuo, Bifunctional
polybenzoxazine nanocomposites containing photo-
crosslinkable coumarin units and pyrene units capable of
dispersing single-walled carbon nanotubes. Polym. Chem.,
2015, 6, 2423-2433.
60 J. Y. Wu, M. G. Mohamed and S. W. Kuo, Directly synthesized
nitrogen-doped microporous carbons from polybenzoxazine
resins for carbon dioxide capture. Polym. Chem., 2017, 8,
5481-5489.
61 S. Hug, L. Stegbauer, H. Oh, M. Hirscher and B. V. Lotsch,
Nitrogen-Rich Covalent Triazine Frameworks as High-
Performance Platforms for Selective Carbon Capture and
Storage. Chem. Mater., 2015, 27, 8001-8010.
This journal is © The Royal Society of Chemistry 20xx
J. Name., 2013, 00, 1-3 | 11
Please do not adjust margins

Please do not adjust margins
New Journal of Chemistry
Page 12 of 12
ARTICLE
Journal Name
1
2
3
4
TOC Graphic
View Article Online
DOI: 10.1039/D0NJ01292K
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Two pyrene-functionalized CTFs through ionothermal treatment
TCNPy in the presence of molten zinc chloride at 500 °C, which
displayed high-performance CO2 uptake and supercapacitance
12 | J. Name., 2012, 00, 1-3
This journal is © The Royal Society of Chemistry 20xx
Please do not adjust margins
