Exploiting photooxygenations mediated by
porphyrinoid photocatalysts under continuous
Cite this: RSC Adv., 2016, 6, 12717
flow conditions†
ab
a
a
*
*
L. Zane Miller and D. Tyler McQuade
Kleber T. de Oliveira,
Photooxygenation reactions are a powerful synthetic tool to produce oxidized organic compounds;
however, these reactions often exhibit experimental limitations including the production of complex
mixtures that hinder desired product isolation and scale-up. Herein, we present a photocatalysed
protocol under continuous flow conditions using a simple home built photoreactor and porphyrinoids as
photocatalysts. Reaction conditions, long-term experiments, and scope demonstrate a protocol that is
cost-effective, safe, reproducible and robust, thus allowing the production of relevant substituted
naphthoquinones with interest in natural product synthesis and biological activity.
Received 5th January 2016
Accepted 22nd January 2016
DOI: 10.1039/c6ra00285d
www.rsc.org/advances
most prominent processes since signicant improvements have
been accomplished at the micro- and meso-scale, and success-
Introduction
ful reaction classes improved using these techniques due to the
high efficiency of light irradiation and enhanced safety.10
Regarding the photooxygenations of naphthols, previous
work performed in batch conditions has been published,13 as
Photooxygenation reactions have an important role in synthetic
chemistry due to their high atom-economy and low cost.1 Over
the last ve decades researchers have recognized that singlet
oxygen is the key excited intermediate for generating oxygen-
ated compounds such as hydroperoxides,2 peroxides,3 dioxe-
tanes,4 endoperoxides5 and sulfoxides.6
well as preliminary versions of photochemical ow devices. The
14
¨
pioneering work of Oelgemoller and co-workers showed the
possibility to use both plug-ow and parallel falling lms for
photooxygenations under different continuous ow conditions.
However, both methodologies and devices of these previous
work displayed limitations and required many reaction cycles,
high concentrations of photosensitizers (up to 5 mol%) with low
conversions in some cases,14c inspiring us to explore improved
and cost-competitive conditions for this continuous ow
photooxygenation.
Herein, we have built and applied a simple, yet effective in-
house engineered photoreactor to perform a comprehensive
study of the photooxygenation of naphthols (Scheme 1).
Different porphyrinoid and phthalocyanine derivatives were
evaluated as photosensitizers (0.1–0.5 mol%), achieving high
efficiency. Scope, robustness, and most importantly, scalability
with a 24 h extended experiment are presented under contin-
uous ow conditions, which allowed the production of relevant
substituted naphthoquinones of interest in natural product
synthesis and with well-recognized biological activities.15
The generation of singlet oxygen using photosensitizers is
well-known.7 While many photosensitizers have been
described,8 porphyrin derivatives are one of the most efficient
classes of compounds for this purpose as supported by recent
and relevant applications in organic synthesis.5,9
Since their discovery, photooxygenation processes have pre-
sented restrictions for their use in large scale reactors due to
limitations imposed by the potential to form explosive inter-
mediates, thus requiring the use of high dilutions and small
scales. However, this limitation has recently been addressed by
utilization of ow-based approaches to carry out photochemical
transformations.10 Current advances in chemical synthesis
under continuous ow conditions have in fact changed the way
in which reactions are developed and scaled up in the phar-
maceutical industry and research laboratories.11 Numerous
advantages have been provided such as controlled mixing, fast
heat transfer, control of residence time and process automa-
tion.12 Particularly, photochemical and photocatalysed trans-
formations accelerated under continuous ow are one of the
Results and discussion
aFlorida State University, Department of Chemistry and Biochemistry, Tallahassee, FL,
First, in order to elucidate the best conditions for these pho-
tooxygenations, we constructed the photoreactor shown in
Fig. 1 and S1 (ESI†). We used a reexive aluminium-plate
adapted with connections for a lamp with fan cooling, and
a glass cylinder to coil the PFA (peruoroalkoxy) tubing (for
32306-4390, USA. E-mail: tylermcquade@gmail.com
b
˜
´
˜
Universidade Federal de Sao Carlos, Departamento de Quımica, 13565-905, Sao
Carlos, SP, Brazil. E-mail: kleber.oliveira@ufscar.br; Web: http://www.lqbo.ufscar.br
† Electronic supplementary information (ESI) available: Copy of 1H and 13C NMR
spectra. See DOI: 10.1039/c6ra00285d
This journal is © The Royal Society of Chemistry 2016
RSC Adv., 2016, 6, 12717–12725 | 12717

View Article Online
RSC Advances
Paper

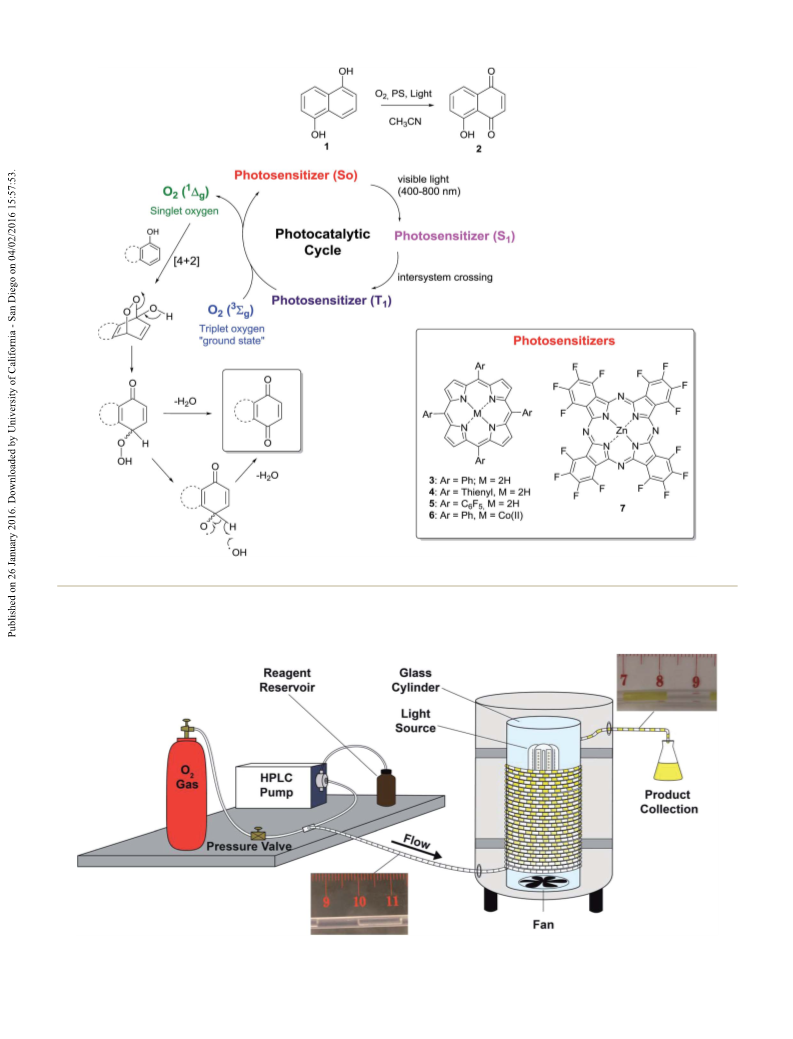

Scheme 1 Photocatalytic cycle and photosentizers for the photooxygenation of 1.
Fig. 1 Flow chemistry setup for photooxygenations.
12718 | RSC Adv., 2016, 6, 12717–12725
This journal is © The Royal Society of Chemistry 2016

View Article Online
Paper
RSC Advances
details, Fig. S1†). For process optimization we selected 5-
hydroxynaphthol (1) to yield juglone (2) (Scheme 1).
We began the optimization by pumping of 100 mL of 3 mM
solution of 1 with 0.1 mol% of the photocatalyst tetraphe-
nylporphyrin (3) under three different plug-ow conditions
(Table 1) in order to select the best ow rate and light source for
the transformations (Scheme 1 and Fig. 1).
Using the FLC lamp (45 W) the best result was obtained with
a ow rate of 0.75 mL minꢀ1 (entry 2, Table 1) considering the
yield, residence time, and space-time yield (STY). Similarly, the
use of white LED lamp (24 W) and a ow rate of 0.75 mL minꢀ1
(entry 5, Table 1) produced the best result in terms of yield,
residence time and STY, and requiring approximately half of the
energy compared to the FLC source (24 W vs. 45 W). The
superiority of the white LED lamp can be explained by the
comparison of the emission and absorption spectra (Fig. 2) for
each light source and the porphyrin 3. Specically, the broad
emission band of white LED source (480–700 nm) encompasses
the entire visible region of the absorption spectrum of 3 (500–
670 nm).
Fig. 2 Comparison between the emission spectra of light sources and
absorption spectra of 3.
Another parameter which highlights this preference is the
productivity of the photocatalyst which is almost two times
greater for 0.3 mol% photocatalyst loading. The selected
conditions to proceed with the methodology study are shown in
entry 4, Table 3, since greater concentrations of substrate (up to
10 mM) required amounts of photocatalyst 3 (mol%) which
caused precipitation to occur (entries 5, 8 and 9, Table 3). It is
Thus, from the rst six experiments it was possible to
suggest the ow rate of 0.75 mL minꢀ1 as the most adequate
due to the productivity, and also because the most signicant
increase of STY was found in the range of 0.5 to 0.75 mL minꢀ1
.
It is important to highlight that the reproducibility was also
evaluated by performing each reaction twice (Table 1) with only
minor variations of 1–3% yield, as observed in Table 1.
Aer establishing the best light source, different photo-
catalyst concentrations were examined from 0.1 to 0.5 mol% at
three different ow rates (Table 2). From the results we
conclude that 0.3 and 0.5 mol% are the best photosensitizer
concentrations, but it was not clear if the use of 0.5 mol% would
furnish the best cost-benet.
important to highlight that this optimized amount of TPP (3)
(0.3 mol%, US dollars 33.1 mmolꢀ1
)
is advantageous
16
compared to similar photooxygenation procedures found in the
literature14 using bengal rose ($5 mol%, US dollars 40.4
mmolꢀ1).16
Aer screening to nd the best ow rate and substrate/
photocatalyst concentrations we decided to evaluate different
photocatalysts including additional porphyrinoids 4–6 and the
phthalocyanine 7 (Table 4). Different photoactivities were
observed most likely due to the different ability of these
photosensitizers (3–7) to produce singlet oxygen since nearly
the entire absorption spectra of 3–7 (Q-bands, 500–700 nm)
were covered by the emission spectra of the LED lamp (430–700
nm). Clearly, the simplest and most cost-competitive photo-
catalyst 3 proved to be the most efficient giving us all of the
Subsequently, different concentrations of substrate
1
(Table 3) were assessed from 3.0 to 12.0 mM while maintaining
the ow rate at 0.75 mL minꢀ1 and employing two different
photocatalyst concentrations (0.3 and 0.5 mol%). Comparing
the experiments from entries 1–5 and 6–9, very similar yields
and STY were observed between all comparable entries,
however, the use of lower amounts of photocatalyst (0.3 mol%,
entries 1–5, Table 3) were decisive for the choice of 0.3 mol% as
the most ideal catalyst loading.
Table 1 Screening of light source and flow rate for the continuous flow photooxygenation of 1a,b
Juglone (2) yield (%)
Visible light
source
Solution ow
Residence time
(min)
STY (2)c
(g per day)
Entry
rate (mL minꢀ1
)
1st
2nd
Avg
1
2
3
4
5
6
FLC, 45 W
FLC, 45 W
FLC, 45 W
LED, 24 W
LED, 24 W
LED, 24 W
0.50
0.75
1.00
0.50
0.75
1.00
52
58
48
75
58
43
55
60
49
72
56
43
53
59
48
74
57
43
25.0
16.7
12.5
25.0
16.7
12.5
0.20
0.33
0.36
0.28
0.32
0.32
a
Reactions performed by using 100 mL of a solution of the substrate 1 at 3.0 mmol Lꢀ1, photocatalyst 3 at 0.1 mol% in CH3CN : CH2Cl2 (95 : 5), 1
b
cm plug-ow (regular oxygen and solution) in a 25 mL PFA tubing photoreactor (0.125 in (OD) ꢁ 0.065 in (ID)). Isolated yield by column
chromatography. c Considering the average yield (Avg).
