Optical nonlinearity in multiferroic bismuth ferrite

Article abstract of DOI:10.1016/j.jallcom.2016.07.094

Bismuth ferrite (BFO) nanoparticles were synthesized via sol-gel route with malic acid as a chelating agent. Structural characterization by XRD reveals the formation of single phase rhombohedral BFO and FTIR (433, 546?cm^?1) confirms the molecular structure. FESEM exhibits an agglomerated spherical morphology with an average particle size of 119?nm. The first and second order structural transitions have been detected at 821 (rhombohedral – orthorhombic) and 932?°C (orthorhombic – cubic) by DTA. Strong visible light absorption with a band gap of 1.92?eV and defect related emissions at blue (417,450?nm) and green (521?nm) regions have been observed. Multiferroic properties at room temperature show weak ferromagnetism with remnant magnetization (M_r) 0.179 emu/gm and ferroelectric behavior with remnant polarization (P_r) 0.08?μC/cm². Dielectric measurements as a function of frequency (100?Hz–5?MHz) and temperature (30–450?°C) illustrate an evidence for magnetoelectric coupling with a peak at 350?°C indicating the magnetic phase transition. Third order nonlinear optical property studied by the open aperture Z-scan technique (Nd: YAG, 532?nm, 5?ns) shows the reverse saturable absorption (RSA) based optical limiting behavior.

Full text of DOI:10.1016/j.jallcom.2016.07.094

Accepted Manuscript
Optical nonlinearity in multiferroic bismuth ferrite
P. Nisha Francis, S. Dhanuskodi, M. Muneeswaran, Anitta Rose Thomas, N.V.
Giridharan
PII:
S0925-8388(16)32127-2
10.1016/j.jallcom.2016.07.094
JALCOM 38262
DOI:
Reference:
To appear in: Journal of Alloys and Compounds
Received Date: 2 May 2016
Revised Date: 6 July 2016
Accepted Date: 8 July 2016
Please cite this article as: P.N. Francis, S. Dhanuskodi, M. Muneeswaran, A.R. Thomas, N.V.
Giridharan, Optical nonlinearity in multiferroic bismuth ferrite, Journal of Alloys and Compounds (2016),
doi: 10.1016/j.jallcom.2016.07.094.
This is a PDF file of an unedited manuscript that has been accepted for publication. As a service to
our customers we are providing this early version of the manuscript. The manuscript will undergo
copyediting, typesetting, and review of the resulting proof before it is published in its final form. Please
note that during the production process errors may be discovered which could affect the content, and all
legal disclaimers that apply to the journal pertain.

ACCEPTED MANUSCRIPT
Optical Nonlinearity in Multiferroic Bismuth Ferrite
1
1,*
2
P. Nisha Francis , S. Dhanuskodi , M. Muneeswaran ,
3
2
Anitta Rose Thomas , N. V. Giridharan
Nonlinear Optical Materials Laboratory, School of Physics, Bharathidasan University, Tiruchirappalli
20024, India.
1
6
2
Department of Physics, National Institute of Technology, Tiruchirappalli Tamil Nadu 620015, India.
3
Light and Matter Physics Group, Raman Research Institute, C.V. Raman Avenue, Sadashivanagar,
Bangalore 560080, India.
Corresponding author E-mail: dhanus2k3@yahoo.com
*
GRAPHICAL ABSTRACT
Optical limiters based on multiferroic bismuth ferrite to limit high intensity laser pulses
to protect optical sensors.
1

ACCEPTED MANUSCRIPT
Optical Nonlinearity in Multiferroic Bismuth Ferrite
1
1,∗
2
P. Nisha Francis , S. Dhanuskodi , M. Muneeswaran ,
3
2
Anitta Rose Thomas , N. V. Giridharan
Nonlinear Optical Materials Laboratory, School of Physics, Bharathidasan University, Tiruchirappalli
20024, India.
1
6
2
Department of Physics, National Institute of Technology, Tiruchirappalli Tamil Nadu 620015, India.
3
Light and Matter Physics Group, Raman Research Institute, C.V. Raman Avenue, Sadashivanagar,
Bangalore 560080, India.
*Corresponding author E-mail: dhanus2k3@yahoo.com
Abstract
Bismuth ferrite (BFO) nanoparticles were synthesized via sol-gel route with malic acid as
a chelating agent. Structural characterization by XRD reveals the formation of single phase
-1
rhombohedral BFO and FTIR (433, 546 cm ) confirms the molecular structure. FESEM exhibits
an agglomerated spherical morphology with an average particle size of 119 nm. The first and
second order structural transitions have been detected at 821 (rhombohedral – orthorhombic) and
9
32̊ C (orthorhombic – cubic) by DTA. Strong visible light absorption with a band gap of 1.92
eV and defect related emissions at blue (417,450 nm) and green (521 nm) regions have been
observed. Multiferroic properties at room temperature show weak ferromagnetism with remnant
magnetization (M ) 0.179 emu/gm and ferroelectric behavior with remnant polarization (P ) 0.08
r
r
2
ꢀ
C/cm . Dielectric measurements as a function of frequency (100 Hz - 5 MHz) and temperature
(
30 - 450 C) illustrate an evidence for magnetoelectric coupling with a peak at 350 C indicating
̊
̊
the magnetic phase transition. Third order nonlinear optical property studied by the open aperture
Z-scan technique (Nd: YAG, 532 nm, 5 ns) shows the reverse saturable absorption (RSA) based
optical limiting behavior.
Keywords: Bismuth ferrite, Multiferroic, Ferromagnetism, Ferroelectricity, Z-scan, Optical
limiting
1

ACCEPTED MANUSCRIPT
1
. Introduction
Bismuth ferrite, BiFeO , one of the very few multiferroics has attracted a great interest in
3
recent years through the co-existence and interplay between ferroelectricity, ferroelasticity and
ferromagnetism. The outstanding feature of BFO is that it is the only multiferroic compound
known so far which undergoes phase transitions (ferroelectric to paraelectric at T =825
̊
C and
C
antiferromagnetic to paramagnetic at T = 370̊ C) [1]. Its ferroelectricity is driven by the
N
3
+
steriochemically active lone pairs of Bi ions causing a large relative displacement of Bi and O
atoms along the pseudo-cubic [111] axis. The magnetic ordering is due to the spin canting which
results in a small net magnetization leading to weak ferromagnetism in the antiferromagnetic
substance. The control over the electric and magnetic ordering in BFO by the application of
magnetic and electric fields respectively finds applications in spintronics [2] (as tunnel barriers
in magnetic tunnel junctions and as exchange bias layers), nonvolatile memory devices [3] (with
a 1.7V memory window of metal – ferroelectric – insulator – silicon structure) etc. Many
potential and exciting properties such as gas sensing [4] (ethanol gas sensing with higher oxygen
vacancy concentration) and photovoltaic [5] (perovskite intrinsic semiconductor sandwiched
between p and n type layers forming p-i-n heterojunction) are observed in BFO depending upon
the synthetic routes. Thus, most of the previous studies on BFO were focused on its multiferroic
and linear optical properties. In this work, the nonlinear optical properties and optical limiting
behavior of BFO is reported.
Recently, there is a growing interest for materials with second and third order
nonlinearities as they found copious applications in opto-electronics. Second and third harmonic
2 2 6
generation (SHG/THG) responses of Bi ZnOB O single crystal studied by the Maker fringes
technique show comparable efficiency with that of BBO and KDP [6]. A novel composite of
same crystal with Ag nanoparticles embedded in PMMA polymer is also proposed for
optoelectronic devices which is operated by SHG [7]. An organic- inorganic compound Bi(III)I5
Iodobismuthate networks is found to be potential candidates for application in temperature
controlled SHG switches like sensitive optical temperature detectors [8]. Nonlinearity arises
when the material interacts with intense radiation and the nonlinear absorption i.e. change in
transmittance of a material as a function of intensity or fluence can be saturable or reverse
saturable one [9]. In the former, there will be an increase in transmittance with the increasing
2

ACCEPTED MANUSCRIPT
incident intensity while in the latter the reverse occurs. Different effects resulting from this
nonlinear absorption is employed in diverse areas covering large fields of photonic applications.
Saturable absorbers are useful in mode locking, pulse compression and Q-switching while
reverse saturable absorbers find applications in optical pulse processing like optical limiting and
optical pulse shorteners [10]. Optical limiting in a material can be caused by the effects like
excited state absorption (ESA), two or three photon absorption (2PA/3PA), free carrier
absorption, etc. The open aperture (OA) Z-scan technique devised by Sheik-Bahae et al. [11] has
been widely used for characterizing the third order optical nonlinearity. Following this technique,
many reports are available for the nonlinear optical characteristics of metal oxide nanoparticles,
nanocomposites and thin films. Lakshmi Reddy et al. [12] have described the 2PA with saturable
absorption and optical limiting property of copper zinc aluminium ferrite by solid state reaction
route. Reverse saturable absorption (RSA) based limiting behavior with 3PA in NiFe O
2
4
nanoparticles has been reported with nanosecond and femtosecond laser pulses [13]. Shiji
Krishnan et al. [14] have investigated the two photon assisted exited state absorption in YCrO
3
multiferroic. The present work reports RSA based optical limiting in BFO when excited with Nd:
YAG (532 nm, 5 ns) laser.
2
. Experimental Procedure
BFO nanoparticles were synthesized by metal ions complexing with malic acid (C H O )
4
6
5
by sol-gel method [15]. Nitrates of bismuth (Bi(NO
3
)
3
.5H
2
O) and iron (Fe(NO
3
)
3.9H
2
O)
precursors in 1:1 molar ratio (0.015M) were dissolved in distilled water and the solution was
adjusted to a pH 1 by adding few drops of nitric acid (HNO ). Malic acid solution with a molar
3
ratio of 1:2 to the metal nitrates was prepared in distilled water by holding a hot plate of
magnetic stirrer at 50
solution displayed yellow to orange colour after the addition of nitrates and turned brown upon
further heating. Continuous heating at 80 C led to the evaporation of solvents and auto-ignition
of the xerogel with the evolution of large quantities of brown fumes. The dark brownish powder
̊ C. Metal nitrate precursor solution was poured slowly to this and the
̊
obtained was ground well and calcined for two hours at 550
nanoparticles.
̊ C to obtain well crystallized
XRD was performed (RIGAKU, Cu Kα, λ=1.5406Å) to determine the crystalline phase
and crystallite size. FTIR was recorded (JASCO 460 PLUS) by KBr pellet method. FESEM (FEI
3

ACCEPTED MANUSCRIPT
QUANTUM FEG 200) along with EDS was employed to find out the morphology, particle size
and elemental composition of the sample. The thermo gravimetric and differential analysis were
carried out by TG/DTA (NETZSCH STA 449F3, upto 1000̊ C). UV-Visible (PERKIN ELMER
LAMBDA 35) and emission (FLUOROMAX 4) spectra were recorded. Room temperature
magnetic hysteresis loop was studied in a 7404 LAKESHORE vibrating sample magnetometer.
Electrical properties were evaluated with a ferroelectric loop tracer (Radiant Technologies, USA)
and an impedance phase analyzer (HIOKI 3535-50 LCR HITESTER) respectively. These were
performed on 1 mm thick pellet of BFO nanoparticles coated with silver paste to serve as
electrodes. To perform the Z-scan experiment, the second harmonic output from a Q-switched
Nd: YAG laser (Minilite, Continuum, 532nm, 5ns) was used. Energy transmitted by the sample
was measured using a pyroelectric energy probe (Rj7620, Laser Probe Inc.).
3
. Results and Discussion
3
.1 Structural Analysis
Fig.1 shows the XRD pattern of BFO calcined at 550
̊
C for 2 hrs. Heating the powder at
high temperature yields phase pure BFO with a perovskite structure and the pattern is in
excellent accord with JCPDS file 86-1518 [15]. Structural analysis did not reveal any other
parasitic phase related to the formation of impurity phases of bismuth ferric oxide such as
Bi Fe O , Bi FeO or Bi O or Fe O . Sharp diffraction peaks are observed reflecting the
2
4
9
25
40
2
3
2
3
greater crystallization of BFO. All the diffraction peaks are indexed to rhombohedral structure
with lattice parameters a= 5.580 and c= 13.865 Å where as the standard values are a=5.578 and
c= 13.862 Å. The average crystallite size D (35 nm) is evaluated by Debye-Scherrer equation
0
.94
λ
D =
(1)
β
cos
θ
where λ is the wavelength of X-ray, β is the full width at the half maximum and θ is the
diffraction angle.
4

ACCEPTED MANUSCRIPT

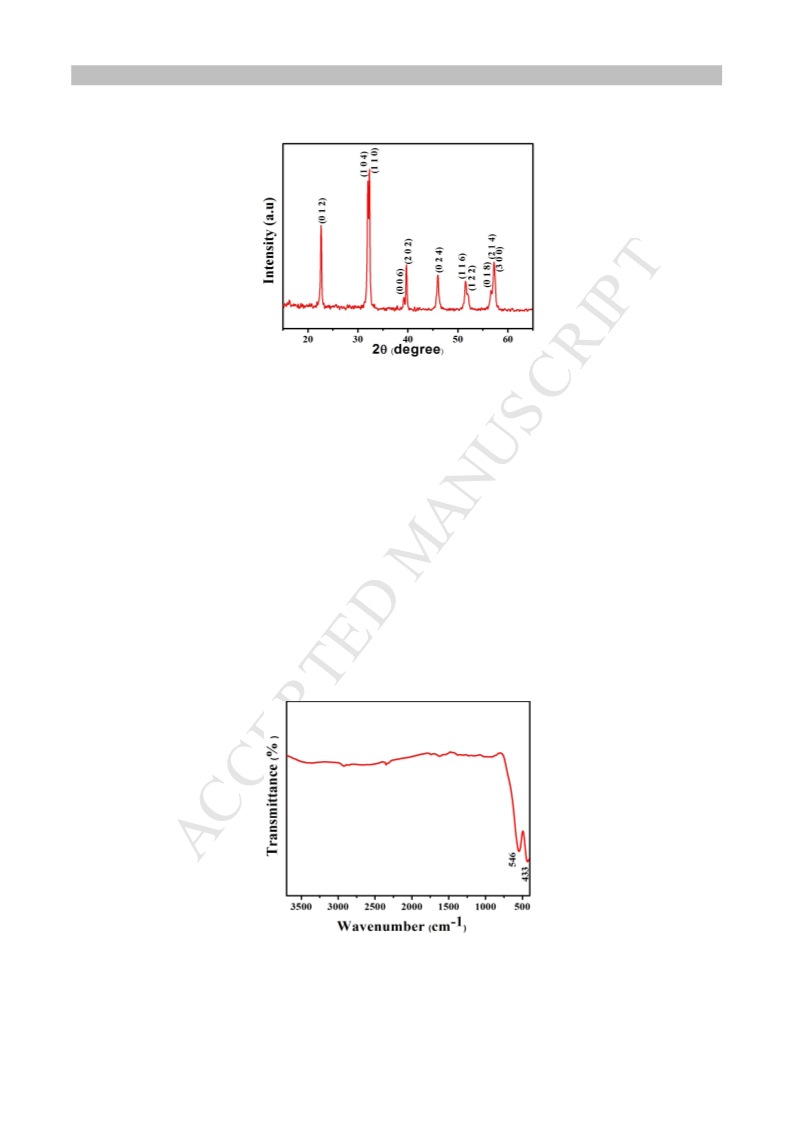

Fig.1 XRD pattern of BFO nanoparticles calcined at 500̊ C
-1
The absorption features at 546 and 433 cm are attributed to Fe-O stretching and
bending vibrations respectively being the characteristics of the FeO octahedral group in the
perovskites (fig.2). Manisha Arora et al. [16] have specified that the peaks at 550 and 440 cm
are due to the overlapping of Fe-O and Bi-O vibrations. BiO octahedral structure possesses
6
-1
6
-1
peaks at 525 and 450 cm due to the bending vibration of Bi-O. The small absorption bands at
-1
3
436 and 1620 cm are assigned to O-H stretching and bending vibrations respectively. Also the
-1
weak bands at 880 and 1360 cm are due to the existence of trapped nitrates on the surface [17,
8]. The morphology of BFO shows the spherical particles aggregated as clusters (fig.3) and the
1
average particle size is found to be 119 nm. From the EDS spectrum given in fig.S1, the molar
ratio of Bi: Fe is found to be ~1:1 in confirmation with the experimental procedure.
Fig.2 FTIR spectrum of BFO nanoparticles
5

ACCEPTED MANUSCRIPT

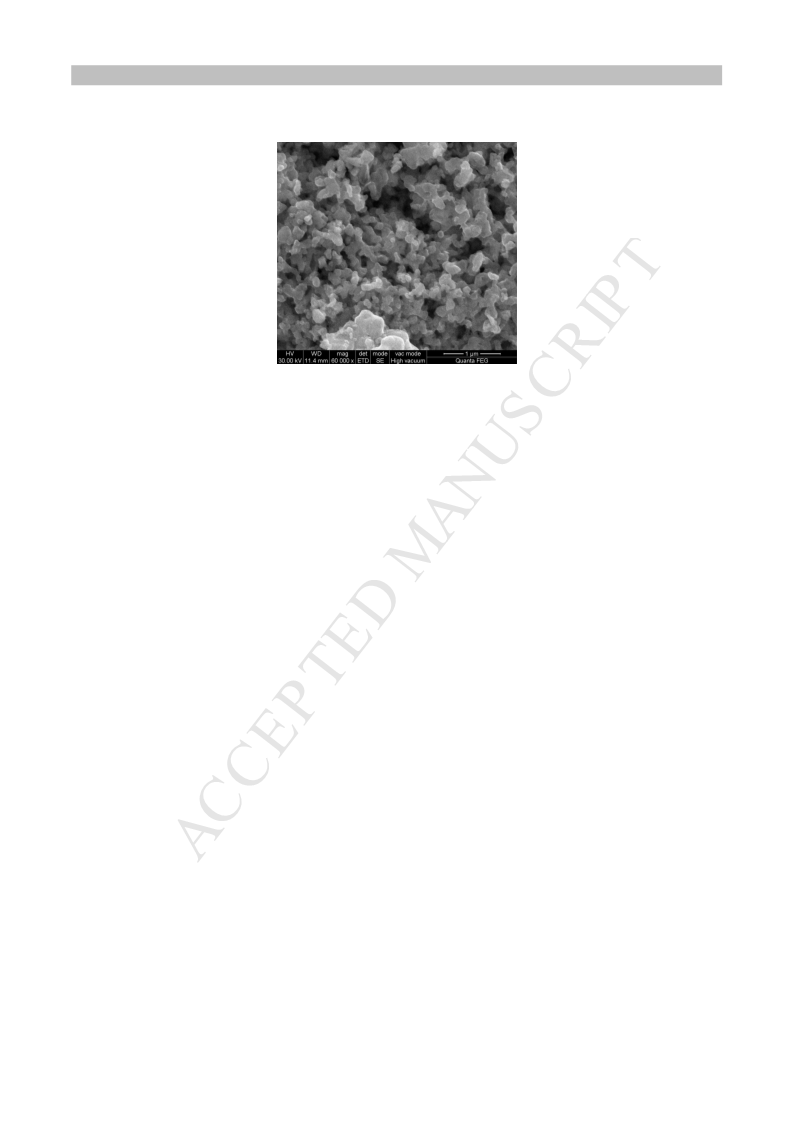

Fig.3 FESEM image of BFO nanoparticles
3
.2 UV-Vis absorption and fluorescence spectra
Linear absorption spectrum taken for the concentration of 10 mg/ml of BFO is given in
fig.4(a) and it reveals an absorption maximum at 454 nm. By calculating the absorption
2
coefficient, the bandgap is found from the (αhν) vs hν plot as ~1.92 eV consistent with literature
[18], where as the reported values are 2.12 eV (microcubes) [19] or 2.75 eV (thin films)[20].

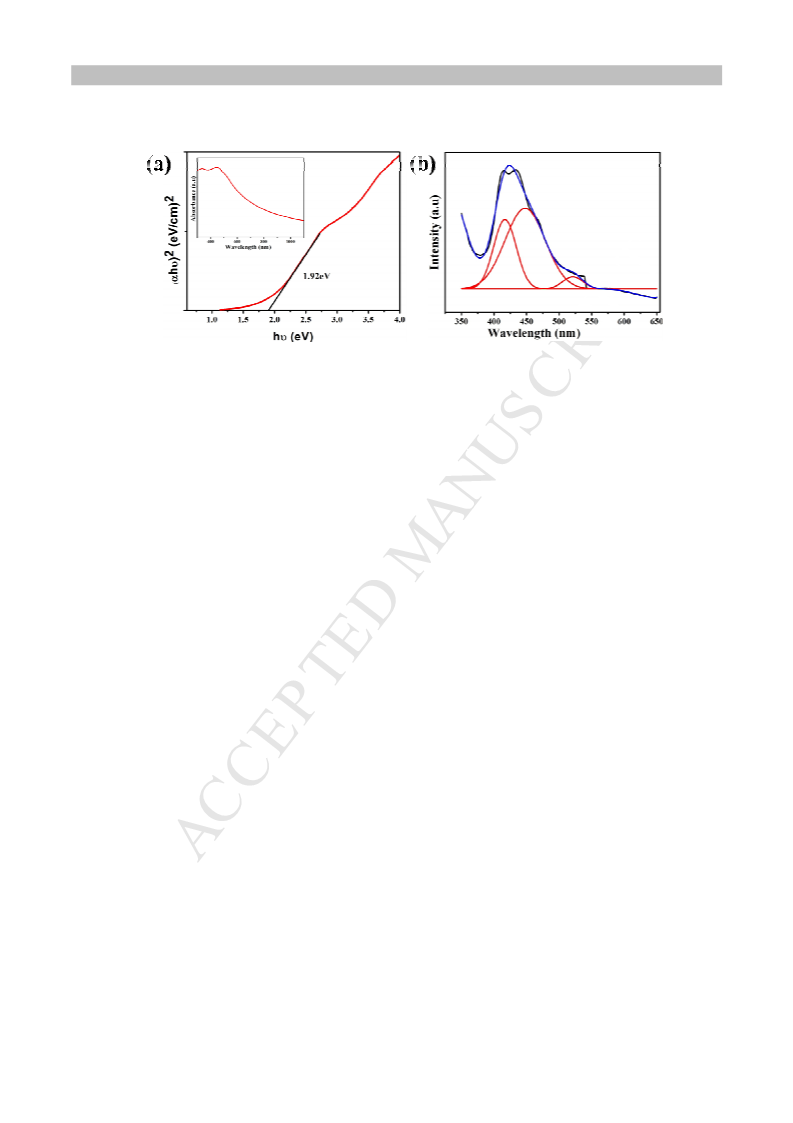

Fluorescence (FL) spectrum of BFO for an excitation wavelength of 330 nm at room temperature
is given in fig.4(b). Xuelian Yu et al. have pointed out that the FL spectrum of pure BFO shows
only a blue emission at 454 nm (2.7 eV) due to self activated centers arising from lattice defects
like vacancies and after Mn doping, a weak green emission at 518 nm is obtained [21]. Three
principal emissions, one near band edge emission at 485 nm, a weak emission at 529 nm
originated by defects at grain boundaries and a green emission at 545 nm due to oxygen
vacancies are discussed for BFO nanotubes for an excitation wavelength of 400 nm [22]. A
band-to-band transition at 460 nm and an oxygen vacancy related weak hump at 508 nm are
observed for BFO ceramics [23]. But in the prevailing trial, a weak green emission at 521 nm
(2.38 eV) along with two blue emissions at 417 (2.97 eV) and 450 nm (2.76 eV) are defect
related ones, disclosing a new freedom in nanoscale optical applications.
6

ACCEPTED MANUSCRIPT
Fig.4(a) Tauc’s plot and absorption spectrum (inset) and (b) fluorescence emission spectrum of
BFO nanoparticles
3
.3 Thermal Analysis
To investigate the thermal behavior of the calcined sample, TG-DTA has been carried out
fig.5). The TGA curve shows only a small weight loss (1.7 %) and there is no extra impurities
present for further decomposition. From the curve, it is confirmed that the crystallization of BFO
occurs at 450 C which is a criterion for selecting the temperature for calcination (550 C). A small
weight loss in the temperature range from 0 to 400 C is due to dehydration of the precursors and
the decomposition of nitrates. In the phase diagram of BFO, the first order ferroelectric to
paraelectric transition (rhombohedral – orthorhombic) at 825 C and the second order transition
orthorhombic – cubic) at 931 C have been reported [1]. In the present observation, the T is 821
C and an exothermic peak at 932
The first order transition is also accompanied by a volume contraction as evidenced from the
TGA curve. Above 940 C, BFO is very unstable and it quickly disintegrates into parasitic phases
such as Bi Fe and liquid Bi . The weight loss after second order transition indicates the
loss of Bi O through sublimation process.
(
̊
̊
̊
̊
(
̊
̊
C
̊
C corresponding to the second order transition is also found.
̊
2
4
O
9
2 3
O
2
3
7

ACCEPTED MANUSCRIPT
Fig.5 TGA curve of BFO nanoparticles calcined at 500̊ C and inset shows the DTA pattern
3
.4 Multiferroism
To investigate the room temperature magnetic properties of BFO nanoparticles, magnetic
measurements were performed. Magnetic hysteresis loop illustrated in fig.6 confirms a net
magnetization at 300K and as expected for G-type antiferromagnetic materials, saturation in
hysteresis loop is not attained. Though bulk BFO is antiferromagnetic, a ferromagnetic ordering
is found in nanosized BFO resulting from the canted spin arrangement followed by suppression
of helical structure [24]. The origin of magnetism is imputed to two possible reasons: 1) due to
incomplete antiferromagnetic spin spiral or 2) due to uncompensated surface spins. Incomplete
spin spiral is recounted to the particle size while uncompensated surface spins are related to the
presence of defects. For a particle size of 50 nm and an applied field of 22 kOe, magnetic
ordering has been reported because of the presence of residual magnetic moment by the
uncompensated spins on the surface and thus breaking the cycloid spin structure [25]. Enhanced
antiferromagnetic properties of BFO prepared by coprecipitation method have been reported
with particle size in 50-100 nm range [26]. The enhancement of M is conferred by Rajasree Das
r
et al. for Pr and Cr codoped BFO nanotubes having outer diameter of 250 nm and wall thickness
of 50 nm [27]. Apart from this, an increase in superparamagnetism aroused from the statistical
3
+
3+
distribution of Fe and Ni in the octahedra or due to the creation of lattice defects is found in
[28]. As evidenced from XRD and FL, the ferromagnetic behavior exhibited by
x 3
BiFe1-xNi O
present BFO is featured to the collective effects of lower particle size thus interrupting the
antiferromagnetic order and presence of vacancies related to the uncompensated surface spins.
8

ACCEPTED MANUSCRIPT
Fig.6 M - H hysteresis curve of BFO nanoparticles at room temperature
Polarization – electric field hysteresis loop of BFO at room temperature is depicted in
2
fig.7. Because of the repulsion of Bi 6s lone pair of electrons, there arises a relative
displacements of Bi and O ions resulting in net polarization. Even though the high leakage
current is an implicit problem in BFO, the P-E loop displayed under an external ac field of
frequency 10 Hz and strength ±10 kV/cm is an indirect indication of reduction in it. It is also
observed that for the given field, the P – E loop is not fully saturated though there is a
minimization of leakage current. A breakdown field was observed above 3500 V and the sample
did not provide any signal for further increase in voltage. In the present investigation, the
obtained values of P and E are low, but reliable with existing literature [29]. However,
r
c
r
2
comparatively low values of P
(~ 9 and 7 ꢀC/cm ) have been discussed for Ba0.1Gd0.05BFO and
Ba0.05Gd BFO ceramics respectively [30].A well saturated hysteresis loop with very large Pr
0.1
2
2
has been reported for undoped (2P ~168 ꢀC/cm ) [31] and co-doped (2P ~235 ꢀC/cm ) [32]
r
r
BFO thin films. Also, P-E values, very comparable to single crystals but almost half of the
reported values for ceramics have been gained by solid state reaction [33], but the particle size is
in micrometer (5-10 ꢀm). The obtained magnetic and ferroelectric parameters along with
available literature are listed in table 1.
9

ACCEPTED MANUSCRIPT
Fig.7 P - E loop of BFO nanoparticles at room temperature
Table 1: Comparison of room temperature ferromagnetic and ferroelectric parameters of BFO
nanoparticles
Magnetic Parameters
Ferroelectric Parameters
2
M
r
(emu/gm)
H
c
(Oe)
Ref.
[21]
P
r
(µC/cm )
E
c
(kV/cm)
Ref.
[25]
0.90
0.07
0.11
0.18
78
0.4
25
10
40
5
185
147
150
[25]
0.17
[29]
[26]
2.5
[33]
Present
0.08
Present
Frequency dependent (100 Hz – 5 MHz) dielectric measurement of BFO is carried out in
the temperature range 30 to 450 C (fig.S2 (a and b)). Both dielectric constant (ε’) and dielectric
̊
loss (ε”) increase with increasing temperature and a corresponding exponential decrease with
increasing frequency is observed. This behaviour is explained on the basis of dipole relaxation
indicating a large dispersion due to the Maxwell-Wagner type of interfacial polarization [16]. As
oxygen deficiency is an inherent problem in BFO, as verified from the FL spectrum, space
charge polarization is always present in it. Various polarizations such as electronic, atomic and
ionic, dipolar and space charge or interfacial have contributions to the total polarization. Here, in
10

ACCEPTED MANUSCRIPT
3
the low frequency range (~10 Hz) the interfacial polarization has much contribution thus
inducing high values of ε’ in that region. Dipolar polarization has effects only in the sub-infra red
3
6
8
11
region (10 – 10 Hz) and it does not follow the electric field in the microwave region (10 -10
Hz) [30]. So, these participating mechanisms gradually decrease as the frequency increases and
subsequently ε’ decreases. This high frequency independence explains the incompetence of
electric dipoles to be in pace with the applied field frequency. Frequency dependence of tan δ is
interpreted with Koop’s phenomenological theory [34]. High values of tan δ in the low frequency
region are featured to the low leakage current because of the large insulating boundaries between
the nanosize grains. Also there is a relaxation frequency accompanied by each polarization
mechanism causing maximum dielectric loss. Nyquist plots of imaginary versus real impedance
data as a function of temperature are shown in fig.8 (a). At low temperature and frequency, the
impedance plot shows a straight line almost parallel to imaginary axis but at high values, it
exhibits a semicircle. The semi circle is related to the grain interior resistance and the spike is
attributed to the effect of blocking electrode [35]. Fig.8 (b) depicts the temperature dependence
of ε’ for different frequencies. A sudden jump in ε’ at 350
̊
C signifying the ferromagnetic to
. In the case of
paramagnetic phase transition is observed at the proximity of T
N
magnetoelectrically ordered systems, this type of irregularity is predicted by the Landau –
Devonshire theory of phase transition and it signifies the polarization-magnetization coupling
[36].
Fig.8 (a) Nyquist plot at 125 - 450
̊ C (30 - 100̊ C in inset) and (b) Temperature dependent
dielectric constant for BFO nanoparticles at various frequencies
11

ACCEPTED MANUSCRIPT
3
0
.5 Nonlinear absorption and optical limiting behavior
The sample for the Z-scan experiment was prepared by dispersing the nanoparticles in
.03 g/ml concentration in ethylene glycol. To begin with, the experiment was performed for the
solvent alone and it shows only a negligible absorption. The prepared nanoparticle solution taken
in a 1 mm cuvette was irradiated by the second harmonic output of the Nd: YAG laser (532 nm,
5
ns, 10 Hz). The sample had a linear transmission of 70% and the direction of the laser beam (d
=
3 mm) was fixed as Z-axis. By focusing the beam, which was spatially Gaussian, using a
converging lens (f = 10 cm) and by translating the sample in the region near the focal point (z=0),
the optical intensity seen by the sample can be varied. The transmittance as a function of sample
position was measured for two input laser pulse energies of 50 and 100ꢀJ. The nonlinear
transmittance plotted against the sample position gives the open aperture Z-scan curve, from
which the nonlinear absorption coefficient and optical limiting threshold are obtained.
Considering the nonlinear optical properties, there is a crucial distinction associated with
the nonlinear absorption properties whether the photon energy of the laser field is greater than or
smaller the band gap energy [37]. In the present work, the energy of the laser is greater than the
bandgap of the material (ђω (2.33 eV) > E (1.92 eV)). For this case, nonlinear response occurs
g
as the result of band to band transitions resulting in an increase in conduction band electron
density. The change in this electron concentration leads to several mechanisms like free-electron
response, excited state absorption, plasma screening effects, band filling effects etc. resulting in a
change in optical properties.
In general, the depth of the valley in the Z-scan experiment is a direct indication of the
large excited state absorption compared to the ground state absorption, indicating the optical
limiting efficiency of the materials [38]. Increase in the excited state population is an evidence
for the increase in absorption with input fluence and the corresponding transmittance shows RSA
characteristics. Since RSA involving two photons is numerically similar to two-photon
absorption, the measured Z-scan data is numerically best-fitted to two-photon type absorption,
given by the equation
+
∞
2
)
exp
(
π
−
α
L
)
2
T
(
z
)
=
(1− R
ln
[
1+ q exp
(− x
)
]
dx
(2)
∫
0
q0
−∞
12

ACCEPTED MANUSCRIPT
where T(z) is the normalized energy transmittance. Here, L and R are the sample length and
surface reflectivity, respectively. It is known that when excited with nanosecond pulses, both
excited singlet and/or triplet states have significant contribution to nonlinear absorption and is
anticipated as saturable absorption along with effective two photon absorption. 2PA described by
fourth rank polar tensors is related to the imaginary part of the third order nonlinear
(
3)
susceptibility χ and hence does not require non-centrosymmetry. Then the nonlinear absorption
coefficient α is given by
α 0
α
(
I
)
=
+ β I

I 
(3)
1
+




Is


s
where I is the laser intensity, I is the saturation intensity and αₒ is the unsaturated linear
absorption coefficient of the sample. q (z,t) is given by
0
q0 =
β (1− R)I L
0 eff
(4)
where I is the peak on-axis intensity incident on the material and β is the effective 2PA
0
coefficient, which characterizes the strength of nonlinear absorption. L is given by
eff
1
− exp(−α L)
Leff
=
(
5)
α
The corresponding nonlinear propagation equation is given by







dI
α 0

=
−
+
β
I I
(6)



dz'
 I 
1

+ 



Is



where z’ is the distance of propagation within the sample. Fig.9 shows the measured Z-scan
curves. Open circles denote the data points and solid curves are the best numerical fits. Limiting
threshold is the input fluence at which the transmission decreases to 50 % of the linear
transmission due to nonlinearity. The sample transmission versus input fluence plot for 100
ꢀJ
(which is the optical limiting curve, extracted from Z-scan data) is given in fig.10. Limiting
13

ACCEPTED MANUSCRIPT
behavior for 50
ꢀJ is provided in fig.S3. The obtained values of nonlinear absorption coefficient
β
, saturation intensity I and optical limiting threshold for 50 and 100 ꢀJ and reported values of
s
some spinel ferrites (532 nm, 5 ns, 0.2 Hz) are shown in table 2. It is known that thermally
induced scattering reduces the transmitted energy when the sample is close to the beam focus. In
the present case, this effect is not studied.
In the case of Bi doped ZnO thin films, RSA based optical limiting with
β increasing
-11
from 1.02 to 5.76 x10 m/W for a Bi concentration of 1 to 5 at.% is attributed to the increased
number of thermally agitated particles due to Bi concentration [39]. Dependence of surface
roughness of these thin films on second and third order nonlinear susceptibilities is also studied
by Abed et al.[40]. A switching from RSA to SA is found in EDT – TTF - Terpy ligand with Ru
and Fe metal complexes using Nd: YVO laser (532 nm, 30 ps, 10 Hz) due to the introduction of
4
-10
metal cations which change the energy levels of the system. The observed
β
is 0.64 x 10 m/W
-10
[
41] which is comparable to the present study (0. 87 x 10 m/W). In perovskites, multiferroic
-24
3
2
3
YCrO shows nonlinearity with a 3PA coefficient of 4.5 x 10 m /W under the irradiation of
nanosecond pulses [14]. The observed fifth order nonlinearity is considered as 2PA followed by
ESA. El-Bey et al. [42] have observed 2PA and an enhancement of THG in multiferroic
Bi
2
Fe
4
O
9
near antiferromagnetic phase transition by the application of an external magnetic field
2
(
0.3 T) and photoinduced power density (0.9 mJ/cm ) due to magneto-electric coupling.
Fig.9 Z – scan curves of BFO nanoparticles for 50 and 100ꢀJ
14

ACCEPTED MANUSCRIPT
Fig.10 Optical limiting behavior of BFO nanoparticles, extracted from the Z-scan data.
Table 2: Effective 2PA coefficient, saturation intensity and limiting threshold for some ferrites.
Input
Energy
Limiting
β
I
s
Sample
ZnFe O
Ref.
-10
11
2
Threshold
(
×10 m/W) (×10 W/m )
2
(µJ)
(J/cm )
12
5
5
2.23
1.60
1.49
2.09
1.94
[38]
[38]
2
4
NiZnFe O
12
12
50
5.8
5
2
4
CuZnFe
2
O
4
7.9
5.2
9.5
22
[38]
BiFeO3
BiFeO3
0.87
0.89
Present
Present
100
4
. Conclusion
Using malic acid as chelating agent, BFO nanoparticles have been prepared by sol-gel
method and TGA reveals the formation of BFO at 550 C. Powder XRD verifies the single phase
rhombohedral structure with average crystallite size of 35 nm. FTIR reveals the overlapping of
̊
-1)
-1
6
stretching (546 cm and bending (433 cm ) vibrations of Bi-O and Fe-O bonds in BiO and
FeO octahedral groups. The UV – Vis absorption spectrum signifies a much higher utilization of
6
visible light with a direct band gap of 1.92 eV. In fluorescence spectrum, blue (417, 450 nm) and
green (521 nm) defect related emissions indicate its potential applications in light emitting
diodes. Ferroelectric to paraelectric transition at 821̊ C and orthorhombic to cubic structural
15

ACCEPTED MANUSCRIPT
transition at 932
̊
r
C are noticed in DTA. M-H loop shows ferromagnetism (M = 0.18 emu/gm)
compared to the antiferromagnetic bulk resulting from the suppression of helical structure and
the uncompensated surface spins due to defects. P-E loop specifies the ferroelectric behavior
with incomplete hysteresis due to leakage current. An increase in both dielectric constant and
loss with temperature lead to capacitor application of BFO and a ferromagnetic to paramagnetic
N
phase transition at 350̊ C at the vicinity of T is observed. From the open aperture Z-scan
-10
measurements, BFO is found to exhibit nonlinear absorption (0.87×10 m/W) with a low
2
limiting threshold (1.94 J/cm ), making BFO an efficient optical limiter for the protection of
optical sensors.
References:
1
2
. Gustau Catalan, James F. Scott, Adv. Mater. 21 (2009) 2463 - 2485.
. H. Bea, M. Bibes, S. Cherifi, F. Nolting, B. Warot-Fonrose, S. Fusil, G. Herranz, C. Deranlot,
E. Jacquet, K. Bouzehouane, A. Barthelemy, Appl. Phys. Lett. 89 (2006) 242114.
. Pi-Chun Juan, Jyh-Liang Wang, Tsang-Yen Hsieh, Cheng-Li Lin, Chia-Ming Yang, Der-
Chi Shye, Microelectron. Eng. 138 (2015) 86 - 90.
3
4
5
6
7
8
. Guangzhi Dong, Huiqing Fan, Hailin Tian, Jiawen Fang, Qiang Li, RSC Adv.
9618 - 29623.
. Soumyo Chatterjee, Abhijit Bera, Amlan J. Pal, Appl. Mater. Interfaces 6 (2014) 20479 –
0486.
5 (2015)
2
2
. K. Iliopoulos, D. Kasprowicz, A. Majchrowski, E. Michalski, D. Gindre, B. Sahraoui, Appl.
Phys. Lett. 103 (2013) 231103.
. A. Majchrowski, A. Wojciechowski, L. R. Jaroszewicz, M. Chrunik, A. Fedorchuk, B.
Sahraoui, I. V. Kityk, J. Mater. Sci.: Mater. Electron. 25 (2014) 2426 - 2434.
. Wenhua Bi, Nicolas Louvain, Nicolas Mercier, Jerome Luc, Ileana Rau, François Kajzar,
Bouchta Sahraoui, Adv. Mater. 20 (2008) 1013 - 1017.
9
1
. R.L. Sutherland, Handbook of Nonlinear Optics, Marcel Dekker, New York (1996) Chapt.9.
0. Xiao-Fang Jiang, Lakshminarayana Polavarapu, Shu Ting Neo, T. Venkatesan,
Qing-Hua Xu, J. Phys. Chem. Lett.
3 (2012) 785 - 790.
1
1
1. M. Sheik-Bahae, A. A. Said, E.W. Van Stryland, Opt. Lett. 14 (1989) 955 - 957.
2. S. Lakshmi Reddy, T. Ravindra Reddy, Nivya Roy, Reji Philip, Ovidio Almanza Montero,
16

ACCEPTED MANUSCRIPT
Tamio Endo, Ray L. Frosy, Spectrochim. Acta Mol. Biomol. Spectros. 127 (2014) 361 - 369.
3. Kishore Sridharan, Milan Agarwal, Jacob Philip, Tamio Endo, Reji Philip, Trans. Mater. Res.
Soc. Jpn. 35 (2010)159 - 162.
1
1
1
1
4. Shiji Krishnan, C.S. Suchand Sandeep, Reji Philip, Nandakumar Kalarikkal, Chem. Phys.
Lett. 529 (2012) 59 - 63.
5. Sverre M Selbach, Mari-Ann Einarsrud, Thomas Tybell, Tor Grande, J.Am..Ceram.Soc. 90
(2007) 3430 - 3434.
6. Manisha Arora, P.C Sati, Sunil Chuhan, Sandeep Chhoker, A.K Panwar, Manoj Kumar,
J. Supercond. Nov. Magn. 26 (2013) 443 - 448.
1
1
7. S. Ghosh, S. Dasgupta, A. Sen, H.S. Maiti, J. Am. Ceram. Soc. 88 (2005 )1349 - 1352.
8. Xiao Ying Guan, Zhong Wang Qiaoi, Deng Zhou Yani, Yan Fei Suni, Jin Li, J. Mater. Sci.:
Mater. Electron 26 6 (2015) 807 - 6813.
1
2
9. S. Li, Y. Lin, B. Zhang, Y. Wang, C.Nan, J.Phys. Chem. C 114 (2010) 2903 - 2908.
0. Cameliu Himcinschi, Ionela Vrejoiu, Marion Friedrich, Li Ding, Christoph Cobet, Norbert
Esser, Marin Alexe, Dietrich R. T. Zahn, Phys. Stat. Sol. C
1. Xuelian Yu, Xiaoqiang An, Solid State Commun. 49 (2009) 711 - 714.
2. N. Miriyala, K. Prashanthi, T.Thundat, Phys. Stat. Sol. RRL (2013) 668 - 671.
7 (2010) 296 - 299.
2
2
2
7
3. Vikash Singh, Subhash Sharma, R.K. Dwivedi, Manoj Kumar, R.K. Lotnala, Phys.
Stat. Sol. A 210 (2013) 1442 - 1447.
2
2
2
4. I. Sosnowska, T.Peterlin-neumaier, E.Steichele, J. Phys. C: Solid State Phys.15 (1982)
4
835 - 4846.
5. Sanjay Godara, Nidhi Sinha, Geeta Ray, Binay Kumar, J. Asian Ceram. Soc.
21.
2
(2014) 416 –
4
6. M. Muneeswaran, P. Jegatheesan, M. Gopiraman, Ick-Soo Kim, N.V. Giridharan,
Apply. Phys. A 114 (2014) 853 - 859.
2
2
2
7. Rajasree Das, Gobinda Gopal Khan, Kalyan Mandal, J. Appl. Phys. 111 (2012) 104115
9. Weiwei Hu, Yan Chen, Hongming Yuan, Guanghua Li,.
8. Amit Kumar, K. L. Yadav, Physica B 405 (2010) 4650 - 4654. Yu Qiao, Yuanyuan Qin,
Shouhua Feng, J. Phys. Chem. C 115 (2011) 8869 - 8875
0. Rajasree Das, Tanushree Sarkar, K.Mandal, J. Phys. D: Appl. Phys. 45 (2012) 455002.
1. J. Wu, J. Wang, D. Xiao, J. Zhu, Appl. Mater. Interfaces (2012) 1182 - 1185.
.
3
3
4
17

ACCEPTED MANUSCRIPT
3
3
2. J. Wu, S.Qiao, J. Wang, D. Xiao, J. Zhu, Appl. Phys. Lett. 102 (2013) 052904.
3. A. K Pradhan, Kai Zhang, D. Hunter, J.B Dadson, G.B Louts, J.Appl. Phys. 97 (2005)
0
939039.
3
3
4. C.G Koops, Phys. Rev. 83 (1951) 121 - 124.
5. D. Arun Kumar, S. Selvasekarapandian, H. Nithya, A. Sakunthala, M.Hema, Physica B 405
2010) 3803 - 3807.
3
3
3
6. V.R Palkar, D.C Kundaliya, S.K Malik, S. Bhattacharya, Phys. Rev. B 69 (2004) 212102.
7. Robert W. Boyd, Nonlinear Optics, Rochester, New York, USA (2003) Chapt. 4.
8. Panit Chantharasupawong, Reji Philip, Tamio Endo, Jayan Thomas, Appl. Phys. Lett. 100
(
2012) 221108.
9. S. Abed, K. Bouchouit, M.S. Aida, S. Taboukhat, Z. Sofiani , B. Kulyk , V. Figa, Opt. Mater.
(2016) 10 - 14.
3
4
4
4
5
6
0.
S. Abed, H. Bougharraf, K. Bouchouit, Z. Sofiani, B. Derkowska-Zielinska, M S. Aida, B.
Sahraoui, Superlattices Microsrtuct. 85 (2015) 370 - 378.
1. K. Iliopoulos, A. El-Ghayoury, H. El Ouazzani, M. Pranaitis, E. Belhadj, E. Ripaud, M.
Mazari, M. Sallé, D. Gindre, B. Sahraoui, Opt. Express 20 (2012) 25311 - 25316.
2. A. El-Bey, T. El Bahraoui, M. Taibi, A. Belayachi, A M.Abd-Lefdil1, A. M. El-Naggar,
A.A.Albassam, A.O.Fedorchuk, G.Lakshminarayana, P.Czaja , I.V.Kityk, J. Alloys Compd.
(accepted manuscript, doi:10.1016/j.jallcom.2016.05.130 (2016).
Acknowledgement
The authors sincerely thank the Department of Science and Technology (DST-FIST),
Government of India for the instrumentation facilities.
18

ACCEPTED MANUSCRIPT
Research Highlights
•
•
•
•
Single phase BiFeO
3
nanoparticles by sol-gel method.
Room temperature multiferroic properties.
Verification of magnetic transition from dielectric analysis.
Reverse saturable absorption (RSA) based optical limiting behavior with low limiting
threshold.
