CHEMCATCHEM
FULL PAPERS
piece of the monolith (0.5 cm) was cut off and characterized. This
sample was denoted by the name of the support followed by
“fresh”. The metal uptake was calculated from the analysis of the
initial and final solutions by inductive coupled plasma-optical spec-
trometry (ICP-OES).
Experimental Section
Growth of un-doped CNFs and N-doped CNFs on cordierite
monoliths
The CNFs and N-CNFs were grown on cordierite monoliths accord-
ing to literature procedures.[17,18] Cordierite monoliths (diameter:
1 cm, length: 5 cm, 400 cpsi; Corning) were wash-coated with alu-
mina by using a dip-coating method that was similar to the sol-gel
coating method described by Nijhuis et al.[19] In this method, a sol
was prepared from pseudoboehmite (AlOOH, Pural; Sasol), urea,
and a 0.3m aqueous solution of nitric acid with a weight ratio of
2:1:5. After stirring for 30 min, the dried monolith was dipped in
the sol. The liquid inside the monolith channels was removed by
thoroughly flushing with pressurized air and then drying at RT for
24 h, with continuous rotation around its axis. Finally, the monolith
was calcined in air at a rate of 1 KminÀ1 up to 873 K to obtain the
g-alumina wash-coating.
Nickel was deposited by adsorption from a pH-neutral solution ac-
cording to a literature procedure.[20] Ni(NO3)2·6H2O (29 g; Sigma–Al-
drich), NH4NO3 (80 g; Sigma–Aldrich), and ammonia solution (25%,
4 mL) were mixed in a 1 liter bottle. The monolith samples were
kept overnight in this solution under a continuous flow of the
liquid through their channels. Then, the monoliths were rinsed
thoroughly with deionized water, followed by drying first at RT
overnight and then at 373 for 1 h. Subsequently, the monoliths
were calcined in a flow of nitrogen gas (1 KminÀ1) up to 873 K, fol-
lowed by a dwell time of 2 h. The Ni content in the monoliths was
measured by inductive coupled plasma-optical emission spectros-
copy (ICP-OES).
Subsequently, the monolith was rinsed with copious amounts of
water, dried at 380 K, calcined under a N2 atmosphere, and re-
duced in a flow of H2 at 473 K by using a heating rate of 1KminÀ1
.
The sample after this calcination and reduction treatment was de-
noted by the name of the support followed by “reduced”.
Characterization
Ex situ XPS spectra were recorded on an ESCAPlus Omnicrom
system that was equipped with an AlKa radiation source to excite
the sample. Calibration of the instrument was performed with the
Ag 3d5/2 line at 368.27 eV. All of the measurements were performed
under ultrahigh vacuum (UHV, <10À10 Torr). Internal referencing of
the spectrometer energies was performed by using the dominant
C 1s peak of the support at 284.6 eV and the Al 2p peak at 74.3 eV.
The program that was used to perform the curve-fitting of the
spectra was CasaXPS after performing a baseline Shirley method.
Because the binding energy of Ru 3d overlapped with the C 1s
region (284.6), we used the Ru 3p3/2 region (458–468 eV) to deter-
mine the atomic content of ruthenium species in the catalyst. The
analysis of the Ru XPS peak enabled the determination of Ru8,
Ru4+, and Ru hydrate at 461.2–461.6, 463.4–463.8, and 465.7–
466.1 eV, respectively.[21,22]
In situ XPS was also performed. To this end, prior to recording the
XPS spectra, the passivated catalyst was reduced in situ with a flow
of H2 at 473 K. Therefore, the reduced sample was not exposed to
air before the XPS measurements, thereby avoiding re-oxidation.
The size of the Ru nanoparticles on the carbon nanofibers was
studied by using scanning transmission electron microscopy
For the growth of the CNFs and N-CNFs, the monoliths were fitted
in a quartz reactor by wrapping in a quartz band. The reduction of
the calcined catalyst was performed under a hydrogen atmosphere
at 823 K for 120 min (5 KminÀ1). Then, the monolith was heated
(5 KminÀ1) to 873 K. Once this temperature had been reached,
(STEM) on
a FEI TECNAI F30 electron microscope that was
a
gaseous mixture of C2H6/H2 (50:50) or C2H6/NH3 (50:50,
100 mLminÀ1, standard temperature and pressure) was fed into
the reactor for the growth of samples, which were denoted as
CNFs and N-CNF, respectively. The growth of the CNFs was allowed
to proceed for 2 h, following up by cooling under an inert atmos-
phere. This reaction time was long enough for the catalyst to be
deactivated, as corroborated by gas chromatography analysis of
the flue gas.
equipped with a Gatan Energy Filter and a cold-field emission gun
(FEG) operating at 300 kV with a lattice resolution of 1.5 ꢄ. TEM
specimens were prepared by ultrasonically dispersing the powder
that was retrieved from the monoliths in EtOH. A drop of the sus-
pension was applied to a holey carbon support grid. The particle-
size distribution was calculated by statistical analysis of 300 parti-
cles on the CNF from about 20 images.
Temperature-programmed reduction (TPR) profiles were measured
on a Micromeritics PulseChemisorb 2700. After placing the sample
in the holder and flowing a mixture of 10% H2 in Ar, the tempera-
The CNF-monolith was also subjected to oxidation treatment with
H2O2 at RT for 20 h. During this treatment, H2O2 was continuously
flowed through the channels of the monolith. This sample was de-
noted as O-CNF.
ture was increased from 313 to 573 K at a rate of 5 KminÀ1
.
Catalytic testing
Adsorption of the Ru precursor onto the CNF-based
supports

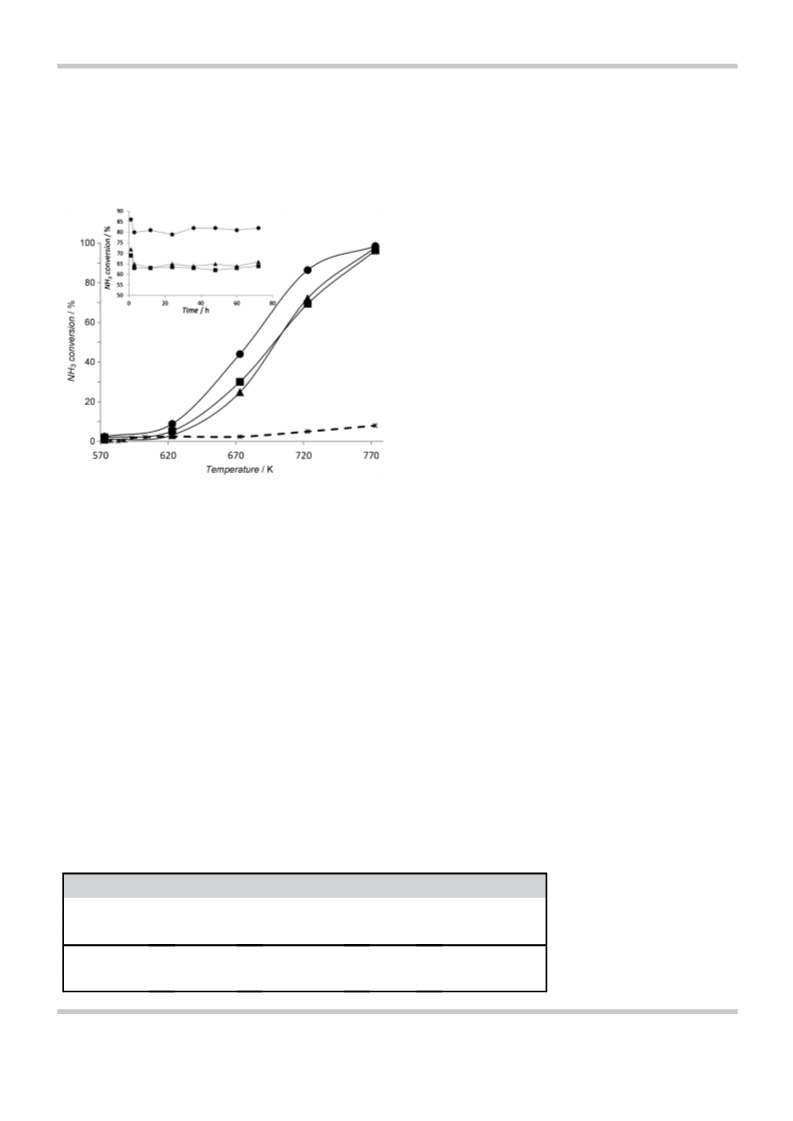

To compare the intrinsic activity of the catalysts for NH3 decompo-
sition, the monoliths were crushed into powders with particle
size<100 mm. The powdered catalyst (200 mg) was diluted with
SiC and placed between quartz wool in the middle of a reactor
tube (6 mm i.d.). Subsequently, the reactor was placed in the con-
stant-temperature zone of a furnace that was equipped with a tem-
perature controller (Eurotherm). The flow rate of the feed gas (5%
anhydrous ammonia in Ar) that was used for the catalyst testing
was fixed at 33 mLminÀ1 by using Bronkhorst mass-flow control-
lers. The reactant dilution minimized the increase in volume at
high conversion. The absence of diffusional limitations was as-
sessed by applying the Weisz–Prater criterion.[23] The absence of
external diffusion limitations was corroborated because increasing
the flow rate did not lead to a further increase in activity.
For the adsorption of the metal-nanoparticle precursor onto the
CNF-, O-CNF-, and N-CNF-coated monoliths, an equilibrium-adsorp-
tion method was used. First, an aqueous solution of Ru nytrosil ni-
trate ([Ru(NO)(NO3)], 40 mL) was prepared. The amount of metal
that was added into the solution was calculated to be 5 wt.% with
respect to the weight of the CNFs, which led to a ruthenium con-
centration of 500–700 ppm in the solution. The CNF-, N-CNF-, and
O-CNF-coated monoliths were introduced into a tube with the
metal solution and the vial was continuously rotated overnight
perpendicular to the axial direction. This procedure guaranteed the
continuous flow of the liquid through the channels of the mono-
lith and the homogenization of the solution. After this step, a small
ꢃ 2013 Wiley-VCH Verlag GmbH & Co. KGaA, Weinheim
ChemCatChem 2013, 5, 3829 – 3834 3830
