Conversion of chloromethane to propylene over fluoride-treated H-ZSM-35 zeolite catalysts

Article abstract of DOI:10.1016/j.catcom.2018.10.029

H-ZSM-35 with 2D channel intersections has been first found to be an effective catalyst over chloromethane transformation into propylene. Fluoride treatment is further introduced to improve the catalytic performance. With a proper concentration of fluoride treatment, the selectivity and yield of propylene can be enhanced significantly while a high propylene/ethylene ratio is achieved. Detailed characterizations demonstrate that dealumination caused by fluoride treatment results in a reduction in acidic sites, which is responsible for the improvement of catalytic performance.

Full text of DOI:10.1016/j.catcom.2018.10.029

Accepted Manuscript
Conversion of chloromethane to propylene over fluoride-treated
H-ZSM-35 zeolite catalysts
Ting Xu, Huikang Liu, Qianyi Zhao, Shiyu Cen, Lifang Du,
Qinghu Tang
PII:
S1566-7367(18)30560-0
doi:10.1016/j.catcom.2018.10.029
CATCOM 5540
DOI:
Reference:
To appear in:
Catalysis Communications
Received date:
Revised date:
Accepted date:
4 August 2018
22 October 2018
29 October 2018
Please cite this article as: Ting Xu, Huikang Liu, Qianyi Zhao, Shiyu Cen, Lifang Du,
Qinghu Tang , Conversion of chloromethane to propylene over fluoride-treated H-ZSM-35
zeolite catalysts. Catcom (2018), doi:10.1016/j.catcom.2018.10.029
This is a PDF file of an unedited manuscript that has been accepted for publication. As
a service to our customers we are providing this early version of the manuscript. The
manuscript will undergo copyediting, typesetting, and review of the resulting proof before
it is published in its final form. Please note that during the production process errors may
be discovered which could affect the content, and all legal disclaimers that apply to the
journal pertain.

ACCEPTED MANUSCRIPT
Conversion of Chloromethane to Propylene over Fluoride-treated H-ZSM-35
Zeolite Catalysts
Ting Xu*, Huikang Liu, Qianyi Zhao, Shiyu Cen, Lifang Du, Qinghu Tang
School of Chemistry and Chemical Engineering, Henan Key Laboratory of Boron Chemistry and Advanced
Energy Materials, Key Laboratory of Green Chemical Media and Reactions, Ministry of Education,
Collaborative Innovation Center of Henan Province for Green Manufacturing of Fine Chemicals, Henan
Normal University, Xinxiang, Henan 453007, China.
Abstract
H-ZSM-35 with 2D channel intersections has been first found to be an effective catalyst over
chloromethane transformation into propylene. Fluoride treatment is further introduced to improve the catalytic
performance. With a proper concentration of fluoride treatment, the selectivity and yield of propylene can be
enhanced significantly while a high propylene/ethylene ratio is achieved. Detailed characterizations
demonstrate that dealumination caused by fluoride treatment results in a reduction in acidic sites, which is
responsible for the improvement of catalytic performance.
Keywords
Propylene, Chloromethane, H-ZSM-35, Fluoride treatment, Structural properties, Acidity
1
. Introduction
Propylene is an important and widely used raw material. The existing propylene production routes suffer
from energy consuming, high cost and low efficiency. Therefore, it is imperative to develop new non-
petroleum and economically feasible pathways to produce propylene. As a low cost and energy-efficient path,
the conversion of methyl halide to hydrocarbons has attracted much attention [1].
The production of light olefins including ethylene, propylene and butylene from methyl halide has been
well studied over SAPO-34 and ZSM-5 catalysts [2-10]. However, little attention was paid on the selectivity
of propylene which is more demanded compared with other light olefins. As far as we know, there is only one
example reported by Wang et al. concerning on the selective production of propylene from methyl halides
[
11]. Fluoride-treated H-ZSM-5 was employed as the catalyst over which high propylene yield and
propylene/ethylene ratio (P/E ratio) was obtained.
In a comparative study, Haw et al. found that H-Ferrierite with 2D channels (FER topology, Scheme 1Sa)
were more preferable to produce light olefins than H-ZSM-5 with 3D channels (MFI topology, Scheme 1Sb)
in the methanol-to-olefins (MTO) reaction [12]. Because of the resemblance of MTO and methyl halide-to-
olefins (MeXTO) reaction [13], the zeolites with FER topology may exhibit better catalytic performance in
the MeXTO reaction compared with H-ZSM-5. Previously, only one FER zeolite catalyst (H-ZSM-35) was
preliminarily attempted by Liu et al. in the MeXTO reaction under high partial pressure of chloromethane [14].
Without any further regulation, H-ZSM-35 showed low activity. However, it is still reasonable to believe that
zeolites with FER topology might demonstrate excellent performance in the MeXTO reaction with moderate
modification and reaction condition.

ACCEPTED MANUSCRIPT
In this paper, we employ H-ZSM-35 zeolite as the catalyst for the selective conversion of chloromethane
to propylene. Modification of H-ZSM-35 by impregnation with NH F aqueous solution is introduced to
4
improve the catalytic activity. The influence of fluoride treatment on the structure, acidity and catalytic
performance of H-ZSM-35 is investigated in detail. Key factors determining the catalytic behaviors and the
roles of fluoride treatment are also discussed.
2
. Experimental
2
.1 Catalyst preparation
Na-ZSM-35 was prepared via the static hydrothermal method reported by Hu et al. using pyrrolidine as a
structure directing agent (SDA) [15]. The molar composition of the starting gel is 1.56Na O: Al O : 25SiO :
2
2
3
2
6
00.73H O: 18.96SDA. In a typical synthesis, 2 g of sodium hydroxide and predetermined amount of sodium
2
aluminate were dissolved in 85.5 mL of distilled water to form a clear solution. Subsequently, 37.45 g of
colloidal silica (40wt% in aqueous solution) was added dropwise under vigorous stirring. After stirring for 2 h,
1
5.8 mL of pyrrolidine was added. Followed by stirring of 1 h, the suspension was transferred into a Teflon-
lined stainless-steel autoclave and heated at 170 °C for 48 h. After crystallization, the resultant mixture was
filtered, washed and dried at 100 °C overnight to yield a white solid. Finally, the obtained solid was calcined
at 550 °C in air for 10 h. To prepare the proton form, Na-ZSM-35 was impregnated with 1 M NH NO3
4
solution (1 g sample vs 20 mL solution) at 80 °C for 4 h followed by filtering, washing, drying and calcination
at 550 °C for 6 h. The obtained sample is denoted as H-ZSM-35.
The fluoride treatment reported by Wang et al. [11] was performed on H-ZSM-35. Typically, 2 g H-
ZSM-35 was immersed into 50 mL NH F aqueous solution. The concentration of NH F solution varied from
4
4
0
.02 to 0.06 M. The mixture was stirred at room temperature for 6 h. Afterwards, the suspension was vapored
at 80 °C until dryness. The yielded solid was calcined at 600 °C for 6 h to produce the catalyst which is
denoted as H-ZSM-35-xM where x represent the concentration of NH F solution used for fluoride treatment.
4
2
.2 Catalyst characterization
Powder X-ray diffraction (XRD) patterns were gained on D8 ADVANCE diffractometer using Cu Kα
radiation under 40 kV, 40 mA. Scanning electron microscope (SEM) images were collected on a Hitachi
SU8000 operated at 15 kV. X-ray fluorescence (XRF) spectroscopy were performed on SPECTROS COUT
spectrometer. The pore structure was explored with argon physisorption on Micromeritics ASAP2020
apparatus. Ammonia temperature-programmed desorption (NH -TPD) were measured on a Micromeritics
3
AutoChem II 2920 apparatus. Pyridine-adsorbed Fourier-transform infrared spectra (Py-IR) was employed to
analyze the species of acidic sites on a Nicolet Avatar instrument equipped with an MCT detector at a
-
1
27
29
27
29
resolution of 4 cm . Al and Si magic-angle spinning nuclear magnetic resonance ( Al MAS NMR and Si
2
7
MAS NMR) were both recorded on Bruker Avance III 500 NMR spectrometer. For Al MAS NMR, it was
2
9
operated with frequency at 104.26 MHz and spinning rate of 6 kHz; For Si MAS NMR, it was operated with
2
7
29
frequency at 79.5 MHz and spinning rate of 4 kHz. The Al and Si chemical shifts were referenced to
Al(NO ) aqueous solution (1 M, 0 ppm) and TMS (0 ppm), respectively.
3
3
2
.3 Catalyst reaction

ACCEPTED MANUSCRIPT
The performance of catalysts on chloromethane conversion was conducted on a self-made apparatus
operated at atmospheric pressure. The continuous flow of CH Cl and N both controlled by a mass flow
3
2
controller were mixed together followed by passing through the catalyst placed in a quartz reactor to carry out
the reaction. At the exit of reactor, an aqueous sodium hydroxide solution collector kept at 0 °C was installed
to trap the produced hydrogen chloride and higher hydrocarbons. The flow out from the trap was analyzed
online with two GCs: one was equipped with a RT-Q-BOND capillary column and FID detector, the other
was equipped with a 5A packed column and TCD detector.
3
. Results and discussion
3
.1 Catalytic performance
The catalytic performance of parent and fluoride treated H-ZSM-35 is shown in Table 1. The CH Cl
3
conversion was enhanced significantly just by treating with a low concentration (0.02 M) of NH F solution.
4
When the concentration of NH F solution was continuously increased to 0.06 M, the conversion of CH Cl was
4
3
reduced gradually from 88.4% to 54.9%. The selectivity of propylene was increased with the enhancement of
NH F concentration while selectivity of ethylene and paraffins were decreased. The highest propylene yield of
4
3
2.0% was obtained on the H-ZSM-35-0.03M catalyst. At the same time, the P/E ratio of 3.7 was gained.
With the increasement of NH F concentration from 0.03 M to 0.06 M, the yield of propylene was decreased
4
due to the rapid reduction of CH Cl conversion. Furthermore, the P/E ratio was also enhanced significantly
3
with the increasement of NH F concentration. During 10 h on steam, the H-ZSM-35 catalyst kept steady while
4
a slight deactivation was observed over H-ZSM-35-0.03M (Figure 1S).
Table 1
a
Catalytic performance of catalysts on the conversion of CH Cl .
3
b
NH4F
conc.
Selectivity (%)
C H C H
Conv.
%)
C H yield
3
6
P/E
0
0
(
CH4
C H
C -C
4
others
(%)
2
4
3
6
4
8
2
(
M)
0
76.1
88.4
85.1
75.4
68.2
54.9
1.4
1.0
1.4
1.1
1.3
1.4
14.8
12.1
11.0
8.9
24.7
33.0
37.7
41.4
45.3
46.7
17.8
18.9
18.1
17.8
17.2
15.2
13.0
7.6
7.0
6.4
5.5
8.2
28.4
27.3
24.9
24.4
25.2
25.6
18.8
29.1
32.0
31.2
30.9
25.7
1.7
2.7
0
0
0
0
0
.02
.03
.04
.05
.06
3.7
4.7
5.4
8.4
2.9
16.1
a
Reaction conditions: T = 420 °C, p(CH Cl) : p(N ) = 1 : 9, w = 1 g, F = 30 mL/min, time on stream = 1 h.
3
2
b
0
0
C -C denotes the C –C paraffins; others are products trapped in the collector which mainly consists of higher
2
4
2
4
hydrocarbons.
.2 Structural properties
The influences of different concentrations of NH F solution on the crystalline structure and crystallinity
3
4
of H-ZSM-35 were studied by XRD techniques. As shown in Figure 1, peaks occurred at 2θ = 9.4°, 12.6°,
2.3°, 25.6° and 26.4° were assigned to the feature peaks of ZSM-35 [15]. The crystallinity of the catalysts
2

ACCEPTED MANUSCRIPT
was calculated using sum of the intensity of the more important peaks at 2θ = 9.4°, 25.6°, and 26.4°.
Compared with the standard pattern, the diffraction lines were almost fully matched. This implied that all the
catalysts were ZSM-35 without impure phases and fluoride treatment did not alter the crystalline of H-ZSM-
3
5. Furthermore, the intensity of diffraction peaks became stronger with the increasing concentration of NH4F
solution up to 0.03 M. When the concentration of NH F solution was further enhanced, the peak intensity was
4
weakened slightly. This result indicated that the crystallinity could be raised if H-ZSM-35 was treated with
proper concentration of NH F solution while decreased under high concentration. The enhancement of
4
crystallinity might be resulted from elimination of the few amorphous species [11]. The calculated lattice
parameters and unit volume (Table 2S) also support these conclusions.

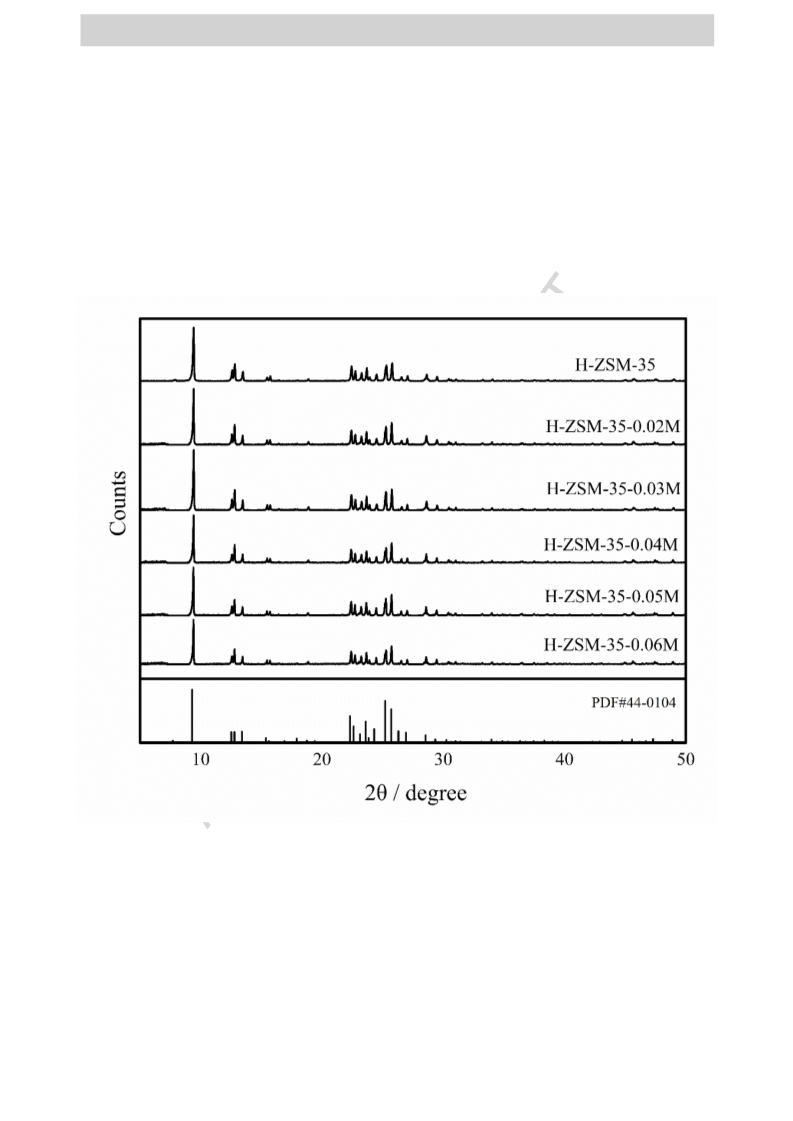

Fig. 1. XRD patterns of the catalysts
Changes of morphology after fluoride treatment were observed by SEM. The images of catalysts are
shown in Figure 2. The non-treated H-ZSM-35 was sheet-like at the size of ~5 μm which is the typical
morphology of zeolites with 2D topology. After treatment with low concentration (0.02 M or 0.03 M) of
NH F solution, the morphology of catalysts remained sheet-like but the size became smaller to ~2 μm. When
4
the NH F concentration was raised to 0.04 M, the ZSM-35 sheets started to crush. Further, the sheets of ZSM-
4
3
5 were broken down to small particles with the continuous increasement of NH F concentration. The rupture
4
of ZSM-35 sheets might be responsible for the decreasing of crystallinity at high NH F concentration.
4

ACCEPTED MANUSCRIPT
Fig. 2. SEM images of H-ZSM-35 treated with different concentration of NH F solution
4
Pore structures were studied through argon physisorption. Table 2 demonstrates the textural properties
including surface area and micropore volume. With the increasement of NH F concentration, the volume and
4
surface area of micropores were reduced while the external surface area was increased. Furthermore, the total
surface area was decreased a little after fluoride treatment. The adsorption isotherms (Figure 2S) indicated that
no mesopores were produced in all samples.
Table 2
Textural properties of the catalysts.
2
BET surface area (m /g)
3
NH F Conc. (M) Micropore volume (cm /g)
4
Micropore
External
Total
0
0.079
0.076
0.074
0.071
0.072
0.066
181.8
172.6
169.8
166.6
158.0
153.5
37.1
41.7
43.9
41.5
47.4
51.6
218.9
214.3
213.7
208.1
205.4
205.0
0
0
0
0
0
.02
.03
.04
.05
.06
2
7

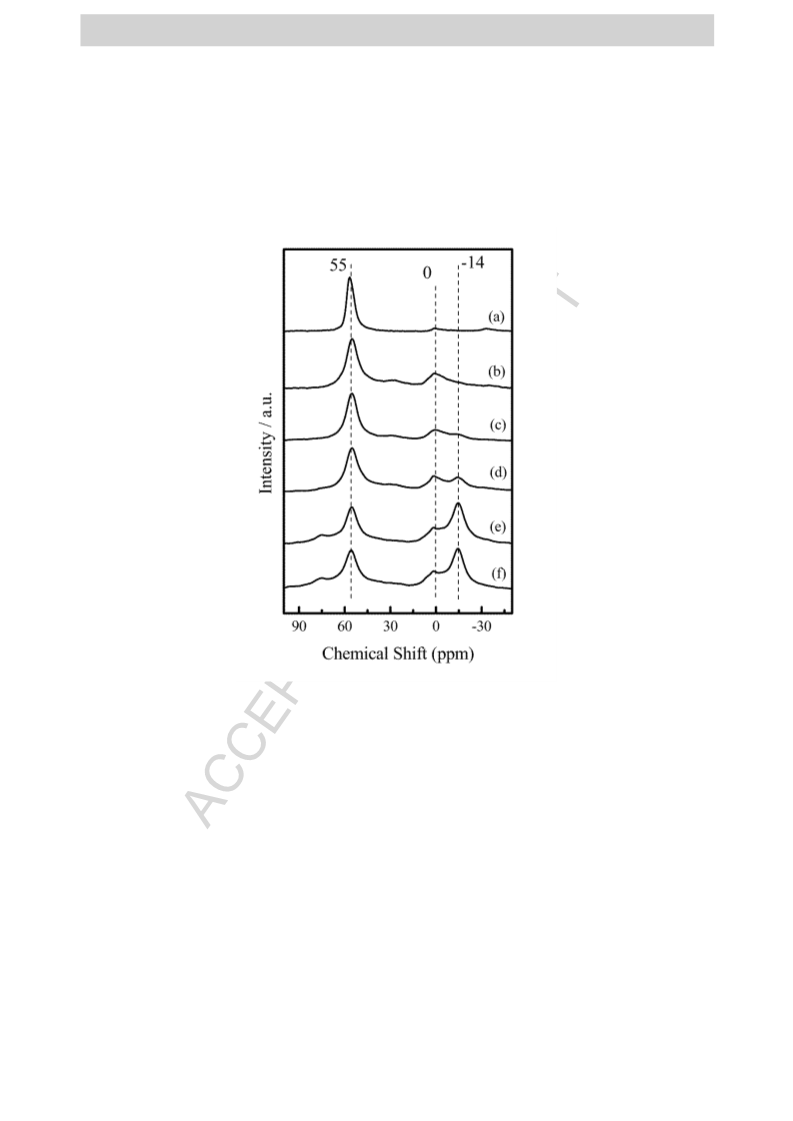

In order to clarify the influence of fluoride treatment on the distribution of Al species, Al MAS NMR
technique was employed. The results are shown in Figure 3. For the non-treated H-ZSM-35, a main peak
appeared at 54 ppm which was assigned to the tetrahedral framework Al (FAl) while a small peak of the
octahedral extra-framework Al (EFAl) was detected at 0 ppm [16]. This indicated that the parent H-ZSM-35
had good crystallinity, in agreement with the XRD results shown in Figure 1. After treatment with 0.02 M of
NH F solution, the peak at 54 ppm became broader, which should be related to the distortion of FAl species
4
[17, 18]. Meanwhile, the peak area at 54 ppm was reduced and the peak at 0 ppm was enlarged. This result
illuminated that a part of FAl was transformed into EFAl during the fluoride treatment at low concentration.

ACCEPTED MANUSCRIPT
When the concentration of NH F solution was raised to 0.03 M, a new peak of the fluorinated hexa-
4
coordinated EFAl species was occurred at -14 ppm [19]. Further, with the enhancement of NH4F
concentration, the signal of FAl was weakened, and the signal of EFAl species became stronger
correspondingly. This observation implied that more Al atoms migrated from the framework of H-ZSM-35 to
form extra-framework Al species at the surface. The results were also supported by chemical composition
2
9
(
XRF, Table 1S) and Si MAS NMR (Figure 3S) measurements.
27
Fig. 3. Al MAS NMR spectra of H-ZSM-35 treated with different NH F concentration of (a) 0, (b) 0.02 M, (c)
4
0
.03 M, (d) 0.04 M, (e) 0.05 M, (f) 0.06 M.
3
.3 Acidic properties
The acidic properties of zeolites affect their catalytic performance in MeXTO reaction significantly [20].
NH -TPD results (Figure 4S) showed that both acidic sites were remarkably reduced after fluoride treatment.
3
It was notable that the strong acidic sites almost vanished even at low NH F concentration. The amount of
4
Brønsted acidic sites (BAS) and Lewis acidic sites (LAS) were measured by Py-IR. Figure 4 shows the IR
-
1
-1
spectra of catalysts. The bands at ~1540 cm and ~1450 cm belonged to BAS and LAS, respectively, while
-
1
the band at ~1485 cm could stem from both BAS and LAS [21]. All the catalysts exhibited weak bands at
-
1
~
1450 cm which implied the deficiency of LAS. The BAS were dominant acid sites which were reduced
with the increasement of NH F concentration and almost disappeared after fluoride treatment at high
4
concentration (quantitative results are shown in Table 3S). These results indicated that the strong acidic sites
showed Brønsted acidity was reduced after fluoride treatment.

ACCEPTED MANUSCRIPT

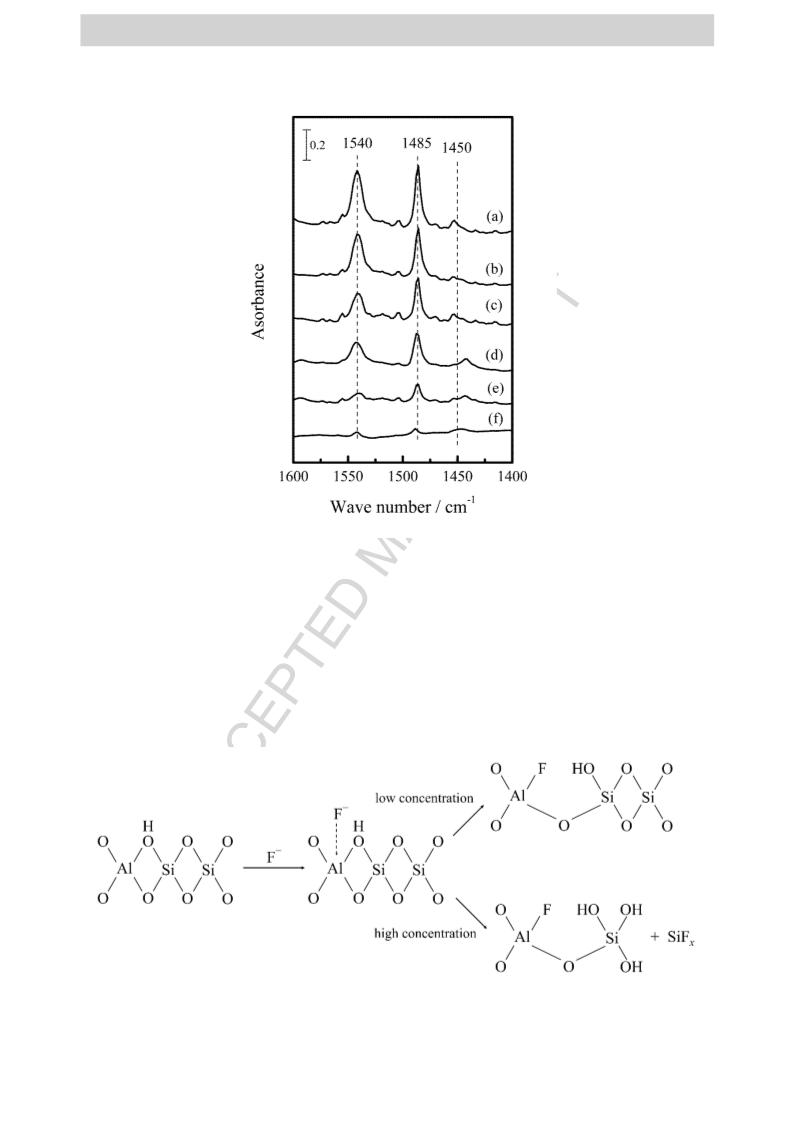

Fig. 4. Py-IR spectra of H-ZSM-35 treated with different NH F concentration of (a) 0, (b) 0.02 M, (c) 0.03 M, (d)
4
0
.04 M, (e) 0.05 M, (f) 0.06 M.
3
.4 The role of fluoride treatment
Based on the results, we proposed the role of fluoride treatment in CH Cl conversion over ZSM-35
3
catalysts as shown in Scheme1: During the impregnation stage, some fluoride ions could be combined with
framework Si or Al atoms. The bridged Si−(OH)−Al bonds that contributed to the Brønsted acidic sites were
broken to form extra-framework fluorinated aluminum species and internal silanols at the calcination stage. At
high concentration of NH F, the fluorinated silicon species (SiF ) might be removed to the gas phase.
4
x
Scheme 1. Schematic model of fluoride treatment on H-ZSM-35.

ACCEPTED MANUSCRIPT
The decreasing Brønsted acidic sites led to an enhancement of propylene selectivity and reduction in the
selectivity of ethylene, paraffins and higher hydrocarbons. The change of product distribution was due to the
suppression of cracking and hydrogen-transfer reactions by weakening the Brønsted acidic sites [22, 23]. An
obvious reduction of chloromethane conversion observed at high fluoride treatment concentration was related
to the over reduced Brønsted acidic sites. On the other hand, the desilication and dealumination caused by
fluoride treatment also brought damage to the structure of zeolite. Some micropores were blocked while the
sheets of H-ZSM-35 were broken down. These induced instabilities were responsible for the more rapid
deactivation of fluoride-treated H-ZSM-35 compared with parent ones. The postulated mechanism about
transformation of chloromethane to propylene and by-products is shown in Scheme 2S.
4
. Conclusions
H-ZSM-35 was first found to be an effective catalyst for the conversion from chloromethane to
propylene. The fluoride treatment by impregnation with NH F solution at moderate concentration followed by
4
calcination could enhance not only the selectivity and yield of propylene but also the P/E ratio significantly.
Detailed characterizations indicated that fluoride treatment could cause the migration of framework Al which
led to the reduction of strong Brønsted acidic sites. The decrease of acidic sites induced the enhancement of
the selectivity of propylene by suppressing the hydrogen-transfer and cracking reactions. On the other hand,
extra-framework Al species were generated from dealumination caused by fluoride treatment. They could
block micropores in the zeolite and break down the ZSM-35 sheet as well, resulting in the instability and
slight deactivation of the fluoride-treated catalysts.
Acknowledgements
This work is supported by the Natural Science Foundation of China (21503070, 21501048), the Key
Scientific Project of Universities from Education Department of Henan Province (14B150041) and the Key
Science and Technology Project of Henan Province (182102210377).
Appendix A. Supplementary data
References
[
1
[
1] R. Lin, A.P. Amrute, J. Pérez-Ramírez, Halogen-Mediated Conversion of Hydrocarbons to Commodities, Chem. Rev.,
17 (2017) 4182-4247.
2] S. Svelle, S. Aravinthan, M. Bjørgen, K.-P. Lillerud, S. Kolboe, I.M. Dahl, U. Olsbye, The methyl halide to
hydrocarbonreactionover H-SAPO-34, J. Catal., 241 (2006) 243-254.
3] Y. Wei, D. Zhang, Y. He, L. Xu, Y. Yang, B.-L. Su, Z. Liu, Catalytic performance of chloromethane transformation
for light olefins productionover SAPO-34 with different Si content, Catal. Lett., 114 (2007) 30-35.
4] Y. Wei, D. Zhang, L. Xu, F. Chang, Y. He, S. Meng, B.-l. Su, Z. Liu, Synthesis, characterization and catalytic
performance of metal-incorporated SAPO-34 for chloromethane transformation to light olefins, Catal. Today, 131 (2008)
62-269.
5] Z. Jiang, B.-x. Shen, J.-g. Zhao, L. Wang, L.-t. Kong, W.-g. Xiao, Enhancement of Catalytic Performances for the
[
[
2
[
Conversion of Chloromethane to Light Olefins over SAPO-34 by Modification with Metal Chloride, Ind. Eng. Chem.
Res., 54 (2015) 12293-12302.
[
6] J. Zheng, D. Jin, Z. Liu, K. Zhu, X. Zhou, W. Yuan, Synthesis of Nanosized SAPO-34 via an Azeotrope Evaporation
and Dry Gel Conversion Route and Its Catalytic Performance in Chloromethane Conversion, Ind. Eng. Chem. Res., 57
2018) 548-558.
7] N. Li, Y.-Y. Zhang, L. Chen, C.-T. Au, S.-F. Yin, Synthesis and application of HZSM-5@silicalite-1 core–shell
composites for the generationof light olefins from CH3Br, Microporous Mesoporous Mater., 227(2016) 76-80.
(
[

ACCEPTED MANUSCRIPT
[
8] D. Wen, Q. Liu, Z. Fei, Y. Yang, Z. Zhang, X. Chen, J. Tang, M. Cui, X. Qiao, Organosilane-Assisted Synthesis of
Hierarchical Porous ZSM-5 Zeolite as a Durable Catalyst for Light-Olefins Production from Chloromethane, Ind. Eng.
Chem. Res., 57 (2018) 446-455.
[9] Q. Liu, D. Wen, Y. Yang, Z. Fei, Z. Zhang, X. Chen, J. Tang, M. Cui, X. Qiao, Enhanced catalytic performance for
light-olefins production from chloromethane over hierarchical porous ZSM-5 zeolite synthesized by a growth-inhibition
strategy, Appl. Surf. Sci., 435 (2018)945-952.
[
10] M. Gamero, A.T. Aguayo, A. Ateka, P. Pérez-Uriarte, A.G. Gayubo, J. Bilbao, Role of Shape Selectivity and
Catalyst Acidity in the Transformation of Chloromethane into Light Olefins, Ind. Eng. Chem. Res., 54 (2015) 7822-7832.
11] T. Xu, Q. Zhang, H. Song, Y. Wang, Fluoride-treated H-ZSM-5 as a highly selective and stable catalyst for the
productionof propylene from methyl halides, J. Catal., 295 (2012) 232-241.
12] J.F. Haw, W. Song, D.M. Marcus, J.B. Nicholas, The Mechanism of Methanol to Hydrocarbon Catalysis, Acc.
Chem. Res., 36 (2003) 317-326.
13] U. Olsbye, O.V. Saure, N.B. Muddada, S. Bordiga, C. Lamberti, M.H. Nilsen, K.P. Lillerud, S. Svelle, Methane
[
[
[
conversion to light olefins—How does the methyl halide route differ from the methanol to olefins (MTO) route?, Catal.
Today, 171 (2011) 211-220.
[
14] D. Zhang, Y. wei, L. Xu, A. Du, F. Chang, B.-l. Su, Z. Liu, Chloromethane Conversion to Higher Hydrocarbons
over Zeolites andSAPOs, Catal. Lett., 109 (2006) 97-101.
15] Y.F. Hu, B. Yang, L.J. Hu, L.J. Liu, The Preparation of Modified ZSM - 35 and its Catalysis Effect Analysis on N-
Butene Isomerization, Adv. Mater. Res., 898 (2014) 140-143.
16] N. Zhang, D. Mao, X. Zhai, Selective conversion of bio-ethanol to propene over nano-HZSM-5 zeolite: Remarkably
enhanced catalytic performance byfluorine modification, Fuel Process. Technol., 167 (2017) 50-60.
17] J.A. van Bokhoven, A.L. Roest, D.C. Koningsberger, J.T. Miller, G.H. Nachtegaal, A.P.M. Kentgens, Changes in
[
[
[
Structural and Electronic Properties of the Zeolite Framework Induced by Extraframework Al and La in H-USY and
La(x)NaY:ꢀ A 29Si and 27Al MAS NMR and 27Al MQ MAS NMR Study, J. Phys. Chem. B, 104 (2000) 6743-6754.
[18] P. Sazama, B. Wichterlova, J. Dedecek, Z. Tvaruzkova, Z. Musilova, L. Palumbo, S. Sklenak, O. Gonsiorova, FTIR
and 27Al MAS NMR analysis of the effect of framework Al- and Si-defects in micro- and micro-mesoporous H-ZSM-5
on conversionof methanol to hydrocarbons, Microporous Mesoporous Mater., 143 (2011) 87-96.
[19] Y. Wang, X. Guo, C. Zhang, F. Song, X. Wang, H.-o. Liu, X. Xu, C. Song, W. Zhang, X. Liu, X. Han, X. Bao,
Influence of Calcination Temperature on the Stability of Fluorinated Nanosized HZSM-5 in the Methylation of Biphenyl,
Catal. Lett., 107 (2006) 209-214.
[
20] D.W. Fickel, K.D. Sabnis, L. Li, N. Kulkarni, L.R. Winter, B. Yan, J.G. Chen, Chloromethane to olefins over H-
SAPO-34: Probingthe hydrocarbonpool mechanism, Appl. Catal. A: Gen., 527 (2016)146-151.
21] J.-B. Koo, N. Jiang, S. Saravanamurugan, M. Bejblová, Z. Musilová, J. Čejka, S.-E. Park, Direct synthesis of
carbon-templatingmesoporous ZSM-5 usingmicrowave heating, J. Catal., 276 (2010)327-334.
22] W. Dai, C. Wang, M. Dyballa, G. Wu, N. Guan, L. Li, Z. Xie, M. Hunger, Understanding the Early Stages of the
Methanol-to-OlefinConversiononH-SAPO-34, ACS Catal., 5 (2015)317-326.
23] M.A. Sanchez-Castillo, R.J. Madon, J.A. Dumesic, Role of Rare Earth Cations in Y Zeolite for Hydrocarbon
Cracking, J. Phys. Chem. B, 109 (2005)2164-2175.
[
[
[

ACCEPTED MANUSCRIPT
Table 1
a
Catalytic performance of catalysts on the conversion of CH Cl .
3
b
NH4F
conc.
Selectivity (%)
C H C H
Conv.
%)
C H yield
3
6
P/E
0
0
(
CH4
C H
C -C
4
others
(%)
2
4
3
6
4
8
2
(
M)
0
76.1
88.4
85.1
75.4
68.2
54.9
1.4
1.0
1.4
1.1
1.3
1.4
14.8
12.1
11.0
8.9
24.7
33.0
37.7
41.4
45.3
46.7
17.8
18.9
18.1
17.8
17.2
15.2
13.0
7.6
7.0
6.4
5.5
8.2
28.4
27.3
24.9
24.4
25.2
25.6
18.8
29.1
32.0
31.2
30.9
25.7
1.7
2.7
0
0
0
0
0
.02
.03
.04
.05
.06
3.7
4.7
5.4
8.4
2.9
16.1
a
Reaction conditions: T = 420 °C, p(CH Cl) : p(N ) = 1 : 9, w = 1 g, F = 30 mL/min, time on stream = 1 h.
3
2
b
0
0
C -C denotes the C –C paraffins; others are products trapped in the collector which mainly consists of higher
2
4
2
4
hydrocarbons.

ACCEPTED MANUSCRIPT
Table 2
Textural properties of the catalysts.
2
BET surface area (m /g)
3
NH F Conc. (M) Micropore volume (cm /g)
4
Micropore
External
Total
0
0.079
0.076
0.074
0.071
0.072
0.066
181.8
172.6
169.8
166.6
158.0
153.5
37.1
41.7
43.9
41.5
47.4
51.6
218.9
214.3
213.7
208.1
205.4
205.0
0
0
0
0
0
.02
.03
.04
.05
.06

ACCEPTED MANUSCRIPT
Highlights:


H-ZSM-35 is an effective catalyst for the conversion of chloromethane to
propylene.
Fluoride treatment can enhance the catalytic performance of H-ZSM-35
significantly.



Fluoride treatment result in desilication and dealuminization to the framework.
The strong Brønsted acidic sites are reduced by the fluoride treatment.
Catalytic activity is improved by the suppression of hydrogen-transfer reactions.
