Microwave-assisted Synthesis of New Isoxazolyl triazinethiones
and Isoxazolyl oxadiazinethiones in Dry Media
E. Rajanarendar*, K. Ramu, D. Karunakar and P. Ramesh
Department of Chemistry, Kakatiya University, Warangal – 506 009, India
Received October 5, 2004
Trimolecular condensation of N-(3-methyl-5-styryl-isoxazol-4-yl)-N'-aryl thioureas (2), paraformalde-
hyde and primary amines using montmorillonite K-10 in dry media under microwave irradiation leads to
isoxazolyl triazinethiones (3) in high yield. Condensation of 2 with paraformaldehyde alone under similar
conditions provide isoxazolyl oxadiazinethiones (4) in excellent yield.
J. Heterocyclic Chem., 42, 711 (2005).
Introduction.
normal conventional heating mode [14]. The trimolecular
condensation of primary amines, N,N'-unsymmetrical
substituted thioureas (2) and paraformaldehyde supported
on montmorillonite K-10 under microwave irradiation in
dry media led to the formation of new 1-(3-methyl-5-
styryl-isoxazol-4-yl)-3-aryl/alkyl-5-alkyl-hexahydro-
1,3,5-triazine-2-thiones (3) in high yields within 5 min-
utes (Scheme 1). When the reaction was conducted under
conventional heating mode, it required 4-5 hours and the
product yield was poor (Table 1). Similarly, condensation
of N,N'-disubstituted thioureas (2) and paraformaldehyde
supported on montmorillonite K-10 clay under solvent-
free conditions using microwave irradiation resulted new
3-(3-methyl-5-styryl-isoxazol-4-yl)-2,3,5,6-tetrahydro-
4H-5-aryl/alkyl-1,3,5-oxadiazine-4-thiones (4) in good
yields in 5 minutes (Scheme 2). Conventional heating
using ethanol and excess conc. HCl and formalin solution
in the same reaction required 4-5 hours and resulted in
very low yield of the product (Table 1) and it also
involves environmental problem, as disposal of excess
catalyst leads to environmental pollution.
Microwave dielectric heating has been widely exploited
for the acceleration of organic reactions during the last
decade [1-3]. Microwave irradiation in solvent-free condi-
tions has attracted much significance in organic synthesis
[4-6]. K-10 clays as catalysts have received considerable
attention and have been employed in several organic reac-
tions [7-9]. As a sequel to our work on isoxazole deriva-
tives synthesis [10-12], we now wish to report an efficient
and simple procedure for the synthesis of isoxazolyl tri-
azinethiones through trimolecular condensation of primary
amines, isoxazolyl thioureas and paraformaldehyde using
montmorrillonite K-10 clay under microwave irradiation
in dry media and also isoxazolyl oxadiazinethiones by two
component condensation of isoxazolyl thioureas with
paraformaldehyde. Very few reports [13] are available in
the literature concerning the synthesis of unsymmetrical
substituted triazinethiones and oxadiazinethiones under
conventional heating conditions.
Results and Discussion.
Montmorrillonite K-10 has Lewis acid character and it
appears that paraformaldehyde is slowly decomposed to
formaldehyde, which then reacts with the primary amine to
give an amine-formaldehyde adduct which leads to an
iminium species, which then reacts with the nitrogen atom
of N,N'-disubstituted thiourea (2) to form the first N-C-N

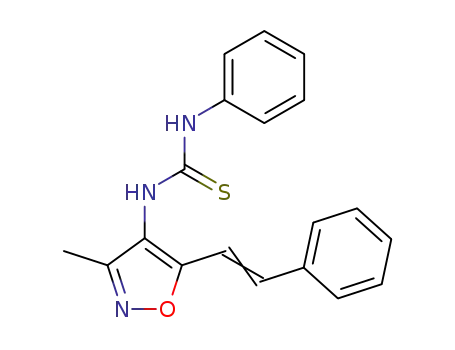

The reaction of 4-amino-3-methyl-5-styryl isoxazole
(1) with alkyl/arylisothiocyanates in toluene under
microwave irradiation afforded N-(3-methyl-5-styryl-
isoxazol-4-yl)-N'-arylthioureas (2) in excellent yields. It
is significant to note that the microwave reaction is com-
pleted within 1.0 minute compared to 4-6 hours under
Scheme 1
3a = R = CH , R’ = CH
3e = R = CH , R' = CH CH CH
3 2 2 3
3
3
3b = R = Ph, R' = CH
3f = R = Ph, R' = CH CH CH
3
2 2 3
3c = R = CH , R' = CH CH
3g = R = CH , R' = CH CH CH CH
3 2 2 2 3
3
2
3
3d = R = Ph, R' = CH CH
3h = R = Ph, R' = CH CH CH CH
2
3
2 2 2 3

712
E. Rajanarendar, K. Ramu, D. Karunakar and P. Ramesh
Vol. 42
Scheme 2
4a = R = CH , 4b = R = Ph, 4c = R = C H -Br(p), 4d = R = C H -CH (p)
3
6
4
6
4
3
Scheme 3

May-Jun 2005
Microwave-assisted Synthesis of New Isoxazolyl triazinethiones
713
Table 1
Synthesis of Isoxazolyl Triazinethiones 3 and Isoxazolyl Oxadiazinethiones 4: Comparison Between Conventional Heating
and Microwave-assisted Methods
Entry
R
R'
Conventional heating method
Time
(hrs)
Microwave-assisted method
Yield [a]
%
Yield [a] %
Time
(min)
3a
3b
3c
3d
3e
3f
CH3
Ph
CH3
CH3
5
5
5
4
4
5
4
5
4
4
5
4
40
40
40
40
40
35
35
30
35
30
25
30
5
6
5
5
4
5
5
4
4
4
4
4
80
90
85
80
90
85
80
85
85
80
80
85
CH3
Ph
CH2CH3
CH2CH3
CH2CH2CH3
CH2CH2CH3
CH2CH2CH2CH3
CH2CH2CH2CH3
CH3
Ph
3g
3h
4a
4b
4c
4d
CH3
Ph
CH3
Ph
--
--
--
--
p-BrC6H4
p-CH3C6H4
[a] Isolated yields after column chromatography.
Method A (Conventional).
bond. Thermal generation of second iminium electrophile,
triggers ring closure to give the triazinethione (3)
(Scheme 3). Formation of oxadiazinethione (4) could
occur by the nucleophilic attack of urea nitrogen on
formaldehyde followed by dehydration on the surface of
the catalyst (Scheme 3). Montmorillonite K-10 besides
giving solid support also acts as a catalyst in these
processes.
A mixture of N,N'-disubstituted thiourea 2 (1 mmol) 30%
formaldehyde (1 mmol) and primary amine (1 mmol) in toluene
(10 ml) was heated under reflux for 4-5 hours. The solvent was
distilled off, the residue was triturated with petroleum ether and
the crude product obtained was chromatographed over a silica gel
column. Elution with ethyl acetate afforded triazinethione.
Method B(MORE-Microwave-induced Organic Reaction
Enhancement).
Conclusion.
A mixture of N,N'-disubstituted urea 2 (1 mmol),
paraformaldehyde (0.5 g) and primary amine (1 mmol) and 1 g
montmorillonite K-10 were irradiated by microwave at 540 watts
in a Teflon vessel for 5 minutes. The reaction mixture was
extracted with dichloromethane, filtered and washed with water.
The organic phase was separated and concentrated by rotary
evaporator. The crude product was chromatographed over a sil-
ica gel column. Elution with ethyl acetate afforded the products
In summary, we have developed an efficient and high
yield procedure for the synthesis of new isoxazolyl tri-
azinethiones (3) and isoxazolyl oxadiazinethiones (4) in dry
media using K-10 clay. To the best of our knowledge this
represents the first report on the synthesis of triazinethiones
and oxadiazinethiones substituted with isoxazole moiety by
using microwave irradiation by trimolecular condensation
and two-component condensation respectively.
1
3. All the products were characterized by IR, H NMR, Mass
spectral and elemental analysis data.
