Chemistry Letters Vol.37, No.8 (2008)
847
(Table S1).8 Geometry optimization and vibrational frequency
analysis of fused-ZnP and ZnP-ref were performed by DFT
methods. Both of the optimized geometries have no negative
frequencies. The optimized geometries show that fused-ZnP
and ZnP-ref possess planar porphyrin rings (Figure S2).8 The
electron densities of HOMO and LUMO in fused-ZnP and
ZnP-ref are delocalized over the fused five-membered porphyrin
and the porphyrin, respectively (Figure S3).8
The porphyrin-modified TiO2 electrodes were prepared by
immersing the mesoporous TiO2 electrodes with 10-mm thick-
ness into 0.2 mM porphyrin MeOH solution at room temperature
for 1 h. Given the surface area of P25 (54 m2ꢂgꢁ1),5 the porphy-
rin densities (ꢂ) on the actual surface area are determined to be

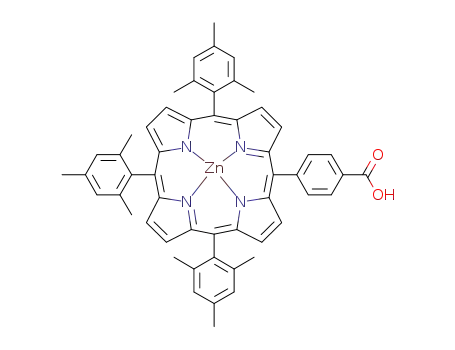

1:1 ꢃ 10ꢁ10 molꢂcmꢁ2 for TiO2/fused-ZnP and 1:2 ꢃ 10ꢁ10
molꢂcmꢁ2 for TiO2/ZnP-ref. Assuming that the porphyrin
molecules are densely packed onto the TiO2 surface to make
a monolayer, the ideal ꢂ values are calculated to be 1:2 ꢃ
10ꢁ10 molꢂcmꢁ2 both for fused-ZnP and ZnP-ref. The experi-
mental ꢂ values are in good agreement with the calculated
ꢂ values, implying that a well-packed porphyrin monolayer
is formed on the TiO2 surface. UV–vis absorption spectra
of TiO2/fused-ZnP and TiO2/ZnP-ref electrodes were also
measured. The light-harvesting properties of TiO2/fused-ZnP
at around 400–500 and 600–800 nm are remarkably improved
compared to those of TiO2/ZnP-ref (Figure 2) considering the
solar energy distribution on the earth.
the IPCE value of the fused-ZnP cell (9.5% at 435 nm) is much
smaller than that of the ZnP-ref cell (76% at 420 nm). Neverthe-
less, owing to the elongation of the porphyrin ꢁ system, the pho-
tocurrent response is extended over 800 nm in the fused-ZnP
cell, which is the longest wavelength among porphyrin-sensi-
tized solar cells.4,5 According to a previous paper7 at least, more
than 0.2 eV of driving force is necessary for efficient electron
injection. Accordingly, insufficient driving force for the electron
injection (0.19 eV) for the fused-ZnP cell may be responsible
for the moderate photovoltaic properties of the fused-ZnP cell.
Moreover, the decreased VOC for the fused-ZnP cell may result
from fast charge recombination from the electron in the CB of
ꢁ
ꢄ
TiO2 to ZnPþ and/or I3 relative to the ZnP-ref cell.
In conclusion, we have successfully prepared novel
fused five-membered porphyrin for DSSC. Although the light-
harvesting properties of the fused porphyrin in the visible
and NIR regions are remarkably improved relative to the typical
tetraphenylporphyrin reference, the photovoltaic properties
are moderate. Improvement of the cell performance in fused
five-membered porphyrins may be possible by modulating the
electronic structure of the porphyrins to optimize the electron
injection process.
This work was supported by Grant-in-Aid (No. 19350068
for H.I.) from the Ministry of Education, Culture, Sports, Sci-
ence and Technology (MEXT), Japan and NEDO. Computation
time was provided by the Supercomputer Laboratory, Institute
for Chemical Research, Kyoto University, and Academic Center
for Computing and Media Studies, Kyoto University.
Cell performances of the TiO2/fused-ZnP and TiO2/ZnP-
ref electrodes were evaluated under standard AM 1.5 conditions
(100 mWꢂcmꢁ2).5 The current–voltage characteristics are given
in Figure S4. The ꢀ value of the fused-ZnP cell (JSC
¼
0:88 mAꢂcmꢁ2, VOC ¼ 0:51 V, ff ¼ 0:67, ꢀ ¼ 0:30%) is much
References and Notes
smaller than that of the ZnP-ref cell (JSC ¼ 9:4 mAꢂcmꢁ2
,
1
2
3
¨
¨
VOC ¼ 0:76 V, ff ¼ 0:64, ꢀ ¼ 4:6%). Action spectra of incident
photon-to-current efficiency (IPCE) for the porphyrin-sensitized
cells are depicted in Figure 2. The action spectra and absorption
spectra are virtually similar for TiO2/fused-ZnP and TiO2/
ZnP-ref, implying the involvement of the porphyrins for the pho-
tocurrent generation. In accordance with the cell performances,
a) T. Horiuchi, H. Miura, K. Sumioka, S. Uchida, J. Am. Chem.
T. Inoue, N. A. Anderson, X. Ai, T. Lian, S. Yanagida, Chem.
Kasada, A. Shinpo, S. Suga, H. Arakawa, H. Sugihara,
4
a) Q. Wang, W. M. Campbell, E. E. Bonfantani, K. W. Jolley,
D. L. Officer, P. J. Walsh, K. Gordon, R. Humphry-Baker,
80
60
40
¨
15397. b) H. Imahori, S. Hayashi, T. Umeyama, S. Eu, A. Oguro,
S. Kang, Y. Matano, T. Shishido, S. Ngamsinlapasathian, S.
T. Umeyama, A. Oguro, M. Kawasaki, N. Kadota, Y. Matano,
Campbell, K. W. Jolley, P. Wagner, K. Wagner, P. J. Walsh,
K. C. Gordon, L. Schmidt-Mende, M. K. Nazeeruddin, Q. Wang,
¨
20
5
a) M. Tanaka, S. Hayashi, S. Eu, T. Umeyama, Y. Matano,
K. Hara, T. Sato, R. Katoh, A. Furube, Y. Ohga, A. Shinpo, S.
x 100
0
400
500
600
700
800
900
6
7
Wavelength / nm
Figure 2. Action spectra (with circles) and UV–vis absorption
spectra (without circles) of TiO2/fused-ZnP (solid line) and
TiO2/ZnP-ref (dashed line) electrodes. Thickness of the TiO2
films used for the absorption measurements was adjusted to
be 0.7–1.0 mm. The absorption spectra are normalized for com-
parison.
8
Supporting Information is available electronically on the
index.html.
