Title: Electrocatalytic CO2 Reduction on CuOx Nanocubes Tracking
the Evolution of Chemical State, Geometric Structure, and
Catalytic Selectivity using Operando Spectroscopy
Authors: Tim Möller, Fabian Scholten, Trung Ngo Thanh, Ilya Sinev,
Janis Timoshenko, Xingli Wang, Zarko Jovanov, Manuel
Gliech, Beatriz Roldan Cuenya, Ana Sofia Varela, and Peter
Strasser
This manuscript has been accepted after peer review and appears as an
Accepted Article online prior to editing, proofing, and formal publication
of the final Version of Record (VoR). This work is currently citable by
using the Digital Object Identifier (DOI) given below. The VoR will be
published online in Early View as soon as possible and may be different
to this Accepted Article as a result of editing. Readers should obtain
the VoR from the journal website shown below when it is published
to ensure accuracy of information. The authors are responsible for the
content of this Accepted Article.
To be cited as: Angew. Chem. Int. Ed. 10.1002/anie.202007136
Link to VoR: https://doi.org/10.1002/anie.202007136

10.1002/anie.202007136
Angewandte Chemie International Edition
Electrocatalytic CO2 Reduction on CuOx Nanocubes:
Tracking the Evolution of Chemical State, Geometric Structure, and Catalytic Selectivity
using Operando Spectroscopy
Tim Möller,1 Fabian Scholten,2 Trung Ngo Thanh,1 Ilya Sinev,3 Janis Timoshenko,2 Xingli
Wang,1 Zarko Jovanov,1 Manuel Gliech,1 Beatriz Roldan Cuenya,2* Ana Sofia Varela,4* and Peter
Strasser1*
1. The Electrochemical Energy, Catalysis, and Materials Science Laboratory, Department of
Chemistry, Chemical Engineering Division, Technical University Berlin, Berlin, Germany
2. Department of Interface Science, Fritz-Haber Institute of the Max Planck Society, 14195 Berlin,
Germany
3. Department of Physics, Ruhr-University Bochum, 44780 Bochum, Germany
4. Institute of Chemistry, National Autonomous University of Mexico, Mexico City, Mexico
Corresponding authors:
Peter Strasser, pstrasser@tu-berlin.de
Ana Sofia Varela, asvarela@iquimica.unam.mx
Beatriz Roldan Cuenya, roldan@fhi-berlin.mpg.de
1
This article is protected by copyright. All rights reserved.

10.1002/anie.202007136
Angewandte Chemie International Edition
Abstract
The direct electrochemical conversion of carbon dioxide (CO2) into multi-carbon (C2+) products still faces
fundamental and technological challenges. While facet-controlled and oxide-derived Cu materials have
been touted as promising catalysts, their stability has remained problematic and poorly understood. The
present work uncovers changes in the chemical and morphological state of supported and unsupported Cu2O
nanocubes during operation in low-current H-Cells and in high-current Gas Diffusion Electrodes (GDEs)
using neutral pH buffer conditions. While unsupported nanocubes achieved a sustained C2+ faradaic
efficiency of around 60% for 40 h, the dispersion on a carbon support sharply shifted the selectivity pattern
towards C1 products. Operando XAS and time-resolved electron microscopy revealed the degradation of
the cubic shape and, in the presence of a carbon support, the formation of small Cu-seeds during the
surprisingly slow reduction of bulk Cu2O. Here, the initially (100)-rich facet structure has presumably no
controlling role on the catalytic selectivity, whereas the oxide-derived generation of under-coordinated
lattice defects, as revealed by the operando Cu-Cu coordination numbers, can support the high C2+ product
yields.
2
This article is protected by copyright. All rights reserved.

10.1002/anie.202007136
Angewandte Chemie International Edition
1. Introduction
A society fueled by intermittent electricity from wind and solar power plants invariably requires
electrochemical technologies to store recurring electricity supply surpluses[1]. The direct CO2
electrochemical reduction reaction (CO2RR) has emerged as one promising technology to use electricity to
convert CO2 into carbon-based chemicals or fuels, thereby closing the anthropogenic energy carbon cycle.[2]
The product distribution of the CO2RR depends sensitively on the chemical nature of the catalyst, in
particular Cu has been intensively studied and is arguably one of the most interesting materials for the
CO2RR due its capability of facilitating the direct reduction of CO2 into C2+ products.[3][4]. However, the
required kinetic overpotentials, issues of selectivity and stability still largely limit commercial interest. To
date, most Cu-based catalysts employed in CO2RR revealed a complex temporal variation of the faradaic
efficiency. The origin of these efficiency variations remains, however, poorly explored. Some of these
changes can be assigned to the deposition of electrolyte contaminations, while others arise from the
complex structural and chemical transformation of the catalysts.[5]
In recent years, much scientific work has been focused on understanding the fundamental factors that
control the catalytic activity of Cu. Different studies have repeatedly shown that the selectivity between
C2H4/CH4 is strongly dependent on the surface structure and composition of the catalyst, as well as on the
reaction electrolyte.[5-6] It has been established, that while ethylene is the predominant hydrocarbon in
alkaline pH, the production of CH4 is favored in acidic conditions, due to a difference in the mechanistic
protonation pathway.[7] In the case of nanoparticles, both the size and the interparticle distance showed an
effect on the reaction activity and selectivity.[6d, 8] Work on polycrystalline Cu implied that the C2H4 to CH4
ratio is strongly dependent on the surface pretreatment. In particular, oxide derived Cu (OD-Cu) exhibited
a clearly altered catalytic performance from that of metallic Cu, suppressing CH4 selectivity and lowering
the onset potential for CO and C2H4 formation.[2d, 6a, 6j, 9] Despite the promising results obtained on OD-Cu,
the molecular origin of its unique selectivity has remained controversial. A number of studies worked on
the hypothesis that the outstanding catalytic performance of OD-Cu may origin in an altered binding
strength of reactive intermediates. Here, different causes such as grain boundaries,[10] the presence of
remaining Cu(I)[2d, 11] and of subsurface oxygen were suggested.[6g, 9b, 12]
On a device site, Gas Diffusion Electrodes (GDEs) have proved indispensable for integration of catalytic
reactions in larger-scale electrolyzer devices, as shown for the case of CO2 to CO with GDEs based on Ag
catalysts, pioneered by the Kenis group.[13] To date, Cu catalyst-based GDE studies have largely included
electrodeposited Cu films for the production of hydrocarbons and oxygenates, yet their yields, reactivity
and performance stability remained low.[14] Later, more efficient Cu catalyst-based GDEs operated in
3
This article is protected by copyright. All rights reserved.

10.1002/anie.202007136
Angewandte Chemie International Edition
electrolyzer cells were reported, at the price of using highly alkaline, and therefore quite impractical
electrolytes or hazardous pure CO input feeds.[15]
In this contribution, we explore structure and composition-selectivity relations of cubic, Cu2O nanoparticles
of about 35 nm edge-length. The nanocubes were initially tested in a two-chamber H-Cell as a carbon-
supported and unsupported powder catalyst. We observed a clear effect of the carbon support, steering the
selectivity away from C2+ of the unsupported nanocubes towards C1 products. We correlated this difference
to an altered morphological evolution of the nanocubes by spatial isolation of the particles on the conductive
support. Furthermore, we monitored the surprisingly slow and incomplete electrochemical reduction of the
unsupported Cu2O particles on the molecular scale. Our operando XAS allowed us to trace the
electrochemical reduction of the initially cubic Cu2O into predominantly metallic particles of ill-defined
morphology, showing an abundance of Cu lattice defects, which are often associated with catalytic sites of
extraordinary activity. In this, we succeed at presenting the formation of a defective Cu structure by
electrochemical reduction of an oxidized precursor in real time.
Furthermore, deposition of the catalysts on a Gas Diffusion Electrode allowed for tests at industrially
relevant current densities of 50 to 700 mA cm-2 in an electrolyzer flow cell. We were able demonstrate a
high and stable faradaic efficiency of unsupported Cu2O nanocubes toward C2+ products in an electrolyzer
set up at neutral pH. Carbon-supported Cu2O nanocubes, on the other hand, undergo distinctly different
structural dynamics in electrolyzers. Over the course of 40 h, they first form very small Cu seeds that grow,
sinter, and eventually resemble the unsupported Cu particles in structure and efficiency.
4
This article is protected by copyright. All rights reserved.

10.1002/anie.202007136
Angewandte Chemie International Edition
2. Results and Discussion
2.1 Unsupported and carbon-supported cubic Cu2O nanocatalysts
The unsupported Cu2O nanocubes will be referred to as “U-NC”, while the supported nanocubes at a
loading of 23 weight% will be denoted as “S-NC”. Figure 1(a,-e) and Figure S1b show the local TEM-
based microstructural morphologies of the as-prepared unsupported and supported nanocatalysts, while the
insets in Figure 1(d,e) display the selected area of the electron diffraction patterns and Figure 1(c) the X-
ray diffraction patterns of the crystalline phases, respectively. Figure 1(d,e) and Figure S1b confirm the
targeted cubic morphology of the Cu-based NPs with an edge length of 35 ± 6 nm (see histogram in Figure
1f), which showed no apparent change once supported on the carbon. The crystal phase analysis in Figure
1(d,e,c) revealed a single Cu2O phase for both S-NCs and the U-NCs, confirming the stability of the
crystalline cubic Cu2O phase during the supporting procedure.
Figure 1. Catalyst characterization. Transmission electron microscopy (TEM) images of (a,d) the
unsupported Cu2O nanocubes, U-NC, and (b,e) the carbon-supported Cu2O nanocubes (23 wt%), S-NC.
Insets (d,e) show selected area electron diffraction (SAED) patterns of the respective material. (c) X-ray
diffraction (XRD) patterns of both catalysts and (f) particle size histogram derived from TEM images of the
U-NC.
5
This article is protected by copyright. All rights reserved.

10.1002/anie.202007136
Angewandte Chemie International Edition
2.2 Electrochemical CO2RR activity and stability in a liquid-electrolyte H-Cell configuration
Subsequently, both CO2RR electrocatalysts, S-NC and U-NC, were tested in a two-compartment H-Cell at
constant applied electrode potentials in aqueous 0.1 M KHCO3 buffer electrolyte. While the favorable
faradaic ethylene efficiencies of cubic-shaped Cu-based nanoparticles have been documented in previous
[16]
works,
catalytic support effects have been proven important but remain less studied.[5] Therefore, we
place emphasis on the comparison between unsupported nanocubes, U-NC (red color code and symbols),
and the supported ones, S-NC (black code and symbols).
Figure 2. Electrochemical CO2 reduction performance tests in a two-compartment H-Cell. (a,b) Faradaic
product efficiencies (FEs) as a function of the applied electrode potential after one hour of reaction time
6
This article is protected by copyright. All rights reserved.

10.1002/anie.202007136
Angewandte Chemie International Edition
for (a) the unsupported Cu nanocubes, U-NC and (b) the carbon-supported Cu nanocubes (23 wt%), S-NC.
Color coded bars denote products as given in the legend. (c) Chronoamperometric efficiency stability at a
constant applied electrode potential of -0.86 VRHE for the U-NC and the S-NC catalysts. (d) Direct
comparison of the electrochemical CO2 reduction polarization curve (geometric current-density vs IR-
corrected applied electrode potential); (e) (C2+ /C1) FE ratios vs IR corrected applied electrode potential.
Lines to guide the eye.
Catalytic CO2RR Activity. The S-NC showed a clearly higher geometric current density compared to the
U-NC at more cathodic potentials than -0.9 VRHE (Figure 2d). Comparison to a supported sample of higher
particle loading (44 wt%) showed a similar enhancement in activity, agreeing with the notion of a higher
availability of active Cu sites by dispersion on the support, see Figure S5. To exclude effects of the substrate
(glassy carbon plate) and support (Vulcan carbon) reference measurements were performed, which showed
only minor catalytic activity of the two, mainly attributable to HER (Figure S4). We further performed
measurements of lead under potential deposition (Pb-UPD) in order to quantify this increase in accessible
surface, which we estimated to be in the order of 3 times for the S-NC in comparison to the U-NC based
on the respective Pb-monolayer stripping charge (Figure S3).
Catalytic CO2RR Selectivity. Figure 2a,b shows the fardaic efficiency (FE) values of all CO2RR products
for the U-NC and S-NC as function of the applied IR-corrected potential. At potentials of -0.65 VRHE, both
catalysts exhibited high CO FEs, early onset potentials of ethylene combined with a suppression of methane
formation. At -0.97 VRHE, the U-NCs displayed high ethylene selectivity, given the neutral pH conditions,
exceeding 30 % FE. The high C2+ product yield is consistent with previous reports on CO2 electroreduction
on cubic-shaped Cu NPs in H-Cell, and is considered to constitute the key advantage of Cu(100) facet-rich
nanocatalysts over electropolished Cu foils[16b, 17]
.
In addition to the distinct catalytic activity, the dispersion of the Cu nanocubes on the carbon support
induced important differences in terms of selectivity: The S-NC displayed a clearly lower ethylene FE,
while the FEs of CO and HCOO- were higher. The HCOO- FE peaked at 19 %, CO at 24 %, while the C1
FEs values generally remained at elevated levels. This observation is in good agreement with previous
studies.[5] Again, our supported 44 wt% Cu nanocubes sample is in agreement with the observed FE shift,
caused by the support, see Figure S1.
Next, we turn to a comparison of the time-stability of the FE values of the S-NC and the U-NC catalysts at
-0.86 VRHE, displayed in Figure 2c. It is evident that both catalysts displayed distinct, yet similarly time-
stable trajectories of the FE values of their major gas products, resulting from CO2RR, over at least 5 hours.
7
This article is protected by copyright. All rights reserved.

10.1002/anie.202007136
Angewandte Chemie International Edition
Tests at other kinetic overpotentials as -0.95 VRHE and -0.66 VRHE showed again constant FEs over 5 hours
of testing time, confirming the stability of the systems (see Figure S6).
Support effects. The dispersion of Cu2O nanocubes on a carbon support altered their catalytic selectivity
in a characteristic way: C2-3 products, such as ethylene, ethanol and propanol became suppressed, whereas
the production of C1 products, such as CO, HCOO- and CH4, was favored. This resulted in a clearly smaller
ratio of (C2+/C1) products over the tested potential range (Figure 2e). Previously, simple physical mixing of
Cu NPs with Ketjenblack carbon prior to electrode casting showed similar shifts in faradaic selectivities,
and was attributed to a disrupted morphological particle evolution during CO2RR from spherical to cubic
morphologies.[18] While that view placed emphasis on dynamic structural changes of Cu particles on carbon
surfaces, it neglects the contributing effect of an effectively larger mean interparticle distance on a support,
associated with less likely re-adsorption of reactive intermediates such as CO.[6d, 8a] Such an effect can be
of significance for the S-NCs, as the dispersion of the Cu nanocubes on the high surface area carbon support,
as evidenced by our TEM and Pb-UPD measurements, results in an effective physical separation of active
surface sites of adjacent Cu cubes. In this, we believe that our observation is fundamentally comparable to
the work of Wang et al. mentioned above. The reduction of geometric mass loading of spherical CuOx
particles on planar carbon substrate is similar to the support of Cu2O on a porous carbon. In both cases, the
spatial density of the particles was reduced in the process, which resulted in a decrease of FE for multi-
carbon products. Furthermore, Grosse et al. recently showed a strong dependence of the experimental
CO2RR reactivity of electrodeposited, several hundred nanometer-sized Cu cubes on their underlying
substrates, which was chosen as either a Cu foil, or a carbon paper. Their analysis suggested next to a
difference in the morphological stability, a difference in chemical stability as well, caused on the
substrate.[5]
The stability and role of {100} facets. To further deconvolute the possible origins of the observed catalytic
difference, we tracked the morphological and crystal phase evolution of the S-NC and U-NC catalysts.
Figure 3a,b and 3d,e show electron micrographs of both catalysts before and after 60 min of continuous
CO2 electrolysis at constant potential of -0.95 VRHE. The particles appear to have agglomerated and merged,
without a defined resulting morphology. Further microscopy of higher resolution clearly shows this strong
morphological transition, as seen in Figure S2. From this, we conclude that it is unlikely that the observed
stable FE over 5 hours (Figure 2c, Figure S6) originate from the well-defined initial cubic morphology.
Previous studies on metallic Cu cubes, have attributed their high C2 selectivity to the sustained stable
presence of {100} facets[16b], which are known to catalyze the CO dimerization at low overpotentials.[19]
8
This article is protected by copyright. All rights reserved.

10.1002/anie.202007136
Angewandte Chemie International Edition
Figure 3. Morphological and chemical CuOx nanocube (S-NC and U-NC) catalyst stability. (a) SEM
images of the unsupported catalyst, U-NC, as prepared and (b) after 1 hour of CO2RR at -0.95 VRHE. (d)
TEM images of supported Cu nanocube, S-NC, (23 wt%) catalyst, as prepared and (e) after 1 hour of
CO2RR testing at -0.95 VRHE. (c) XRD patterns of the U-NC catalyst and (f) the S-NC catalys after initial
deposition on a glassy carbon electrode (black), after 1 hour of CO2RR at -0.66 VRHE (blue) and after 1
hour at -0.95 VRHE (red). XRD patterns of the blank glassy carbon plate and of the as prepared catalyst
powders are displayed in Figure S7 for reference.
Oxide-derived Cu. While the mechanistic origins of enhanced dimerization products on {100} facets are
well described, the molecular reasons for the improved performance of oxide-derived Cu (OD-Cu) surfaces
are still controversial. Different factors, such as an increase of the local pH due to large surface roughness
compared to a polished metallic Cu foil[9c], the presence of grain boundaries after reduction[20], remaining
oxygen species within the catalyst surface[2d, 16c] and the formation of undercoordinated Cu sites[6b] have all
been correlated and associated with the high selectivity towards C2+ products.
Origins of sustained high C2+ yields. Our results suggest that stable C2+ FE similar to OD-Cu bulk catalysts
can be obtained on unsupported Cu(I) oxide nanoparticles as well.[20b] We hypothesize that factors, such as
the detailed geometric nature of the resulting stepped OD-Cu surfaces, or the chemical state of the Cu atoms
at the catalyst surface control the experimental product selectivity during CO2RR. Such possible origins
9
This article is protected by copyright. All rights reserved.

10.1002/anie.202007136
Angewandte Chemie International Edition
have been discussed in recent literature: Mistry et al. showed high ethylene selectivity during the CO2RR
for an oxygen-plasma treated copper foil, which partially reduced under reaction conditions, yet STEM-
EDS analyses after the catalytic tests suggested the sustained presence of a small fraction of oxygen atoms
and Cu(I).[2d] A possible theoretical explanation for this observation was provided by Xiao et al., who
suggested that a mixed matrix of metallic and oxidized copper can facilitate the dimerization of adsorbed
CO.[21] Furthermore, the effect of residual sub-surface oxygen, generated during the reduction of oxidized
copper, is discussed in multiple publications and an amorphous metallic Cu layer was suggested as a
possible stabilizing site for them.[9b, 12a-c, 22] Moreover, the stabilization of Cu(I) species has also been
demonstrated in the presence of Br and I.[6j, 12d, 12e]
2.3 Post-reaction, quasi in situ and operando catalyst characterization
To gain insight into structural and chemical changes of the surface and bulk of the S-NCs and U-NC we
investigated first the phase structure of the nanocubes before and after CO2RR using grazing incidence X-
ray powder Diffraction (GI-XRD) (Figure 3c,f). As expected from the strongly reducing reaction
environments, the characteristic metallic Cu(200) Bragg diffraction reflection at 50° indicated the formation
of metallic Cu after 60 min of reaction at a potential of -0.65 VRHE. Interestingly, the presence of a
Cu2O(111) facet reflection at 36° remained visible for both catalysts, while the Cu2O pattern intensity
decreased under more negative potentials (see patterns at -0.95 VRHE). This implies a surprising chemical
stability of Cu2O, contrary to thermodynamic expectations. Nevertheless, we acknowledge the limitations
of ex situ XRD to get a proper assessment of the phase-evolution of the catalyst, especially due to the highly
reactive nature of near-surface metallic copper under ambient conditions. Additionally, changes in
nanoparticle orientation can also influence the intensity ratio of observed reflexes in GI-XRD. This is why
we resorted to quasi in situ X-ray Photoelectron Spectroscopy (XPS) to trace the evolution of the chemical
state of the surface with operando X-ray Absorption Spectroscopy (XAS) to assess the changes in the bulk
phase under reaction conditions.
10
This article is protected by copyright. All rights reserved.

10.1002/anie.202007136
Angewandte Chemie International Edition

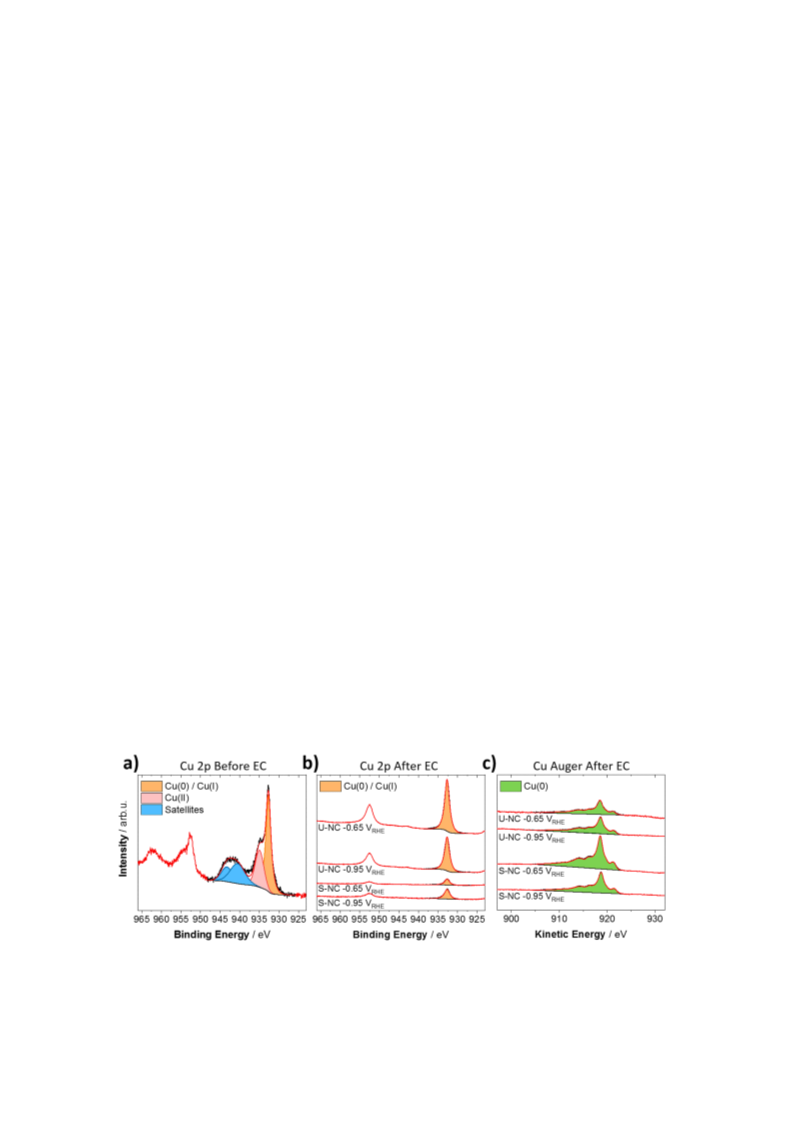

Figure 4. Quasi in situ analysis of the cubic Cu2O catalyst. (a) XPS Cu 2p of as prepared U-NC deposited
on a glassy carbon electrode. (b) Quasi in situ XPS Cu 2p and (c) Cu Auger LMM spectra of the U-NC and
S-NC (23 wt%) catalyst after one hour of CO2RR at -0.95 VRHE and -0.65 VRHE. Cu AES of as-prepared
catalysts can be found in Figure S8.
The quasi in situ XPS measurements (Figure 4a-c) suggested a complete chemical reduction to metallic Cu
of the near surface region after about one hour of reaction at low (-0.65 VRHE), as well as more negative (-
0.95 VRHE) potentials. This change in redox state was comparable for the U-NC and the S-NC sample.
While our XPS results show a fast reduction of the near surface region, it does not allow for a statement
about possible defects introduced during the reduction or the oxidation state of deeper catalyst layers. Here,
our analysis by operando XAS helps to add further insight into this system.
The U-NCs were deployed in an operando X-ray analysis cell and their chemical state and local structure
was tracked during the electrochemical reduction of CO2. Figure 5 shows operando XANES (Figure 5a)
and EXAFS (Figure 5c) spectra recorded approximately every 10 minutes under chronoamperometric
conditions at -0.66 VRHE and subsequently at -0.95 VRHE. There were drastic changes taking place in the
sample already during the first 10 minutes under the moderate applied potential. While the potential was
kept constant, the pre-edge features became broader, less intense, and the absorption edge shifted to lower
energy towards its position in the spectrum of a metallic foil. At the same time, the feature above the edge
gradually changed its shape towards a two-peak feature characteristic of metallic Cu.
11
This article is protected by copyright. All rights reserved.

10.1002/anie.202007136
Angewandte Chemie International Edition

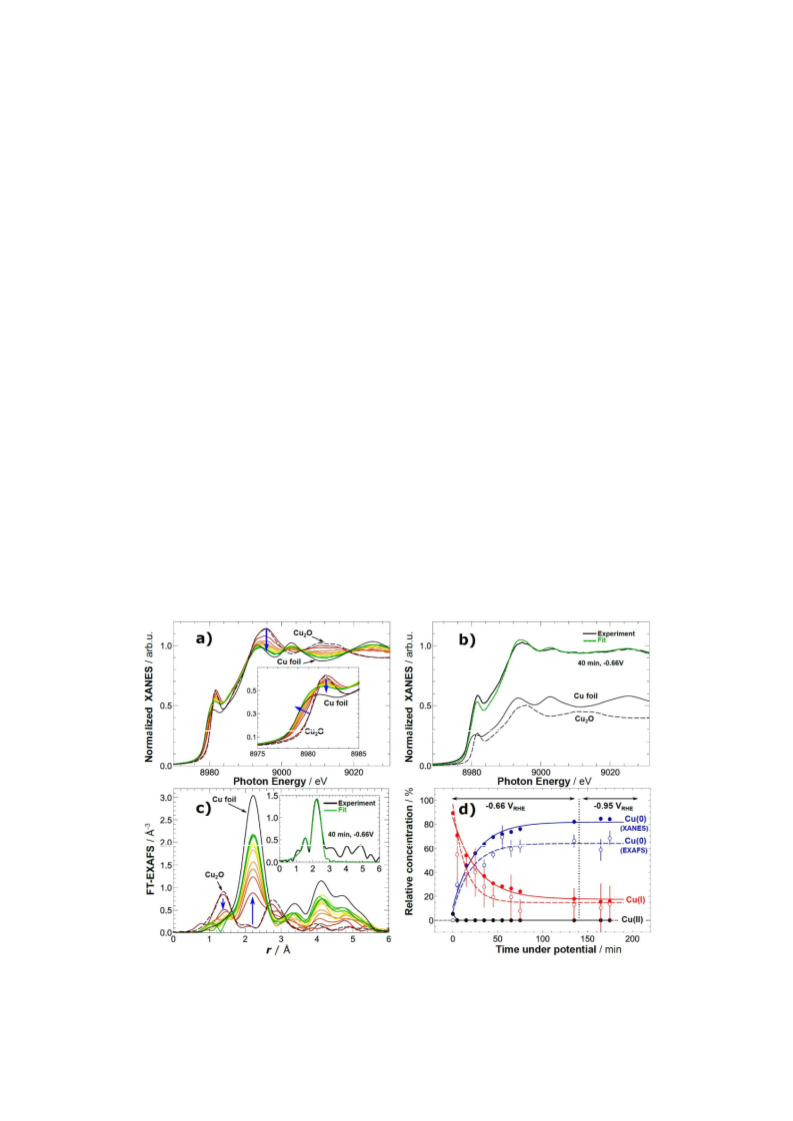

Figure 5. Operando XAS analysis of the cubic Cu2O catalyst. (a) Cu K-edge XANES data of U-NC sample
acquired under operando CO2 reduction conditions. (b) Representative example of catalyst XANES data
fitting with a linear combination of reference spectra (the latter are also shown, scaled by their importance
to the analyzed catalyst spectrum). (c) Fourier-transformed (FT) Cu K-edge EXAFS data of U-NC sample
acquired under operando CO2 reduction conditions. Representative example of EXAFS data fitting is shown
in the inset. (d) Temporal evolution of the chemical composition of the Cu2O cubes during CO2
electroreduction obtained from the linear combination analysis of XANES data (filled circles) and
coordination numbers from EXAFS data fitting (empty circles). Solid and dashed lines are guides for the
eye. For additional reference spectra see Figure S9.
A linear combination fitting analysis of the operando XANES data, using Cu foil (metallic) and Cu2O as
basis spectra (Figure 5b) evidenced a bulk reduction of the Cu2O species in the cubes at -0.66 VRHE
.
However, a significant fraction of Cu(I) species (ca. 20%) can still be detected even after two hours of
reduction in the H-type cell. Further increase of the potential did not induce any additional changes in the
chemical state of copper, and did not result in any reduction of the Cu(I) species. During the reduction, the
Cu local environment as probed by the EXAFS spectra shows a rapid evolution of the metallic Cu-Cu
distance peak at 2.2 Å (uncorrected) accompanied by an abrupt decay in the Cu2O-related peaks (Figure
5c). For quantitative analysis, we perform EXAFS data fitting (Figure S10 and Table S2). The metallic Cu-
Cu coordination number (CNCu-Cu) increases from 3.6 after the first 10 minutes of reaction to ca. 8 within
70 minutes and the Cu-O (CNCu-O) drops from ca. 2 (as in Cu2O) down to 0.3 within the same time (see
Table S2 for details). Cu-Cu CN barely changes when the catalyst was kept at -0.66 VRHE for additional 60
minutes, or when, afterwards, when the potential was increased to -0.95 VRHE. The findings from the
EXAFS data analysis are in agreement with the XANES data. To facilitate the comparison of XANES and
EXAFS results, in Figure 5d we plot Cu-Cu and Cu-O coordination numbers, extracted from EXAFS data
fitting, divided by respective bulk values (12 and 2, correspondingly) as estimates of concentrations of
Cu(0) and Cu(I) species. Remarkably, while for coordination number for Cu-O bond, as extracted from
EXAFS, is in agreement with concentration of Cu(I) species, as obtained from XANES analysis, the Cu-
Cu CN is noticeably smaller than expected from XANES analysis, indicating thus the presence of a large
amount of undercoordinated Cu sites. Indeed, the final CN was distinctly different from bulk copper and
showed no considerable changes even after extended periods of time or after the increase of potential. The
presence of undercoordinated atoms gives rise to strong binding-sites in oxide derived materials, which had
been suggested to have an influence on CO2RR in studies by Kanan and coworkers.[9a, 10] The stronger
binding of reaction intermediates such as CO to defective O2-plasma treated oxidized Cu surfaces was also
demonstrated using temperature programmed desorption.[12e] In a recent theoretical study, Liu et al.
supported this idea and suggested that the special performance of recent materials is actually a result of
12
This article is protected by copyright. All rights reserved.

10.1002/anie.202007136
Angewandte Chemie International Edition
edges and steps introduced to the system[23], which has also been proposed in an early work on
polycrystalline copper.[6b] Our results are in line with these studies, and provide new evidence for a
formation mechanism of undercoordinated sites by electrochemical reduction of oxidized copper.
Due to the difference in probing depth of the techniques, the combination of XPS and XAS allowed for a
quite complementary view on the chemical reduction of the Cu2O nanocubes: The catalysts are undergoing
a fast reduction at the surface, which is progressing with time towards deeper layers. This could explain the
absence of any correlation between the long-term selectivity and the loss in Cu(I) species, as the catalyst-
surface became completely reduced after a short reaction time.

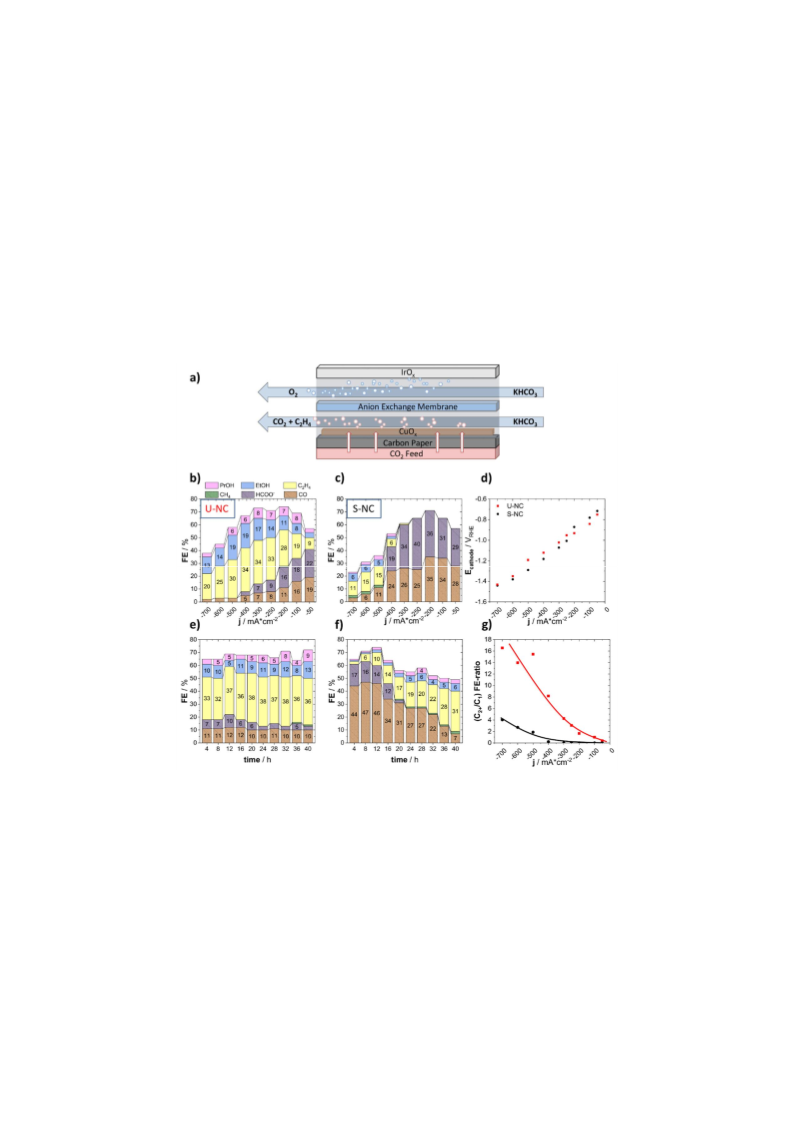

Figure 6. Support effects on catalyst activity and selectivity/faradaic efficiency in Gas Diffusion
Electrodes deployed in CO2RR Membrane Electrolyzers. (a) Schematic representation of the electrolyzer
flow cell. Faradaic product efficiencies as a function of applied geometric current density for (b) the U-NC
and (c) the S-NC. (e) 40 h stability test at -300 mA cm-2, displaying the Faradaic efficiency as a function of
time for the U-NC and (f) the S-NC. (d) Comparison of the electrolyzer polarization curves of U-NC and S-
NC; (g) (C2+ / C1) product FE-ratio for both catalysts.
13
This article is protected by copyright. All rights reserved.

10.1002/anie.202007136
Angewandte Chemie International Edition
2.4 Support effects on catalyst structure and selectivity during long term CO2RR in Gas
Diffusion Electrodes
To validate the performance at industrial current densities, we deployed the catalysts in commercial GDEs
operating in a membrane electrolyzer at neutral pH.
The loaded GDEs (loading of about 1 mgCu2O / cm2 geometric area) were tested in a commercial 4-chamber
electrolyzer flow cell. The ambient CO2 pressure minimized mass transport limitations and enabled
catalytic tests at high currents, as depicted in Figure 6a. During testing, a constant current was applied for
two hours for each current step in the range of 50 to 700 mA cm-2 in 1 M KHCO3. Figure 6b,c shows the
change in the FEs of the major CO2RR products with variation of the applied total current. Both catalysts
exhibited a high selectivity towards CO2RR, exceeding 70 % FE at 200 mA cm-2. Indeed, the U-NC
displayed an exceptionally high efficiency for C2+ products, in respect to our previous H-Cell results, which
increased with the applied current to a maximum of 59 % at 300 mA cm-2.
Again, our data evidenced a pronounced support effect. The S-NCs produced mainly HCOO- and CO up to
a current density of 400 mA cm-2. Currents above 400 mA cm-2 favored C2+ selectivity, yet also caused the
HER to dominate the overall faradaic processes, which resulted in a decrease in CO2RR selectivity. The
electrolyzer results are in excellent agreement with our H-Cell results, confirming the significant shift in
the experimental CO2RR selectivity caused by the carbon support (Figure 6g).
Since the electrolyzer polarization curves showed almost identical catalytic reactivity for both catalysts, we
exclude overpotential as the origin of the experimental selectivity differences (see Figure 6d).
Next, during stability tests over 40 hours at -300 mA cm-2, we uncovered a remarkably constant product
selectivity for the U-NC, whereas the S-NC displayed a clear FE variation with time: the initially high FEs
of CO and HCOO- were continuously dropping, whereas the C2+ selectivity was constantly rising. Again,
the two measured cathode potentials of the U-NC and S-NC during the 40 h stability tests showed no
obvious differences that could account for the observed behavior (Figure S13). We carried out SEM
imaging of the GDEs after the reaction to investigate the respective surface evolution of the two catalysts
(Figure S11). While the U-NC formed a rough, continuous surface after testing, the S-NC displayed the
presence of highly dispersed spherical Cu particles after the polarization test, which transformed into
irregular Cu aggregates after the 40 h stability test. Note that the newly formed spherical Cu NPs were
smaller than the initial Cu2O nanocubes. We suspect that the high mobility of these Cu nanoparticles on the
carbon support surface is aiding in the observed morphological evolution. The agglomeration and growth
of the reaction-generated small Cu NPs results in the formation of larger particles decreasing their effective
dispersion. It is conceivable that such a lowered dispersion contributed to our experimental data, accounting
for the gradual change in the faradaic efficiency values, eventually matching those of the unsupported Cu
14
This article is protected by copyright. All rights reserved.

10.1002/anie.202007136
Angewandte Chemie International Edition
nanoparticles. Moreover, recent studies have discussed similar morphological changes for systems of
unsupported, metallic Cu cubes[24] and supported oxidized copper particles[25]. Interestingly, the first study
shows a temporal decrease in C2+ efficiency, caused by a potential-driven structural degradation of metallic
Cu cubes and loss of the (100) facet during CO2RR, whereas the second study reports on a temporal increase
of C2+ efficiency, caused by fragmentation and successive reconstruction resulting in a boundary-rich Cu
structure. This shows the need for careful distinction between effects of exposed crystal facets and the
abundance of defects for shaped CuOx catalysts in CO2RR, which we help to address here.
To trace this particle growth in more detail, we performed stepwise SEM analyses after of 4 and 20 hours
of constant electrolysis at -300 mA cm-2 using the S-NCs (Figure S12). While already after 4 hours the
presence of emerging Cu particle aggregates was visible, we could also observe their precursors, that is,
very small, isolated particles (indicated by a red cycle in Figure S12). We note that these tiny Cu seed
particles were considerably smaller than the initial Cu2O nanocubes, suggesting a partial break-up of the
original Cu2O cubes during the catalytic reaction and electrochemical Cu2O reduction process.
15
This article is protected by copyright. All rights reserved.

10.1002/anie.202007136
Angewandte Chemie International Edition
3. Conclusions
This contribution explored and aimed to identify chemical and structural factors that control the
experimentally observed catalytic selectivity of the CO2RR. More precisely, this study traced the individual
faradaic product efficiencies over time and linked their evolution to changes in the chemical state at the
surface and bulk and in the catalyst morphology (see Figure S14). To achieve this goal, Cu2O cubes of
nanometer-sized dimensions were chosen as the catalytic active phase. Our main conclusions are as follows:

Dispersion of the Cu2O cubes on a high surface area carbon support drastically shifted their faradaic
efficiencies from C2+ towards C1 products. Hence, the otherwise identical Cu2O cubes exhibited a
pronounced support effect, which we attribute, at least in part, to a larger interparticle distance that
makes readsorption of CO and dimerization less likely.

Tracking experiments using X-ray diffraction and spectroscopy suggested that the initial Cu2O
single phase gradually disappeared and gave way to metallic Cu nanoparticles. This process
proceeded, however, slower than anticipated, and a noticeable fraction (up to 20%) of Cu(I) was
present in the sample even after several hours of continuous CO2 electroreduction according to our
operando XAS data. The surface of the initial oxidic nanocubes, however, reduced on shorter time
scales (XPS). It also led us to a conclusion that the emergence of defects in the Cu lattice during
the reduction of the nanocubes largely contributes to the observed stable efficiency patterns.
The supported Cu2O cubes exhibit a significant evolution in their faradaic efficiencies toward those
of the unsupported Cu2O cubes over a 40 h electrolyzer test. Concomitant tracking of the catalyst
state led us to conclude that carbon-dispersed Cu2O cubes are morphologically unstable, generate
small seed particles, which subsequently agglomerate and grow into a structure that resembles the
unsupported sample. As a result of this evolution, the efficiencies of C2+ products increase, while
those of C1 products decline.

In all, our present data and conclusions demonstrate the impact that the nature of a support (metallic self-
support or carbon support) can have on the morphological stability and resulting catalytic product yields.
16
This article is protected by copyright. All rights reserved.

10.1002/anie.202007136
Angewandte Chemie International Edition
5. Acknowledgements
This work received funding by the German Federal Ministry of Education and Research
(Bundesministerium für Bildung und Forschung, BMBF) under grants #033RC004E and #033RCOO4D –
(“eEthylene”) and #03SF0523C (CO2EKAT), the European Research Council under grant ERC-
OPERANDOCAT (ERC-725915), and the Deutsche Forschungsgemeinschaft (DFG, German Research
Foundation) under Germany´s Excellence Strategy – EXC 2008/1 (UniSysCat) – 390540038.
17
This article is protected by copyright. All rights reserved.

10.1002/anie.202007136
Angewandte Chemie International Edition
6. References
[1]
[2]
S. H. Jensen, P. H. Larsen, M. Mogensen, Int. J. Hydrogen Energy 2007, 32, 3253-3257.
a) D. T. Whipple, P. J. A. Kenis, J. Phys. Chem. Lett. 2010, 1, 3451-3458; b) D. Gao, R. M. Arán-Ais,
H. S. Jeon, B. Roldan Cuenya, Nat. Catal. 2019, 2, 198-210; c) R. M. Aran-Ais, D. Gao, B. Roldan
Cuenya, Acc. Chem. Res. 2018, 51, 2906-2917; d) H. Mistry, A. S. Varela, C. S. Bonifacio, I.
Zegkinoglou, I. Sinev, Y.-W. Choi, K. Kisslinger, E. A. Stach, J. C. Yang, P. Strasser, B. R. Cuenya, Nat.
Commun. 2016, 7, 12123.
[3]
[4]
a) J. H. Montoya, A. A. Peterson, J. K. Nørskov, ChemCatChem 2013, 5, 737-742; b) Y. Hori, A.
Murata, R. Takahashi, J. Chem. Soc., Faraday Trans. 1 1989, 85, 2309-2326; c) A. Bagger, W. Ju, A.
S. Varela, P. Strasser, J. Rossmeisl, ChemPhysChem 2017, 18, 3266-3273; d) K. P. Kuhl, T.
Hatsukade, E. R. Cave, D. N. Abram, J. Kibsgaard, T. F. Jaramillo, J. Am. Chem. Soc. 2014, 136,
14107-14113; e) W. Zhu, R. Michalsky, Ö. Metin, H. Lv, S. Guo, C. J. Wright, X. Sun, A. A. Peterson,
S. Sun, J. Am. Chem. Soc. 2013, 135, 16833-16836.
a) Q. Lu, J. Rosen, Y. Zhou, G. S. Hutchings, Y. C. Kimmel, J. G. Chen, F. Jiao, Nat. Commun. 2014,
5, 3242; b) A. S. Varela, N. Ranjbar Sahraie, J. Steinberg, W. Ju, H.-S. Oh, P. Strasser, Angew. Chem.
Int. Ed. 2015, 54, 10758-10762; c) A. S. Varela, W. Ju, A. Bagger, P. Franco, J. Rossmeisl, P. Strasser,
ACS Catal. 2019, 9, 7270-7284.
[5]
[6]
P. Grosse, D. Gao, F. Scholten, I. Sinev, H. Mistry, B. Roldan Cuenya, Angew. Chem. Int. Ed. 2018,
57, 6192-6197.
a) Y. Chen, C. W. Li, M. W. Kanan, J. Am. Chem. Soc. 2012, 134, 19969-19972; b) W. Tang, A. A.
Peterson, A. S. Varela, Z. P. Jovanov, L. Bech, W. J. Durand, S. Dahl, J. K. Norskov, I. Chorkendorff,
PCCP 2012, 14, 76-81; c) R. Kas, R. Kortlever, H. Yılmaz, M. T. M. Koper, G. Mul, ChemElectroChem
2015, 2, 354-358; d) H. Mistry, F. Behafarid, R. Reske, A. S. Varela, P. Strasser, B. Roldan Cuenya,
ACS Catal. 2016, 6, 1075-1080; e) K. D. Yang, W. R. Ko, J. H. Lee, S. J. Kim, H. Lee, M. H. Lee, K. T.
Nam, Angew. Chem. Int. Ed. 2017, 56, 796-800; f) H. S. Jeon, S. Kunze, F. Scholten, B. Roldan
Cuenya, ACS Catal. 2018, 8, 531-535; g) A. Eilert, F. S. Roberts, D. Friebel, A. Nilsson, J. Phys. Chem.
Lett. 2016, 7, 1466-1470; h) Z. P. Jovanov, J. Ferreira de Araujo, S. Li, P. Strasser, J. Phys. Chem. C
2019, 123, 2165-2174; i) A. S. Varela, W. Ju, T. Reier, P. Strasser, ACS Catal. 2016, 6, 2136-2144; j)
D. Gao, F. Scholten, B. Roldan Cuenya, ACS Catal. 2017, 7, 5112-5120; k) A. S. Varela, M. Kroschel,
T. Reier, P. Strasser, Catal. Today 2016, 260, 8-13; l) N. Gupta, M. Gattrell, B. MacDougall, J. Appl.
Electrochem. 2006, 36, 161-172.
[7]
[8]
a) K. J. P. Schouten, Z. Qin, E. P. Gallent, M. T. M. Koper, J. Am. Chem. Soc. 2012, 134, 9864-9867;
b) Y. Hori, R. Takahashi, Y. Yoshinami, A. Murata, J. Phys. Chem. B 1997, 101, 7075-7081.
a) X. Wang, A. S. Varela, A. Bergmann, S. Kühl, P. Strasser, ChemSusChem 2017, 10, 4642-4649; b)
R. Reske, H. Mistry, F. Behafarid, B. Roldan Cuenya, P. Strasser, J. Am. Chem. Soc. 2014, 136, 6978–
6986.
[9]
a) A. Verdaguer-Casadevall, C. W. Li, T. P. Johansson, S. B. Scott, J. T. McKeown, M. Kumar, I. E. L.
Stephens, M. W. Kanan, I. Chorkendorff, J. Am. Chem. Soc. 2015, 137, 9808-9811; b) A. Eilert, F.
Cavalca, F. S. Roberts, J. Osterwalder, C. Liu, M. Favaro, E. J. Crumlin, H. Ogasawara, D. Friebel, L.
G. M. Pettersson, A. Nilsson, J. Phys. Chem. Lett. 2017, 8, 285-290; c) Y. Lum, B. Yue, P. Lobaccaro,
A. T. Bell, J. W. Ager, J. Phys. Chem. C 2017, 121, 14191-14203; d) Y. Huang, A. D. Handoko, P.
Hirunsit, B. S. Yeo, ACS Catal. 2017, 7, 1749-1756.
[10]
[11]
[12]
X. Feng, K. Jiang, S. Fan, M. W. Kanan, ACS Cent. Sci, 2016, 2, 169-174.
D. Kim, S. Lee, J. D. Ocon, B. Jeong, J. K. Lee, J. Lee, PCCP 2015, 17, 824-830.
a) F. Cavalca, R. Ferragut, S. Aghion, A. Eilert, O. Diaz-Morales, C. Liu, A. L. Koh, T. W. Hansen, L.
G. M. Pettersson, A. Nilsson, J. Phys. Chem. C 2017, 121, 25003-25009; b) M. Favaro, H. Xiao, T.
Cheng, W. A. Goddard, J. Yano, E. J. Crumlin, PNAS 2017, 114, 6706-6711; c) C. Liu, M. P. Lourenço,
18
This article is protected by copyright. All rights reserved.

10.1002/anie.202007136
Angewandte Chemie International Edition
S. Hedström, F. Cavalca, O. Diaz-Morales, H. A. Duarte, A. Nilsson, L. G. M. Pettersson, J. Phys.
Chem. C 2017, 121, 25010-25017; d) D. Gao, I. Sinev, F. Scholten, R. M. Aran-Ais, N. J. Divins, K.
Kvashnina, J. Timoshenko, B. Roldan Cuenya, Angew. Chem. Int. Ed. 2019, 58, 17047-17053; e) D.
Gao, I. T. McCrum, S. Deo, Y.-W. Choi, F. Scholten, W. Wan, J. G. Chen, M. J. Janik, B. Roldan
Cuenya, ACS Catal. 2018, 8, 10012-10020.
[13]
a) S. Verma, Y. Hamasaki, C. Kim, W. Huang, S. Lu, H.-R. M. Jhong, A. A. Gewirth, T. Fujigaya, N.
Nakashima, P. J. A. Kenis, ACS Energy Lett. 2018, 3, 193-198; b) S. Verma, X. Lu, S. Ma, R. I. Masel,
P. J. Kenis, Phys. Chem. Chem. Phys. 2016, 18, 7075-7084; c) M. R. Thorson, K. I. Siil, P. J. A. Kenis,
J. Electrochem. Soc. 2012, 160, F69-F74; d) T. Haas, R. Krause, R. Weber, M. Demler, G. Schmid,
Nat. Catal. 2018, 1, 32-39.
[14]
[15]
a) P. De Luna, R. Quintero-Bermudez, C.-T. Dinh, M. B. Ross, O. S. Bushuyev, P. Todorović, T.
Regier, S. O. Kelley, P. Yang, E. H. Sargent, Nat. Catal. 2018, 1, 103-110; b) C. Reller, R. Krause, E.
Volkova, B. Schmid, S. Neubauer, A. Rucki, M. Schuster, G. Schmid, Adv. Energy Mater. 2017, 7,
1602114.
a) M. Jouny, W. Luc, F. Jiao, Nat. Catal. 2018, 1, 748-755; b) C.-T. Dinh, T. Burdyny, M. G. Kibria, A.
Seifitokaldani, C. M. Gabardo, F. P. García de Arquer, A. Kiani, J. P. Edwards, P. De Luna, O. S.
Bushuyev, C. Zou, R. Quintero-Bermudez, Y. Pang, D. Sinton, E. H. Sargent, Sci. 2018, 360, 783; c)
Y. Wang, H. Shen, K. J. T. Livi, D. Raciti, H. Zong, J. Gregg, M. Onadeko, Y. Wan, A. Watson, C. Wang,
Nano Lett. 2019, 19, 8461-8468.
[16]
a) F. S. Roberts, K. P. Kuhl, A. Nilsson, Angew. Chem. Int. Ed. 2015, 127, 5268–5271; b) A. Loiudice,
P. Lobaccaro, E. A. Kamali, T. Thao, B. H. Huang, J. W. Ager, R. Buonsanti, Angew. Chem. Int. Ed.
2016, 55, 5789-5792; c) D. Gao, I. Zegkinoglou, N. J. Divins, F. Scholten, I. Sinev, P. Grosse, B.
Roldan Cuenya, ACS Nano 2017, 11, 4825-4831.
[17]
[18]
[19]
K. P. Kuhl, E. R. Cave, D. N. Abram, T. F. Jaramillo, Energy Environ. Sci. 2012, 5, 7050-7059.
D. Kim, C. S. Kley, Y. Li, P. Yang, PNAS 2017, 114, 10560-10565.
a) Y. Hori, I. Takahashi, O. Koga, N. Hoshi, J. Phys. Chem. B 2002, 106, 15-17; b) K. J. P. Schouten,
Z. Qin, E. Pérez Gallent, M. T. M. Koper, J. Am. Chem. Soc. 2012, 134, 9864-9867; c) E. Pérez-
Gallent, M. C. Figueiredo, F. Calle-Vallejo, M. T. M. Koper, Angew. Chem. Int. Ed. 2017, 56, 3621-
3624.
[20]
a) C. W. L. Yihong Chen, Matthew W. Kanan, J. Am. Chem. Soc 2012, 134, 19969–19972; b) D. Ren,
Y. Deng, A. D. Handoko, C. S. Chen, S. Malkhandi, B. S. Yeo, ACS Catal. 2015, 5, 2814-2821.
H. Xiao, W. A. Goddard, T. Cheng, Y. Liu, PNAS 2017, 114, 6685-6688.
C. Liu, S. Hedström, J. H. Stenlid, L. G. M. Pettersson, J. Phys. Chem. C 2019, 123, 4961-4968.
X. Liu, J. Xiao, H. Peng, X. Hong, K. Chan, J. K. Nørskov, Nat. Commun. 2017, 8, 15438.
J. Huang, N. Hormann, E. Oveisi, A. Loiudice, G. L. De Gregorio, O. Andreussi, N. Marzari, R.
Buonsanti, Nat. Commun. 2018, 9, 3117.
[21]
[22]
[23]
[24]
[25]
H. Jung, S. Y. Lee, C. W. Lee, M. K. Cho, D. H. Won, C. Kim, H.-S. Oh, B. K. Min, Y. J. Hwang, J. Am.
Chem. Soc. 2019, 141, 4624-4633.
19
This article is protected by copyright. All rights reserved.
