Potential applications of Zr-KIT-5: Hantzsch reaction, Meerwein-Ponndorf-Verley (MPV) reduction of 4-tert-butylcyclohexanone, and Prins reaction of citronellal

Article abstract of DOI:10.1007/s11164-015-2157-4

The acidity of Zr-incorporated large pore cubic mesoporous silicate, KIT-5, with Fm3m symmetry was explored as catalyst in the Hantzsch reaction for preparation of 1,4-dihydropyridine (DHP) derivatives, Meerwein-Ponndorf-Verley (MPV) reduction of 4-tert-b

Full text of DOI:10.1007/s11164-015-2157-4

Res Chem Intermed
DOI 10.1007/s11164-015-2157-4
Potential applications of Zr-KIT-5: Hantzsch reaction,
Meerwein–Ponndorf–Verley (MPV) reduction of 4-tert-
butylcyclohexanone, and Prins reaction of citronellal
1
3
•
Vinju Vasudevan Srinivasan
1
•
Adeline Ranoux
3
•
Rajamanickam Maheswari
2
•
Ulf Hanefeld
Bala Subramaniam
2
Anand Ramanathan
•
Received: 13 January 2015 / Accepted: 27 June 2015
Ó The Author(s) 2015. This article is published with open access at Springerlink.com
Abstract The acidity of Zr-incorporated large pore cubic mesoporous silicate,
KIT-5, with Fm3m symmetry was explored as catalyst in the Hantzsch reaction for
preparation of 1,4-dihydropyridine (DHP) derivatives, Meerwein–Ponndorf–Verley
(
MPV) reduction of 4-tert-butylcyclohexanone, and Prins reaction of citronellal.
The catalyst showed *82–94 % selectivity for formation of DHP derivatives based
on substituted benzaldehydes. For the intramolecular cyclization of citronellal, the
activity and isomer selectivity increased with Zr content. Both these reactions
proceeded to nearly total conversion in relatively short reaction times of 3 h and
30 min, respectively. In sharp contrast, MPV reduction of 4-tert-butylcyclohex-
anone yielded 95 % conversion in 4 days, similar to those reported for Zr-TUD-1.
Keywords Zr-KIT-5 Á Hantzsch reaction Á Isopulegol Á Prins reaction Á MPV
reduction
Vinju Vasudevan Srinivasan and Adeline Ranoux have contributed equally to the present work.
Electronic supplementary material The online version of this article (doi:10.1007/s11164-015-2157-4)
contains supplementary material, which is available to authorized users.
&
&
Ulf Hanefeld
u.hanefeld@tudelft.nl
Anand Ramanathan
anand@ku.edu
1
2
Department of Chemistry, Anna University, Chennai 600025, India
Center for Environmentally Beneficial Catalysis, The University of Kansas, Lawrence,
KS 66047, USA
3
Gebouw voor Scheikunde, Technische Universiteit Delft, Julianalaan 136,
2628 BL Delft, The Netherlands
123

V. V. Srinivasan et al.
Introduction
Zirconium-containing mesoporous silica composites have been investigated as solid
4
?
acid catalysts based on the presence of Lewis acid sites created by Zr
incorporation in the framework and the large surface area, pore volume, and
uniform pore size distribution [1–4]. Since the discovery of mesoporous silicates
such as MCM-41 and SBA-15, two- and three-dimensional mesostructured silica
materials containing Zr have been synthesized including Zr-MCM-41 [5, 6], Zr-
MCM-48 [7, 8], Zr-SBA-15 [1, 3, 9], and Zr-SBA-16 [10]. Recently, Zr-containing
ordered cubic mesoporous silicates such as Zr-KIT-6 [11] and Zr-KIT-5 [12] have
also been synthesized and shown to be active for acid catalyzed reactions such as
dehydration of isopropanol [13], ethanol [14], and Friedel–Crafts benzylation of
anisole [12]. In particular, it was demonstrated that Zr-KIT-5 catalysts are stable and
recyclable following liquid phase reactions at temperatures up to 170 °C [12].
Based on these advantages, we investigate in this work if the Lewis acidic Zr-KIT-5
materials may be used as promising and alternative green solid acid catalysts for
reactions such as the synthesis of DHP derivatives (Hantzsch reaction), Prins
reaction of citronellal, and Meerwein–Ponndorf–Verley (MPV) reduction of 4-tert-
butylcyclohexanone.
Experimental
Synthesis and characterization of Zr-KIT-5
The detailed procedure for synthesis of Zr-KIT-5 and their characterization may be
found in our recent publication [12]. Briefly, Pluronic F127 (1.8 g) was dissolved in
0
.4 M HCl (90 mL) at 45 °C followed by addition of tetraethylorthosilicate (8.5 g)
and of required amounts ZrOCl Á8H O and the mixture was stirred at the same
2
2
temperature for 24 h. After that, they were hydrothermally treated in a Teflon lined
autoclave at 100 °C for a period of another 24 h. Final Zr-KIT-5 samples were
obtained after filtration and calcination at 550 °C to remove the template.
Small angle X-ray scattering SAXS (2h = 0.5°–2.5°) and powder XRD
(
2h = 10°–80°) patterns were recorded on a S-MAX 3000 instrument and Rigaku
MiniFlex diffractometer respectively with Cu-Ka radiation (k = 0.1548 nm).
Nitrogen adsorption–desorption isotherms were measured at -196 °C on a
Quantachrome NOVA 2000e sorption analyzer. Diffuse reflectance UV–Vis spectra
were recorded with a Perkin Elmer Lambda 850 spectrometer equipped with diffuse
reflectance integrating sphere, with Spectralon as the reference. Elemental analysis
was performed on a Horiba Jobin–Yvon JY 2000 (ICP-OES) instrument after
digesting the catalyst samples in a HF and H SO mixture. Acidity measurement
2
4
was carried out by temperature programmed desorption of ammonia (NH -TPD)
3
spectra on a Micromeritics Autochem 2910 instrument equipped with a thermal
conductivity detector (TCD). Data obtained via these techniques are fully described
in Ref. [12].
1
23

Potential applications of Zr-KIT-5: Hantzsch reaction…
Catalytic activity
For the Hantzsch reaction, freshly distilled benzaldehyde (1 mmol), ethyl acetoac-
etate (2 mmol), ammonium acetate (1.2 mmol), and 4 mL of ethanol (solvent) were
added to a 25-mL, two-neck, round-bottom flask equipped with a condenser and
magnetic stir bar. Then Zr-KIT-5 (Si/Zr ratio = 25, containing 0.06 mmol Zr), was
charged to the reaction mixture and the reaction was started by immersing the flask
into a preheated oil bath at 80 °C. The reaction was monitored periodically by TLC
(
monitored using hexane:ethyl acetate 7:3). After completion of the reaction, the
resultant mixture was cooled down to room temperature, filtered (to separate the
catalyst), and the filtrate was added to cold water; the formed precipitate was filtered
off. The crude product was further purified by recrystallization using ethanol. The
1
13
isolated pure compound was confirmed by H NMR, C NMR and FT-IR and also
by comparison with the literature reports [15, 16]. Representative characterization
data are also provided in supplementary information.
For the Prins cyclisation of citronellal, the following general protocol was
applied (method reported earlier [2, 17]). In a Schlenk flask of 50 mL (placed in an
oven at 70 °C overnight), 50 mg of catalyst (activated in an oven overnight at
1
00 °C) were introduced. After flushing the vapour space with N , 5 g of dry
2
toluene were introduced followed by 0.1 mL of tri-isopropylbenzene (IS) and then
finally 4 mmol of ± citronellal (industrial grade, containing approx. 5 % isopulegol,
0
N . Samples were regularly withdrawn using a capillary tube (introduced in the
.725 mL). The mixture was then placed in an oil bath at 80 °C and stirred under
2
reaction medium via a needle), filtered over a cotton plug (in a Pasteur pipette),
diluted, and analyzed by GC.
GC method: Column: Cyclodex-B; Detector temperature: 270 °C; Injector
temperature: 250 °C; Temp. gradient: beginning at 140 °C hold for 16.0 min, then
-1
-
1
increased by 50 °C min to 250 °C (hold 1 min); Column flow: 0.87 mL min
-
1
linear velocity 20.3 cm s ); Split ratio: 50; Total time: 19.20 min. Retention
(
times: ± citronellal: 12.67 min, isopulegol: 13.45, neo-isopulegol: 13.62 min, iso-
isopulegol: 14.77 min, neoiso-isopulegol: 14.90 min, internal standard (IS):
1
7.03 min.
For the catalyst recycling runs, the reaction was carried out as described above
(but first step with 94 quantities: 200 mg catalyst, 20 g of dry toluene, 0.4 mL IS
and 16 mmol citronellal). The catalysts were recycled after filtration and calcination
(
600 °C, 6 h) and used again in a new reaction following the same protocol.
For the hot filtration test, the reaction was started as described above. After
1
0 min the reaction medium is sampled via a dried syringe and immediately filtered
through a PTFE syringe filter previously washed with anhydrous toluene at 80 °C.
The liquid medium is introduced directly into a Schlenk flask of 50 mL, previously
placed overnight in an oven at 70 °C, flushed with N , and left at 80 °C. The
2
monitoring of the reaction was done before and after filtration following the same
protocol as described before.
For the Meerwein-Ponndorf-Verley reduction of 4-tert-butylcyclohexanone, the
following general protocol was applied (method reported earlier [2, 17]). In a
Schlenk flask of 50 mL (placed in an oven at 70 °C overnight), 50 mg of catalyst
123

V. V. Srinivasan et al.
(
freshly calcined) was introduced followed by 2 mmol of 4-tert-butylcyclohexanone
308.5 mg). After flushing the vapour phase with N , 4 mL of isopropanol and
(
2
0
.1 mL of triisopropylbenzene (IS) were added. The mixture was then placed in an
oil bath at 80 °C and stirred under N for several days. Samples were regularly
2
withdrawn using a capillary tube (introduced in the reaction medium via a needle),
filtered over a cotton plug (in a Pasteur pipette), diluted, and analyzed by GC.
GC method: Column: Cyclodex-B; Detector temperature: 270 °C; Injector
temperature: 250 °C; Temp. gradient: beginning at 150 °C hold for 14.0 min, then
-1
-
1
increased at 50 °C min to 250 °C (hold 1 min); Column flow: 1.50 mL min
-
1
(
linear velocity 29.5 cm s ); Split ratio: 50; Total time: 17.03 min. Retention
times: 4-tert-butylcyclohexanone: 11.3 min, 4-tert-butylcyclohexanol: 9.7 (cis) and
0.4 min (trans), IS: 10.2 min.
1
Results and discussions
The relevant properties of Zr-KIT-5 catalysts are briefly summarized in Table 1. In
2
-1
general, Zr-KIT-5 materials presented high surface area (970–1020 m g ), pore
3
-1
volume (0.7–0.8 cm g ), and uniform pore size distribution with a cage diameter
of 8.8 nm [12]. Also, the total acidity of Zr-KIT-5 increased with Zr loading and the
predominant type of acidity is found to be a Lewis acid [12]. Representative TEM
results are given in Fig. 1. The activity of Zr-KIT-5 at different temperatures and
the effect of Si/Zr for the one pot synthesis of Dihydropyridine derivatives via
Hantzsch reaction is given in Table 2. In an uncatalyzed reaction at 80 °C, even
after 12 h, only 10 % of the expected product was obtained (Table 2, entry 6). On
the other hand, adding catalytic amounts of Zr-KIT-5 under similar reaction
conditions, a dramatic increase in the yield up to 85 % in a relatively short batch
time of 3 h was observed. For a similar amount of catalyst and under identical
reaction conditions, a higher yield of DHP was obtained over Zr-KIT-5 (25) (see
Table 2, entries 1–3). This is clearly attributed to increase in number of acid sites
which increases with decrease in Si/Zr ratio. Similarly, with increase in temperature
from 40 to 80 °C, about 85 % DHP was yielded in a shorter reaction time of 3 h
(
see Table 2, entries 3–5).
Table 1 Physicochemical characteristics of calcined Zr-KIT-5 sample with different zirconium content
a
b
c
d
tp
e
f
KIT-5 (Si/Zr)
Si/Zr
S
BET
2
m g
V
d
P, NLDFT
(nm)
Total acidity
-1
)
3
(cm g
-1
-1
(
)
3
(mmol NH g )
Zr-KIT-5 (100)
Zr-KIT-5 (50)
Zr-KIT-5 (25)
a
96
51
25
1018
1011
971
0.71
0.73
0.81
8.8
8.8
8.8
0.24
0.35
0.59
b
Molar ratio in the synthesis gel; actual molar ratio in sample determined by ICP-OES;
c
d
e
S
BET = specific surface area;
Vtp = total pore volume at 0.98 P/P
0
;
dP,NLDFT = cage diameter
determined using NLDFT kernel developed for silica exhibiting cylindrical/spherical pore geometry;
f
3
total acidity assessed from NH -TPD studies
1
23

Potential applications of Zr-KIT-5: Hantzsch reaction…

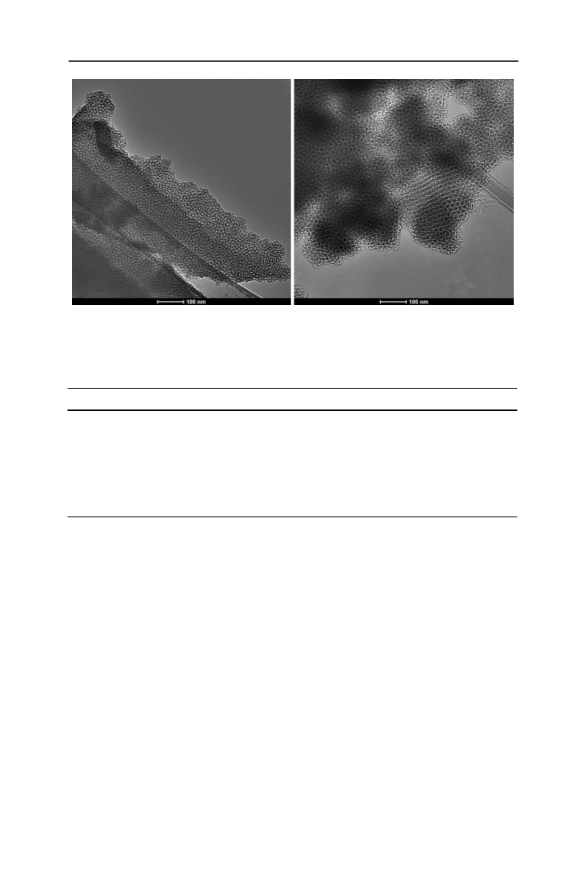

Fig. 1 TEM image of Zr-KIT-5 having Si/Zr ratio of 25 (left) and 100 (right) with the scale bar
representing 100 nm
Table 2 Effect of temperature and Si/Zr ratio for the one pot synthesis of Hantzsch reaction over Zr-
KIT-5 catalyst
a
Time (h)
Entry
Catalyst (Si/Zr)
Temperature (°C)
Isolated yield (%)
1
2
3
4
5
6
Zr-KIT-5 (100)
Zr-KIT-5 (50)
Zr-KIT-5 (25)
Zr-KIT-5 (25)
Zr-KIT-5 (25)
No catalyst
80
80
80
60
40
80
5
3
72
76
3
85
7
69
12
12
53
*10
Reaction conditions: catalyst (100 mg), benzaldehyde (1 mmol), ethyl acetoacetate (1 mmol), ammonium
acetate (1.2 mmol), solvent—ethanol (5 ml), melting point of the isolated compound = 159–160 °C [22]
a
Time required for completion of reaction (monitored by TLC)
Based on the substituents in the benzaldehydes and heterocyclic aldehydes, Zr-
KIT-5 gave good yields with only minor variations in the final reaction time. The
excellent activity of Zr-KIT-5 is further borne out by the fact that when the reaction
is performed with homogeneous ZrOCl under similar reaction conditions, only
2
4
7 % product yield is obtained even with a threefold longer batch reaction duration
Table 3, entry 8).
(
Because of their demonstrated strong Lewis acidity, the Zr-KIT-5 catalysts are
excellent candidates for reactions such as the Prins cyclization or the MPV reaction,
as also shown previously with other mesoporous Zr silicates, Zr-TUD-1 [17]. These
two reactions may lead to interesting applications such as the synthesis of menthol
(
in which the cyclization of citronellal is a first step) or the MPV reduction of
steroids such as cholesterol [18, 19]. The Zr-KIT-5 samples were therefore tested
for both reactions.
123

V. V. Srinivasan et al.
Table 3 Effect of various substituted aldehyde in Hantzsch reaction at 80 °C over Zr-KIT-5 (25)
a
Time (h)
Entry
Aldehyde
Isolated yield (%)
Melting point (°C)
1
2
3
4
5
6
7
8
a
Benzaldehyde
3
85
77
90
74
82
95
95
159–160 [22]
159–160 [23]
148–149 [15]
132–134 [15]
160–161 [15]
159–160 [15]
165–167 [15]
4-Bromobenzaldehyde
4-Chlorobenzaldehyde
4-Nitrobenzaldehyde
4-Methoxybenzaldehyde
Furan-2-carbaldehyde
Thiopene-2-carbaldehyde
Thiopene-2-carbaldehyde
2
3
2.5
4
2
1.5
6
b
47
b
Completion of the time monitored by TLC; ZrOCl
2
was employed as catalyst. (50 wt% with respect to
total weight of substrates)
Reaction conditions: Zr-KIT-5 (25) containing 0.06 mmol of Zr, substituted aldehyde (1 mmol), ethyl
acetoacetate (1 mmol), ammonium acetate (1.2 mmol), and solvent (ethanol, 5 mL)
The intramolecular cyclization of citronellal leads to the formation of different
isomers of isopulegol (Scheme 1). The observed activities and isomers selectivity
on the tested Zr-KIT-5 catalysts were excellent (Table 4; Fig. 2), increasing with
the amount of incorporated Zr. These results were obtained with industrial grade
citronellal containing around 5 % isopulegol which is known to inhibit the reaction,
thus higher activities can be expected starting from optically pure citronellal [2].
These results are quite similar to those reported with Zr-TUD-1 catalysts [2] and far
higher than those reported with other zeolite catalysts [20].
Up to 95 % conversion in only 30 min (Table 4) was obtained using Zr-KIT-5
25) as catalyst, which is quite similar to the conversion obtained with Zr-TUD-1
(
previously described [2]. The Zr-KIT-5 (50) and Zr-KIT-5 (100) samples show
lower activity (92 % conversion in 50 min and 90 % conversion in 165 min,
respectively). However, the turnover frequency, TOF, of Zr-KIT-5 (50) appeared
higher than Zr-KIT-5 (25), suggesting an actual higher activity per active site
(
Table 4; Fig. 2b). However, this does not hold true for Zr-KIT-5 (100), which
yields lower TOF values throughout the reaction (Fig. 2b). This observation, as well
as the slower uptake observed at the beginning of the reaction, especially for Zr-
KIT-5 (100), may suggest pore diffusion limitations.
The end-of run selectivity to isopulegol, as well as the observed diastereoselec-
tivity for isopulegol, was around 75/25 for all Zr-KIT-5 catalysts (Table 4). These
Scheme 1 Cyclisation of citronellal to isopulegol and its isomers catalyzed by Zr-KIT-5 materials
1
23

Potential applications of Zr-KIT-5: Hantzsch reaction…
Table 4 Conversion, selectivity, and diastereoselectivity in the Prins cyclization reaction with Zr-KIT-5
a
catalysts
Catalyst
Time (min) Conversion (%) Selectivity (%) Diastereoselectivity i/ni/ii/nii (%)
Zr-KIT-5 (25)
Zr-KIT-5 (50)
30
50
95
92
90
95
95
95
76.4/16.7/6.8/0.0
76.1/16.0/7.9/0.1
74.4/18.0/7.4/0.2
Zr-KIT-5 (100) 165
a
50 mg of catalyst in 5 g of dry toluene followed by 0.1 mL of triisopropylbenzene (IS) and then
4
under N
mmol of ± citronellal (industrial grade, containing approx. 5 % isopulegol, 0.725 mL). Stirred at 80 °C
2
(
A)
(B)
1
00
1
1
6
2
8
4
0
8
6
4
2
0
0
0
0
0
Zr KIT-5 (25)
Zr KIT-5 (50)
Zr KIT-5 (100)
Zr KIT-5 (25)
Zr KIT-5 (50)
Zr KIT-5 (100)
0
50
100
150
200
0
50
100
150
200
Time (min)
Time (min)
Fig. 2 a Temporal evolution of isopulegol and b variation of turnover frequencies (TOFs) during Prins
cyclization on Zr-KIT-5 materials: 50 mg of catalyst in 5 g of dry toluene followed by 0.1 mL of tri-
isopropylbenzene (IS) and then 4 mmol of ± citronellal (industrial grade, containing approx. 5 %
isopulegol, 0.725 mL). Stirred at 80 °C under N
2
(
A)
(B)
1
00
1
00
80
60
40
20
0
8
6
4
2
0
0
0
0
0
Hot Filtration
Zr-KIT-5 25
Recycling step 1
Recycling step 2
0
50
Time (min)
100
0
50
Time (min)
Fig. 3 a Recycle experiments with Zr-KIT-5 (25) samples with calcination of the material following
each cycle (‘‘Experimental’’ conditions noted in Table 4); b Hot filtration test with Zr-KIT-5 (25),
˚
filtering off the catalyst at 80 C after 10 min
123

V. V. Srinivasan et al.
values are much higher than those for Zr-TUD-1 (around 65/35) [2]. This ratio is not
affected by the amount of Zr incorporated. Unlike Zr-TUD-1 that has wide pores,
Zr-KIT-5 has two types of pores, narrow gates (2.4–3.7 nm) interconnecting cages
of 8.8 nm diameter. The narrow gates induce the higher diastereoselectivity in the
reaction compared to Zr-TUD-1. At the same time, they might also cause pore
diffusion limitations observed for Zr-KIT-5 (100). This is absent in Zr-TUD-1
(
100).
Catalyst recycling experiments revealed that the Zr-KIT-5 materials could be
recycled successfully during three consecutive attempts (Fig. 3a) with very little
loss of the activity ([5 %). Moreover, a hot filtration test (filtration carried out at
8
0 °C to prevent any possible precipitation of soluble compounds, Fig. 3b) showed
that the reaction is completely stopped after removal of the catalyst, proving the
heterogeneous nature of the catalysis and the absence of leaching.
The Zr-KIT-5 materials were also tested as catalysts in the MPV reduction of
4
-tert-butylcyclohexanone (Scheme 2).
Zr-KIT-5 catalysts displayed moderate to high activity, depending on the amount
of incorporated Zr (Fig. 4). The Zr-KIT-5 (25) with the highest Zr loading (and
hence acidity) provided 95 % conversion in 4 days, similar to those reported with
Zr-TUD-1 catalysts [2]. The activity decreases with the zirconium loading and the
Scheme 2 Reduction of 4-tert-butylcyclohexanone to the isomers of 4-tert-butylcyclohexanol catalyzed
by Zr-KIT-5 materials
(
A)
(B)
1
00
2
1.6
1.2
0.8
8
6
4
2
0
0
0
0
0
Zr KIT-5 (25)
Zr KIT-5 (50)
Zr KIT-5 (100)
Zr KIT-5 (25)
Zr KIT-5 (50)
Zr KIT-5 (100)
0
.4
0
0
2000
4000
6000
0
2000
4000
6000
Time (min)
Time (min)
Fig. 4 a Evolution of the yield of 4-tert-butylcyclohexanol formed during the Meerwein–Ponndorf–
Verley reduction catalysed by various Zr-KIT-5 materials and b turn over frequencies, TOF (50 mg of
catalyst, 2 mmol of 4-tert-butylcyclohexanone (308.5 mg), 4 mL of isopropanol, and 0.1 mL of tri-
isopropylbenzene (IS) were placed in an oil bath at 80 °C and stirred under N )
2
1
23

Potential applications of Zr-KIT-5: Hantzsch reaction…
Table 5 Conversion, selectivity, and diastereoselectivity in the Meerwein–Ponndorf–Verley reduction
a
with Zr-KIT-5 catalysts
Catalyst
Time (days)
Conversion (%)
Selectivity (%)
Stereoselectivity trans/cis (%)
Zr-KIT-5 (25)
Zr-KIT-5 (50)
Zr-KIT-5 (100)
a
4
3
3
95
67
55
99
98
97
7/1
6/1
5/1
5
0 mg of catalyst, 2 mmol of 4-tert-butylcyclohexanone (308.5 mg), 4 mL of isopropanol, and 0.1 mL
of triisopropylbenzene (IS) were placed in an oil bath at 80 °C and stirred under N
2
acidity of the material, as also observed for the Prins reaction. With the Zr-KIT-5
50) and (100) catalysts, a conversion of 67 and 55 %, respectively, was observed in
days (Table 5). Furthermore, the observed product selectivity is excellent. The
(
3
stereoselectivity is also high, up to a trans/cis ratio of 7/1 and comparable to
literature values (around 6/1 for Zr-TUD-1 [2, 15]). This ratio increases slightly
with the amount of Zr incorporated. This might again reflect the influence of the
steric hindrance of the gate pores on the diastereoselelctivity. A much more extreme
form of this was reported earlier [21].
Conclusions
4
?
The Lewis acidity in Zr-KIT-5 samples stemming from Zr incorporation is shown to
catalyze three reactions efficiently. The general acid catalysed Hantzsch reaction and
two Lewis acid catalysed reactions; the Meerwein–Ponndorf–Verley reduction of
4
-tert-butylcyclohexanone and the Prins reaction of citronellal. Excellent reactivity,
selectivity and stereoselectivity, that are tuned with catalyst acidity (i.e., Zr loading),
are observed for both reactions. Excellent catalyst recyclability was also observed
confirming that Zr-KIT-5 catalysts are catalysts with high potential.
Acknowledgments The authors acknowledge financial support for this work by the US Department of
Agriculture and the National Institute of Food and Agriculture through Grant No. 2011-10006-30362.
Compliance with Ethical Standards
Conflict of interest The authors declare that they have no conflict of interest.
Open Access This article is distributed under the terms of the Creative Commons Attribution 4.0
International License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, dis-
tribution, and reproduction in any medium, provided you give appropriate credit to the original
author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were
made.
References
1. D.M. Do, S. Jaenicke, G.-K. Chuah, Catal. Sci. Technol. 2, 1417 (2012)
123

V. V. Srinivasan et al.
2
3
. A. Ramanathan, M.C. Castro Villalobos, C. Kwakernaak, S. Telalovic, U. Hanefeld, Chem. Eur. J.
1
4, 961 (2008)
. J.A. Melero, L.F. Bautista, J. Iglesias, G. Morales, R. S a´ nchez-V a´ zquez, Catal. Biorefin. 195, 44
2012)
(
4
5
6
7
8
. S.-Y. Chen, J.-F. Lee, S. Cheng, J. Catal. 270, 196 (2010)
. X.X. Wang, F. Lefebvre, J. Patarin, J.-M. Basset, Microporous Mesoporous Mater. 42, 269 (2001)
. M. Occelli, S. Biz, A. Auroux, Appl. Catal. Gen. 183, 231 (1999)
. M.S. Morey, G.D. Stucky, S. Schwarz, M. Froba, J. Phys. Chem. B 103, 2037 (1999)
. L.F. Chen, X.L. Zhou, L.E. Nore n˜ a, J.A. Wang, J. Navarrete, P. Salas, A. Montoya, P. Del Angel,
M.E. Llanos, Appl. Surf. Sci. 253, 2443 (2006)
9. W.-K. Chen, H.-H. Tseng, M.-C. Wei, E.-C. Su, I.-C. Chiu, Int. J. Hydrog. Energy 39, 19555 (2014)
1
1
0. N. Jiang, J.-B. Koo, S.-C. Han, S.-E. Park, Res. Chem. Intermed. 34, 507 (2008)
1. A. Ramanathan, B. Subramaniam, R. Maheswari, U. Hanefeld, Microporous Mesoporous Mater. 167,
207 (2013)
12. A. Ramanathan, H. Zhu, R. Maheswari, B. Subramaniam, Chem. Eng. J. 278, 113 (2015)
13. Q. Pan, A. Ramanathan, W.K. Snavely, R.V. Chaudhari, B. Subramaniam, Ind. Eng. Chem. Res. 52,
15481 (2013)
1
4. Q. Pan, A. Ramanathan, W.K. Snavely, R. Chaudhari, B. Subramaniam, Top. Catal. 57, 1407 (2014)
5. A. Debache, W. Ghalem, R. Boulcina, A. Belfaitah, S. Rhouati, B. Carboni, Tetrahedron Lett. 50,
1
5248 (2009)
1
1
6. C.A. Antonyraj, S. Kannan, Appl. Catal. Gen. 338, 121 (2008)
7. S. Telalovi c´ , A. Ramanathan, J.F. Ng, R. Maheswari, C. Kwakernaak, F. Soulimani, H.C. Brouwer,
G.K. Chuah, B.M. Weckhuysen, U. Hanefeld, Chem. Eur. J. 17, 2077 (2011)
8. A. Ramanathan, D. Klomp, J.A. Peters, U. Hanefeld, J. Mol. Catal. Chem. 260, 62 (2006)
9. D. Klomp, K. Djanashvili, N.C. Svennum, N. Chantapariyavat, C.-S. Wong, F. Vilela, T. Masch-
meyer, J.A. Peters, U. Hanefeld, Org. Biomol. Chem. 3, 483 (2005)
1
1
2
2
2
2
0. Z. Yongzhong, N. Yuntong, S. Jaenicke, G.-K. Chuah, J. Catal. 229, 404 (2005)
1. E. Creyghton, S. Ganeshie, R. Downing, H. van Bekkum, J. Mol. Catal. Chem. 115, 457 (1997)
2. P.P. Ghosh, S. Paul, A.R. Das, Tetrahedron Lett. 54, 138 (2013)
3. A. Heydari, S. Khaksar, M. Tajbakhsh, H.R. Bijanzadeh, J. Fluor. Chem. 130, 609 (2009)
1
23
