seeded separately on 96 well plates at a concentration of 1 × 104 cells/
well. The cells were subjected to different concentrations of green
synthesized Ag@TiO2 and TiO2 (0 to 200 μg/ml). After 24 h, 100 μl of
MTT (3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyltetrazolium bromide)
was added and incubated at 37 °C for 4 h in a CO2 incubator. After
incubation, the purple colored formazan was dissolved by adding
100 μL of Dimethyl sulfoxide. After 30 min, the optical density was
measured at 570 nm by using an ELISA multiwell plate reader for de-
termining IC50 values. All the tests were performed in triplicates to
avoid any experimental error.
smooth compared to Ag@TiO2 NPs. After depositing different Ag con-
centrations on TiO2 NPs, the surface of TiO2 NPs was changed from
Fig. 1(C), it could be observed that when Ag concentrations have been
changed, morphologies of Ag@TiO2 NPs have also changed. Due to
hydrothermal treatment, the rod shaped TiO2 NPs and small spherical
Ag NPs were formed as shown in Fig. 1 (B & D). The doping con-
centration and the hydrothermal method of preparation could have
been the two major factors influencing the morphological changes ob-
served [23–25]. The calculated total size of Ag NPs was 38 nm and the
size of TiO2 NPs was 57 nm. The SAED pattern lattice springs clearly
showed the anatase phase that was matched with (101) crystallography
plane. In Ag@TiO2 nanostructures, the percentage of Ag was 1.77%
TiO2 was 69.05% and O was 29.24%, respectively as denoted by EDAX
spectrum shown in supplementary file (Fig. S2).
2.8. Acridine Orange/Ethidium Bromide (AO/EtBr) Staining
AO/EB double staining assay was used to determine the ability of
Ag@TiO2 and TiO2 NPs to induce apoptosis (A549 cells). The staining
assay was carried out according to the previously described method
[20]. A549 cells were seeded separately in six-well plates with the re-
spective IC50 concentrations of Ag@TiO2 and TiO2 NPs and were in-
cubated for 24 h. Fluorescent dyes viz., Ethidium bromide (100 μg/ml)
and Acridine orange (100 μg/ml) solutions were mixed with respective
cells. The cells were incubated at 37 °C for 30 min in dark. Later, AO/EB
staining was observed through a fluorescence microscope. The me-
chanism of AO/EB double staining assay presents that the cells con-
taining normal nuclear chromatin portray green nuclear staining (AO is
taken up by viable cells). Apoptotic cells, which contained orange to red
nuclei with condensed chromatin (EO is taken up by non-viable cells)
were evaluated by fluorescence microscope at 20× magnification.
3.3. XPS Studies of TiO2 and Ag@TiO2 NPs
X-ray photoelectron spectroscopy was used to analyze the chemical

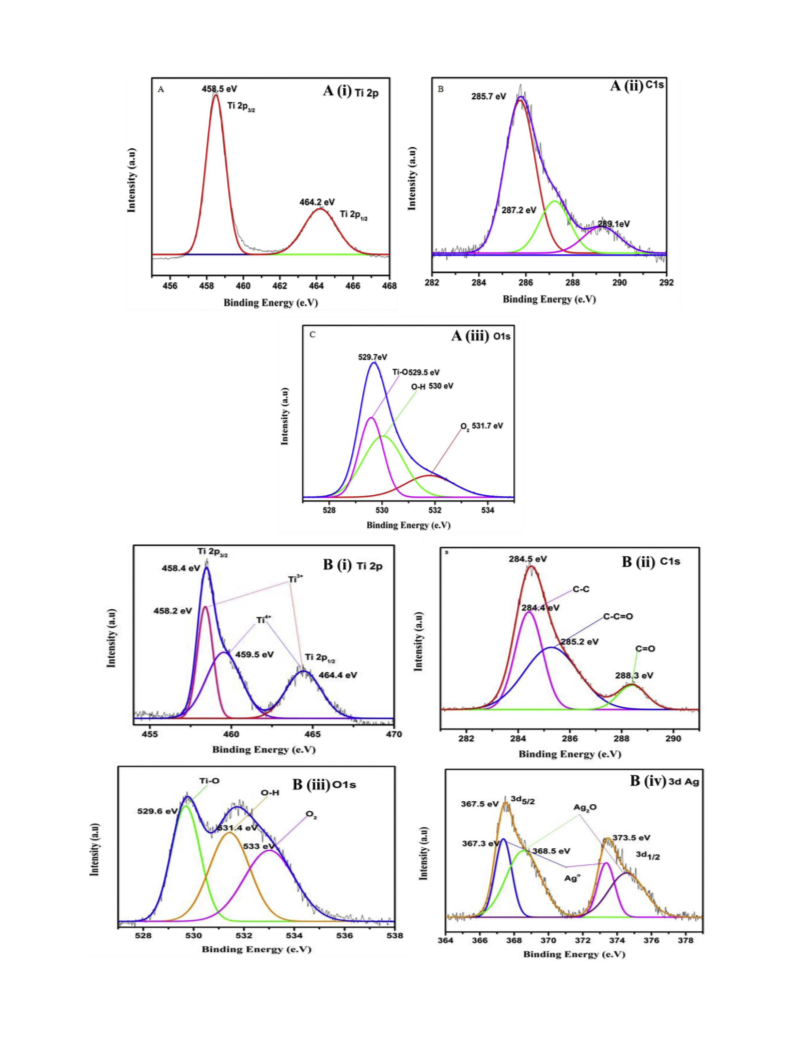

state and elemental composition. Fig. 2 (A) (i-iv) shows the XPS spectra
of TiO2 and Ag@TiO2. Ti, C, Ag, and O and they are presented in green
hydrothermal synthesized Ag@TiO2 (Table. S1, S2). Ti 2p spectrum
shows peaks at 458.4 eV (Ti 2p3/2) and 464.2 eV (Ti 2p1/2). The position
of peak was 5.2 eV indicating the Ti4+ [26] oxidation state for TiO2
nanostructure. The peak position for C1s in the Ag@TiO2 samples could
be decomposed into three chemically distinct components present in
the biomolecules (Fig. 2(B)- ii). Besides the C1s peak at 284.5eVBE
acids, vitamins, lignin, anthraquinones, enzymes, polysaccharides, sal-
icylic acids, minerals, monosaccharides, saponins and sterols, two other
peaks at 284.4 and 288.2 eV BE have also been observed. The higher BE
(binding energy) peak at 288.3 eV was attributed to the electron
emission from carbons in carbonyl groups [27] (Carbonyl carbons of
the polysaccharides or proteins-enzymes) and the lower peak at
284.4 eV BE would be most likely from carbons to the carbonyl carbon.
Compared to TiO2 (Fig. 2 (A) - i), the peaks of Ag@TiO2 shifted to
higher binding energy. It confirms strong interaction between Ag and
TiO2 nanostructures. Using curve fitting program for Ag@TiO2 nanos-
tructures, Ti2P3/2 peaks were further divided into two peaks, and they
were present at 459.9 eV and 458.2 eV, caused by Ti4+ and Ti3+ spe-
cies, respectively. Evidently, the presence of Ti3+ species might be the
reason for visible light absorption and enhanced photocatalytic activity
in the visible light region [11].
2.9. Dichloro Dihydro Fluorescein Diacetate (DCFH-DA) Assay
The intracellular ROS generation by TiO2 and Ag@TiO2NPs for
A549 cells was detected by DCFH-DA staining. A549 cells were seeded
in six-well plates and treated with TiO2 and Ag@TiO2 NPs. After 24 h of
incubation, the cells were rinsed with 1× cold PBS and stained with
DCFH-DA (10 μg/10 μL) in dark condition for 30 min. Finally, the ROS
level was examined by fluorescence microscope (Floid cell imaging
station, Life technologies, U.S.A). The assay was carried out according
to the previously described method and in triplicates [21].
3. Results and Discussion
3.1. FT-IR-Analysis of Plant Leaf Extract
XPS spectra of O1s TiO2 NPs and Ag@TiO2NPs are presented in Fig.
(2(A) - iii) and B(iii). O1s spectra were further fitted for TiO2 and
Ag@TiO2 nanostructures, and they indicated (OTi-O at 529.6 eV for TiO2
and Ag@TiO2), surface silver groups (OO-Hat 531.7 eV and 531.4 eV for
TiO2 and Ag@TiO2) [28], and adsorbed O2 (at 531.7 eV and 533 eV for
TiO2 and Ag@TiO2) [29]. In Ag 3d spectrum, two peaks were observed
for Ag 3d5/2 (367.5 eV) and Ag3d3/2 (373.5 eV) at low binding energies
compared to bulk Ag (368.3 eV for Ag 3d 5/2, and 374.3 eV for Ag 3d3/2
[30], due to an electron moving from Ag to TiO2 surface. Ag3d5/2 in-
dicated two peaks and they were Ago (367.3 eV) and Ag2O (368.5 eV).
After visible light irradiation, Ag ions were transferred to Ag2O, when
Ago was on the surface. It confirmed that Ag was strongly oxidized,
during visible light exposure.
FTIR spectrum of 500 °C calcinated Aloe vera gel (Supplementary
file (Fig. S1)). Strong IR bands have been observed at 3459, 2085, 1634,
1550, 1409 and 662 cm−1. The spectrum for plant gel extract exhibited
intense and distinct absorption bands at 3459 cm−1, which corre-
sponded to NeH stretching. The bands at 2085 cm−1 were due to
N=C=S bond stretching, and 1550 cm−1 corresponded to NeO bond
stretching. The low band at 662 cm−1 corresponded to C–X stretching
(bending region). Generally, plant gel extract is known to contain
biomolecules such as lignin, vitamins, amino acids, enzymes, anthrao-
quinones, polysaccharides, salicylic acids, minerals, monosaccharide,
saponins, and sterols in different extracts of Aloe Vera aqueous gel [22].
The peak at 1409 cm−1was assigned to the COO– symmetric stretch
from proteins with carboxyl side groups in the amino acid residues.
Further, the peak that appeared at 1634 cm−1 corresponded to the
stretching modes of –C=O group. The above biomolecules might have
contributed to the reduction of Ag+ ions.
3.4. Structural Studies of TiO2 and Ag@TiO2 NPs
TiO2 and Ag NPs anchored TiO2 NPs were analyzed for crystallinity.
Fig. 3 (A) shows that diffraction peaks were not associated with crys-
talline TiO2. It demonstrated that TiO2 was amorphous in both the as-
deposited intrinsic and NPs samples. After annealing at 500 °C, the
diffraction peaks were observed at 2θ = 25.6°, 38.0°, 48.4°, 54.2°,
55.3°, 63.0°, and 69.0°, respectively to the (101), (112), (200), (105),
(211), (204) and (220), crystal planes of the TiO2 anatase phase (JCPDS
file No.21–1272), which are presented in Fig. 3 (A) (b-d). All the
3.2. HRTEM Analysis of TiO2 and Ag@TiO2
The morphology properties of the pure TiO2 NPs and Ag@TiO2
nanostructures have been investigated by HRTEM. Fig. 1 (A) shows the
