Title: Aerobic Baeyer-Villiger Oxidation of Cyclic Ketones
over Periodic mesoporous silica Cu/Fe/Ni/Co-HMS-X
Author: Sumbul Rahman Nagasuresh Enjamuri Ruth Gomes
Asim Bhaumik Debasis Sen S. Mazumdar Biswajit
Chowdhury
PII:
S0926-860X(15)00160-X
DOI:
Reference:
http://dx.doi.org/doi:10.1016/j.apcata.2015.03.014
APCATA 15304
To appear in:
Applied Catalysis A: General
Received date:
Revised date:
Accepted date:
10-8-2014
14-1-2015
13-3-2015
Please cite this article as: S. Rahman, N. Enjamuri, R. Gomes, A. Bhaumik, D. Sen,
S. Mazumdar, B. Chowdhury, Aerobic Baeyer-Villiger Oxidation of Cyclic Ketones
over Periodic mesoporous silica Cu/Fe/Ni/Co-HMS-X, Applied Catalysis A, General
(2015), http://dx.doi.org/10.1016/j.apcata.2015.03.014
This is a PDF file of an unedited manuscript that has been accepted for publication.
As a service to our customers we are providing this early version of the manuscript.
The manuscript will undergo copyediting, typesetting, and review of the resulting proof
before it is published in its final form. Please note that during the production process
errors may be discovered which could affect the content, and all legal disclaimers that
apply to the journal pertain.

Highlights
Aerobic Baeyer-Villiger Oxidation of Cyclic Ketones over
Periodic mesoporous silica Cu/Fe/Ni/Co-HMS-X
1
1
2
2
Sumbul Rahman , Nagasuresh Enjamuri , Ruth Gomes , Asim Bhaumik , Debasis
3
4
3
1*
Sen , J. K Pandey , S. Mazumdar and Biswajit Chowdhury
1
2
. Department of Applied Chemistry, Indian School of Mines, Dhanbad, India
. Department of Materials Science, Indian Association for the Cultivation of Science,
Jadavpur, Kolkata 700032, India
3
4
. Solid State Physics Division, Bhabha Atomic Research Center (BARC), Mumbai, India
. Respiratory protection lab, Central Institute of Mining and Fuel Research (CIMFR),
Dhanbad, India
*Corresponding author: biswajit_chem2003@yahoo.com; Tel: (+91)-326-2235663; Fax:
(+91)-326-2296563


 Co-HMS-X catalyst showed catalytic activity for baeyer villager oxidation reaction.
 Cu,Fe and Ni (0.25 mol%) are used as promoters in Co-HMS-X catalyst

 The highly active Ni-Co-HMS-X (Co/Ni = 20) had large number of acidic sites


 It could oxidise admantanone and cyclopntanone also with high conversion
 The selectivity was >99% in all the reactions
1
Page 1 of 28

Aerobic Baeyer-Villiger Oxidation of Cyclic Ketones over
Periodic mesoporous silica Cu/Fe/Ni/Co-HMS-X
1
1
2
2
Sumbul Rahman , Nagasuresh Enjamuri , Ruth Gomes , Asim Bhaumik , Debasis
3
3
1*
Sen , S. Mazumdar and Biswajit Chowdhury
1
2
. Department of Applied Chemistry, Indian School of Mines, Dhanbad, India
. Department of Materials Science, Indian Association for the Cultivation of Science,
Jadavpur, Kolkata 700032, India
3
*
. Solid State Physics Division, Bhabha Atomic Research Center (BARC), Mumbai, India
Corresponding author: biswajit_chem2003@yahoo.com; Tel: (+91)-326-2235663; Fax:
(+91)-326-2296563
ABSTRACT
Baeyer-Villiger oxidation is important reaction in the organic synthesis for designing value
added lactone/esters from the respective carbonyl compounds Usually an active metal-
.
containing material in the presence of peroxides catalyzes this reaction. Here highly ordered
metal promoted periodic mesoporous silica with high surface area has been synthesized
hydrothermally by the sol-gel method and thoroughly characterized by surface area and
porosity measurements, SAXS, FESEM, HRTEM, FTIR, UV-Vis, NH
3
-TPD and XRD
techniques Liquid phase Baeyer-Villiger oxidation of ketones to the corresponding esters
.
have been carried out using molecular oxygen as an oxidant, benzaldehyde as the
sacrificing agent over Co-HMS-X and M-Co-HMS-X (Metal = Ni, Fe, Cu) as catalysts. The
obtained results demonstrate that among the three promoted catalyst i.e Ni-Co-HMS-X, Cu-
Co-HMS-X and Fe-Co-HMS-X, Ni promoted catalyst is a promising and efficient catalyst
with high catalytic activity (>99% cyclohexanone conversion and >99% ε-caprolactone
selectivity) for the oxidation of cyclohexanone to ε-caprolactone. The high catalytic activity
is attributed to the Ni on the wall of mesoporous silica along with cyclohexanone, which
results in successful completion of the oxygen transfer step and generation of ε-
2
Page 2 of 28

caprolactone. Interesting information regarding cooperative role of cobalt and nickel
towards catalytic activity is observed.
Keywords : mesoporous silica, reductant, molecular O , cyclohexanone, ε-caprolactone
2
1. Introduction
Aerobic oxidations of hydrocarbons with heterogeneous catalysts are quite attractive and
challenging from an industrial viewpoint. The Baeyer-Villiger type oxidation is a valuable
reaction to oxidize ketone to an ester directly [1]. Catalytic versions of the Baeyer-Villiger
oxidation are particularly attractive for practical applications as described earlier.
Numerous efforts have been made to use oxygen and air as the oxidant in which reducing
agents such as hydrogen have been sometimes utilized as a sacrificing agent. In presence
of reducing reagent one oxygen atom from O oxidizes the reactant, whereas the other is
2
reduced as observed in literature. [2, 3] This type of reaction is similar to enzyme catalyzed
reactions such as cytochrome P-450 monooxygenase reaction.
Different types of heterogeneous catalysts are employed for these Baeyer-Villiger
oxidation reactions [4-6], such as microporous titanium silicate TS-1, supported ionic
liquids and sulfonic acids, Sn-doped microporous and mesoporous materials, etc. Apart
from this, heterogeneous base catalysts are also employed in this reaction and especially the
amine functionalized mesoporous silica has attracted considerable interest in this context
[7]. There are some advantages of mesoporous silicas over zeolites due to their larger pore
opening and high surface area. However, the silica grafted with organic functional groups
suffers from disadvantages of thermal stability and can only be utilized at relatively lower
temperature. This limitation has motivated the researchers to explore the potential of
mesoporous materials which have high thermal stability [8] [9] [10].
3
Page 3 of 28

The cobalt based catalysts have been widely used for direct oxidation, epoxidation
reactions using molecular O as an oxidant [11].Quite recently we have found that gallium
2
promoted Co containing hexagonal silica was effective for styrene epoxidation reaction
2
using molecular O [12]. This finding motivated us to explore the design catalyst consisting
of mixed metal mesoporous silica for Bayer Villiger Oxidation reaction. To improve the
activity for cobalt center by other metallic promoter e,g Cu, Fe and Ni have been widely
studied towards several reaction e,g hydrodesulfurization (HDS). Herein, we report the Cu,
Fe and Ni (0.25 mol %) promoted cobalt containing mesoporous silica (Co-HMS-X
5mol%) catalyst for Bayer-Villiger reaction taking cyclohexanone substrate using
molecular O as oxidant and benzaldehyde as sacrificial reductant. It is found that Ni
2
promoted Co-HMS-X catalyst (Si:Co:Ni = 100:5:0.25) demonstrated >99% cyclohexanone
conversion with >99% e-Caprolactone selectivity. The catalysts are characterized by
several techniques i.e BET surface area and porosity measurements, SAXS, FESEM,
HRTEM, UV-Vis, FTIR, XRD and NH
3
-TPD techniques in order to elucidate the reason for
high catalytic activity in presence of Co-Ni bimetallic center.
2
. Experimental:
2.1. Materials and catalyst preparation
Hexagonally ordered periodic mesoporous silica Co-HMS-X was synthesized by
using triblock copolymer as a template under acidic condition. In a typical synthesis
Pluronic P123 (Aldrich, MW= 5800) (4 g) was dissolved in 144 mL distilled water and 7.4
g 35% HCl (Merck) by continuous stirring. After stirring for 4 h a clear solution was
obtained and then 4 g n-butanol (Merck) was added to this solution and stirred for another1
h. Then tetraethyl orthosilicate (8.4 g) (TEOS, Acros) and aqueous solution of cobalt nitrate
(0.81 g) (Aldrich) were added to this solution and stirred for 24 h at room temperature. The
resulting gel composition of the mixture is P123 : H
2
O : HCl : n-Butanol : TEOS :
4
Page 4 of 28

3 2 2
Co(NO ) , 6H O: 0.017: 200: 5.4: 1.325: 1: 0.05-0.15 (molar ratio). To prepare the metal
nitrate promoted Co-HMS-X catalyst, the gel composition is fixed at P123: H O: n-Butanol
2
:
TEOS : Co(NO ) , 6H O: M(NO ) :: 0.017: 200: 5.4: 1.325: 1: 0.05-0.15: 0.0025 (M= Cu,
3 2 2 3 2
Fe, Ni) molar ratio. After stirring, the mixture was taken in a closed polypropylene bottle
o
and aged at 100 C temperature for 24 h under static hydrothermal condition. Subsequently
o
the material was filtered in hot condition without washing and then dried at 100 C for 12 h
o
in air. Finally the dried materials were calcined at 540 C for 24 h [13]. The material
obtained after calcination was labelled as Co-HMS-X and M-Co-HMS-X (M = Cu, Fe, Ni)
respectively.
2
2
.2. Catalyst characterization
.2.1. BET Surface area and porosity measurement
The nitrogen adsorption-desorption isotherm of the sample were measured at liquid
o
nitrogen temperature-196 C with a Quantachrome NovaWin-3200e instrument. Pre-
o
treatment of the samples were carried out at 300 C for 3 h under high vacuum. Pore size
distributions were calculated from the desorption branch of isotherms using Barrett-Joyner-
Halenda (BJH) method.
2.2.2. Small angle X-ray scattering (SAXS)
Small-angle x-ray scattering (SAXS) measurements were performed using a
laboratory based SAXS instrument with Cu K X-ray source. Variation of scattering
α
intensity with wave vector transfer [q=4πsin(θ)/λ] was measured for the powder samples.
2.2.3. Field Emission Scanning Electron Microscope (FESEM)
5
Page 5 of 28

Field emission scanning electron microscope (FESEM) was carried out using Supra 55,
Carl (Zeiss, Germany) microscope. Sample was supported on lacey carbon and then coated
with platinum prior to measurement.
2.2.4. High Resolution Transmission Electron Microscope (HRTEM)
The HRTEM investigation was done on JEOL JEM 2100 microscope operated at
00 KV acceleration voltage using lackey carbon coated Cu grid of 300 mess size.
2
2.2.5. Ultraviolet–visible spectroscopy (UV-Vis)
DRUV-Visible measurement was carried out by using Varian Cary 500 (Shimadzu)
spectrophotometer. The spectra were recorded in the range 200-800 nm wavelength.
2.2.6. Fourier Transformation Infrared Spectroscopy (FT-IR)
The FT-IR measurements were carried out by using Perkin Elmer GX
-1
spectrophotometer. The spectra were recorded in the range 400-4000cm using KBr pellet.
2
.2.7. X-Ray Diffraction (XRD)
The powder X-ray diffraction studies of the calcined samples were performed on a Scintag
Pad V X-ray diffractometer with analysis software and a Rigaku Ultima IV system.
2
3
.2.8. Temperature Programmed Desorption (NH - TPD):
The temperature programmed desorption (TPD) of ammonia of the samples were done
using a thermal conductivity detector (TCD) in a Micromeritics Chemisorb 2720
instrument. For the experiment, the samples were first degassed in flow of He at a flow rate
o
of 30 ml/min for 2 hour at 100 C. Then the samples were saturated with 10 % NH
3
in He
at room temperature for 30 minutes. Then the excess NH was removed by flow of He
3
6
Page 6 of 28

(flow rate 30 ml/min) for 45 minutes. Then the desorption of ammonia (carrier gas He) was
o
o
studied by heating from room temperature to 700 C at a temperature ramp of 10 C/ min
2.3 Catalytic Test
Baeyer-Villiger oxidation of ketones (cyclopentanone, cyclohexanone, 2-adamantanone)
was conducted in the liquid-phase by bubbling with oxygen in the reaction mixture. In a
o
typical reaction procedure, 50 mg of catalyst (preactivated at 100 C prior to use) was
mixed with 10 mL of l,2-dichloroethane. 2 mmol of substrate (Acros 99.8%) and
benzaldehyde (6mmol) were taken in a two neck 50 mL round bottle flask fitted with water
o
condenser. The mixture was heated at 50 C and molecular oxygen was bubbled into the
mixture at a flow rate of 10 mL/min (maintained by Aalborg mass flow controller) for 2h
under constant stirring at 540 rpm using Tarson spinot digital magnetic stirrer [14]. GC
analysis of the sample was done using a gas chromatograph (CIC-India) fitted with SE-30
column. After the reaction, the catalyst was recovered, washed with acetone, dried in air,
and used further for recycling experiments.
3. Results and Discussion
3.1. Textural characterization of the catalyst by BET Surface area and porosity
measurement
The pore size distribution and N physisorption isotherms of the catalyst are depicted in
2
Fig. 1 and textural results are summarized in Table 1. It is found that all materials has
typical type IV adsorption/desorption isotherms with H1 hysteresis loop which is
characteristic of typical mesoporous materials with 2D-hexagonal structure (Fig. S1
supporting information). The steep rise of the isotherms at a relative partial pressure of 0.6–
7
Page 7 of 28

2
0.8 is due to the capillary condensation of N . This indicates the uniformity of the pores as
reported in literature [15]. The inset of Fig. 1 shows the monomodal pore size distribution
of the mesoporous HMS-X catalyst.
The specific surface areas (BET) of metal promoted Co-HMS-X increasees in the range
2
2
from 674 m /g to 841 m /g. Addition of nickel in Co-HMS-X caused an increase in surface
area which may be due to an increase in the pore size (Table 1) [16], [17]. The rate of
hydrolysis and condensation of silicate precursor in presence of P123 template depends on
the type of metal cation present in the solution [18] Among Co- HMS-X and Cu, Fe, Ni
2
-1
promoted Co-HMS-X materials, Ni-Co-HMS-X has the highest surface area i.e. 841 m g
in comparison with other catalysts.
3.2. Structural Characterization of the catalyst by Small Angle X-ray Scattering (SAXS)
The SAXS patterns of various catalysts are shown in Fig. 2. A highly long range ordered
mesoporous silica structure is evident from SAXS studies. Each sample exhibits an intense
-1
diffraction peak corresponding to the (10) plane at 0.64 nm , typical characteristic of HMS
material [19, 20]. The intensity of the reflection corresponding to the (1 0), (1 1) and (2 0)
planes decrease after the cobalt doping in HMS-X as compared with the undoped siliceous
HMS-X. The peak position remained almost constant for Co-HMS-X with respect to HMS-
X which proves that the hexagonal ordered structure of mesoporous silica remains
unchanged even after cobalt incorporation. Addition of promoters Fe and Ni) do not change
the original hexagonal structure of the HMS-X catalyst. The peak intensity corresponding
to (10), (11) and (20) planes decreases for Cu-Co-(HMS-X) catalyst, which is due to
deterioration of the long range order strengthening the results obtained from N
2
physisorption studies [21].
8
Page 8 of 28

3.3. Morphological study of the catalyst by FESEM characterization
To further investigate the morphology and textural property of the M-Co-HMS-X catalyst
the catalysts are characterized FESEM techniques. The FESEM images (Fig. 3) of the
catalyst show that the material has wormlike morphology with minimal aggregation [22].
The morphology of Co-HMS-X (5 mol%) after the addition of promoters (e.g. Cu, Fe and
Ni) were remained similar for all the catalysts.
o
o
The powder XRD patterns in the high angle region of 10 <2θ <60 for all the samples are
given in Fig. S2 (supporting information). The wide-angle patterns show a broad diffraction
peak at 2 θ =23◦, which is of amorphous silica. It is seen that there are no diffraction lines
2 3
due to crystalline Co O reflections even after adding some metal promoters. The XRD
investigation of the samples was unable to detect cobalt oxide phase which indicates the
high dispersion of cobalt oxide to the silica surface. [17]
3.4 Chemical characterization of the catalyst by UV-vis spectroscopy and FTIR
spectroscopy
Electronic spectroscopy in UV–Vis region is considered as an effective technique for
studying the local coordination environment and electronic state of isolated transition metal
ions as well as aggregated transition metal oxides. The M-Co-HMS-X catalysts were
further investigated by the UV–vis spectroscopy as shown in Fig. S3 (supporting
information). The absorbance in the range of 500–700 nm is characteristic of Co (II) in an
4
4
isolated state, which can be unambiguously assigned to the A (F)→ T (P) transition of
2
1
tetrahedral coordinated Co(II) ions incorporated in the framework of HMS-X mesoporous
silica [23, 24]. The blue color of the catalyst is also a fingerprint of tetrahedral Co(II)O
4
sites. [2]
9
Page 9 of 28

The FTIR spectra of HMS-X, Co-HMS-X and three different metal (Cu, Fe and Ni)
-1
-1
promoted Co-HMS-X material are shown in Fig. 4. The bands at 1085 cm and 1195 cm
are attributed to the asymmetric stretching vibration of framework Si-O-Si bridges. The
-1
peak at 817 cm is attributed to Si-O-Si symmetric stretching [13]. The gradual decrease of
-1
peak intensity at 817 cm may be due to the successive formation of Si-O-Co moiety. The
-1
δ-
band at 960 cm has been interpreted for stretching vibration of Si-OH and Si-O groups.
-1
As found in literature the peak ascribed in the region 960 cm can be considered as an
evidence of the isomorphous substitution of Si by Co metal ions i,e as Si–O-Co
connectivity [25]. This peak is also widely used to characterize the presence of transition
metal atoms near the silica framework as the stretching Si–O vibration mode perturbed by
-1
-1
the neighbouring metal ions. The bands appeared around 3500 cm and 1633 cm can be
attributed to O-H and H-O-H stretching respectively [26]. FTIR spectra showed no changes in the
vibration band after the addition of promoters like (Cu, Fe and Ni) in doped mesoporous Co-HMS-
X matrix [12].
3
3.5. NH -TP Characterization
The changes of surface acidic properties of all the four catalysts studied were investigated
by temperature programmed desorption of ammonia (NH -TPD) which is shown in Fig.5.
The TPD profile in terms of temperature of NH desorption and volumes of desorbed NH
3
3
3
are shown in Fig. 6. While comparing the TPD profiles of Co HMS-X and (Cu, Fe and Ni)
promoted Co-HMS-X mesoporous silicas it is found that nickel incorporation increases the
density strong acid sites in the Co-HMS-X material [13]. It is also reported in literature that
desorption at higher temperature region is due to the chemisorptions of ammonia on
stronger acid sites [12]. On the contrary the addition of Cu and Fe in Co-HMS-X produced
only a limited change in the acidic sites [27].
1
0
Page 10 of 28

4. Baeyer-Villiger oxidation of ketones
4.1 Catalytic Performance of Materials
The catalytic activity of the doped silica materials (Table 1) for the Baeyer-Villiger type
oxidation was examined by performing the aerobic oxidation of cyclohexanone to ε-
caprolactone in the presence of benzaldehyde as reductant. The HMS-X it has got quite
high surface area but it showed no activity towards B-V oxidation reaction. In the case of
cobalt doped HMS-X showed activity towards B-V oxidation reaction and it continued
even after adding promoters like Cu, Fe and Ni also.
Table 2 summarizes the cyclohexanone oxidation in different reaction conditions (e.g.
2
solvent, reaction temperature, duration of reaction, molecular O flows etc). In order to
investigate the effect of the solvents on the reaction, cyclohexanone was oxidized with
molecular O in presence of several solvents e,g DCE, Acetonitrile, 1-4 dioxane, toluene
2
and DMF and the results are summarized in Table 2. Among several solvent DCE
afforded the highest conversion whereas acetonitrile was the secondary optimal solvent
with 64.8% conversion of cyclohexanone. Although in both the examined solvents the
product selectivity remains >99%, but in presence of DCE the conversion over 90% was
obtained. On the other hand other solvents like1-4 dioxane, toluene and DMF showed
unfavorable effect in this oxidation reaction. In the following experiments, we chose DCE
as the organic medium to perform the oxidation reaction as reported in literature. [28]
The Baeyer-Villiger oxidation reactions were carried out at different temperatures to
investigate the influence of reaction temperature on the, cyclohexanone conversion and
product distribution. The effect of the reaction temperature is summarized in Tables 2. It
shows that solvent the conversion increased as the reaction temperature was increased from
o
2
0 to 70 C in DCE solvent. Being a triplet (two unpaired electrons in ground state),
molecular oxygen is un-reactive toward organic molecules at low temperatures. The
1
1
Page 11 of 28

reaction of dioxygen with the single state of organic substrates is spin-forbidden [29]. The
o
increase in reaction temperature from 20 to 50 C results a significant increase in the
o
conversion but increasing the reaction temperature from 50 to 70 C leads to a decrease in
the conversion. The product selectivity is higher than 99% throughout the temperature
range 20 to 70° C As reported in the literature [30], at higher temperature rate are probably
determined by the diffusion of reactants to the active sites. It seems that an appropriate
reaction temperature is favourable to the formation of ε-caprolactone for this reaction [12,
15].
Table 2 shows that cyclohexanone conversion increases with the reaction time from 30
min to 120 min in a fast rate i.e. 36% to 96.3% but activity decreases beyond 120 min of
reaction. From the results and literature reports it can be said that catalytic system is
capable of giving good result in short time on stream. [1-9]
The influence of flow rate of O on the oxidation of cyclohexanone over Co- HMS-X at
2
o
5
0 C has also been carried out. The cyclohexanone conversion was 84% when flow rate
was 5 mL/min, and then slowly increased to 93.6% with the rise of flow rate of O
2
to 10
mL/min. The conversion is decreased or remained constant when the flow rate of O
2
was 15
mL/min which may be due to the over oxidation of the substrate as reported in the
literature. [31].
In the present study the oxidation reaction is also performed without using benzaldehyde
(Table 3).It is observed that no reaction takes place which established the role of aldehydes
to activate the dioxygen [32]. Table 3 summarizes the cyclohexanone oxdation over Co-
HMS-X in the presence of different aldehydes like benzaldehyde, acetaldehyde and
anisaldehyde. Benzaldehyde showed the best performance in the tested aldehyde so far
where over 90% conversions are achieved. The acetaldehyde and anisaldehyde free radicals
are unstable where as in case of benzaldehyde free radical it is quite stable due to the
1
2
Page 12 of 28

resonance effect. The free radical generated in anisaldehyde is unstable due to +R effect of
CH group present in the molecule.
3
To establish that reaction is truly heterogeneous in nature, the reaction is carried out for
30 min in presence of catalyst and again it continued for 90 mins after removing the
catalyst (Table 3). While comparing these results with the experiment where the complete
reaction is performed with catalyst (Table 2), it can be said that after 30 min the conversion
is almost same in both the cases. When the reaction is performed in presence of catalyst the
conversion is reached over 90%, but in case of without catalyst the activity is reached up to
63% only. From the given results it can be concluded that catalyst plays a very pivotal role
in this reaction.
Cyclohexanone, cyclopentanone, and 2-adamantanone were oxidized under the same
reaction conditions (Table 3), Among the cyclic ketones, the six member cyclic ketone was
more efficiently oxidized than cyclopentanone. This reaction behavior could be explained
in terms of steric hindrance. The oxidation of 2-adamantanone also yielded their
corresponding lactones in high yields but it was comparatively lower than those of other
five member and six member ketone. This may be due to the bulkiness of the substituent
functional group which creates the steric hindrance [33]. The stereochemistry and
reactivity seem to follow the tendency reported in literature for the Baeyer-Villiger type
oxidation. Although the reaction rate depends on the chemical structure of ketones, it can be
concluded that the Co-HMS-X catalysts can oxidize various ketones to corresponding
lactones or esters under such mild reaction conditions [4].
4.2 Recycling studies
The catalyst recyclability is one of the important parameter to commercialize the catalyst.
Recycling tests were carried out by repeating the catalytic reaction after separating the
1
3
Page 13 of 28

catalyst powder from the reactants and products. Table 3 shows the catalytic activities of
the Co-HMS-X catalyst after each recycling test. There was a marginal decrease observed
in conversion may be due to the loss of catalyst during filtration and drying. This suggests
that stability of this catalyst is good enough to work continuously in the present reaction
condition.
The cyclohexanone conversion and ε-caprolactone yields are improved significantly
with higher selectivity around 99%, with the addition of very little amount of promoter into
the framework, i.e. as low as 0.25mol %. The Ni-Co-HMS-X catalyst showed the highest
conversion of 100%, The conversion values from these experiments are given in Table 1
with the N
2
physisorption data. The result suggests that the catalytic activity for the
cyclohexanone oxidation shows a good correlation with the BET surface area. The ionic
+
2
+2
+2
radius of Ni is smallest i.e 69 pm in comparison to Fe and Cu . So because of its small
size it easily enters in the framework and increases the surface area of the catalyst i.e
2
-1
(
841m g ). With increase in surface area, the catalyst has more exposed surface to adsorb
and protect the radical species from the inhibition. The NH TPD results also supported the
3
results of catalyst activity. Ni promoted Co-HMS-X catalyst has highest acidity which is
responsible for its high activity. Therefore doped silica materials seem to have a particular
advantage compared with the other undoped silica materials.
5. Reaction mechanism
It is quite important to understand the reaction mechanism of the Baeyer-Villiger type
oxidation catalyzed by silica materials. The generally accepted reaction scheme for the
O /aldehyde oxidation system consists of two reaction steps: (a) peracid formation from the
2
2
aldehyde and O and (b) the oxidation of the reactant by the peracid [34, 35].
1
4
Page 14 of 28

We hereby propose a reaction mechanism in Fig. 7 for the oxidation of ketones by the
O /aldehyde system catalyzed by HMS-X silica materials. The oxidation process starts
2
from the autoxidation of aldehyde to form the peroxy acid, and the produced peroxy acid
can readily enable the Baeyer-Villiger oxidation of ketone. The initiation reaction of this
2
autoxidation could be the formation of carbonyl radical from aldehyde and O . This
initiation probably occurs without any catalyst. The chain propagation reactions, the
insertion of O into the carbonyl radical to form the peroxy radical species, and the
2
formation of the peracid species by the reaction between the peroxy radical and aldehyde
increase the concentration of peracid. , As long as sufficient amount of radicals exist in the
system, this chain propagation reaction would be much faster than the initiation reaction;
therefore, the majority of the aldehyde is consumed by the propagation rather than initiation
under the reaction conditions. However, if a large amount of ketone was supplied into the
system, this chain propagation reaction was inhibited by ketone. Probably the alpha
hydrogen atom of the ketone was abstracted by the radical species, and the chain reactions
were inhibited.
We assume that the main role of the silica materials in this oxidation system is to adsorb
and protect the radical species from the inhibition. Even if the majority of radical species
were killed by the inhibitor, the catalyst surface can supply active radical species. In other
words, the catalyst surface can act as a buffer for the radical species, which are necessary
for the chain propagation reactions. The radical species formed by the initiation reaction
would be readily adsorbed on the catalyst surface, and the concentration of the radical
species becomes quite low at the early stage of the reaction.
6. Conclusions
1
5
Page 15 of 28

In summary, a high surface area hexagonal mesoporous silica catalyst M-Co-HMS-X (M =
Fe, Cu, Ni) was prepared by sol-gel procedure and shown to act as a highly active catalyst
for the aerobic Baeyer-Villiger oxidation of ketones with almost 100% conversion and high
selectivity. It has been revealed that Ni promoted Co-HMS-X catalyst had high catalytic
activity towards the Baeyer-Villiger type oxidation reaction. The higher acidic site density
3
in the case of Ni promoted Co-HMS-X catalyst as observed from NH -TPD results was
responsible for the enhanced catalytic activity. The catalyst recycling tests suggest that the
durability of the catalyst is quite moderate in the tested reaction conditions. The
mechanistic study has revealed that the peroxycarboxylic acid is the important intermediate,
and the silica based catalyst contributes to high aldehyde efficiency by buffering the radical
species, which are essential for the chain propagation reactions. The activity of Co-HMS-X
catalysts in the present investigation are superior to other mesoporous catalyst and the
activity of mesoporous materials may be attributed to the interwoven two-dimensional pore
system of the materials which favors mass-transfer kinetics for the diffusion of large and
bulky molecules such as 2-adamantanone. To our knowledge, such catalysis by doped silica
materials is quite new and highly selective in comparison to the catalyst system reported so
far. The present finding would contribute to the establishment of environmentally friendly
oxidation systems.
Acknowledgments
SR would like to acknowledge UGC (F-39-802/2010 (SR), Govt of India for
research fellowship. BC and EN would like to acknowledge DST (SR/F1/PC-10/2012 for
funding.
References
1
6
Page 16 of 28

[1] Y. Nabae, H. Rokubuichi, M. Mikuni, Y. Kuang, T. Hayakawa and M. Kakimoto,
ACS Catal., 3 (2013) 230-236.
[
[
[
2] E.Y. Jeong, M. B. Ansari, and S. E. Park, ACS Catal., 1 (2011) 855–863.
3] A. Corma, L. T. Nemeth, M. Renz & S. Valencia, Nature , 412 (2001) 424-425.
4] T. Kawabata, N. Fujisaki, T. Shishido, K. Nomura,T. Sano, K. Takehira. J. Mol. Catal.
A: Chem. 253 (2006) 279-289.
[5] C. J. Sanchidria, J. M. Hidalgo, R. Llamas, J. R. Ruiz, Appl. Catal. A: Gen, 312
(2006) 86-94.
[
6] I. Nowak. A. Feliczak, I. Nekoksova, J. Cejka, Appl. Catal. A: Gen. 321 (2007) 40
48.
-
[7] X. Dong, D. Wang, K. Li, Y. Zhen, H. Hua, G. Xue, Mater. Res., 57 (2014) 210-220.
[8] M. Paul, N. Pal, J. Mondal , M. Sasidharan and A. Bhaumik, Chem. Eng. Sci. 71
(2012) 564-572.
[9] A. Chrobok, Tetrahedron 66 (2010) 2940-2943.
[10] B. Dutta, S. Jana, S. Bhunia, H. Honda, S. Koner, Appl. Catal. A: Gen. 382 (2010) 90-
98.
[11] Q. Tang, Q. Zhang, H. Wu, Y. Wang, J. Catal. 230 (2005) 384-397.
[12] S. Rahman, C. Santra, R. Kumar, J. Bahadur, A. Sultana, R. Schweins, D. Sen, Sudip
Maity, S. Mazumdar, B. Chowdhury, Appl. Catal. A: Gen. 482 (2014) 61-68
[
[
[
[
[
13] S. Mandal, C. Santra, R. Kumar, M. Pramanik, S. Rahman, A. Bhaumik, S. Maity,D.
Sen, B. Chowdhury, RSC Adv. 4 (2014) 845-854.
14] H. Subramanian, E.G. Nettleton, S. Budhi, R. T. Koodali, J. Mol. Catal. A: Chem. 330
(2010) 66-72.
15] H. Cui, Y. Zhanga, Z. Qiua, L. Zhaoa, Y. Zhua, Appl. Catal. B: Environ. 101 (2010)
5-3.
4
16] M. Lualdia, G. D. Carlob, S. Logdberga, S. Jaras, M. Boutonneta,V. L. Parolac, L. F.
Liotta, G. M. Ingob, A. M. Veneziac. Appl. Catal. A: Gen. 443- 444 (2012) 76-86.
17] P. Bhangea, D. S. Bhange, S. Pradhan and V. Ramaswamy. Appl. Catal. A: Gen. 400
(2011) 176-184.
[18] G. J. de, A. A. Soler- Illia and C. Sanchez, New J. Chem., 24, (2000), 493-499
[19] X. L. Yang, W. L. Dai, H. Chen, J. H. Xu, Y. Cao, H. Li, K. Fan, Appl. Catal. A: Gen.
1
7
Page 17 of 28

2
83 (2005) 1-8.
[
[
[
[
20] D. Sen, S. Mazumder, J. S. Melo, Arshad Khan, S. Bhattyacharya, S. F. D Souza,
Langmuir, 25 (2009) 6690-6695.
21] P. A. Robles-Dutenhefner, K. A. da Silva Rocha, E. M. B. Sousa, E. V. Gusevskaya,
J. Catal. 265 (2009) 72-79.
22] J. Taghavimoghaddam, G. P. Knowles, and A. L. Chaffee, J. Mol. Catal. A: Chem. 379
(2013) 277- 286.
23] H. Ma, J. Xu, C. Chen, Q. Zhang, J. Ning, H. Miao, L. Zhou, X. Li, Catal. Lett. 113
2007) 104-108.
(
[24] S. Farhadi, J. Safabakhsh, P. Zaringhadam, J. Nano Chem. 3 (2013) 69.
[25] T. Tsoncheva, L. Ivanova, J. Rosenholm, M. Linden, Appl. Catal B: Environ. 89
(2009) 365-374.
[
[
[
26] M. S. Morey, S. O’Brien, S. Schwarz and G. D. Stucky, Chem. Mater. 12 (2000) 898-
9
11.
27] A.M. Veneziaa, G. Di Carlob, L.F. Liotta, G. Pantaleoa, M. Kantcheva, Appl. Catal.
B: Environ. 106 (2011) 529-539.
28] T. Kawabata , Y. Ohishi , S. Itsuki, N. Fujisaki, T. Shishido , K. Takaki , Q.
Zhang, Y. Wang, K. Takehira , J. Mol. Catal. A: Chem. 236 (2005) 99-106.
[
[
[
[
29] H.Y. Lan, X. T. Zhou, H. B. Ji, Tetrahedron 69 (2013) 4241-4246.
30] Q. Tang, Q. Zhang, H. Wu, Y. Wang, J. Catal. 230 (2005) 384-397.
31]D. Jiang, T. Mallat, D.M. Meier, A. Urakawa, A. Baiker, J. Catal. 270 (2010) 26-33.
32] (a) T. Yamada, T. Takai, O. Rhode, T. Mukaiyama, Bull. Chem. Soc. Jpn. 64 (1991)
2
6
109-2117; (b) T. Takai, E. Hata, T. Yamada, T. Mukaiyama, Bull. Chem. Soc. Jpn.
4 (1991) 2513-2518. (c) B. B.Wentzel, P. L. Alsters, M. C. Feiters, M. J. R. Nolte, J.
Org. Chem. 69 (2004) 453-3464. (d) T, X. Zhou, H. Q. Tang, B. H. Ji, Tetrahedron
Lett. 50 (2009) 6601-6605. (j) T. Yamada, K. Imagawa, T. Nagata, T. Mukaiyama,
Chem. Lett. 21 (1992) 2231-2234.
[
[
[
33] J. R. Ruiz, C. J. Sanchidrian, R. Llamas. Tetrahedron 62 (2006) 11697-11703.
34] S. Murahashi, Y. Oda, T. Naota, Tetrahedron Lett. 33 (1992) 7557.
35] R. Giannandrea, P. Mastrorilli, F. C. Nobile, P. G. Suranna, J. Mol. Catal. 94 (1994).
1
8
Page 18 of 28

Figure Captions
Fig.1 Surface area & pore size (inset) of the catalyst.
Fig. 2 SAXS image of the catalyst.
Fig. 3 FESEM images of the catalyst, 1(a) & (b) Co-HMS-X (5 mol%), 2 (a) & (b) Cu-Co-
HMS-X (Co/Cu=20), 3 (a) & (b) Fe-Co-HMS-X (Co/Fe=20), 4 (a) & (b) Ni-Co-HMS-
X(Co/Cu=20).
Fig.4. FTIR spectra of the catalysts.
Fig. 5. NH
-TPD of the catalyst.
3
3
Fig. 6. NH
-TPD profile of the catalyst.
2
Fig. 7. Reaction mechanism of the ketone oxidation by the O / aldehyde system catalyzed
by silica material HMS-X.
Table Captions
Table1. Catalytic Results of Baeyer-Villiger Oxidation of Cyclohexanone Using Molecular
Oxygen by Various Catalysts.
Table 2: Catalytic Results of Baeyer-Villiger Oxidation of Cyclohexanone using Co-HMS-
X as a catalyst.
Table 2: Catalytic Results of Baeyer-Villiger Oxidation of Cyclohexanone using Co-HMS-
X as a catalyst.
1
9
Page 19 of 28

Tables
Table1. Catalytic Results of Baeyer-Villiger Oxidation of Cyclohexanone Using
Molecular Oxygen by Various Catalysts
Catalyst
Conversion Selectivity Surface Area Pore Size
Pore Volume
2
-1
-1
(
%)
-
(%)
-
(m g )
702
674
727
759
841
-
(nm)
6.0
5.4
5.9
6.3
5.9
-
(ccg )
HMS-X
9.23
8.87
1.01
1.02
1.07
-
Co-HMS-X (5 mol%)
Cu-Co-HMS-X (Co/Cu=20)
Fe-Co-HMS-X (Co/Fe=20)
Ni-Co-HMS-X (Co/Ni=20)
No catalyst
93.6
77.4
94.6
100
54.0
14.4
100
100
100
100
100
100
#
Co-HMS-X (5 mol%)
525
5.9
0.70
Reaction conditions:DCE solvent, 10 mL; Cyclohexanone, 2 mmol; Benzaldehyde, 6
mmol, catalyst, 100 mg; O , 10 mL/min; reaction time, 2 h; reaction temperature, 50 ◦C;
tridecane used as an internal standard
2
.
#
(1,4 Dioxane is used as alcohol in place of n-Butanol)
2
0
Page 20 of 28

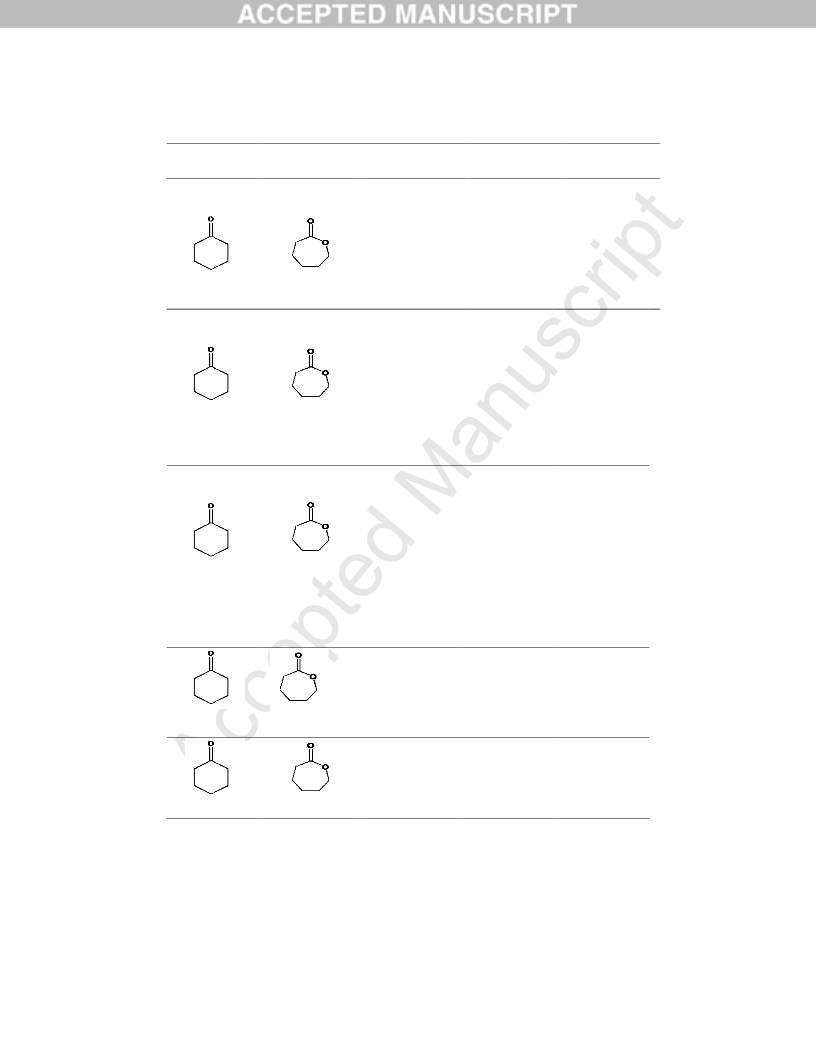

Table 2: Catalytic Results of Baeyer-Villiger Oxidation of Cyclohexanone using
Co-HMS-X as a catalyst
Substrate
Product
Different
parameter
DCE
Conversion
(%)
Selectivity
(%)
93.6
>99
Acetonitrile
64.8
-
>99
-
1
-4 Dioxane
Toluene
-
-
DMF
-
-
o
2
0 C
9.0
>99
>99
>99
>99
>99
>99
>99
>99
>99
>99
>99
>99
>99
>99
o
3
0 C
61.2
75.5
93.6
81.0
56.2
36.0
59.5
67.6
93.6
91.9
84.7
86.7
33.6
o
4
5
6
7
0 C
o
0 C
o
0 C
o
0 C
3
6
9
0min
0min
0min
1
1
1
2
20min
50min
80min
10min
#
30min
Catalyst
removed
#
6
1.2
>99
5
mL/min
84.7
93.6
93.0
>99
>99
>99
1
0mL/min
5mL/min
1
Reaction conditions:DCE solvent, 10 mL; Cyclohexanone, 2 mmol; Benzaldehyde, 6
mmol, catalyst, 100 mg; O , 10 mL/min; reaction time, 2 h; reaction temperature, 50 ◦C;
tridecane used as an internal standard
2
.
#
After 30min run product is collected and catalyst is removed by centrifugation, again the
reaction mixture is kept for reaction for 90 min.
2
1
Page 21 of 28

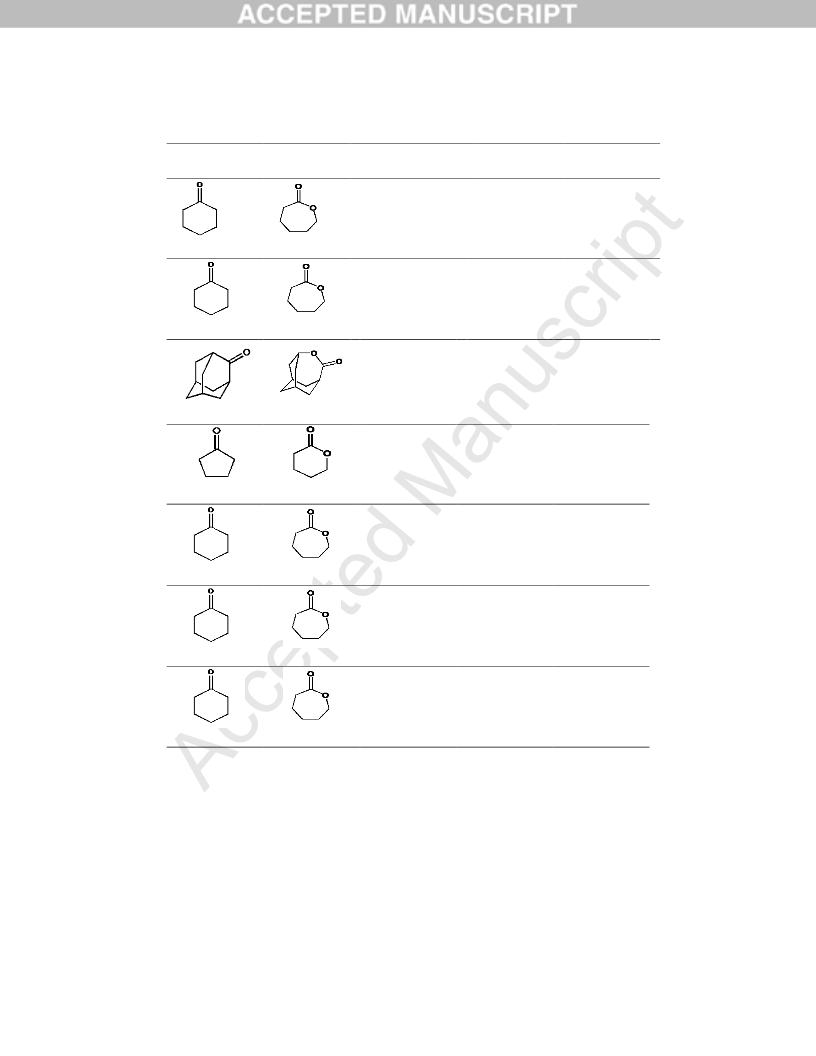

Table 3: Catalytic Results of Baeyer-Villiger Oxidation of Cyclohexanone using Co-
HMS-X as a catalyst
Substrate
Product
Different
parameter
Without
Conversion
Selectivity
(%)
-
(%)
-
reductant
Benzaldehyde
Acetaldehyde
Anisaldehyde
93.6
>99
-
-
-
-
80.1
>99
-
83.8
90.9
87.7
87.1
>99
>99
>99
>99
st
1
Recycling
Recycling
Recycling
nd
2
rd
3
Reaction conditions: DCE solvent, 10 mL; Cyclohexanone, 2 mmol; Benzaldehyde, 6
mmol, catalyst, 100 mg; O , 10 mL/min; reaction time, 2 h; reaction temperature, 50 ◦C;
2
tridecane used as an internal standard
.
2
2
Page 22 of 28

*Graphical Abstract (for review)
Page 23 of 28

Figure
Figures
Fig. 1
Page 24 of 28

Fig. 2
Fig. 3
Page 25 of 28

Fig.4
Fig. 5
Page 26 of 28

Fig. 6
Page 27 of 28

Fig. 7
Page 28 of 28
