Spontaneous chiral resolution of N,N′-diarylsquaramides: Formation of various types of one-handed helical networks during crystallization

Article abstract of DOI:10.1016/j.tet.2019.03.049

N,N′-Bis(ortho-substituted phenyl)squaramides afforded chiral crystals, in which squaramide molecules are arranged in one-handed helical networks, upon simple recrystallization. Three types of crystals with different helices were obtained, depending on th

Full text of DOI:10.1016/j.tet.2019.03.049

Accepted Manuscript
Spontaneous chiral resolution of N,N′-diarylsquaramides: Formation of various types
of one-handed helical networks during crystallization
Midori Kanda, Ko Urushibara, Soyoung Park, Shinya Fujii, Hyuma Masu, Kosuke
Katagiri, Isao Azumaya, Hiroyuki Kagechika, Aya Tanatani
PII:
S0040-4020(19)30351-5
https://doi.org/10.1016/j.tet.2019.03.049
TET 30235
DOI:
Reference:
To appear in: Tetrahedron
Received Date: 17 February 2019
Revised Date: 22 March 2019
Accepted Date: 26 March 2019
Please cite this article as: Kanda M, Urushibara K, Park S, Fujii S, Masu H, Katagiri K, Azumaya I,
Kagechika H, Tanatani A, Spontaneous chiral resolution of N,N′-diarylsquaramides: Formation of
various types of one-handed helical networks during crystallization, Tetrahedron (2019), doi: https://
doi.org/10.1016/j.tet.2019.03.049.
This is a PDF file of an unedited manuscript that has been accepted for publication. As a service to
our customers we are providing this early version of the manuscript. The manuscript will undergo
copyediting, typesetting, and review of the resulting proof before it is published in its final form. Please
note that during the production process errors may be discovered which could affect the content, and all
legal disclaimers that apply to the journal pertain.

ACCEPTED MANUSCRIPT
Graphical Abstract
Spontaneous Chiral Resolution of N,N’-Diarylsquaramides : Formation of Various Types of One-handed
Helical Networks During Crystallization
Midori Kanda, Ko Urushibara, Soyoung Park, Shinya Fujii, Hyuma Masu, Kosuke Katagiri, Isao Azumaya,
Hiroyuki Kagechika, Aya Tanatani*
1

ACCEPTED MANUSCRIPT
Spontaneous Chiral Resolution of N,N’-Diarylsquaramides : Formation of
Various Types of One-handed Helical Networks During Crystallization
1
1
1
2,3
4
Midori Kanda, Ko Urushibara, Soyoung Park, Shinya Fujii, Hyuma Masu, Kosuke
5
6
2
, 1
Katagiri, Isao Azumaya, Hiroyuki Kagechika, Aya Tanatani*
1
Department of Chemistry, Faculty of Science, Ochanomizu University, 2-1-1 Otsuka,
2
Bunkyo-ku, Tokyo 112-8610, Japan, Institute of Biomaterials and Bioengineering, Tokyo
Medical and Dental University, 2-3-10 Kanda-Surugadai, Chiyoda-ku, Tokyo 101-0062,
3
Japan, Institute for Quantitative Biosciences, The University of Tokyo, 1-1-1 Yayoi,
4
Bunkyo-ku, Tokyo 113-0032, Japan, Chemical Analysis Center, Chiba University, 1-33
5
Yayoi-cho, Inage-ku, Chiba 263-8522, Japan, Department of Chemistry, Faculty of Science
and Engineering, Konan University, 8-9-1 Okamoto, Higashinada, Kobe, Hyogo 658-8501.
6
Japan, Faculty of Pharmaceutical Sciences, Toho University, 2-2-1 Miyama, Funabashi,
Chiba 274-8510, Japan,
Corresponding author:
Aya Tanatani: Department of Chemistry, Faculty of Science, Ochanomizu University
Tel/FAX: +81-3-5978-2716; E-Mail: tanatani.aya@ocha.ac.jp
Abstract
N,N’-Bis(ortho-substituted phenyl)squaramides afforded chiral crystals, in which squaramide
molecules are arranged in one-handed helical networks, upon simple recrystallization. Three
types of crystals with different helices were obtained, depending on the substituents or
recrystallization solvent. Folded-type intermolecular hydrogen-bonding interactions of
squaramides play a key role in forming the helical networks.
Keywords: Squaramide, Helical structure; Chiral resolution; Hydrogen bond network
1

ACCEPTED MANUSCRIPT
1
. Introduction
Tectons are defined as molecules whose positive interactions generate well-ordered
three-dimensional assemblies of aggregates; they are important in the field of crystal
engineering because of their interesting crystal packing structures, and have also been utilized
in the development of functional solid materials [1]. Among various noncovalent interactions,
hydrogen bond networks play a major role in tectons, due to their precise spatial orientations
and restricted lengths [2]. For example, simple N,N’-disubstituted ureas such as
N,N’-diphenylurea, which favor (trans, trans) conformation, can form head-to-tail type
hydrogen bonds between the carbonyl oxygen atom of one molecule as the acceptor and two
hydrogen atoms on nitrogen atoms of the adjacent molecule as the donor, resulting in linear
chain structures in the crystal (Figure 1a) [3]. These properties of N,N’-disubstituted ureas, as
well as their ability to interact with various guest molecules (hydrogen bond acceptors and
donors), make such compounds suitable for construction of nano-scale materials [4].
Figure 1. Possible hydrogen-bonding chain structures of (a) N,N’-disubstituted urea in (trans,
trans) form, and (b) linear and (c) bent types of N,N’-disubstituted squaramide in (trans, trans)
form.
Squaramide (Figure 1b) is an amino derivative of squaric acid, a four-membered cyclic
dibasic acid. The C–N bonds of squaramide have partial double bond character, like amide
and urea bonds [5]. The squaramide skeleton has been used as a key structural motif for
molecular recognition or in bifunctional organocatalysts for asymmetric synthesis [6].
Squaramide is also regarded as a bioisostere of urea or cyanoguanidine in the field of
medicinal chemistry, an active derivatives of various bioactive molecules have been obtained
2

ACCEPTED MANUSCRIPT
by replacement of a urea moiety with a squaramide moiety [7]. However, there are several
differences in chemical properties between squaramide and urea [8]. For example, Costa et al.
showed that squaramide is superior to urea as a hydrogen bond acceptor (cation receptor), and
can also act as an anion receptor, due to the increased aromaticity of the squaramide upon
complex formation with a hydrogen-bond donor or acceptor, or even both [9]. The structures
of various squaramides and their complexes with guest molecules have been elucidated [10].
Several N,N’-disubstituted squaramides can form network structures with linear head-to-tail type
hydrogen bonds (Figure 1b) [11], like N,N’-disubstituted urea derivatives. N,N’-Disubstituted
squaramide itself also favors (trans, trans) conformation, in which both phenyl groups are located near
the carbonyl oxygen atoms. In such linear networks, the aromatic character of the 4-membered ring of
squaramide would contribute to sheet formation through π-π interactions between squaramides or
between squaramide and other aromatic rings [12]. On the other hand, squaramides, unlike ureas, have
other possible hydrogen-bonding interactions, due to the presence of two carbonyl and two amino
groups on the 4-membered ring. For example, hydrogen-bonding interactions of one carbonyl group of
one molecule with two amino groups of the adjacent molecule induce a bent arrangement of
squaramide (Figure 1c). Thus, we hypothesized that bent-type networks of squaramides might be
utilized to construct unique helical structures, different from linear hydrogen-bonding networks. Here,
we report the spontaneous chiral resolution of simple N,N’-bis(ortho-substituted phenyl)squaramides
with various types of one-handed helical structures generated by folded-type hydrogen-bonding
networks, and we determined the absolute structure of one compound by means of X-ray
crystallography.
2
. Results and discussion
In this study, we focused on N,N’-diarylsquaramides, anticipating that aryl-aryl or
aryl-squaramide interactions, as well as hydrogen-bonding interactions, would contribute to
the packing structure. We synthesized compounds 1 – 7 from diethyl squarate and the
corresponding anilines using literature methods (Shceme 1) [12].
Scheme 1.
3

ACCEPTED MANUSCRIPT
The crystal structures of several N,N’-diarylsquaramides and their complexes with guest
molecules have been elucidated. The reported crystal structure (space group: Pbcn) of simple
N,N’-diphenylsquaramide 1 shows (trans, trans) conformation [13], and the crystal contains
sheet structures due to the linear hydrogen-bonding network (Figure 1b) and intermolecular
π-π interactions of the squaramide moiety. We also examined the crystal structure of 1, and
obtained a crystal pseudopolymorph (space group: P2 /c, Table S1) including solvent of
1
recrystallization (DMSO), in which the hydrogen-bonding network of 1 is not formed, due to
the interaction of the oxygen atom of DMSO with the two amino groups of 1 (Figure S1).
Sandwich-type interaction of the 4-membered ring with two phenyl groups of adjacent
molecules results in the formation of a well-ordered sheet-type packing structure.
Compound 2 bearing m-toluyl groups shows a linear hydrogen-bonding network structure
(Figure S2) similar to that in the reported crystal structure of 1, while compound 3 bearing
o-toluyl groups affords two types of crystals (crystal No. 3a and 3b in Table S1) upon
recrystallization from methanol, depending on the conditions. These crystals showed distinct
crystal shapes, and can be ditinguished each other by solid-state UV-vis spectra, although the
reason of the difference in the spectra is unclear (Figure 2).

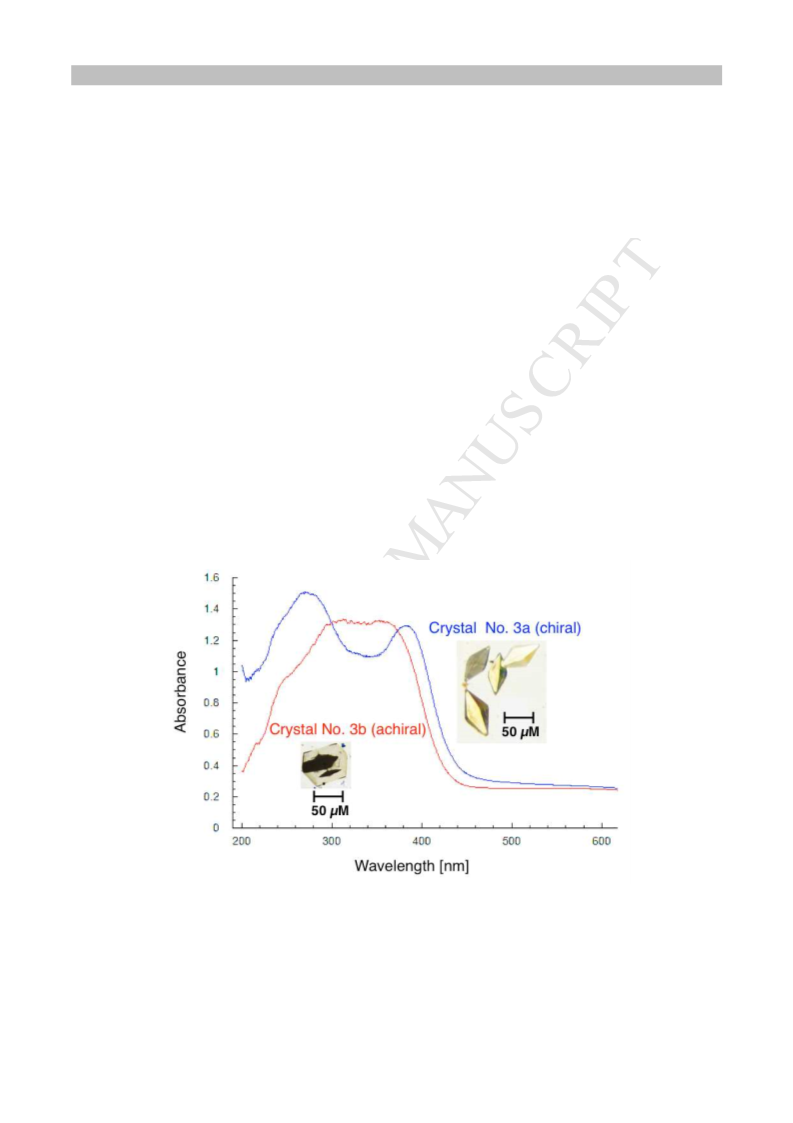

Figure 2. Crystal shapes and solid-state UV-vis spectra of the two types of crystals of 3.
Crystal No. 3a is a chiral crystal with space group P2 2 2 . In both crystals, compound 3
1
1 1
exists in (trans, trans) form, like 1 and 2. In the chiral crystal of 3, continuous hydrogen
bonding between two amino groups of one molecule and one of the two carbonyl groups of
4

ACCEPTED MANUSCRIPT
the adjacent molecule (Figure 1c) forms a pseudo 6 helical structure (helical pitch: 20.6 Å),
1
affording a one-handed helix containing only one enantiomeric conformer of 3 (Figures 3a
and S3). The helical axis is located near the centers of the phenyl rings in the multi-layered
structure, in which the inter-ring distances are 3.54, 3.57 and 3.58 Å, with a near-parallel
arrangement (dihedral angles between adjacent phenyl rings: 11, 8, and 8°), and
hydrogen-bonded squaramides surround the multi-layered phenyl groups. On the other hand,
a racemic crystal (space group: P2 /c) of 3 (Crystal No. 3b) obtained from wet methanol
1
contains both methanol and water molecules that interact with amino groups and carbonyl
groups of the squaramide moiety, and no extensive hydrogen-bonding network is observed
(Figure S4).

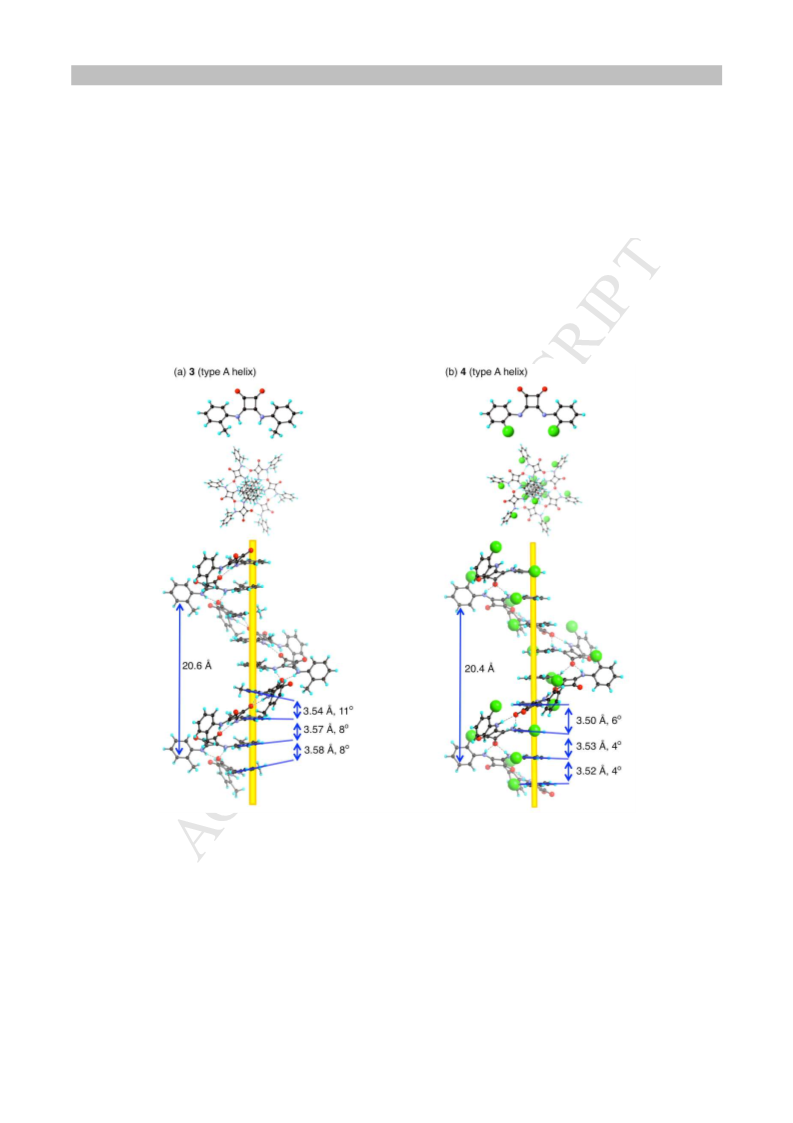

Figure 3. Helical structures of compounds (a) 3 (Crystal No. 3a) and (b) 4 in the crystals.
A comparison of the crystal structures of 1 – 3 suggested that the ortho-substituents on
the phenyl rings play key roles in the helix formation. Next, the crystal structures of several
N,N’-diphenylsquaramides 4 – 7 with o-substituents were examined. Some of them afforded
crystal polymorphs (Table S1), while all of them afforded chiral crystals upon simple
recrystallization [14]. Interestingly, the types of helical structures varied depending on the
substituent. Compound 4 with o-chlorophenyl groups shows a pseudo 6 helix similar to that
1
5

ACCEPTED MANUSCRIPT
of 3 (Figures 3b and S5), in which a folded-type hydrogen-bonding network of squaramides
surrounds the multi-layered phenyl groups on the helical axis (helical pitch: 20.4 Å).
On the other hand, compounds 5 and 6 bearing o-bromophenyl or o-methoxyphenyl
groups, respectively, form a one-handed 2 helix, in which the planar arylaminocyclobutene
1
moieties are arranged alternatively around the helical axis to form multi-layered structures
(Figures 4, S6, and S9). The helical pitch was 7.4 and 7.0 Å for compounds 5 (Crystal No. 5a)
and 6 (Crystal No. 6a), respectively. In these crystal structures, squaramides form hydrogen
bonds with solvent molecules (water and methanol for compounds 5 and 6, respectively).
Thus, both amino groups of squaramindes act as hydrogen-bond donors toward oxygen of
solvent molecules that form hydrogen bonds with a carbonyl group of the adjacent
squaramide, and consequently folded-type hydrogen-bonding chain structures of squaramide
(Figure 1c) are generated via the solvent molecules.

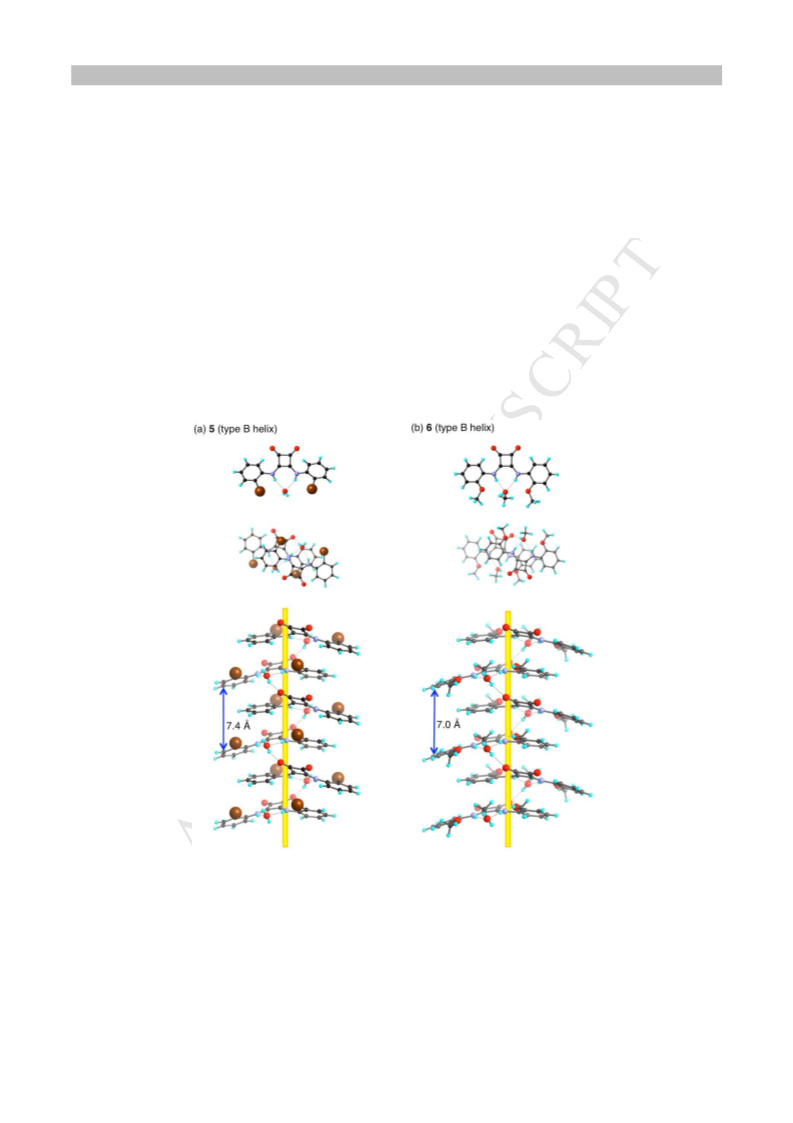

Figure 4. Helical structures of compounds (a) 5 (Crystal No. 5a) and (b) 6 (Crystal No. 6a) in
the crystals.
Compound 7 with o-fluorophenyl groups afforded chiral crystals with pseudo 4 helical
1
structure (Figures 5 and S11). In this case, the crystal contained two remarkably different
conformers, that is, both planar and twisted structures exist, and the alternate arrangement of
6

ACCEPTED MANUSCRIPT
these two conformers constructs the helical chain with a folded-type hydrogen-bonding
structure (Figure 1c). Interestingly, the cyclobutene rings in the 4 helical structure of 7 are
1
nearly parallel to the helical axis, different from the case in the pseudo 6 and 2 helical
1
1
structures, in which the 4-membered rings and phenyl groups are nearly perpendicular to the
helical axis.

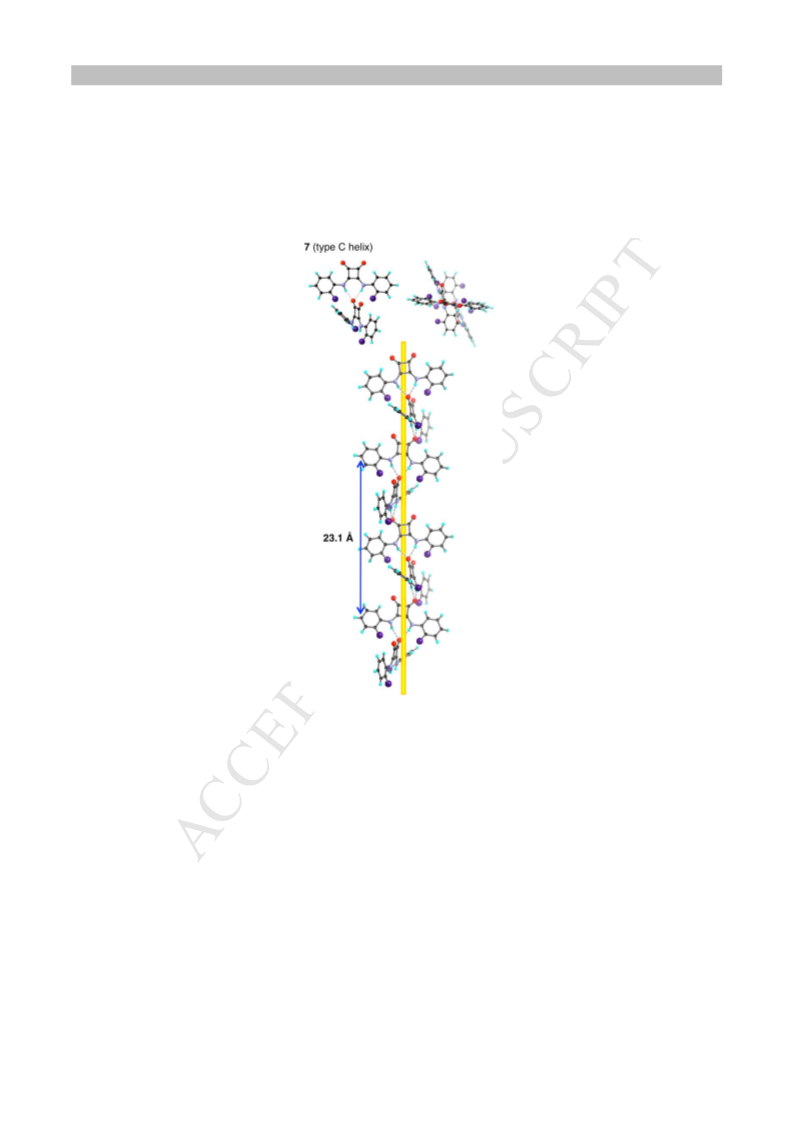

Figure 5. Helical structures of compound 7 in the crystals.
All N,N’-diarylsquaramides 1 – 7 exist in (trans, trans) conformations in the crystals. The
conformations can be classified into two types, depending on the dihedral angles between aryl
and aryl/squaramide (Table 1). In the chiral crystals of type A (compounds 3 and 4), two
N-aryl groups are twisted with respect to the plane of cyclobutene rings, with large dihedral
angles (32 – 39°), and as the directions of twist are opposite to each other, the dihedral angles
between two aryl rings are large (67 – 74°). Compound 2 has a similar twisted conformation
(dihedral angle: 109.8°), but forms chain structure in the achiral crystal, in which each chain
structure consists of one enantiomer. In the crystals of compounds 5 and 6 (type B helices),
two aryl groups are twisted in the same direction with respect to the cyclobutene rings, and
the dihedral angles between two aryl groups are small (5: 20.1° and 6: 29.9°). Compound 7
7

ACCEPTED MANUSCRIPT
(type C helix) has both twisted and planar conformations. The three-dimensional structures,
that is, twisted or planar conformations, did not correspond to the chirality or helix formation
in the crystals. The hydrogen-bonding interactions between squaramide moieties or between
squaramide and solvent (guest) molecules, as well as aromatic-aromatic/squaramide
interactions, apparently determine the packing structures and chirality of the crystals.
Table 1. Dihedral angles of squaramides 1 – 7.
Compound
Crystal No.
Space group
Dihedral angles (deg)
Aryl–Aryl
Aryl–Cyclobutene
4.8, 8.2
1
2
1
2
P2 /c
10.7
1
C2/c
109.8
35.7, 38.1
35.9, 37.4
34.0, 38.6
35.0, 38.8
35.6, 48.1
32.4, 35.5
32.9, 36.0
33.8, 36.3
34.4, 40.8
39.9, 44.5
39.6, 49.6
12.3, 30.2
22.9, 29.7
27.2, 29.6
9.5, 33.0
7
1.8
72.6
3.4
15.6
7.4
68.9
8.9
a
P2 2 2
3
a
1
1 1
3
7
3
b
P2 /c
1
6
a
4
5
4
P2 2 2
1
1 1
6
5
a
P21
20.1
6.3
5c
Pna21
5
d
P2 /n
26.0
29.9
1
6
a
P21
7
.2
6
a
6
b
P2 /c
18.2
1
3
9.2
3
.0
19.5, 21.9
17.6, 46.5
7
7
P2 2 2
1
1 1
6
2.8
a
Three independent molecules exist in the asymmetric unit.
8

ACCEPTED MANUSCRIPT
b
Two independent molecules exist in the asymmetric unit.
In order to identify the absolute structures of helical squaramides, we carried out X-ray
crystallographic analysis of compound 5 bearing heavy atom (bromine) substituents, and
measured the CD spectra. Each crystal was cut into two parts; one was used to measure the
solid-state CD spectrum [15] and the other for X-ray crystallography. We obtained both
enantiomeric crystals (crystal No. 5a and 5b in Table S1) with mirror-image CD spectra in
KBr (Figure 6). Analysis of R factor and Flack parameter (Table S4) indicated that the
absolute structures in the crystals of 5a (red line in Figure 6) and 5b (blue line in Figure 6)
could be assigned as left-handed and right-handed helices, respectively.

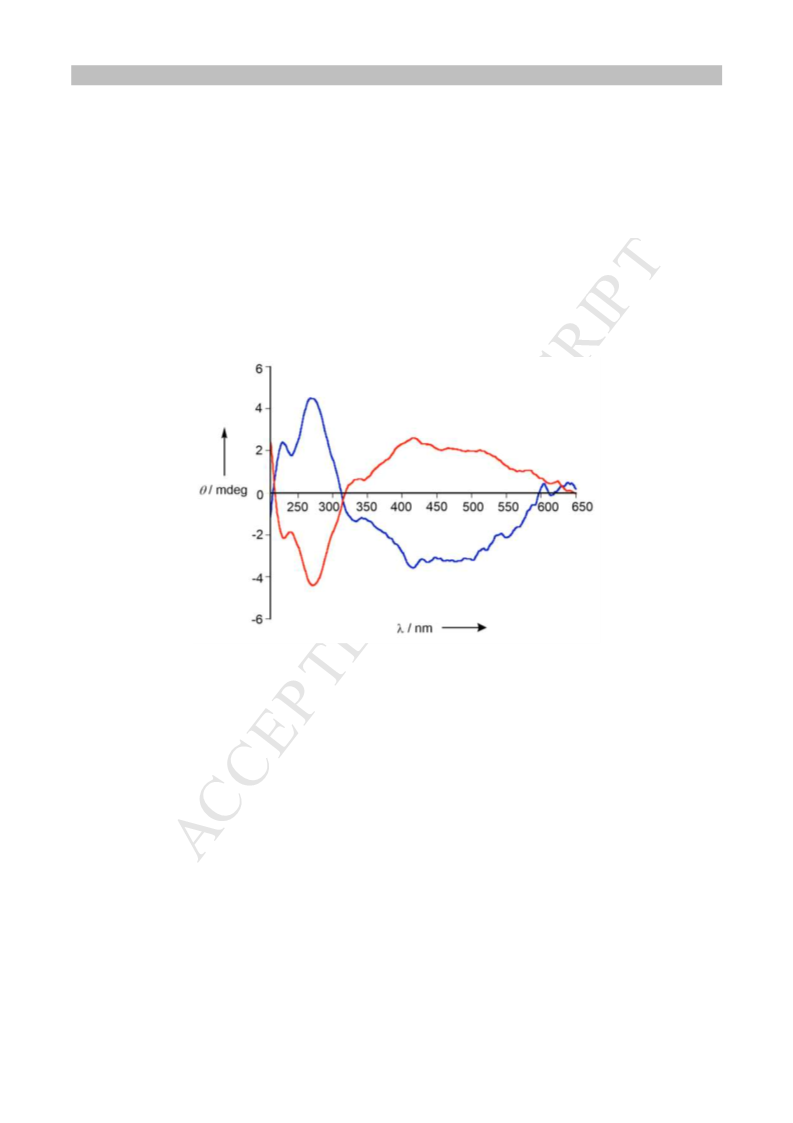

Figure 6. Solid-state CD spectra of enantiomeric crystals of compound 5 (150 mg in 100 mg
of KBr). See Tables S1 and S2: 5a (red line) and 5b (blue line).
3
. Conclusion
We found that N,N’-bis(ortho-substituted phenyl)squaramides 3 – 7 formed one-handed
helical structures based on the folded-type hydrogen-bonding networks of the squaramide
moiety. There reported various compounds taht afforded polymophic crystals including chiral
crystals [14], while the N,N’-bis(ortho-substituted phenyl)squaramides are unique, because of
high frequent chiral resolution and constractuon of various types of one-handed helical
networks. Studies of several aromatic squaramides indicated that ortho-substituents play key
roles in helix formation and spontaneous asymmetric induction in the crystals. Sterically
bulky ortho-substituents hinder the formation of linear-type hydrogen bonds (Figure 1b), and
instead, bent-type hydrogen-bonding networks (Figure 1c) are preferred. There are several
types of one-handed helices depending on the substituents on the phenyl rings or on the
9

ACCEPTED MANUSCRIPT
existence of solvent molecules in the crystals. The absolute one-handed helical structure of
compound 5 was determined. Various unique artificial helical structures have been
constructed based on the multi-hydrogen bond-forming properties [16] and conformational
properties of amide and urea bonds [17]. Our results show that squaramide also has the ability
to form unique helical structures, depending on the recrystallization conditions. Squaramide
has distinct properties from amide and urea bonds as regards multi-hydrogen bond formation,
and these features, together with the aromaticity of the 4-membered ring, suggest that it will
be a useful building block for aromatic architectures with unique three-dimensional structures
and chiral properties.
4
4
. Experimental section
.1. General
1
H spectra were recorded on Bruker Avance 400 spectrometer or Bruker Avance 600
1
3
spectrometer. C NMR spectra were recorded on Bruker Avance 500 spectrometer. Mass
spectra were collected on a Bruker Daltonics microTOF-2focus spectrometer in the positive
ion modes. Elemental analysis was performed on MT-6 elemental analyzer (Yanagimoto).
Melting points were determined on a RFS-30 melting point apparatus (Round Science). UV
spectra were recorded with a JASCO V-650, and CD spectra were recorded with a JASCO J-820
spectropolarimeter.
4
.2. Synthesis
4
.2.1. Synthesis of 3,4-Bis(phenylamino)cyclobut-3-ene-1,2-dione (1)
Aniline
(770
ml,
9.53
mmol)
(681.5
was
mg,
added
4.01
to
a
mixture
and
of
3
,4-diethoxy-3-cyclobutene-1,2-dione
mmol)
zinc
trifluoromethanesulfonate (294.8 mg, 0.811 mmol) in toluene/DMF (19:1, 4 ml), and the
mixture was heated at 95°C for 12 h. Cooling to room temperature afforded a pale yellow
precipitate, which was collected and washed with methanol to give 1 (1.002 g, 3.79 mmol,
1
9
5%). Pale yellow plates (DMSO); mp > 300°C; H NMR (400 MHz, DMSO-d ) δ 9.85 (2 H,
6
13
br s), 7.49 (4 H, d, J = 7.6 Hz), 7.38 (4 H, t, J = 7.4 Hz), 7.08 (2 H, t, J = 7.4 Hz); C NMR
125 MHz, DMSO-d ) δ 181.66, 165.72, 138.67, 129.43, 123.29, 118.53; Anal. Calcd. for
(
6
C H N O : C 72.72, H 4.58, N 10.60, Found: C 72.77, H 4.73, N 10.60; HRMS (ESI+)
16
12
2
2
+
Calcd. for C H N O [M + H] : 265.0972. Found 265.0966.
1
6
13
2
2
4
.2.2. Synthesis of 3,4-Bis(3-methylphenylamino)cyclobut-3-ene-1,2-dione (2)
m-Toluidine (705.8 mg, 6.59 mmol) was added to
a
mixture of
10

ACCEPTED MANUSCRIPT
3
,4-diethoxy-3-cyclobutene-1,2-dione
(507.0
mg,
2.98
mmol)
and
zinc
trifluoromethanesulfonate (249.7 mg, 0.687 mmol) in toluene/DMF (19:1, 4 ml), and the
mixture was heated at 95°C for 2 h. Cooling to room temperature afforded a pale yellow
precipitate, which was collected and washed with methanol to give 2 (758.8 mg, 2.60 mmol,
1
8
7%). Colorless plates (CH OH/CHCl ); mp 211-215°C; H NMR (400 MHz, CD OD) δ 7.33
3
3
3
(2 H, br s), 7.29 (2 H, d, J = 7.6 Hz), 7.23 (2 H, t, J = 7.5 Hz), 6.93 (2 H, d, J = 7.5 Hz), 2.35
1
3
(
6 H, s); C NMR (125 MHz, DMSO-d ) δ 181.65, 165.68, 138.77, 138.59, 129.26, 124.03,
6
1
19.05, 115.72, 21.21; Anal. Calcd. for C H N O ·1/2H O: C 71.74, H 5.69, N 9.30, Found:
18 16 2 2 2
+
C 71.75, H 5.79, N 9.27; HRMS (ESI+) Calcd. for C H N O [M + H] : 293.1285. Found
1
8
17
2
2
2
4
3
93.1279.
.2.3. Synthesis of 3,4-Bis(2-methylphenylamino)cyclobut-3-ene-1,2-dione (3)
o-Toluidine (765.8 mg, 7.12 mmol) was added to
,4-diethoxy-3-cyclobutene-1,2-dione (515.0 mg, 3.03 mmol)
a
mixture of
and zinc
trifluoromethanesulfonate (262.7 mg, 0.723 mmol) in toluene/DMF (19:1, 4 ml), and the
mixture was heated at 95°C for 2 h, then evaporated to dryness. The residue was taken up in a
mixture of AcOEt and water. The organic layer was dried over sodium sulfate, filtered and
1
evaporated to give 3 (933.5 mg, quant). Yellow pyramids (CH OH); mp 212-216°C; H NMR
3
(
400 MHz, DMSO-d ) δ 9.30 (2 H, br s), 7.31 (2 H, d, J = 7.5 Hz), 7.21 (2 H, d, J = 7.1 Hz),
6
13
7
.18 (4 H, m), 7.04 (3 H, td, J = 7.4, 1.0 Hz), 2.33 (6 H, s) ; C NMR (125 MHz, DMSO-d )
6
δ 182.65, 166.53, 136.20, 130.49, 128.68, 126.44, 124.64, 122.41, 17.80; Anal. Calcd. for
C H N O : C 73.95, H 5.52, N 9.58, Found: C 73.66, H 5.52, N 9.36; HRMS (ESI+) Calcd.
18
16
2
2
+
for C H N O [M + H] : 293.1285. Found 293.1288.
1
8
17
2
2
4
.2.4. Synthesis of 3,4-Bis(2-chlorophenylamino)cyclobut-3-ene-1,2-dione (4)
-Chloroaniline (540.2 mg, 4.23 mmol) was added to
,4-diethoxy-3-cyclobutene-1,2-dione (339.3 mg, 1.99 mmol)
2
a
mixture of
and zinc
3
trifluoromethanesulfonate (148.9 mg, 0.410 mmol) in toluene/DMF (19:1, 2 ml). The reaction
mixture was heated at 95°C for 11.5 h. Cooling to room temperature afforded a pale yellow
precipitate, which was collected and washed with methanol to give 4 (354.2 mg, 1.06 mmol,
1
5
3%). Yellow plates (CH OH); mp 228-230°C; H NMR (400 MHz, DMSO-d ) δ
9.93 (2 H,
3
6
s), 7.55 (2 H, dd, J = 8.0, 1.4 Hz), 7.52 (2 H, dd, J = 8.1, 1.4 Hz), 7.37 (2 H, ddd, J = 8.1, 8.1,
1
3
1
1
5
.5 Hz), 7.18 (2 H, ddd, J = 8.0, 8.0, 1.5 Hz); C NMR (125 MHz, DMSO-d ) δ 182.72,
6
66.16, 134.53, 129.60, 127.78, 125.71, 123.94, 123.88; Anal. Calcd. for C H Cl N O : C
16
10
2
2
2
7.68, H 3.03, N 8.41, Found: C 57.41, H 3.27, N 8.40; HRMS (ESI+) Calcd. for
11

ACCEPTED MANUSCRIPT
+
C H Cl N O [M + H] : 333.0192. Found 333.0195.
16
11
2
2
2
4
.2.5. Synthesis of 3,4-Bis(2-bromophenylamino)cyclobut-3-ene-1,2-dione (5)
-Bromoaniline (1.5052 g, 8.85 mmol) was added to
,4-diethoxy-3-cyclobutene-1,2-dione (682.7 mg, 4.01 mmol)
2
a
mixture of
and zinc
3
trifluoromethanesulfonate (302.2 mg, 0.831 mmol) in toluene/DMF (19:1, 4 ml). The reaction
mixture was heated at 95°C for 1 d. Cooling to room temperature afforded a pale yellow
precipitate, which was collected and washed with methanol. Combined filtrate was
evaporated, and the residue was washed with ethanol to give 5 (1.1067 g, 2.62 mmol, 65%).
1
Colorless prisms (CH OH); mp 210-218°C; H NMR (400 MHz, DMSO-d ) δ
9.80 (2 H, s),
3
6
7
.67 (2 H, dd, J = 8.0, 1.3 Hz), 7.45 (2 H, dd, J = 8.0, 1.4 Hz), 7.38 (2 H, ddd, J = 7.2, 7.2, 1.3
1
3
Hz), 7.11 (2 H, ddd, J = 7.3, 7.3, 1.5 Hz); C NMR (125 MHz, DMSO-d ) δ 182.81, 166.12,
6
1
35.72, 132.74, 128.29, 126.30, 124.52, 114.62; Anal. Calcd. for C H Br N O : C 45.55, H
16 10 2 2 2
2
.39, N 6.69, Found: C 45.57, H 2.47, N 6.64; HRMS (ESI+) Calcd. for C H Br N O [M +
1
6
11
2
2
2
+
H] : 420.9182. Found 420.9173.
4
.2.6. Synthesis of 3,4-Bis(2-methoxyphenylamino)cyclobut-3-ene-1,2-dione (6)
o-Anisidine (527.3 mg, 4.28 mmol) was added to
,4-diethoxy-3-cyclobutene-1,2-dione (343.2 mg, 2.02 mmol)
a
mixture of
and zinc
3
trifluoromethanesulfonate (158.6 mg, 0.436 mmol) in toluene/DMF (19:1, 2 ml), and the
mixture was heated at 95°C for 6.5 h. Cooling to room temperature afforded a pale yellow
precipitate, which was collected and washed with methanol to give 6 (332.6 mg, 1.03 mmol,
1
5
1%). Yellow plates (CH OH); mp108-110°C; H NMR (400 MHz, DMSO-d ) δ 9.90 (2 H, br
3
6
s), 7.58 (2 H, d, J = 8.0 Hz), 7.10 (4 H, m), 6.95 (2 H, ddd, J =8.2, 6.0, 2.8 Hz), 3.90 (6 H, s);
1
3
C NMR (125 MHz, DMSO-d ) δ 182.11, 165.87, 149.56, 126.97, 124.68, 121.48, 120.53,
6
1
11.40, 55.81; Anal. Calcd. for C H N O : C 66.66, H 4.97, N 8.64, Found: C 66.41, H 4.97,
18 16 2 4
+
N 8.59; HRMS (ESI+) Calcd. for C H N O [M + H] : 325.1183. Found 325.1183.
1
8
17
2
4
4
.2.7. Synthesis of 3,4-Bis(2-fluorophenylamino)cyclobut-3-ene-1,2-dione (7)
A solution of 2-fluoroaniline (135.7 mg, 1.22 mmol) in toluene (0.5 ml) was added to a
mixture of 3,4-diethoxy-3-cyclobutene-1,2-dione (95.5 mg, 0.56 mmol) and zinc
trifluoromethanesulfonate (65.0 mg, 0.179 mmol) in toluene/DMF (19:1, 1 ml). The reaction
mixture was heated at 95°C for 1 d. Cooling to room temperature afforded a pale yellow
precipitate, which was collected and washed with methanol to give 7 (141.9 mg, 0.473 mmol,
1
8
4%). Colorless needles (CH OH); mp 244-246°C; H NMR (400 MHz, DMSO-d ) δ
10.12
3
6
12

ACCEPTED MANUSCRIPT
(2 H, s), 7.87(2 H, ddd, J = 8.0, 8.0, 1.6 Hz), 7.31(2 H, ddd, J = 11.6, 8.1, 1.4 Hz), 7.22(2 H,
1
3
ddd, J = 7.9, 7.9, 1.4 Hz), 7.14(2 H, m); C NMR (125 MHz, DMSO-d ) δ 182.16, 165.99,
6
1
53.72, 151.78, 126.35, 124.88, 122.11, 115.72; Anal. Calcd. C H F N O for : C 64.00, H
16 10 2 2 2
3
.36, N 9.33, Found: C 63.86, H 3.59, N 9.20; HRMS (ESI+) Calcd. for C H F N O [M +
16
11
2
2
2
+
H] : 301.0783. Found 301.0774.
4
.3. X-ray crystallography
Crystallographic data were collected on a Bruker Apex II ultra CCD detector with
graphite-monochromated Mo Kα radiation and a Bruker Apex II ultra CCD detector with
graphite-monocromated Cu Kα radiation. The crystal structures were solved by direct
1
8
methods using SHELXS-97 and refined by full-matrix least-squares SHELXL-97. All
non-hydrogen atoms were refined anisotropically. All hydrogen atoms were included at their
calculated positions.
Acknowledgements
References and notes
[
1] a) S. Mann, Nature 365 (1993) 499; b) J. D. Wuest, Chem. Commun. (2005) 5830; c) M.
W. Hosseini, Acc. Chem. Res. 38 (2005), 313.
2] a) M. Simard, D. Su, J. D. Wuest, J. Am. Chem. Soc. 113 (1991) 4696; b) M. Etter, Acc.
[
Chem. Res. 23 (1998) 120; c) J. C. MacDonald, P. C. Dorrestein, M. M. Pilley, M. M. Foote, J.
L. Lundburg, R. W. Henning, A. J. Schultz, J. L. Manson, J. Am. Chem. Soc. 122 (2000)
11692; d) P. Dechambenoit, S. Ferlay, M. W. Hosseini, Cryst. Growth Des. 5 (2005) 2310.
[
3] a) W. Dannecker, J. Kopf, H. Rust, Cryst. Struct. Commun. 8 (1979) 429; b) M. C. Etter, T.
W. Panunto, J. Am. Chem. Soc. 110 (1988) 5896. c) M. C. Etter, Z. Urbañczyk-Lipkowska, M.
Zia Ebrahimi, T. W. Panunto, J. Am. Chem. Soc. 112 (1990) 8415.
[
4] a) K. Kishikawa, S. Nakahara, Y. Nishikawa, S. Kohmoto, M. Yamamoto, J. Am. Chem.
Soc. 127 (2005) 2565; b) L. Pfeifer, K. M. Engle, G. W. Pidgeon, H. A. Sparkes, A. L.
Thompson, J. M. Brown, V. Gouverneur, J. Am. Chem. Soc. 138 (2016) 13314.
[
5] a) R. I. Storer, C. Aciro, L. H. Jones, Chem. Soc. Rev. 40 (2011) 2330. b) J. Alemán, A.
Parra, H. Jiang, K. A. Jørgensen, Chem. Eur. J. 17 (2011) 6890.
6] a) H. H. Zou, J. Hu, J. Zhang, J.-S. You, D. Ma, D. Lü, R.-G. Xie, Mol. Catal. A 242
[
13

ACCEPTED MANUSCRIPT
(2005) 57; b) J. P. Malerich, K. Hagihara, V. H. Rawal, J. Am. Chem. Soc. 130 (2008) 14416;
c) Y. Zhu, J. P. Malerich, V. H. Rawal Angew. Chem. Int. Ed. 49 (2010) 153; d) H. Jiang, M.
W. Paixâo, D. Monge, K. A. Jørgensen, J. Am. Chem. Soc. 132 (2010) 2775.
[
7] Recent examples: a) J. A. Butera, et al. J. Med. Chem. 43 (2000) 1187; b) B. W.
McCleland et al. Bioorg. Med. Chem. Lett. 17 (2007) 1713; c) J. Charton, B. P. Déprez, R. F.
Déprez-Poulain, Bioorg. Med. Chem. Lett. 18 (2008) 4968; d) M. P. Dwyer, P. Biju, Curr. Top.
Med. Chem. 10 (2010) 1339.
[
(
[
8] V. Amendola, G. Bergamaschi, M. Boiocchi, L. Fabbrizzi, M. Milani, Chem. Eur. J. 16
2010) 4368.
9] a) S. Tomas, R. Prohens, M. Vega, M. C. Rotger, P. M. Deya, P. Ballester, A. Costa, J. Org.
Chem. 61 (1996) 9394; b) R. Prohens, S. Tomas, J. Morey, P. M. Deya, P. Ballester, A. Costa,
Tetrahedron Lett. 39 (1998) 1063; c) D. Quiñonero, A. Frontera, G. A. Suner, J. Morey, A.
Costa, P. Ballester, P. M. Deya, Chem. Phys. Lett. 326 (2000) 247; d) D. Quiñonero, R.
Prohens, C. Garau, A. Frontera, P. Ballester, A. Costa, P. M. Deya, Chem. Phys. Lett. 351
(
2002) 115; e) C. Garau, A. Frontera, P. Ballester, D. Quiñonero, A. Costa, P. M. Deya, Eur. J.
Org. Chem. (2005) 179.
10] a) S. Tomas, R. Prohens, G. Deslongchamps, P. Ballester, A. Costa, Angew. Chem., Int.
[
Ed. 38 (1999) 2208; b) M. N. Piña, C. Rotger, B. Soberats, P. Ballester, P. M. Deya, A. Costa,
Chem. Commun. (2007) 963; c) R. Prohens, A. Portell, X. Alcobe, Cryst. Growth Des. 12
(2012) 4548.
[
11] a) C. Rotger, B. Soberats, D. Quiñonero, A. Frontera, P. Ballester, J. Benet-Buchholz, P.
M. Deya, A. Costa, Eur. J. Org. Chem. (2008) 1864; b) A. Prtell, R. Barbas, D. Braga, M.
Polito, C. Puigjaner, R. Prohens, CrystEngComm, 11 (2009) 52.
[
12] A. Rostami, A. Colin, X. Y. Li, M. G. Chudzinski, A. J. Lough, M. S. Taylor, J. Org.
Chem. 75 (2010) 3983.
13] C. E. Silva, H. F. D. Santos, N. L. Speziali, R. Diniz, L. F. C. d. Oliveira, J. Phys. Chem.
A 114 (2010) 10097.
[
[
14] a) H. D. Flack, Helv. Chim. Acta 86 (2003) 905; b) G. P. Stahly, Cryst. Growth Des. 7
2007) 1007.
(
14

ACCEPTED MANUSCRIPT
[
15] a) A. Tanatani, K. Yamaguchi, I. Azumaya, R. Fukutomi, K. Shudo, H. Kagechika, J. Am.
Chem. Soc. 120 (1998) 6433; b) N. Fujimoto, M. Matsumura, I. Azumaya, S. Nishiyama, H.
Masu, H. Kagechika, A. Tanatani, Chem. Commun. 48 (2012) 4809.
[
16] a) T. F. A. D. Greef, M. M. J. Smulders, M. Wolffs, A. P. H. J. Schenning, R. P. Sijbesma,
E. W. Meijer, Chem. Rev. 109 (2009) 5687; b) G. Guichard, I. Huc Chem. Commun. 47
2011) 5933; c) S. J. George, R. de Bruijn, Z. Tomovic, B. V. Averbeke, D. Beljonne, R.
(
Lazzaroni, A. P. H. J. Schenning, E. W. Meijer, J. Am. Chem. Soc. 134 (2012) 17789; d) M.
Banno, T. Yamaguchi, K. Nagai, C. Kaiser, S. Hecht, E. Yashima, J. Am. Chem. Soc. 134
(2012) 8718.
[
17] a) A. Tanatani, A. Yokoyama, I. Azumaya, Y. Takakura, C. Mitsui, M. Shiro, M.
Uchiyama, A. Muranaka, N. Kobayashi, T. Yokozawa, J. Am. Chem. Soc. 127 (2005) 8553; b)
M. Kudo, T. Hanashima, A. Muranaka, H. Sato, M. Uchiyama, I. Azumaya, T. Hirano, H.
Kagechika, A. Tanatani, J. Org. Chem. 74 (2009) 8154.
[
18] G. M. Sheldrick, Acta Cryst. A64 (2008) 112.
15

ACCEPTED MANUSCRIPT
Graphical Abstract (Figure was modified)
Spontaneous Chiral Resolution of N,N’-Diarylsquaramides : Formation of Various Types of One-handed
Helical Networks During Crystallization
Midori Kanda, Ko Urushibara, Soyoung Park, Shinya Fujii, Hyuma Masu, Kosuke Katagiri, Isao Azumaya,
Hiroyuki Kagechika, Aya Tanatani*
16
