Tuning gel state properties of supramolecular gels by functional group modification

Article abstract of DOI:10.3390/molecules24193472

The factors affecting the self-assembly process in low molecular weight gelators (LMWGs) were investigated by tuning the gelation properties of a well-known gelator N-(4-pyridyl)isonicotinamide (4PINA). The N—H···N interactions responsible for gel formation in 4PINA were disrupted by altering the functional groups of 4PINA, which was achieved by modifying pyridyl moieties of the gelator to pyridyl N-oxides. We synthesized two mono-N-oxides (INO and PNO) and a di-N-oxide (diNO) and the gelation studies revealed selective gelation of diNO in water, but the two mono-N-oxides formed crystals. The mechanical strength and thermal stabilities of the gelators were evaluated by rheology and transition temperature (T_gel) experiments, respectively, and the analysis of the gel strength indicated that diNO formed weak gels compared to 4PINA. The SEM image of diNO xerogels showed fibrous microcrystalline networks compared to the efficient fibrous morphology in 4PINA. Single-crystal X-ray analysis of diNO gelator revealed that a hydrogen-bonded dimer interacts with adjacent dimers via C—H···O interactions. The non-gelator with similar dimers interacted via C—H···N interaction, which indicates the importance of specific non-bonding interactions in the formation of the gel network. The solvated forms of mono-N-oxides support the fact that these compounds prefer crystalline state rather than gelation due to the increased hydrophilic interactions. The reduced gelation ability (minimum gel concentration (MGC)) and thermal strength of diNO may be attributed to the weak intermolecular C—H···O interaction compared to the strong and unidirectional N—H···N interactions in 4PINA.

Full text of DOI:10.3390/molecules24193472

molecules
Article
Tuning Gel State Properties of Supramolecular Gels
by Functional Group Modification
Dipankar Ghosh 1, Matthew T. Mulvee 2 and Krishna K. Damodaran 1,
*
1
Department of Chemistry, Science Institute, University of Iceland, Dunhagi 3, 107 Reykjavík, Iceland
Department of Chemistry, Durham University, South Road, Durham DH1 3LE, UK
Correspondence: krishna@hi.is; Tel.: +354-525-4846; Fax: +354-552-8911
2
*
ꢀꢁꢂꢀꢃꢄꢅꢆꢇ
ꢀꢁꢂꢃꢄꢅꢆ
Received: 31 August 2019; Accepted: 24 September 2019; Published: 25 September 2019
Abstract: The factors affecting the self-assembly process in low molecular weight gelators (LMWGs)
were investigated by tuning the gelation properties of a well-known gelator N-(4-pyridyl)isonicotinamide
(
4PINA). The N—H···N interactions responsible for gel formation in 4PINA were disrupted by altering
the functional groups of 4PINA, which was achieved by modifying pyridyl moieties of the gelator to
pyridyl N-oxides. We synthesized two mono-N-oxides (INO and PNO) and a di-N-oxide (diNO) and
the gelation studies revealed selective gelation of diNO in water, but the two mono-N-oxides formed
crystals. The mechanical strength and thermal stabilities of the gelators were evaluated by rheology
and transition temperature (Tgel) experiments, respectively, and the analysis of the gel strength
indicated that diNO formed weak gels compared to 4PINA. The SEM image of diNO xerogels
showed fibrous microcrystalline networks compared to the efficient fibrous morphology in 4PINA
Single-crystal X-ray analysis of diNO gelator revealed that a hydrogen-bonded dimer interacts
with adjacent dimers via C—H···O interactions. The non-gelator with similar dimers interacted via
C—H···N interaction, which indicates the importance of specific non-bonding interactions in the
formation of the gel network. The solvated forms of mono-N-oxides support the fact that these
compounds prefer crystalline state rather than gelation due to the increased hydrophilic interactions.
The reduced gelation ability (minimum gel concentration (MGC)) and thermal strength of diNO
may be attributed to the weak intermolecular C—H···O interaction compared to the strong and
unidirectional N—H···N interactions in 4PINA.
.
Keywords: LMWGs; hydrogel; structural modification; pyridyl amides; N-oxides
1. Introduction
Supramolecular gels based on low molecular weight gelators (LMWGs) [
class of soft materials with tunable gel state properties and potential applications [
1
–
10] are an excellent
16], such as
9
–
dynamic gels, cell culture, drug delivery, and media of crystal growth. LMWGs are formed by
the immobilization of the solvent molecules in the three-dimensional (3-D) network of the gelator,
which are stabilized by various noncovalent interactions [
Waals interactions, π−π stacking, etc. The gelation properties of LMWGs depend on various factors
such as concentration [17 18], sonication [19 21], additives [22], and seeding [21 23]. The understanding
and prediction of the gel structure and self-assembly process of LMWGs to control or tune the gelation
properties are difficult because of the dynamic nature of noncovalent interactions [ 10]. This is due
1–9], such as hydrogen bonding, van der
,
–
,
1–
to the low molecular order of the gel state as a whole because of the variation in the length scales
(ranging from nano to micro) of the gel structure. Efforts have been made to investigate the gelation
mechanism and unveil the factors influencing the gel using various methods [8,19,24–32], such as
ultraviolet–visible (UV–Vis) spectroscopy, nuclear magnetic resonance spectroscopy (NMR), Fourier
transform infrared spectroscopy (FT-IR), scanning electron microscopy (SEM), atomic force microscopy
Molecules 2019, 24, 3472; doi:10.3390/molecules24193472
www.mdpi.com/journal/molecules

Molecules 2019, 24, 3472
2 of 17
(AFM), transmission electron microscopy (TEM), rheology and X-ray diffraction techniques including
X-ray diffraction (XRD), small-angle X-ray scattering (SAXS), small-angle neutron scattering (SANS),
etc. Although the characterization of supramolecular gels from molecular to mesoscopic scale has been
challenging, X-ray diffraction techniques can be used to correlate the crystal structure of the gelator
with the powder diffraction pattern of either native gel or the xerogel [4,8,33–35]. However, the removal
of solvent to prepare a xerogel can result in artifacts due to dissolution, recrystallisation, and changes
in morphology or polymorphic phase transition, but this approach still remains as one of the practical
methods to gain insight into the gelator structure and aggregation behavior. Furthermore, this technique
enables us to correlate the intermolecular interactions observed in the single-crystal structure with the
molecular aggregation in the gel state, which may be different from its crystalline network [34]. We were
interested in studying the effect of hydrogen-bonding motifs in the self-assembly process of LMWGs,
to enable us to tune the gel state properties. However, the design, mechanism, and understanding of
gel structure and the self-assembly process of new LMWGs are challenging because the structure and
properties rely mostly on the geometry and spatial arrangement of the building blocks and also the
nature of intermolecular noncovalent interactions [36,37]. Thus, modifying an existing supramolecular
gel can be considered as a good strategy to analyze the self-assembly, enabling us to compare the
structural and gelation properties of new LMWGs with the parent gelator [38].
Amide and urea moieties have been used extensively as supramolecular synthons [39] to
generate LMWGs with tunable properties [40
donor and C=O acceptor resulting in a strong N
to a 3-D network via cooperative and unidirectional hydrogen bonding involving amide
units [43]. These 3-D networks are capable of immobilizing solvent molecules to form organo/
hydrogels [34,44–49]. Recently, we reported the structural modification of trimesic amide-based gelator
N1,N3,N5-tri(pyridin-3-yl)benzene-1,3,5-tricarboxamide [50] to corresponding tris-N-oxide compound
–
42]. Amide-based LMWGs contain an amide N H
−
−H···O=C interaction, which self-assemble
(L-3Nox) [38]. The gelation properties suggested that L-3Nox is a weaker gelator compared to the parent
amide and the structure–property correlation was not performed due to the lack of a single-crystal
X-ray structure. This prompted us to select low molecular weight pyridyl amide gelators, which are
classified as stimuli-responsive supramolecular gels due to their tunable properties to external stimuli
such as pH, coordination, salts/ions, etc. [6,51–65]. The advantage of using pyridyl amide is twofold:
(a) the opportunity to modify each ring selectively by simple organic reactions (Scheme 1) and (b)
the easiness of obtaining the crystal structure. Thus, a pyridyl amide-based hydrogelator, namely
N-(4-pyridyl)isonicotinamide (4PINA) [34], with remarkably low molecular weight and minimum
gel concentration was selected. The derivatives of 4PINA are ideal candidates to study the molecular
aggregation enabling us to compare the role of non-bonding interactions in gel formation with 4PINA
The aggregation mode of molecules in the xerogel fibrils was found to be N—H···N hydrogen bonding,
which had a prominent effect in the self-assembly of 4PINA. The structural modification of 4PINA
was achieved by oxidizing the pyridine ring to the corresponding N-oxide, which may restrict the
N—H···N hydrogen bonding-based molecular aggregation.
.

Molecules 2019, 24, 3472
3 of 17
Scheme 1. Synthesis of the N-oxide amides: (a) 4-(isonicotinamido)pyridine-1-oxide (PNO), (
b)
4-(pyridin-4-ylcarbamoyl)pyridine-1-oxide (INO), and (
1-oxide (diNO).
c) 4-((1-oxidopyridin-4-yl)carbamoyl)pyridine-
2. Results
2.1. Design and Synthesis
We synthesized three N-oxides compounds by modifying the pyridyl group of N-(4-
pyridyl)isonicotinamide (4PINA) [34]. This included a di-N-oxide (4-((1-oxidopyridin-4-yl)carbamoyl)
pyridine-1-oxide, diNO) and two mono-N-oxides, namely 4-(isonicotinamido) pyridine-1-oxide (PNO)
and 4-(pyridin-4-ylcarbamoyl)pyridine-1-oxide (INO) with the N-oxide group at the aminopyridine
and isonicotinoyl end, respectively. Mono-N-oxide amides were synthesized by reacting acid chlorides
with corresponding amines in anhydrous DMF in the presence of triethylamine (Scheme 1a,b).
The precipitates obtained for INO and PNO were washed with aqueous sodium bicarbonate solution
followed by water to ensure the removal of salts. The di-N-oxide (diNO) was synthesized by oxidizing
4PINA with m-chloroperoxybenzoic acid (Scheme 1c) and the product was washed with water and
dried. All compounds were characterized by NMR, HRMS, IR, and X-ray diffraction (single-crystal
and powder).
2.2. Gelation Experiments
The gelation experiments for diNO, INO, and PNO were tested in various solvents (Table S1,
Supplementary Materials). In a typical experiment, a 10.0 mg portion of the compound was heated in
1.0 mL of solvent (1.0 wt %) to get a clear solution and was cooled to room temperature. The hydrogel
formation of these amides tested at 1.0 wt % indicated no gelation, which prompted us to increase
◦
the concentration to 4.0 wt %. The mixture was heated (80.0–90.0 C) and on cooling to room
temperature, gelation was observed only for the di-N-oxide (diNO) after 1 h, which was confirmed
via inversion test. Crystalline materials were obtained for both the mono-N-oxides (PNO and
INO). The gelation experiment performed with an equimolar mixture of PNO and INO resulted in
concomitant crystallization of the individual compounds, which was confirmed by single-crystal
X-ray diffraction (SCXRD). The gel strength of diNO was analyzed by sol–gel transition temperature
(Tgel) and minimum gel concentration (MGC) experiments. The lowest concentration at which the gel
was obtained was recorded as the minimum gel concentration (MGC). The MGC experiment of the
hydrogel was performed in 1.0 mL of water by weighing different amounts of diNO gelator (30.0 to
50.0 mg) in a 7.0 mL vial. The mixture was heated and then cooled to room temperature, and the vial

Molecules 2019, 24, 3472
4 of 17
was left undisturbed for gel formation. After 24 h, the gel formation was confirmed by the inversion
test and the MGC of the gelator was found to be 4.0 wt %.
2.3. Thermal Stability
The thermal stability of the gel network of diNO was evaluated using gel-to-solution transition
temperature (Tgel) experiments, which is the critical temperature at which the gel converts to a solution.
The experiment was performed by placing a small spherical glass ball (92.0 mg) on top of the diNO
preformed hydrogel in a standard vial. The vial was heated and the temperature at which the ball
touched the bottom of the vial was recorded as Tgel. The experiments were performed at 4.0 and
6.0 wt % and the Tgel did not vary much with the concentration of diNO, which was found to be 78.0 ◦C
and 80.0 ◦C at 4.0 and 6.0 wt %, respectively.
2.4. Rheology
Rheological analysis was undertaken to determine the mechanical properties of the supramolecular
hydrogels (4.0 wt %) [66,67]. The oscillatory amplitude sweeps, at a constant frequency (1.0 Hz),
demonstrated a linear viscoelastic region (LVR) in which the storage (elastic) G’ modulus was
approximately an order of magnitude higher than the loss (viscous) G” modulus for both samples
(Figure 1a) [66,68]. Thus, both samples had a linear elastic response to low stress amplitudes.
This behavior is indicative of a solid-like network throughout the sample gelling the aqueous solvent.
At increased shear stresses, a stress softening behavior was observed, the viscous moduli (G”) increased,
and at a crossover point, there was a concomitant sharp decrease in the storage moduli (G’) indicating
a transition from an elastic gel to a viscous fluid [69,70]. At low shear stresses, 4PINA had an elastic
modulus of approximately 140,000 Pa and a yield stress of approximately 500 Pa. diNO was a
significantly softer gel with an elastic modulus of approximately 5000 Pa and was also weaker, with a
yield stress of approximately 60 Pa.

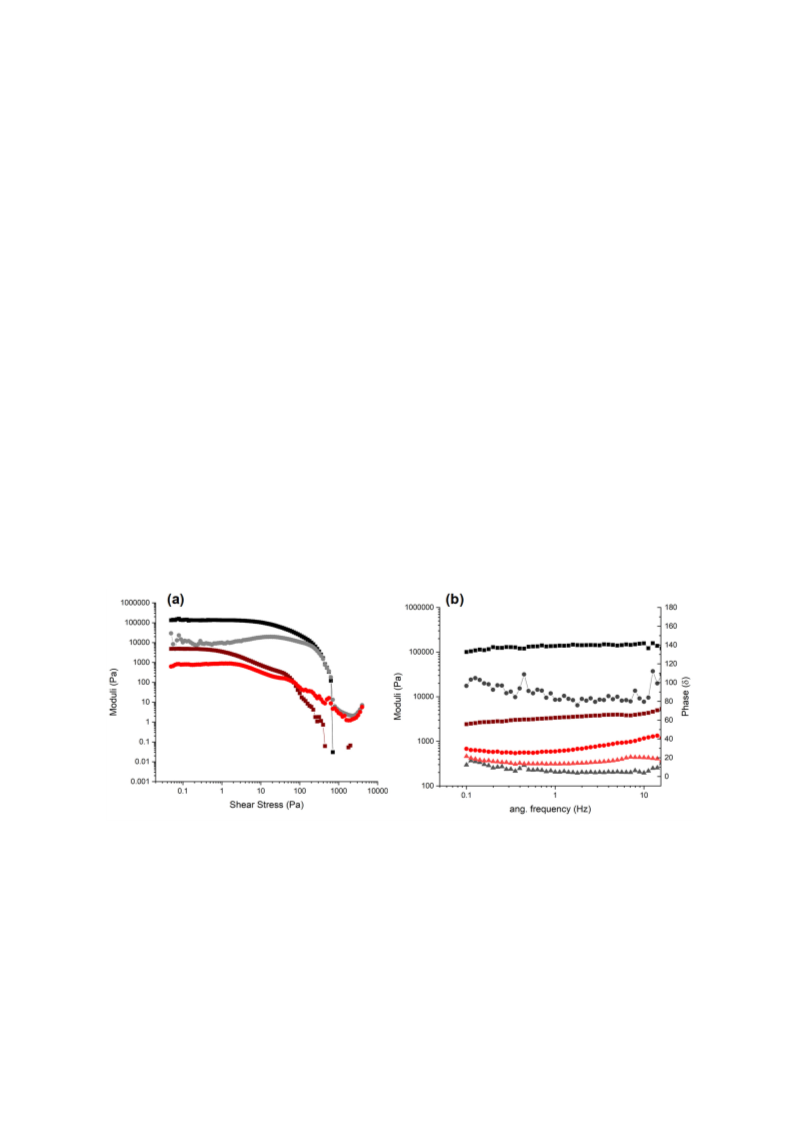

Figure 1.
(a) Oscillatory amplitude sweeps and (
b) oscillatory frequency sweeps, for N-(4-pyridyl)
isonicotinamide (4PINA) (black) and diNO (red). For both,
modulus and viscous modulus, at 4.0 wt %, respectively. N refers to the phase lag (δ).
ꢀ
refers to G’ and refers to G”, the storage
•
Oscillatory frequency sweeps (Figure 1b) at a fixed amplitude (0.05 Pa) demonstrated that G’,
arising from the elastic network, was higher than G” across all frequencies for 4PINA, which is
characteristic of the presence of a solid-like network of filaments that are temporally persistent in the
viscoelastic gel. These moduli were effectively indifferent to the frequency and this was true for diNO
as well at low frequencies (<10 Hz). However, with increasing frequencies G’ increased, the typical
behavior of viscoelastic liquids rather than supramolecular gels [66], which further indicates that diNO
formed weaker gels than 4PINA. Furthermore, the ratio of G’:G” is not at least an order of magnitude,

Molecules 2019, 24, 3472
5 of 17
the generally accepted ratio for supramolecular gels. Instead the ratio is roughly 7:1, further indicating
that the modifications made to diNO severally affect its gelling ability. However, the phase angle,
the lag between the applied shear stress and the measured strain, for diNO of approximately 15.0
δ is
comparable to that of the original gelator, 4PINA, with a measured phase lag of approximately 7.0
δ
.
Moreover, the phase angle is not dependent on the frequency, a key Watson–Chambon criterion for gels.
Thus, as the diNO samples do not meet the moduli requirements but demonstrated other viscoelastic
behavior typical of a physical gel, it can, with caveats, be considered a very weak gel.
2.5. Scanning Electron Microscopy (SEM)
The morphology of gel fibers was studied by analyzing the SEM images of dried diNO gel. The gel
was prepared at 4.0 wt % in water, filtered after 24 h, and dried under a fume hood. A small portion of
the dried gel was placed on a carbon tab and was coated with gold for 2 min. The SEM images revealed
that the xerogel displayed a rod-type architecture with needle-shaped microcrystalline materials in the
network. The diameter of the small needle-shaped fibers ranged from 1.2 to 2.5 µm and the width of
the larger microcrystalline rods ranged from 8.0 to 30.0 µm (Figure 2).
Figure 2. SEM images of diNO show the microcrystalline fibrous network: (a) overview; (b) magnified
images.
2.6. Crystal Structure
The crystallization experiments of N-oxides and an equimolar mixture of two mono-N-oxides were
performed in water and various organic solvents. The compounds were proved to be sparingly soluble
in most of the organic solvents, hence the experiments were carried out in a water or aqueous solution of
methanol, ethanol, acetonitrile, and tetrahydrofuran. About 20.0 mg of the material were dissolved by
heating in 1.0 mL of water, and the solution was cooled to room temperature. Crystallization from mixed
solvents (1:1, v/v) such as methanol/water, ethanol/water, acetonitrile/water, and tetrahydrofuran/water
resulted in precipitates. In some cases, needle-shaped crystals were obtained with low yield and
the crystal quality was not good for single-crystal X-ray diffraction. The crystallization experiments
performed in water produced X-ray quality single crystals for all N-oxides. The crystals of diNO were
found to be needle-shaped, whereas block-shaped crystals were observed for both mono-N-oxides.
Interestingly, crystallization of a 1:1 mixture of PNO and INO also resulted in block-shaped crystals.
¯
The gelator diNO crystallized in a triclinic space group (Pı) with the carbonyl moiety of the
amide group slightly deviated from the amide plane (15.74(8)◦) and the pyridyl N-oxide rings were
twisted at an angle of 58.71(3)◦ (Figure 3a). The N-H moiety was involved in hydrogen-bonding
interaction (N—H···O) with the oxygen atom of the adjacent molecule to form a dimer. This dimer was
further stabilized by a strong π–π interaction (3.6563(9) Å) between the isonicotinoyl N-oxide ring of
diNO (Figure 3b) and also N—H···O interactions (2.8178(16) Å) between the amide N-H moiety and
isonicotinoyl N-oxide moieties (Figure S9, Supplementary Materials). The aminopyridine N-oxide
moieties of the diNO dimer interact with the isonicotinoyl N-oxide moieties of adjacent dimers via

Molecules 2019, 24, 3472
6 of 17
offset
π
–
π
interactions (3.8745(9) and 3.8219(9) Å) and also display bifurcated C—H···O interactions
(3.1789(18) and 3.1621(19) Å) with adjacent dimers (Figure 3c).

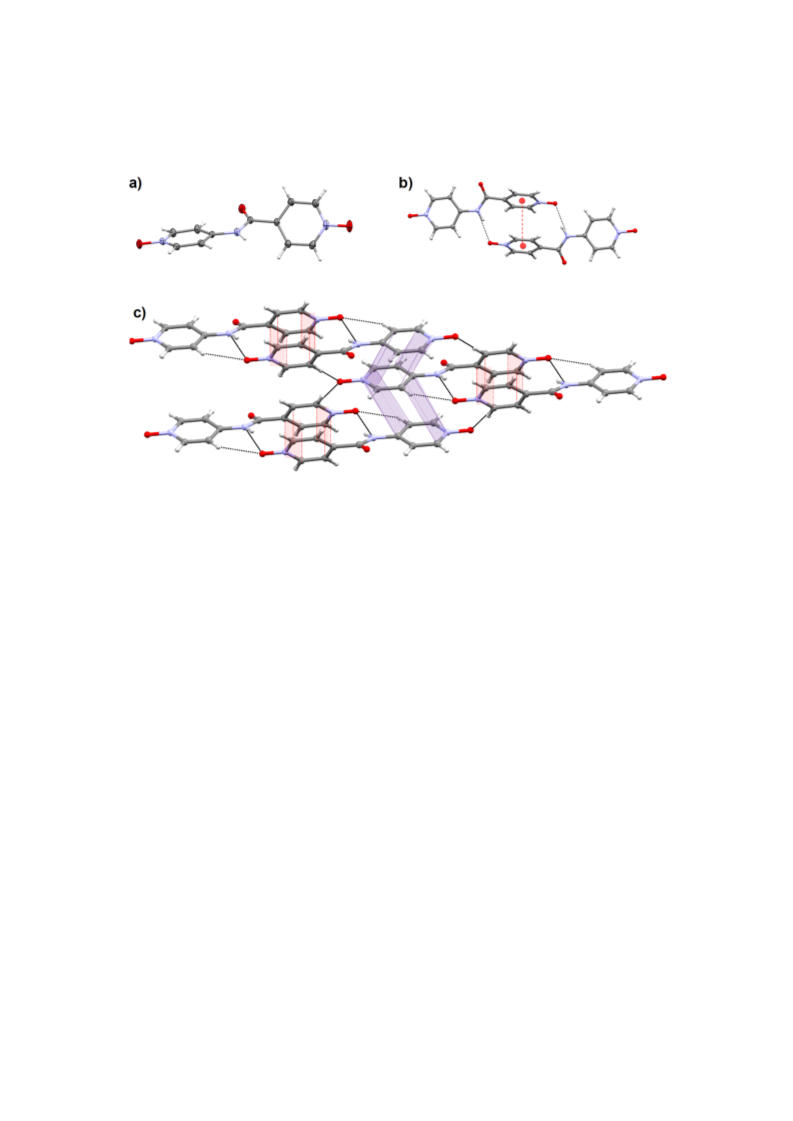

Figure 3.
(a) Crystal structure of diNO, (b) showing hydrogen-bonded dimer stabilized with π–π
interaction and (
c) interaction of the individual dimer with adjacent dimer via various non-bonding
interactions (dotted lines); black lines indicate hydrogen bonding, red line for π–π interactions of the
individual dimer, and blue line for π–π interactions with adjacent dimers.
¯
Compound INO crystalized in a triclinic space group (Pı) and the twisting of the pyridyl N-oxide
ring (58.86◦) was similar to diNO (Figure 4a). The hydrogen-bonding pattern was exactly the same
as in diNO resulting in a dimer, which was stabilized by N—H···O and
difference between these two structures was the connection between adjacent dimers and the dimer in
INO propagates via C—H···N interaction (3.4391(16) and 3.5489(16) Å), whereas C—H···O and
π–π interactions. The only
π–π
interactions are observed in diNO. The solvated form of INO was also isolated (INO.2H2O) and the
crystals belong to a monoclinic C2/c space group (Figure S10). The asymmetric unit contains one INO
and two molecules of water, and the isonicotinoyl N-oxide and pyridyl moieties are coplanar to the
amide groups compared to the de-solvated form. The hydrogen-bonding pattern of INO.2H2O was
different from INO due to the presence of dimeric water clusters. The isonicotinoyl N-oxide was
hydrogen-bonded to two water molecules via O—H···O interactions (2.793(3) and 2.796(2) Å), and the
pyridyl nitrogen atom interacted with a water molecule through O—H···N interaction (2.771(2) Å).
This resulted in the formation of a hydrogen-bonded macrocycle involving two INO molecules and
four water molecules. The amide moieties of the macrocycle were hydrogen bonded to adjacent
macrocycles via N—H···O (2.921(2) Å) interactions to form a hydrogen-bonded 3-D network.

Molecules 2019, 24, 3472
7 of 17

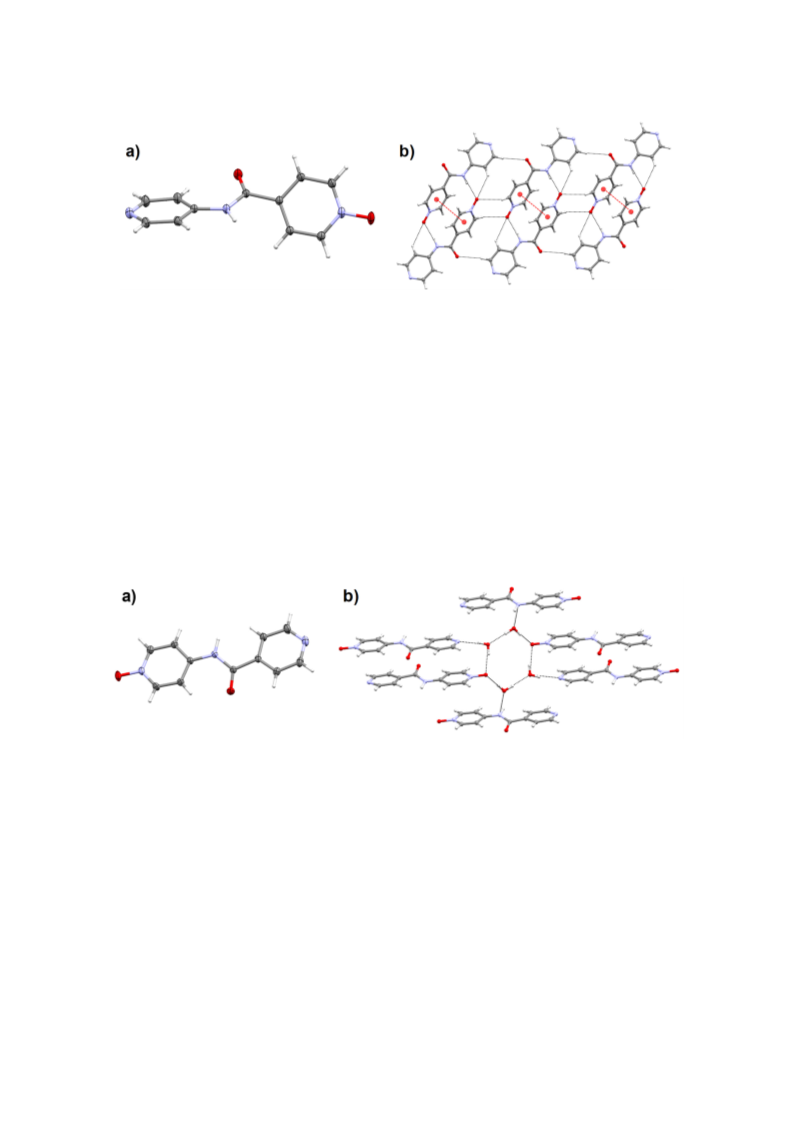

Figure 4. (a) Crystal structure of INO and (b) interaction of individual dimers via various non-bonding
interactions; black dotted lines indicate hydrogen bonding and red dotted lines represent the
π–π interactions.
The structural analysis of the pyridyl N-oxide compound (PNO) revealed that the compound
crystallized in a similar space group as diNO but with two solvent water molecules (PNO.2H2O
Figure 5a). The pyridyl N-oxide and isonicotinoyl moieties are almost planar to each other but slightly
twisted from the amide plane (16.70 and 18.72◦). The N-H moiety of the amide group, the pyridyl
nitrogen atom, and the N-oxide moieties are hydrogen bonded to the water molecules. The amide acts
as donor (N—H···O = 2.8617(15) Å), whereas the N-oxide (O—H···O = 2.7412(15) and 2.7701(16) Å)
and isonicotinoyl groups (O—H···N = 2.8598(17) Å) act as acceptor, resulting in four water molecules
interacting with one PNO molecule. The hydrogen bonding between water molecules and PNO
resulted in a hexagonal architecture of oxygen atoms formed by N-oxide oxygen atoms of two PNO and
four water molecules, which was stabilized by various interactions with amide and pyridyl nitrogen
atoms of adjacent PNO molecules (Figure 5b).
,
Figure 5. Single-crystal structure of PNO: (a) Asymmetric unit (water molecules not shown); (b) two-
dimensional (2-D) sheet constructed by H-bonding between the ligand and solvent (water) molecules.
We also performed the crystallization of a 1:1 mixture of INO and PNO in water (2.0 wt %) and
block-shaped crystals appeared on cooling after 1 h. The SCXRD data matched the PNO.2H2O crystals.
The crystals of INO.2H2O were also obtained from the same mixture after 24 h. The experiments
repeated by varying the ratios of INO and PNO (1:3 and 3:1) also resulted in the co-crystallization of
the individual components.
2.7. X-ray Powder Diffraction (XRPD)
The phase purity of the compounds was further analyzed by comparing the XRPD pattern
of the bulk crystals with the simulated pattern obtained from the single-crystal data. XRPD was
performed on the bulk solid of recrystallized diNO from water and the xerogel obtained from water at
4.0 wt %. The powder X-ray pattern of the re-crystallized diNO matches perfectly well the simulated
graph obtained from the single-crystal data (Figure 6). However, the powder X-ray pattern of the
xerogel did not match the calculated pattern from the crystal structure of diNO. The XRPD patterns

Molecules 2019, 24, 3472
8 of 17
of mono-N-oxides were performed with the recrystallized samples from water, which were filtered
and dried in air. The XRPD pattern of PNO revealed that the pattern of bulk solid was virtually
super-imposable on the simulated pattern of PNO (Figure S11). The XRPD pattern of the bulk
crystalline material of INO was also similar to the simulated pattern of INO (Figure S12). We also
performed the XRPD of the hydrated form of INO, but the pattern was different from the calculated
pattern of the INO.2H2O crystal structure (Figure S13). Interestingly, the INO.2H2O bulk crystal
pattern matched the simulated pattern of INO (Figure S12).
Xerogels
Bulk crstyals
Simulated
10
20
30
40
2θ
Figure 6. X-ray powder diffraction (XRPD) comparison of diNO: simulated pattern from single-crystal
X-ray diffraction (SCXRD) data, bulk crystals, and xerogel obtained from water.
3. Discussion
The ability of pyridyl amides to form a one-dimensional (1-D) hydrogen-bonded network is
well established, which makes them ideal candidates in designing LMWGs with tunable properties.
The availability of single-crystal X-ray structures of many organo/hydrogelators based on pyridyl
amides enabled us to identify the key factors responsible for the formation of gel networks, for example,
the formation of 1-D networks. The structural analysis of pyridyl amides indicates that these
compounds self-assemble through mainly two types of hydrogen bonding, namely N—H···O synthon
of the amide moiety and N—H···N synthon involving the amide and pyridyl nitrogen. These two
types of interactions are predominant in the molecular aggregation of N-(4-pyridyl)isonicotinamide
(4PINA) [34] along with various other non-bonding interactions. However, the impact of these types of
interactions was not studied in detail. For example, what is the role of N—H···N synthon in gel network
stabilization? What happens if these interactions are replaced by another synthon? We addressed this
question by restricting the N—H···N synthon by modifying the pyridyl nitrogen to pyridyl-N-oxide
moiety. Thus, we modified the pyridyl groups of 4PINA [34] to N-oxides; two mono-N-oxides were
synthesized by oxidizing the nitrogen atoms at the pyridyl amine end (PNO) and the isonicotinic acid
end (INO), and oxidation of both pyridyl nitrogen atoms resulted in diNO. This restricts N—H···
N
interactions between the gelators and hinders the one-dimensional growth of the gel fibril, which may
facilitate the formation of either a two-dimensional (2-D) or 3-D network of gelator. Another advantage
of pyridyl-N-oxides is the ease of crystallization in an aqueous medium, enabling us to compare the
crystal structures of mono-N-oxides and di-N-oxide for structure–property correlation.
The gelation properties of all the N-oxides in various solvents resulted in selective gelation of
diNO in the water at higher concentration (4.0 wt %). The formation of needle-shaped crystals at

Molecules 2019, 24, 3472
9 of 17
lower concentration revealed that crystallization and gelation properties [71] were concentration
dependent. The mono-N-oxides (PNO and INO) did not form gel in any solvents but formed
crystals indicating the importance of similar groups at both ends in gel formation, which corroborates
well with the gelation properties of 4PINA [34]. We also prepared a mixture of PNO and INO in
different ratios to test the ability of these compounds to form multi-component gels. Such gels
are obtained by mixing two or more compounds (gelator/non-gelator) where individual molecules
interact either constructively or destructively to form well-ordered fibers containing individual
components (self-sorting), both components (specific co-assembly), or a mixture of both (random
co-assembly) [72,73]. We showed that mixing enantiomeric supramolecular gels based on bis(urea)
compounds tagged with a phenylalanine methyl ester leads multi-component gels with enhanced
thermal and mechanical strength [74]. However, the experiments performed with the mixtures of PNO
and INO resulted in concomitant crystallization of individual compounds. INO was proved to be
more soluble between the two mono-N-oxides leading to slow crystallization. The crystallization of
the individual compounds suggests self-sorting of the components in the mixture.
The minimum gel concentration (MGC) of diNO (4.0 wt %) indicates that the gel network formed
was weaker compared to 4PINA (MGC 0.37 wt %) [34]. This may be attributed to the fact that converting
the pyridyl group of 4PINA to pyridyl-N-oxide increased the hydrophilic interactions preferring
crystalline form, which hindered the gel formation at low concentration [75]. The gel-to-solution
transition temperature (Tgel) experiments performed at MGC of diNO to evaluate the thermal stability
of the gel revealed that the gel network collapsed at 78.0 ◦C. This indicates that the gel network of
diNO is slightly weaker compared to 4PINA and the Tgel of diNO network did not change drastically
with concentration. This is in agreement with the rheological measurements that revealed that diNO
gels were weaker compared to the 4PINA gelator. The rheology experiments enabled us to elucidate
the information regarding factors controlling the gelation, gel strength, and the solid-like properties of
pure gels, and the mechanical strength of the 4PINA and diNO gels was evaluated using rheology.
The rheological measurements performed for both 4PINA and diNO gels revealed that diNO gels
were significantly softer than 4PINA gels. At a low strain of 1.0%, both diNO and 4PINA samples had
an effectively infinite shear stress relaxation time, typical of a temporally persistent supramolecular
elastic network. On the other hand, at a higher strain of 10.0% the relaxation time for the 4PINA
sample, which had sheared, now displayed a finite relaxation time and behaved like a viscous liquid
(Figures S14 and S15). The morphologies of the gel fibers were analyzed using SEM images of the dried
gel, and the results indicated that a microcrystalline network was observed in diNO gels. The xerogels
of 4PINA at a similar concentration displayed fibrous morphology with tape-type architecture with
widths ranging from 0.57 to 5.7 µm [34], which was different from diNO gels. This is quite interesting
because changing the pyridyl groups to N-oxide resulted in a drastic change in the morphology
of the gel fibers. The stronger gelation properties of 4PINA may be attributed to the ability of
4PINA to immobilize the solvent molecules more efficiently in the fibrous network compared to the
N-oxide network.
The crystallization experiments of the N-oxides performed in aqueous solutions of polar solvents
resulted in either needle-shaped crystals or precipitate, which prompted us to explore the crystallization
in pure water. The crystallization of INO and PNO in water resulted in blocked-shaped crystals
in 3–5 h, but needle-shaped diNO crystals were formed in 1 to 2 days. The solid-state structures
of the N-oxides were analyzed by single-crystal X-ray diffraction. The structure of N-oxides with
both ends modified (diNO) was compared to the parent 4PINA structure and these two structures
differ mainly in the type of non-bonding interactions. The crystal structure of 4PINA showed that the
pyridyl nitrogen atoms and the amide moieties were hydrogen bonded via N—H···N interaction to
form a 1-D hydrogen-bonded network. However, discrete dimers were formed in diNO by N—H···
O
hydrogen bonding, which was stabilized by
via bifurcated C—H···O interactions and
π–
π
interactions. These dimers interact with each other
π
–
π
interactions to form a 2-D supramolecular structure.
The comparison of the intermolecular interactions in both the structures indicated that the N—H···
N

Molecules 2019, 24, 3472
10 of 17
interaction in 4PINA is replaced by bifurcated C—H···O interactions in diNO. This explains why
4PINA is a good gelator, which indicates the importance of N—H···N interaction in the formation of
supergelators. The phase purity of the N-oxide compounds was analyzed by comparing the diffraction
pattern of the crystal structures with the powder X-ray pattern of the bulk materials. The analysis of
the pattern revealed that the recrystallized form of diNO matched the single-crystal structure of diNO
indicating an identical structure. However, the XRPD pattern of the xerogels of diNO did not match
the pattern obtained from the crystal structure of diNO. This is presumably due to the presence of
hydrogen-bonded solvent molecules in the xerogels. The XRPD data of the bulk materials of INO and
PNO.2H2O matched their corresponding crystal structures. However, the XRPD pattern of INO.2H2O
matched the crystal structure of the INO pattern, confirming the transformation of INO.2H2O crystals
due to the loss of water molecules during the drying process.
,
The crystal structure analysis of INO obtained from water revealed the presence of two forms,
namely INO and INO.2H2O. These two forms were crystallized from water and the rapid crystallization
process produced large block-shaped crystals of INO.2H2O. The gelation experiments performed
at higher concentration (>40.0 mg in 1.0 mL water) also favored the crystallization of INO.2H2O
.
The selective crystallization of INO was obtained by the slow crystallization in dilute aqueous solution
over a period of five days. This indicates that INO.2H2O was the kinetically favored form and these
crystals were slowly converted to the thermodynamically stable INO form, which was confirmed by
powder X-ray analysis. The solid-state structure of these two forms was different and the molecule was
planar in INO.2H2O compared to INO. This was due to the hydrogen-bonding interaction of the water
molecules resulting in a hydrogen-bonded macrocycle involving two INO molecules and four water
molecules. The structures of INO and diNO were compared to analyze the importance of identical
groups on both ends in the gelation process. The solid-state structures of INO and diNO were similar
resulting in the dimer formation, but the non-bonding interaction responsible for the propagation
of the dimers was different. The dimer in diNO propagated via C—H···O interactions (3.1789(18)
and 3.1621(19) Å) and this was replaced by a C—H···N interaction (3.4391(16) and 3.5489(16) Å) in
INO. The selective gelation of diNO may be attributed to the strong C—H···O interaction compared
to the non-bonding interaction in INO. The structure analysis of PNO revealed the presence of two
water molecules in the crystal structure, which helped the molecule to retain the molecular planarity.
The water molecules play a crucial role in overall packing of the crystal, and a hexagonal architecture
of oxygen atoms was formed by the hydrogen bonding between PNO and the water molecules.
The structural analysis of 4PINA and the N-oxides confirm the importance of the non-bonding
interactions and the presence of identical groups at both ends of the compounds in gel formation.
4. Materials and Methods
4.1. Chemicals and Reagents
All starting materials and solvents were purchased from Sigma-Aldrich (MEDOR ehf, Reykjavik,
Iceland) and were used as supplied. Deionized water was used for all the experiments
and anhydrous methanol was obtained by distilling the solvent over Mg turnings and iodine.
4-aminopyridine-1-oxide [76] and N-(4-pyridyl)isonicotinamide (4PINA) [34] were synthesized
following the reported procedures. 1H NMR and IR spectra were recorded on a Bruker Advance
400 spectrometer (Rheinstetten, Germany) and a Nicolet iN10 (Thermo Fisher Scientific, Hvidovre,
Denmark), respectively. Single-crystal X-ray diffraction (SCXRD) was performed on a Bruker D8
VENTURE (Karlsruhe, Germany), and X-ray powder diffraction (XRPD) was carried out using a Bruker
D8 Focus instrument (Karlsruhe, Germany). The morphology of the xerogel was analyzed by scanning
electron microscopy (SEM) using a Leo Supra 25 Microscope (Carl Zeiss, Oberkochen, Germany).

Molecules 2019, 24, 3472
11 of 17
4.2. Synthesis
General procedure for INO and PNO: The acid chloride was prepared by stirring the carboxylic
◦
acid (10.0 mmol) with 5.0 mL of thionyl chloride overnight in a round-bottom flask at 65.0 C.
The pale-yellow solution obtained was cooled and the excess thionyl chloride was removed by
distillation. The resulting white solid/crystal was transferred to a 100 mL two-neck RB flask containing
4-aminopyridine/4-aminopyridine-1-oxide (10.0 mmol). A pale yellowish solution was obtained by
adding 20.0 mL anhydrous DMF to the flask, the solution was cooled to 0 ◦C, and triethylamine (1.5 mL,
10.8 mmol) was added dropwise to this solution. The resulting mixture was stirred overnight at room
temperature and the solution was added to a beaker containing 200 mL diethyl ether resulting in a
white suspension. The mixture was filtered, and the residue was stirred with 4.0% NaHCO3 for 5 h,
filtered, and washed with cold water. The resulting white solid was recrystallized from water to obtain
the desired product.
4-(pyridin-4-ylcarbamoyl)pyridine-1-oxide (INO): Isonicotinic acid-N-oxide (1.39 g, 10.0 mmol) and
1
4-aminopyridine (0.94 g, 10.0 mmol). Yield: 72.0% (1.55 g, 7.2 mmol). H NMR (400 MHz, DMSO-d6)
δ
:
10.68 (1H, s), 8.47 (2H d, J = 8.0), 8.36 (2H d, J = 8.0), 7.95 (2H d, J = 8.0), 7.73 (2H d, J = 8.0). MS (ESI)
m/z for C11H9N3O2Na+: expected 238.20, found 238.20.
4-(isonicotinamido)pyridine-1-oxide (PNO): Isonicotinic acid (1.23 g, 10.0 mmol) and 4-aminopyridine-
1
1-oxide (1.10 g, 10.0 mmol). Yield: 79.0% (1.70 g, 7.9 mmol). H NMR (400 MHz, DMSO-d6)
δ: 10.98
(1H, s), 8.80 (2H d, J = 6.0), 8.19 (2H d, J = 7.6), 7.85 (2H d, J = 4.4, 1.4), 7.82 (2H dd, J = 5.4, 2.2). MS
(ESI) m/z for C11H9N3O2Na+: expected 238.20, found 238.19.
4-((1-oxidopyridin-4-yl)carbamoyl)pyridine-1-oxide (diNO): To a solution of N-(4-pyridyl)isonicotinamide
(1.35 g, 6.8 mmol) in MeOH (25 mL), m-chloroperoxybenzoic acid (3.80 g, 17.0 mmol) was added
in portions for 15 min. The reaction mixture was refluxed overnight at 70.0 ◦C and cooled to room
temperature. The solid was collected by filtration, washed with hot methanol, and then dried.
1
Yield 0.88 g, 56.0%. H NMR (400 MHz, DMSO-d6)
δ
: 10.81 (1H, s), 8.39 (2H d, J = 7.2), 8.18 (2H d,
J = 7.2), 7.95 (2H d, J = 7.2), 7.79 (2H d, J = 7.2). MS (ESI) m/z for C11H9N3O3Na+: expected 254.05,
found 254.05.
4.3. Gelation Studies
Gelation experiments were initially carried out by weighing 10.0 mg of the N-oxide ligands (INO
,
PNO diNO, and an equimolar mixture of INO and PNO) in a 7.0 mL vial and 1.0 mL of distilled
,
water was added to the compounds. The mixtures were heated until a clear solution was obtained;
cooling to room temperature resulted in no gelation in any case after 24 h. Since the compounds were
soluble only in water, gelation experiments were carried out in aqueous solution of organic solvents.
An aqueous solution (1:1, v/v) was prepared by mixing 500
µL of organic solvents (methanol, ethanol,
tetrahydrofuran, acetonitrile, or nitrobenzene) with 500 L of water. These solutions were added to
µ
10.0 mg of the N-oxide compounds and the mixtures were heated; cooling to room temperature resulted
in a white precipitate after 24 h in all cases. The higher solubility of the compounds in water compared
to other solvents prompted us to check the gelation experiments at higher concentration. Crystals were
obtained when the gelation experiments were performed in 1.0 mL water with 20.0 mg compounds
(2.0 wt %). The gelation ability tested in mixed solvents at 2.0 wt % mostly produced precipitate,
whereas some crystalline materials were observed in a few experiments (in methanol/water).
The gelation experiments at higher concentration (4.0 wt %) also resulted in crystals for INO
,
PNO,
and their equimolar mixture but an opaque gel was formed under identical conditions (confirmed by
inversion test) for diNO. The gelation experiments at higher concentration in a mixed solvent were
avoided due to insolubility of these materials. The solubility of diNO was found to be approximately
60.0 mg/mL in water, and the solution formed gel at concentrations between 4.0 and 6.0 wt %. The two

Molecules 2019, 24, 3472
12 of 17
mono-N-oxides and their equimolar mixture at high concentration (>4.0 wt %) were dissolved in
boiling water, which readily formed crystals on cooling.
4.4. Minimum Gel Concentration (MGC)
The MGC was performed by taking various amounts (30.0 to 50.0 mg) of diNO in a standard
7.0 mL vial and the vial was sealed after adding 1.0 mL of distilled water. The mixtures were heated to
dissolve the compound and left undisturbed to form gel. The minimum concentration at which gel
was obtained was noted as MGC. The MGC of diNO was found to be 4.0 wt % in pure water.
4.5. Tgel Experiments
The gel-to-solution transition temperature (Tgel) experiment was performed at two different
concentrations (4.0 and 6.0 wt %) of diNO. The required amount (40.0 or 60.0 mg) of diNO was placed
in a 7.0 mL vial and 1.0 mL of water was added. The vial was sealed, and the mixture was heated to
obtain a clear solution and cooled to room temperature to form the gel. After 24 h, a small spherical
glass ball (92.0 mg) was carefully placed over the gel. The vial was gradually heated in an oil bath
equipped with a magnetic stirrer and a thermometer. The temperature at which the glass ball touched
the bottom of the vial was recorded as Tgel. The Tgel of diNO was found to be 78.0 ◦C and 80.0 ◦C at 4.0
and 6.0 wt %, respectively.
4.6. Rheology
The rheology experiments were performed at Durham University using a TA Instruments AR
2000 (New Castle, DE, USA) fitted with a rough Peltier plate and a 25 mm rough plate geometry
(gap width of 2500 µ
m) at 25 ◦C. Supramolecular gels were prepared as discussed previously at a
concentration of 4.0 wt %. The top plate was lowered and the normal force was allowed to reach
equilibrium. Oscillatory amplitude sweeps were performed at a constant frequency (1.0 Hz) and the
oscillatory frequency sweeps were performed at a constant shear stress (0.5 Pa). These experiments
were performed in triplicate and the mean moduli and standard deviation were calculated.
4.7. Scanning Electron Microscopy (SEM)
The gelator diNO (40.0 mg) was dissolved in 1.0 mL of water by heating and cooled to room
temperature to form the gel. After 24 h, the yellowish opaque gel was filtered through a filter paper
and the residue was air dried in a fume hood. The xerogels were gold-coated for 2 min and SEM was
performed using a Leo Supra 25 Microscope.
4.8. Crystallography
X-ray quality single-crystals were isolated from water, immediately immersed in cryogenic
oil, and mounted. The diffractions were collected using MoKα radiation (λ = 0.71073 Å) on a
Bruker D8 VENTURE (Photon100 CMOS detector) diffractometer equipped with a Cryostream
(Oxford Cryosystems, Oxford, UK) open-flow nitrogen cryostat at room temperature. The unit
cell determination, data collection, data reduction, structure solution/refinement, and empirical
absorption correction (SADABS) were carried out using Apex III (Bruker AXS, Madison, WI, USA).
The structure was solved by a direct method and refined by the full-matrix least-squares on F2 for
all data using SHELXTL [77] (Version 2017/1, University of Göttingen, Göttingen, Germany) and
Olex2 [78] (Version 1.2, OlexSys Ltd., Durham, U.K.) software. All non-disordered non-hydrogen
atoms were refined anisotropically, and the hydrogen atoms were placed in the calculated positions
and refined using a riding model.

Molecules 2019, 24, 3472
13 of 17
4.9. X-ray Powder Diffraction (XRPD)
The N-oxide compounds (20.0 mg) were dissolved in 1.0 mL of hot water and left undisturbed
for crystallization. After crystallization, the mixture was filtered and the residue was dried in air.
The crystals were ground to fine powder and XRPD was carried out using a Bruker D8 Focus instrument.
The xerogel of diNO was prepared by heating 40.0 mg of the compound in 1.0 mL of water (4.0 wt %),
and the gel formed was filtered after 24 h followed by drying the residue overnight in a fume hood.
5. Conclusions
We synthesized two mono-N-oxides (INO and PNO) and a di-N-oxide (diNO) by altering the
pyridyl moieties of a known hydrogelator (4PINA) to N-oxide moieties. The gelation ability of these
compounds tested in various solvent/solvent mixtures indicated that selective gelation of diNO was
observed in water. The mechanical strength and the thermal stability of diNO were evaluated using
rheology and gel-to-solution transition temperature (Tgel) experiments, respectively. The gelation
properties of diNO were compared with the parent 4PINA gelator, which indicated that diNO is a
weaker gelator. SEM images were used to visualize the changes in the morphology of the gel fibers
due to the alteration in the functional groups. The effect of various non-bonding interactions in the
crystalline state and dried gel was studied using X-ray diffraction. Single-crystal X-ray analysis of
the di-N-oxide structure revealed the formation of a hydrogen-bonded dimer, which interacted with
adjacent dimers via C—H···O interactions to form the extended network, and similar dimers observed
in non-gelator INO were interconnected through C—H···N interaction. The strong interaction of the
mono-N-oxide with water molecules indicates the increased hydrophilic nature of these compounds to
form solvated crystals. The reduced gelation ability (MGC) and thermal strength of diNO may be
attributed to the weak intermolecular C—H···O interaction. The absence of strong N—H···N interactions
in the N-oxide compounds compared to 4PINA clearly indicate the role of these interactions in gel
formation. The tuning of gelation ability (MGC) and thermal/mechanical strength of 4PINA by alerting
the functional group proves the importance of non-bonding interactions and functional groups in
designing LMWGs with tunable properties, which contributes to the ongoing efforts to identify the key
structural features of gel network formation.
Supplementary Materials: The following are available online at http://www.mdpi.com/1420-3049/24/19/3472/s1,
Figure S1: 1H NMR of diNO in DMSO-d6, Figure S2: 1H NMR of INO in DMSO-d6, Figure S3: 1H NMR of
PNO in DMSO-d6, Figure S4: IR spectrum of diNO, Figure S5: IR spectrum of INO (anhydrous form), Figure
S6: IR spectrum of INO (hydrated form), Figure S7: IR spectrum of PNO, Figure S8: IR spectrum of 1:1 mixture
of INO + PNO, Figure S9: Crystal structure of diNO, Figure S10: Crystal structure of INO.2H2O, Figure S11:
XRPD comparison of PNO, Figure S12: XRPD comparison of INO, Figure S13: XRPD comparison of INO.2H2O
,
Figure S14: Stress relaxation experiments performed at 1.0% strain, Figure S15: Stress relaxation experiments
performed at 10.0% strain, Figure S16: Amplitude and frequency sweeps, Scheme S1: Chemical structure of
4PINA, Table S1: Gelation table of N-oxide compounds, Table S2: Determination of MGC of diNO, Table S3:
Determination of Tgel of diNO, Table S4: Crystal data for the N-oxide compounds.
Author Contributions: Conceptualization, K.K.D.; Data curation, D.G.; Formal analysis, D.G.; Funding acquisition,
K.K.D.; Investigation, D.G.; Methodology, D.G. and M.T.M.; Project administration, K.K.D.; Resources, K.K.D.;
Validation, K.K.D.; Writing—original draft, D.G.; Writing—review & editing, K.K.D.
Funding: This research received no external funding.
Acknowledgments: We thank the University of Iceland Research Fund and the Science Institute for funding.
D.G. thanks the University of Iceland for the Doctoral Research and Teaching Assistantship grant. We thankfully
acknowledge Jonathan Steed, Durham University, Durham, UK for rheology experiments, Sigurjur Sveinn
Jonsson, ISOR-Iceland for X-ray powder diffraction analysis, and Sigridur Jonsdottir, University of Iceland for
NMR and mass spectroscopy. We thank Rannís Iceland for granting an infrastructure grant for a single-crystal
X-ray diffractometer.
Conflicts of Interest: The authors declare no conflict of interest.

Molecules 2019, 24, 3472
14 of 17
References
1.
2.
3.
4.
5.
Estroff, L.A.; Hamilton, A.D. Water Gelation by Small Organic Molecules. Chem. Rev. 2004, 104, 1201–1218.
[CrossRef] [PubMed]
De Loos, M.; Feringa, B.L.; van Esch, J.H. Design and Application of Self-Assembled Low Molecular Weight
Hydrogels. Eur. J. Org. Chem. 2005, 2005, 3615–3631. [CrossRef]
George, M.; Weiss, R.G. Molecular Organogels. Soft Matter Comprised of Low-Molecular-Mass Organic
Gelators and Organic Liquids. Acc. Chem. Res. 2006, 39, 489–497. [CrossRef] [PubMed]
Dastidar, P. Supramolecular gelling agents: Can they be designed? Chem. Soc. Rev. 2008, 37, 2699–2715.
[CrossRef] [PubMed]
Hirst, A.R.; Escuder, B.; Miravet, J.F.; Smith, D.K. High-Tech Applications of Self-Assembling Supramolecular
Nanostructured Gel-Phase Materials: From Regenerative Medicine to Electronic Devices. Angew. Chem. Int.
Ed. 2008, 47, 8002–8018. [CrossRef] [PubMed]
6.
7.
8.
9.
Piepenbrock, M.-O.M.; Lloyd, G.O.; Clarke, N.; Steed, J.W. Metal- and Anion-Binding Supramolecular Gels.
Chem. Rev. 2010, 110, 1960–2004. [CrossRef]
Steed, J.W. Anion-tuned supramolecular gels: A natural evolution from urea supramolecular chemistry.
Chem. Soc. Rev. 2010, 39, 3686–3699. [CrossRef]
Yu, G.; Yan, X.; Han, C.; Huang, F. Characterization of supramolecular gels. Chem. Soc. Rev. 2013, 42,
6697–6722. [CrossRef]
Kumar, D.K.; Steed, J.W. Supramolecular gel phase crystallization: Orthogonal self-assembly under
non-equilibrium conditions. Chem. Soc. Rev. 2014, 43, 2080–2088. [CrossRef]
10. Banerjee, S.; Das, R.K.; Maitra, U. Supramolecular gels ‘in action’. J. Mater. Chem. 2009, 19, 6649–6687.
[CrossRef]
11. Foster, J.A.; Damodaran, K.K.; Maurin, A.; Day, G.M.; Thompson, H.P.G.; Cameron, G.J.; Bernal, J.C.;
Steed, J.W. Pharmaceutical polymorph control in a drug-mimetic supramolecular gel. Chem. Sci. 2017, 8,
78–84. [CrossRef] [PubMed]
12. Terech, P.; Weiss, R.G. Low Molecular Mass Gelators of Organic Liquids and the Properties of Their Gels.
Chem. Rev. 1997, 97, 3133–3160. [CrossRef] [PubMed]
13. Du, X.; Zhou, J.; Shi, J.; Xu, B. Supramolecular Hydrogelators and Hydrogels: From Soft Matter to Molecular
Biomaterials. Chem. Rev. 2015, 115, 13165–13307. [CrossRef] [PubMed]
14. Babu, S.S.; Praveen, V.K.; Ajayaghosh, A. Functional π-Gelators and Their Applications. Chem. Rev. 2014,
114, 1973–2129. [CrossRef] [PubMed]
15. Worthington, P.; Pochan, D.J.; Langhans, S.A. Peptide Hydrogels—Versatile Matrices for 3D Cell Culture in
Cancer Medicine. Front. Oncol. 2015, 5, 92. [CrossRef] [PubMed]
16. Truong, W.T.; Su, Y.; Meijer, J.T.; Thordarson, P.; Braet, F. Self-Assembled Gels for Biomedical Applications.
Chem. Asian J. 2011, 6, 30–42. [CrossRef] [PubMed]
17. Li, J.-L.; Wang, R.-Y.; Liu, X.-Y.; Pan, H.-H. Nanoengineering of a Biocompatible Organogel by Thermal
Processing. J. Phys. Chem. B 2009, 113, 5011–5015. [CrossRef] [PubMed]
18. Li, J.-L.; Liu, X.-Y.; Wang, R.-Y.; Xiong, J.-Y. Architecture of a Biocompatible Supramolecular Material by
Supersaturation-Driven Fabrication of its Fiber Network. J. Phys. Chem. B 2005, 109, 24231–24235. [CrossRef]
[PubMed]
19. Afrasiabi, R.; Kraatz, H.-B. Sonication-Induced Coiled Fibrous Architectures of Boc-L-Phe-L-Lys(Z)-OMe.
Chem. Eur. J. 2013, 19, 1769–1777. [CrossRef] [PubMed]
20. Dhibar, S.; Dey, A.; Majumdar, S.; Ghosh, D.; Mandal, A.; Ray, P.P.; Dey, B. A supramolecular Cd(ii)-metallogel:
An efficient semiconductive electronic device. Dalton Trans. 2018, 47, 17412–17420. [CrossRef] [PubMed]
21. Wang, R.-Y.; Liu, X.-Y.; Li, J.-L. Engineering Molecular Self-Assembled Fibrillar Networks by Ultrasound.
Cryst. Growth Des. 2009, 9, 3286–3291. [CrossRef]
22. Alexander, S.L.M.; Korley, L.T.J. Nucleation effects of high molecular weight polymer additives on low
molecular weight gels. Polym. J. 2018, 50, 775–786. [CrossRef]
23. Wang, R.-Y.; Liu, X.-Y.; Narayanan, J.; Xiong, J.-Y.; Li, J.-L. Architecture of Fiber Network: From Understanding
to Engineering of Molecular Gels. J. Phys. Chem. B 2006, 110, 25797–25802. [CrossRef] [PubMed]
24. Draper, E.R.; Adams, D.J. How should multicomponent supramolecular gels be characterised? Chem. Soc.
Rev. 2018, 47, 3395–3405. [CrossRef] [PubMed]

Molecules 2019, 24, 3472
15 of 17
25. Cao, X.; Meng, L.; Li, Z.; Mao, Y.; Lan, H.; Chen, L.; Fan, Y.; Yi, T. Large Red-Shifted Fluorescent Emission via
Intermolecular Stacking in 4-Ethynyl-1,8-naphthalimide-Based Supramolecular Assemblies. Langmuir
π–π
2014, 30, 11753–11760. [CrossRef] [PubMed]
26. Wang, C.; Zhang, D.; Zhu, D. A Chiral Low-Molecular-Weight Gelator Based on Binaphthalene with Two Urea
Moieties: Modulation of the CD Spectrum after Gel Formation. Langmuir 2007, 23, 1478–1482. [CrossRef]
27. Wang, C.; Zhang, D.; Xiang, J.; Zhu, D. New Organogels Based on an Anthracene Derivative with One
Urea Group and Its Photodimer: Fluorescence Enhancement after Gelation. Langmuir 2007, 23, 9195–9200.
[CrossRef]
28. Wang, G.; Cheuk, S.; Yang, H.; Goyal, N.; Reddy, P.V.N.; Hopkinson, B. Synthesis and Characterization of
Monosaccharide-Derived Carbamates as Low-Molecular-Weight Gelators. Langmuir 2009, 25, 8696–8705.
[CrossRef]
29. Gao, W.; Liang, Y.; Peng, X.; Hu, Y.; Zhang, L.; Wu, H.; He, B. In situ injection of phenylboronic acid based
low molecular weight gels for efficient chemotherapy. Biomaterials 2016, 105, 1–11. [CrossRef]
30. Das, U.K.; Banerjee, S.; Dastidar, P. Remarkable Shape-Sustaining, Load-Bearing, and Self-Healing Properties
Displayed by a Supramolecular Gel Derived from a Bis-pyridyl-bis-amide of L-Phenyl Alanine. Chem. Asian J.
2014, 9, 2475–2482. [CrossRef]
31. Tang, Y.-T.; Dou, X.-Q.; Ji, Z.-A.; Li, P.; Zhu, S.-M.; Gu, J.-J.; Feng, C.-L.; Zhang, D. C2-symmetric
cyclohexane-based hydrogels: A rational designed LMWG and its application in dye scavenging. J. Mol. Liq.
2013, 177, 167–171. [CrossRef]
32. Li, P.; Dou, X.-Q.; Tang, Y.-T.; Zhu, S.; Gu, J.; Feng, C.-L.; Zhang, D. Gelator-polysaccharide hybrid hydrogel
for selective and controllable dye release. J. Colloid Interface Sci. 2012, 387, 115–122. [CrossRef] [PubMed]
˙
33. Ghosh, D.; Lebedyte, I.; Yufit, D.S.; Damodaran, K.K.; Steed, J.W. Selective gelation of
N-(4-pyridyl)nicotinamide by copper(ii) salts. CrystEngComm 2015, 17, 8130–8138. [CrossRef]
34. Kumar, D.K.; Jose, D.A.; Dastidar, P.; Das, A. Nonpolymeric Hydrogelator Derived from
N-(4-Pyridyl)isonicotinamide. Langmuir 2004, 20, 10413–10418. [CrossRef] [PubMed]
35. Sahoo, P.; Kumar, D.K.; Raghavan, S.R.; Dastidar, P. Supramolecular Synthons in Designing Low Molecular
Mass Gelling Agents: L-Amino Acid Methyl Ester Cinnamate Salts and their Anti-Solvent-Induced Instant
Gelation. Chem. Asian J. 2011, 6, 1038–1047. [CrossRef] [PubMed]
36. Bhattacharjee, S.; Bhattacharya, S. Role of synergistic [small pi]-[small pi] stacking and X-H[three dots,
centered]Cl (X = C, N, O) H-bonding interactions in gelation and gel phase crystallization. Chem. Commun.
2015, 51, 7019–7022. [CrossRef] [PubMed]
37. Jones, C.D.; Steed, J.W. Gels with sense: Supramolecular materials that respond to heat, light and sound.
Chem. Soc. Rev. 2016, 45, 6546–6596. [CrossRef]
38. Ghosh, D.; Ferfolja, K.; Drabavicˇius, Ž.; Steed, J.W.; Damodaran, K.K. Crystal habit modification of Cu(ii)
isonicotinate–N-oxide complexes using gel phase crystallisation. New J. Chem. 2018, 42, 19963–19970.
[CrossRef]
39. Desiraju, G.R. Supramolecular Synthons in Crystal Engineering—A New Organic Synthesis. Angew. Chem.
Int. Ed. 1995, 34, 2311–2327. [CrossRef]
40. Weiss, R.G.; Terech, P. Molecular Gels: Materials with Self-Assembled Fibrillar Networks; Springer: Heidelberg,
Germany, 2006; p. 978.
41. Fages, F.; Voegtle, F.; Zinic, M. Systematic design of amide- and urea-type gelators with tailored properties.
Top. Curr. Chem. 2005, 256, 77–131.
42. Isare, B.; Pensec, S.; Raynal, M.; Bouteiller, L. Bisurea-based supramolecular polymers: From structure to
properties1. C. R. Chim. 2016, 19, 148–156. [CrossRef]
43. Gale, P.A.; Busschaert, N.; Haynes, C.J.E.; Karagiannidis, L.E.; Kirby, I.L. Anion receptor chemistry: Highlights
from 2011 and 2012. Chem. Soc. Rev. 2014, 43, 205–241. [CrossRef] [PubMed]
44. Dzolic, Z.; Cametti, M.; Dalla Cort, A.; Mandolini, L.; Zinic, M. Fluoride-responsive organogelator based on
oxalamide-derived anthraquinone. Chem. Commun. 2007, 34, 3535–3537. [CrossRef] [PubMed]
45. Kotova, O.; Daly, R.; dos Santos, C.M.G.; Boese, M.; Kruger, P.E.; Boland, J.J.; Gunnlaugsson, T. Europium-
Directed Self-Assembly of a Luminescent Supramolecular Gel from a Tripodal Terpyridine-Based Ligand.
Angew. Chem. Int. Ed. 2012, 51, 7208–7212. [CrossRef] [PubMed]
46. Feng, L.; Cavicchi, K.A. Investigation of the relationships between the thermodynamic phase behavior and
gelation behavior of a series of tripodal trisamide compounds. Soft Matter 2012, 8, 6483–6492. [CrossRef]

Molecules 2019, 24, 3472
16 of 17
47. Mukhopadhyay, S.; Ira; Krishnamoorthy, G.; Maitra, U. Dynamics of Bound Dyes in a Nonpolymeric Aqueous
Gel Derived from a Tripodal Bile Salt. J. Phys. Chem. B 2003, 107, 2189–2192. [CrossRef]
48. Li, Z.; Cao, J.; Li, H.; Liu, H.; Han, F.; Liu, Z.; Tong, C.; Li, S. Self-assembled drug delivery system based on
low-molecular-weight bis-amide organogelator: Synthesis, properties and in vivo evaluation. Drug Deliv.
2016, 23, 3168–3178. [CrossRef] [PubMed]
49. Bradberry, S.J.; Dee, G.; Kotova, O.; McCoy, C.P.; Gunnlaugsson, T. Luminescent lanthanide (Eu(iii))
cross-linked supramolecular metallo co-polymeric hydrogels: The effect of ligand symmetry. Chem. Commun.
2019, 55, 1754–1757. [CrossRef] [PubMed]
50. Kumar, D.K.; Jose, D.A.; Dastidar, P.; Das, A. Nonpolymeric Hydrogelators Derived from Trimesic Amides.
Chem. Mater. 2004, 16, 2332–2335. [CrossRef]
51. Meazza, L.; Foster, J.A.; Fucke, K.; Metrangolo, P.; Resnati, G.; Steed, J.W. Halogen-bonding-triggered
supramolecular gel formation. Nat. Chem. 2013, 5, 42–47. [CrossRef]
52. Pal, A.; Ghosh, Y.K.; Bhattacharya, S. Molecular mechanism of physical gelation of hydrocarbons by fatty
acid amides of natural amino acids. Tetrahedron 2007, 63, 7334–7348. [CrossRef]
53. Kawamoto, K.; Grindy, S.C.; Liu, J.; Holten-Andersen, N.; Johnson, J.A. Dual Role for 1,2,4,5-Tetrazines
in Polymer Networks: Combining Diels–Alder Reactions and Metal Coordination to Generate Functional
Supramolecular Gels. ACS Macro Lett. 2015, 4, 458–461. [CrossRef]
54. Das, U.K.; Banerjee, S.; Dastidar, P. Primary Ammonium Monocarboxylate Synthon in Designing
Supramolecular Gels: A New Series of Chiral Low-Molecular-Weight Gelators Derived from Simple
Organic Salts that are Capable of Generating and Stabilizing Gold Nanoparticles. Chem. Asian J. 2013, 8,
3022–3031. [CrossRef] [PubMed]
55. Jin, Q.; Zhang, L.; Liu, M. Solvent-Polarity-Tuned Morphology and Inversion of Supramolecular Chirality
in a Self-Assembled Pyridylpyrazole-Linked Glutamide Derivative: Nanofibers, Nanotwists, Nanotubes,
and Microtubes. Chem. Eur. J. 2013, 19, 9234–9241. [CrossRef] [PubMed]
56. Karak, S.; Kumar, S.; Bera, S.; Diaz, D.D.; Banerjee, S.; Vanka, K.; Banerjee, R. Interplaying anions in a
supramolecular metallohydrogel to form metal organic frameworks. Chem. Commun. 2017, 53, 3705–3708.
[CrossRef] [PubMed]
57. Kartha, K.K.; Praveen, V.K.; Babu, S.S.; Cherumukkil, S.; Ajayaghosh, A. Pyridyl-Amides as a Multimode
Self-Assembly Driver for the Design of a Stimuli-Responsive
[CrossRef] [PubMed]
π-Gelator. Chem. Asian J. 2015, 10, 2250–2256.
58. Liu, Q.; Wang, Y.; Li, W.; Wu, L. Structural Characterization and Chemical Response of a Ag-Coordinated
Supramolecular Gel. Langmuir 2007, 23, 8217–8223. [CrossRef] [PubMed]
59. Lee, H.H.; Jung, S.H.; Park, S.; Park, K.-M.; Jung, J.H. A metal-organic framework gel with Cd2+ derived
from only coordination bonds without intermolecular interactions and its catalytic ability. New J. Chem. 2013
,
37, 2330–2335. [CrossRef]
60. Aoyama, R.; Sako, H.; Amakatsu, M.; Yamanaka, M. Palladium ion-induced supramolecular gel formation of
tris-urea molecules. Polym. J. 2015, 47, 136–140. [CrossRef]
61. Ghosh, K.; Panja, S.; Bhattacharya, S. Naphthalene linked pyridyl urea as a supramolecular gelator: A new
insight into naked eye detection of I- in the gel state with semiconducting behaviour. RSC Adv. 2015, 5,
72772–72779. [CrossRef]
62. Kumar, D.P. Synthesis of gold nanoparticles and nanoclusters in a supramolecular gel and their applications
in catalytic reduction of p-nitrophenol to p-aminophenol and Hg(ii) sensing. RSC Adv. 2014, 4, 45449–45457.
[CrossRef]
63. Byrne, P.; Lloyd, G.O.; Applegarth, L.; Anderson, K.M.; Clarke, N.; Steed, J.W. Metal-induced gelation in
dipyridyl ureas. New J. Chem. 2010, 34, 2261–2274. [CrossRef]
64. Pandurangan, K.; Kitchen, J.A.; Blasco, S.; Paradisi, F.; Gunnlaugsson, T. Supramolecular pyridyl urea gels as
soft matter with antibacterial properties against MRSA and/or E. coli. Chem. Commun. 2014, 50, 10819–10822.
[CrossRef] [PubMed]
65. Stanley, C.E.; Clarke, N.; Anderson, K.M.; Elder, J.A.; Lenthall, J.T.; Steed, J.W. Anion binding inhibition of
the formation of a helical organogel. Chem. Commun. 2006, 30, 3199–3201. [CrossRef] [PubMed]
66. Goodwin, J.W.; Hughes, R.W. Rheology for Chemists: An Introduction, 2nd ed.; Royal Society of Chemistry:
Cambridge, UK, 2008; p. 264.

Molecules 2019, 24, 3472
17 of 17
67. Guenet, J.-M. Rheological Aspects. In Organogels: Thermodynamics, Structure, Solvent Role, and Properties;
Guenet, J.-M., Ed.; Springer International Publishing: Cham, Switzerland, 2016; pp. 83–94.
68. Sathaye, S.; Mbi, A.; Sonmez, C.; Chen, Y.; Blair, D.L.; Schneider, J.P.; Pochan, D.J. Rheology of peptide- and
protein-based physical hydrogels: Are everyday measurements just scratching the surface? Wiley Interdiscip.
Rev. Nanomed. Nanobiotechnol. 2015, 7, 34–68. [CrossRef] [PubMed]
69. Zuidema, J.M.; Rivet, C.J.; Gilbert, R.J.; Morrison, F.A. A protocol for rheological characterization of hydrogels
for tissue engineering strategies. J. Biomed. Mater. Res. B 2014, 102, 1063–1073. [CrossRef]
70. Gaharwar, A.K.; Avery, R.K.; Assmann, A.; Paul, A.; McKinley, G.H.; Khademhosseini, A.; Olsen, B.D.
Shear-Thinning Nanocomposite Hydrogels for the Treatment of Hemorrhage. ACS Nano 2014, 8, 9833–9842.
[CrossRef]
71. Dasgupta, D.; Thierry, A.; Rochas, C.; Ajayaghosh, A.; Guenet, J.M. Key role of solvent type in organogelation.
Soft Matter 2012, 8, 8714–8721. [CrossRef]
72. Colquhoun, C.; Draper, E.R.; Eden, E.G.B.; Cattoz, B.N.; Morris, K.L.; Chen, L.; McDonald, T.O.; Terry, A.E.;
Griffiths, P.C.; Serpell, L.C.; et al. The effect of self-sorting and co-assembly on the mechanical properties of
low molecular weight hydrogels. Nanoscale 2014, 6, 13719–13725. [CrossRef]
73. Raeburn, J.; Adams, D.J. Multicomponent low molecular weight gelators. Chem. Commun. 2015, 51, 5170–5180.
[CrossRef]
74.
Tómasson, D.A.; Ghosh, D.; Kržišnik, Z.; Fasolin, L.H.; Vicente, A.A.; Martin, A.D.; Thordarson, P.;
Damodaran, K.K. Enhanced Mechanical and Thermal Strength in Mixed-Enantiomers-Based Supramolecular
Gel. Langmuir 2018, 34, 12957–12967. [CrossRef] [PubMed]
75. Sauvée, C.; Ström, A.; Haukka, M.; Sundén, H. A Multi-Component Reaction towards the Development of
Highly Modular Hydrogelators. Chem. Eur. J. 2018, 24, 8071–8075. [CrossRef]
76. Gardner, J.N.; Katritzky, A.R. 875. N-oxides and related compounds. Part V. The tautomerism of 2- and
4-amino- and -hydroxy-pyridine 1-oxide. J. Chem. Soc. 1957, 4375–4385. [CrossRef]
77. Sheldrick, G.M. Crystal structure refinement with SHELXL. Acta Crystallogr. Sect. C Struct. Chem. 2015
71 Pt 1, 3–8. [CrossRef] [PubMed]
,
78. Dolomanov, O.V.; Bourhis, L.J.; Gildea, R.J.; Howard, J.A.K.; Puschmann, H. OLEX2: A complete structure
solution, refinement and analysis program. J. Appl. Crystallogr. 2009, 42, 339–341. [CrossRef]
Sample Availability: Samples of the compounds diNO, INO, and PNO are available from the authors.
©
2019 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access
article distributed under the terms and conditions of the Creative Commons Attribution
(CC BY) license (http://creativecommons.org/licenses/by/4.0/).
