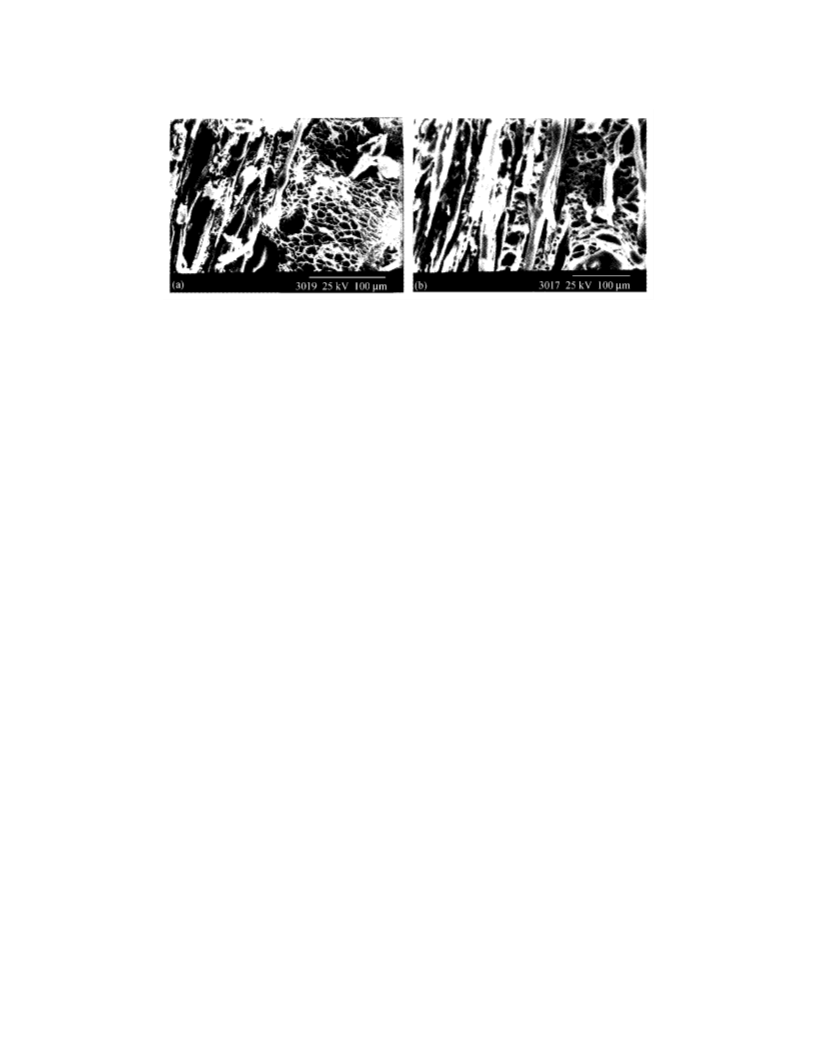

Fig. 4. SEM micrograph of the composites PS/VA 70/30 (percent by weight) (a) and PS/VA 40/60 (percent by weight) (b). The skin area
is on the left and the core area on the right of the micrographs (a) and (b).
Acknowledgements This work was support by the National Natural
Science Foundation of China (Grant No. 59873026).
The structure shown in fig. 4(a), (b) is similar to that
of some materials found in nature such as animal bones,
[
14]
bamboo and wood . These natural materials have a
compact and high-strength skin layer to support external
loads, while their porous cores keep their toughness and
decrease the whole weight. These two regions interact
with each other to exhibit excellent performances of the
resultant material. The PS/Vercta A950 composites in the
present study have a biomimetic structure: in the outer
skin area are highly oriented liquid crystal polymer fibrils,
and in the core area is mainly the PS mcirocellular mate-
rial. In this skin-core microcellular polymer composite,
the liquid crystal polymer fibrils may give the material
high strength and the microcellular PS in the core gives
toughness and heat insulation. So these PS/Vectra A950
composites combine advantages of microcellular PS and
References
1
.
Kumar, V., Microcellular polymers: Novel materials for the 21st
century, Cellular Polymers, 1992, 12(3): 207.
2
.
Savage, P. E., Gopalan, S., Mizan, T. I. et al., Reactions at super-
critical conditions: Application and fundamentals, AICHE J, 1995,
4
1: 1723.
3
.
Hsiao, Y. L., Maury, E. E., Desimone, J. M. et al., Dispersion po-
lymerization of methyl methacrylate stabilized with poly(1,1-di-
hydroperfluorooctyl acrylate) in supercritical carbon dioxide,
Macromolecules, 1995, 28: 8159.
4. James, J. W., Thomas, J. M., Polymerization of styrene in super-
critical CO -swollen poly(chlorotrifluoroethylene), Macromole-
2
cules, 1995ˈ28: 4067.
5
.
O’Neill, M. L. Yates, M. Z., Johnston, K. P. et al., Dispersion in
2
supercritical CO with siloxane-based macromonomer (ĉ)üü
The particle growth regime, Macromolecules, 1998, 31: 2848.
Vectra A950 fibrils after being treated in SC-CO
2
. More-
6. Xu Dongsheng, Guo Guolin, Gui Linlin et al., Influence of super-
critical and natural drying methods on structure and properties of
porous silicon, Chinese Science Bulletin, 2000, 45(9): 814.
over, in this process we avoided the use of traditional
blowing agent like ozone-destroying CFCs. So the re-
search of this composite may enlarge the application of PS
and liquid crystal polymers which may further develop
into a new type of biomimetic material.
The relevant physical properties of the composites
are being investigated. On the other hand, enhancing the
interface adhesion between PS matrix and liquid crystal
polymer phase and controlling the dimension and its dis-
tribution of the disperse phase are topics of further study.
7
.
Kumar, V., Synthesis and processing of microcellular plastics: a
review: processing and manufacturing of composite materials,
ASME, PED, Vol.49/MD-Vol27, 1991, 185ü195.
8. Kumar, V., Schirmer, H. G., Semi-continuous production of solid
state PET foams, SPE ANTEC Tech. Papers, 1995, 41: 2189.
9
.
Baldwin, D. F., Park, C. B., Suh, N. P., An extrusion system for
the processing of microcellular polymer sheets: shaping and cell
growth control, Polym. Eng. Sci., 1996, 36: 1425.
1
1
1
1
1
0. Baldwin, D. F., Park, C. B., Suh, N. P., Microcellular sheet extru-
sion system process design models for shaping and cell growth
control, Polym. Eng. Sci., 1998, 38: 674.
3
Conclusions
1. Shi, C., Huang, Z., Kilic, S. et al., The gelation of CO
able route to the creation of microcellular materials, Science, 1999,
86: 1540.
2
: a sustain-

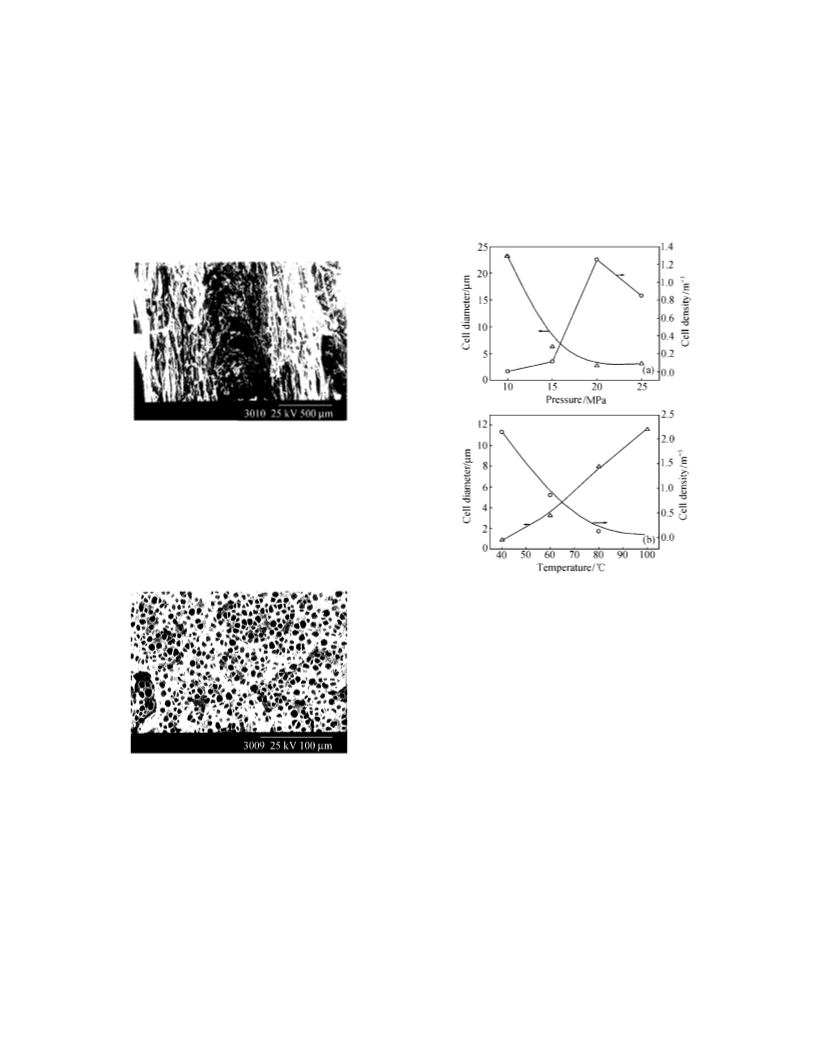

A microcellular composite with a skin-core structure
2
has been prepared via the supercritical fluid technology.
The material has a biomimetic structure like bamboo and
wood. The skin area is enriched with oriented
high-strength thermotropic liquid crystal polymer fibrils,
while the core area with polystyrene (PS) micro-cells.
The diameter and density of micro-cells can be con-
trolled conveniently by temperature and pressure of
2. Matuana, L. M., Park, C. B., Balatinecz, J. J., Processing and cell
morphology relationships for microcellular foamed PVC/Wood-
Fiber composites, Polym. Egn. Sci., 1997, 37: 1137.
3. He Jiasong, Cheng Xingguo, Wang Jin, A microcellular polymer
composite with skin-core structure and its fabrication method,
Chinese Patent Application (in Chinese), 001094807, 2000-06-28.
4. Xian Xingjuan, Xian Dingguo, Ye Yingwei, Fiber Reinforced
Composite and Its Microstructure (in Chinese), Beijing: Science
Press, 1995, 28ü29.
2
SC-CO . The thickness of the skin can be controlled by
varying the composition of PS and liquid crystal polymer.
(Received October 30, 2000)
Chinese Science Bulletin Vol. 46 No. 11 June 2001
911
