Hz, 3H); 13C NMR (126 MHz, CD3OD-d4) δ 207.0, 206.9, 174.1,
174.0, 172.3, 172.3, 171.2, 171.0, 168.5, 156.1, 156.1, 148.9, 146.8,
146.8, 146.6, 146.1, 145.9, 145.2, 145.0, 144.9, 142.9, 133.4, 133.4,
131.0, 130.7, 129.8, 128.6, 128.4, 126.7, 126.3, 125.1, 124.6, 124.6,
121.9, 118.6, 118.4, 117.5, 117.3, 116.4, 113.5, 103.1, 101.7, 92.4,
88.5, 77.0, 75.8, 73.1, 72.8, 69.8, 57.4, 45.0, 37.2, 35.6, 35.5, 33.3,
32.2, 31.6, 30.7, 30.2, 28.8, 23.7, 23.6, 17.1, 15.2; ESI-MS m/z
1233.41 [M − H]−; HRMS(ESI) calcd for [M − H]− C64H66FN2O22
1233.4170, found 1233.4105.
6.7, 4.8 Hz, 1H), 6.28 (d, J = 4.8 Hz, 1H), 6.07 (d, J = 5.7 Hz, 1H),
5.56 (d, J = 4.4 Hz, 1H), 5.27 (s, 1H), 5.11 (s, 1H), 4.60 (d, J = 4.3
Hz, 1H), 4.24 (d, J = 11.7 Hz, 1H), 4.14 (d, J = 13.8 Hz, 1H), 3.26−
3.18 (m, 1H), 3.06 (d, J = 11.6 Hz, 2H), 2.98 (dd, J = 21.8, 8.0 Hz,
1H), 2.94−2.90 (m, 1H), 2.86 (s, 1H), 2.76−2.65 (m, 1H), 2.38 (dd,
J = 15.0, 10.8 Hz, 1H), 2.17−2.07 (m, 1H), 1.91−1.81 (m, 1H),
1.80−1.63 (m, 1H), 1.63−1.55 (m, 4H), 1.53−1.45 (m, 1H), 1.41
(dd, J = 15.6, 8.7 Hz, 2H), 1.27 (d, J = 21.4 Hz, 2H), 1.22 (d, J = 5.6
Hz, 1H), 1.08 (t, J = 14.3 Hz, 2H), 0.98 (d, J = 16.8 Hz, 3H), 0.89
(dd, J = 7.3, 2.7 Hz, 1H), 0.83 (d, J = 7.0 Hz, 3H); 13C NMR (126
MHz, CD3OD-d4) δ 189.5, 189.4, 176.5, 172.9, 171.8, 171.7, 171.6,
156.7, 149.6, 147.0, 146.8, 146.4, 146.2, 145.6, 145.4, 145.1, 144.4,
134.2, 131.4, 130.8, 130.3, 130.1, 129.4, 128.9, 126.8, 126.6, 125.0,
123.4, 122.6, 122.3, 118.7, 118.4, 118.1, 118.1, 116.8, 116.4, 113.9,
103.6, 102.2, 88.7, 73.6, 73.3, 58.9, 45.1, 41.1, 40.2, 38.9, 37.1, 36.6,
36.1, 36.0, 33.7, 32.6, 32.4, 29.1, 24.0, 23.9, 18.2, 15.6; ESI-MS m/z
1119.38 [M − H]−; HRMS(ESI) calcd for [M − H]− C59H60FN2O19
1119.3774, found 1119.3787.
Syntheses of 2a−c. 2 (2a). DEX (392 mg, 1.00 mmol) was
dissolved in ethanol, and sodium periodate (257 mg, 1.20 mmol) in a
sulfuric acid solution (0.12 mol/L, 31.0 mL) was added, stirring at rt
for 24 h. The solvent was evaporated in vacuum, and the residue was
adjusted with sodium hydroxide (1.0 mol/L) to pH 12 by washing
with DCM. The solution was adjusted with hydrochloric acid (1.0
mol/L) to pH 3 and extracted with ethyl acetate. The solvent was
removed under vacuum to obtain compound 2a as a white solid (360
1
mg, 95.2% yield): H NMR (500 MHz, CD3OD-d4) δ 7.41 (d, J =
trans Isomer (2). mp 235.8−236.7 °C; 1H NMR (500 MHz,
CD3OD-d4) δ 7.52−7.38 (m, 3H), 7.35 (d, J = 7.6 Hz, 1H), 7.09 (d, J
= 8.4 Hz, 1H), 6.74 (ddd, J = 23.8, 23.0, 8.2 Hz, 8H), 6.57 (d, J = 10.5
Hz, 1H), 6.55 (dd, J = 33.0, 7.1 Hz, 1H), 6.28 (d, J = 10.3 Hz, 1H),
6.15 (d, J = 15.7 Hz, 1H), 6.08 (s, 1H), 5.91 (s, 1H), 5.20 (s, 2H),
4.39 (s, 1H), 4.23 (t, J = 12.6 Hz, 1H), 4.10 (q, J = 7.1 Hz, 1H),
3.28−3.23 (m, 2H), 3.05−2.91 (m, 1H), 2.87 (s, 1H), 2.76−2.75 (m,
1H), 2.76−2.65 (m, 1H), 2.50−2.31 (m, 1H), 2.26−2.07 (m, 1H),
2.01 (s, 1H), 1.91−1.80 (m, 1H), 1.79−1.72 (m, 1H), 1.66 (d, J =
11.7 Hz, 1H), 1.56 (s, 3H), 1.51−1.39 (m, 3H), 1.30 (s, 1H), 1.25 (t,
J = 7.0 Hz, 2H), 1.11 (d, J = 21.0 Hz, 2H), 1.04 (s, 3H), 0.91 (d, J =
7.2 Hz, 1H), 0.84 (d, J = 7.1 Hz, 3H); 13C NMR (126 MHz, CD3OD-
d4) δ 189.2, 189.1, 172.6, 171.5, 171.3, 168.6, 168.5, 156.4, 149.0,
146.9, 146.6, 146.2, 146.0, 145.3, 144.9 (overlap, 2C), 143.1, 136.4,
133.8, 133.7, 131.0, 130.5, 129.7, 128.6, 126.7, 126.3, 125.0, 124.7,
121.8, 121.6, 118.8, 118.4, 117.6, 117.4, 116.5, 116.3, 113.4, 103.3,
101.9, 88.5, 73.2, 72.9, 57.0, 44.8, 41.4, 39.8, 38.4, 36.9, 36.2, 35.8,
35.7, 33.3, 32.3, 32.2, 28.8, 23.6, 23.6, 17.9, 15.3; ESI-MS m/z
1119.38 [M − H]−; HRMS(ESI) calcd for [M − H]− C59H60FN2O19
1119.3774, found 1119.3789.
Preparation and Characterization of NPs. Conjugate 1 (10
mg) was dissolved in ethanol (1.0 mL) and added to PBS (4.0 mL,
pH 7.4), stirring at rt for 90 min. Subsequently, the ethanol was
removed under vacuum to give conjugate 1 NPs. The processing
method of conjugate 2 NPs was similar to that for conjugate 1 NPs,
which was stirred for 120 min. The particle size, PDI, and ζ potential
of conjugate NPs were determined with a Zetasizer Nano-ZS
instrument, and triplicate measurements for each sample were
taken. Conjugate NPs were negatively stained with a sodium
phosphotungstate solution and scanned with a transmission electron
microscope to examine the morphology.

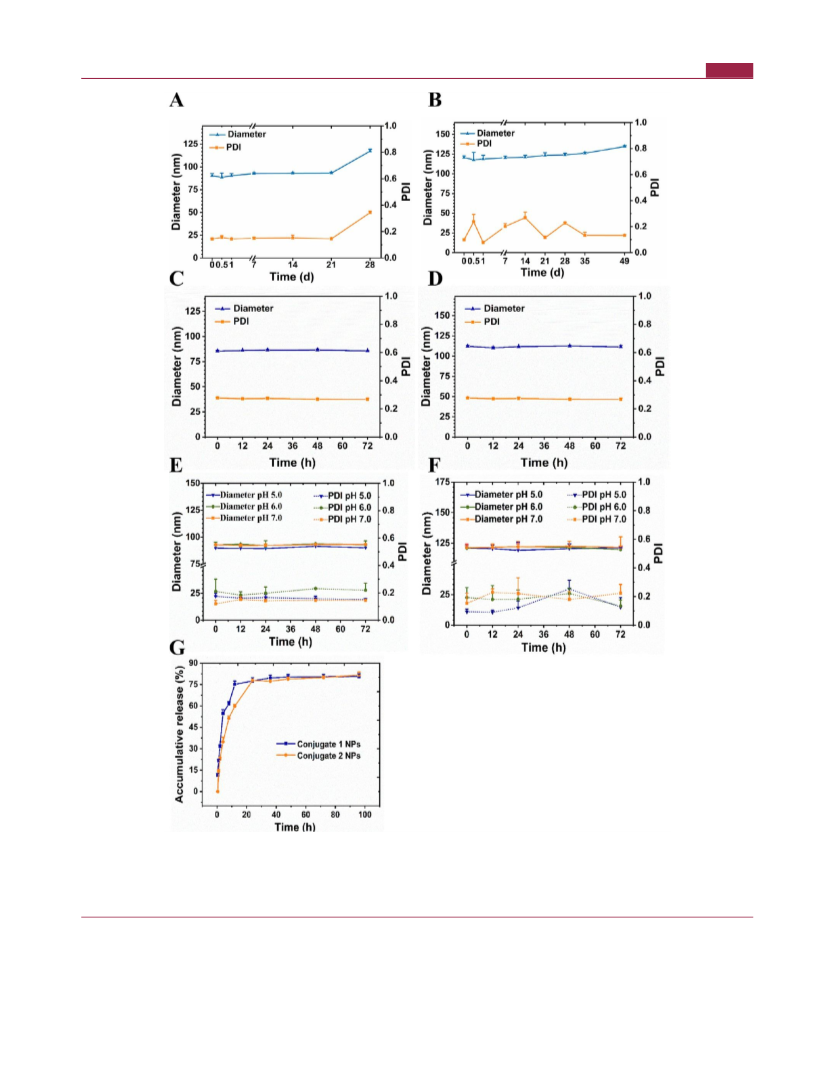

Stability of NPs. The stability of conjugate NPs (2.5 mg/mL) was
studied by monitoring the particle size and PDI. The solution of the
conjugate 1 NPs was stored at 4 °C in a refrigerator for 28 days, and
that of conjugate 2 NPs for 49 days. At different day intervals (0, 0.5,
1, 7, 14, 21, 28, 35, and 49 days), the average size and PDI were
determined. At the same time, the conjugate NPs were incubated in
PBS (pH 7.4) containing 10% FBS at 37 °C for 72 h. In addition, the
stability of the solution of conjugate NPs with different pH values
(5.0, 6.0, and 7.0) at 37 °C was investigated and the particle diameter
and PDI were measured after time intervals of 0, 12, 24, 48, and 72 h.
In Vitro Drug Release Studies. The release profiles of
conjugates from NPs were studied using PBS as the release medium.
The solution of conjugate NPs (2.5 mg/mL, 1.0 mL) was placed in a
dialysis bag (molecular weight cutoff of 2000 Da) and in PBS (90.0
mL, pH 7.4) while being continuously shaken at 100 rpm and
incubated at 37 °C, respectively, measuring at predetermined time
intervals (0.5, 1, 2, 4, 8, 12, 24, 36, 48, 72, and 96 h). At set time
points, the external buffer (0.5 mL) solution was withdrawn and
replaced with fresh PBS (0.5 mL) and samples were analyzed by
HPLC for the concentration of released conjugate 1 or 2.
11.0 Hz, 1H), 6.28 (dt, J = 10.1, 1.8 Hz, 1H), 6.07 (d, J = 1.8 Hz,
1H), 4.27 (d, J = 10.8 Hz, 1H), 3.02 (d, J = 1.5 Hz, 1H), 2.74 (d, J =
6.2 Hz, 1H), 2.49 (m, 1H), 2.43 (d, J = 5.5 Hz, 2H), 2.23−2.11 (m,
2H), 1.97−1.85 (m, 1H), 1.84−1.70 (m, 1H), 1.60 (s, 1H), 1.58 (m,
4H), 1.54 (dd, J = 12.8, 5.0 Hz, 1H), 1.50 (m, 1H), 1.31−1.19 (m,
1H), 1.14 (d, J = 1.5 Hz, 3H), 0.94 (dd, J = 7.3, 1.6 Hz, 3H); ESI-MS
m/z 401.25 [M + Na]+; HRMS(ESI) calcd for [M + H]+ C21H28FO5
379.1921, found 379.1927.
Compound 2b. Compound 2a (600 mg, 1.59 mmol) and HOBt
(322 mg, 2.38 mmol) were dissolved in DCM (5.0 mL), and N-Boc-
ethylenediamine (305 mg, 1.90 mmol) and EDCI (301 mg, 1.57
mmol) in DMF (1.0 mL) were added, stirring at rt overnight. The
extraction method was the same as that for compound 1a. The solvent
was removed under vacuum, and the residue was purified using silica
gel column chromatography [7:1 (v/v) DCM/MeOH] to obtain
compound 2b as a white solid (728 mg, 88.2% yield): 1H NMR (500
MHz, CD3OD-d4) δ 7.87 (dd, J = 8.6, 3.8 Hz, 1H), 7.73 (d, J = 8.3
Hz, 1H), 7.57 (q, J = 5.8 Hz, 1H), 7.50 (td, J = 8.0, 4.1 Hz, 1H), 7.41
(d, J = 10.2 Hz, 1H), 6.27 (d, J = 10.1 Hz, 1H), 6.07 (s, 1H), 4.24 (d,
J = 11.9 Hz, 1H), 3.34 (d, J = 5.2 Hz, 1H), 3.24−3.07 (m, 3H), 2.98
(d, J = 4.9 Hz, 2H), 2.85 (d, J = 4.7 Hz, 2H), 2.73 (m, 1H), 2.54−
2.35 (m, 2H), 2.18 (dd, J = 20.3, 12.3 Hz, 2H), 1.87 (m, 1H), 1.76
(dd, J = 11.6, 3.6 Hz, 1H), 1.60 (d, J = 4.5 Hz, 3H), 1.45 (s, 8H), 1.21
(s, 1H), 1.09 (s, 3H), 0.91 (d, J = 7.3 Hz, 3H); ESI-MS m/z 543.08
[M + Na]+; HRMS(ESI) calcd for [M + Na]+ C28H41FN2NaO6
543.2846, found 543.2862.
Compound 2c. Compound 2b (450 mg, 0.97 mmol) was dissolved
in DCM (4.0 mL), and TFA (1.0 mL) was added, stirring at 0 °C for
1.5 h. The processing method was the same as that for compound 1c
1
to give compound 2c as a white solid (328 mg, 90.2% yield): H
NMR (500 MHz, CD3OD-d4) δ 7.41 (d, J = 10.2 Hz, 1H), 6.28 (d, J
= 10.2 Hz, 1H), 6.07 (s, 1H), 5.48 (d, J = 4.6 Hz, 1H), 4.24 (d, J =
10.1 Hz, 1H), 3.50 (m, 1H), 3.34 (d, J = 5.2 Hz, 1H), 3.13 (s, 1H),
3.01−2.88 (m, 2H), 2.72 (m, 1H), 2.48 (m, 1H), 2.38 (d, J = 13.5 Hz,
2H), 2.23 (s, 1H), 2.21−2.12 (m, 2H), 1.88 (m, 1H), 1.76 (dd, J =
23.5, 12.0 Hz, 1H), 1.58 (d, J = 4.4 Hz, 3H), 1.53 (d, J = 4.3 Hz, 1H),
1.51 (d, J = 4.5 Hz, 1H), 1.46 (d, J = 14.2 Hz, 1H), 1.28 (s, 1H), 1.21
(m, 1H), 1.07 (d, J = 4.0 Hz, 3H), 0.89 (t, J = 5.8 Hz, 3H); ESI-MS
m/z 421.37 [M + H]+; HRMS(ESI) calcd for [M + H]+
C23H34FN2O4 421.2503, found 421.2512.
Conjugate 2. Compound 2c (266 mg, 0.63 mmol), SAL (420 mg,
0.58 mmol), HOBt (120 mg, 0.88 mmol), and EDCI (169 mg, 0.88
mmol) were placed in a flask and dissolved in DMF (6.0 mL), stirring
at rt for 24 h. The solvent was removed in vacuo, and after column
chromatography [5:1 (v/v) DCM/MeOH], conjugate 2 (mixture of
cis and trans isomers) was obtained as a yellow solid (425 mg, 59.9%
yield, 99.1% pure): isolated pure cis isomer, 42 mg; isolated pure trans
isomer, 45.5 mg.
cis Isomer (2). mp 235.9−236.8 °C; 1H NMR (500 MHz, CD3OD-
d4) δ 7.56−7.40 (m, 2H), 7.35 (dd, J = 14.6, 9.0 Hz, 2H), 7.16 (d, J =
8.5 Hz, 1H), 6.79 (d, J = 8.4 Hz, 1H), 6.75−6.69 (m, 3H), 6.68−6.64
(m, 2H), 6.61−6.56 (m, 3H), 6.44 (d, J = 7.5 Hz, 1H), 6.30 (dd, J =
