Determination of the synthetic antioxidant ethoxyquin and
its metabolites in fish and fishery products using liquid
chromatography-fluorescence detection and stable isotope dilution
analysis liquid chromatography-tandem mass spectrometry
Andreas Kranawetvogl, and Paul Wilhelm Elsinghorst
J. Agric. Food Chem., Just Accepted Manuscript • DOI: 10.1021/acs.jafc.9b01508 • Publication Date (Web): 16 May 2019
Downloaded from http://pubs.acs.org on May 16, 2019
Just Accepted
“Just Accepted” manuscripts have been peer-reviewed and accepted for publication. They are posted
online prior to technical editing, formatting for publication and author proofing. The American Chemical
Society provides “Just Accepted” as a service to the research community to expedite the dissemination
of scientific material as soon as possible after acceptance. “Just Accepted” manuscripts appear in
full in PDF format accompanied by an HTML abstract. “Just Accepted” manuscripts have been fully
peer reviewed, but should not be considered the official version of record. They are citable by the
Digital Object Identifier (DOI®). “Just Accepted” is an optional service offered to authors. Therefore,
the “Just Accepted” Web site may not include all articles that will be published in the journal. After
a manuscript is technically edited and formatted, it will be removed from the “Just Accepted” Web
site and published as an ASAP article. Note that technical editing may introduce minor changes
to the manuscript text and/or graphics which could affect content, and all legal disclaimers and
ethical guidelines that apply to the journal pertain. ACS cannot be held responsible for errors or
consequences arising from the use of information contained in these “Just Accepted” manuscripts.
is published by the American Chemical Society. 1155 Sixteenth Street N.W.,
Washington, DC 20036
Published by American Chemical Society. Copyright © American Chemical Society.
However, no copyright claim is made to original U.S. Government works, or works
produced by employees of any Commonwealth realm Crown government in the
course of their duties.

Page 1 of 28
Journal of Agricultural and Food Chemistry
1
2
3
Determination of the synthetic antioxidant ethoxyquin and its metabolites in fish and
fishery products using liquid chromatography-fluorescence detection and stable isotope
dilution analysis liquid chromatography-tandem mass spectrometry
4
Andreas Kranawetvogl,† Paul W. Elsinghorst*,†,‡
5
6
7
8
† Central Institute of the Bundeswehr Medical Service Munich, Ingolstädter Landstrasse 102,
85748 Garching, Germany
‡ Pharmaceutical Institute, Pharmaceutical Chemistry I, University of Bonn,
An der Immenburg 4, 53121 Bonn, Germany
9
10
11
12
* Corresponding author:
Priv.-Doz. Dr. Paul W. Elsinghorst, Central Institute of the Bundeswehr Medical Service
Munich, Ingolstädter Landstrasse 102, 85748 Garching, Germany; Phone: +49-89-3755849-
5310, Fax: +49-89-3755849-5209, e-mail: paulelsinghorst@bundeswehr.org
1
ACS Paragon Plus Environment

Journal of Agricultural and Food Chemistry
Page 2 of 28
13
14
15
16
17
18
19
20
21
22
23
24
25
26
Abstract
The use of the synthetic antioxidant ethoxyquin (1,2-dihydro-6-ethoxy-2,2,4-
trimethylquinoline, EQ) as a flame retardant in fish meal transported by sea is required by
international authorities to prevent self-ignition. Due to extensive carry-over within the food
chain, selective and sensitive analytical methods are required for investigations on human
exposure and safety of EQ and its metabolites. Therefore, a simple, fast and rugged liquid
chromatography method was developed for detection of EQ and its metabolites in fish and
fishery products after liquid-liquid extraction using QuEChERS. For screening purposes a
fluorescence detector was used (LC-FLD) with the EQ-analogue methoxyquin serving as
internal standard. For stable isotope dilution analysis by liquid chromatography-tandem mass
spectrometry (SIDA-LC-MS/MS) deuterated analogues of EQ and its metabolites were
synthesized for the first time and allowed for sensitive quantification and thus confirmation of
screening results. Both methods were validated and successfully applied to commercially
available fish samples.
27
28
29
Keywords
ethoxyquin, Skraup-Doebner-von Miller quinoline synthesis, fishery products, metabolite,
fluorescence detection, stable isotope dilution analysis
2
ACS Paragon Plus Environment

Page 3 of 28
Journal of Agricultural and Food Chemistry
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
Introduction

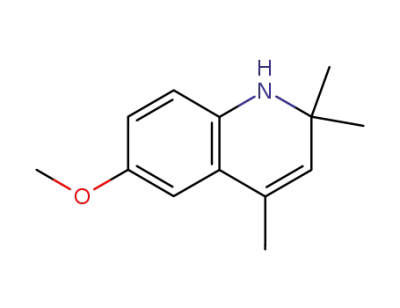

The antioxidant ethoxyquin (1,2-dihydro-6-ethoxy-2,2,4-trimethylquinoline, EQ) was first
described by the German chemist Emil Knoevenagel in 1921, when working on the
condensation of aromatic amines with aliphatic ketones.1 Although initially used as a rubber
additive to impede cracking from isoprene oxidation, EQ has also a long history of application
as an antioxidant in feed, especially for poultry and fish.2 Fish meal, because of its high content
in polyunsaturated fatty acids, is prone to oxidation and requires stabilization to preserve its
high nutritional value. Moreover, international regulations by the International Maritime
Organization require addition of EQ to fish meal and fish scrap when transported by sea to
prevent spontaneous combustion.3 Currently, minimum levels of EQ at the time of consignment
are set at 100 mg/kg (100 ppm).
Previous studies revealed that EQ and metabolites thereof are detectable in various
tissues of fish fed with EQ-containing feed, indicating that human exposure may occur as a
result of carry-over.4–7 Notably, the EQ dimer (6,6’-diethoxy-2,2,2’,2’,4,4’-hexamethyl-1’,2’-
dihydro-2H-1,8’-biquinoline, EQDM) has been reported as the main metabolite showing
considerably higher concentrations than EQ itself.6 Other metabolites formed by
demethylation/rearomatization (2,4-dimethyl-6-ethoxyquinoline, DMEQ) or the de-ethylation
product hydroxyquin (1,2-dihydro-6-hydroxy-2,2,4-trimethylquinoline, DEQ) and its
corresponding quinone imine (2,6-dihydro-2,2,4-trimethyl-6-quinolone, QI) have also been
detected, but often at negligible intensity. Recently, even more oxidation products were
reported to be present in salmon feed, of which several were shown to carry-over into fish
including EQDM as the most abundant but also QI.8,9
Safety of EQ was assessed by the European Food Safety Authority (EFSA), which found
EQ to be neither genotoxic nor carcinogenic and not to cause developmental toxicity in
offspring.10 However, despite its high antioxidant capacity EQ may also act as a prooxidant
facilitating formation of reactive oxygen species that are known for their adverse health effects,
3
ACS Paragon Plus Environment

Journal of Agricultural and Food Chemistry
Page 4 of 28
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
in particular at higher concentrations.10,11 Typical symptoms observed in different animals after
oral administration of EQ were liver and kidney damages as well as changes in the
gastrointestinal tract. With respect to the toxicity of EQ metabolites data are incomplete except
for EQDM, whose toxicological profile is considered to reflect that of EQ. Toxicity of QI has
not been investigated yet, however, it is assumed to be capable of forming covalent DNA
adducts due to its quinone imine structure and might thus be mutagenic and carcinogenic.10
Due to this considerable lack of data the European Commission decided to suspend the
authorization of EQ as a feed additive in June 2017, pointing out that the suspension should be
reviewed upon submission and evaluation of additional data with focus on consumer
exposure.12 Consequently, appropriate analytical methods are required in order to investigate
levels of EQ and its metabolites in fish and fishery products for human consumption. Several
methods for this purpose have been described in the literature including gas chromatography
with flame ionization detection (GC-FID) and mostly liquid chromatography using
fluorescence (LC-FLD) or more recently electrochemical (LC-EC) detection.4,7,13–18 Also
coupling of the respective chromatographic systems with mass spectrometry (GC-MS, LC-MS)
are common.13,16,19 Quantification of analytes in these methods is either performed by external
calibration or with the aid of internal standards like quinoline or methoxyquin (1,2-dihydro-6-
methoxy-2,2,4-trimethylquinoline, MQ), the latter allowing for correction of analyte extraction
losses during sample preparation.15,17 However, until now no method has been reported
applying stable isotope dilution analysis (SIDA) using stable-labeled isotopomers of the
respective analytes as internal standards, although SIDA can be considered state of the art in
modern residue analysis.20,21 A reason for this might be the lack of commercially available
stable-labeled isotopomers, which in SIDA will allow to compensate extraction losses or matrix
effects during mass spectrometry because of their almost identical physicochemical properties.
Therefore, deuterium-labeled isotopomers of EQ and its metabolites were synthesized
and a stable isotope dilution analysis liquid chromatography-tandem mass spectrometry (SIDA-
4
ACS Paragon Plus Environment

Page 5 of 28
Journal of Agricultural and Food Chemistry
82
83
84
85
86
LC-MS/MS) method was developed for highly selective and sensitive determination of the
analytes in fish and fishery products. Additionally, a simple, fast and rugged LC-FLD method
was established for screening of samples prior to confirmation of residue contents using SIDA-
LC-MS/MS. Both methods were validated and successfully applied to a set of commercially
available salmon samples.
87
88
Materials and Methods
Chemicals and Reagents. 4-Ethoxyaniline (≥ 98%, for synthesis) was purchased from Sigma-
Aldrich (Taufkirchen, Germany). 4-Methoxyaniline (≥ 98%, for synthesis), ethyl acetate
(Emsure®, p.a.), ethanol (absolute, p.a.), ammonium acetate (Emsure®, ACS reagent),
hydrochloric acid (Titripur®, 2 M), solid sodium hydroxide (≥ 97%), sodium hydroxide
(Titrisol®, 1 M) and anhydrous sodium sulfate (Emsure®, p.a.) were purchased from Merck
(Darmstadt, Germany). Petroleum ether (boiling range 40-60 °C, Chemsolute®, p.a.) was
obtained from Th. Geyer (Renningen, Germany). Crystalline iodine (≥ 99.5%) and tert-butyl
hydroperoxide (70% aqueous solution) were from Thermo Fisher (Karlsruhe, Germany).
Toluene (Chromasolv®, p.a.) was purchased from Honeywell Riedel-de-Haën (Seelze,
Germany) and d6-acetone from Deutero (Kastellaun, Germany). Acetonitrile (MeCN, LC
grade) was purchased from VWR (Darmstadt, Germany) and ascorbic acid (ACS reagent, p.a.)
and ammonium ferrous sulfate hexahydrate (≥ 99%, ACS reagent) were from Fluka (Buchs,
Switzerland). Water (LC grade) was prepared using a Milli-Q® Gradient water purification
system from Merck. ALUGRAM® Xtra SIL G/UV254 (silica gel 60, layer thickness 0.2 mm)
plates for thin-layer chromatography, silica gel 60 (0.063–0.2 mm) for column
chromatography, the Chromabond® QuEChERS citrate extraction mix (Mix I) as well as the
Chromabond® QuEChERS clean-up mix (Mix VI) were obtained from Macherey-Nagel
(Düren, Germany).
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
5
ACS Paragon Plus Environment

Journal of Agricultural and Food Chemistry
Page 6 of 28
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
Instrumentation. A syringe pump KDS 100 Legacy from KD Scientific Inc. (Holliston, MA,
USA) was used for continuous addition of reagents for synthesis of d10-EQ and MQ as described
below. Melting points were determined using a capillary tube apparatus B-540 from Büchi
(Essen, Germany). GC-MS analysis for compound characterization was performed on an 7890B
GC system (injector: splitless, 250 °C; carrier gas: He; column: HP-5 MS,
30 m × 0.25 mm × 0.25 μm; temperature gradient, min/°C: 0/60, 2/60, 21/250, 22.5/280,
35/280) coupled to a 5977A mass spectrometer (EI, scan range m/z 50-500) from Agilent
Technologies (Waldbronn, Germany). NMR spectra were recorded on an Avance III (1H NMR:
13
13
600 MHz, C NMR: 150 MHz) and DRX 500 (1H NMR: 500 MHz, C NMR: 125 MHz)
spectrometer from Bruker (Rheinstetten, Germany) and chemical shifts δ are given in parts per
million referring to the signal center using the respective solvent peaks for reference (CDCl3,
7.26/77.0 ppm; d6-DMSO, 2.50/39.5 ppm). To characterize the spin multiplicity, the following
abbreviations are used: s, singlet; d, doublet; dd, doublet of doublets; t, triplet; q, quartet; m,
multiplet.
d10-Ethoxyquin (d10-EQ). In a round-bottom flask 4-ethoxyaniline (2 g, 14.6 mmol) and iodine
(50 mg, 0.20 mmol) were dissolved in toluene (6.5 mL) under vigorous stirring. After purging
with nitrogen, d6-acetone (4.68 g, 73 mmol) was added to the refluxing reaction mixture using
a syringe pump (0.26 g/h, 18 h). Subsequently the reaction mixture was filtered through silica
using petroleum ether/ethyl acetate 80:20 v/v (500 mL) and the filtrate was evaporated in vacuo.
Purification of the residue was achieved by column chromatography using petroleum
ether/ethyl acetate 90:10 v/v (detection: i) blue fluorescence upon excitation at λ = 365 nm, ii)
fast degradation to a brownish product under the influence of daylight) to provide d10-EQ
1
(1.69 g, 51%) as a yellowish oil. GC-MS: purity > 94%. H NMR (d6-DMSO) δ: 1.13 (m,
2JH,D = 9.5 Hz, 2-CH3, 24% H), 1.26 (t, 3H, 3JH,H = 6.9 Hz, CH2CH3), 1.84 (m, 4-CH3, 11% H),
3.88 (q, 2H, 3JH,H = 6.9 Hz, CH2CH3), 5.29 (m, 3-H, 13% H), 5.31 (s, 1H, NH), 6.39 (m, 8-H,
13
11% H), 6.53 (m, 2H, 5/7-H); C NMR (d6-DMSO) δ: 14.90 (CH2CH3), 17.56 (m, 4-CH3),
6
ACS Paragon Plus Environment

Page 7 of 28
Journal of Agricultural and Food Chemistry
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
29.52 (m, 2-CH3), 50.58 (m, C-2), 63.49 (CH2CH3), 110.14 (C-5), 112.65 (m, C-8), 114.52 (C-
7), 121.37 (C-4a), 127.32 (C-4), 129.11 (m, C-3), 138.38 (C-8a), 149.61 (C-6).
d7-Dimethylethoxyquinoline (d7-DMEQ). d10-EQ (0.5 g, 2.20 mmol) was heated to 180 °C
for 30 min under vigorous stirring. The crude reaction product was purified by column
chromatography using petroleum ether/ethyl acetate 50:50 v/v (detection: blue fluorescence
upon excitation at λ = 254 nm) and recrystallization from petroleum ether to obtain d7-DMEQ
(10 mg, 2%) as light brown crystals, m.p. 83-84 °C, lit.22 86-87 °C (non-deuterated). GC-MS:
purity > 95%. 1H NMR (CDCl3) δ: 1.49 (t, 3H, 3JH,H = 7.0 Hz, CH2CH3), 2.58 (m, 2-CH3, 14%
H), 2.65 (m, 4-CH3, 26% H), 4.15 (q, 2H, 3JH,H = 7.0 Hz, CH2CH3), 7.10 (s, 3-H, 11% H), 7.15
(d, 1H, 4JH,H = 2.7 Hz, 5-H), 7.33 (d, 1H, 4JH,H = 2.7 Hz, 7-H), 7.96 (app. d, 3JH,H = 9.2 Hz, 8-
13
H, 13% H); C NMR (CDCl3) δ: 14.80 (CH2CH3), 18.17 (4-CH3), 24.16 (2-CH3), 63.76
(CH2CH3), 102.97 (C-5), 121.30 (C-7), 122.65 (C-3), 127.39 (C-4a), 129.90 (C-8), 142.91 (C-
4), 143.12 (C-8a), 155.62 (C-6), 156.50 (C-2).
d18-Ethoxyquin dimer (d18-EQDM). A solution of d10-EQ (0.51 g, 2.25 mmol) in ethanol
(50 mL) was cooled to 0 °C and an equimolar amount of tert-butyl hydroperoxide (70%,
0.31 mL) and aqueous ammonium ferrous sulfate hexahydrate (0.88 g in 20 mL) were added
under vigorous stirring. The mixture was allowed to react at 0 °C for 18 h before it was acidified
(1 M HCl, 50 mL) and extracted with petroleum ether (3 × 50 mL). The combined extracts were
washed (1°M HCl, 2 × 25 mL), dried using Na2SO4 and evaporated in vacuo. The remaining
residue was purified by column chromatography using petroleum ether/ethyl acetate 90:10 v/v
(detection: i) blue fluorescence upon excitation at λ = 365 nm, ii) fast degradation to a reddish
product under the influence of daylight) to obtain d18-EQDM (0.35 g, 69%) as a yellowish solid,
m.p. 109-110 °C, lit.22 107-109 °C (non-deuterated). GC-MS: purity 100%. 1H NMR (CDCl3)
2
2
δ: 0.93 (m, JH,D = 11.7 Hz, 2’-H, 27% H), 1.14 (m, JH,D = 11.2 Hz, 2’-H, 24% H), 1.18 (m,
2
2JH,D = 11.2 Hz, 2-H, 31% H), 1.27 (m, JH,D = 11.7 Hz, 2-H, 33% H), 1.37 (t, 3H,
3
3JH,H = 7.0 Hz, 8-OCH2CH3), 1.39 (t, 3H, JH,H = 7.0 Hz, 8’-OCH2CH3), 2.01 (m,
7
ACS Paragon Plus Environment

Journal of Agricultural and Food Chemistry
Page 8 of 28
3
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
2JH,D = 9.7 Hz, 4/4’-H, 18% H), 3.95 (q, 2H, JH,H = 7.0 Hz, 8-OCH2CH3), 3.96 (q, 2H,
3JH,H = 7.0 Hz, 8’-OCH2CH3), 5.37 (s, 3’-H, 29% H), 5.44 (s, 3-H, 54% H), 6.06 (d,
3JH,H = 8.8 Hz, 8-H, 13% H), 6.49 (d, 1H, 4JH,H = 2.9 Hz, 7-H), 6.68 (d, 1H, 4JH,H = 2.5 Hz, 7’-
H), 6.72 (d, 1H, 4JH,H = 2.5 Hz, 5’-H), 6.76 (d, 1H, 4JH,H = 2.9 Hz, 5-H); 13C NMR (CDCl3) δ:
15.03 (CH2CH3), 15.07 (CH2CH3), 56.56 (C-2), 63.95 (CH2CH3), 64.27 (CH2CH3), 109.99 (C-
7), 110.76 (C-5’), 113.71 (C-5), 114.70 (m, C-8), 117.40 (C-7’), 124.32 (C-4a), 124.62 (C-8a’),
127.83 (C-4a’), 127.95 (C-4/4’), 128.48 (C-4/4’), 130.61 (C-3/3’), 130.98 (C-3/3’), 137.89 (C-
8a), 150.35 (C-6’), 150.86 (C-6).
d10-Quinone imine (d10-QI). The combined acidic layers obtained following the procedure for
the synthesis of d18-EQDM were basified (4 M NaOH, 50 mL) and extracted with petroleum
ether (5 × 50 mL). After washing (1 M NaOH, 2 × 25 mL) and drying with Na2SO4, the solvent
was evaporated in vacuo and the crude residue purified by column chromatography using
petroleum ether/ethyl acetate 50:50 v/v (detection: i) fluorescence extinction upon excitation at
λ = 254 nm, ii) yellow spots) to obtain d10-QI as an auburn solid (73 mg, 17%), m.p. 47-49 °C,
lit.22 52-53 °C (non-deuterated). GC-MS: purity > 90%. H NMR (CDCl3) δ: 1.38 (m,
1
2JH,D = 9.7 Hz, 2-CH3, 29% H), 1.95 (m, 4-CH3, 14% H), 6.33 (s, 1H, 5-H), 6.44 (s, 3-H, 10%
3
13
H), 6.65 (m, 1H, 7-H), 7.19 (d, JH,H = 9.9 Hz, 8-H, 12% H); C NMR (CDCl3) δ: 16.97 (4-
CH3), 28.01 (2-CH3), 61.60 (C-2), 120.64 (C-5), 126.64 (C-8a), 131.51 (C-4), 133.25 (C-7),
140.34 (C-3), 145.44 (C-8), 154.76 (C-4a), 188.46 (C-6).
Methoxyquin (MQ). In a round-bottom flask 4-methoxyaniline (1.8 g, 14.6 mmol) and iodine
(50 mg, 0.20 mmol) were dissolved in toluene (6.5 mL) under vigorous stirring. After purging
with nitrogen acetone (4.24 g, 73 mmol) was added to the refluxing reaction mixture using a
syringe pump (0.24 g/h, 18 h). Subsequently the reaction mixture was filtered through silica
using petroleum ether/ethyl acetate 80:20 v/v (500 mL) and the filtrate was evaporated in vacuo.
Purification of the residue was achieved by column chromatography using petroleum
ether/ethyl acetate 90:10 v/v (detection: i) blue fluorescence upon excitation at λ = 365 nm, ii)
8
ACS Paragon Plus Environment

Page 9 of 28
Journal of Agricultural and Food Chemistry
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
fast degradation to a brownish product under the influence of daylight) to provide MQ (1.65 g,
55%) as a yellowish oil. GC-MS: purity > 96%. 1H NMR (d6-DMSO) δ: 1.16 (s, 6H, 2-CH3),
1.88 (d, 3H, 4JH,H = 1.4 Hz, 4-CH3), 3.64 (s, 3H, OCH3), 5.30 (m, 1H, 3-H), 5.33 (s, 1H, NH),
6.41 (m, 1H, 3JH,H = 8.8 Hz, 8-H), 6.53 (dd, 1H, 3JH,H = 8.7 Hz, 4JH,H = 2.8 Hz, 7-H), 6.55 (app.
s, 1H, 5-H); 13C NMR (d6-DMSO) δ: 18.19 (4-CH3), 30.19 (2-CH3), 50.96 (C-2), 55.43 (OCH3),
109.27 (C-5), 113.00 (C-8), 113.87 (C-7), 121.36 (C-4a), 127.52 (C-4), 129.56 (C-3), 138.42
(C-8a), 150.49 (C-6).
Sample preparation. Samples for LC-FLD and SIDA-LC-MS/MS analysis were obtained
from local retailers and originated either from Norwegian aquaculture or from the North-East
Pacific. Fillets were cut into pieces and homogenized using a knife mill (Grindomix GM 200;
Retsch, Haan, Germany). Samples (5 g) were exactly weighed into amber glass centrifuge tubes
(50 mL) and spiked either with MQ (500 µL, 1 µg/mL, MeCN) for LC-FLD analysis or a
mixture of d10-EQ, d7-DMEQ, d18-EQDM and d10-QI (500 µL, 1 µg/mL for d10-EQ, d7-DMEQ
and d10-QI, 100 ng/mL for d18-EQDM, MeCN) in the case of SIDA-LC-MS/MS. Subsequently,
water was added (6,5 mL) and samples were shaken vigorously by hand (1 min) prior to
addition of MeCN (9,5 mL) and further mixing (15 min, 200 rpm) using a laboratory shaker
(KS 501 digital; IKA® Labortechnik, Staufen, Germany). Subsequently, QuEChERS citrate
extraction mix (Mix I) was added and the centrifuge tubes were shaken vigorously by hand
(1 min) before samples were centrifuged (3345 × g, room temperature (rt), 5 min) using a
laboratory centrifuge (Megafuge 1.0R; Heraeus, Hanau, Germany). Finally, an aliquot of the
supernatant (6 mL) was transferred into centrifuge tubes (15 mL) containing QuEChERS clean-
up mix (Mix VI) followed once more by vigorous shaking (1 min) by hand and another
centrifugation step (3345 × g, rt, 5 min). An aliquot (1 mL) of the supernatant was transferred
into amber glass vials and subjected directly to LC-FLD or SIDA-LC-MS/MS analysis.
LC-FLD analysis. Sample analysis was performed using an Infinity 1200 series LC-FLD
system (Agilent Technologies) consisting of an autosampler, a binary pump, and a column
9
ACS Paragon Plus Environment

Journal of Agricultural and Food Chemistry
Page 10 of 28
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
thermostat coupled to a fluorescence detector. Post-column derivatization was achieved using
an Infinity 1260 isocratic pump (Agilent Technologies) and an LC-MS effluent optimizer
(LEO) module (Gerstel, Mülheim, Germany). Samples (10 µL) were separated at 40 °C on a
Kinetex® EVO C18 column (100 mm × 4.6 mm, 2.6 µm; Phenomenex, Aschaffenburg,
Germany) protected by a precolumn (SecurityGuard Ultra cartridge for C18 ultra-high
performance LC; Phenomenex) using gradient elution with solvent A (10 mM ammonium
acetate) and solvent B (MeCN) at a flow of 500 μL/min. The following gradient was applied,
min/% B: 0/40, 10/80, 10.2/100, 14.8/100, 15/40, 20/40. Within each run the six-way valve
installed in the column oven was switched from configuration 1 to configuration 2 after 9 min
and backwards after 20 min (see Supporting Information, Figure S1) allowing for regular
backflushing and thus cleaning of the precolumn. Aqueous ascorbic acid (0.1% w/v) was
continuously added post-column at a flow of 50 µL/min using the LEO module to increase
detection sensitivity by reduction of QI to DEQ. The following parameters were used for
detection: excitation wavelength 235 nm; emission wavelength, min/nm: 0/440, 6/365, 8/440;
photomultiplier gain 16; time constant 4 s. Data acquisition, processing, and analysis were
performed using ChemStation (Rev. B.04.03, Agilent Technologies).
SIDA-LC-MS/MS. An Infinity 1260 series LC-MS/MS-system (Agilent Technologies) was
used consisting of an autosampler, a binary pump, and a column thermostat coupled to a 6460
triple quadrupole mass spectrometer equipped with an Agilent Jet Stream ion source.
Chromatographic parameters including sample volume, column type, column temperature,
solvent composition, flow, gradient and time-dependent valve switching were identical to those
described above for LC-FLD. The following parameters were used for detection by mass
spectrometry: gas temperature 300 °C, gas flow 9 L/min, nebulizer 15 psi (1.03 × 105 Pa),
sheath gas temperature 350 °C, sheath gas flow 12 L/min, nozzle voltage +500 V, capillary
voltage +3500 V. MS/MS transitions were recorded in dynamic multiple reaction monitoring
mode with the following parameters including expected retention time (tR) ± corresponding
10
ACS Paragon Plus Environment

Page 11 of 28
Journal of Agricultural and Food Chemistry
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
time window, fragmentor voltage (FV), collision energy (CE), and cell acceleration voltage
(CAV): QI m/z 188.1 → 145.0 (tR 4.3 ± 2 min, FV 100 V, CE 24 V, CAV 4 V), d10-QI
m/z 198.2 → 152.1 (tR 4.2 ± 2 min, FV 85 V, CE 32 V, CAV 4 V), DMEQ m/z 202.1 → 174.0
(tR 6.6 ± 2 min, FV 110 V, CE 24 V, CAV 4 V), d7-DMEQ m/z 209.2 → 181.1 (tR 6.5 ± 2 min,
FV 125 V, CE 24 V, CAV 4 V), EQ m/z 218.2 → 203.0 (tR 10.2 ± 2 min, FV 80 V, CE 8 V,
CAV 4 V), d10-EQ m/z 228.2 → 210.1 (tR 10.0 ± 2 min, FV 80 V, CE 8 V, CAV 4 V), EQDM
m/z 433.3 → 216.1 (tR 15.3 ± 2 min, FV 135 V, CE 24 V, CAV 4 V), d18-EQDM
m/z 451.4 → 225.0 (tR 15.2 ± 2 min, FV 130 V, CE 28 V, CAV 4 V). Data acquisition,
processing, and analysis were performed with MassHunter Workstation (version B.08.00,
Agilent Technologies).
Method validation. Linearity was assessed by spiking blank samples (wild salmon) with EQ,
DMEQ, EQDM and QI at six different levels resembling the natural occurrence in samples
from aquaculture: 0, 40, 80, 120, 160, and 200 µg/kg. For LC-FLD analysis the internal
standard MQ was added to each sample at a concentration of 100 µg/kg, as it was the case with
the deuterated isotopomers d10-EQ, d7-DMEQ and d10-QI for analysis by SIDA-LC-MS/MS.
However, due to extensive ion suppression at higher concentrations EQDM was added at 1/10
of the aforementioned levels (0, 4, 8, 12, 16, and 20 µg/kg), including the internal standard d18-
EQDM, which was spiked at a concentration of 10 µg/kg. All spiked samples were
subsequently extracted as described above and analyzed by LC-FLD or SIDA-LC-MS/MS.
Linear calibration curves were obtained by plotting the peak area ratios (analyte/internal
standard) versus the concentration ratios (analyte/internal standard). Limits of detection (LOD)
and quantification (LOQ) were derived from the obtained calibration lines by calculation
according to ISO 11843-2.23
Matrix effects on ionization were evaluated in a separate experiment by dividing the
slope of a corresponding calibration curve obtained from spiked blind matrix by the slope from
solvent-based calibration, where a ratio < 1 indicates ion suppression and a ratio > 1 ion
11
ACS Paragon Plus Environment

Journal of Agricultural and Food Chemistry
Page 12 of 28
262
263
264
265
266
267
enhancement.24 Recovery rates were subsequently derived for each linearity level from either
solvent-based (LC-FLD, MeCN) or matrix-matched calibration (SIDA-LC-MS/MS) data. For
estimation of intraday precision, six replicates were prepared by spiking blank samples to the
respective LOQ (Table 1) and analyzed within one day using MQ (LC-FLD) or the respective
deuterated isotopomers (SIDA-LC-MS/MS) as internal standards for recovery correction. The
calculated coefficients of variation served as a measure for precision.
268
Results and Discussion
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
Synthesis
Although the product of a rather simple condensation reaction, EQs exact chemical structure
has puzzled researchers for many years. Initially referred to as “aceton-p-phenetidil”,1 i.e., the
condensation product of p-phenetidine and acetone obtained in the presence of iodine, it was
not until 1961 that Elliott & Yates were finally able to unambiguously identify its structure as
1,2-dihydro-2,2,4-trimethylquinoline, thus refuting the idea of an “acetone anil” formation.25
Despite this problem significant effort has been put into optimizing synthetic strategies for EQ
production to meet industrial demand. Today, the underlying reaction mechanism is known as
the Skraup-Doebner-von Miller quinoline synthesis, named after three chemists that had
already worked on this topic in the early 1880s.26,27 It has been applied not only for the efficient
synthesis of EQ and closely related analogues like MQ, but also for the corresponding
metabolites recently discovered in fish and fishery products.22,28
Notably, the yield of EQ may be increased by slow and continuous addition of acetone
into the flask by means of a syringe pump, which is most presumably due to the reduced
evaporation of unreacted acetone despite the required high temperature of 110 °C (refluxing
toluene).29 Accordingly, application of d6-acetone provided deuterium-labeled EQ and
subsequently deuterium-labeled metabolites (Figure 1). Comparison of the NMR spectra of
unlabeled EQ and the product obtained from the reaction with d6-acetone clearly demonstrated
12
ACS Paragon Plus Environment

Page 13 of 28
Journal of Agricultural and Food Chemistry
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
the success of isotopic labeling. However, in contrast to initial expectations deuteration did not
only occur at carbon 3, 11, 12, and 13 but also at C-8, which was also confirmed by the NMR
spectra of deuterated DMEQ, EQDM and QI (Figure 2a). Residual proton NMR signals at
these deuteration sites allowed for estimation of deuterium incorporation ranging from 46% at
certain positions of deuterated EQDM to 89% at certain sites of deuterated EQ and DMEQ.
Additionally, GC-MS of the deuterated products revealed a quite broad isotopic distribution
(Figure 2b), which is in accordance with the aforementioned varying deuteration efficiency
and may be explained by H/D exchange processes during synthesis.
Indeed, using 4-ethoxyaniline and d6-acetone as starting materials the initial step is most
likely formation of the corresponding Schiff base (see Supporting Information, Figure S2).30
Water released by this condensation reaction may then participate in H/D exchange reactions
either with unreacted d6-acetone or any of the deuterated intermediates. Moreover, the resulting
Schiff base is considered to subsequently react with its enamine in a kind of a self-condensation
followed by cyclization and elimination of deuterated 4-ethoxyaniline.30,31 The latter most
likely serves as a source of deuterium leading to the observed labeling of deuterated EQ at
position C-8. In fact, EQ was shown to exist partly as a free radical produced by
dehydrogenation of the quinoline nitrogen through free radicals or simply UV light.32 Because
of its aromatic ring system, EQ is capable of stabilizing this radical through delocalization with
one of the corresponding resonance structures bearing the radical at position C-8 (see
Supporting Information, Figure S3). Quenching of this radical by deuterium donors like
deuterated 4-ethoxyaniline, d6-acetone or D2O and rearomatization by imine-enamine
tautomerism may produce EQ deuterated at C-8 as observed by NMR spectroscopy. The well-
established dimerization of EQ through a covalent bond between C-8 and the quinoline nitrogen
(EQDM) serves not only as an explanation for its antioxidant properties but also corroborates
this hypothesis.22,32,33
13
ACS Paragon Plus Environment

Journal of Agricultural and Food Chemistry
Page 14 of 28
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
Sample preparation
Various procedures for the extraction of EQ and some of its oxidation products have been
described in the literature mostly comprising simple liquid extraction of homogenized samples
using organic solvents13,34 or the QuEChERS protocol.35,36 Other methods make use of solid
phase extraction17 or include a further saponification step with sodium hydroxide for enhanced
matrix disruption prior to liquid extraction.4,14 However, due to the high fat content of certain
fish species like salmon, the biggest challenge remains the efficient separation of the most
lipophilic analyte EQDM from disturbing matrix components.
In our hands, neither liquid extraction in combination with a freeze-out step nor solid-
phase extraction did sufficiently remove co-extracted lipids. Alternative saponification
followed by extraction provided sufficiently lipid-free extracts, but chromatography was
impaired by co-eluting matrix components in case of EQ and EQDM. We also considered to
apply gel permeation chromatography, a common sample preparation technique for lipid
removal, but did not succeed in sufficient separation of EQDM. Finally we opted for the
QuEChERS method obtaining high recovery rates for all analytes, albeit being aware that the
extracts still contained considerable amounts of lipophilic matrix components. Therefore, in
order to reduce the matrix load and thus extend the lifetime of the analytical column a
precolumn was used serving as a kind of “matrix trap”. Continuous cleaning of this precolumn
was achieved by operating the chromatographic system in a backflush mode (for details see
Materials and Methods as well as Supporting Information, Figure S1). In this way, lipophilic
matrix components are prevented from reaching the analytical column as they are first trapped
on the precolumn (configuration 1) and then flushed away by the inverted eluent flow
containing more than 76% MeCN (configuration 2). Altogether, the combination of quickly
preparing samples using the QuEChERS protocol and continuously preventing the protective
precolumn from matrix overcharging allowed for high-throughput sample analysis without
affecting the lifetime of the analytical column.
14
ACS Paragon Plus Environment

Page 15 of 28
Journal of Agricultural and Food Chemistry
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
Sample analysis using LC-FLD
Several chromatographic methods have been reported in the literature for the analysis of EQ
and some of its metabolites. Notably, GC-FID or GC-MS used to be the methods of choice
some decades ago,15–17,19 despite the drawback of a low temperature stability of EQ, quickly
degrading to DMEQ at temperatures applied in the injector or the column oven during GC
analysis.17 Today, LC-based methods can be considered state of the art.4,7,13,14,18 Moreover, the
dihydroquinoline moiety of EQ and EQDM as well as the quinoline in DMEQ make these
compounds excellent fluorophores allowing for selective and sensitive detection using a
fluorescence detector after LC separation (LC-FLD). The reported drawback that QI can hardly
be detected by LC-FLD as its quinone imine structure shows only weak fluorescence,4 however,
can easily be overcome by post-column reduction of QI to DEQ (Figure 1). We succeeded in
enhancing method sensitivity for QI detection by infusing 0.1% (w/v) aqueous ascorbic acid at
1/10 of the total flow prior to fluorescence detection.
The resulting LOD and LOQ of QI (detected as DEQ) were therefore of the same order
of magnitude as for the lead compound EQ (Table 1). Moreover, comparison of the obtained
LOD and LOQ values for EQ and EQDM demonstrated the suitability of the developed method
for the analysis of commercial fish samples. Lundebye et al. reported on levels of EQ in fillets
of different fish species ranging from 9.5 to 55 µg/kg and of EQDM either in the range
> 700 µg/kg or not detectable.7 The latter values of EQDM are in line with the findings of He
& Ackman, who found EQDM levels in fish meals and feeds at least four times higher than in
fillets.34 In contrast, no values have been reported in the literature for QI, mainly because levels
found were always lower than the respective LOQs.4
Analysis of a small set of fish fillets including wild salmon caught in the North-East
Pacific and salmon obtained from Norwegian aquaculture allowed distinction between these
two types of commercial fish using the developed LC-FLD method. Whereas wild salmon did
not show any additional peaks (Figure 3a), there were distinct peaks in salmon from
15
ACS Paragon Plus Environment

Journal of Agricultural and Food Chemistry
Page 16 of 28
364
365
366
367
368
369
370
371
372
373
374
375
376
377
aquaculture indicating the presence of EQ, EQDM and a further compound of unknown identity
(Figure 3b). Notably, a highly abundant but also unknown compound termed UMEQ
(unknown metabolite of EQ) has already been described in previous studies by Bohne et al.4–6
but it remains unclear, whether this compound is identical to the one observed in the present
study. Analysis of wild salmon spiked with EQ, MQ, EQDM, QI and DMEQ demonstrated the
suitability of the developed gradient for sufficient separation of all analytes and the internal
standard MQ (Figure 3c).
Unfortunately, recovery rates of QI remained low despite correction using the internal
standard MQ. Significant differences in polarity between the more lipophilic MQ, EQ, DMEQ
or EQDM and the much more polar QI containing a basic nitrogen in its quinone imine moiety
may explain this behavior. Actually, this difference in polarity is the key feature allowing for
efficient separation from EQDM by liquid-liquid extraction during synthesis (see above).
Application of stable-labeled isotopomers of EQ and its metabolites, especially QI, in course
of SIDA-LC-MS/MS was expected to solve this problem.
378
379
380
381
382
383
384
385
386
387
388
Sample analysis using SIDA-LC-MS/MS
Validation data obtained by SIDA-LC-MS/MS of EQ and its metabolites clearly showed the
advantages of this methodology compared to LC-FLD (Table 1). Both, LODs and LOQs of QI,
DMEQ and EQDM were significantly lower, especially for EQDM, where LOD and LOQ
accounted for only 1/10 of the levels obtained for LC-FLD. Results for EQ were slightly higher,
but still in comparable range and sufficiently low for analysis of commercial fish samples. Most
probably this observation results from EQ being thermally unstable leading to in-source
degradation to DMEQ during electrospray ionization.17 Evaluation of matrix effects on
ionization revealed a significant matrix influence, especially for the more lipophilic analytes
(QI: -9.9%, DMEQ: 6.1%, EQ: -13.9%, EQDM: -67.8%), which was successfully compensated
by combining a matrix-matched calibration with SIDA. Even more important, SIDA
16
ACS Paragon Plus Environment

Page 17 of 28
Journal of Agricultural and Food Chemistry
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404
significantly improved the recovery rate of QI, as the almost identical polar properties of QI
and its internal standard d10-QI provided an efficient correction for additional extraction losses
resulting in recoveries of > 78% compared to < 35% obtained by LC-FLD (Table 1). Moreover,
recovery rates reached almost 100% as the corresponding isotopomers of EQ, EQDM and
DMEQ were applied for SIDA (Table 1).
Concluding, the developed SIDA-LC-MS/MS method is simple, fast, rugged and highly
sensitive and exceeds existing methods for the quantification of EQ and its metabolites in fish
and fishery products. First-time synthesis of the deuterated isotopomers of EQ and its
metabolites did not only allow for SIDA but provided additional insight into the complex
mechanism of the Skraup-Doebner-von Miller quinoline synthesis. The accompanying LC-
FLD procedure proofed sufficiently selective and sensitive to serve as a reliable screening
method followed by SIDA-LC-MS/MS for confirmation if required. Analysis of an extensive
set of commercial samples will allow for monitoring current levels of EQ and its metabolites in
fish and fishery products. These data will support assessment of human exposure due to carry-
over and facilitate surveillance of the current ban of EQ use as an antioxidant in fish meal and
feed.
17
ACS Paragon Plus Environment

Journal of Agricultural and Food Chemistry
Page 18 of 28
406
407
408
Supporting Information
LC valve wiring diagram for backflush operation; proposed mechanisms for the formation of
deuterated EQ (PDF)
409
410
411
Acknowledgements
We gratefully thank J. Lang (Central Institute of the Bundeswehr Medical Service Munich) for
his excellent technical support.
18
ACS Paragon Plus Environment

Page 19 of 28
Journal of Agricultural and Food Chemistry
412
413
414
415
416
417
418
419
420
421
422
423
424
425
426
427
428
429
430
431
432
433
434
435
436
437
References
(1) Knoevenagel, E. Zur Kenntnis der Keton‐anile, I.: Darstellung aliphatischer
Keton‐anile und alkalische Spaltung von Keton‐anil‐Jodalkylaten. Ber. Dtsch. Chem.
Ges. 1921, 54 (8), 1722–1730. https://doi.org/10.1002/cber.19210540807.
(2) de Koning, A. J. The antioxidant ethoxyquin and its analogues: a review. Int. J. Food
Prop. 2002, 5 (2), 451–461. https://doi.org/10.1081/JFP-120005797.
(3) International Maritime Organization. Annex to Resolution MSC.406(96): Amendments
to the International Maritime Dangerous Goods Code (38-16). 2016.
(4) Bohne, V. J. B.; Hove, H.; Hamre, K. Simultaneous quantitative determination of the
synthetic antioxidant ethoxyquin and its major metabolite in Atlantic salmon (Salmo
salar, L), ethoxyquin dimer, by reversed-phase high-performance liquid
chromatography with fluorescence detection. J. AOAC Int. 2007, 90 (2), 587–597.
(5) Bohne, V. J. B.; Hamre, K.; Arukwe, A. Hepatic biotransformation and metabolite
profile during a 2-week depuration period in Atlantic salmon fed graded levels of the
synthetic antioxidant, ethoxyquin. Toxicol. Sci. 2006, 93 (1), 11–21.
https://doi.org/10.1093/toxsci/kfl044.
(6) Bohne, V. J. B.; Lundebye, A.-K.; Hamre, K. Accumulation and depuration of the
synthetic antioxidant ethoxyquin in the muscle of atlantic salmon (Salmo salar l.). Food
Chem. Toxicol. 2008, 46 (5), 1834–1843. https://doi.org/10.1016/j.fct.2008.01.028.
(7) Lundebye, A.-K.; Hove, H.; Måge, A.; Bohne, V. J. B.; Hamre, K. Levels of synthetic
antioxidants (ethoxyquin, butylated hydroxytoluene and butylated hydroxyanisole) in
fish feed and commercially farmed fish. Food Addit. Contam. A 2010, 27 (12), 1652–
1657. https://doi.org/10.1080/19440049.2010.508195.
(8) Negreira, N.; Regueiro, J.; Valdersnes, S.; Berntssen, M. H. G.; Ørnsrud, R.
Comprehensive characterization of ethoxyquin transformation products in fish feed by
traveling-wave ion mobility spectrometry coupled to quadrupole time-of-flight mass
19
ACS Paragon Plus Environment

Journal of Agricultural and Food Chemistry
Page 20 of 28
438
439
440
441
442
443
444
445
446
447
448
449
450
451
452
453
454
455
456
457
458
459
460
461
462
463
spectrometry. Anal. Chim. Acta 2017, 965, 72–82.
https://doi.org/10.1016/j.aca.2017.02.021.
(9) Merel, S.; Regueiro, J.; Berntssen, M. H. G.; Hannisdal, R.; Ørnsrud, R.; Negreira, N.
Identification of ethoxyquin and its transformation products in salmon after controlled
dietary exposure via fish feed. Food Chem. 2019, 289, 259–268.
https://doi.org/10.1016/j.foodchem.2019.03.054.
(10) EFSA Panel on Additives and Products or Substances used in Animal Feed. Scientific
opinion on the safety and efficacy of ethoxyquin (6-ethoxy-1,2-dihydro-2,2,4-
trimethylquinoline) for all animal species. EFSA J. 2015, 13 (11), 4272–4329.
https://doi.org/10.2903/j.efsa.2015.4272.
(11) Błaszczyk, A.; Augustyniak, A.; Skolimowski, J. Ethoxyquin: an antioxidant used in
animal feed. Int. J. Food Sci. 2013, 2013, 1–12. https://doi.org/10.1155/2013/585931.
(12) Commission Implementing Regulation (EU) 2017/962 of 7 June 2017 suspending the
authorisation of ethoxyquin as a feed additive for all animal species and categories. OJ
2017, L 145, 13–17.
(13) Aoki, Y.; Kotani, A.; Miyazawa, N.; Uchida, K.; Igarashi, Y.; Hirayama, N.;
Hakamata, H.; Kusu, F. Determination of ethoxyquin by high-performance liquid
chromatography with fluorescence detection and its application to the survey of
residues in food products of animal origin. J. AOAC Int. 2010, 93 (1), 277–283.
(14) He, P.; Ackman, R. G. Residues of ethoxyquin and ethoxyquin dimer in ocean-farmed
salmonids determined by high-pressure liquid chromatography. J. Food Sci. 2000, 65
(8), 1312–1314. https://doi.org/10.1111/j.1365-2621.2000.tb10603.x.
(15) Dahle, H. K.; Skaare, J. U. Gas chromatographic determination of ethoxyquin in feed
and food products. J. Agric. Food Chem. 1975, 23 (6), 1093–1095.
(16) Skaare, J. U.; Dahle, H. K. Gas chromatographic-mass spectrometric studies of
ethoxyquin in some organic solvents. J. Agric. Food Chem. 1975, 23 (6), 1091–1093.
20
ACS Paragon Plus Environment

Page 21 of 28
Journal of Agricultural and Food Chemistry
464
465
466
467
468
469
470
471
472
473
474
475
476
477
478
479
480
481
482
483
484
485
486
487
488
489
(17) de Koning, A. J.; van der Merwe, G. Determination of ethoxyquin and two of its
oxidation products in fish meal by gas chromatography. Analyst 1992, 117 (10), 1571–
1576. https://doi.org/10.1039/AN9921701571.
(18) Rodríguez-Gómez, R.; Vandeput, M.; Zafra-Gómez, A.; Kauffmann, J.-M. Liquid
chromatography-electrochemical detection for the determination of ethoxyquin and its
dimer in pear skin and salmon samples. Talanta 2018, 177, 157–162.
https://doi.org/10.1016/j.talanta.2017.08.078.
(19) Guo, L.; Xie, M.-Y.; Yan, A.-P.; Wan, Y.-Q.; Wu, Y.-M. Simultaneous determination
of five synthetic antioxidants in edible vegetable oil by GC-MS. Anal. Bioanal. Chem.
2006, 386 (6), 1881–1887. https://doi.org/10.1007/s00216-006-0738-1.
(20) Lehmann, W. D. A timeline of stable isotopes and mass spectrometry in the life
sciences. Mass Spectrom. Rev. 2017, 36 (1), 58–85. https://doi.org/10.1002/mas.21497.
(21) Ciccimaro, E.; Blair, I. A. Stable-isotope dilution LC–MS for quantitative biomarker
analysis. Bioanalysis 2010, 2 (2), 311–341. https://doi.org/10.4155/bio.09.185.
(22) Thorisson, S.; Gunstone, F. D.; Hardy, R. Some oxidation products of ethoxyquin
including those found in autoxidising systems. Chem. Phys. Lipids 1992, 60 (3), 263–
271.
(23) ISO 11843-2:2000. Capability of Detection - Part 2: Methodology in the Linear
Calibration Case.
(24) Zhou, W.; Yang, S.; Wang, P. G. Matrix effects and application of matrix effect factor.
Bioanalysis 2017, 9 (23), 1839–1844. https://doi.org/10.4155/bio-2017-0214.
(25) Elliott, Jr., I. W.; Yates, P. The structure of “acetone anil”, 2,2,4-trimethyl-1,2-
dihydroquinoline. J. Org. Chem. 1961, 26 (4), 1287–1289.
https://doi.org/10.1021/jo01063a602.
(26) Skraup, Z. H. Eine Synthese des Chinolins. Monatsh. Chem. Verw. Tl. 1880, 1 (1),
316–318. https://doi.org/10.1007/BF01517073.
21
ACS Paragon Plus Environment

Journal of Agricultural and Food Chemistry
Page 22 of 28
490
491
492
493
494
495
496
497
498
499
500
501
502
503
504
505
506
507
508
509
510
511
512
513
(27) Doebner, O.; von Miller, W. Über eine dem Chinolin homologe Base. Ber. Dtsch.
Chem. Ges. 1881, 14 (2), 2812–2817. https://doi.org/10.1002/cber.188101402258.
(28) de Koning, A. J.; Milkovitch, S. The synthesis of a number of ethoxyquin analogues
and their evaluation as antioxidants in fish oil. Fat Sci. Technol. 1991, 93 (10), 378–
382. https://doi.org/10.1002/lipi.19910931004.
(29) Tu, S.; Cui, Y.; Chen, X.; Ye, L.; Yin, Y. Method for producing ethoxyquin. People’s
Republic of China patent CN 105085392A, November 25, 2015.
(30) Forrest, T. P.; Dauphinee, G. A.; Miles, W. F. On the mechanism of the Doebner-Miller
reaction. Can. J. Chem. 1969, 47 (11), 2121–2122. https://doi.org/10.1139/v69-345.
(31) Denmark, S. E.; Venkatraman, S. On the mechanism of the Skraup-Doebner-von Miller
quinoline synthesis. J. Org. Chem. 2006, 71 (4), 1668–1676.
https://doi.org/10.1021/jo052410h.
(32) Skaare, J. U.; Henriksen, T. Free radical formation in the antioxidant ethoxyquin. J. Sci.
Food Agr. 1975, 26 (11), 1647–1654. https://doi.org/10.1002/jsfa.2740261105.
(33) He, P.; Ackman, R. G. Purification of ethoxyquin and its two oxidation products. J.
Agric. Food Chem. 2000, 48 (8), 3069–3071. https://doi.org/10.1021/jf991193g.
(34) He, P.; Ackman, R. G. HPLC determination of ethoxyquin and its major oxidation
products in fresh and stored fish meals and fish feeds. J. Sci. Food Agr. 2000, 80 (1),
10–16. https://doi.org/10.1002/(SICI)1097-0010(20000101)80:1<10::AID-
JSFA478>3.0.CO;2-T.
(35) Anastassiades, M.; Lehotay, S. J.; Stajnbaher, D.; Schenck, F. J. Fast and easy
multiresidue method employing acetonitrile extraction/partitioning and “dispersive
solid-phase extraction” for the determination of pesticide residues in produce. J. AOAC
Int. 2003, 86 (2), 412–431.
22
ACS Paragon Plus Environment

Page 23 of 28
Journal of Agricultural and Food Chemistry
514
515
516
(36) EU Reference Laboratory for Single Residue Methods (EURL-SRM), CVUA Stuttgart.
Analysis of ethoxyquin and its metabolites in fish using the QuEChERS method.
October 5, 2016.
23
ACS Paragon Plus Environment

Journal of Agricultural and Food Chemistry
Page 24 of 28
517
518
Figures
H
8
5
NH2
N
N
8a
4a
7
6
2
a
b
3
RO
RO
EtO
4
R = Et
EQ R = Et
DMEQ
R = Me
MQ R = Me
c
EtO
H
N
N
d
N
H
N
HO
O
EtO
DEQ
QI
EQDM
519
520
521
522
523
524
Figure 1
Synthesis of (deuterated) ethoxyquin and its (deuterated) metabolites. Reagents and conditions:
a) iodine, (d6-)acetone, toluene, 110 °C, 18 h; b) 180 °C, 1.5 h; c) (NH4)2Fe(SO4)2 (aq.), tert-
butyl hydroperoxide (70%, aq.), EtOH, 0 °C, 18 h; d) ascorbic acid (0.1%, aq.), rt. Carbons
marked with an ● are potential deuteration sites.
24
ACS Paragon Plus Environment

Page 25 of 28
Journal of Agricultural and Food Chemistry
525
526
527
528
529
530
531
532
533
534
535
Figure 2
Characterization of the reaction product obtained from the synthesis of deuterated EQDM (d-
EQDM). (a) Comparison of 1H NMR spectra of EQDM and d-EQDM reveals that deuteration
also occurs at position C-8. Apart from reduced intensity of the corresponding 8-H signal at δ
6.06 ppm the multiplicity of the signal at δ 6.49 ppm belonging to the adjacent 7-H is reduced
from a doublet of doublets to a simple doublet. (b) GC-MS analysis of both compounds
demonstrates that the reaction product obtained from the synthesis of d-EQDM does not only
consist of one isotopomer but represents a complex mixture of deuterated analogues including
d16- to even d20-EQDM. However, d18-EQDM is the main component as the corresponding
signal at m/z 450.5 in the mass spectrum shows the highest intensity.
25
ACS Paragon Plus Environment

Journal of Agricultural and Food Chemistry
Page 26 of 28
536
537
538
539
540
541
Figure 3
Analysis of commercial fish fillets using LC-FLD. Wild salmon (a) is clearly distinguishable
from breeding salmon (b) due to the absence of peaks at tR 10.7 min (EQ), tR 15.4 min (EQDM)
and a further peak at tR 14.8 min (unknown compound). The chromatogram in (c) was obtained
from wild salmon spiked with 80 µg/kg QI, DMEQ, EQ, EQDM and 100 µg/kg MQ.
26
ACS Paragon Plus Environment

Page 27 of 28
Journal of Agricultural and Food Chemistry
542
Tables
543
544
Table 1
Validation parameters obtained for both LC-FLD and SIDA-LC-MS/MS of EQ and its metabolites in wild salmon samples.
LC-FLDa
LOQ
SIDA-LC-MS/MSa
LOD
(µg/kg)
RR
(%)
P
(%)
LOD
(µg/kg)
LOQ
(µg/kg)
RR
(%)
P
(%)
R2
R2
(µg/kg)
QI
17.2
2.7
61.0
26.5 - 34.8
91.3 - 92.9
100.0 - 103.5
82.2 - 94.5
13.7
9.7
12.7
2.2
8.6
1.1
45.9
8.4
78.3 - 85.3
98.5 - 101.0
91.9 - 100.0
95.6 - 103.1
11.5
1.1
8.1
4.6
DMEQ
EQ
10.2
25.6
44.1
≥ 0.99
≥ 0.99
6.8
5.3
31.9
4.0
EQDM
12.2
14.4
545
a R2: coefficient of determination, LOD: limit of detection, LOQ: limit of quantification, RR: recovery range, P: intraday precision.
27
ACS Paragon Plus Environment

Journal of Agricultural and Food Chemistry
Page 28 of 28
546
Table of Contents Graphics
547
28
ACS Paragon Plus Environment
