T. Inasaki, S. Kobayashi / Electrochimica Acta 54 (2009) 4893–4897
4897
4. Conclusions
The particle size effects of gold catalysts on the oxygen reduc-
tion in acidic medium have been investigated. For this purpose,
we chemically prepared gold nanoparticles with narrow and con-
trolled size distributions and deposited onto a carbon support.

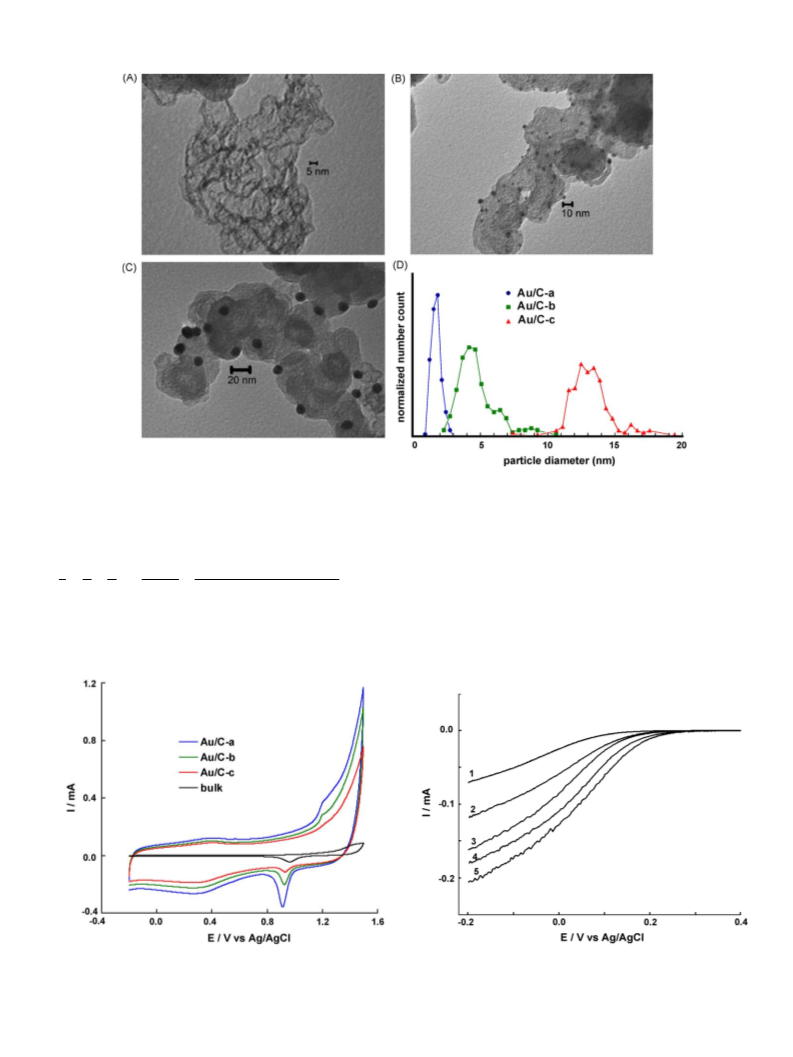

The gold particles with the mean diameter 1.7 0.5, 4.8 2 and
13.2 2 nm were synthesized. In the case of bulk gold, the value of
n is nearly constant at potential above −0.2 V. On the other hand, the
increase of n was observed for Au particles less than 10–15 nm as
the potential shifted to more negative value, indicating that activity
of the 2-step 4-electron reduction was high or the direct 4-electron
reduction of O2 to H2O occurred. The maximum increase of n was
observed when the particle size of Au was less than 3 nm.
Appendix A. Supplementary data

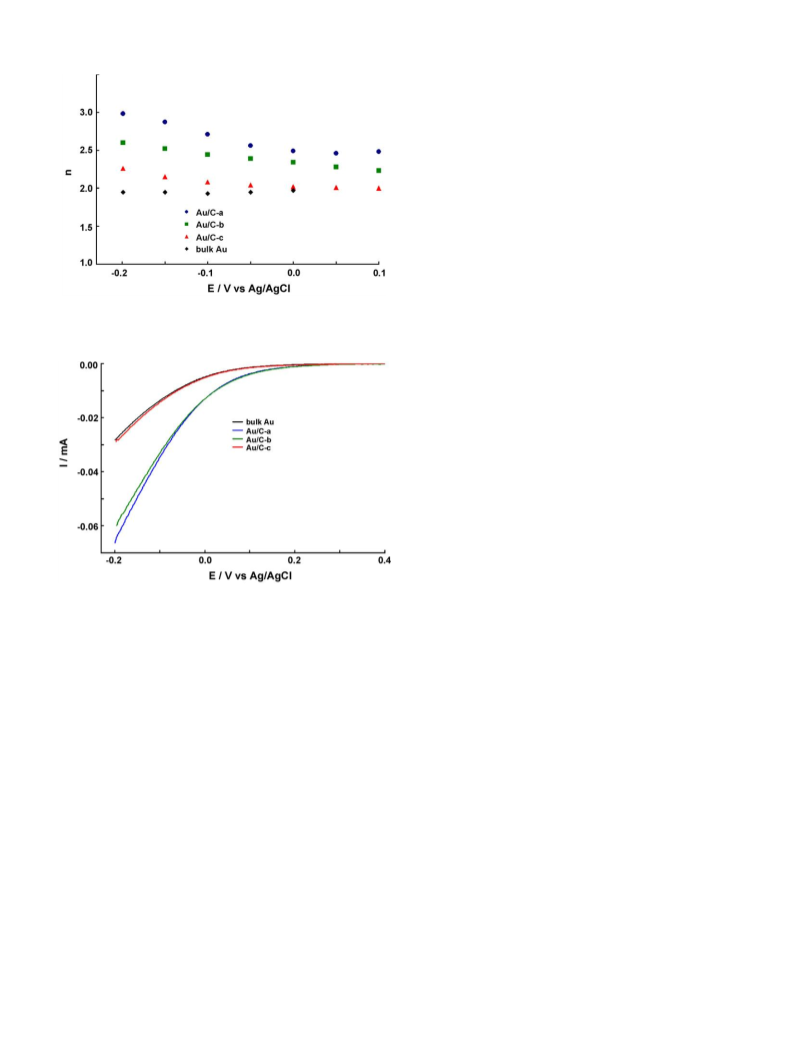

Fig. 8. Potential dependence of n for the Au/C-modified GC electrodes and bulk Au
electrode in 0.5 M H2SO4.
Supplementary data associated with this article can be found, in
References
[1] B. Hammer, J.K. Nørskov, Surf. Sci. 343 (1995) 211.
[2] B. Hammer, J.K. Nørskov, Nature 376 (1995) 238.
[3] J. Greeley, J.K. Nørskov, M. Mavrikakis, Annu. Rev. Phys. Chem. 53 (2002) 319.
[4] Z. Shi, J. Zhang, Z.-S. Liu, H. Wang, D.P. Wilkinson, Electrochim. Acta 51 (2006)
1905.
[5] G.C. Bond, Catal. Today 72 (2002) 5.
[6] R.J. Davis, Science 301 (2003) 926.
[7] M. Haruta, N. Yamada, T. Kobayashi, S. Iijima, J. Catal. 115 (1989) 301.
[8] T. Hayashi, K. Tanaka, M. Haruta, J. Catal. 178 (1998) 566.
[9] N. Dimitratos, J.A. Lopez-Sanchez, D. Morgan, A. Carley, L. Prati, G.J. Hutchings,
Catal. Today 122 (2007) 317.
[10] S. Kanaoka, N. Yagi, Y. Fukuyama, S. Aoshima, H. Tsunoyama, T. Tsukuda, H.
Sakurai, J. Am. Chem. Soc. 129 (2007) 12060.
[11] M.D. Hughes, Y.-J. Xu, P. Jenkins, P. McMorn, P. Landon, D.I. Enache, A.F. Carley,
G.A. Attard, G.J. Hutchings, F. King, E.H. Stitt, P. Johnston, K. Griffin, C.J. Kiely,
Nature 437 (2005) 1132.
[12] A.K. Sinha, S. Seelan, S. Tsubota, M. Haruta, Angew. Chem. Int. Ed. 43 (2004)
1546.
[13] U.A. Paulus, T.J. Schmidt, H.A. Gasteiger, R.J. Behm, J. Electroanal. Chem. 495
(2001) 134.
[14] B. Wang, J. Power Sources 152 (2005) 1.
[15] S.-Q. Liu, J.-Q. Xu, H.-R. Sun, D.-M. Li, Inorg. Chim. Acta 306 (2000) 87.
[16] R. Bashyam, P. Zelenay, Nature 443 (2006) 63.
[17] J. Ozaki, N. Kimura, T. Anahara, A. Oya, Carbon 45 (2007) 1847.
[18] M.S. El-Deab, T. Sotomura, T. Ohsaka, Electrochem. Commun. 7 (2005) 29.
[19] D. Jasin, Electrochim. Acta 52 (2007) 4581.
Fig. 9. RDE voltammograms for the H2O2 reduction in Ar-saturated 0.5 M H2SO4
solution with 5 mM H2O2 at (a–c) the Au/C-modified GC electrodes and (d) bulk Au
electrode at a rotation rate of 500 rpm. For the Au/C-modified electrodes, loading of
Au metal on a GC electrode was fixed at 0.45 g/electrode. ꢀ = 10 mV s−1
.
[20] M. Alvarez-Rizatti, K. Jüttner, J. Electroanal. Chem. 144 (1983) 351.
[21] S. Strbac, R.R. Adzˇic´, Electrochim. Acta 41 (1996) 2903.
as the potential becomes more negative, and reach to 2.3 (Au/C-c),
2.6 (Au/C-b) and 3.0 (Au/C-a) at −0.2 V. Previously higher n values
compared with bulk Au were reported for nano-sized Au particles
in acidic medium [22,23], and our results are in agreement with
those observations. Furthermore, our data provides more precise
information on the kinetics of the ORR on gold. For the case of
Au particles with diameters less than ca. 10–15 nm, the value of
n increases as the potential becomes more negative, and the high-
est value of n is obtained when the size of Au particles is less than
3 nm.
For further proof of higher reactivity on smaller Au particles, we
examined the activity of H2O2 reduction at each electrode. Fig. 9
shows the RDE voltammograms in an Ar-saturated 0.5 M H2SO4
solution with 5 mM H2O2 at bulk Au and different Au/C-modified
GC electrodes. In the case of Au/C-c, the reduction current was
slightly increased compared with bulk gold. In the cases of Au/C-b
and Au/C-a, though the onset potential of the ORR was nearly the
same as that of bulk gold, the reduction currents were 2–2.6 times
larger than that of bulk Au over the whole potential range. These
results show that the 2-step 4-electron reduction of O2 to H2O pro-
ceeds more favorably on Au particles with diameters less than ca.
10 nm.
ˇ
[22] M.S. El-Deab, T. Ohsaka, Electrochim. Acta 47 (2002) 4255.
[23] I. Yagi, T. Ishida, K. Uosaki, Electrochem. Commun. 6 (2004) 773.
[24] S. Guerin, B.E. Hayden, D. Pletcher, M.E. Rendall, J.-P. Suchsland, J. Comb. Chem.
8 (2006) 679.
[25] A. Sarapuu, M. Nurmik, H. Mändar, A. Rosental, T. Laaksonen, K. Kontturi, D.J.
Schiffrin, K. Tammeveski, J. Electroanal. Chem. 612 (2008) 78.
[26] H. Miyamura, R. Matsubara, Y. Miyazaki, S. Kobayashi, Angew. Chem. Int. Ed. 46
[27] C. Lucchesi, T. Inasaki, H. Miyamura, R. Matsubara, S. Kobayashi, Adv. Synth.
Catal. 350 (2008) 1996.
[28] G.H. Woehrle, M.G. Warner, J.E. Hutchison, J. Phys. Chem. B 106 (2002) 9979.
[29] M.K. Chow, C.F. Zukoski, J. Colloid Interface Sci. 165 (1994) 97.
[30] K.C. Grabar, K.J. Allison, B.E. Baker, R.M. Bright, K.R. Brown, G. Freeman, A.P. Fox,
C.D. Keating, M.D. Musick, M.J. Natan, Langmuir 12 (1996) 2353.
[31] J. Maruyama, M. Inaba, Z. Ogumi, J. Electroanal. Chem. 458 (1998) 175.
[32] N. Alexeyeva, T. Laaksonen, K. Kontturi, F. Mirkhalaf, D.J. Schiffrin, K. Tam-
meveski, Electrochem. Commun. 8 (2006) 1475.
[33] A. Sarapuu, K. Tammeveski, T.T. Tenno, V. Sammelselg, K. Kontturi, D.J. Schiffrin,
Electrochem. Commun. 3 (2001) 446.
[34] E. Higuchi, H. Uchida, M. Watanabe, J. Electroanal. Chem. 583 (2005) 69.
[35] H. Angerstein-Kozlowska, B.E. Conway, A. Hamelin, L. Stoicoviciu, J. Electroanal.
Chem. 228 (1987) 429.
[36] H.S. Wroblowa, Y.C. Pan, G. Razumney, J. Electroanal. Chem. 69 (1976) 195.
[37] J.C. Huang, R.K. Sen, E.B. Yeager, J. Electrochem. Soc. 126 (1979) 786.
[38] A. Damjanovic, M.A. Genshaw, J.O’M. Bockris, J. Chem. Phys. 45 (1966) 4057.
[39] M. Huang, Y. Shen, W. Cheng, Y. Shao, X. Sun, B. Liu, S. Dong, Anal. Chim. Acta
535 (2005) 15.
