A novel two-dimensional nickel phthalocyanine-based metal-organic framework for highly efficient water oxidation catalysis

Article abstract of DOI:10.1039/c7ta07978h

Large π-conjugated conductive two-dimensional (2D) metal-organic frameworks (MOFs) via the bottom-up approach have recently emerged as novel and interesting 2D materials. For the first time, herein we demonstrate the design and successful bottom-up fabric

Full text of DOI:10.1039/c7ta07978h

View Article Online
View Journal
Journal of
Materials Chemistry A
Accepted Manuscript
This article can be cited before page numbers have been issued, to do this please use: H. Jia, Y. Yao, J.
Zhao, Y. Gao, Z. Luo and P. Du, J. Mater. Chem. A, 2017, DOI: 10.1039/C7TA07978H.
This is an Accepted Manuscript, which has been through the
Volume
4 Number 1 7 January 2016 Pages 1–330
Royal Society of Chemistry peer review process and has been
accepted for publication.
Journal of
Materials Chemistry A
Accepted Manuscripts are published online shortly after
Materials for energy and sustainability
www.rsc.org/MaterialsA
acceptance, before technical editing, formatting and proof reading.
Using this free service, authors can make their results available
to the community, in citable form, before we publish the edited
article. We will replace this Accepted Manuscript with the edited
and formatted Advance Article as soon as it is available.
You can find more information about Accepted Manuscripts in the
author guidelines.
Please note that technical editing may introduce minor changes
to the text and/or graphics, which may alter content. The journal’s
standard Terms & Conditions and the ethical guidelines, outlined
in our author and reviewer resource centre, still apply. In no
event shall the Royal Society of Chemistry be held responsible
for any errors or omissions in this Accepted Manuscript or any
consequences arising from the use of any information it contains.
ISSN 2050-7488
PAPER
Kun Chang, Zhaorong Chang et al.
Bubble-template-assisted synthesis of hollow fullerene-like
MoS2 nanocages as a lithium ion battery anode material
rsc.li/materials-a

Page 1 of 23
Journal of Materials Chemistry A
View Article Online
DOI: 10.1039/C7TA07978H
Novel Two-Dimensional Nickel Phthalocyanine-Based Metal-
Organic Framework for Highly Efficient Water Oxidation
Catalysis
Hongxing Jia,a Yuchuan Yao,a Jiangtao Zhao, b Yuyue Gao, a Zhenlin Luo, b Pingwu Du* a
a Hefei National Laboratory for Physical Sciences at Microscale, CAS Key Laboratory of
Materials for Energy Conversion, Department of Materials Science and Engineering, iChEM
(Collaborative Innovation Center of Chemistry for Energy Materials), University of Science
and Technology of China (USTC), 96 Jinzhai Road, Hefei, Anhui Province, 230026, P. R.
China.
b National Synchrotron Radiation Laboratory, University of Science and Technology of China
(USTC), 96 Jinzhai Road, Hefei, Anhui Province, 230026, P.R.China.
*E-mail: dupingwu@ustc.edu.cn
1

Journal of Materials Chemistry A
Page 2 of 23
View Article Online
Abstract. Large π-conjugated conductive two-dimensional (2D) metal-organic DfOraI:m10.e10w39o/rCk7TsA07978H
(MOFs) via bottom-up approach have recently emerged as a novel and interesting 2D material.
For the first time, herein we demonstrate the design and successful bottom-up fabrication of a
novel noble-metal-free nickel phthalocyanine-based 2D MOF (NiPc-MOF) for highly
efficient water oxidation catalysis. This NiPc-MOF can be easily grown on various substrates.
The thin film deposited on FTO showed high catalytic oxygen evolution reaction (OER)
activity with a very low onset potential (< 1.48 V, overpotential < 0.25 V), high mass activity
(883.3 A g-1), and excellent catalytic durability. To the best of our knowledge, this present 2D
MOF film catalyst represents the best OER catalytic activity among molecular catalyst-based
materials reported so far. This work represents the first synthesis of nickel phthalocyanine-
based 2D MOF material and the application of π-conjugated 2D MOF for water oxidation.
Keywords: Molecular catalyst; Water oxidation; Oxygen evolution reaction; Noble-metal-
free catalyst; Two-dimensional materials
2

Page 3 of 23
Journal of Materials Chemistry A
View Article Online
DOI: 10.1039/C7TA07978H
1. Introduction
Owing to their unique physical and chemical properties, two-dimensional (2D) materials have
attracted much attention in the past decade, including research on graphene,1, 2 graphdiyne,3
metal chalcogenides,4, 5 metal oxides,6 and metal hydroxides.7 These materials have been
investigated for many applications in sensors,8 photonics,9 catalysis,10 and optoelectronics.9
So far, most 2D materials have been synthesized through various top-down exfoliation
strategies from bulk-layered crystalline materials.4 However, the harsh conditions in the top-
down approach could make the exfoliation processes difficult and expensive. In addition, the
properties of 2D nanosheets are limited by their bulk precursors and it is difficult to produce
2D materials with high structural or functional tunability using the top-down method.
On the other hand, the bottom-up synthetic approach can precisely control the
topological molecular architecture and has emerged as a desirable method to prepare 2D
molecular materials.11, 12 Using this method, a variety of organic building blocks can be
assembled into organic 2D materials under mild reaction conditions. Typical examples
14
include covalent organic frameworks (COFs)13,
and 2D metal-organic frameworks
15, 16
(MOFs).12,
COFs/MOFs are organic/coordination porous materials with extended
skeletons, which show promising capacity for electrocatalysis because of their high specific
surface areas and tunable porous structures.17 However, due to their poor conductive/electric
properties, very few COFs and MOFs can be directly used as highly active electrocatalysts.18,
19
Pyrolysis of these COFs and MOFs materials or incorporating them onto carbon materials
are the most commonly used methods to enhance their conductivity,20 which may introduce
complicated processes or sizable damage to their original chemical structures as well as
chemical properties. In recent years, significant progress has been made in the development of
π-conjugated 2D MOFs with high intrinsic electrical conductivity, some of which have been
utilized as catalysts for hydrogen evolution reaction (HER)15 and oxygen reduction reaction
3

Journal of Materials Chemistry A
Page 4 of 23
21
View Article Online
(ORR). To date, most reported π-conjugated 2D MOFs are fabricated from onlyDbOeI:n1z0.e10n3e9/-Co7TrA07978H
23
triphenylene-based fragments,22,
and no π-conjugated 2D MOFs material has been
investigated to catalyze oxygen evolution reaction (OER).
In this present study, we report the first synthesis of a novel nickel phthalocyanine-based
2D MOF (NiPc-MOF) with a formula of [Ni3(C32H16N16)]n. In the literature, no π-conjugated
2D MOFs material using phthalocyanine building block has been previously reported. The
NiPc motif acts not only as the connecting unit but also as an electrocatalytically active site
for catalysis. Besides the synthesis and physical characterization of the NiPc-MOF, we further
explored its outstanding performance toward OER.
2. Results and discussion

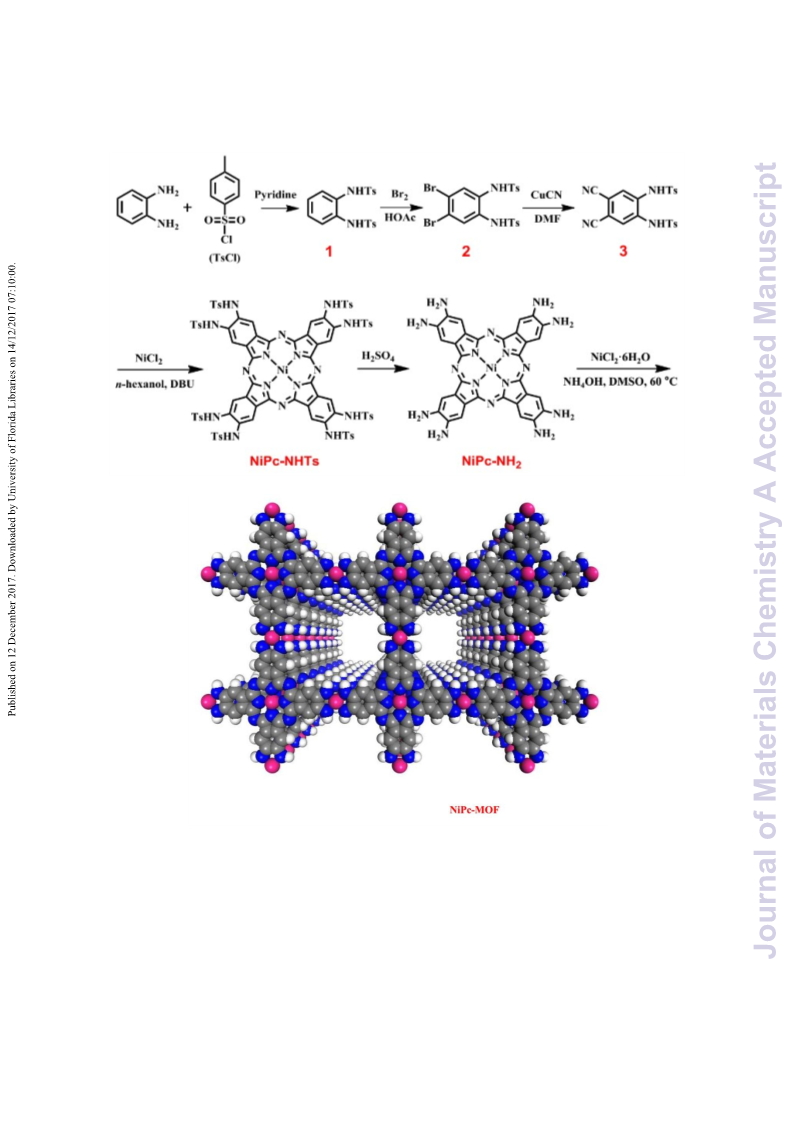

2.1 Synthesis and characterization of NiPc-MOF. Figure 1 shows the synthesis and
chemical structure of the NiPc-MOF material. The building block 2,3,9,10,16,17,23,24-octa-
amino-phthalocyaninato nickel(II) (NiPc-NH2) was prepared following a modified
procedure24 and confirmed by 1H NMR spectroscopy (Figure S1), mass spectrometry (Figure
S2), UV-vis absorption feature (experimental methods), and elemental analysis. The as-
prepared NiPc-NH2 was then reacted with nickel(II) salt (NiCl2·6H2O) in DMSO in the
presence of ammonia at 60 °C for 12 hours. Subsequently, the NiPc-NH2 monomers were
connected with each other via the Ni(isq)2 linker (bis(o-diiminobenzosemiquinonate)
nickel(II), which is known for its neutral, planar, diradical structure). Finally, a huge π-
conjugated 2D MOF with four-fold symmetry was formed, yielding a bulk black powder.
Interestingly, the NiPc-MOF material can also be grown on a variety of supports, such as
fluorine-doped tin oxide (FTO), indium tin oxide (ITO), quartz glass, and silicon wafer,
resulting in a blue-black thin film under such reaction conditions.

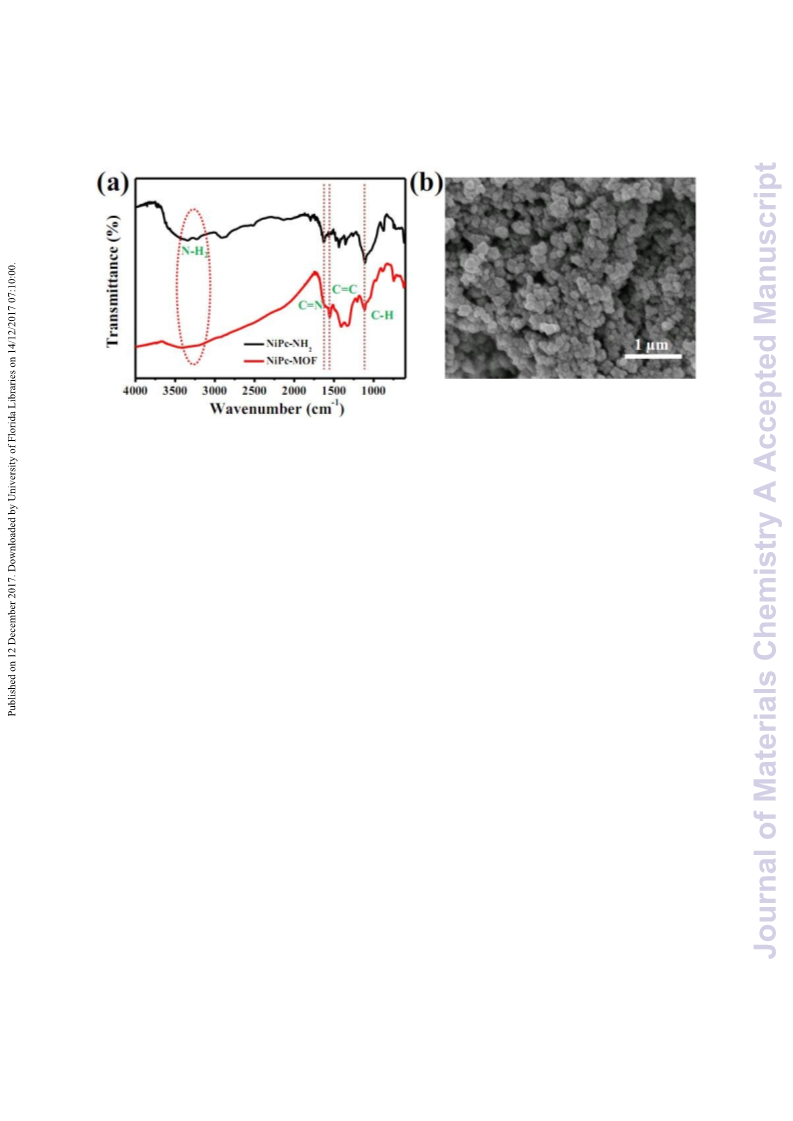

To confirm the successful preparation of NiPc-MOF, the FT-IR spectra of NiPc-MOF
and NiPc-NH2 monomer were measured and the results are shown in Figure 2a. Both spectra
4

Page 5 of 23
Journal of Materials Chemistry A
-1
show similar signals at ∼1112 cm-1 (C-H bending mode),25 ∼1552 cm (C=C stretching
View Article Online
DOI: 10.1039/C7TA07978H
mode),25 and ∼1630 cm-1 (C=N stretching mode),24 indicating that the basic building block in
NiPc-MOF is similar to NiPc-NH2. However, in contrast to NiPc-NH2, the absence of the N-H
signals (located at ~3343 cm-1 and ~3235 cm-1)24 in NiPc-MOF suggests complete
coordination between NiPc-NH2 and nickel(II) salt to form Ni(isq)2 unit. In addition, the
chemical compositions of NiPc-MOF were further examined by XPS. The survey scan
indicates the presence of only C, N, Ni, and O elements (Figure S3a). In the Ni 2p spectrum
(Figure S3b), two sets of peaks located at 854.6 eV (Ni 2p3/2) and 871.9 eV (Ni 2p1/2) were
observed, revealing that a single type of Ni was found in NiPc-MOF. As for the N 1s
spectrum (Figure S3c), deconvolution of N 1s signals generates two peaks with binding
+
energies of 398.8 eV (N-M) and 399.9 eV (N=C).26 Therefore, no residual Cl-, Ni2+, or NH4
ions, which are the only possible extraneous charge-balancing counterions, were detected by
XPS, confirming the charge neutrality of the present NiPc-MOF material.
The morphology of bulk NiPc-MOF was probed using scanning electron microscopy
(SEM) (Figure 2b) and transmission electron microscopy (TEM) (Figure S4). The images
show homogeneous nanospheres that clumped together. Energy-dispersive X-ray (EDX) data
(Figure S5) further indicate the presence of C, N, and Ni. Nitrogen adsorption measurements
for bulk NiPc-MOF were performed at 77 K (Figure S6), showing a high surface area (~593
m2 g-1) by the Brunauer-Emmett-Teller (BET) method.

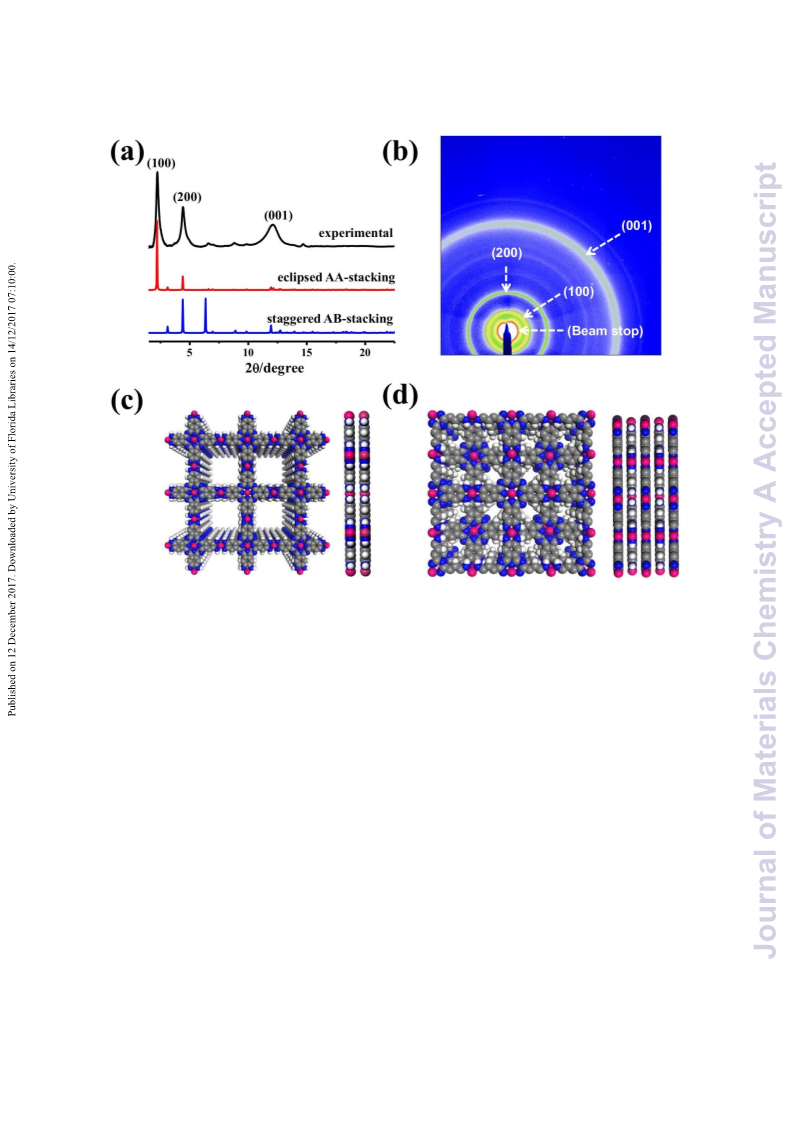

2.2 Crystalline structure. Powder X-ray diffraction (XRD) pattern of bulk NiPc-MOF was
further measured. The result clearly demonstrates its periodic structure with intense reflection
peaks at ~2.2 ° and ~4.4 °, which can be assigned to the (100) and (200) facets, respectively
(Figure 3a-3b). These peaks indicate that the NiPc-MOF exhibits excellent long-range order
within the ab planes. In addition, a weaker and broader peak at ~12.1 ° (corresponding to the
(001) facet) can also be observed in the XRD data, suggesting relatively poor long-range
stacking along the c direction, which has been observed in other layered materials.15
5

Journal of Materials Chemistry A
Page 6 of 23
View Article Online
Computer simulations of crystal structures using two different stacking arrangements for
DOI: 10.1039/C7TA07978H
NiPc-MOF material are shown in Figure 3c-3d. The eclipsed AA-stacking mode with
P4/mmm space group gave an XRD pattern that agrees well with the experimental result,
whereas the staggered AB-stacking mode with I4/mmm space group failed to simulate the
experimental XRD peaks. As a result, the NiPc-MOF is constructed in an eclipsed AA-
stacking structure with P4/mmm space group; the unit cell parameters are a = b = 17.9 Å and c
= 3.3 Å.
2.3. Electrical conductivity. In order to test the electrical properties of NiPc-MOF, thin films

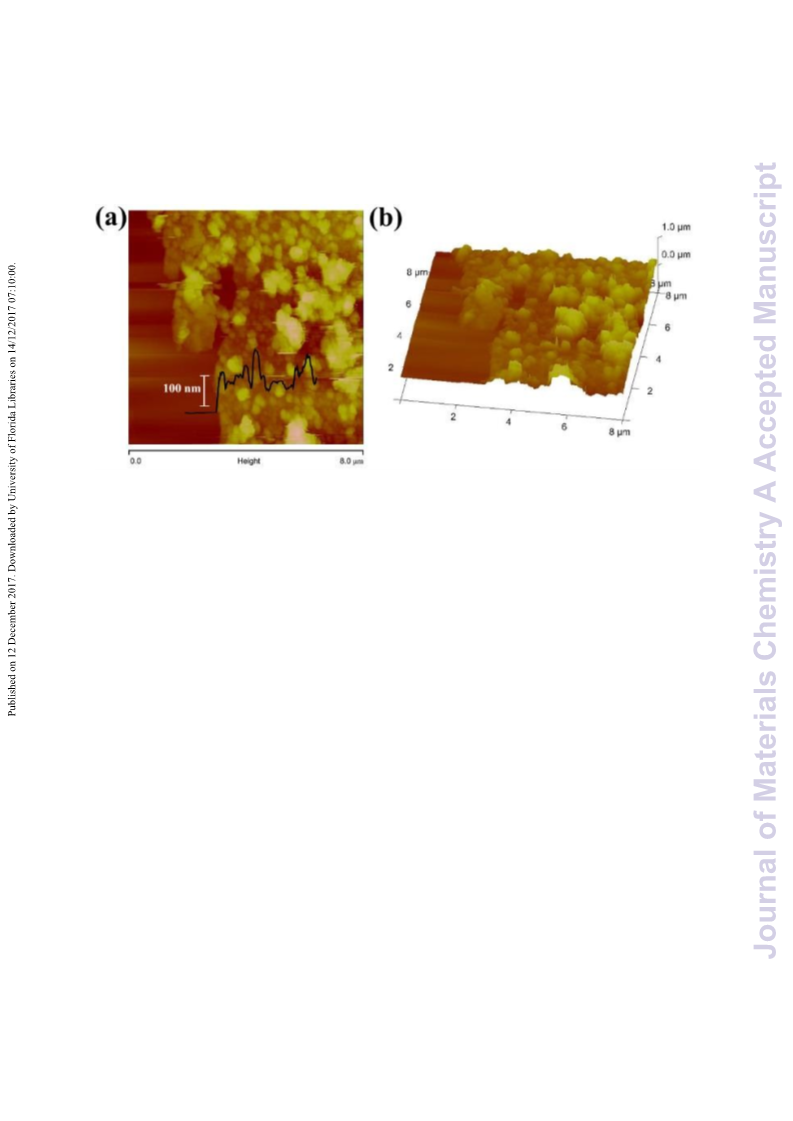

were grown on a quartz substrate. The scanning probe microscopy (SPM) images of NiPc-
MOF film (Figure 4a-4b) show layered structure with a quite rough surface, and the cross-
sectional analysis reveals a thickness ranging from 100 nm to 200 nm. The electrical
conductivities of NiPc-MOF films on quartz were further examined using a typical four-probe
method, revealing a high electrical conductivity of ~0.2 S cm-1 at room temperature (RT)
(Figure S7), which is higher than most conductive 3D MOFs to date,27, 28 and also comparable
to some other reported 2D MOFs, such as nickel bis(dithiolene) nanosheet (two-electrode
configuration, 298 K),12 HTT-Pt network (two-probe configuration at RT),29 and Cu3(HITP)2
(two-point-probe at RT).30 In addition, based on the Arrhenius plot of the conductivity for
NiPc-MOF (Figure S7b), the activation energy of NiPc-MOF was calculated to be 0.11 meV,
which is quite small for a coordination polymer.
2.4. Characterization of NiPc-MOF film on FTO. Based on its high specific surface area,
well-defined porous structure, and good conductivity, we proposed that the present NiPc-
MOF material could be an excellent electrocatalyst for water oxidation catalysis. To examine

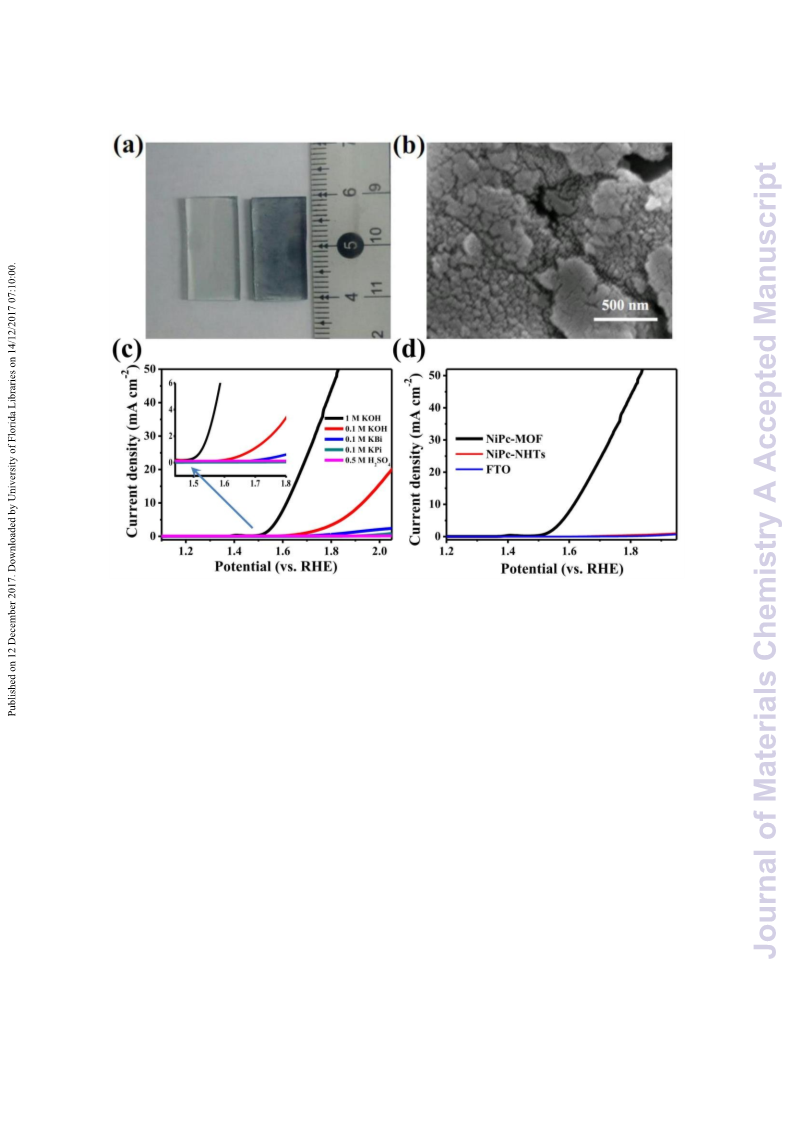

the OER activity, NiPc-MOF was facilely grown on FTO substrate to give a blue-black thin
film (Figure 5a). High coverage of the NiPc-MOF material can be clearly observed from the
SEM image (Figure 5b) and the thickness of NiPc-MOF film on FTO was ~300 nm judged
from the SPM image (Figure S8). To explore the structure of NiPc-MOF film on FTO, we
6

Page 7 of 23
Journal of Materials Chemistry A
View Article Online
scratched the film from the plate and measured the XRD data (Figure S9). The result clearly
DOI: 10.1039/C7TA07978H
showed that the NiPc-MOF film and the NiPc-MOF powder have nearly the same XRD
patterns. The catalyst loading on FTO was estimated to be ~7.6 μg cm-2 based on the ICP-
AES results (Table S1). Electrochemical impedance spectroscopy (EIS) studies further
confirm the fast ions transport dring the OER process in 1.0 M KOH (Figure S10).
2.5. OER activity of NiPc-MOF catalyst. Linear sweep voltammetry (LSV) was performed
to evaluate the catalytic activity in a typical three - electrode system. The pH-dependent
results revealed that the OER activity of NiPc-MOF increases with the pH values (Figure 5c).
A plot of the potentials versus pH values at a fixed current (1.0 mA cm-2) showed an almost
linear relationship from pH = 7 to pH = 13.6 with a slope of -131 mV/pH unit (Figure S11).
This suggests that a e--2H+ couple may be operative in our system.31 In 1.0 M KOH, NiPc-
MOF exhibited excellent activity with a sharp onset catalytic current at ~1.48 V,
corresponding to a low overpotential of only 0.25 V. This onset potential of NiPc-MOF is
much lower than most reported molecular OER catalysts made of noble-metal-free elements
(Table S2).32, 33 Moreover, the present NiPc-MOF catalyst even outperforms many noble
metal-based OER catalysts in terms of the onset potential for OER (Table S2).34, 35 In sharp
contrast, the OER catalytic currents of the monomer NiPc-NHTs and blank FTO only start at
1.65 V and 1.80 V, respectively, which are much more positive than that of NiPc-MOF
(Figure 5d). Impressively, NiPc-MOF showed a quite high mass activity (883.3 A g-1) for
OER under an overpotential of 350 mV in 1.0 M KOH, which is nearly 30-fold higher than
that of RuO2 catalyst reported in the literature.36 To further estimate the intrinsic activity of
NiPc-MOF, the turnover frequency (TOF) was calculated, giving a high value of 2.5 s-1.
Actually, this value is underestimated because all the nickel atoms in NiPc-MOF are assumed
to be the electrochemical active sites. But even under this pessimistic assumption, the TOF
value is still much higher than most reported metal-organic molecular systems (Table S2),19, 32
7

Journal of Materials Chemistry A
Page 8 of 23
as well as many advanced inorganic materials36, 37 under similar conditions. TDhOeIs: 1e0.1r0e3s9u/Cl7tTsA07978H
suggest that the present NiPc-MOF is an excellent and efficient catalyst for OER.
View Article Online

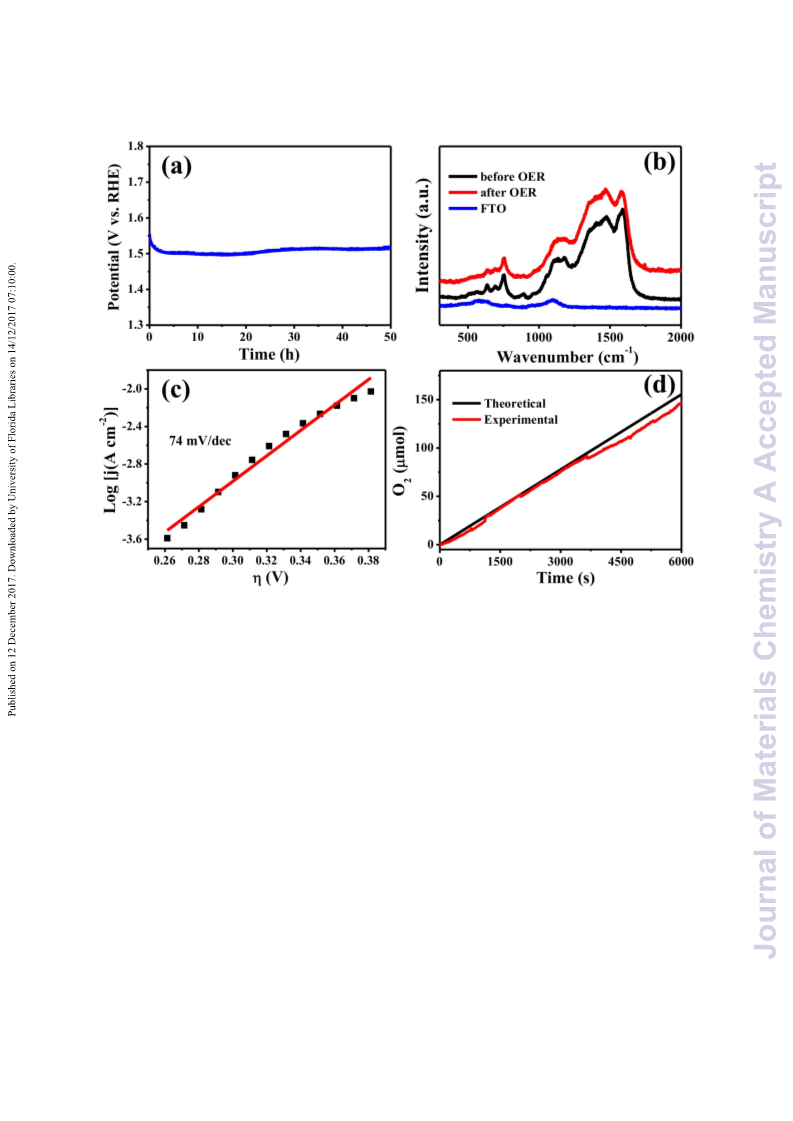

Besides the outstanding OER activity, the catalytic durability of NiPc-MOF was also
examined in 1.0 M KOH. Long-term chronopotentiometry experimentation on NiPc-MOF
was performed under a moderate current density of 1.0 mA cm-2 (Figure 6a). The result
shows that the catalytic potential decreased slightly at the beginning and then kept almost
constant at ∼1.50 V for quite a long time (50 hours). The required overpotential (270 mV) is
in good agreement with the LSV curves. After long-term chronopotentiometry testing, no
color change could be observed in the electrolyte solution. A featureless UV-vis curve (Figure
S11) was obtained, indicating that there was no leaching of soluble NiPc materials during
electrolysis. In addition, the SEM image (Figure S12) and Raman spectrum (Figure 6b) of
NiPc-MOF were further measured. The results indicate that the morphology and structure in
NiPc-MOF have no significant change before and after electrochemical measurements. As for
the XPS data, Ni 2p spectrum of NiPc-MOF shows a slight increase of ~0.5 eV in binding
energy after OER catalysis (Figure S13), which could be attributed to Ni-O interactions in
NiPc-MOF during OER, resulting in minor structural rearrangement. This observation has
been also reported in other studies.21 The minor structural rearrangement is consistent with the
slight decrease of overpotential at the beginning of electrocatalysis for OER, indicating that
minor structural rearrangement might be important to produce the key reaction intermediates
for OER and thereafter help the enhancement of OER activity.
2.6. OER kinetics and Faradaic efficiency. To gain further insight into the OER kinetics of
NiPc-MOF, Tafel analysis of electrocatalytic OER was conducted based on the corresponding
LSV curve (Figure 6c). The NiPc-MOF exhibits a Tafel slope of 74 mV per decade in 1.0 M
KOH, which is much smaller than that of many previous reported molecular OER catalysts,
such as CoHβFCX-CO2H (120 mV per decade, pH 7),32 Ru(bpa)(pic)2 derivative-MWCNTs
(160 mV per decade, pH 7),35 and Pb-TCPP catalyst (106.2 mV per dacade, pH 14),19
8

Page 9 of 23
Journal of Materials Chemistry A
View Article Online
indicating its efficient electrocatalytic kinetics of OER. The oxygen evolution waDsOcI:o10n.1f0i3r9m/Ce7dTA07978H
by a fluorescence-based oxygen sensor during electrocatalysis under a current density of 10
mA cm-2 in 1.0 M KOH. The amount of oxygen was measured to be consistent with the
expected value (assuming that all the charge was attributed to 4e- oxidation of H2O), giving a
high Faradaic efficiency of > 94% in 6000 seconds (Figure 6d).
3. Conclusions
In conclusion, an electrocatalytically active nickel phthalocyanine-based 2D metal-
organic framework via bottom-up approach was facilely synthesized and characterized. This
present study is the first on the nickel phthalocyanine unit as a key organic fragment to
construct π-conjugated 2D NiPc-MOF via bottom-up approach. The NiPc-MOF thin film on
FTO can be used as a highly active electrocatalyst for water oxidation catalysis without
further pyrolysis or adding conductive materials. A series of electrochemical experiments
demonstrate its outstanding OER performance under alkaline conditions, including quite low
onset potential (1.48 V), high mass activity (883.3 A g-1), and high TOF value (2.5 s-1). In
addition, the OER catalysis using NiPc-MOF shows good durability. The excellent OER
performance of the present NiPc-MOF catalyst suggests the important roles of its 2D structure
and good conductivity. The present study broadens the applications of π-conjugated
conductive 2D MOFs materials, which may facilitate the development of this class of
materials for energy applications.
4. Experimental section
Materials. o-phenylenediamine (C6H8N2, 99%), tosyl chloride (C7H7ClO2S, 99%),
hydrochloric acid (HCl, 36~38%), bromine (Br2, 99.5%), cuprous cyanide (CuCN, 99%),
ammonia solution (NH3, 25~28%), nickel(II) chloride (NiCl2, 98%), 1,8-
diazabicyclo[5,4,0]undec-7-ene (C9H16N2, DBU, 98%), sulfuric acid (H2SO4, 98%), sodium
9

Journal of Materials Chemistry A
Page 10 of 23
View Article Online
hydroxide (NaOH, 96%), nickel (II) chloride hexahydrate (NiCl2·6H2O, 98%), potassium
DOI: 10.1039/C7TA07978H
hydroxide (KOH, 85%), dipotassium hydrogen phosphate trihydrate (K2HPO4·3H2O, 99%),
potassium dihydrogen phosphate (KH2PO4, 99.5%), and boric acid (H3BO3, 99.99%) were
purchased from commercial suppliers (Alfa Aesar or Sigma Aldrich) and used without further
purification. All organic solvents (pyridine, EtOH, AcOH, DMF, n-hexanol, CH2Cl2, and
DMSO) were obtained from China Medicine Shanghai Chemical Reagent Co and directly
used as received unless otherwise noted. All the electrolytic solutions in this contribution
were freshly prepared with Millipore water (~18.0 MΩ·cm resistivity at room temperature).
Synthesis of N,N′-ditosyl-o-phenylenediamine (1), 4,5-Dibromo-N,N′-ditosyl-o-
phenylenediamine (2), and 4,5-Dicyano-N,N′-ditosyl-o-phenylenediamine (3). 1, 2, and 3
were prepared according to the published procedures. 38-39
Synthesis of 2,3,9,10,16,17,23,24-octa-tosylamido phthalocyaninato nickel(II) (NiPc-
NHTs). Following a modified procedure,38 to a suspension of 3 (933 mg, 2.0 mmol) and
anhydrous NiCl2 (259 mg, 2.0 mmol) in n-hexanol (3 mL) was added DBU (0.5 mL). The
solution was heated to 160 °C under argon for 36 hours. Upon cooling to room temperature,
the solvent was removed under vacuum and the resulting product was redissolved in a mixture
of 5 mL acetic acid and 25 mL CH2Cl2. The organic extract was washed thoroughly with
water, dried over anhydrous MgSO4, and then evaporated to dryness. The dark green product
was purified by chromatography on a silica gel column with CH2Cl2/MeOH (50:1) as eluent.
Yield 0.33 g (34%). 1H NMR (CDCl3, 400 MHz): δ (ppm) 8.90 (s, 4H), 8.74 (s, 4H), 8.13 (s,
4H), 8.08 (d, 8H), 7.97 (s, 4H), 7.84 (d, 8H), 7.17 (d, 8H), 6.77 (d, 8H), 2.98 (s, 12H), 2.20 (s,
12H); UV-vis (CH2Cl2) λmax (nm) 345, 637, 672.
Synthesis of 2,3,9,10,16,17,23,24-octa-amino-phthalocyaninato nickel(II) (NiPc-NH2).
The as-prepared NiPc-NHTs (100 mg, 52.0 μmol) was added into a mixture of 3 mL
concentrated H2SO4 and 0.4 mL deionized water. Then the mixture was heated to 110 °C for
about 1 hour. After cooling to room temperature, the reaction mixture was poured into ice-
10

Page 11 of 23
Journal of Materials Chemistry A
View Article Online
water (20 mL). The green precipitate was collected by filtration and the solid was washed
DOI: 10.1039/C7TA07978H
thoroughly with deionized water (20 mL×3), 10% NaOH (20 mL×3), deionized water (20
mL×3), and EtOH (20 mL×3) sequentially, giving NiPc-NH2 as a pure black powder (30 mg,
1
84%). H NMR (DMSO-d6, 400 MHz): δ (ppm) 8.33 (s, 8H), 5.66 (s, 16H) (Supplementary
Fig. 1); MALDI-TOF MS m/z = 690.1310 (M+), calcd. for C32H24N16Ni+: 690.1723
(Supplementary Fig. 2); UV-vis (DMSO) λmax (nm) 324, 505, 716; Anal. calcd. for NiPc-
NH2·2H2O (%): C, 52.84; H, 3.88; N, 30.81. Found: C, 52.53; H, 4.01; N, 31.15.
Synthesis of NiPc-MOF. In a typical experiment, NiPc-NH2 (30 mg, 43.4 μmol) and
NiCl2·6H2O (21 mg, 88.4 μmol) were dissolved in 40 mL DMSO. The solution was heated to
60 °C, followed by addition of 1.0 mL concentrated aqueous ammonia in one portion.
Thereafter, the resulting dark red mixture was gently stirred at this temperature for 12 hours
under air. After cooling to room temperature, the resulting black powder was collected by
filtration and the solid was washed thoroughly by hot DMSO (20 mL×3), deionized water (20
mL×3), MeOH (20 mL×3), and acetone (20 mL×3) sequentially, giving NiPc-MOF as a pure
black powder (32 mg, 92%). To fabricate NiPc-MOF film on a supporting substrate, a quartz
plate or a FTO glass plate was placed upside-up in the reaction vessel under these conditions.
Then, the NiPc-MOF material can be facilely grown on the substrate, appearing as a blue-
black thin film.
1
Characterization. H NMR spectra were recorded on a Bruker AV400 instrument operating
at 400 MHz. High-resolution MALDI-TOF mass spectra were measured on a Bruker
Daltonics Inc. LTQ Orbitrap XL hybrid Fourier Transform High-resolution Mass
Spectrometer. UV-vis spectra were collected on a UNIC-3802 spectrophotometer in standard
glass cuvettes. Elemental analysis (EA) test of NiPc-NH2 was performed on a VarioELIII
elemental analyzer. Fourier transformed infrared (FT-IR) spectroscopy measurements were
carried out on a Thermo Fisher Scientific instrument (Nicolet iS10). X-ray photoelectron
spectroscopy (XPS) data were obtained on a Thermo ESCALAB 250 X-ray photoelectron
11

Journal of Materials Chemistry A
Page 12 of 23
View Article Online
spectroscopy instrument using Al Kα source (15 kV, 150 W). Scanning electronDmOIi:c10r.o10s3c9o/Cp7yTA07978H
(SEM) and scanning probe microscopy (SPM) images were taken with SIRION200 Schottky
field emission scanning electron microscope and DI Innova scanning probe microscopy,
respectively. Transmission electron microscopy (TEM) images were collected via a Model
JEM-2011 electron microscope at an acceleration voltage of 200 kV integrated with energy-
dispersive X-ray (EDX) to perform chemical analysis. Nitrogen adsorption and desorption
measurements were performed on Quantachrome instrument (ASIQM0000-5) and the
Brunauer-Emmett-Teller (BET) method was applied to calculate the specific surface areas.
Powder X-ray diffraction (XRD) experiments for NiPc-MOF powder were implemented from
4 ° to 50 ° at the BL14B station of Shanghai Synchrotron Radiation Facility (λ = 0.68889 Å).
The used X-ray photon energy is 18 keV and the diffraction patterns were recorded by a two-
dimension detector (MARCCD, 3072×3072 pixels) using transmission geometry. The crystal
structure analysis of NiPc-MOF film on FTO was measured by X-ray diffraction (XRD,
D/max-TTR III) via graphite monochromatized Cu Kα radiation of 1.5406 Å, operated at 40
kV and 200 mA. The scanning rate was 5° min-1 from 3° to 40°. The electrical properties were
recorded with a four-probe set-up in a Physical Property Measurement Systems (PPMS-9,
Quantum Design Inc.). Elemental analyses of Ni was conducted on an Optima 7300 DV
Inductively Coupled Plasma-Atomic Emission Spectrometry (ICP-AES).
XRD simulations. Two structural models of NiPc-MOF were constructed in the space groups
of P4/mmm (eclipsed AA-stacking mode) and I4/mmm (staggered AB-stacking mode) using the
Materials Studio software package. To simplify the simulations, the cell parameters of a, b,
and c were determined based on the experimental XRD peaks. Considering the eclipsed AA-
stacking mode with the space group of P4/mmm, the experimental XRD peaks could be
reproduced when the values of a, b, and c were set as a = b = 17.9 Å and c = 3.3 Å, while the
staggered AB-stacking mode with I4/mmm space group failed to reproduce the experimental
XRD data.
12

Page 13 of 23
Journal of Materials Chemistry A
View Article Online
Electrical property measurement. Electrical conductivity data for NiPc-DMOIO: 10F.103w9/eC7rTeA07978H
collected by a four-electrode set-up in a Physical Property Measurement Systems (PPMS-9,
Quantum Design Inc.). NiPc-MOF film was fabricated on a quartz plate and then four parallel
copper wires were fixed on the film using conductive silver adhesives. During the electrical
conductivity test, the current was fixed at a constant value. The voltage drop between two
inside electrodes can be recorded with the temperature change from 100 K to 400 K.
Electrochemistry. All the electrochemical experiments were conducted at room temperature
on an electrochemical workstation (CHI760E, Shanghai Chen Hua Instrument Co., Ltd.) in a
standard three-electrode system. The NiPc-MOF modified FTO glass was utilized as the
working electrode, an Ag/AgCl electrode (3 M KCl, corrected before each experiment) as the
reference electrode and a platinum wire as the counter electrode. All potentials in this
contribution are quoted with respect to the reversible hydrogen electrode (RHE) based on the
following equation:
ERHE  Eappl  EAg/AgCl  0.059 pH
iR compensation was applied in all the electrochemical measurements (80% for linear sweep
voltammetry (LSV) tests). The mass activity is calculated by the following equation:
J  S
m
mass activity

where J is the measured current density and m represents the catalyst loading amount. The
turnover frequency (TOF) value is estimated according to the following equation:
J  S
4F ncat
TOF 
where J is the measured current density, S is the area of the FTO electrode, F is the Faraday
constant (96485 C/mol), and ncat is the moles of Ni sites on the working electrode.
Supporting Information
13

Journal of Materials Chemistry A
Page 14 of 23
View Article Online
DOI: 10.1039/C7TA07978H
Supporting Information is available from the Online: http://pubs.rsc.org.
Acknowledgement
This work was financially supported by the National Key Research and Development
Program of China (2017YFA0402800), the National Natural Science Foundation of China
(21473170, 51772285), the Fundamental Research Funds for the Central Universities
(WK3430000001).
References
1.
2.
3.
4.
K. S. Novoselov, A. K. Geim, S. V. Morozov, D. Jiang, M. I. Katsnelson, I. V.
Grigorieva, S. V. Dubonos and A. A. Firsov, Nature, 2005, 438, 197-200.
K. S. Novoselov, A. K. Geim, S. V. Morozov, D. Jiang, Y. Zhang, S. V. Dubonos, I. V.
Grigorieva and A. A. Firsov, Science, 2004, 306, 666-669.
G. X. Li, Y. L. Li, H. B. Liu, Y. B. Guo, Y. J. Li and D. B. Zhu, Chem. Commun.,
2010, 46, 3256-3258.
M. Chhowalla, H. S. Shin, G. Eda, L. J. Li, K. P. Loh and H. Zhang, Nat. Chem., 2013,
5, 263-275.
5.
6.
S. L. Li, K. Tsukagoshi, E. Orgiu and P. Samori, Chem. Soc. Rev., 2016, 45, 118-151.
N. Sakai, Y. Ebina, K. Takada and T. Sasaki, J. Am. Chem. Soc., 2004, 126, 5851-
5858.
7.
8.
D. P. Yan, J. Lu, M. Wei, J. B. Han, J. Ma, F. Li, D. G. Evans and X. Duan, Angew.
Chem. Int. Ed., 2009, 48, 3073-3076.
J. Yan, M. H. Kim, J. A. Elle, A. B. Sushkov, G. S. Jenkins, H. M. Milchberg, M. S.
Fuhrer and H. D. Drew, Nat. Nanotechnol., 2012, 7, 472-478.
F. Bonaccorso, Z. Sun, T. Hasan and A. C. Ferrari, Nat. Photonics, 2010, 4, 611-622.
M. Jahan, Q. L. Bao and K. P. Loh, J. Am. Chem. Soc., 2012, 134, 6707-6713.
X. Huang, P. Sheng, Z. Y. Tu, F. J. Zhang, J. H. Wang, H. Geng, Y. Zou, C. A. Di, Y.
P. Yi, Y. M. Sun, W. Xu and D. B. Zhu, Nat. Commun., 2015, 6, 8408.
9.
10.
11.
14

Page 15 of 23
Journal of Materials Chemistry A
View Article Online
12.
T. Kambe, R. Sakamoto, K. Hoshiko, K. Takada, M. Miyachi, J. H. Ryu, S. Sasaki, J.
DOI: 10.1039/C7TA07978H
Kim, K. Nakazato, M. Takata and H. Nishihara, J. Am. Chem. Soc., 2013, 135, 2462-
2465.
13.
14.
15.
16.
A. P. Cote, A. I. Benin, N. W. Ockwig, M. O'Keeffe, A. J. Matzger and O. M. Yaghi,
Science, 2005, 310, 1166-1170.
J. W. Colson, A. R. Woll, A. Mukherjee, M. P. Levendorf, E. L. Spitler, V. B. Shields,
M. G. Spencer, J. Park and W. R. Dichtel, Science, 2011, 332, 228-231.
A. J. Clough, J. W. Yoo, M. H. Mecklenburg and S. C. Marinescu, J. Am. Chem. Soc.,
2015, 137, 118-121.
R. Makiura, S. Motoyama, Y. Umemura, H. Yamanaka, O. Sakata and H. Kitagawa,
Nat. Mater., 2010, 9, 565-571.
17.
18.
X. Feng, X. S. Ding and D. L. Jiang, Chem. Soc. Rev., 2012, 41, 6010-6022.
H. B. Aiyappa, J. Thote, D. B. Shinde, R. Banerjee and S. Kurungot, Chem. Mater.,
2016, 28, 4375-4379.
19. F. N. Dai, W. D. Fan, J. H. Bi, P. Jiang, D. D. Liu, X. R. Zhang, H. Lin, C. F. Gong, R.
M. Wang, L. L. Zhang and D. F. Sun, Dalton. Trans., 2016, 45, 61-65.
20.
21.
L. Yang, M. G. Gao, B. Dai, X. H. Guo, Z. Y. Liu and B. H. Peng, Electrochim. Acta,
2016, 191, 813-820.
E. M. Miner, T. Fukushima, D. Sheberla, L. Sun, Y. Surendranath and M. Dincă, Nat.
Commun., 2016, 7, 10942.
22.
23.
H. Maeda, R. Sakamoto and H. Nishihara, Langmuir, 2016, 32, 2527-2538.
L. Sun, M. G. Campbell and M. Dincă, Angew. Chem. Int. Ed., 2016, 55, 3566-3579.
24. F. Yuksel, S. Tuncel and V. Ahsen, J. Porphyrins Phthalocyanines, 2008, 12, 123-130.
25. M. Samanta, U. K. Ghorai, B. Das, P. Howli, S. Das, D. Sen and K. K. Chattopadhyay,
RSC Adv., 2016, 6, 42739-42744.
26.
D. Sheberla, L. Sun, M. A. Blood-Forsythe, S. Er, C. R. Wade, C. K. Brozek, A.
Aspuru-Guzik and M. Dincă, J. Am. Chem. Soc., 2014, 136, 8859-8862.
Y. Kobayashi, B. Jacobs, M. D. Allendorf and J. R. Long, Chem. Mater., 2010, 22,
4120-4122.
27.
28. A. A. Talin, A. Centrone, A. C. Ford, M. E. Foster, V. Stavila, P. Haney, R. A. Kinney,
V. Szalai, F. El Gabaly, H. P. Yoon, F. Leonard and M. D. Allendorf, Science, 2014,
343, 66-69.
29.
J. S. Cui and Z. T. Xu, Chem. Commun., 2014, 50, 3986-3988.
15

Journal of Materials Chemistry A
Page 16 of 23
View Article Online
30.
31.
32.
M. G. Campbell, D. Sheberla, S. F. Liu, T. M. Swager and M. Dincă, AngeDwO.I:C10h.10e3m9/.C7TA07978H
Int. Ed., 2015, 54, 4349-4352.
C. M. Che, J. Y. K. Cheng, K. K. Cheung and K. Y. Wong, J. Chem. Soc. Dalton,
1997, 2347-2350.
D. K. Dogutan, R. McGuire and D. G. Nocera, J. Am. Chem. Soc., 2011, 133, 9178-
9180.
33.
34.
H. X. Jia, Z. J. Sun, D. C. Jiang and P. W. Du, Chem. Mater., 2015, 27, 4586-4593.
J. J. Concepcion, J. W. Jurss, P. G. Hoertz and T. J. Meyer, Angew. Chem. Int. Ed.,
2009, 48, 9473-9476.
35.
36.
F. Li, B. B. Zhang, X. N. Li, Y. Jiang, L. Chen, Y. Q. Li and L. C. Sun, Angew. Chem.
Int. Ed., 2011, 50, 12276-12279.
M. R. Gao, W. C. Sheng, Z. B. Zhuang, Q. R. Fang, S. Gu, J. Jiang and Y. S. Yan, J.
Am. Chem. Soc., 2014, 136, 7077-7084.
37. M. Gong, Y. G. Li, H. L. Wang, Y. Y. Liang, J. Z. Wu, J. G. Zhou, J. Wang, T. Regier,
F. Wei and H. J. Dai, J. Am. Chem. Soc., 2013, 135, 8452-8455.
38.
39.
F. Yuksel, A. G. Gurek, C. Lebrun, V. Ahsen, New J. Chem. 2005, 29, 726-732.
J. J. Shao, J. J. Chang, C. Y. Chi, Org. Biomol. Chem. 2012, 10, 7045-7052.
16

Page 17 of 23
Journal of Materials Chemistry A
View Article Online
DOI: 10.1039/C7TA07978H
Figures:
Figure 1. Chemical synthesis procedure of NiPc-MOF and its chemical structure.
17

Journal of Materials Chemistry A
Page 18 of 23
View Article Online
DOI: 10.1039/C7TA07978H
Figure 2. (a) FT-IR spectra of NiPc-MOF (red) and the NiPc-NH2 monomers (black). (b)
SEM image of bulk NiPc-MOF.
18

Page 19 of 23
Journal of Materials Chemistry A
View Article Online
DOI: 10.1039/C7TA07978H
Figure 3. (a) Experimental XRD pattern (black) compared with simulated patterns (red and
blue) using two different stacking arrangements for NiPc-MOF. (b) 2D synchrotron XRD
pattern. (c) Eclipsed AA-stacking mode. (d) Staggered AB-stacking mode.
19

Journal of Materials Chemistry A
Page 20 of 23
View Article Online
DOI: 10.1039/C7TA07978H
Figure 4. SPM height profile (black line) and corresponding morphology image of a typical
NiPc-MOF film on quartz substrate. (b) 3D SPM image of the representative NiPc-MOF film.
20

Page 21 of 23
Journal of Materials Chemistry A
View Article Online
DOI: 10.1039/C7TA07978H
Figure 5. (a) Photograph of blank FTO (left) and NiPc-MOF modified FTO (right). (b) Top-
down SEM image of NiPc-MOF film on FTO substrate. (c) pH-dependent LSV curves using
NiPc-MOF as the OER catalyst. (d) LSV curves using NiPc-MOF, NiPc-NHTs monomers,
and blank FTO as catalysts for OER. The scan rate was 10 mV/s.
21

Journal of Materials Chemistry A
Page 22 of 23
View Article Online
DOI: 10.1039/C7TA07978H
Figure 6. (a) Chronopotentiometry data for water oxidation under a fixed catalytic current
density of 1.0 mA cm-2. (b) Raman spectra of blank FTO (blue), freshly-prepared NiPc-MOF
(black), and NiPc-MOF after long-term (> 5 hours) OER chronopotentiometry (red). (c) Tafel
plot of NiPc-MOF. (d) Experimental oxygen production matched well with the theoretical
value. The bulk electrolysis was performed under a fixed current density of 10 mA cm-2.
22

Page 23 of 23
Journal of Materials Chemistry A
View Article Online
DOI: 10.1039/C7TA07978H
TOC Figure
