H. Ouyang, W. Li and Y. Long
Electrochimica Acta 369 (2021) 137682
Generally, defect states existed in the forbidden zone can act
as traps or recombination centers for charge carriers, consequently
influencing the electronic conductivity and chemical reactivity of a
semiconductor. These characteristics play key roles in the electro-
chemical process. Hetero-atom doping is the most popular method
to artificially create defects in the crystals and further improve the
sensing properties of the modified electrodes [23–25]. Both the
theoretical calculations and experimental results suggested that
carbon-doping can reduce the bandgap of h-BN and accordingly
modify their physicochemical performances [26–29]. Considering
the electrocatalytic activity of the h-BN towards DA [30, 31], it is
expected that carbon-doped h-BN is the more promising electrode
material for electrochemical sensor.

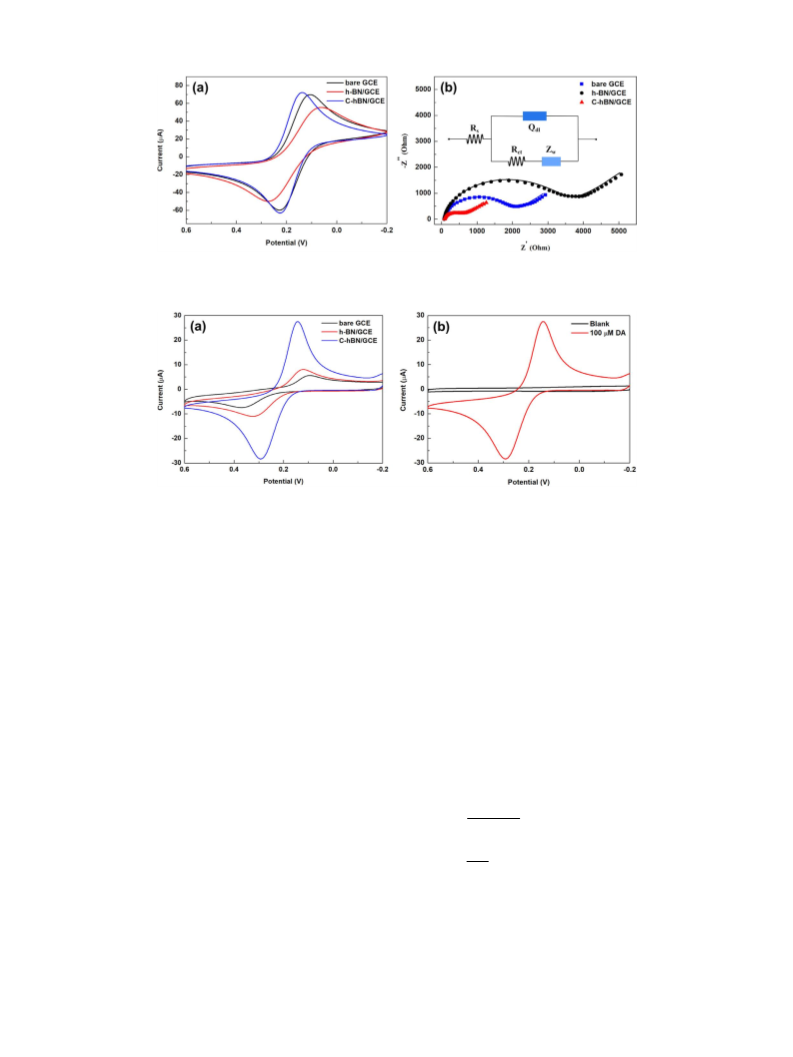

Electrochemical measurements, including CV and EIS were con-
ducted on a CHI 660D workstation (Chenhua Instruments Co.,
Shanghai, China). A three-electrode setup was adopted for all the
measurements, which is composed of a GCE (working electrode),
a Pt wire (counter electrode) and a saturated calomel electrode
(SCE, reference electrode). DA determination was monitored by CV
method in phosphate buffer solution. The scanning potential range
was from −0.2 to 0.6 V. EIS was collected using [Fe(CN)6]3-/4−
(1 mM) as prober in KCl solution (0.1 M).
2.4. Fabrication of C-hBN/GCE
Before modification, a GCE (5 mm in diameter) was pretreated
using alumina slurry (50 nm) to obtain a mirror surface. Then, the
electrode was ultrasonically rinsed with water and ethanol, and
dried with nitrogen. 2.0 mg of C-hBN powder was dispersed into
2 mL deionized water under ultrasonic irradiation to form a ho-
mogeneous suspension. After that, 10 μL of C-hBN suspension was
pipetted onto the surface of the cleaned GCE and dried naturally
at room temperature. The modified electrode was named as C-
hBN/GCE. In the same way, h-BN/GCE was also constructed.
In this work, a novel electrochemical sensor was developed for
DA detection based on C-hBN. The doping of carbon in h-BN was
characterized by FTIR, PL and XPS. C-hBN was employed to modify
GCE without need of any binders and its electrochemical detec-

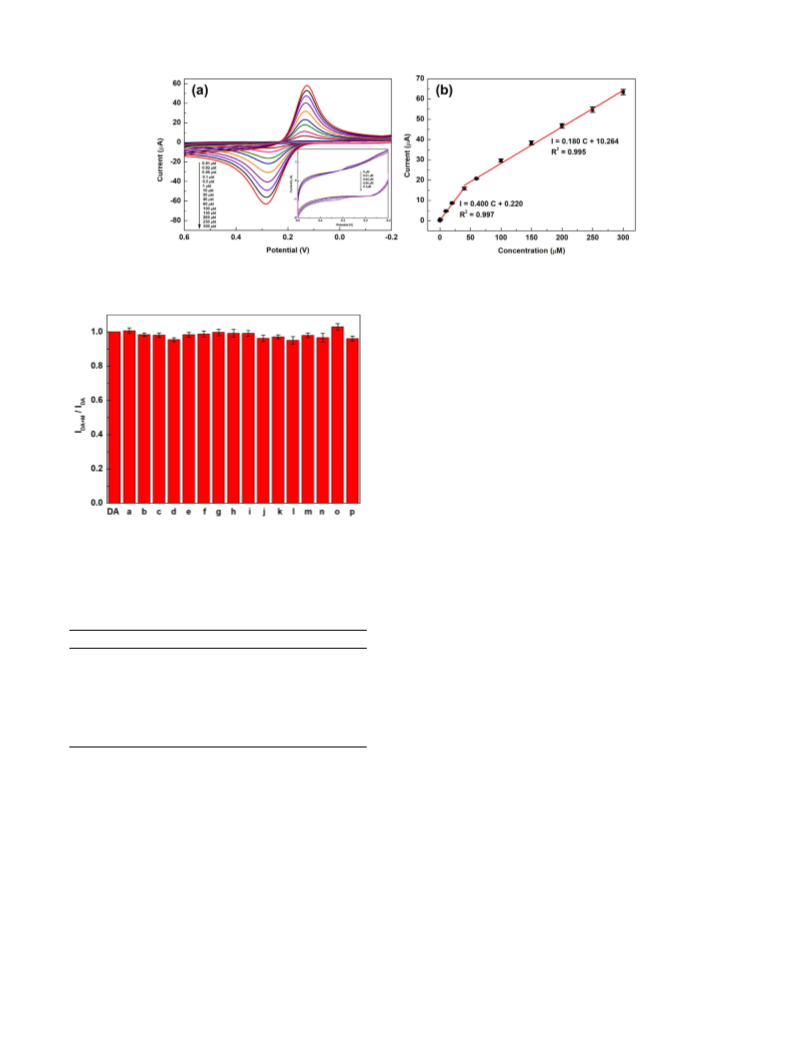

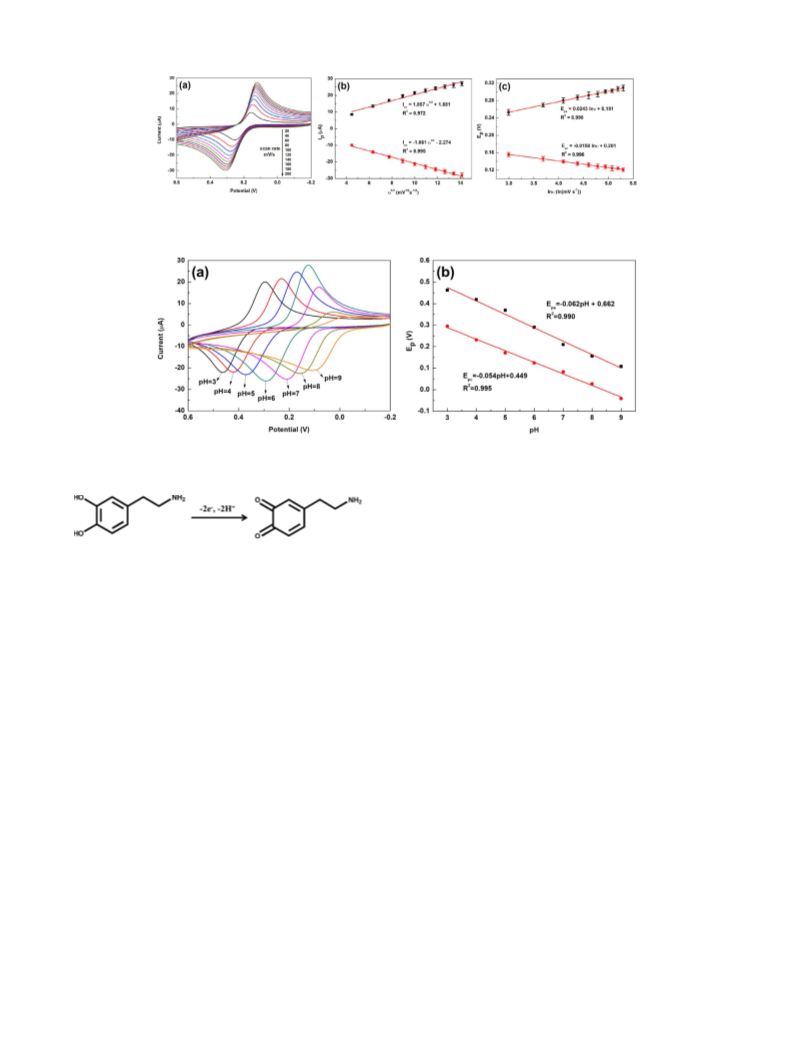

tion of DA was systematically investigated. The carbon-doping will
create reactive sites and facilitate electron transfer, which can en-
hance the electrocatalytic activity of h-BN towards DA. Finally, the
method was applied for DA detection in biological samples.
3. Results and discussion
2. Experimental
3.1. Characterization of samples
2.1. Chemicals

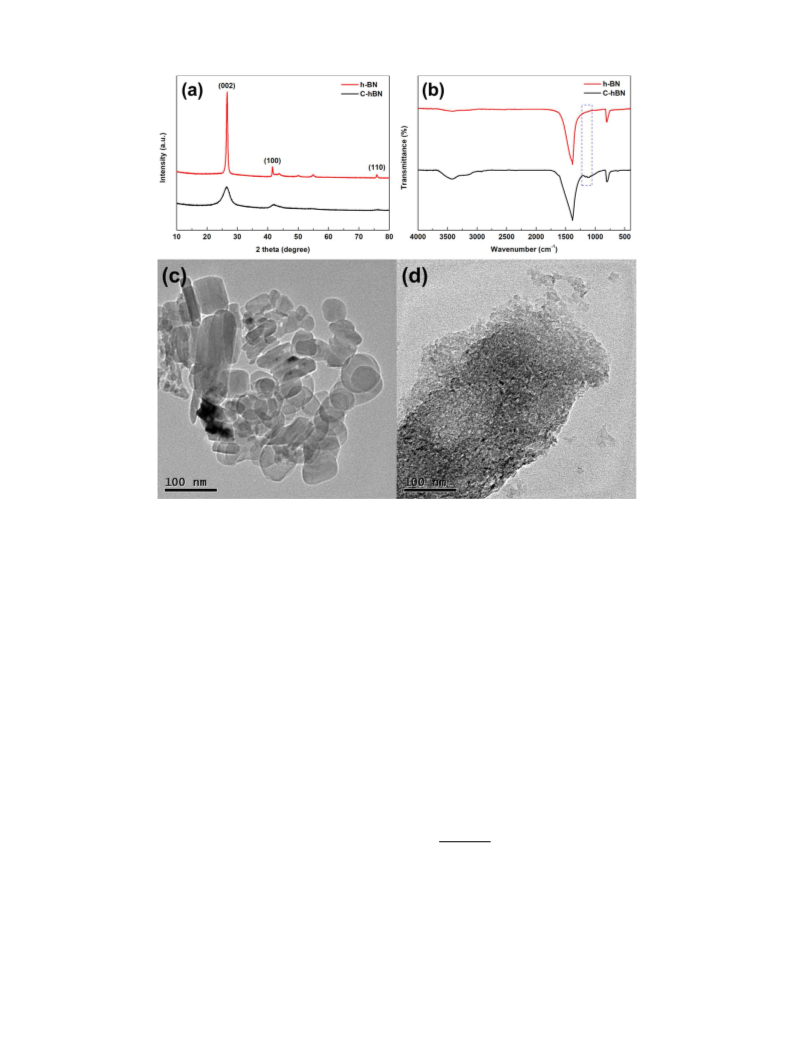

Fig. 1a shows XRD patterns of samples. There are four diffrac-
tion peaks in the XRD patterns for both the samples. The peaks
at 26.1°, 42.1°, 54.0° and 76.5° are indexed to (002), (100), (004)
and (110) crystal facets, respectively for hexagonal boron nitrogen
(JCPDS No. 34–0421) [33]. No additional peak can be discerned,
suggesting the high purity of the product. Compared with pure h-
BN, all the diffraction peaks of the C-hBN become weak and broad,
indicating the low crystallinity caused by carbon-doping. Fig. 1b
presents the FTIR spectra of the samples. The formation of BN was
evidenced by the appearance of absorption bands at 1384 cm−1
and 798 cm−1, which correspond to the stretching vibration of B-
N and bending vibration of B-N-B, respectively [34]. Two IR signals
Melamine (C3H6N6), boric acid, pure h-BN nanoparticles was
bought from Aladdin. Polyethylene glycol (PEG, Kw
=
2000),
sodium dihydrogen phosphate, disodium phosphate, potassium
ferrocyanide/ferricyanide and potassium chloride were purchased
from Sinopharm Chemical Reagent Shanghai Co., Ltd. DA, uric acid
(UA), ascorbic acid (AA) and human serum were obtained from
Sangon Biotech Co. Ltd. (Shanghai, China). All the chemicals were
analytical grade and all solutions were prepared using double dis-
tilled water.
2.2. Synthesis of carbon-doped h-BN
at 3431 and 3265 cm−1 are ascribed to O H and N H stretching
vibrations [35]. Different from pure h-BN, several additional ab-
sorption peaks appeared in the range of 1050–1200 cm−1 for the
–
–
Carbon-doped h-BN was synthesized using melamine borate as
precursor modified from the previous literature [32], in which PEG
was employed as carbon source. Typically, 3 g of melamine and
1 g of H3BO3 were dissolved into 200 mL hot water (85 °C) to get a
clear solution. The solution was further stirred for 1 h and then 1 g
of PEG was added. After the water was removed by rotary evap-
oration, the white solid powder was collected, dried, and ground
to obtain a precursor. The precursor was pressed into plate and
heated at 1050 °C for 3 h in nitrogen atmosphere. The obtained
powder was washed with HNO3 (0.2 M) in hot water and dried
at 80 °C overnight. The resulting yellow sample was named as C-
hBN. As comparison, pure h-BN nanoparticles were bought from
Aladdin.
–
C-hBN. These peaks are related to C-B and C N bonds [36, 37], re-
vealing the successful doping of carbon atoms into h-BN.
Fig. 1c and d present TEM images of pure and carbon-doped h-
BN. Pure h-BN shows typical layer structure with lateral dimension
of 30–200 nm (Fig. 1c). These nano-sheets have smooth surface.
For C-hBN, the sample is composed of sub-micrometer blocks with
flat surface and they are composed of many small flakes (Fig. 1d).
The chemical compositions and states of C-hBN were exam-
ined with XPS technique. As shown in Fig. S1a, the survey spec-
trum shows four XPS peaks at 190.9, 284.6, 398.2 and 532.8 eV,
which are corresponded to B 1 s, C 1 s, N 1 s and O 1 s, respec-
tively. The O 1 s signal should be originated from the absorbed
water. The high-resolution XPS spectrum (HR-XPS) of B 1 s can be
resolved into three sub-peaks (Fig. S1b). These peaks centered at
189.8, 190.5 and 191.9 eV are related to B-C, B-N and B-O bonds
[38-40], respectively. For C 1 s (Fig. S1c), it’s HR-XPS peak was fit-
ted by four sub-peaks with band energies of 283.8, 284.8, 286.2,
2.3. Instruments
The samples were structurally characterized by X-ray diffrac-
tion technique (XRD, PANalytical, X-Pert-Pro-MPD, Cu-K
radia-
α1
tion) and their morphologies were observed by transmission elec-
tron microscopy (TEM, FEI Tecnai G20). FTIR spectra were recorded
on a Nicolet 550 spectrometer and PL properties were measured
using a Hitachi F-4500 fluorescence spectrometer. The chemical
compositions of sample were examined by XPS method (Axis Ul-
tra HAS spectrometer). The zeta potential was acquired using Nano
Particle Analyzer (HORIBA, Japan) at room temperature. The mea-
surements were performed at pH of 6.0 after 5 min equilibration
time.
–
–
–
and 288.7 eV, and they are assigned to the C-B, C C, C N, and C O
bonds, respectively [38, 41]. The HR-XPS analysis of N 1 s is shown
in Fig. S1d, two sub-peaks at 397.9 eV and 398.7 eV are attributed
–
to N-B and N C bonds [38]. The XPS results further confirmed the
successful introduction of carbon into h-BN, which is consistent
with the FTIR results.
Fig. S2 shows the PL spectra of pure and carbon-doped h-
BN. No distinct emission is observed in the pure h-BN excited by
2
