Spectroscopic investigations on DNA binding profile of two new naphthyridine carboxamides and their application as turn-on fluorescent DNA staining probes

Article abstract of DOI:10.1080/07391102.2019.1657501

Two new 10-methoxydibenzo[b,h][1,6]naphthyridine-2-carboxamide derivatives (R1 and R2) have been synthesized and characterized using different spectral techniques. The binding of these probes with DNA was investigated using spectral (Electronic, fluorescence, ¹H NMR and circular dichroism) and molecular docking studies. These probes exhibited a strong fluorescence around 440 nm upon excitation around 380 nm. Electronic and competitive fluorescence titration studies, in HEPES [(4-(2-hydroxyethyl)-1-piperazineethanesulfonic acid)] buffer/dimethyl sulfoxide (pH 7.4) medium, suggest that these probes bind strongly to DNA, which is substantiated by ¹H NMR study. The binding constants are calculated to be 5.3 × 10⁷ and 6.8 × 10⁶ M^?1 for R1 and R2, respectively. From the results of spectral studies, it is proposed that the mechanism of binding of these probes with DNA is through minor groove binding mode, which is further confirmed by circular dichroism and molecular docking studies. Initial cell viability screening using MTT (3-[4,5-methylthiazol-2-yl]-2,5-diphenyl-tetrazolium bromide) assay shows that normal Vero cells are viable towards these probes at nano molar concentration, which is the concentration range employed in the present study for DNA staining (IC₅₀ in the order of 0.023 mM). The enhancement in fluorescence intensity of these probes upon binding with DNA enables the staining of DNA in agarose gel in gel electrophoresis experiment. The sensitivity of these probes is comparable with that of ethidium bromide and DNA amounts as low as 4 nano gram are detectable. Communicated by Ramaswamy H. Sarma.

Full text of DOI:10.1080/07391102.2019.1657501

Journal of Biomolecular Structure and Dynamics
ISSN: 0739-1102 (Print) 1538-0254 (Online) Journal homepage: https://www.tandfonline.com/loi/tbsd20
Spectroscopic investigations on DNA binding
profile of two new naphthyridine carboxamides
and their application as turn-onfluorescent DNA
staining probes
G. Mahalakshmi, K. N. Vennila, B. Selvakumar, P. Lakshmana Rao,
Ruchi Malwade, Sunny Deval, S. Madhuri, M. Seenivasaperumal &
Kuppanagounder P. Elango
To cite this article: G. Mahalakshmi, K. N. Vennila, B. Selvakumar, P. Lakshmana Rao, Ruchi
Malwade, Sunny Deval, S. Madhuri, M. Seenivasaperumal & Kuppanagounder P. Elango (2019):
Spectroscopic investigations on DNA binding profile of two new naphthyridine carboxamides and
their application as turn-onfluorescent DNA staining probes, Journal of Biomolecular Structure and
Dynamics, DOI: 10.1080/07391102.2019.1657501
To link to this article: https://doi.org/10.1080/07391102.2019.1657501
Accepted author version posted online: 19
Aug 2019.
Submit your article to this journal
View related articles
View Crossmark data
Full Terms & Conditions of access and use can be found at
https://www.tandfonline.com/action/journalInformation?journalCode=tbsd20

1
Spectroscopic investigations on DNA binding profile of two new
naphthyridine carboxamides and their application as turn-on
fluorescent DNA staining probes
G. Mahalakshmi1, K. N. Vennila1, B. Selvakumar2, P. Lakshmana Rao3, Ruchi Malwade3, Sunny
Deval3, S. Madhuri3, M. Seenivasaperumal1 and Kuppanagounder P. Elango1*
1Department of Chemistry, Gandhigram Rural Institute (Deemed to be University), Gandhigram
624 302, India (*Email: drkpelango@rediffmail.com)
2Anthem Biosciences Pvt. Ltd., Bangalore 560 099, India
3National Institute of Animal Biotechnology, Hyderabad 500 049, India
Abstract
Two new 10-methoxydibenzo[b,h][1,6]naphthyridine-2-carboxamide derivatives (R1 and
R2) have been synthesized and characterized using different spectral techniques. The binding of
1
these probes with DNA was investigated using spectral (Electronic, fluorescence, H NMR and
circular dichroism) and molecular docking studies. These probes exhibited a strong fluorescence
around 440 nm upon excitation around 380 nm. Electronic and competitive fluorescence titration
studies, in HEPES [(4-(2-hydroxyethyl)-1-piperazineethanesulfonic acid)] buffer/dimethyl
sulfoxide (pH 7.4) medium, suggest that these probes bind strongly to DNA, which is
substantiated by 1H NMR study. The binding constants are calculated to be 5.3x107 and 6.8x106
M-1 for R1 and R2, respectively. From the results of spectral studies, it is proposed that the
mechanism of binding of these probes with DNA is through minor groove binding mode, which
is further confirmed by circular dichroism and molecular docking studies. Initial cell viability
screening using MTT (3-[4,5-methylthiazol-2-yl]-2,5-diphenyl-tetrazolium bromide) assay
shows that normal Vero cells are viable towards these probes at nano molar concentration, which

2
is the concentration range employed in the present study for DNA staining (IC50 in the order of
0.023 mM). The enhancement in fluorescence intensity of these probes upon binding with DNA

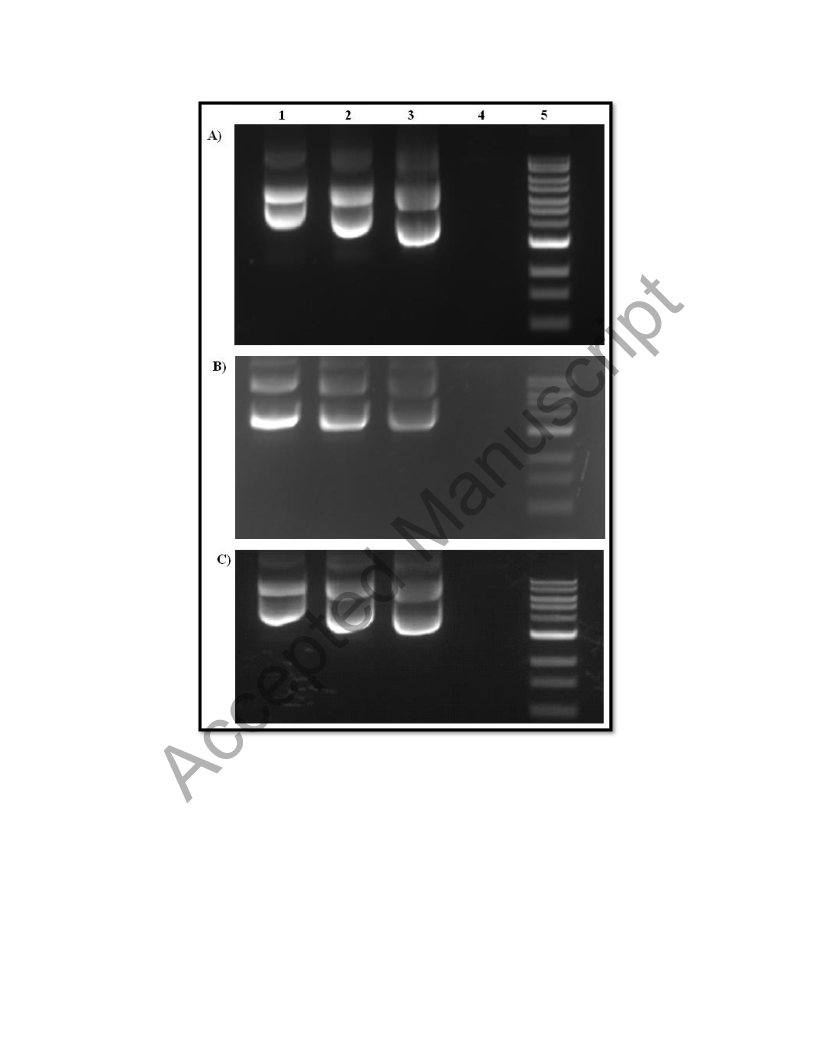

enables the staining of DNA in agarose gel in gel electrophoresis experiment. The sensitivity of
these probes is comparable with that of ethidium bromide and DNA amounts as low as 4 nano
gram are detectable.
Keywords: DNA; Minor groove; Fluorescent; Naphthyridine; Staining
Abbreviations: CD - Circular dichroism; CT-DNA - calf thymus DNA; DMEM - Dulbecco's
Modified Eagle Medium; DMSO - Dimethyl sulfoxide; EB - ethidium bromide; HEPES - 4-(2-
hydroxyethyl)-1-piperazineethanesulfonic acid; IR - Infra red; mM - Milli molar; MTT - 3-[4,5-
methylthiazol-2-yl]-2,5-diphenyl-tetrazolium bromide; NMR - Nuclear magnetic resonance;
TLC – Thin layer chromatography.
1.
Introduction
In order to design newer and more efficient deoxyribonucleic acid (DNA) targeted drugs,
the mechanism of binding of small molecules with DNA is important. Review of literature
revealed that variety of compounds has been reported so far for their DNA binding affinity
[Ahmad et al., 2016; Bhaduri et al., 2018; Ester et al., 2009; Fu et al., 2014; Hranjec et al., 2007;
Husain et al., 2017; Khalaf et al., 2016 & Khan et al., 2012; Konovalov et al., 2018; Liang et al.,
2012]. Although the binding modes of various classes of these molecules have been investigated
in detail, only less attention was paid to the binding of those molecules which are used as DNA
staining agents. In molecular biology, to achieve complete understanding of biological processes,
it is necessary to visualize DNA, which is described as one of the nature’s most elementary
conduits. Electrophoresis is the widely used method to detect DNA wherein DNA staining is
carried out with substances like fluorescent probes, silver stain and visible organic dyes. Among

3
these, silver stain is reported to have advantages like high sensitivity, less toxic and use of simple
chemicals and equipment [Bassam et al., 2007]. Over the years, visible dyes such as methylene
blue, crystal violet, methyl orange, Nile blue, brilliant cresyl blue, ethyl violet, basic fuchsin and
N-719 have been reported as DNA staining agents. However, these visible dye based DNA
staining methods are not able to fulfill the requirements of molecular biology. Further, Nile blue
and methylene blue are suggested to be mutagenic [Daru et al.,1989; Yang et al., 2001;Yang et
al., 2000; Torris et al., 1993;Cong et al, 2010; Chen et al., 2013 & Sonmezoglu et al., 2015].
Among the fluorescent probes reported so far, ethidium bromide (EB), I, is widely used
for the visualization of DNA on gels. Even though EB is very popular among researchers and
commonly used in gel electrophoresis, being mutagenic and carcinogenic, its handling and safe
disposal requires considerable attention [Lunn et al., 1987]. Hence, the search for newer
fluorescent probes for DNA staining is on. In an attempt, Okuma et al. have synthesized
dibenzo[b,h][1,6]naphthyridines (II) via one pot protocol and showed that these compounds can
be applied as a fluorescent DNA-binding compounds. But, fluorescence titration studies revealed
that fluorescence intensity of these compounds decreased (turn-off) on binding with DNA
[Okuma et al., 2017]. Very recently, the same research group has reported N-methylated II,
having general structure III, as turn-on fluorescent probes for the detection of DNA. However,
these probes showed only 3-10 times enhancement in fluorescence upon intercalation with DNA
in Tris buffer (pH 7.6) containing 0.1% DMSO [Okuma et al., 2017].

4
Schmidt et al. [Schmidt et al., 2010] have reported a pyrene-labeled Zn(II)-cyclen
complex (IV) for the staining of DNA in agarose gels wherein the metal chelate coordinates
reversibly to the DNA phosphate backbone inducing the formation of pyrene excimers, which is
used for the detection of DNA. However, they have reported three more similar Zn(II) chelates,
which failed to identify DNA in the gel with significant emission signal. Popov et al. [Popov et
al., 2010] have patented the use of novel dibenzo[c,h][1,5]naphthyridines of formula (V) as DNA
probes as well as the method of marking DNA using these probes.
Review of literature also revealed that, when compared to DNA-ligand binding studies,
only few compounds have been reported so far as fluorescent DNA probes and hence the present
work. The main objectives, therefore, of the present endeavor are synthesis, characterization and
DNA binding studies of two new naphthyridines derivatives (R1 and R2) using various spectral

5
techniques. Molecular docking study was also carried out to substantiate the results of spectral
studies. The applicability of these compounds as fluorescent DNA staining probes in agarose gel
has also been screened and discussed.
2.
Experimental
2.1. Synthesis of probes. The probes, 10-methoxydibenzo[b,h][1,6]naphthyridine-2-carboxamide
derivatives R1 and R2, were synthesized as depicted in Scheme 1. To the stirred solution of 10-
methoxydibenzo[b,h][1,6]naphthyridines-2-carboxylic acid (200 mg) in tetrahydrofuran (4.0 mL,
20 v) hydroxybenztriazole (1.3 eq), EDC HCl (2.0 eq) and the corresponding amine (2.0 eq) was
added at ambient temperature and stirred for 24 h. After completion of reaction (by TLC), the
solution was concentrated to get thick syrup. Reaction mass was extracted with dichloromethane
(100 mL) and washed with water (2 x 400 mL), brain solution (400 mL), and then dried over
anhydrous sodium sulfate and concentration of the organic layer yielded crude product. The
crude was subjected to column chromatography to obtain desired pure products as yellow solids.
1
13
The probes were characterized using H and C NMR, IR and mass spectral techniques
and the results obtained are:
N-(3-(dimethylamino)propyl)-10-methoxydibenzo[b,h][1,6]naphthyridine-2-carboxamide (R1):
Yield: 76%, m.p: 176-178oC. 1H NMR (400 MHz, DMSO-d6, δ ppm): 1.72-1.78 (m, 2H), 2.1 (s,
6H), 2.30-2.40 (m, 2H), 3.41 (q, 2H, J = 6.2 Hz), 4.0 (s, 3H), 7.44-7.47 (m, 1H), 7.71 (d, 1H, J =
8.4 Hz), 8.18 (dd, 1H, J = 8.6 Hz, 2.2 Hz), 8.26-8.32 (m, 2H), 8.98 (d, 1H, J = 9.2 Hz), 9.28 (s,
13
1H), 9.50 (s, 1H), 9.60 (s, 1H) (Fig. S1); C NMR (100 MHz, DMSO-d6, δ ppm) δ: 27.0, 38.2,
45.2, 55.9, 57.1, 106.1, 118.2, 121.3, 122.9, 123.2, 124.2, 128.9, 129.2, 130.8, 133.2, 138.1,

6
147.2, 151.9, 155.9, 162.9, 165.8 (Fig. S2); IR (KBr, cm-1): 3289, 2950, 2760, 2361, 1628, 1414,
1231, 1172, 1159 (Fig. S3); LCMS (ESI) m/z found for C23H24N4O2 [M+H]+: 389.8 (Fig. S4).
N-isopropyl-10-methoxydibenzo[b,h][1,6]naphthyridine-2-carboxamide (R2): Yield: 82%, m.p
1
178-180oC. H NMR (400 MHz, DMSO-d6, δ ppm): 1.25-1.27 (d, 6H, J = 6.8 Hz), 4.07 (s, 3H),
4.18-4.27 (m, 1H), 7.44-7.47 (m, 1H), 7.73 (d, 1H, J = 8.4 Hz), 8.17 (dd, 1H, J = 8.6 Hz, 2.2
Hz), 8.26-8.33 (m, 2H), 8.68 (d, 1H, J = 9.2 Hz), 9.30 (s, 1H), 9.54 (s, 1H), 9.65 (s, 1H) (Fig.
S5); 13C NMR (100 MHz, DMSO-d6, δ ppm) δ: 22.4, 41.3, 56.0, 106.1, 118.2, 121.3, 122.8,
123.4, 124.1, 129.09, 129.13, 130.7, 133.5, 138.0, 147.15, 147.22, 151.8, 155.8, 162.9, 165.2
(Fig. S6); IR (KBr, cm-1): 3285, 2972, 2935, 1630, 1418, 1231, 1170, 849, 695 (Fig. S7); LCMS
(ESI) m/z found for C21H19N3O2 [M+H]+: 346.8 (Fig. S8).

7

8

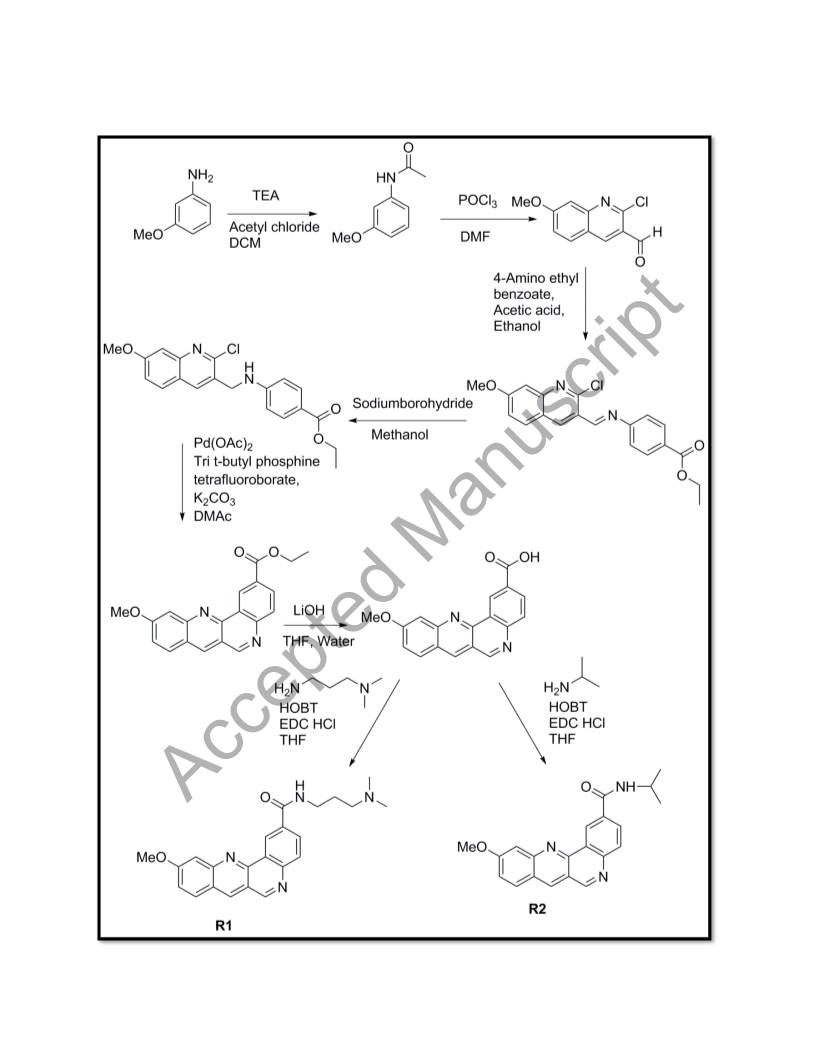

Scheme 1. Synthesis of probes R1 and R2
Results and Discussion
3.
The new naphthyridine-2-carboxamides (R1 and R2) have been synthesized and
1
characterized using H and 13C NMR, FT-IR and mass spectral techniques. DNA binding
1
behaviour of these probes was investigated using UV-Vis, fluorescence and H NMR spectral
studies. Circular dichrosim and molecular docking were carried out to substantiate the proposed
mode of binding of these probes with DNA. The cell viability of these probes against normal cell
line was also screened to understand the toxicity of these probes. DNA staining studies were
carried out using plasmid DNA in agarose gel.
3.1
Cell viability test
Initially the cytotoxicity effect of these probes was screened against normal Vero
(African Green Monkey kidney cell lines) cells using MTT (3-[4,5-methylthiazol-2-yl]-2,5-
diphenyl-tetrazolium bromide) assay as reported by us earlier [Vennila et al., 2018]. In a typical
experiment, the Vero cell lines were cultured in DMEM medium supplemented with 10% fetal
bovine serum (FBS) at 37°C with 5% CO2. Upon treatment with R1 and R2 the cell viability was
evaluated by MTT. The IC50 values (the concentration that inhibited cell viability to 50% of the
control) were determined by non-linear regression method and the results obtained are given in
Figure 1. The IC50 values were found to be 0.02317 and 0.02391 mM for R1 and R2,
respectively. The results indicated that more than 50% of normal Vero cells would be viable at
concentrations lower than these values. Herein the present study the concentrations of the probes
employed for DNA staining studies are in the order of ng/ml and hence they are safe to normal
cells.

9

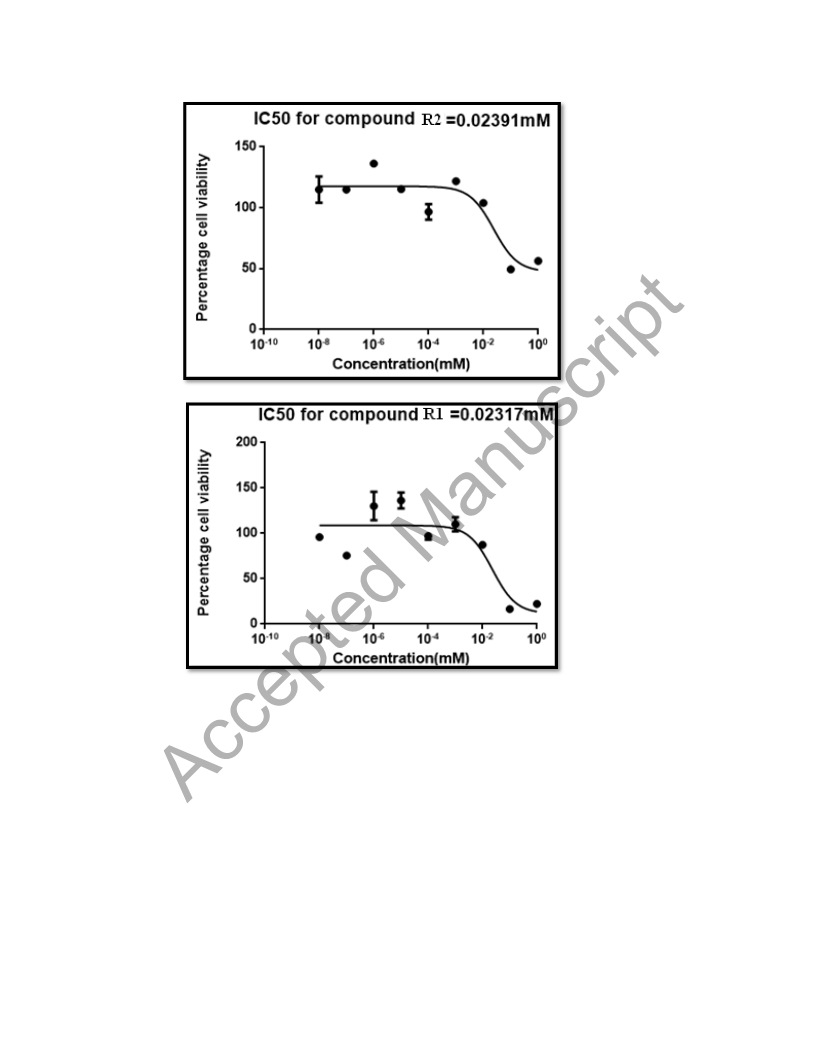

Fig. 1. Cell viability against R1 and R2
3.2
UV-Vis spectral study
UV-Vis spectral titration studies were used to study the binding ability of the probes R1
and R2 with CT-DNA. Usually hypochromism arises due to strong interaction between probes
and the base pairs of DNA [Kosiha et al., 2019]. In the present study, the interaction between the
probes and CT-DNA was investigated in HEPES buffer/DMSO (pH 7.4) medium. UV-Vis

10
spectral titrations were carried out using a fixed concentration of the probe with addition of
incremental amounts of CT-DNA (Fig. 2). It is evident from the Figure that upon addition of
increasing amounts of CT-DNA to the probes, the absorption intensities decreased (hypochromic
effect) suggesting strong binding between the probes and CT-DNA [Kosiha et al., 2019].

11

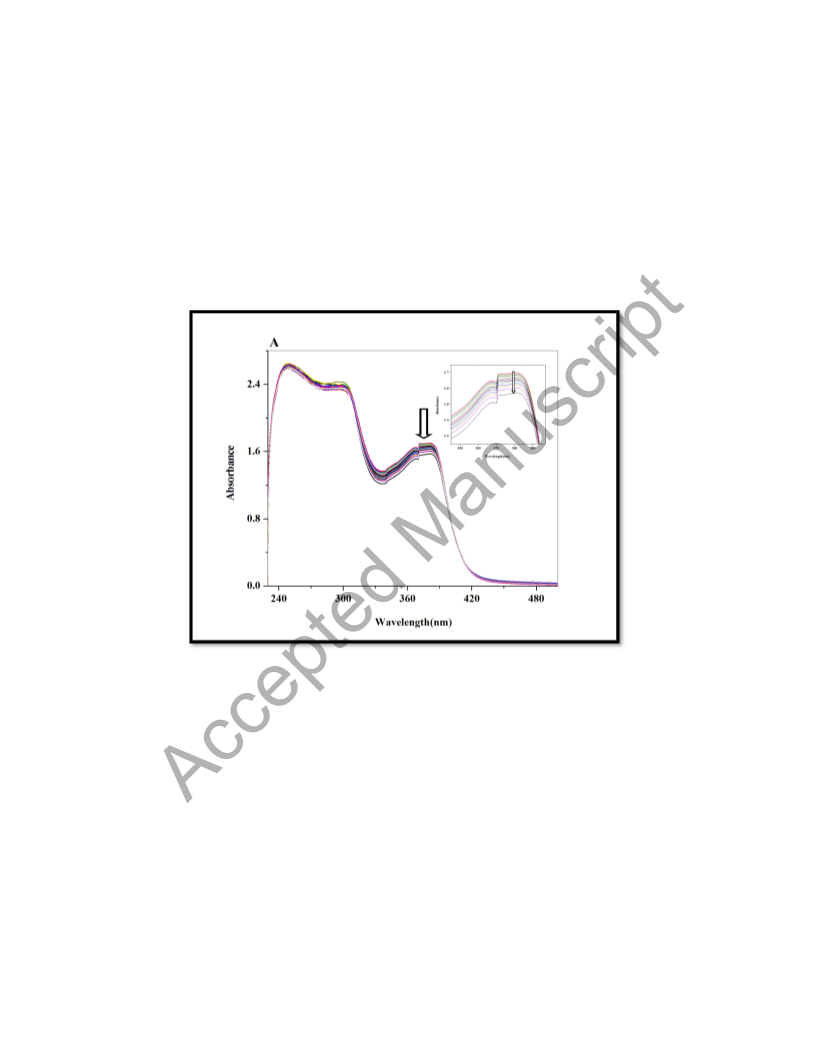

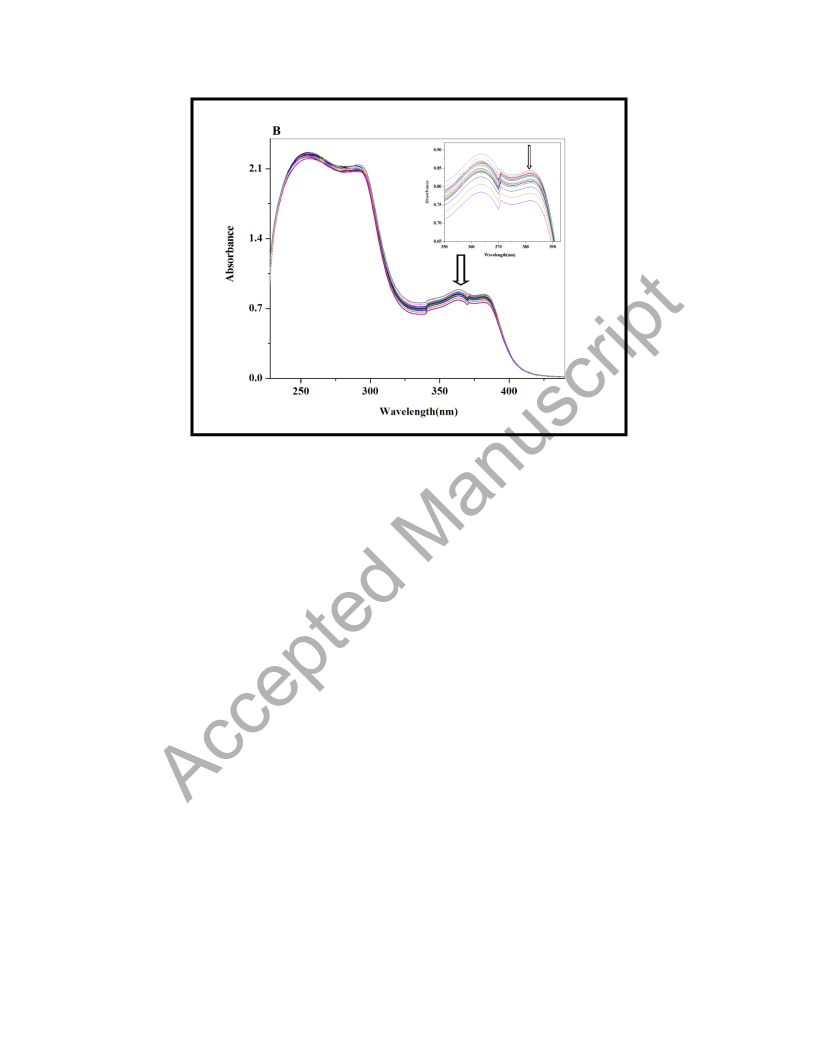

Fig. 2. UV-Vis spectra of A) R1 (1 µM) with incremental addition of CT-DNA (0-50 nM) and
B) R2 (150 µM) with incremental addition of CT-DNA (0-200 nM) in HEPES buffer/DMSO
(pH 7.4) medium
3.3
Circular dichroism study
Circular dichroism (CD) is a powerful tool to identify the conformational changes of
DNA upon binding with analyte molecules. The CD spectra of CT-DNA (1 μM) obtained in the
absence and presence of these probes (5 μM) are shown in Figure 3. It is evident from the figure
that pure DNA exhibited a positive band at 277 nm which corresponds to base stacking and a
negative band at 245 nm due to helicity. These two bands are characteristic of DNA in the right-
handed B form. Analyte molecules which bind to DNA through groove and electrostatic binding
modes would show no or less perturbation in stacking and helicity bands, while those bind via
intercalation mode enhances the intensity of these bands significantly. In the present study, both
R1 and R2 perturbed the intensities of both these bands only to a lesser extent upon binding with

12
DNA. This observation suggested that these probes may bind to DNA through groove binding
mode. Usually groove binding doesn’t bring large structural/conformational changes in DNA
[Mi et al., 2015].
Fig. 3. Circular dichroism spectra of CT-DNA in the presence of probes R1 and R2
in HEPES buffer/DMSO (pH 7.4) medium
3.4
Fluorescence spectral study
Fluorescence spectral technique is one of the effective methods to investigate the
interaction of molecules with DNA. The fluorescence spectra of R1 and R2 were recorded in the
absence and presence of varying amounts of CT-DNA in HEPES buffer/DMSO (pH 7.4)

13
medium (Fig. S9 and S10). The probe R1 (0.25 mM) on excitation at 380 nm emits strongly at
450 nm, whose intensity increased appreciably upon addition of 0-100 nM CT-DNA. Likewise,
the probe R2 (1 mM) also showed similar enhancement in fluorescence (λex 383 nm; λem 438
nm) upon adding 0-200 nM CT-DNA. The binding constants for the interaction were determined
from the fluorescence enhancement data according to the following Benesi–Hildebrand equation
[Jayasudha et al., 2017].
(Fα–Fo)/ (Fx–Fo) = 1/K [CT-DNA]
Where Fo, Fx and Fα are the fluorescence intensities of the receptor in the absence of DNA, at a
given concentration and concentration for complete interaction, respectively. The binding
constant (K) was calculated from the slope of linear plot (r > 0.99) of (Fα–Fo)/(Fx–Fo) versus
1/[CT-DNA] (Fig. S11 and S12). The binding constants for the interaction of CT-DNA with R1
and R2 were found to be 5.3x107 and 6.8x106 M-1, respectively. The observed magnitude of the
binding constants indicated a strong interaction between the probes and DNA. The binding
constants (K in M-1) of R1 and R2 are much higher than that of many cyanine-styryl dyes (104)
reported for fluorescent DNA staining by Bohlander and Wagenknecht [Bohlander et al., 2013]
and that of asymmetric cyanine dyes (104 - 105) reported by Kaloyanova and co-workers
[Kaloyanova et al., 2011].
Generally, EB is used as a spectral probe to investigate the mode of binding between
analyte molecules and DNA. The fluorescence of EB increases after intercalating into DNA. If
the analyte molecule intercalates into DNA, it leads to decrease in fluorescence intensity of EB
bound DNA system. In the present study, fluorescence spectra of EB/CT-DNA system in the
absence and presence of increasing amounts of R1 and R2 were recorded and depicted in Figure

14
4. As seen from the Figure, upon addition of increasing amounts of the probes the emission
intensity around 600 nm, which corresponds to EB/CT-DNA system, decreased slightly with a
concomitant enhancement in fluorescence intensity around 440 nm due to binding of the probe
with DNA. An isosbestic point around 580 nm is observed. Such a very marginal quenching of
the fluorescence of EB/CT-DNA system by the added probe indicated that the probe may not
bind to DNA through intercalative mode of binding [Okuma et al., 2017& Kosiha et al., 2019].
This observation suggested that these probes may bind to DNA via groove binding mode.
Further, the enhancement in fluorescence intensity of the probes around 440 nm would facilitate
the identification of DNA during its staining process.

15
Fig. 4. Fluorescence spectra of EB/CT-DNA system upon addition of A) R1 (0-10 µM) and B)
R2 (0-50 µM) in HEPES buffer/DMSO (pH 7.4) medium
3.5
1H NMR spectral study
In order to substantiate the results of optical spectroscopic studies on the binding of these
1
1
probes with DNA, H NMR spectral study was also carried out. H NMR spectral study was
carried out in DMSO-d6 with guanosine nucleoside as a model for DNA [Kumar et al. 2016]. 1H
NMR spectrum of pure guanosine exhibited signals at 10.633, 7.939 and 6.461ppm
corresponding to –NH, imidazole C-H and –NH2 protons, respectively (Fig. S13). Upon addition
of one equivalent of these probes, the signal due to –NH proton showed appreciable down field
shift suggesting interaction between the probes and DNA through H-bonding (Fig. S14 and S15).
The observed Δδ values are 0.049 and 0.019 ppm for R1 and R2, respectively. The order of the
magnitude of Δδ is in line with the binding constant values of the probe-DNA complex
determined using fluorescence titration data. Further, the signal due to the –NH2 protons after the

16
addition of these probes showed relatively lesser down field shifts (Δδ 0.033 ppm for R1 and
0.015 ppm for R2). On the other hand the signal corresponds to the imidazole C-H proton
experienced down field shift only to a very little extent (Δδ < 0.01 ppm). These observations
suggested that these probes bind to DNA through H-bonding interaction and most probably using
N-H protons.
3.6
Molecular docking
To understand and rationalize the mode of binding of the probes R1 and R2 with DNA,
molecular docking was carried out for these probes with DNA duplex of sequence
d(CGCGAATTCGCG)2 dodecamer (PBD ID: 1BNA) using Gaussian software. The docking
results suggested that these probes bind to AT sequences in the minor groove of the DNA, which
is in accordance with the results of spectral studies (Fig. 5). Further these probes bind to the
minor groove via a H-bond formation between the O-atom of methoxy substituent at position 10
and N-H moiety of DNA. This observation is in accordance with the fact that minor groove
binders preferentially bind to AT sites in the minor groove of DNA via reversible non-covalent
interactions [Badhuri et al., 2018 & Khan et al., 2012]. Relative binding energies of DNA-probe
docked structures are calculated to be -11.59 and -10.47 kcal/mol for the probes R1 and R2,
respectively. The magnitudes of the binding energy indicated strong binding affinities of the
probes for DNA. A competitive displacement docking has also been carried out to further
establish the binding mode of these two probes with DNA. As seen from Figure 6, competitive
docking with ethidium bromide showed that these probes bind to the minor groove of DNA
while ethidium bromide intercalates into DNA bases, as expected [Husain et al. 2017]. Thus, the
molecular docking results corroborated well with the results of spectral studies.

17
3.7
DNA staining studies
For electrophoresis study, 1% agarose gel was prepared in 1X TAE with different
concentrations of the probes. The gel was allowed to get solidified for 30-40 min at room
temperature. Upon solidification, the gel was immersed in the tank containing 1X TAE buffer.
Plasmid DNA (TOPO TA clone with PCV1 construct cloned into it) samples were mixed in 6:1
ratio with 6X DNA loading dye (New England Biolabs). The agarose gel was allowed to run at
100 V, 100 mA and 10 W for 40 min and visualized under geldoc (Syngene G: Box model No.
Chemi HR-1.4; Software: Genesys). The gel photographs obtained are depicted in Figures 6 and
S16. As seen from Figure 7, the signal of nano gram amount of DNA can easily been obtained in
the staining using these probes. Further, the detection limit of these probes is similar to that of
EB and in both the cases the bands with good intensity are clearly visible to naked eye. From the
results in Figure S14, it is evident that down to 4 ng of DNA can be successfully detected by the
fluorescent probes under investigation, which is comparable with that of EB. The results
indicated that the staining with these fluorescent probes is efficient and sensitive for DNA
analysis and comparable with that of EB, the commonly used fluorescent staining agent.
Furthermore, though these probes R1 and R2 are fluorescent in nature they don’t exhibited any
emission upon mixing with agarose gel and they do so only upon binding with DNA.

18
C
G
R1
T
A
G
C
R2
A
T

19
Fig. 5. Docking results depicting minor grove binding of R1 and R2 in AT sequence region with
N-H…O hydrogen bond
a)
b)
Fig. 6. Competitive molecular docked structures a) probe R1 (green) and EB (pink); b) probe
R2 (green) and EB (pink)

20
Fig. 7. Staining of DNA fragments with R1 (A), R2 (B) and EB (C) on a 1% agarose gel
([Probe] = 10 ng/mL). Lane (1): 100 ng of plasmid; (2): 200 ng of plasmid; (3) 500 ng of
plasmid; (4) cDNA; (5) 1 kb ladder

21
4.
Conclusion
New 10-methoxydibenzo[b,h][1,6]naphthyridine-2-carboxamide derivatives R1 and R2,
were synthesized, characterized and screened for their ability to bind with DNA. These probes
were used to stain and visualize DNA during agarose gel electrophoresis. During gel
electrophoresis, these probes stained DNA with same clarity as EB in the nM concentration
range. As low as 4 ng of DNA can be visualized in the normal gel electrophoresis experiment in
agarose gel. The mechanism of binding of these probes with DNA has been established using
1
UV-Vis and fluorescence titration experiments along with H NMR, CD and molecular docking
studies. The results of these studies suggested binding of these probes to minor groove of DNA.
The probes bind strongly with DNA accompanied with an enhancement in fluorescent intensity.
Above all, these probes were found to be non-toxic towards cells in the concentration range
employed. Therefore, these probes can be used to stain and visualize DNA in gel electrophoresis
using agarose gel.
Reference
Ahmad, I., Ahmad, A. and Ahmad, M. (2016). Binding properties of pendimethalin herbicide
to DNA: multispectroscopic and molecular docking approaches. Phys. Chem. Chem. Phys.,
18, 6476-6485.
Bassam, B. J and Gresshoff, P. M. (2007). Silver staining DNA in polyacrylamide gels, Nat.
Proto., 2, 2649-2654.
Bhaduri, S., Ranjan, N and Arya, P Dev. (2018) An overview of recent advances in duplex
DNA recognition by small molecules, Beilstein J. Org. Chem., 14, 1051–1086.

22
Bohlander, P. R. and Wagenknecht, H. A. (2013). Synthesis and evaluation of cyanine–styryl
dyes with enhanced photostability for fluorescent DNA staining, Org. Biomol. Chem. 11,
7458-7462.
Chen, M., Cong, W. T., Zhou, X., Zhu, Z. X., Ye, W. J., Ling, J., Ni, M. W. and Jin, L. T.
(2013). A method for sensitive staining of DNA in polyacrylamide gels using basic fuchsin,
Bioanalysis 5, 1545-1554.
Cong, W. T., Zhu, Z. X., He, H. Z., Jin, Y., Jiang, C. X., Choi, J. K., Jin, L. T. and Li, X. K.
(2010). A visible dye-based staining method for DNA in polyacrylamide gels by ethyl violet,
Anal. Biochem. 402, 99-101.
Daru, Y. S. and Ramesh, K. (1989). Protocols for the visualization of DNA in
electrophoretic gels by a safe and inexpensive alternative to ethidium bromide, J. Methods
Cell Mol. Biol. 1, 183.
Ester, K., Hranjec, M., Piantanida, I., Caleta, I., JaraK, I., Pavelic, K., Kralj, M. and Zamola,
G. K. (2009). Novel Derivatives of Pyridylbenzo[b]thiophene-2-carboxamides and
Benzo[b]thieno[2,3-c]naphthyridin-2-ones: Minor Structural Variations Provoke Major
Differences of Antitumor Action Mechanisms, J. Med. Chem., 52, 2482–2492.
Fu, X. B., Liu, D. D., Lin, Y., Hu, W., Mao, Z. W. and Le, X. Y. (2014). Water-soluble
DNA minor groove binders as potential chemotherapeutic agents: synthesis, characterization,
DNA binding and cleavage, antioxidation, cytotoxicity and HSA interactions. Dalton Trans.,
43, 8721-8737.
Hranjec, M., Karlj, M., Piantanida, I., Sedic, M., Suman, L., Pavelic, K. I. and Zamola, G. K.
(2007). Novel Cyano- and Amidino-Substituted Derivatives of Styryl-2-Benzimidazoles and

23
Benzimidazo[1,2-a]quinolines. Synthesis, Photochemical Synthesis, DNA Binding, and
Antitumor Evaluation, Part 3, J. Med. Chem. 50, 5696-5711.
Husain, M.A., Hassan, M.I., Rehman, S., Tarique, S., Shumaila, A., Yusra, R. and
Mohammed, T. (2017). Elucidating the interaction of sulindac with calf thymus DNA:
biophysical and in silico molecular modelling approach. New J. Chem., 41, 14924-14935.
Husain, M. A., Ishqi, H. M., Sarwar, T., Rehman, S. U. and Tabish, M. (2017). Interaction of
indomethacin with calf thymus DNA: a multi-spectroscopic, thermodynamic and molecular
modelling approach. MedChemComm, 8(6), 1283–1296.
Jayasudha, P., Manivannan, R. and Elango, K. P. (2017). Benzoquinone based
chemodosimeters for selective and sensitive colorimetric and turn-on fluorescent sensing of
cyanide in water, Sens. Actuators 251, 380-388.
Kaloyanova, S., Trusova, V. M., Gorbenko, G. P. and Deligiogiev, T. (2011). Synthesis and
fluorescence characteristics of novel asymmetric cyanine dyes for DNA detection, J.
Photochem. Photobiol. A 217, 147-156.
Khalaf, A. I., Ahmed A. H., Al-Kadhimi and Jaafar H. Ali. (2016), DNA Minor Groove
Binders-Inspired by Nature, Acta Chim. Slov., 63, 689–704.
Khan, G S., Shah, A., Zia-ur-Rehman and Barker, D (2012), Chemistry of DNA minor
groove binding agents, Journal of Photochemistry and Photobiology B: Biology ., 115, 105–
118.
Konovalov, B., Zivkovic, M. D., Milovanovic, J. Z., Djordjevic, D. B., Arsenijevic, A. N.,
Vasic, I. R., Janjic, G. V., Franich, A., Manojlovic, D., Skrivanj, S., Milovanovic, M. Z.,

24
Djuran, M. I. and Rajkovic, S. (2018). Synthesis, cytotoxic activity and DNA interaction
studies of new dinuclearplatinum(II) complexes with an aromatic 1,5-naphthyridine bridging
ligand: DNA binding mode of polynuclear platinum(II) complexes in relation to the complex
structure. Dalton Trans., 47, 15091-15102.
Kosiha, A., Lo, K. M., Parthiban, C. and Elango, K. P. (2019). Studies on the interaction of
mononuclear metal(II) complexes of amino-naphthoquinone with bio-macromolecules,
Mater. Sci. Eng. C 94, 778-787.
Kumar, A., Kumar, A., Gupta, R.K., Paitandi, R.P., Singh, K.B., Trigun, S.K., Hundal, M.S.
and Pandey, D.S. (2016), Cationic Ru(II), Rh(III) and Ir(III) complexes containing cyclic π-
perimeter and 2-aminophenyl benzimidazole ligands: Synthesis, molecular structure, DNA
and protein binding, cytotoxicity and anticancer activity, J. Organomet. Chem. 801, 68-79.
Kumar, S. (2010), DNA minor groove binding of small molecules: Experimental and
computational evidence, J. Chem. Sci., 122, 247–257.
Liang, F., Lindsay, S. and Zhang, P. (2012). 1,8-Naphthyridine-2,7-diamine: a potential
universal reader of Watson–Crick base pairs for DNA sequencing by electron tunneling. Org.
Biomol. Chem., 10, 8654-8659.
Lunn, G. and Sansone, E. B. (1987). Ethidium bromide:Distruction and decondamination of
solution, Anal. Biochem. 162, 453-458.
Mi, R., Bai, X. T., Tu, B. and Hu, Y. J. (2015). Unraveling the coptisine–ctDNA binding
mechanism by multispectroscopic, electrochemical and molecular docking methods, RSC
Advances 5, 47367-47376.

25
Okuma, K., Oba, A., Kuramoto, R., Iwashita, H., Nagahora, N., Shioji, K., Noguchi, R. and
Fukuda, M. (2017). Synthesis and fluorescence properties of 1,1‐Dimethyl‐1,4‐
Dihydrodibenzo[b,h][1,6]naphthyridinium Iodides:Turn‐on type
J. Org. Chem. 6885-6888.
detection of DNA, Eur.
Pandya, P., Md Maidul Islam, Suresh Kumar, G., Jayaram, B and Surat Kumar. (2010). DNA
minor groove binding of small molecules: Experimental and computational evidence,
J.Chem.Sci. 122, 2, 247-257.
Popov, A., Grierson, D. and Florent, J. C., (2010). Dibenzo[c,h][1,5]naphthrydines and their
use as DNA probes. United States Patent No. US 7, 728, 128 B2.
Schmidt, F., Schmidt, J., Riechers, A., Haase, S., Bosserhoff, A. K., Heilmann, J. and Konig,
B. (2010). DNA staining in agarose with Zn2+-cyclen-pyrene, Nucleosides Nucleotides
Nucleic Acids 29, 748-759.
Sonmezoglu, O. A. and Ozkay, K. (2015). A new organic dye-based staining for the
detection of plant DNA in agarose gels, Nucleosides Nucleotides Nucleic Acids 34, 515-522.
Torres, J. S. and Noyala, P. A. (1993). A novel stain for DNA in agarose gels, Tech. Tip 9,
40.
Yang, Y., Jung, D. W., Bai, D. G., Yoo, G. S. and Choi, J. K. (2001). Counterion-dye
staining method for DNA in agarose gels using crystal violet and methyl orange,
Electrophoresis 22, 855-859.
Yang, Y. I., Hong, H. Y., Lee, I. S., Bai, D. G., Yoo, G. S. and Choi, J. K. (2000). Detection
of DNA using a visible dye, nile blue, in electrophoresed gels, Anal. Biochem. 280, 322-326.

26
Vennila, K. N., Sunny, D., Madhuri, S., Ciattini, S., Laura C. and Elango, K. P. (2018).
Design, synthesis, crystal structures and anticancer activity of 4-substituted quinolines to
target PDK1, Bioorg. Chem. 81, 184-190.
