Tetraethylthiophene-2,5-diylbismethylphosphonate: A Novel Electrolyte Additive for High-Voltage Batteries

Article abstract of DOI:10.1002/cssc.202101277

In this work, a novel high-voltage electrolyte additive, tetraethylthiophene-2,5-diylbismethylphosphonate (TTD), was synthesized, and the influence of TTD on the electrolyte and its electrochemical performance under different voltages were studied by changing the content of the TTD additive. The results showed that the TTD additive significantly improved the capacity, cycle stability, and rate capability of batteries when charging/discharging at high voltages. After adding 1 % TTD to the basic electrolyte, the capacity retention rate of batteries after 200 cycles at 4.2, 4.3, 4.4, and 4.5 V increased by 20.8, 18.3, 50, and 31.9 %, respectively. In addition, transmission electron microscopy (TEM) and X-ray photoelectron spectroscopy (XPS) results showed that TTD could effectively inhibit the decomposition of the electrolyte and participate in the formation of a uniform, thin, and stable cathode electrolyte interphase (CEI) film on the electrode surface, thereby effectively inhibiting the side reaction between the electrolyte decomposition product and the CEI membrane, and finally improving the high-voltage performance of the battery. The TTD additive may provide a cost-effective solution for high-performance high-voltage electrolytes.

Full text of DOI:10.1002/cssc.202101277

Chemistry–Sustainability–Energy–Materials
Accepted Article
Title: Tetraethylthiophene-2,5 - diylbismethylphosphonate: a novel
electrolyte additive for high voltage batteries
Authors: Weixia Lv, Lucheng Li, Chen Jun, Caixia Ou, Qian Zhang,
Shengwen Zhong, Hua Wang, Lijue Wu, and Haikuo Fu
This manuscript has been accepted after peer review and appears as an
Accepted Article online prior to editing, proofing, and formal publication
of the final Version of Record (VoR). This work is currently citable by
using the Digital Object Identifier (DOI) given below. The VoR will be
published online in Early View as soon as possible and may be different
to this Accepted Article as a result of editing. Readers should obtain
the VoR from the journal website shown below when it is published
to ensure accuracy of information. The authors are responsible for the
content of this Accepted Article.
To be cited as: ChemSusChem 10.1002/cssc.202101277
Link to VoR: https://doi.org/10.1002/cssc.202101277
0
1/2020

ChemSusChem
10.1002/cssc.202101277
Tetraethylthiophene-2,5-diylbismethylphosphonate: a novel
electrolyte additive for high voltage batteries
[a]
[a]
[a]
[a]
[a]
[a]
Weixia Lv , Lucheng Li , Jun Chen* , Caixia Ou , Qian Zhang , Shengwen Zhong* , Hua
Wang[b,c], Lijue Wu[b,c], Haikuo Fu[c]
[
a]
School of Materials Science and Engineering, Jiangxi Provincial Key Laboratory of Power Batteries and
Materials, Jiangxi University of Sciences and Technology, Ganzhou 341000. China, E-mail:
chenjun@jxust.edu.cn, zhongshw@126.com.
[
[
b]
c]
Guangdong Jiana Energy Technology Co Ltd, Qingyuan 511500, China
Qingyuan Jiazhi New Material Research Institute Co. Ltd., Qingyuan 511500, China
Abstract
In
this
work,
a
novel
high-voltage
electrolyte
additive
of
tetraethylthiophene-2,5-diylbismethylphosphonate (TTD) is synthesized, and the influence of TTD
on the electrolyte and its electrochemical performance under different voltages are studied by
changing the content of the TTD additive. The results show that the TTD additive significantly
improves the capacity, cycle stability and rate capability of batteries when charging/discharging at
high voltages. After adding 1% TTD to the basic electrolyte, the capacity retention rate of batteries
after 200 cycles at 4.2 V, 4.3 V, 4.4 V and 4.5 V increase by 20.8%, 18.3%, 50%, and 31.9%,
respectively. In addition, transmission electron microscope (TEM) and X-ray photoelectron
spectroscopy (XPS) analysis results show that TTD can effectively inhibit the decomposition of
the electrolyte and participate in the formation of a uniform, thin and stable cathode electrolyte
interface (CEI) film on the electrode surface, thereby effectively inhibiting the side reaction
between the electrolyte decomposition product and the CEI membrane, and finally the high
voltage performance of the battery is improved. This novel TTD additive used in this work as an
This article is protected by copyright. All rights reserved.

ChemSusChem
10.1002/cssc.202101277
effective strategy to improve the high-voltage performance of the battery, which will provide a
cost-effective solution for high-performance high-voltage electrolyte.
Keywords: lithium ion battery; electrolyte; high
voltage;
CEI
film;
tetraethylthiophene-2,5-diylbismethylphosphonate (TTD)
Introduction
Lithium-ion batteries have received extensive attention and in-depth research from domestic and
foreign research scholars and research institutions due to their advantages of high specific energy,
long cycle life, and no memory effect.[1-4] In recent years, new energy vehicles have been
vigorously developed in countries around the world. Under this background, there is no doubt that
higher requirements have been put forward on the technology of lithium-ion batteries. Therefore,
how to increase the energy density of power batteries and extend the cruising range while ensuring
safety and reducing the cost of batteries are the key problems that need to be solved urgently.[5-9]
At present, the electrolyte used in commercial lithium-ion batteries is composed of organic solvent
6
dissolving LiPF electrolyte. Under normal voltage, the electrolyte can effectively guarantee the
transport of lithium ions between the two electrodes. However, the commonly used organic
carbonate electrolyte will undergo severe oxidation and decomposition when the working voltage
exceeds 4.3V, resulting in the increase of the interface impedance between electrode/electrolyte
interface, which greatly deteriorates the battery performance.[10-14] Therefore, in order to solve this
problem, the majority of researchers have carried out a series of research work around new
high-voltage resistant electrolyte and new electrolyte additives, which provides important ideas for
further research.
For example, Zhang[15] systematically classified electrolyte additives according to different
impact mechanisms. Subsequently, researches on additives have gradually increased. In recent
years, researchers have further expanded the application range of additives and begin to classify
them. Applied to lithium ion batteries with higher specific energy, studies have shown that there
are two main technical ways to develop high-voltage electrolytes.[16] One is to add a small amount
of high-voltage additives to the electrolyte to passivate the interface film of positive electrode;[17-22]
the other is to use a new type of anti-oxidation solvent with strong ability to completely or
partially replace the existing carbonate solvents with low oxidation resistance.[23] Dalavi[24] studied
This article is protected by copyright. All rights reserved.

ChemSusChem
10.1002/cssc.202101277
lithium dioxalate borate (LiBOB) as a high-voltage additive to improve the cycle performance of
cathodes at high voltages (4.9 V vs Li). The study showed that the addition of
LiBOB would improve the cycle performance of LiNi0.5Mn1.5 cathodes. Oxidative
LiNi0.5Mn1.5O
4
O
4
decomposition and polymerization reaction occur on the surface to form a cathode interface film
with low impedance and thin thickness to prevent further oxidation of the solvent in the electrolyte,
thereby improving the cycle stability of the high-voltage cathode material. The following years,
Hu[25] et al found that using LiDFOB as an additive can make LiCoPO
cathodes show better cycle
4
performance. From the analysis of XPS and FTIR-ATR, LiDFOB helps to form an interphase film
and passivate the cathode. Thus, the decomposition of the electrolyte can be suppressed to a
certain extent. Compared with LiBOB, LiDFOB helps to form a more stable interfacial film with
lower interfacial resistance. The main reason is that one oxalate ion in the LiBOB is replaced by
two F atoms, which improves the antioxidant properties of the molecule.[26] Zhu and coworkers[27]
et al. reported a new type of additive, Diethyl(thiophen-2-ylmethyl)phosphonate (DTYP). Results
shown that DTYP can significantly improve the high-voltage cycle stability of LiNi0.5Mn1.5O
4
o
cathode. At 60 C, the capacity retention rate of lithium-ion battery is 85% after 280 cycles at 1C
(
18% without DTYP additive). Similarly, Huang[28] et al. used 4-(trifluoromethyl)-benzonitrile
4-TB) as a new electrolyte additive, and the results showed that 4-TB can significantly improve
(
4
the cycle performance of LiNi0.5Mn1.5O cathode. And 4-TB can be preferentially oxidized on the
surface of the LiNi0.5Mn1.5 cathode to form a low-impedance protective film, thereby preventing
O
4
the electrolyte from oxidizing and decomposing.
In addition to adding high-voltage additives, researchers have improved the high-voltage
performance of lithium-ion batteries by replacing carbonate solvents with new solvents which
have strong oxidation resistance. The antioxidant solvents currently studied mainly include
dinitriles,[29] sulfones, ionic liquids and fluorinated reagents, researchers have conducted a lot of
in-depth studies on the feasibility of these four types of antioxidant solvents for high-voltage
electrolytes. For example, Xiang[30] and other studies found that the addition of sulfone
(tetramethylene sulfone, TMS) will improve the solubility of the lithium salt, and the ionic
conductivity is highly compatible with the electrode ionic liquid (PP14-TFSI), and the addition of
sulfone will not damage the special performance of the ionic liquid. The results show that the 0.5
M of LiDFOB/(60%) PP14-TFSI/ (40%) TMS mixed electrolyte has better compatibility with the
This article is protected by copyright. All rights reserved.

ChemSusChem
10.1002/cssc.202101277
2
cathode of Li1.2Ni0.2Mn0.6O and improves the cycle performance of the battery. However, sulfone
is unstable to graphite carbon anodes and has a high viscosity, which is not conducive to the low
temperature and high rate performance of LIBs, which limits the widespread use of sulfone. In
addition, studies have reported that nitrile solvents can improve electrochemical performance by
positively affecting the electrode/electrolyte interface. For example, Wang[31] et al. found that
3
-methoxypropionitrile can improve the charge transfer process at the electrode/electrolyte
interface because it can reduce the interface reaction between the solvent and the electrode, and
+
accelerate the desolvation of Li ions. In addition, adiponitrile (ADN) can form a stable and
effective protective film on the surface of the anode and cathode to facilitate capacity
retention.[32-34] In order to meet the needs of high-voltage (5 V) cathode materials, Li[35] selected
the high-voltage electrolyte system of LiDFOB-DEC/EC/ADN, and found that ADN (adiponitrile)
can enrich the surface of the cathode material, prevent the electrolyte from further decomposition,
and can form a protective passivation film, thereby improving high-voltage performance.
The existing modification work has solved the continuous oxidation decomposition of
organic carbonates under high voltage and the solubility of excess metal ions in cathode materials
to some extent. However, the problem of organic carbonate electrolytes is that the passivation film
formed by the ordinary high-voltage additive on the surface of the positive electrode is unstable,
resulting in poor cycle stability of the battery under high voltages. In order to solve this problem, a
novel high-voltage electrolyte additive tetraethylthiophene-2,5-diylbismethylphosphonate (TTD)
is designed and synthesized in this work, which is used as an electrolyte additive to act on the
LiNi0.8Co0.1Mn0.1
O
O
2
2
cathode. A passivation film is formed on the surface of the
cathode to stabilize the electrode/electrolyte interface and ultimately improve
LiNi0.8Co0.1Mn0.1
the high voltage performance of the LiNi0.8Co0.1Mn0.1
2
O cathode.
Experimental
Synthesis of TTD
To ensure its purity, TTD was synthesized in the laboratory. 2,5-thiophene dicarboxylic acid
>98%) and triethyl phosphite (>98%) were purchased from Macleans, and LiAlH (97%) was
(
4
purchased from Aladdin. The synthesis is divided into the following three steps as shown in
This article is protected by copyright. All rights reserved.

ChemSusChem
10.1002/cssc.202101277
Scheme 1: 1) 2,5-thiophene dicarboxylic acid (10 g, 58 mmol) is dissolved in 800 mL of dry
tetrahydrofuran, after the mixture is cooled at 0 °C for 20 minutes, the LiAlH (4.4 g, 116 mmol)
4
is added, and then raised to room temperature and the mixture is stirred for 30 minutes. The
mixture is heated to 60 °C, and refluxed and stirred for 24 hours. Then the mixture is cooled to
0
°C, and add water to quench the reaction. The mixture is extracted with ethyl acetate (5×200
mL), dried and concentrated with anhydrous sodium sulfate, and the crude product is purified by a
silica-gel column with chloroform/ethanol (20:1) as eluent, to obtain the intermediate product of
2
,5-dihydroxythiophene. 2) 2,5-dihydroxythiophene (1.44 g, 0.01 mol) is dissolved in 20 mL of
dry dichloromethane, then thionyl chloride (3.57 g, 0.03 mol) dropwise is slowly added under the
protection of nitrogen, and stirred at room temperature for 10 h, the reaction was processed to
obtain 2,5-dichloromeththiophene. 3) 2,5-dichloromethylthiophene is dissolved in
N,N-dimethylformamide (DMF), triethyl phosphite is added and stirred at 170 °C for 7 h under
nitrogen protection, and the excess DMF was treated with distilled water, then extracted with ethyl
acetate, and purified by silica-gel column after rotary evaporation to obtain the final product of
-1
tetraethylthiophene-2,5diylbismethylphosphonate (TTD), 2.818g (yield: 73.48%); IR (KBr) (cm ):
646 and 1540 (ν:C=C), 1480 and 1444 (γ:-CH2-), 1393 and 1369 (γ:-CH3), 1248 and 1024
γ:P=O), 1164, 718 and 605.5 (γ:C-S), 969 and 848 (γ:P-O-C), 794.7 (γ:P-C), 535.5 (γ:C-S-C); 1H
NMR (500 MHz, CDCl3) δppm 1.30 (t, J = 7.1 Hz, 12H), 3.27 (d, J = 19.3 Hz, 4H), 4.07 (m, 8H),
.78 (s, 2H); MS: called for C14 S: m/z=384, found: m/z=384.12.
1
(
6
26 6 2
H O P
Scheme 1. Synthetic routes of tetraethylthiophene-2,5diylbismethylphosphonate (TTD)
Electrode preparation and battery assembly
All the solvents used in this work, such as dimethyl carbonate (DMC), ethyl methyl carbonate
This article is protected by copyright. All rights reserved.

ChemSusChem
10.1002/cssc.202101277
(
EMC), ethylene carbonate (EC) and lithium hexafluorophosphate (LiPF
Aiweixin Chemical Technology Co, Ltd. The electrolyte is prepared in an argon-filled glove box
Germany MBRAUN), oxygen content < 0.1 ppm, moisture content < 0.1 ppm, 1 M LiPF in
6
) are provided by Tianjin
(
6
DMC/EMC =3:5 (w/w) + PC(4%) is selected as the basic electrolyte and 0.5wt%, 1wt%, 2wt% of
TTD as an additive, respectively. The cathode is prepared with a mixture of 90wt%
2
LiNi0.8Co0.1Mn0.1O (NCM811) as active material, 5wt% of polyvinylidene fluoride (PVDF) as
binder, 5wt% of Super P (SP) as conductive agent, and NMP (N-methyl-pyrrolidone) as a solvent.
The mixture is ball-milled to make a uniform slurry and is coated on aluminum foil, and dried at
1
20 °C for 1 hour. The film is cut into circular pieces with a diameter of 1.2 cm and the area mass
-2
loading of the electrode is approximately 3.5 mg cm . The CR2032 NCM/Li button half-cells are
assembled with lithium metal as the counter electrode, the electrolyte, and Celgard®3501
(Celgard, Corp., LLC., Charlotte, NC USA) as the separator.
Characterization and electrochemical tests
Linear sweep voltammetry (LSV) test was performed by the CHI660E electrochemical
workstation produced by Shanghai Chenhua Company. The linear scan voltammogram was
-1
recorded between 2.0 and 6.0 V at a scan rate of 5 mV · s . Cyclic voltammetry (CV) and
alternating current impedance (EIS) tests of batteries are performed by the Ivium-Stat
multi-channel electrochemical workstation produced by Ivium-n-Stat.Xri from Netherlands. The
Cyclic voltammograms are recorded at a scan rate of 0.1 mV·s-1 between 2.5 and 4.6 V.
Impedance analysis is assessed with frequency range of 100000～0.01Hz and voltage amplitude
of 5 mV. The charge and discharge performance is tested at a current of 0.1 C, and the cycle
performance is measured at a current of 0.2 C at room temperature (25 °C), which are performed
using the Xinwei battery tester (BTS-5 V/10 mA). The normal voltage range is (2.75~4.2 V), and
the high voltage test voltage reaches 4.5 V.
In order to further understand the characteristics of the electrode surface, the battery after
cycling is disassembled in an argon glove box, and the cathode electrode piece is rinsed 3 times
with DMC to remove the remaining lithium salt and the electrolyte on the electrode surface, and
then dried for 12 hours. Electron microscope (SEM) and transmission electron microscope (TEM)
This article is protected by copyright. All rights reserved.

ChemSusChem
10.1002/cssc.202101277
are observed to analyze the surface morphology of the electrode, and X-ray photoelectron
spectroscopy (XPS) is investigated to analyze the surface element composition of the electrode.
Results and discussion
Synthesis and characterization
Under the action of reducing agent LiAlH
,5-dihydroxythiophene. Then the obtained 2,5-dihydroxythiophene is further reacted with SOCl
to form 2,5-dichloromeththiophene. Finally, the nucleophilic substitution reaction of
,5-dichloromeththiophene with triethyl phosphite is further carried out, and the target compound
4
, 2,5-thiophene dicarboxylic acid is reduced into
2
2
of tetraethylthiophene-2,5diylbismethylphosphonate (TTD) is obtained. The obtained TTD
compound is purified by silica-gel column and then dried any residual impurity under vacuum.
The obtained TTD compound is characterized by spectroscopic methods including IR, 1H-NMR
and high resolution mass spectrometry (MS) (Figure S1-S3 in supporting information), which
are consistent with the proposed structures.
-1
Figure S1 shows the IR spectra of TTD. The peaks at 1646 and 1540 cm can be attributed to
the characteristic absorption peak of C=C bond on the thiophene ring. The peaks at 1480 and 1444
-1
-1
cm is the characteristic absorption peak of -CH
2
- group, and the peaks at 1393 and 1369 cm is
the characteristic absorption peak of -CH
3
group. The peaks at 1248 and 1024 cm-1 can be
attributed to the characteristic absorption peak of P=O bond. The peaks corresponding to 1164,
-1
7
18 and 605.5 cm are the characteristic absorption peak of -C-S bond. The peaks at 969 and 848
cm-1 can be attributed to the characteristic absorption peak of P-O-C bond, and the peaks
-1
-1
corresponding to 794.7 cm and 535.5 cm are the characteristic absorption peak of P-C bond and
C-S-C bond, respectively. All the characteristic peaks of the IR spectrum can agree well with the
molecular structure of the target compound (TTD). In addition, the data of mass spectrometry (MS)
1
and H NMR spectrum (supporting information Figure S2-S3) are completely consistent with
the molecular structure of the target compound, which further confirms that the synthesized
compound is consistent with the target compound.
Electrochemical performance
Figure 1 shows the linear sweep voltammetry (LSV) curves. The voltage range is 2–6 V (V vs.
This article is protected by copyright. All rights reserved.

ChemSusChem
10.1002/cssc.202101277
+
Li/Li ), and the scanning speed is 5 mV/s. It can be clearly seen that the electrolyte with TTD has
a wider electrochemical window than the base electrolyte, indicating that TTD used as an additive
can improve the electrochemical stability of the electrolyte. For the pristine electrolyte (0TTD),
the current density increases significantly when the scanning voltage is above 4 V. Nevertheless,
the current density increases slowly for the electrolyte containing TTD until the decomposition
potential is greater than 4.64 V. The starting decomposition voltages of batteries with different
electrolyte of 0TTD, 0.5TTD, 1TTD and 2TTD are 3.98, 4.47, 4.29 and 4.64 V, respectively.
The results further indicate that TTD can increase the decomposition potential of electrolyte and
improve the oxidation stability of electrolyte, and the electrochemical stability window of the
battery with 1TTD electrolyte is best.
Figure 1. Linear sweep voltammetry (LSV) curves of batteries with different content of
electrolyte
Figure 2 shows the cyclic voltammetry curves of different electrolyte batteries. It can be seen that
the cyclic voltammetry curves of the two electrolyte batteries with addition of 0.5 TTD and 1 TTD
nd
rd
th
have higher degree of overlap after the first time, the CV curve of the 2 , 3 and 4 times almost
completely overlaps. While for the two electrolyte batteries of 0 TTD and 2 TTD, lower overlap in
the cyclic voltammetry curves of the next three times was observed. From the overlap of CV
curves, it can be predicted that the cycle stability of the 0 TTD and 2 TTD batteries is likely to be
relatively worse than the 0.5 TTD and 1 TTD batteries.
This article is protected by copyright. All rights reserved.

ChemSusChem
10.1002/cssc.202101277
Figure 2. Cyclic voltammetry curves of different electrolyte batteries (a) 0TTD; (b) 0.5TTD; (c) 1TTD; (d) 2TTD
rd
The 3 CV curves and parameters of batteries adding different content of TTD are investigated,
as shown in Figure S4 and Table 1, where Φ1 represents the first pair of oxidation peaks, Φ2
represents the first pair of reduction peaks, Φ3 and Φ4 represent the second pair of oxidation
peaks and reduction peaks, respectively. It is generally believed that the smaller the potential
difference between the redox peaks, the better the battery stability. It can be seen from Table 1
that the potential differences of first pair of redox peak for the 0.5TTD and 1TTD batteries are 7
and 5 mV, respectively, and the potential differences of the second pair of redox peak are 66.5 and
6
0
5 mV. The potential differences of the first pair of redox peak for the two electrolyte batteries of
TTD and 2TTD are 35 and 86 mV, respectively, and the potential differences of the second pair
of redox peak are 86 and 113 mV, respectively. Its obvious that the batteries with 0.5TTD and
1
2
TTD electrolyte have a smaller redox potential difference than those of batteries with 0TTD and
TTD electrolyte, indicating that the batteries with 0.5TTD and 1TTD electrolyte would be more
stable. The results suggests that after adding proper amount of TTD to the electrolyte, the stability
of the battery will be improved. However, the addition of excessive TTD may further reduce the
stability of the battery.
This article is protected by copyright. All rights reserved.

ChemSusChem
10.1002/cssc.202101277
rd
Table 1 Redox potential difference of the 3 CV curves for batteries with different electrolytes
Electrolyte
TTD
.5TTD
Φ1/V
3.718
3.700
3.692
3.746
Φ2/V
3.683
3.693
3.697
3.660
ΔΦ12/mV
Φ3/V
4.2185
4.2065
4.2070
4.229
Φ4/V
4.325
4.140
4.142
4.116
ΔΦ34/mV
-86
0
-35
-7
0
-66.5
-65
1
TTD
TTD
5
2
-86
-113
Figure 3 and Figure S5 Shows the initial charge and discharge curves of electrolyte batteries
with different TTD additions under different voltages and Table 2 shows the initial coulombic
efficiency of different electrolyte batteries. It can be seen that the discharge capacity of electrolyte
batteries with different TTD additives is slightly different at the normal voltage of 4.2 V (Figure
3
a). The capacity of 0.5 TTD and 1 TTD cells was increased compared with that of 0TTD battery.
After adding 2% of TTD, the capacity of 2TTD battery decreased. The results show that the
proper amount of TTD will improve the performance of the battery, but excessive TTD will lead
to the decline of the battery performance. With the increase of voltage to 4.3 V, the difference of
discharge capacity of batteries with different TTD additives is more obvious (Figure 3b).The
capacity of batteries with different TTD of added content shows a similar rule, that is, the capacity
of 0.5 TTD and 1 TTD batteries is higher than that of 0TTD battery, while the capacity of excess 2
TTD battery is lower than that of 0TTD battery. With the voltage increasing to 4.4 V and 4.5 V, the
capacity of the battery with different TTD is the same (Figure 3c and Figure 3d). No matter at
what voltage, the specific discharge capacity of the 0.5TTD and 1TTD batteries are higher than
0
TTD battery, but after adding 2TTD, the specific discharge capacity of the battery decreases,
which is lower than that of 0TTD battery. A proper amount of TTD significantly improves the high
voltage performance of the battery. It can be seen that under the voltage of 4.5V, the specific
discharge capacity of the 0TTD electrolyte battery is 226.45 mAh/g when it is formed. When the
amount of TTD additives added is 0.5wt%, 1wt%, 2wt%, the specific discharge capacity of the
batteries are 233.20 mAh/g, 238.86 mAh/g and 210.94 mAh/g, respectively. The results show that
when a small amount of TTD is added , the specific discharge capacity of the battery can be
increased, but when excessive TTD is added, the specific discharge capacity of the battery will
decrease. Similarly, as can be seen from Figure S5, when a small amount of TTD is added under
different voltages, the discharge capacity of the battery also increases, but when an excessive
amount of TTD is added, the specific discharge capacity of the battery will decrease. The effect of
This article is protected by copyright. All rights reserved.

ChemSusChem
10.1002/cssc.202101277
different TTD additions on the charge-discharge performance of the battery is consistent with that
of the CV curves as discussed in Figure 2.
Figure 3. The first charge and discharge curves of batteries with different amounts of electrolyte added to TTD
under different voltages; (a) 4.2V, (b) 4.3V, (c) 4.4V, (d) 4.5V
Table 2. The initial coulombic efficiency of different electrolyte batteries
Initial coulombic efficiency (%)
No.
4
.2V
4.3V
84.9
84.0
86.8
77.0
4.4V
90.9
87.1
87.5
80.0
4.5V
90.1
80.4
86.0
75.8
0
TTD
81.9
79.0
80.7
82.4
0
.5TTD
1
TTD
TTD
2
At the same time, it can be seen from the data in Table 2 that the first Coulomb efficiency of
the battery decreases after adding TTD. The first coulomb efficiency of 0.5% and 1% TTD
electrolyte battery was more than 80%, but the first Coulomb efficiency decreased more after
adding 2% TTD. At different voltages, the initial Coulomb efficiency of 0TTD electrolyte cell
were 81.9%, 84.9%, 90.9% and 90.1% at 4.2, 4.3, 4.4 and 4.5 V, respectively. However, after
adding 1TTD, the initial Coulomb efficiency were 80.7%, 86.8%, 87.5% and 86.0% at 4.2, 4.3,
4
.4 and 4.5 V, respectively. The results indicate that after adding the TTD, the initial Coulomb
efficiency of the battery decreases slightly. It is found from Table 2, the initial coulombic
This article is protected by copyright. All rights reserved.

ChemSusChem
10.1002/cssc.202101277
efficiency of 0TTD, 0.5TTD and 1TTD batteries are increased with the increase of voltage from
.2 V to 4.4 V. Generally, for the ternary cathode material, most of the reaction for forming a CEI
4
film on the surface of electrode sheet is completed before 4 V (usually 3.65 V). The conditions
leading to the formation of the CEI electrolyte membrane are not produced at high voltage, but the
compact CEI electrolyte film is formed before 3.65 V. Therefore, at different voltages (4.2, 4.3 and
4
.4 V), the irreversible capacity consumed by the CEI electrolyte film formed on the electrode
surface is substantially less different. However, as we discussed earlier, the capacity contribution
generated by the electrodes increases as the charge/discharge voltage increases. As a result, the
initial coulombic efficiency of the battery increases with the charge/discharge voltage from 4.2 V
to 4.4 V. However, it can also be found from Table 2 that the initial coulombic efficiency of the
battery is reduced at a high voltage of 4.5 V compared with 4.4 V, which is due to the
decomposition of electrolyte would become more intensive as the voltage reaches above 4.5 V,
and at this high voltage, the electrolyte is decomposed so much more that the initial coulombic
efficiency is decreased. While when the charge and discharge voltage is below 4.4 V, the
electrolyte decomposition is not so serious, making the initial coulombic efficiency of the battery
still shows an increasing trend.
As shown in Figure 4, the cycling stability of NCM-811 batteries containing different
electrolytes under different voltages is studied. At a regular voltage of 4.2 V (Figure 4a), the
initial discharge specific capacity of the battery without TTD electrolyte is 179.1 mAh/g, while the
initial discharge specific capacity of the batteries with 0.5TTD, 1TTD and 2TTD are 188.5, 189.7
and 183.4 mAh/g, respectively. After 200 cycles, the capacity retention rates of 0TTD, 0.5TTD,
1
0
1
TTD and 2TTD batteries are 63.5%, 74.9%, 84.3% and 67.4%, respectively. Compared with
TTD, both the initial capacities and the capacity retention rates after 200 cycles of 0.5TTD,
TTD and 2TTD batteries are improved significantly. Especially for the 1TTD battery, the
capacity retention rate is increased by 20.8% compared with the 0TTD battery. As the
charge/discharge voltage rises to 4.3 V (Figure 4b), the initial discharge specific capacity of the
batteries with 0TTD, 0.5TTD, 1TTD and 2TTD are 193.7, 197.9, 205.1 and 205.6 mAh/g,
respectively, with capacity retention rates of 57.1%, 70.8%, 75.4% and 58.8% after 200 cycles. As
can be seen, the cycle performance of the electrolyte battery after adding TTD additives is
obviously improved. In Figure 4c, as the charge/discharge voltage continues to increase to 4.4 V,
This article is protected by copyright. All rights reserved.

ChemSusChem
10.1002/cssc.202101277
the capacity retention rate of 0TTD, 0.5TTD, 1TTD and 2TTD batteries are 27.01%, 54.17%,
7.0% and 58.25%, respectively. The results show that the TTD additives can effectively improve
7
the cycle performance of the battery. Especially under high voltage of 4.5 V, the initial discharge
specific capacity of the battery without TTD electrolyte is 201.11mAh/g, while the initial
discharge specific capacity of batteries with 0.5TTD, 1TTD and 2TTD electrolyte are 217.89,
2
4
19.95 and 210.39 mAh/g, respectively. After 200 cycles, the capacity retention rates are 24%,
9.1%, 55.9% and 51.9%, respectively. It can be seen that after adding TTD additives, the cycle
performance of the battery is significantly improved. Compared with 0TTD, the capacity retention
rate of 1TTD is increased by 31.9%. It can be seen from Figure 4 that, no matter at which voltage,
the battery cycle performance with 1TTD electrolyte is the best. That is to say, with the increase of
TTD addition, the performance of the battery is improved, and when added content of TTD is 1%,
the performance of the battery reaches the optimal value. After that, increasing the amount of TTD,
the cycle performance of battery will deteriorate. This is mainly due to the TTD stabilization effect
on electrolyte decomposition by-products and the composition, thickness, uniformity and
compactness of CEI films are different at different voltages, which will be discussed in detail in
subsequent mechanism analysis.
Figure 4. 0.2 C cycle performance graph of batteries with different TTD addition amounts of electrolyte under
different voltages; (a) 4.2 V, (b) 4.3 V, (c) 4.4 V, (d) 4.5 V
This article is protected by copyright. All rights reserved.

ChemSusChem
10.1002/cssc.202101277
Figure 5. Shows the rate cycle curves of batteries with different amounts of TTD in electrolyte
under different voltages. It can be seen that the rate performance of the battery is significantly
improved after adding right amount of TTD. However, when an excess of TTD is added, the rate
performance of battery will deteriorate significantly, especially at high rate of 5 C, the capacity
attenuation is more obvious. When the addition of TTD was 0.5% and 1%, the rate performance of
0
.5 TTD and 1 TTD batteries are obviously improved compared with 0TTD battery. It can be seen
from Figure 5a and Figure 5b that the discharge capacity of batteries with different TTD content
at different charge and discharge rate under voltage of 4.2 V and 4.3 V is different, but the
difference is not significant. Nevertheless, the discharge capacity difference of the battery with
different TTD content at different rate is more obvious at the large charge and discharge voltage of
4
.4 V and 4.5 V (Figure 5c and Figure 5d). The discharge capacity of batteries without TTD at
different rates varies greatly from that of batteries with 1% of TTD added to the electrolyte,
especially at high rate of 5 C. The batteries with 1% of TTD has the best rate performance. Under
4
1
.5 V, its discharge specific capacity at 0.2 C, 0.5 C, 1 C, 2 C, 5 C, and 0.2 C rates are 201.8, 193.5,
83.0, 173.58, 163.3, and 196.0 mAh/g. While for the batteries without TTD, the discharge
capacity at different rates of 0.2 C, 0.5 C, 1 C, 2 C, 5 C are 201.5, 185.7, 173.9, 159.7 and 140.50
mAh/g, respectively.
Moreover, an interesting phenomenon has been observed, that is, after 5 C of large rate charge
and discharge, and then back to 0.2 C, the battery with TTD shows a higher capacity value than
0
TTD battery, indicating that the addition of TTD can also improve the capacity recovery of the
battery after large rate charge and discharge. For example, the specific discharge capacities of
batteries charge/discharge under 4.5 V at 5 C with 0TTD, 0.5TTD, 1TTD, and 2TTD electrolytes
are 140.5, 156.6, 163.3, and 133.5 mAh/g, respectively. And when go back to charge/discharge at
low rate of 0.2 C, the specific capacities are 181.7, 200.3, 196.0, and 182.0 mAh/g, respectively.
As can be seen from Figure 5, the capacity recovery degree of 0 TTD battery is the lowest at
different voltages. With the addition of TTD to the electrolyte, the capacity recovery rate of the
battery after large rate charge and discharge is obviously improved, in which the capacity recovery
rate of 0.5 TTD and 1 TTD is the highest. The results indicates that TTD additives can not only
effectively increase the cycle and rate performance of the battery, but also effectively restrain the
damage effect of large rate charge and discharge on the battery.
This article is protected by copyright. All rights reserved.

ChemSusChem
10.1002/cssc.202101277
Figure 5. Rate cycle performance of batteries with different content of TTD in electrolyte under different voltages;
a) 4.2 V; (b) 4.3 V; (c) 4.4 V; (d) 4.5 V
(
Generally, the effect of electrolyte composition on the performance of the battery depends
mainly on the CEI film formed on the surface of NCM-811 particles during the charge-discharge
process, so that results in the improvement of the stability of the interface between NCM-811 and
the electrolyte, which can also be reflected from the change in the interface impedance of the
battery after cycling. Figure 6 reflects the EIS impedance of the electrodes with pristine
electrolyte and electrolytes containing different content of TTD. The characteristic concave
semicircles at high frequency and the slope line at low frequency are observed. The former
semicircles represent the transfer resistance of lithium ions in the electrolyte and the interface
resistance caused by the CEI film, and the latter corresponds to Warburg impedance. As can be
seen, the batteries without TTD (0TTD) show the largest semicircle diameter in the high
frequency region, indicating that 0TTD batteries have the largest resistance of the lithium ions in
the electrolyte. After adding TTD to the electrolyte, the semicircle diameter in the high frequency
region of the batteries is reduced, especially for the 1TTD electrolyte battery, the semicircle
diameter in the high frequency region is the smallest. The results show that the addition of TTD
can effectively reduce the impedance of the electrolyte. However, the EIS impedance of 0 TTD,
This article is protected by copyright. All rights reserved.

ChemSusChem
10.1002/cssc.202101277
0
.5TTD and 2 TTD electrolyte cells appear second semicircles in the intermediate frequency
region after charge-discharge formation at high voltage of 4.5 V. Generally, the semicircle in the
intermediate frequency region is mainly attributed to the interfacial impedance of the CEI film.
For the 0TTD battery, a CEI film formed on the electrode surface is thicker and the interface
impedance is large. As a result, the semicircle in the intermediate frequency region can be
observed. With the addition of TTD, the CEI film is thinner and more uniform, and the
composition of the CEI film is more favorable for lithium ion transmission, which makes the
interface impedance of the CEI film decrease. When the amount of TTD is 1%, the interface
impedance is the smallest, so that the semicircle is not observed in the intermediate frequency
region. When the TTD content is too high (2 TTD), the CEI film is more compact, which leads to
the increase of the interfacial impedance of the CEI film, and the semicircle can be also observed
obviously in the intermediate frequency region. The data of EIS impedance are consistent with the
data of previous cycle and rate performance, which further explains the effect of TTD on the
formation of CEI film and its effect on impedance and even electrochemical performance.

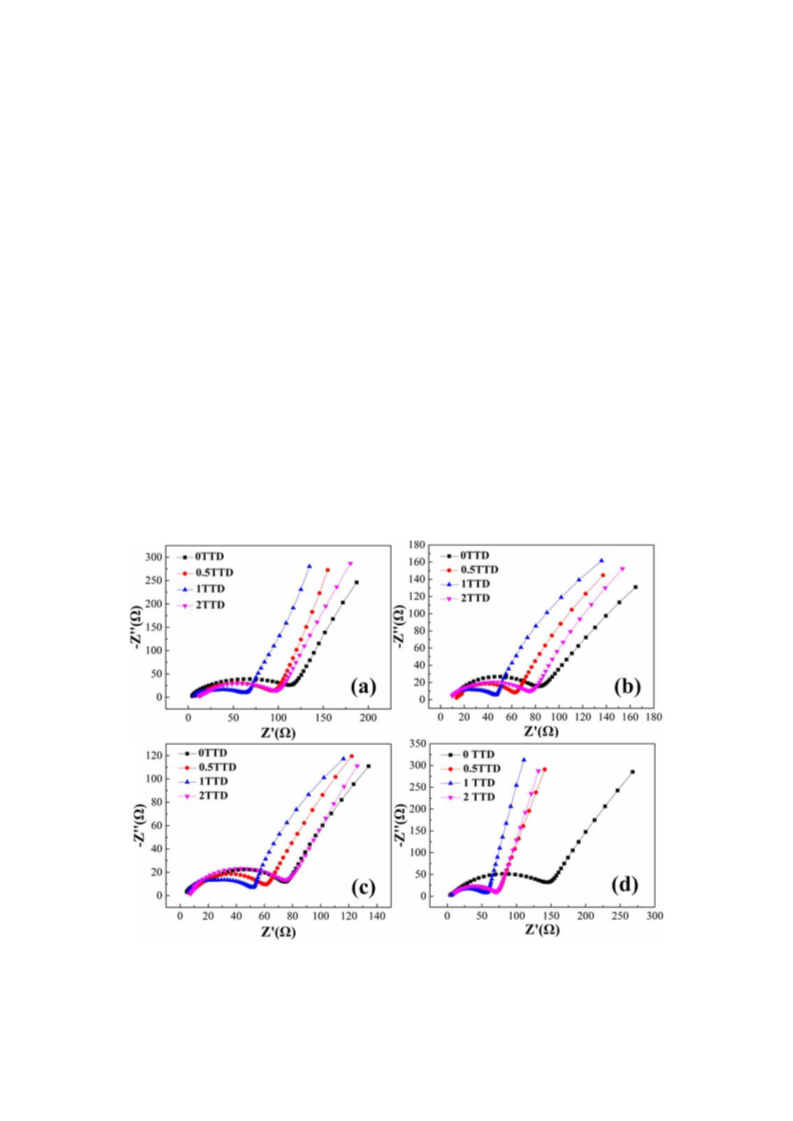

Figure 6. EIS impedance of batteries with electrolyte adding different content of TTD under different voltage (a)
4
.2V, (b) 4.3V, (c) 4.4V, (d) 4.5V.
This article is protected by copyright. All rights reserved.

ChemSusChem
10.1002/cssc.202101277
Mechanism analysis
Different electrolyte components show different electrochemical properties. From the above
electrochemical analysis, it can be concluded that the performance of battery with 1% TTD
electrolyte is the best, and the performance of battery with 0% TTD electrolyte is the worst.
Therefore, in order to further analyze the mechanism of the influence of different electrolytes on
the battery performance, the electrodes of the 1TTD battery with the best performance and the
0
TTD battery with the worst performance are selected as the following characterization and
analysis objects. Figure 7 shows the SEM images of NCM-811 electrode sheet before and after 5
cycles. For the pristine NCM-811 electrode sheet without charge/discharge, the typical particles of
NCM-811 ternary cathode materials can be clearly observed, and the surface of NCM-811
particles is smooth and clean without any other deposits or films attached (Figure 7 a-c). While
for the NCM-811 electrode sheet with 0TTD electrolyte after charge/discharge at 4.5 V for 5
cycles, a thicker and uneven deposited film can be observed on the surface of NCM811 particles,
so that the NCM-811 active particles can not be clearly observed (Figure 7 d-f). After adding
1
TTD into the electrolyte, for the NCM-811 electrode sheet with 1TTD electrolyte after
charge/discharge at 4.5 V for 5 cycles, the surface of NCM-811 active particles is smooth and can
be clearly observed, only a thin and uniform film covering on the surface of NCM-811 positive
particles (Figure 7 g-i). The results show that the thickness and uniformity of CEI film formed on
the surface of cathode particles after charge-discharge cycle is different for electrolyte with
different content of TTD, which will be the key factor affecting battery performance.
This article is protected by copyright. All rights reserved.

ChemSusChem
10.1002/cssc.202101277

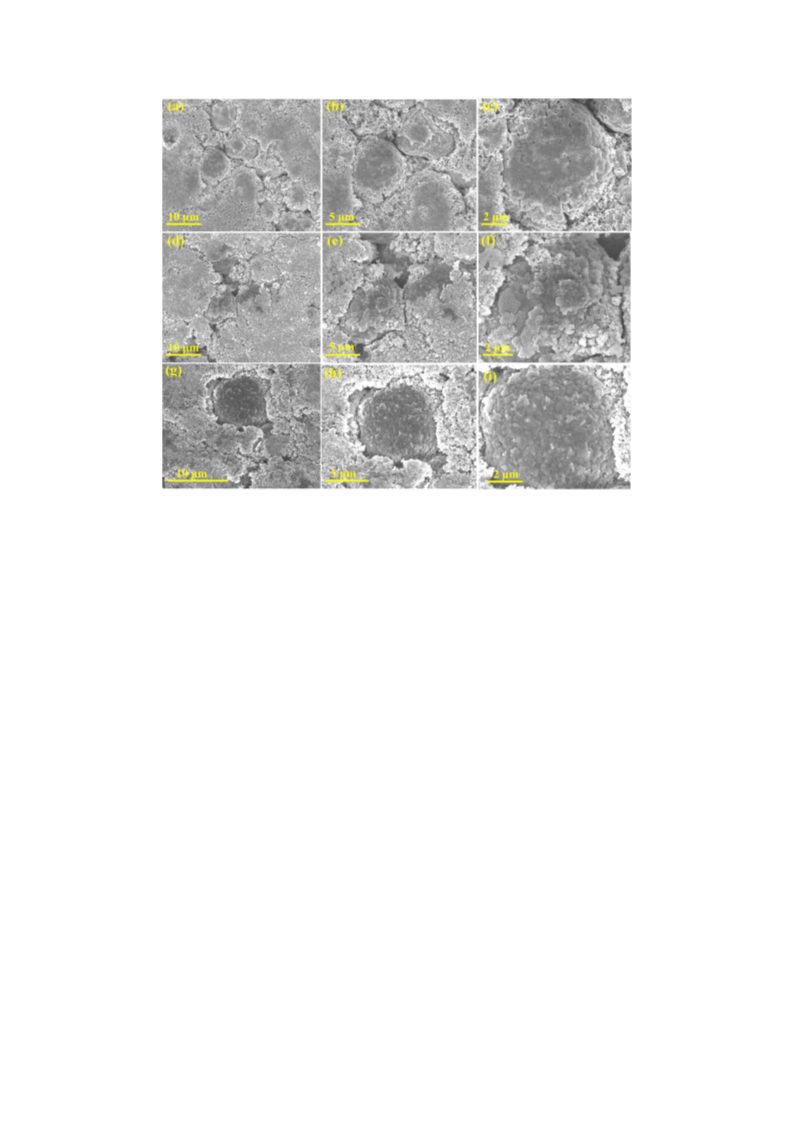

Figure 7. SEM images of (a-c) pristine NCM-811 electrode sheet without charge/discharge; (d-f) NCM-811
electrode sheet with 0TTD electrolyte after charge/discharge at 4.5 V for 5 cycles; (g-i) NCM-811 electrode sheet
with 1TTD electrolyte after charge/discharge at 4.5 V for 5 cycles
EDS spectra of the cathode sheets from different electrolyte batteries were investigated to
further confirm the formation of the CEI film, as shown in Figure 8 and Table 3. For the fresh
cathode sheet without charge/discharge, the surface of the cathode particles is smooth, without any
deposits attached (Figure 8a), and the EDS energy spectrum show that the percentage content of
C(wt%), O(wt%), F(wt%) and P(wt%) elements are 8.43%, 33.73%, 1.78%, and 0.04%,
respectively (Figure 8b). While after 5 cycles, the surface of the cathode particles of the 0 TTD
battery is obviously attached to the deposit (Figure 8c), and the EDS test results show that the
content of C (wt%), O (wt%), F (wt%) and P (wt%) elements are 12.66%, 43.74%, 8.44% and
0
.39% respectively (Figure 8d). There is no doubt that the element contents on the surface of the
particles have increased, which also reflects the fact that the CEI film is formed on the cathode
surface after 5 cycles. However, for the batteries adding 1TTD after 5 cycles, the CEI film formed
on the surface of the cathode particles is more obvious, and the composition of the CEI film is also
changed (Figure 8e). The EDS spectra show that the content of C and O elements decreases while
the the content of F element increases, and a new element S is observed with a content of 0.02%
This article is protected by copyright. All rights reserved.

ChemSusChem
10.1002/cssc.202101277
(
2 3
Figure 8f). This proves that the composition of RCOOLi and Li CO in the CEI layer decreases,
while the composition of LiF increases, and the existence of S and P elements further indicates
that the TTD additive is effectively involved in the formation of CEI membrane, priority to
generate the CEI membranes containing F, S and P elements, which may inhibit the further
decomposition of electrolye, and will be further discussed in the following XPS spectra.

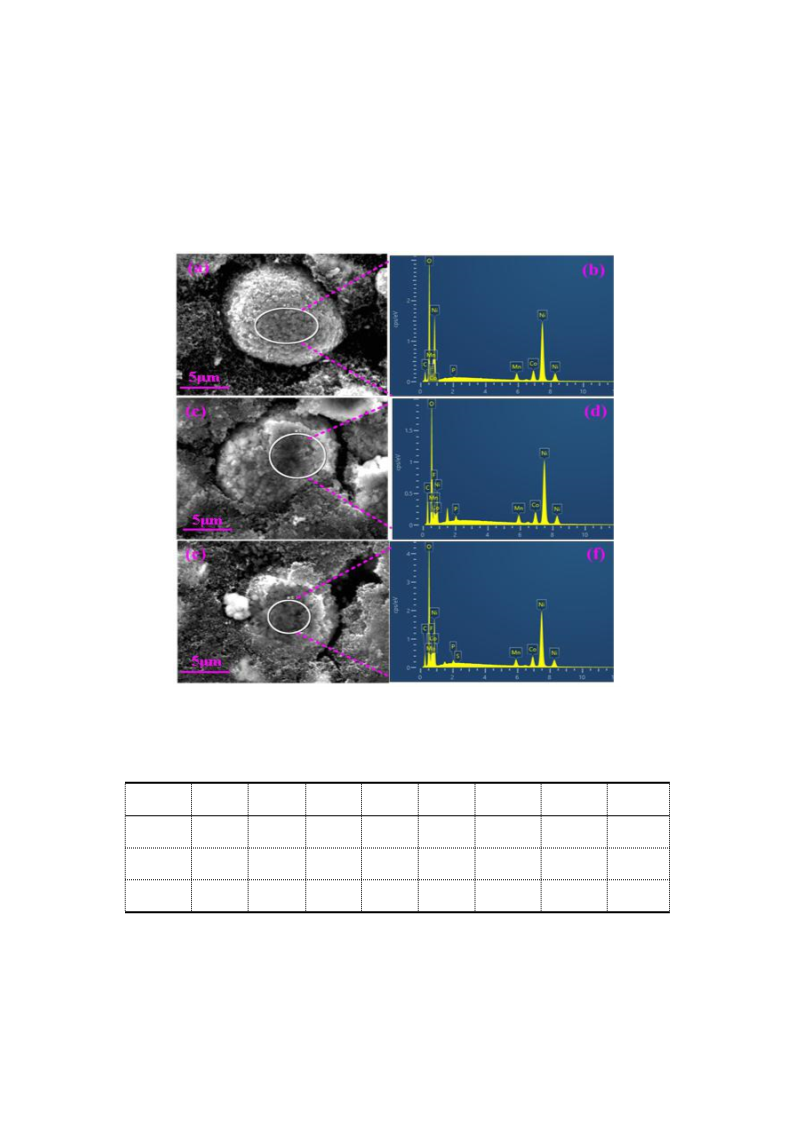

Figure 8 SEM and EDS spectra of different electrolyte batteries before and after 5 cycles at room temperature (a,b)
fresh; (c,d) 0 TTD; (e,f) 1 TTD
Table 3. EDS spectrum data of different electrolyte batteries before and after 5 cycles
Samples
C(wt%) O(wt%) F(wt%) P(wt%) S(wt%)
Ni(wt%)
46.64
Mn(wt%) Co(wt%)
Fresh
8.43
12.66
9.43
33.73
43.74
37.58
1.78
8.44
9.73
0.04
0.39
0.37
0
0
2.65
1.81
5.38
6.72
4.28
2.10
0
1
TTD
TTD
28.68
0.02
35.01
In order to further explore the thickness and uniformity of the CEI film formed on the surface
of cathode materials, the TEM images of the NCM-811 electrode sheets before and after cycling
are investigated, as shown in Figure 9. For the pristine NCM-811 electrode sheet without
This article is protected by copyright. All rights reserved.

ChemSusChem
10.1002/cssc.202101277
charge/discharge, the outer edge profile of the NCM-811 active particles can be clearly observed,
the surface of which is clean and smooth, and no other coverings are found (Figure. 9a-b). After
the NCM-811 electrode sheet charge/discharge at 4.5 V for 200 cycles using 0TTD electrolyte, it
can be seen that the NCM-811 active particles are surrounded by a film that looks uneven and
loose. After analysis and measurement, the thickness of the film is at least 31 nm (Figure 9c-d).
However, for the NCM-811 electrode sheet charge/discharge at 4.5 V for 200 cycles using 1TTD
electrolyte, a complete, uniform and dense film with thickness of about 20 nm coated on the
surface of NCM-811 secondary particles (Figure 9e-f). Compared with the 0TTD electrode sheet,
the thickness of CEI film formed on the surface of NCM-811 for the 1TTD electrode sheet is
much more uniform, denser and thinner, which is in perfect agreement with the SEM images as
discussed in Figure 7. These results further fully demonstrate that the addition of TTD additives
will improve the formation of CEI film on the surface of electrode and make the formed CEI film
more uniform, dense and thin, which is more conducive to lithium ion transport and more
effective protection of electrode materials from electrolyte erosion, which is an important factor
that the TTD additives can improve the comprehensive behaviors of lithium ion batteries.
Figure 9. TEM images of NCM811 electrode sheet with different electrolyte batteries, (a, b) original electrode
without charge/discharge; (c, d) 0TTD electrolyte after 200 cycles at 4.5V; (e, f) 1TTD electrolyte after 200 cycles
at 4.5V
This article is protected by copyright. All rights reserved.

ChemSusChem
10.1002/cssc.202101277
In order to further analyze the composition and formation mechanism of CEI film on different
electrode surfaces, XPS spectra of the cathode sheet before and after cycles was investigated as
shown in Figure S6. The characteristic peaks of pristine electrode (fresh) sheet including O 1s
peak of LiO- at 531.8 eV, C 1s peak of conductive carbon at 284.5 eV, PVDF at 290.8 eV and
2
85.9 eV, and F 1s of PVDF at 687.3 eV. These characteristic peaks are also identified in the two
electrodes (0TTD and 1TTD) after cycling, but the intensity of the characteristic peaks of the
elements changes. For the pristine electrode (fresh), the peaks of C1s and F1s are very strong due
to the presence of PVDF, while the peaks of O1s are very weak because of the low content of O
elements. After cycling at 4.5 V using 0TTD electrode (base), the characteristic peaks of the F1s
and C1s are significantly weakened, while the characteristic peak of the O1s is obviously
enhanced, which is due to the fact that the CEI film produced after charge-discharge cycle is
covered on the surface of the electrode material, which weakens the peaks of PVDF, and the
formed CEI film containing lithium alkyl carboxylic acid enhances the characteristic peak of the
O1s. After adding the TTD to the electrolyte, the intensity of O1s and C1s is slightly weakened,
while the the intensity of F1s is obviously increased, which is due to the change in the
composition of the CEI membrane. After adding TTD to the electrolyte, the decomposition
products of the electrolyte include C1s of lithium carbonate at 286.5eV and 289.7eV, O1s of
x y x y z
lithium carbonate at 531.6 eV, and P2p of Li PF and Li PO F at 137.3 eV and 133.8 eV,
respectively. It can be seen that for the 0TTD electrode after cycling, the peak intensity of C1s and
O1s is stronger than that of 1TTD electrode after cycling, and the peak intensity of F1s is weaker
than that of 1TTD electrode. In the same P2p spectrum, Li
x y x y z
PF and Li PO F are observed at
1
37.3eV and 133.8eV, and the intensity is stronger than that of the electrode circulating in 1%
TTD electrolyte. This comparison confirms that for the 0TTD electrode after cycling, there is
more electrolyte decomposition than the 1TTD electrolyte.
In order to further analyze the components corresponding to different elements, the C1s, O1s,
F1s, P2p and S2p XPS spectra corresponding to different electrolyte electrodes were compared
and analyzed. Figure 10a-c shows the C1s XPS spectra of different electrolyte battery electrode
sheets, for the electrode without charge/discharge process, only two peaks corresponding to PVDF
and C-C bond are observed (Figure 10a). After charging and discharging, the peak of PVDF
disappeared
due to the formation and coverage of the CEI film. For the base electrolyte
This article is protected by copyright. All rights reserved.

ChemSusChem
10.1002/cssc.202101277
electrode (0TTD), four peaks are observed at 284.5, 286.5, 288.5 and 289.7 eV respectively,
corresponding to C-C, C-OR, COOR and MCO (Figure 10b), indicating that the CEI film formed
on the basic electrolyte electrode contains Li CO and a little mount of alkyl carboxylic acid
lithium. While for the 1TTD electrolyte electrode, five peaks corresponding to C-C, C-S, C-P,
COOR and MCO at 284.5, 285.6, 286.7, 288.4 and 289.7 eV are observed (Figure 10c),
suggesting that CEI membrane contains a new component containing C-S and C-P bonds in
addition to the Li CO and a small amount of alkyl lithium carboxylic acid. This can be also
confirmed from the O1s XPS spectra as shown in Figure 10d-f. In the electrode without
charge/discharge process, only the peak corresponding to the surface contaminants such as Li CO
is observed, which is the reaction product of NCM-811 with moisture and CO in the air (Figure
0d). However, after the electrode charged and discharged, for the 0TTD electrode sheet, a strong
Li-O peak is observed at 531.5 eV, and a weaker COO bond peak is observed at 532.2 eV (Figure
0e), further confirming the existence of Li CO and a small amount of alkyl lithium
carboxylate in the CEI membrane. After adding TTD to the electrode (1TTD), the intensity of
Li-O and C-O bonds decreased obviously (Figure 10f), indicating that that the content of Li CO
3
2
3
3
2
3
2
3
2
1
1
2
3
2
3
and lithium alkyl carboxylic acid in the CEI film decreased, which is due to a new component
containing P=O bonds appears at 532.1 eV formed in the CEI membrane. In addition, in the F1s
XPS spectra, a strong PVDF peak at 688.3 eV is observed for the pristine electrode without
charging and discharging process (Figure 10g). However, for the 0TTD electrode after charging
and discharging process, a strong LiF peak at 685.1eV and two weak shoulder peaks at 686.1 and
6
87.5eV correspond to Li
CEI film of the basic electrolyte electrode (0TTD), the main components are ROCO
LiF, Li PF and Li PO . While for the 1TTD electrode, the strong LiF peak at 685.1 eV and a
x
PF
y
and Li
x
PO
y
F
z
can be observed (Figure 10h), indicating that in the
2
Li, Li CO ,
2
3
x
y
x
y z
F
weak wide peak at 687.4 eV is observed (Figure 10i), further indicating that the main component
of the CEI film in the 1TTD electrolyte electrode is composed of other new components
2 2 3
containing novel P-F bonds besides ROCO Li, Li CO and LiF. In order to further explore the
mechanism of CEI membrane formation, P2p XPS spectra were further examined as shown in
Figure 10j. Its obvious that there are no P elements in the electrode without charging/discharging
process. For the 0TTD electrode after charging/discharging process, a wide weak peak
x y x y z
corresponds to Li PF and Li PO F is observed. However, after adding TTD to the electrolyte, a
This article is protected by copyright. All rights reserved.

ChemSusChem
10.1002/cssc.202101277
more stronger peak corresponds to P-F bond is observed, further confirming that a novel
component containing P-F bonds is formed in the CEI film of 1TTD electrode. In the F1s spectra
(
Figure 10k), the Li salts mainly contain ROCO
2
Li, Li
2
CO
3
, LiF and a little amount of Li
x
PF
y
and
CO
Li PO in the 0TTD electrode, while in the 1TTD electrode, the CEI film only contains Li
x
y
F
z
2
3
2 3
and LiF, and in addition a little amount of Li SO is also contained which can be observed in the
S1s spectra as shown in Figure 10l.
Figure 10. XPS spectra of different electrolyte battery electrode sheets; (a, b, c) C1s spectra; (d, e, f) O1s spectra;
g, h, i) F1s spectra; (j) P2p spectra; (k)) Li1s map; (l) S2p map (where fresh is the original pole piece, base is the
(
electrode piece with 5 cycles of basic electrolyte, and TTD is the electrode piece with 1% TTD electrolyte
circulating 5 times, B.E. is the Binding Energy )
This article is protected by copyright. All rights reserved.

ChemSusChem
10.1002/cssc.202101277
Figure 11 shows the infrared spectra of different electrolyte batteries before and after 5
-1
-1
cycles. For the pristine un-cycled fresh electrode sheet, the peaks of 800 cm , 1100-1200 cm and
1
384 cm-1 are ascribed to the PVDF binder. While for the electrode sheet cycled in the basic
-1
-1
electrolyte, in addition to the characteristic peaks of PVDF at 800 cm , 1100-1200 cm and 1384
-
1
-1
cm , some new characteristic peaks are observed, such as the peak of Li
x
PF
at 1438.9 cm , as well as the peak of
Li at 1638.9 cm . This is due to the formation of CEI film after cycling, and the
composition of the film is composed of Li PF , Li PO , Li CO and ROCO Li. However, for the
electrode sheet cycling with 1TTD electrolyte, the characteristic peaks of PVDF at 800 cm ,
y
at 878.4 cm , the
-1
-1
peak of Li
ROCO
x y z 2 3
PO F at 1277.2 cm , the peak of Li CO
-1
2
x
y
x
y
F
z
2
3
2
-1
-1
-1
-1
-1
1
100-1200 cm and 1384 cm , LixPFy (878.4 cm ), LixPOyFz (1277.2 cm ), Li
2
CO
3
(1438.9
-1
-1
-1
cm ), ROCO
2
Li (1638.9 cm ) are observed, and a strong new peak of PO3 at 1048.5 cm appears,
which indicates that the CEI membrane contains PO3 bond-containing compounds corresponding
to the TTD-(PF ) complex in addition to the lithium salt of LixPFy, LixPOyFz, Li CO and
ROCO Li. The results fully suggest that TTD participates in CEI film formation, which is
5
2
3
2
consistent with the XPS result of Figure 10.

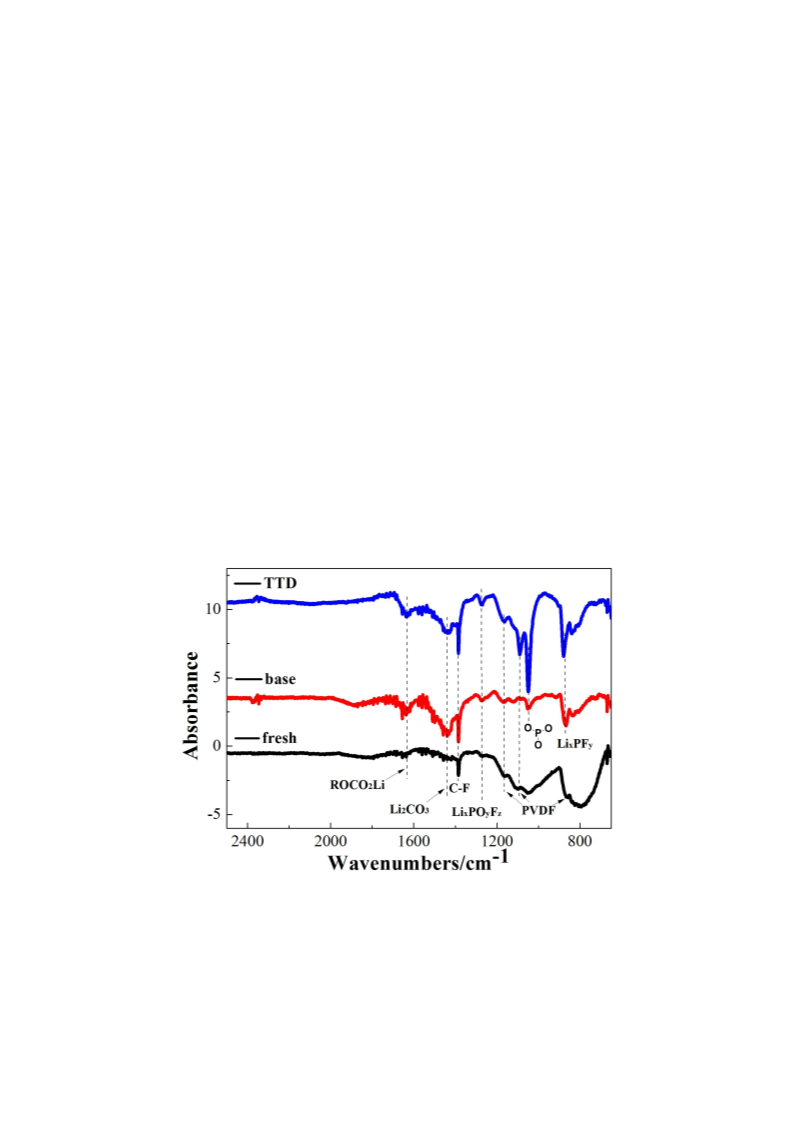

Figure 11. IR spectra of battery electrode sheets with different electrolytes before and after 5 cycles
As can be concluded from XPS spectra in Figure 10 and Figure 11, the CEI film formed by
the pristine electrolyte (0TTD) battery mainly includes ROCO
2 2 3
Li, Li CO , LiF and a little amount
of Li PF and Li PO . Nevertheless, after adding TTD to the electrolyte, the CEI film formed on
x
y
x
y z
F
the electrode surface of 1TTD electrode contains a new component containing C-S, C-P, P-F and
This article is protected by copyright. All rights reserved.

ChemSusChem
10.1002/cssc.202101277
3 2 3
P-O bonds in addition to the Li salts of LiF, Li CO . This is mainly due to the different
mechanism of CEI film formed by different electrolyte components. When the battery is first
charged and discharged, the DMC, EMC and PC solvents in the base electrolyte participate in the
formation reaction of the CEI membrane, as shown in the reaction formulas (1) - (4), respectively.
As a result, the components in the resulting CEI film contains lithium alkyl carboxylate
(
ROCO
electrolyte will decompose under the action of water to produce lithium salts of LiF, Li
Li PO , as shown in the reaction formulas (5) - (7). Therefore, for the base electrolyte (0TTD),
2
Li) and Li
2
CO
3
. Furthermore, during the charge-discharge process, the LiPF
6
in the
x
PF and
y
x
y z
F
the CEI film mainly contains Li
components.
2 3 x y x y z
CO , LiF, ROCOOLi, Li PF and Li PO F lithium salt

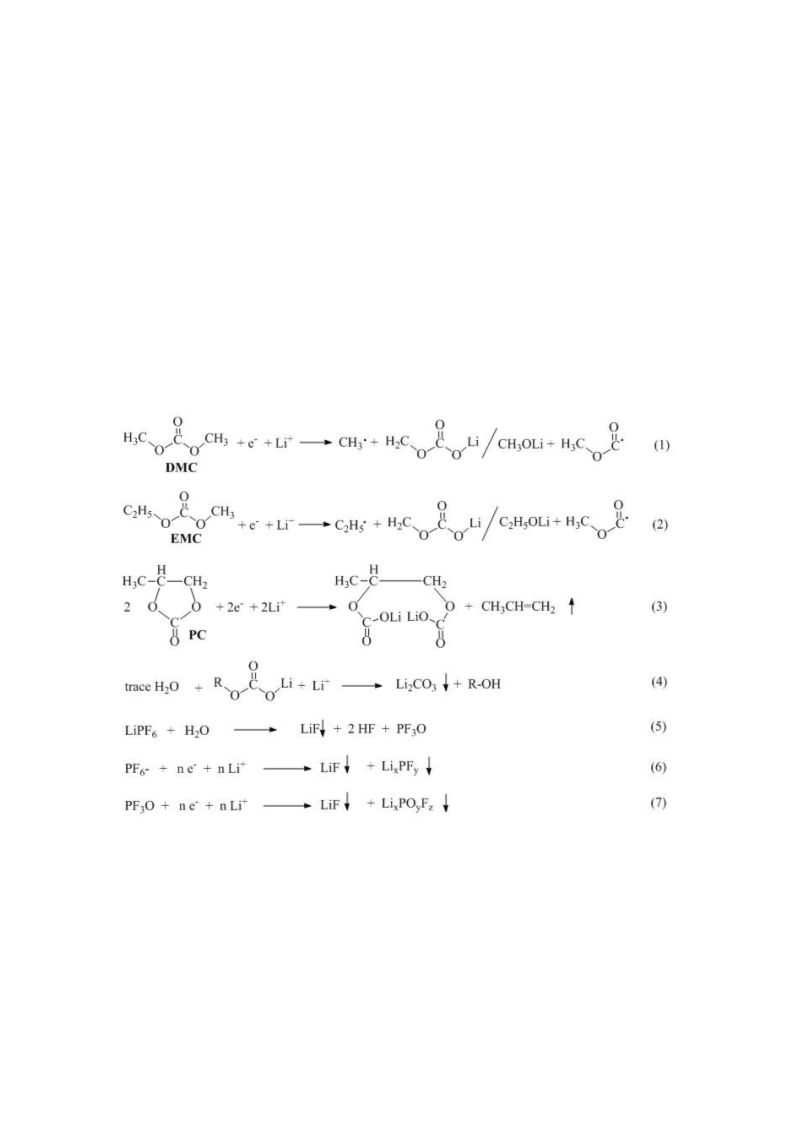

Scheme 2 Formation reaction of the CEI membrane
Nevertheless, the CEI film formed by the base electrolyte (0TTD) is not stable, and the side
reactions such as (9)-(12) will occur under the action of the HF formed by the reaction formula (5)
5
and the decomposition products of the PF formed by the reaction formula (8). This conclusion is
in well agreement with the SEM and TEM images. The thickness of the CEI film on the 1TTD
electrode surface is much thinner than that on the 0TTD electrode surface. The main reason is that
This article is protected by copyright. All rights reserved.

ChemSusChem
10.1002/cssc.202101277
2 3
after adding the TTD additive, the composition of lithium alkyl carboxylic acid and Li CO in the
CEI film formed on the electrode surface is reduced. This conclusion is completely consistent with
the results in the SEM and TEM images (Figure 7 and Figure 9). It can be clearly observed in the
SEM and TEM images that the CEI films formed on the surface of the electrolyte electrode are
very uneven, which is due to the decomposition reaction of some ROCOOLi and Li
salts.
2 3
CO lithium
5

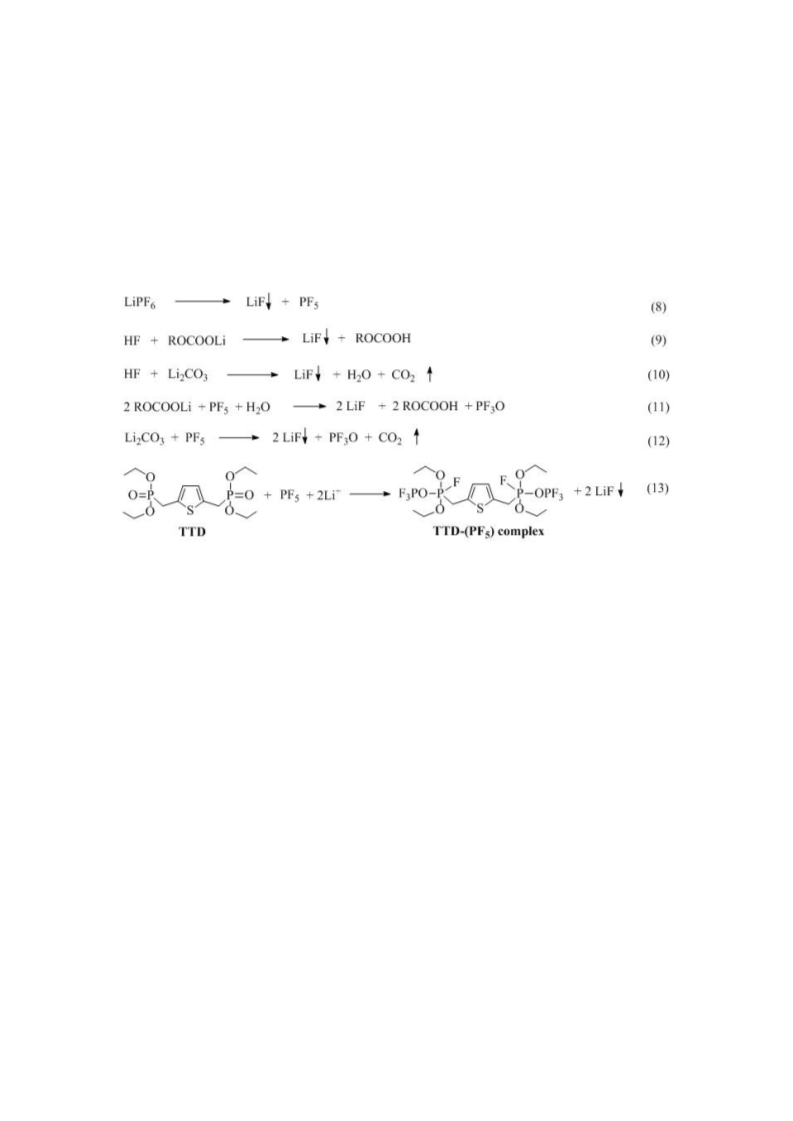

Scheme 3 TTD inhibition of side reactions by decomposition products of the PF and HF
Nevertheless, unlike 0TTD electrolyte electrode, the CEI film formed on the surface of the
TTD electrolyte electrode is very uniform. This is mainly due to the different CEI membrane
1
reaction mechanisms after the TTD was added to the electrolyte. As shown in the reaction formula
13), after TTD is adding to the electrolyte, the oxygen of phosphate in TTD molecules
preferentially participate in the formation of CEI membranes, which will neutralize PF5 derived
from the decomposition product of LiPF through acid-base coordination react, and finally
generate the compound TTD-(PF ) complex covering on the surface of the electrode, and quickly
forms a stable CEI film which stabilizes the decomposition products PF , avoids the subsequent
side reactions of (11)-(12). This is why after the addition of TTD, a uniform and thin CEI film is
formed on the electrode surface. The main components of the CEI membrane are LiF, TTD-(PF
(
6
5
5
5
)
2 3
complex and a small amount of Li CO . For the TTD additive, the oxygen of phosphate in the
TTD molecule has the ability to neutralize PF5 through acid-base coordination,[27-28, 36-37] and to
5
form a stable TTD-(PF ) complex on the surface of electrode. Compared with the base electrolyte
battery (0TTD), the uniform and thin CEI film formed on the surface of 1TTD electrode consumes
This article is protected by copyright. All rights reserved.

ChemSusChem
10.1002/cssc.202101277
less irreversible lithium and has a smaller interface impedance of the CEI film, which is more
favorable for the transport of lithium ions, thus showing better cycling performance, rate
performance and high voltage performance. And this is why TTD 1 battery shows better cycling
performance, rate capability and high voltage performance than TTD 0 battery.
4
Conclusion
In this work, a novel electrolyte additive, tetraethylthiophene-2,5-diylbismethylphosphonate
(
TTD), is added to the basic electrolyte in order to improve the high-voltage performance of
lithium-ion batteries. As a result, the addition of TTD preferentially participates in the formation
reaction of CEI film, avoids the side reactions of LiPF decomposition products HF and PF , thus
6
5
improves the uniformity of CEI film, reduces the thickness of CEI film, and makes the formation
of CEI film consume less irreversible lithium. At the same time, the interface impedance of the
CEI film is reduced, which is more favorable for ion transport. Finally, the battery with a 1% TTD
content shows the best cycle performance, rate performance and high voltage performance. The
TTD additives used in this work and the analysis of the improvement mechanism of battery
performance would provide new ideas and references for the development of high-performance of
high-voltage electrolytes.
Acknowledgments
The work was supported by the National Natural Science Foundation of China (21762019), China
Postdoctoral Special Grant Program (2021T140138), the Program of Qingjiang Excellent Young
Talents in Jiangxi University of Science and Technology (JXUSTQJBJ2019003), Guangdong
YangFan Innovative & Entepreneurial Research Team Program (2016YT03N101).
References
[1] M. Armand, J. M. Tarascon, Building better batteries[J]. Nature 2008, 451, 652-657.
[2] S. Wu, Y. L. Lin, L. D. Xing, G. Z. Sun, H. B. Zhou, K. Xu, W. Z. Fan, L. Yu, W. S. Li,
Stabilizing LiCoO
2
/Graphite at High Voltages with an Electrolyte Additive[J]. ACS Applied
Materials & Interfaces 2019, 11, 17940-17951.
This article is protected by copyright. All rights reserved.

ChemSusChem
10.1002/cssc.202101277
[3] J. H. Li, L. D. Xing, R. Q. Zhang, M. Chen, Z. S. Wang, M. Q. Xu, W. S. Li,
Tris(trimethylsilyl)borate as an electrolyte additive for improving interfacial stability of high
voltage layered lithium-rich oxide cathode/carbonate-based electrolyte[J]. Journal of Power
Sources 2015, 285, 360-366.
[
[
[
[
[
[
4] C. J. Zhu, W. X. Lv, J. Chen, C. X. Ou, Q. Zhang, H. K. Fu, H. Wang, L. J. Wu, S. W. Zhong,
Butyl acrylate (BA) and ethylene carbonate (EC) electrolyte additives for low-temperature
performance of lithium ion batteries[J]. Journal of Power Sources 2020, 476, 228697.
5] Z. S. Wang, L. D. Xing, J. H. Li, M. Q. Xu, W. S. Li, Triethyl borate as an electrolyte additive
for high voltage layered lithium nickel cobalt manganese oxide cathode of lithium ion
battery[J]. Journal of Power Sources 2016, 307, 587-592.
6] Z. J. Cai, Y. B. Liu, J. H. Zhao, L. Li, Y. M. Zhang, J. Zhang, Tris(trimethylsilyl) borate as
electrolyte additive to improve performance of lithium-ion batteries[J]. Journal of Power
Sources 2012, 202, 341-346.
7] X. L. Liao, Q. M. Huang, S. W. Mai, X. S. Wang, M. Q. Xu, L. D. Xing, Y. H. Liao, W. S. Li,
4
Self-discharge suppression of 4.9 V LiNi0.5Mn1.5O cathode by using tris(trimethylsilyl)borate
as an electrolyte additive[J]. Journal of Power Sources 2014, 272, 501-507.
8] W. N. Huang, L. D. Xing, R. Q. Zhang, X. S. Wang, W. S. Li, A novel electrolyte additive for
improving the interfacial stability of high voltage lithium nickel manganese oxide cathode[J].
Journal of Power Sources 2015, 293, 71-77.
9] Q. Liu, W. Jiang, M. J. Piernas Munoz, Y. Z. Liu, Z. Z. Yang, I. Bloom, T. L. Dzwiniel, Y. Li,
K. Z. Pupek, Z. C. Zhang, Stabilized Electrode/Electrolyte Interphase by a Saturated Ionic
Liquid Electrolyte for High-Voltage NMC532/Si-Graphite Cells[J]. ACS Applied Materials &
Interfaces 2020, 12, 23035-23045.
[10] M. Yao, A. Liu, C. X. Xing, B. S. Li, S. S. Pan, J. H. Zhang, P. P. Su, H. T. Zhang,
2 7 2
Asymmetric supercapacitor comprising a core-shell TiNb O @MoS /C anode and a high
voltage ionogel electrolyte[J]. Chemical Engineering Journal 2020, 394, 124883.
11] G. J. Li, Y.H. Liao, Z. Y. He, H. B. Zhou, N. Xu, Y. K. Lu, G. Z. Sun, W. S. Li, A new
strategy to improve the cyclic stability of high voltage lithium nickel manganese oxide
cathode by poly(butyl methacrylate-acrylonitrile-styrene) terpolymer as co-binder in lithium
ion batteries[J]. Electrochimica Acta 2019, 319, 527-540.
[
This article is protected by copyright. All rights reserved.

ChemSusChem
10.1002/cssc.202101277
[
12] J. Z. Yang, I. A. Shkrob, K. W. Liu, J. Connell, L. Nancy, D. T. Rago, Z. C. Zhang, C. Liao,
-(Trimethylsilyl) Morpholine as a Multifunctional Electrolyte Additive in High Voltage
4
Lithium Ion Batteries[J]. Journal of The Electrochemical Society 2020, 167, 070533.
13] G. J. Xu, C. G. Pang, B. B. Chen, J. Ma, X. Wang, J. C. Chai, Q. F. Wang, W. Z. An, X. H.
Zhou, G. L. Cui, L. Q. Chen, Prescribing Functional Additives for Treating the Poor
[
4
Performances of High-Voltage (5V-class) LiNi0.5Mn1.5O /MCMB Li-Ion Batteries[J],
Advanced Energy Materials 2018, 8, 1870038.
[14] G. J. Xu, X. Wang, J. D. Li, X. H. Shangguan, S. Q. Huang, D. Lu, B. B. Chen, J. Ma, S. M.
Dong, X. H. Zhou, Q. Y. Kong, G. L. Cui, Tracing the Impact of Hybrid Functional Additives
4
on a High-Voltage (5 V-class) SiOx-C/LiNi0.5Mn1.5O Li-ion Battery System[J]. Chemistry of
Materials 2018, 30, 8291-8302.
[
15] S. S. Zhang, A review on electrolyte additives for lithium-ion batteries[J]. Journal of Power
Sources 2006, 162, 1379-1394.
[
16] A. Bhaskar, D. Mikhailovam, N. Kiziltas-Yavuz, K. Nikolowski, S. Oswald, N. N. Bramnik,
H. Ehrenberg, 3d-Transition metal doped spinels as high-voltage cathode materials for
rechargeable lithium-ion batteries[J]. Progress in Solid State Chemistry 2014, 42, 128-148.
17] J. L. Lan, Q. F. Zheng, H. B. Zhou, J. H. Li, L. D. Xing, K. Xu, W. Z. Fan, L. Yu, W. S. Li,
Stabilizing a High-Voltage Lithium-Rich Layered Oxide Cathode with a Novel Electrolyte
Additive[J]. ACS Applied Materials & Interfaces 2019, 11, 28841-28850.
[
[
[
18] P. Dong, D. Wang, Y. Yao, X. Li, Y. J. Zhang, J. J. Ru, T. Ren, Stabilizing interface layer of
2
LiNi0.5Co0.2Mn0.3O cathode materials under high voltage using p-toluenesulfonyl isocyanate
as film forming additive[J]. Journal of Power Sources 2017, 344, 111-118.
19] A. Tsurumaki, M. Branchi, A. Rigano, R. Poiana, S. Panero, M. A. Navarra,
Bis(oxalato)borate and difluoro(oxalato)borate-based ionic liquids as electrolyte additives to
improve the capacity retention in high voltage lithium batteries[J]. Electrochimica Acta 2019,
3
15, 17-23.
[
20] S. Y. Han, H. Zhang, C. J. Fan, W. Z. Fan, L. Yu, 1,4-Dicyanobutane as a film-forming
additive for high-voltage in lithium-ion batteries[J]. Solid State Ionics 2019, 337, 63-69.
21] H. Y. Yue, Z. Y. Dong, Y. G. Yang, Z. L. Han, L. Wang, H. S. Zhang, Y. H. Yin, X. G.
Zhang, Z. T. Zhang, S. T. Yang, Fluorophosphorus derivative forms a beneficial film on both
[
This article is protected by copyright. All rights reserved.
