Spectroelectrochemical study of carbon monoxide and ethanol oxidation on Pt/C, PtSn(3:1)/C and PtSn(1:1)/C catalysts

Article abstract of DOI:10.3390/molecules21091225

PtSn-based catalysts are one of the most active materials toward that contribute ethanol oxidation reaction (EOR). In order to gain a better understanding of the Sn influence on the carbon monoxide (principal catalyst poison) and ethanol oxidation reactions in acidic media, a systematic spectroelectrochemical study was carried out. With this end, carbon-supported PtSn_x (x = 0, 1/3 and 1) materials were synthesized and employed as anodic catalysts for both reactions. In situ Fourier transform infrared spectroscopy (FTIRS) and differential electrochemical mass spectrometry (DEMS) indicate that Sn diminishes the amount of bridge bonded CO (CO_B ) and greatly improves the CO tolerance of Pt-based catalysts. Regarding the effect of Sn loading on the EOR, it enhances the catalytic activity and decreases the onset potential. FTIRS and DEMS analysis indicate that the C-C bond scission occurs at low overpotentials and at the same potential values regardless of the Sn loading, although the amount of C-C bond breaking decreases with the rise of Sn in the catalytic material. Therefore, the elevated catalytic activity toward the EOR at PtSn-based electrodes is mainly associated with the improved CO tolerance and the incomplete oxidation of ethanol to form acetic acid and acetaldehyde species, causing the formation of a higher amount of both C2 products with the rise of Sn loading.

Full text of DOI:10.3390/molecules21091225

molecules
Article
Spectroelectrochemical Study of Carbon Monoxide
and Ethanol Oxidation on Pt/C, PtSn(3:1)/C and
PtSn(1:1)/C Catalysts
Rubén Rizo 1, María Jesús Lázaro 2, Elena Pastor 1,* and Gonzalo García 1,
*
1
Departamento de Química, Instituto de Materiales y Nanotecnología, Universidad de La Laguna,
Avda. Astrofísico Francisco Sánchez s/n, La Laguna 38071, Santa Cruz de Tenerife, Spain;
rjrizo57@gmail.com
Instituto de Carboquímica (CSIC) Miguel Luesma Castan 4, Zaragoza 50018, Spain; mlazaro@icb.csic.es
Correspondence: epastor@ull.edu.es (E.P.); ggarcia@ull.edu.es (G.G.);
Tel.: +34-922-318-071 (E.P. & G.G.); Fax: +34-922-318-002 (E.P. & G.G.)
2
*
Academic Editors: Nicola Cioffi, Antonio Monopoli and Massimo Innocenti
Received: 17 July 2016; Accepted: 7 September 2016; Published: 12 September 2016
Abstract: PtSn-based catalysts are one of the most active materials toward that contribute ethanol
oxidation reaction (EOR). In order to gain a better understanding of the Sn influence on the carbon
monoxide (principal catalyst poison) and ethanol oxidation reactions in acidic media, a systematic
spectroelectrochemical study was carried out. With this end, carbon-supported PtSnx (x = 0, 1/3 and 1)
materials were synthesized and employed as anodic catalysts for both reactions. In situ Fourier
transform infrared spectroscopy (FTIRS) and differential electrochemical mass spectrometry (DEMS)
indicate that Sn diminishes the amount of bridge bonded CO (COB) and greatly improves the CO
tolerance of Pt-based catalysts. Regarding the effect of Sn loading on the EOR, it enhances the
catalytic activity and decreases the onset potential. FTIRS and DEMS analysis indicate that the C-C
bond scission occurs at low overpotentials and at the same potential values regardless of the Sn
loading, although the amount of C-C bond breaking decreases with the rise of Sn in the catalytic
material. Therefore, the elevated catalytic activity toward the EOR at PtSn-based electrodes is mainly
associated with the improved CO tolerance and the incomplete oxidation of ethanol to form acetic
acid and acetaldehyde species, causing the formation of a higher amount of both C2 products with
the rise of Sn loading.
Keywords: ethanol electrooxidation; Pt-Sn electrocatalysts; DEMS; FTIRS; direct ethanol fuel cell
1. Introduction
Fuel cells are widely recognized as an important topic of research for being an alternative power
supply which allows the reduction of greenhouse gas emissions [
renewable bio-fuel and less toxic than other alcohols, it is a promising power source for Direct
Alcohol Fuel Cells (DAFCs) [ ]. The full oxidation of ethanol to carbon dioxide has a favorable
1–3]. Since ethanol is the major
1–5
thermodynamic potential of 0.08 V (vs. RHE), although the efficiency of direct ethanol fuel cells is
drastically limited by the formation of acetaldehyde, acetic acid and strongly adsorbed intermediates
such as carbon monoxide (COad) [
is complicated and still not fully clear, although recently we reported new insights in its reaction
mechanism [ ]. At low overpotentials, the initial steps involve the dissociative adsorption of
ethanol to produce adsorbed intermediate species. In this context, ethanol possesses two reactive sites
(OH group and the -carbon atom) that may interact with Pt surface sites, and therefore two possible
1–19]. The ethanol oxidation reaction (EOR) at Pt-based electrodes
6,7
α
adsorbate species can be considered (Equations (2) and (3)):
Molecules 2016, 21, 1225; doi:10.3390/molecules21091225
www.mdpi.com/journal/molecules

Molecules 2016, 21, 1225
2 of 12
Pt + CH3CH2OH ꢀ Pt(CH3CH2OH)
Pt(CH3CH2OH) −→ Pt-OCH2CH3 + H+ + e–
Pt(CH3CH2OH) −→ Pt-CHOHCH3 + H+ + e–
(1)
(2)
(3)
At E < 0.4 V (in the hydrogen adsorption/desorption region), alcohol intermediate species reacts
mainly with adsorbed hydrogen (Had) on defect sites with (100) orientation to produce methane and
adsorbed CO. The last is supported by the relatively stability of the ethoxi species and because the
alcohol intermediate species appears to be favored in acidic media:
Pt100(H) + Pt-CHOHCH3 −→ Pt-CO + CH4 + 2H+ + 2e–
(4)
At E > 0.4 V (after the hydrogen adsorption/desorption region), further deprotonation of the
adsorbate formed in Equation (3) produces acetaldehyde:
Pt-CHOHCH3 −→ Pt(HCOCH3) + H+ + e–
Pt(HCOCH3) ꢀ Pt + HCOCH3
(5)
(6)
In addition to acetaldehyde, further deprotonation of the intermediate formed in Equation (3)
may produce adsorbed CH3 and CO species:
Pt-CHOHCH3 + Pt −→ Pt2-COHCH3 + H+ + e–
Pt2-COHCH3 −→ Pt-CH3 + Pt-CO + H+ + e–
(7)
(8)
Then, at more positive potentials (E > 0.6 V for Pt/C), in which the water dissociation reaction
occurs (Equation (9)), the following reactions may happen:
Pt + H2O ꢀ Pt-OH + H+ + e–
(9)
Pt-CO + Pt-OH −→ 2Pt + CO2 + H+ + e–
Pt(HCOCH3) + Pt-OH −→ 2Pt + CH3COOH + H+ + e–
Pt-CH3 + 2Pt-OH −→ 3Pt + CO2 + 5H+ + 5e–
(10)
(11)
(12)
It is remarkable that reaction (12) does not represent the elementary steps of the oxidation of
adsorbed CH3 species, which probably involves a CO-like intermediate.
In order to enhance the performance of DAFC, one of the principal strategies involves the
development of new materials to enhance the water dissociation reaction (Equation (9)) and therefore
improve the oxidation reaction of strongly adsorbed species (Equations (10) and (12)), which are
the main catalyst poisons. In this regard, PtSn-based catalysts are the most employed materials
for the ethanol oxidation reaction (EOR) in acidic media. Sn seems to provide oxygenated species
(Equation (9)) at more negative potentials than Pt and therefore the CO tolerance increases at PtSn-based
electrodes. In this sense, previous studies for ethanol oxidation on PtSn-based catalysts reported lower
overpotentials and higher current density during the EOR in comparison to Pt electrodes [9–33]. In situ
Fourier transform infrared spectroscopy (FTIR) was employed by Lamy et al. [33] to study the EOR at
PtSn-based electrodes. They suggested that the presence of Sn on Pt electrodes increases the dissociative
adsorption of ethanol (and therefore favours the C-C bond breaking) at low overpotentials and the
production of acetic acid and acetaldehyde at high overpotentials. Differential electrochemical mass
spectrometry (DEMS) was employed by Behm et al. [29] to follow the volatile and gaseous products
and intermediates generated during the EOR at carbon-supported PtSn and PtRu. They found that the
addition of Sn or Ru into the Pt-based catalyst decreases the overpotentials for the EOR and better

Molecules 2016, 21, 1225
3 of 12
catalytic activity at carbon-supported Pt3Sn catalyst was observed. Nevertheless, they reported that
the insertion of Sn or Ru does not improve the ethanol conversion efficiency to CO2.
In order to gain a deeper understanding of the operating mechanism for the EOR at PtSn-based
catalysts, the present work employ carbon-supported PtSn with different Pt:Sn atomic ratios
(3:1 and 1:1) and the results are compared with those achieved at carbon supported Pt. The EOR
in acidic media was studied by conventional (cyclic voltammetry and chronoamperometry) and
non-conventional spectroelectrochemical (DEMS and FTIRS) techniques.
2. Results and Discussion
2.1. Physicochemical Characterization
The physicochemical parameters of all catalysts were studied by TEM, XRD, EDX and XPS
techniques and reported in our previous work [24]. Main important outcomes indicate: (i) similar
metal distribution onto the carbon support (TEM); (ii) similar particle sizes (3–5 nm, XRD and TEM);
(iii) similar metal content and Pt:Sn bulk atomic ratios to the nominal ones (EDX); (iv) similar Pt:Sn
surface atomic ratios and Pt:Sn bulk atomic ratios (XPS and EDX), which suggest negligible metal
segregation to the surface; (v) similar chemical state of Pt and Sn species into the surface (XPS) (vi) lattice
parameter values, degree of alloying between Pt and Sn and the relative amount of crystalline SnO2
phases increase in the order Pt < Pt–Sn 3:1 < Pt–Sn 1:1 (XRD).
2.2. Adsorbed CO ELectrooxidation (CO Stripping)
The activities of the catalysts toward carbon monoxide electrooxidation provide insight about
their tolerance toward CO poisoning, which is one of the most important issues concerning the alcohol
electrooxidation in direct alcohol fuel cell anodes, as adsorbed CO (COad) is the principal catalyst
poison produced during alcohol oxidation [
(“CO stripping experiments”) were performed at 0.005 V
temperature. The anodic charge obtained from the CO stripping measurements was used to achieve
the electroactive surface area (ECSA).
2
,
34]. Therefore, COad monolayer oxidation measurements
s−1 in sulphuric acid solution at room
·
Cyclic voltammograms (CVs) and mass spectrometric cyclic voltammograms (MSCVs) for the
oxidative desorption of a CO monolayer previously adsorbed at 0.07 V vs. RHE were recorded
simultaneously. Figure 1 shows the CVs (top panel) and the corresponding MSCVs (bottom panel) for
the m/z = 44 (CO2+) signal for all catalysts in acidic media recorded at 0.005 V −1. It is observed that
s
·
faradaic and ionic currents rise and develop a peak centered at 0.79 V for Pt/C electrode. On the other
hand, a broad anodic current peaking at ca. 0.38 V, 0.68 and 0.76 V was developed for both PtSn-based
materials. The latter is confirmed by the MSCVs, which indicate that the CO oxidation reaction takes
place in a broad potential region. Therefore, it seems that the CO surface diffusion toward the most Pt
active site is more impeded at PtSn-based catalysts than at Pt/C electrode [2,5,10]. Another important
parameter to study the CO tolerance is the onset potential for the CO oxidation reaction. In this regard,
it is clearly observed that the insertion of Sn into the catalyst strongly enhances the CO tolerance
since the onset potential is about 0.25 V more negative at PtSn-based electrodes than at Pt/C catalyst.
Interestingly, both PtSn materials develop similar onset potential, suggesting that the CO tolerance
is not strongly influenced by the amount of Sn. In order to gain a better understanding of the CO
oxidation reaction at PtSn-based electrodes, FTIRS experiments were carried out.
In situ FTIRS was employed to investigate the COad oxidation process on Pt/C, Pt–Sn 3:1/C
and Pt–Sn 1:1/C catalysts in perchloric acid medium to avoid the IR absorption by sulfate species at
wavenumbers lower than 1400 cm−1. Therefore, a series of spectra acquired during the oxidation of a
monolayer CO, with a reference spectrum obtained at 0.07 V, is given in Figure 2. The negative band
at 2343 cm−1 corresponds to the production of CO2 and it is apparent at E
0.3 V for PtSn-based materials. The last is in complete agreement with previous DEMS results.
Another signal is observed that first appears as bipolar at ca. 2080–2030 cm−1 and turns positive at
≥
0.50 V for Pt/C and at
E
≥

Molecules 2016, 21, 1225
4 of 12
higher potentials. The bipolar feature is related to an adsorbate that is still present at the surface and
suffers an important wavenumber shift as a consequence of increasing the potential (stark effect) [34].
In this case, this band is well known and is related to linear adsorbed CO (COL). Also, a small band is
apparent at 1873 cm−1 that is associated with bridge bonded CO (COB). The intensity of the last band
decreases with the Sn loading in the material, being absent at the Pt–Sn 1:1/C catalyst.
Pt/C
Pt-Sn 1:1/C
Pt-Sn 3:1/C
20
10
0
10
0
10
0
µ
µ
µ
-10
-20
-10
-10
CO stripping
Scan rate = 5 mV s-1
CO stripping
Scan rate = 5 mV s-1
CO stripping
Scan rate = 5 mV s-1
m/z = 44
m/z = 44
m/z = 44
1 x10-4
1 x10-5
3 x 10-5
0.0 0.2 0.4 0.6 0.8 1.0
Potential / V vs RHE
0.0 0.2 0.4 0.6 0.8 1.0
Potential / V vs RHE
0.0 0.2 0.4 0.6 0.8 1.0
Potential / V vs RHE
Figure 1. Cyclic voltammograms (CV) and mass spectrometric CV (MSCV) for CO stripping. Faradaic
current (top panel) and ionic current for m/z = 44 signal (bottom panel) registered during a COad
monolayer electrooxidation on Pt/C, Pt–Sn 3:1/C and Pt–Sn 1:1/C in 0.5 M H2SO4 at room temperature.
−1
v = 0.005 V·s
.
E / V
0.07
E / V
0.07
Pt-Sn 1:1/C - HClO4
E / V
Pt-Sn 3:1/C - HClO4
Pt/C - HClO4
0.07
0.2
0.3
0.2
0.3
0.2
0.3
0.4
0.4
0.5
0.4
0.5
1873
0.5
0.6
0.7
0.6
0.7
0.6
0.7
2065
0.8
0.8
0.8
0.9
1.0
0.9
1.0
0.9
1.0
2065
R/R0 = 1 %
R/R0 = 2 %
R/R0 = 2 %
1800
2343
2200
2000
1800
2200
2000
1800
2200
2000
Wavenumber / cm-1
Wavenumber / cm-1
Wavenumber / cm-1
Figure 2. In situ Fourier transform infrared spectroscopy (FTIR) spectra recorded during a COad
monolayer electrooxidation on Pt/C, Pt–Sn 3:1/C and Pt–Sn 1:1/C catalysts in 0.1 M HClO4 at room
temperature. Ead = R0 = 0.07 V.
Therefore, both in situ techniques (DEMS and FTIRS) reveal an enhancement of the CO tolerance
by Sn, and the bifunctional mechanism [1–5,9–16,35,36] appears to be mainly responsible since
physicochemical analysis indicate negligible electronic effects by Sn addition [24].

Molecules 2016, 21, 1225
5 of 12
2.3. Ethanol Electrooxidation
Ethanol electrooxidation reaction (EOR) was studied on Pt/C, Pt–Sn 3:1/C and Pt–Sn 1:1/C
catalysts by cyclic voltammetry and chronoamperometry at room temperature. The working electrode
was introduced at controlled potential (0.05 V vs. RHE) where the oxidation of the ethanol molecule is
−1
negligible and afterwards CVs were performed between 0.05 and 1 V vs. RHE at 0.02 V
·
s

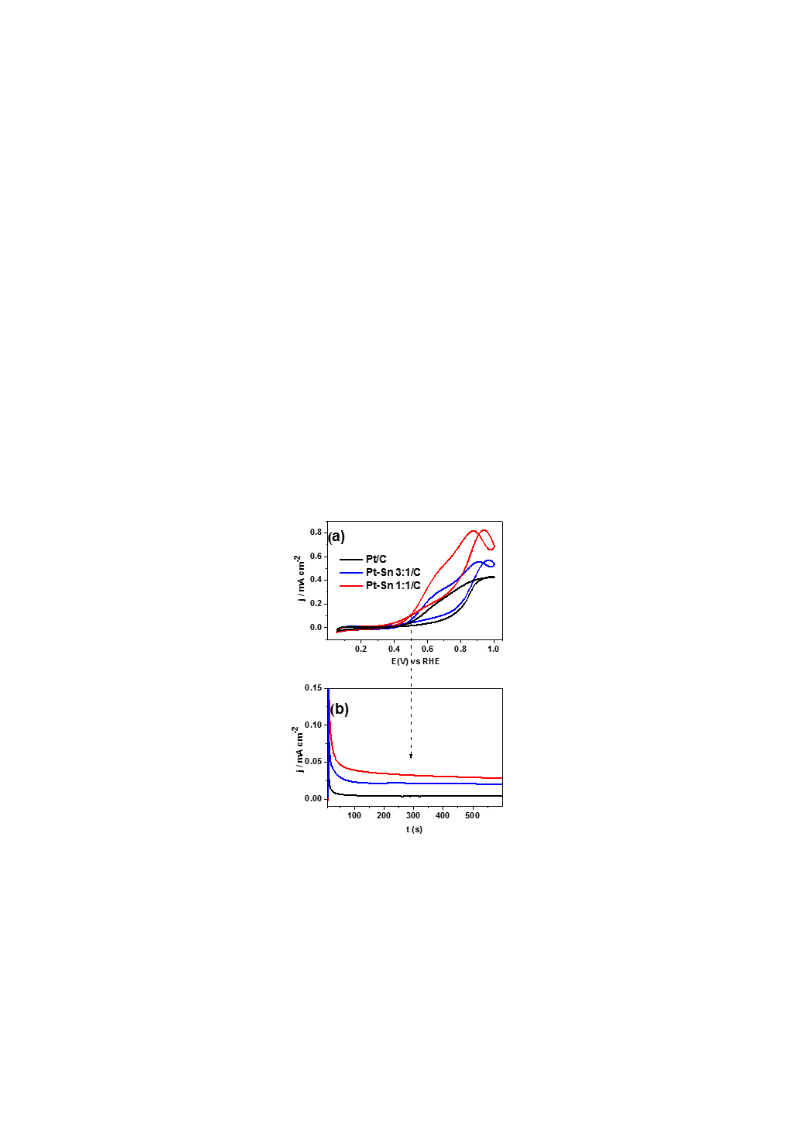

(Figure 3a)
or a potentiostatic pulse at 0.5 V was applied during 10 min (Figure 3b). As was described before,
the faradaic currents were normalized by the ECSA calculated from CO stripping experiments. Thus,
Figure 3a shows the third CVs (subsequent CVs reveal similar and stable profiles) for the three catalysts.
It is observed an increment of the faradaic current and a diminution of the onset potential with the rise
of the Sn loading. In agreement with CVs results, current transients recorded at 0.5 V (Figure 3b) reveal
an enhancement of the catalytic activity toward the ethanol oxidation reaction (EOR) with the rise of
the Sn loading. Therefore, the catalytic activity toward the EOR increases in a subsequent way: Pt/C <
Pt–Sn 3:1/C < Pt–Sn 1:1/C. These results are in agreement with those reported by Tsiakaras et al. [12],
in which Pt-Sn catalysts with metallic ratios ranging from Pt1Sn1 to Pt4Sn1 were employed. They found
that the maximum power density obtained in a direct ethanol fuel cell (DEFC) exhibits a “volcano-type”
behavior with the Sn content in the catalyst. It was reported that the optimal Sn loading is about
30%–40% for intermediate working temperatures (60 < T < 90 ◦C) [13], and slightly increases (50%)
for room working temperature [14,15]. In this regard, we recently reported that catalytic materials
containing 75% of Sn show similar performances toward the EOR to those including 50% of Sn loading
under steady-state conditions [24]. However, the results belonging to the Pt1Sn3 catalyst are not
included in the current work due to the low intensity of the IR spectra.
Figure 3. Ethanol electrooxidation on Pt/C, Pt–Sn 3:1/C and Pt–Sn 1:1/C catalysts in 1 M CH3CH2OH
+ 0.5 M H2SO4 at room temperature. (
at 0.5 V.
a
) CVs recorded at 0.02 V s b) current-transients recorded
−1; (
·
The formation of gaseous and volatile intermediates and products during the EOR on Pt/C,
Pt–Sn 3:1/C and Pt–Sn 1:1/C catalysts was followed by DEMS. Figure 4 shows the third CVs and
+
the corresponding MSCVs for the m/z = 15 (CH3+) and m/z = 44 (CO2 and CH3CHO+) signals
during the electrooxidation of ethanol at Pt/C, Pt–Sn 3:1/C and Pt–Sn 1:1/C electrodes in acidic
media recorded at 0.005 V
of two species. Indeed, the m/z signal 15 is associated with methane and acetaldehyde production
·
s
−1. The signals for m/z = 15 and 44 can be related to the production

Molecules 2016, 21, 1225
6 of 12
+
(CH3 fragment from both compounds) at low (E < 0.5 V in the forward scan and E < 0.3 V in the
negative sweep) and high (E > 0.5 V in the forward scan and E > 0.3 V in the negative sweep) potentials,
respectively [6,7]. The signal for m/z = 15 could be associated with the production of acetaldehyde
in the whole potential range. However, a detailed comparison of the MSCVs for m/z = 15 and 44
(the latter related to acetaldehyde and/or carbon dioxide formation at E > 0.5 V), shows that both
MSCVs are similar for E > 0.5 V but at E < 0.5 V the features in the MSCV for m/z = 15 are not present
for m/z = 44. Therefore, in this potential range the signal for m/z = 15 has to be related to the formation
of methane (Equation (4)). Methane formation is of main relevance because only can take place after
C-C cleavage. In this regard, our group recently reported for the first time the production of methane
at Pt/C and mesoporous Pt during the anodic scan at E > 0.1 V [6,7]. A close inspection of Figure 4
reveals an increment of acetaldehyde and/or carbon dioxide with the rise of Sn loading in the catalysts
(Equations (6) and (12)), meanwhile the opposite happens with the methane production. Additionally,
it is perceived that the onset potential for the m/z = 44 shifts toward more negative potentials as the
amount of Sn increases.
Pt/C
Pt-Sn 3:1/C
Pt-Sn 1:1/C
200
100
0
80
40
0
100
50
0
µ
µ
µ
-40
-50
m/z = 44
m/z = 44
m/z = 44
5 x 10-5
1 x 10-4
5 x 10-5
m/z = 15
m/z = 15
m/z = 15
5 x10-5
5 x 10-5
1 x 10-5
0.0 0.2 0.4 0.6 0.8 1.0
E / V vs RHE
0.0 0.2 0.4 0.6 0.8 1.0
E / V vs RHE
0.0 0.2 0.4 0.6 0.8 1.0
E / V vs RHE
Figure 4. Ethanol electrooxidation on Pt/C, Pt–Sn 3:1/C and Pt–Sn 1:1/C catalysts in 1 M CH3CH2OH
+ 0.5 M H2SO4 recorded at room temperature and 0.005 V s
−1. CVs (top panel) and MCVs for m/z =
·
44 (middle panel) and m/z = 15 (bottom panel).
All these results suggest that C-C bond breaking is disfavored and consequently by-side products
(acetaldehyde and acetic acid) increase with the amount of Sn into the catalytic material. Indeed,
methane production decreases and the m/z = 44 signal increases with the rise of the Sn loading. As was
described above, the m/z = 44 signal can be related to acetaldehyde and/or carbon dioxide production.
So, in order to discern between both products and gain a better understanding of the EOR, FTIRS
experiments were conducted.
Figure 5 shows sequences of in situ FTIR spectra recorded during ethanol electrooxidation on
Pt/C, Pt–Sn 3:1/C and Pt–Sn 1:1/C in perchloric acid media to avoid the IR absorption by sulfate
species, while varying the electrode potential stepwise from 0.05 to 1.0 V (R0 = 0.05 V). From these
spectra, similar bands appear for all catalysts that develop with different intensity and potential
dependence according to the Sn loading in the catalytic material. Pt/C catalyst develops two positive
bands at ca. 2982 and 2906 cm−1, as well as eight negative-going contributions are apparent around
2770, 2343, 2037, 1716, 1650, 1370, 1284, 1110 cm−1. We consider now the assignment of these bands.
The small band around 1650 cm−1 is due to the O–H bending mode of water, which may disturb

Molecules 2016, 21, 1225
7 of 12
the spectral region between 1700 and 1400 cm−1, meanwhile the signal at ca. 1110 cm−1 is related to
the electrolyte (perchlorate ions) that hinders signals close to this spectral region. The positive going
(loss) bands at 2982 and 2906 cm−1 are related to the consumption of ethanol (asymmetric stretching
vibrations of CH3 and CH2, respectively). The negative going bands (gain) at 2343 cm−1 is due to the
asymmetric stretching vibration of CO2 and the negative contribution at ca. 2037 cm−1 is related to
linearly adsorbed CO on Pt (COL). The band at around 1716 cm−1 (C=O) is assigned to the v(C-O)
stretching mode of the carbonyl groups in both acetaldehyde and/or acetic acid, but actually it is very
difficult to differentiate a carbonyl from an acid or aldehyde group because the C=O band for both
−1
groups are separated by around 5 cm in the spectra [
4,
17
,
37–
40]. Nevertheless, acetic acid formation
can be discerned from the bands at 2770 and 1284 cm−1 that are associated with the O-H stretching and
O-H deformation vibrations in acetic acid. The broad band at ca. 1370 cm is attributed to acetic acid
−1
(C-O stretching) and acetaldehyde (CH3 symmetric deformation and C-H wagging vibrations) [38].
Interestingly, Pt/C is the only catalyst that develops a negative contribution about 1833 cm−1 that is
associated with bridge bonded CO (COB). Additionally, PtSn-based electrodes develop at E < 0.4 V a
small but visible negative band at 1252 cm−1. According with data in the literature, a band located
approximately at this wavenumber is expected for an adsorbed tertiary alcohol (C-OH stretch), which
may be in the current work either as adsorbed COH or COHCH3 species [34,39,40].
E / V
Pt-Sn 1:1/C - HClO4
E / V
E / V
0.1
Pt/C - HClO4
Pt-Sn 3:1/C - HClO4
0.1
0.2
0.3
0.1
0.2
1252
0.2
0.3
1660
2037
1660
0.3
0.4
0.4
0.5
0.6
0.7
2982
2906
0.5
0.6
0.4
0.5
0.6
0.7
2982
1110
0.7
0.8
2982
0.8
0.9
0.9
1.0
0.8
1.0
0.9
1.0
R/R0 = 2 %
R/R0 = 2 %
R/R0 = 2 %
3000
2500
2000
1500
3000
2500
2000
1500
3000
2500
2000
1500
Wavenumber / cm-1
Wavenumber / cm-1
Wavenumber / cm-1
Figure 5. In situ FTIR spectra recorded during the ethanol electrooxidation on Pt/C, Pt–Sn 3:1/C and
Pt–Sn 1:1/C catalysts in 1 M CH3CH2OH + 0.1 M HClO4. Ri = R0 = 0.05 V.
At E
≥
0.2 V, adsorbed CO (COB for Pt/C and COL for Pt-Sn based electrodes) is produced
(Equation (4)) that is in agreement with DEMS results in which methane was elucidated during the
forward scan in the same potential range (m/z = 15 in Figure 4). Therefore, it can be stated that
C-C cleavage occurs at Pt-based electrodes at low overpotentials in acidic media [6,7]. Moreover, the
presence of Sn diminishes the production of methane and COad species and therefore it seems to
hinder C-C scission.
Carbon dioxide formation (Equations (10) and (12)) is apparent at E
≥ 0.7 for Pt/C and at E ≥ 0.5 V
for PtSn-based electrodes. Thus, Sn improves the fuel conversion efficiency at E < 0.5 V mainly by the
bifunctional effect as was described before during the CO stripping experiments and confirmed by
the physicochemical analysis in which electronic effects were not discerned [24]. In this regard, Sn
provides adsorbed oxygenated species at more negative potentials than Pt (Equation (9)) and therefore
the CO tolerance of the material is enhanced (Equations (10) and (12)). Nevertheless, the production of
carbon dioxide decreases with the rise of Sn loading, which may be ascribed to a diminution of the
C-C cleavage at PtSn-based materials. The latter may be occasioned by a reduction of the active phase
(i.e., Pt) by the second element.

Molecules 2016, 21, 1225
8 of 12
Interestingly, the band at ca. 2770 cm−1, which is associated only to acetic acid (Equation (11)),
increases at E 0.7 and E 0.5 V for Pt/C and PtSn-based electrodes, respectively, i.e., the same
≥
≥
potential values for carbon dioxide formation (Equations (10) and (12)). Indeed, the water dissociation
reaction (OHad formation, Equation (9)), which is enhanced by Sn species, is necessary for the
production of both species. In this context, the band at ca. 1284 cm−1 must be used with great
caution since Nafion (a catalyst ink component) absorbs IR radiation in this spectral region [41].
The onset potential for the acetaldehyde formation (Equations (5) and (6)) is clearly discerned from
the negative contribution at ca. 1716 cm−1. The last increases at higher potentials than 0.3 and 0.5 V
for PtSn-based and Pt/C catalysts, respectively. Interestingly, these potential values are in agreement
with those developed in the CVs (Figure 3a). In addition, it is observed that the intensity of this band
increases with the rise of Sn loading into the catalytic material. It must be taken into account that this
band belongs only to acetaldehyde at potentials lower than 0.5 and 0.7 V for PtSn-based and Pt/C
catalysts, respectively. At higher potentials, acetic acid also absorbs IR radiation at this wavenumber.
3. Materials and Methods
3.1. Catalysts Preparation and Physicochemical Characterization
The preparation and physicochemical characterization of the catalysts have been already described
in our previous work [24]. Briefly, Pt and PtSn catalysts supported on commercial carbon Vulcan
XC-72R (Cabot Co., Boston, MA, USA) were prepared by the formic acid method (FAM) at 80 ◦C [42].
Appropriate amounts of metal precursors (H2PtCl6 and SnSO4, Sigma-Aldrich, St. Louis, MO,
USA) were slowly added to the previous carbon dispersion to obtain a metal loading of 20 wt %.
Transmission electron microscopy (TEM, JEOL-2000 FX II microscope, Tokyo, Japan), X-ray diffraction
(XRD, PANalytical X’Pert Pro X-ray diffractometer, Eindhoven, The Netherlands), energy-dispersive
X-ray spectroscopy (EDX, coupled to the scanning electron microscope Jeol JSM 6300) and X-ray
photoelectron spectroscopy (XPS, Thermo-Scientific equipment, Waltham, MA, USA) were employed
for the physicochemical characterization of catalysts. Main results are described below during the
results and discussion section.
3.2. Electrochemical Characterization
The catalyst ink was prepared by mixing 2 mg of the catalyst in 0.5 mL of ultrapure water
(Millipore, Darmstadt, Germany, 18.2 MΩ·cm−1 of resistivity) and 15
µL of Nafion (5 wt %,
Sigma-Aldrich). This mixture was dispersed in an ultrasonic bath and an aliquot of the suspension
was pipetted on the top of the working electrode, consisting of a glassy carbon disk (7 mm), and dried
at ambient temperature under N2 atmosphere. After preparation, the electrode was immersed into the
electrochemical cell at controlled potential of 0.05 V.
A thermostated three electrodes electrochemical cell was used to perform all the experiments.
This cell allows solution exchange under working electrode potential control. A carbon rod was used
as counter electrode and a reversible hydrogen electrode (RHE) in the electrolyte as reference electrode.
All potentials in this work are given against the RHE. Electrochemical measurements were performed
with a PC Autolab potentiostat-galvanostat PGSTAT30.
Experiments were carried out in 0.5 M aqueous sulphuric solutions prepared from high purity
reagents (Merck p.a., Kenilworth, NJ, USA) and ultra-pure water (Millipore MilliQ gradient A10
system, 18.2 M
Ω cm, 2 ppb total organic carbon). Argon (N50) was used to deoxygenate all solutions
and CO (N47) to dose CO. CO stripping experiments were obtained after bubbling CO through the cell
for 15 min while keeping the working electrode at 0.07 V, followed by argon purging and electrolyte
exchange to remove the excess of CO. CO stripping voltammograms were recorded, by first scanning
negatively until 0.05 V so that entire hydrogen region was explored, and then scanning positively up
to 1.0 V.

Molecules 2016, 21, 1225
9 of 12
The charge involved in the CO oxidation peak was used to determine the electroactive surface
area (ECSA), assuming a charge of 388
cm−2 involved in the oxidation of 0.93 monolayer of
µC
·
linearly adsorbed CO. Current densities given in the present paper were calculated with the previously
achieved ECSA.
Potentiodynamic and potentiostatic experiences of ethanol (Merck p.a.) oxidation were performed
with 1 M alcohol concentration. First the working electrode was fixed to 0.05 V and later the
alcohol solution was introduced into the electrochemical cell. Next, cyclic voltammograms (CVs)
or current transients (CTs) were obtained by sweeping/stepping the potential from 0.05 V to the final
oxidation potential.
3.3. EC-MS Set-Up
Gaseous and volatile species produced on the electroactive surface were continuously detected by
a new electrochemical mass spectrometry (EC-MS) configuration recently reported [
6,7]. Briefly, the
analysis system is a commercial mass spectrometer (Omnistar , Pfeiffer, Asslar, Germany) with a PTFE
™
capillary (Supelco) as inlet. The electrochemical mass electrode (EC-ME) consists of a PTFE capillary
fixed in a carbon disk with a hole in the middle and a small porous PTFE membrane (Gore-Tex) located
onto the tip. Then, 10 µL of the catalytic ink was dried onto the PTFE membrane of EC-ME, so only very
small amounts of catalysts are needed for the studies. With this EC-MS set-up, a meniscus configuration
can be adopted in a conventional electrochemical cell. Thus, mass spectrometry cyclic voltammograms
(MSCVs) can be recorded simultaneously with the corresponding cyclic voltammograms (CVs).
3.4. In-Situ FTIRS
FTIRS experiments were performed with a Bruker Vector 22 spectrometer equipped with a
mercury cadmium telluride detector. A small glass flow cell with a 60◦ CaF2 prism at its bottom was
used. The cell and experimental arrangements have been described in detail elsewhere [35,43]. FTIR
spectra were acquired from the average of 128 scans, obtained with 8 cm−1 resolution at selected
potentials, by applying 0.05 V single potential steps from a reference potential, in the positive going
direction. The reflectance ratio R/R0 was calculated, where R and R0 are the reflectances measured at
the sample and the reference potential, respectively. In this way, positive and negative bands represent
the loss and gain of species at the sampling potential, respectively.
The working electrodes consisted of a certain amount of the metal/C catalysts deposited as a
thin layer over a polycrystalline gold disk. The geometric area of the disk was 0.785 cm2. An aqueous
suspension of 4.0 mg
mL−1 of the metal/C catalyst was prepared by ultrasonically dispersing it in
·
15 mL of Nafion (5 wt %, Aldrich) and pure water (Millipore). An aliquot (20 mL) of the dispersed
suspension was pipetted on the top of the gold disk and dried at ambient temperature. In order to
avoid the absorption by sulfate species, experiments were carried out in 0.5 M perchloric solutions
prepared from high purity reagents (Merck p.a.) and ultra-pure water.
4. Conclusions
Carbon monoxide and ethanol oxidation reactions at carbon-supported Pt, Pt–Sn 3:1 and Pt–Sn
1:1 in acidic media were scrutinized by conventional (cyclic voltammetry and chronoamperometry)
and non-conventional spectroelectrochemical techniques (FTIRS and DEMS).
CO tolerance increases with the addition of Sn into the catalytic material, which is mainly
associated with the bifunctional effect. FTIRS analysis indicates a diminution of the bridge bonded CO
(COB) at Pt with the Sn loading in the catalytic material.
The catalytic activity toward the ethanol oxidation reaction (EOR) was found to increase in the
following order: Pt/C < Pt–Sn 3:1/C < Pt–Sn 1:1/C. The opposite trend was found for the onset
potential of the EOR. In this regard, FTIRS and DEMS analysis showed that the C-C scission occurs at
low overpotentials and at the same values independently of the Sn loading. However, the amount
of C-C bond breaking decreases with the rise of Sn in the catalyst, which is attributed to the dilution

Molecules 2016, 21, 1225
10 of 12
of the active phase. Additionally, both spectroelectrochemical techniques indicate that the catalytic
activity and the onset potential for the EOR are improved by the promotional effect of Sn on bimetallic
PtSn/C catalysts for the water oxidation reaction. The last provides oxygenated species (OHad) at low
overpotentials (about 0.5 V) to liberate the active phase from the main catalyst poison (COad) and to
produce acetic acid. Indeed, it was detected that acetic acid and acetaldehyde increases meanwhile
carbon dioxide decreases with the Sn loading in the catalyst, indicating that the enhanced catalytic
activity toward the EOR is mainly due to the incomplete EOR.
Acknowledgments: This research was funded by Fundación Cajacanarias (project BIOGRAF) the Spanish Ministry
of Economy and Competitiveness (MINECO) under projects CTQ2011-28913-C02 and ENE2014-52158-C02
(co-funded by FEDER). R.R. acknowledges the FPI program (MINECO) for financial support.
Author Contributions: R.R., M.J.L. and E.P. conceived and designed the experiments; R.R. synthesized the
catalysts and performed the experiments. R.R., M.J.L., E.P. and G.G. analyzed the data; E.P. and M.J.L. contributed
reagents/materials/analysis tools; G.G. wrote the paper.
Conflicts of Interest: The authors declare no conflict of interest.
References
1.
2.
3.
Vielstich, W.; Paganin, V.A.; Alves, O.B.; Ciapina, E.G. Handbook of Fuel Cells—Fundamentals, Technology and
Applications; Vielstich, W., Lamm, A., Gaseiger, H.A., Eds.; Wiley: New York, NY, USA, 2003; pp. 174–182.
García, G.; Koper, M. Carbon monoxide oxidation on Pt single crystal electrodes: Understanding the catalysis
for low temperature fuel cells. Chem. Phys. Chem. 2011, 12, 2064–2072. [CrossRef] [PubMed]
Li, M.; Adzic, R.R. Low-Platinum-Content Electrocatalysts for Methanol and Ethanol Electrooxidation.
In Electrocatalysis in Fuel Cells: A Non-Low-Platinum Approach; Shao, M., Ed.; Springer London: London, UK,
2013; pp. 1–25.
4.
5.
Martínez-Huerta, M.V.; Tsiouvaras, N.; García, G.; Peña, M.A.; Pastor, E.; Rodriguez, J.L.; Fierro, J.L.
Carbon-Supported PtRuMo Electrocatalysts for Direct Alcohol Fuel Cells. Catalysts 2013, 3, 811–838.
Martínez Huerta, M.V.; García, G. Fabrication of electro-catalytic nano-particles and applications to proton
exchange membrane fuel cells. In Micro and Nano-Engineering of Fuel Cells; Leung, D.Y.C., Xuan, J., Eds.;
CRC Press: London, UK, 2015; pp. 95–129.
6.
7.
8.
Flórez-Montaño, J.; García, G.; Guillén-Villafuerte, O.; Rodríguez, J.L.; Planes, G.A.; Pastor, E. Mechanism of
ethanol electrooxidation on mesoporous Pt electrode in acidic medium studied by a novel electrochemical
mass spectrometry set-up. Electrochim. Acta 2016, 209, 121–131. [CrossRef]
Guillén-Villafuerte, O.; García, G.; Arévalo, M.C.; Rodríguez, J.L.; Pastor, E. New insights on the
electrochemical oxidation of ethanol on carbon-supported Pt electrode by a novel electrochemical mass
spectrometry configuration. Electrochem. Comm. 2016, 63, 48–51. [CrossRef]
Calvillo, L.; García, G.; Paduano, A.; Guillen-Villafuerte, O.; Valero-Vidal, C.; Vittadini, A.; Bellini, M.;
Lavacchi, A.; Agnoli, S.; Martucci, A.; et al. Electrochemical Behavior of TiOxCy as Catalyst Support
for Direct Ethanol Fuel Cells at Intermediate Temperature: From Planar Systems to Powders. ACS Appl.
Mater. Interfaces 2016, 8, 716–725. [CrossRef] [PubMed]
9.
Roca-Ayats, M.; García, G.; Soler-Vicedo, M.; Pastor, E.; Lázaro, M.J.; Martínez-Huerta, M.V. The role of Sn,
Ru and Ir. on the ethanol electrooxidation on Pt3M/TiCN electrocatalysts. Int. J. Hydrogen Energ. 2015, 40,
14519–14528. [CrossRef]
10. Asgardi, J.; Calderón, J.C.; Alcaide, F.; Querejeta, A.; Calvillo, L.; Lázaro, M.J.; García, G.; Pastor, E. Carbon
monoxide and ethanol oxidation on PtSn supported catalysts: Effect of the nature of the carbon support and
Pt: Sn composition. Appl. Catal. B Environ. 2015, 168, 33–41. [CrossRef]
11. Flórez-Montaño, J.; García, G.; Rodríguez, J.L.; Pastor, E.; Cappellari, P.; Planes, G.A. On the design of Pt
based catalysts. Combining porous architecture with surface modification by Sn for electrocatalytic activity
enhancement. J. Power Sources 2015, 282, 34–44. [CrossRef]
12. Zhou, W.J.; Song, S.Q.; Li, W.Z.; Zhou, Z.H.; Sun, G.Q.; Xin, Q.; Douvartzides, S.; Tsiakaras, P. Direct ethanol
fuel cells based on PtSn anodes: The effect of Sn content on the fuel cell performance. J. Power Sources 2005,
140, 50–58. [CrossRef]
13. Tsiakaras, P.E. PtM/C (M = Sn, Ru, Pd, W) based anode direct ethanol–PEMFCs: Structural characteristics
and cell performance. J. Power Sources 2007, 171, 107–112. [CrossRef]

Molecules 2016, 21, 1225
11 of 12
14. Kim, J.H.; Choi, S.M.; Nam, S.H.; Seo, M.H.; Choi, S.H.; Kim, W.B. Influence of Sn content on PtSn/C catalysts
for electrooxidation of C1–C3 alcohols: Synthesis, characterization, and electrocatalytic activity. App. Catal.
B Environ. 2008, 82, 89–102. [CrossRef]
15. Antolini, E. Catalysts for direct ethanol fuel cells. J. Power Sources 2007, 170, 1–12. [CrossRef]
16. García, G.; Silva-Chong, J.; Rodríguez, J.L.; Pastor, E. Spectroscopic elucidation of reaction pathways of
acetaldehyde on platinum and palladium in acidic media. J. Solid State Electrochem. 2014, 18, 1205–1213.
[CrossRef]
17. García, G.; Tsiouvaras, N.; Pastor, E.; Peña, M.A.; Fierro, J.L.G.; Martínez-Huerta, M.V. Ethanol oxidation
on PtRuMo/C catalysts: In situ FTIR spectroscopy and DEMS studies. Int. J. Hydrogen Energy 2012, 37,
7131–7140. [CrossRef]
18. García, G.; Bruno, M.M.; Planes, G.A.; Rodriguez, J.L.; Barbero, C.A.; Pastor, E. Probe beam deflection studies
of nanostructured catalyst materials for fuel cells. Phys. Chem. Chem. Phys. 2008, 10, 6677–6685. [CrossRef]
[PubMed]
19. Godoi, D.R.; Villullas, H.M.; Zhu, F.C.; Jiang, Y.X.; Sun, S.G.; Guo, J.; Chen, R. A comparative investigation
of metal-support interactions on the catalytic activity of Pt nanoparticles for ethanol oxidation in alkaline
medium. J. Power Sources 2016, 311, 81–90. [CrossRef]
20. Busó-Rogero, C.; Brimaud, S.; Solla-Gullon, J.; Vidal-Iglesias, F.J.; Herrero, E.; Behm, R.J.; Feliu, J.M. Ethanol
oxidation on shape-controlled platinum nanoparticles at different pHs: A combined in situ IR spectroscopy
and online mass spectrometry study. J. Electroanal. Chem. 2016, 763, 116–124. [CrossRef]
21. Busó-Rogero, C.; Solla-Gullón, J.; Vidal-Iglesias, F.J.; Herrero, E.; Feliu, J.M. Adatom modified
shape-controlled platinum nanoparticles towards ethanol oxidation. Electrochim. Acta 2016, 196, 270–279.
[CrossRef]
22. De Souza, J.; Queiroz, S.L.; Bergamaski, K.; Gonzalez, E.R.; Nart, F.C. Electro-oxidation of ethanol on Pt,
Rh, and PtRh electrodes. A study using DEMS and in-situ FTIR techniques. J. Phys. Chem. B 2002, 106,
9825–9830.
23. Iwasita, T.; Pastor, E. D/H exchange of ethanol at platinum electrodes. Electrochim. Acta 1994, 39, 547–551.
24. Rizo, R.; Sebastián, D.; Lázaro, M.J.; Pastor, E. On the design of Pt-Sn efficient catalyst for carbon monoxide
and ethanol oxidation in acid and alkaline media. Appl. Catal. B 2017, 200, 246–254. [CrossRef]
25. Akhairi, M.A.F.; Kamarudin, S.K. Catalysts in direct ethanol fuel cell (DEFC): An overview.
Int. J. Hydrogen Energy 2016, 41, 4214–4228. [CrossRef]
26. Soares, L.A.; Morais, C.; Napporn, T.W.; Kokoh, K.B.; Olivi, P. Beneficial effects of rhodium and tin oxide
on carbon supported platinum catalysts for ethanol electrooxidation. J. Power Sources 2016, 315, 47–55.
[CrossRef]
27. Wu, F.; Zhang, D.; Peng, M.; Yu, Z.; Wang, X.; Guo, G.; Sun, Y. Microfluidic Synthesis Enables Dense and
Uniform Loading of Surfactant-Free PtSn Nanocrystals on Carbon Supports for Enhanced Ethanol Oxidation.
Angew. Chem. Int. Ed. 2016, 55, 4952–4956. [CrossRef] [PubMed]
28. Colmati, F.; Antolini, E.; Gonzalez, E.R. Effect of temperature on the mechanism of ethanol oxidation on
carbon supported Pt, PtRu and Pt3Sn electrocatalysts. J. Power Sources 2006, 157, 98–103. [CrossRef]
29. Wang, H.; Jusys, Z.; Behm, R.J. Ethanol electro-oxidation on carbon-supported Pt, PtRu and Pt3Sn catalysts:
A quantitative DEMS study. J. Power Sources 2006, 154, 351–359. [CrossRef]
30. Zhou, W.P.; Axnanda, S.; White, M.G.; Adzic, R.R.; Hrbek, J. Enhancement in ethanol electrooxidation by
SnOx nanoislands grown on Pt (111): Effect of metal oxide–metal interface sites. J. Phys. Chem. C 2011, 115,
16467–16473. [CrossRef]
31. Zhou, W.; Zhou, Z.; Song, S.; Li, W.; Sun, G.; Tsiakaras, P.; Xin, Q. Pt based anode catalysts for direct ethanol
fuel cells. Appl. Catal. B 2003, 46, 273–285. [CrossRef]
32. Antolini, E.; Gonzalez, E.R. Effect of synthesis method and structural characteristics of Pt–Sn fuel cell
catalysts on the electro-oxidation of CH3OH and CH3CH2OH in acid medium. Catal. Today 2011, 160, 28–38.
[CrossRef]
33. Vigier, F.; Coutanceau, C.; Hahn, F.; Belgsir, E.M.; Lamy, C. On the mechanism of ethanol electro-oxidation
on Pt and PtSn catalysts: electrochemical and in situ IR reflectance spectroscopy studies. J. Electroanal. Chem.
2004, 563, 81–94. [CrossRef]
34. Garcia, G.; Silva-Chong, J.; Guillen-Villafuerte, O.; Rodriguez, J.L.; Gonzalez, E.; Pastor, E. CO tolerant
catalysts for PEM fuel cells: Spectroelectrochemical studies. Catal. Today 2006, 116, 415–421. [CrossRef]

Molecules 2016, 21, 1225
12 of 12
35. Roca-Ayats, M.; García, G.; Galante, J.L.; Peña, M.A.; Martínez-Huerta, M.V. TiC, TiCN, and TiN supported
Pt electrocatalysts for CO and methanol oxidation in acidic and alkaline media. J. Phys. Chem. C 2013, 117,
20769–20777. [CrossRef]
36. Roca-Ayats, M.; García, G.; Peña, M.A.; Martinez-Huerta, M.V. Titanium carbide and carbonitride
electrocatalyst supports: Modifying Pt–Ti interface properties by electrochemical potential cycling. J. Mater.
Chem. A 2014, 2, 18786–18790. [CrossRef]
37. Iwasita, T.; Rasch, B.; Cattaneo, E.; Vielstich, W. A SNIFTIRS study of ethanol oxidation on platinum.
Electrochim. Acta 1989, 34, 1073–1079. [CrossRef]
38. Wang, Q.; Sun, G.Q.; Jiang, L.H.; Xin, Q.; Sun, S.G.; Jiang, Y.X.; Chen, S.P.; Jusys, Z.; Behm, R.J. Adsorption
and oxidation of ethanol on colloid-based Pt/C, PtRu/C and Pt3Sn/C catalysts: In situ FTIR spectroscopy
and on-line DEMS studies. Phys. Chem. Chem. Phys. 2007, 9, 2686–2696. [CrossRef] [PubMed]
39. Iwasita, T.; Nart, F.C. In situ infrared spectroscopy at electrochemical interfaces. Prog. Surf. Sci. 1997, 55,
271–340. [CrossRef]
40. Iwasita, T.; Pastor, E. A DEMS and FTIR spectroscopic investigation of adsorbed ethanol on polycrystalline
platinum. Electrochim. Acta 1994, 39, 531–537. [CrossRef]
41. Liang, Z.; Chen, W.; Liu, J.; Wang, S.; Zhou, Z.; Li, W.; Sun, G.; Xin, Q. FT-IR study of the microstructure of
Nafion® membrane. J. Membr. Sci. 2004, 233, 39–44. [CrossRef]
42. Gonzalez, E.R.; Ticianelli, E.A.; Pinheiro, A.L.N.; Perez, J. Braz. Patent INPl-SP no. 0032l, 1997.
43. García, G.; Rodríguez, J.L.; Lacconi, G.I.; Pastor, E. Adsorption and oxidation pathways of thiourea at
polycrystalline platinum electrodes. J. Electroanal. Chem. 2006, 588, 169–178. [CrossRef]
Sample Availability: Samples of the compounds are available from the authors.
©
2016 by the authors; licensee MDPI, Basel, Switzerland. This article is an open access
article distributed under the terms and conditions of the Creative Commons Attribution
(CC-BY) license (http://creativecommons.org/licenses/by/4.0/).
